PERIODIC MAINTENANCE

74

LV Operation Manual

Perform the following maintenance after the initial
50 hours of operation.

• Replace Engine Oil

• Clean / Inspect Engine Oil Filter

Replace Engine Oil

After Initial 50 Hours of Operation

A

 WARNING

BURN HAZARD!

• If you must drain the engine oil while it

is still hot, stay clear of the hot engine
oil to avoid being scalded. Make sure
you wear eye protection.

• Failure to comply could result in death

or serious injury.

0000011en

A

 WARNING

SUDDEN MOVEMENT HAZARD!

• Allow the engine to warm up for at

least 5 minutes to allow the engine idle
speed to return to normal before
engaging the transmission or any PTO
attachments. Engaging the
transmission or PTO at an elevated
engine speed could result in an
unexpected movement of the
equipment.

• Failure to comply could result in death

or serious injury.

0000006en

CAUTION

Be environmentally responsible. Follow
these procedures for hazardous waste
disposal. Failure to follow these
procedures may seriously harm the
environment.

• Follow the guidelines of the EPA or

other governmental agency for the
proper disposal of hazardous
materials such as engine oil, diesel
fuel and engine coolant. Consult the
local authorities or reclamation facility.

• NEVER dispose of hazardous

materials irresponsibly by dumping
them into a sewer, on the ground or
into ground water or waterways.

0000013en

CAUTION

• Only use the engine oil specified.

Other engine oils may affect warranty
coverage, cause internal engine
components to seize, or shorten
engine life.

• Prevent dirt and debris from

contaminating the engine oil. Carefully
clean the oil cap / dipstick and the
surrounding area before you remove
the cap.

• NEVER mix different types of engine

oil. This may adversely affect the
lubricating properties of the engine oil.

• NEVER overfill. Overfilling may result

in white exhaust smoke, engine
overspeed or internal damage.

0000005en

PERIODIC MAINTENANCE

LV Operation Manual

75

The engine oil on a new engine becomes
contaminated from the initial break-in of internal
parts. The initial 50 hour oil change and filter
cleaning is very important.

Drain the engine oil as follows:

1. Make sure the engine is level.

2. Start the engine and bring it up to operating

temperature.

3. Stop the engine.

4. Remove the oil cap / dipstick (Figure 3, (1)) to

allow the engine oil to drain more easily.

Figure 3

5. Position a container under the engine to

collect waste oil.

6. Remove the drain plug located on the bottom

of the cylinder block (Figure 3, (2)). Allow oil
to drain.

7. After all oil has been drained from the engine,

install the drain plug (Figure 3, (2)) and
tighten to 14-17 ft lbs (19.6-23.5 N•m, 2.0-2.4
kgf•m).

8. Dispose of used oil properly.

Clean / Inspect Engine Oil Filter

Figure 4

Clean / inspect the engine oil filter as follows:

1. Remove the oil filter retaining bolt

(Figure 4, (1)).

2. Pull the oil filter cap (Figure 4, (2)) out and

remove the oil filter (Figure 4, (3)).

3. Clean the oil filter or replace if damaged.

4. Install the oil filter (Figure 4, (3)).

5. Make sure the oil filter cap is fully seated

(Figure 4, (2)).

6. Install and tighten the oil filter retaining bolt

(Figure 4, (1)).

7. Add new engine oil to the engine as specified

in Adding Engine Oil on page 33.

8. Warm up the engine by running it for 5

minutes and check for any engine oil leaks.

9. After engine is warm, shut it off and let it sit for

10 minutes.

(1)

(2)

0001119B

(1)

(2)

0001566B

Applicable Engine Oil Filter Part No.

L48V, L70V and L100V

114250-35070

CAUTION

• NEVER overfill the engine with engine

oil.

• ALWAYS keep the oil level between the

upper and lower lines on the oil
cap / dipstick.

0000015en

(3)

(2) (1)

0001123A

PERIODIC MAINTENANCE

76

LV Operation Manual

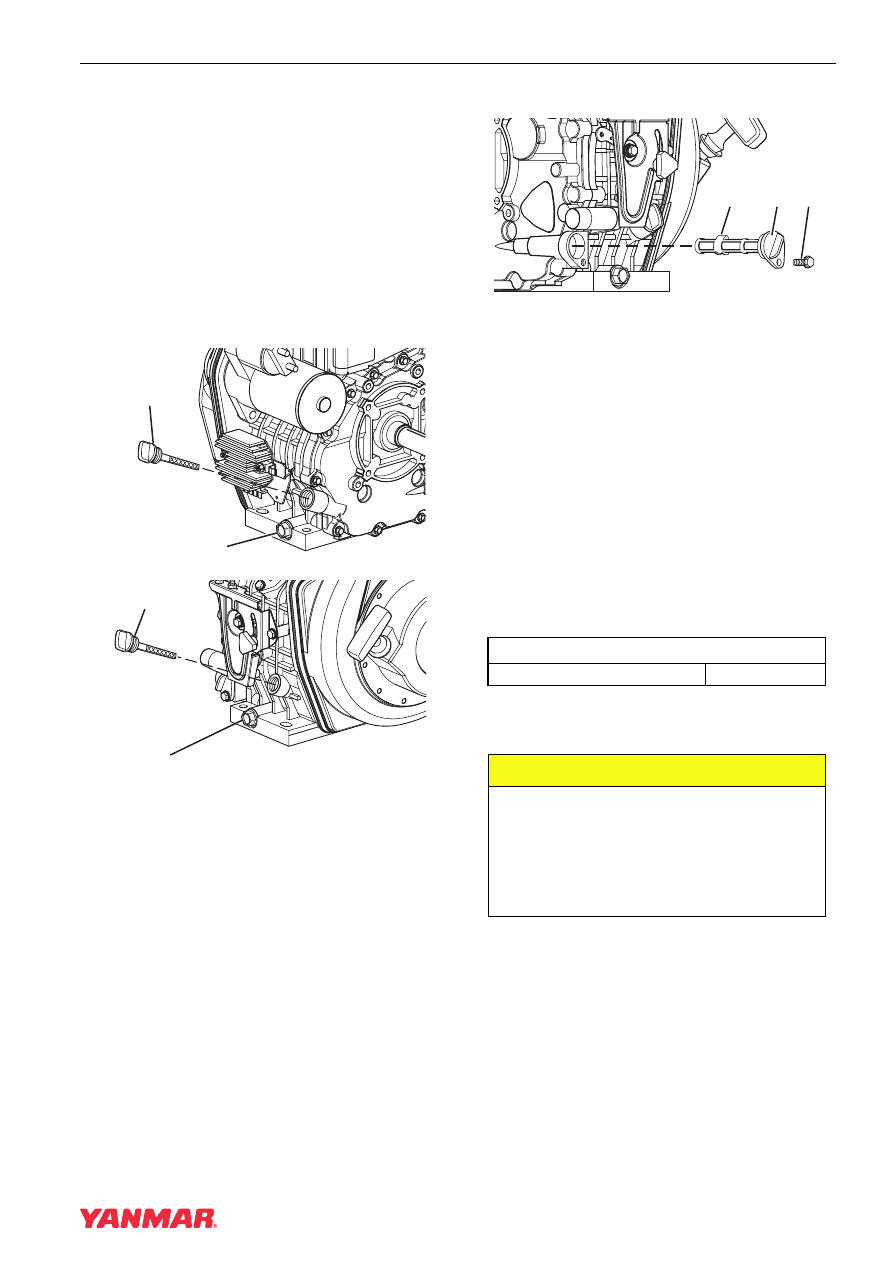

Figure 5

10. Recheck the engine oil level by fully inserting,

but not screwing in, the dipstick.

11. Add engine oil (Figure 5, (4)) as needed until

the level is between the upper (Figure 5, (2))
and lower lines (Figure 5, (3)) on the oil cap /
dipstick (Figure 5, (1)).

12. Replace the oil cap / dipstick (Figure 5, (1))

and tighten by hand. Over-tightening may
damage the cap. If any engine oil is spilled,
wipe it away with a clean cloth.

Perform the following maintenance every 50
hours of operation.

• Clean Inlet Fuel Screen

Clean Inlet Fuel Screen

1. Clean the area around the fuel cap

(Figure 6, (1)).

2. Remove the fuel cap (Figure 6, (1)) from the

fuel tank (Figure 6, (2)).

(1)

(2)

(3)

(4)

0001119A

(1)

0001566A

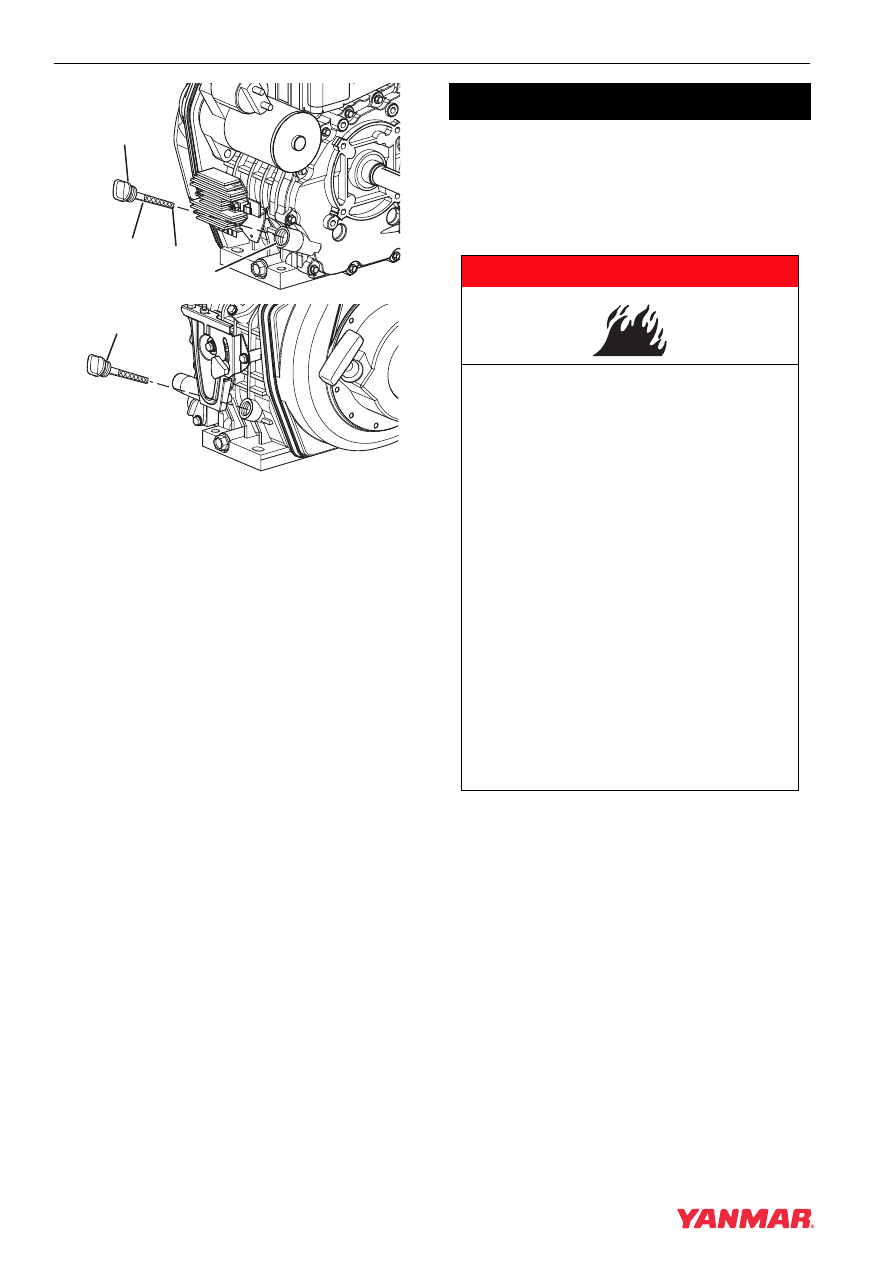

Every 50 Hours of Operation

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• When you remove any fuel system

component to perform maintenance
(such as changing the fuel filter) place
an approved container under the
opening to catch the fuel.

• NEVER use a shop rag to catch the

fuel. Vapors from the rag are extremely
flammable and explosive.

• Wipe up any spills immediately.

• Wear eye protection. The fuel system

is under pressure and fuel could spray
out when you remove any fuel system
component.

• Failure to comply will result in death or

serious injury.

0000009en

PERIODIC MAINTENANCE

LV Operation Manual

77

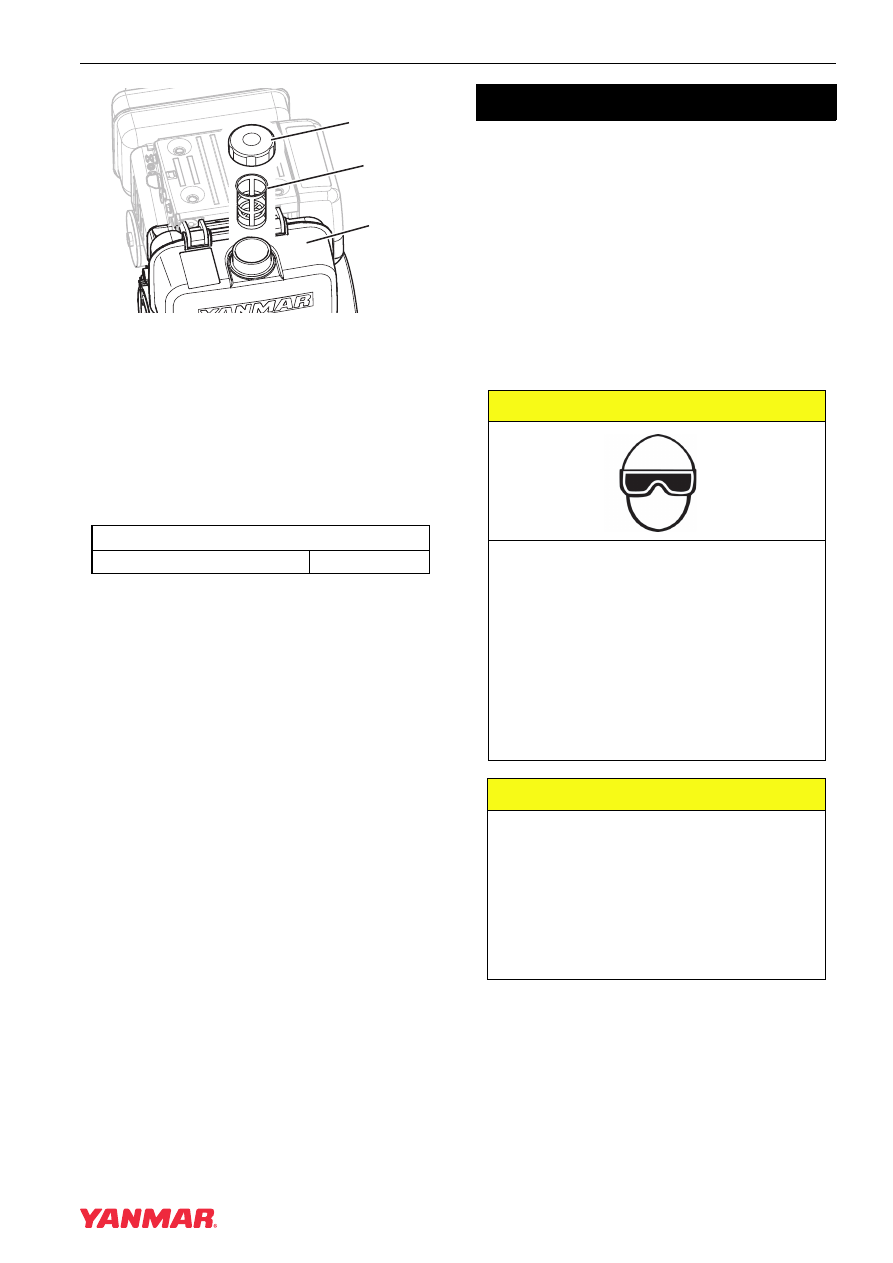

Figure 6

3. Lift out the inlet fuel screen (Figure 6, (3)).

4. Clean the inlet fuel screen or replace if

damaged.

5. Install the inlet fuel screen (Figure 6, (3)).

6. Replace the fuel cap (Figure 6, (1)) and hand

tighten. Overtightening the fuel cap will
damage it.

Perform the following maintenance every 200
hours of operation.

• Clean Air Cleaner Element

• Replace Engine Oil and Clean / Inspect

Engine Oil Filter

• Check Engine Speed Control

• Drain the Fuel Tank and Replace Outlet Fuel

Filter

Clean Air Cleaner Element

Applicable Inlet Fuel Screen Part No.

L48V, L70V and L100V

114250-55100

0001552A

(1)

(3)

(2)

Every 200 Hours of Operation

A

 CAUTION

FLYING OBJECT HAZARD!

• ALWAYS wear eye protection when

servicing the engine and when using
compressed air or high-pressure
water. Dust, flying debris, compressed
air, pressurized water or steam may
injure your eyes.

• Failure to comply may result in minor

or moderate injury.

0000003en

CAUTION

• When the engine is operated in dusty

conditions, clean the air cleaner
element more frequently.

• NEVER operate the engine with the air

cleaner or element(s) removed.  This
may cause foreign material to enter the
engine and damage it.

0000026en
