Yanmar engines LV series (L48V, L70V, L100V). Manual - part 20

PERIODIC MAINTENANCE

66

LV Operation Manual

: Check



: Replace



: Contact your authorized Yanmar industrial engine dealer or distributor for these maintenance services.

System

Check Item

Daily

Periodic Maintenance Interval

Every 50

hours

Every 200

hours

Every 400

hours

Every

1000

hours

Every

1500

hours

Every

2000

hours

Air Intake

Clean or Replace Air
Cleaner Element - May
Need More Frequent
Service in Dusty Conditions

Cylinder Head

Adjust Intake / Exhaust
Valve Clearance

Check Compression

Electrical
Equipment

Check Battery & Add Water
as Necessary

before

operation

Check Battery Indicator (If
Equipped) and Other Driven
Machine Indicators (If
Equipped)

when

engine is

started

Emission Control
Warranty

Inspect, Clean & Test Fuel
Injection Nozzle

Engine Oil

Check Engine Oil Level &
Add Engine Oil As
Necessary

before

operation

Drain and Refill Engine Oil

1st time

2nd & after

Clean Engine Oil Filter -
Replace If Damaged

2nd & after

Check for Engine Oil
Leakage

before &

after

operation

Engine Speed
Control

Check for Proper Operation
Verify Adjustment

1st time

2nd & after

Exhaust System

Check Spark Arrestor for
Clogging

before

operation

Fuel

Check Fuel Tank Level &
Add Fuel As Necessary

before

operation

Drain & Clean Fuel Tank



Clean Inlet Fuel Screen



Replace Outlet Fuel Filter



Check for Fuel Leakage

before &

after

operation

Hoses

Replace Fuel System
Hose(s)



or every 2

yrs.

whichever

comes first

PERIODIC MAINTENANCE

LV Operation Manual

67

PERIODIC MAINTENANCE
PROCEDURES

Perform the following maintenance daily before
operation.

• Check Battery (If Equipped)

• Check Battery Indicator (If Equipped)

• Check Engine Oil Level

• Check For Engine Oil Leakage

• Check Engine Speed Control (First Time

Only)

• Check Spark Arrestor (If Equipped)

• Check Fuel Level

• Check For Fuel Leakage

Check Battery (If Equipped)

Daily, Before Operation

A

 DANGER

EXPLOSION HAZARD!

• NEVER check the remaining battery

charge by shorting out the terminals.
This will result in a spark and may
cause an explosion or fire. Use a
hydrometer to check the remaining
battery charge.

• If the electrolyte is frozen, slowly warm

the battery before you recharge it.

• Failure to comply will result in death or

serious injury.

0000007en

A

 WARNING

BURN HAZARD!

• Batteries contain sulfuric acid. NEVER

allow battery fluid to come in contact
with clothing, skin or eyes. Severe
burns could result. ALWAYS wear
safety goggles and protective clothing
when servicing the battery. If contact
with the skin and / or eyes should
occur, flush with a large amount of
water and obtain prompt medical
treatment.

• Failure to comply could result in death

or serious injury.

0000007en

CAUTION

Be environmentally responsible. Follow
these procedures for hazardous waste
disposal. Failure to follow these
procedures may seriously harm the
environment.

• Follow the guidelines of the EPA or

other governmental agency for the
proper disposal of hazardous
materials such as engine oil, diesel
fuel and engine coolant. Consult the
local authorities or reclamation facility.

• NEVER dispose of hazardous

materials irresponsibly by dumping
them into a sewer, on the ground or
into ground water or waterways.

0000013en

PERIODIC MAINTENANCE

68

LV Operation Manual

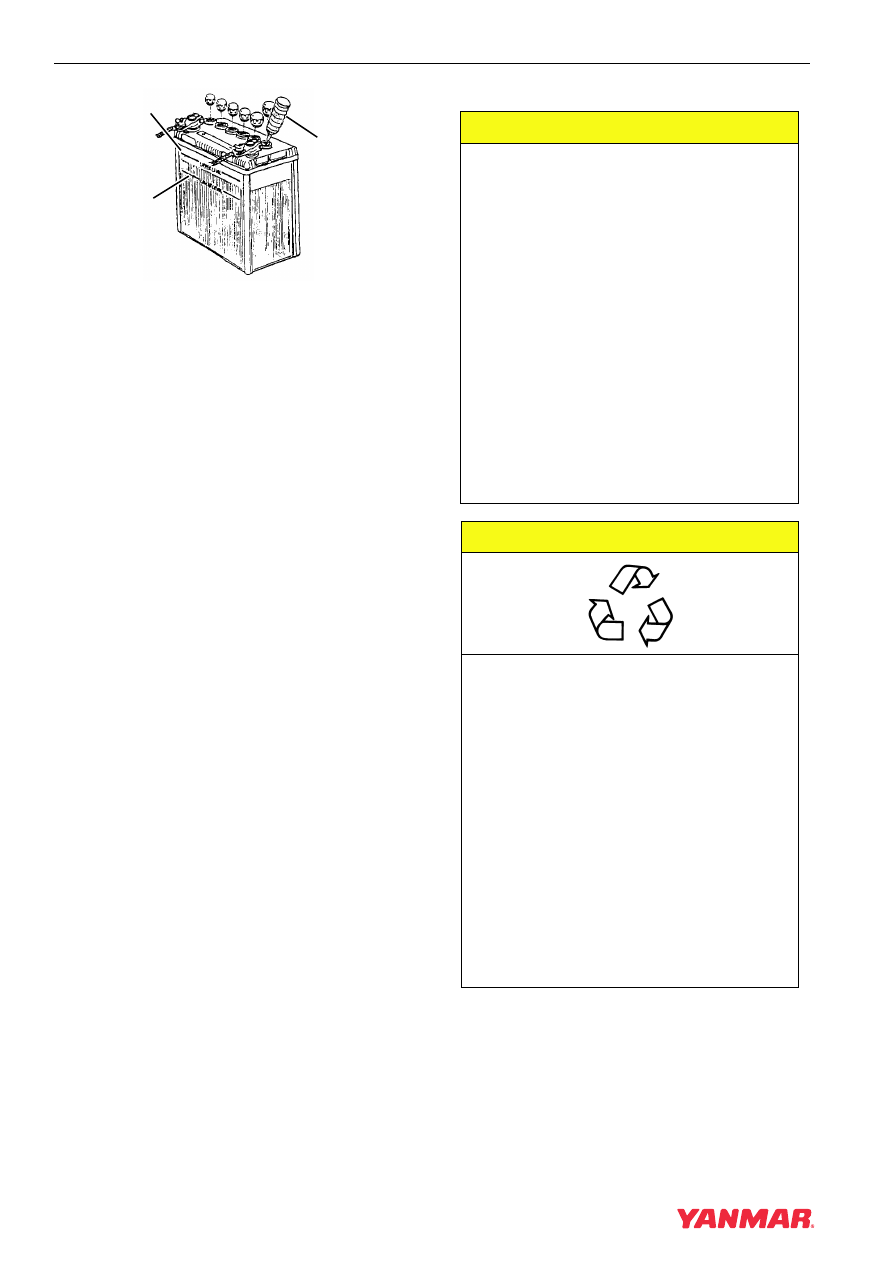

Figure 1

• When the amount of fluid nears the lower limit

(Figure 1, (1)), fill with distilled water
(Figure 1, (2)) so it is at the upper limit
(Figure 1, (3)). If operation continues with
insufficient battery fluid, the battery life is
shortened, and the battery may overheat and
explode. During the summer, check the fluid
level more often than specified.

• If the engine cranking speed is so slow that

the engine does not start, recharge the
battery.

• If the engine still will not start after charging,

have your authorized Yanmar industrial
engine dealer or distributor check the battery
and the engine’s starting system.

If operating the machine where the ambient
temperature could drop to 14°F (-10°C) or less,
remove the battery from the machine at the end
of the day. Store the battery in a warm place until
the next use. This will help start the engine easily
at low ambient temperatures.

Check Battery Indicator (If
Equipped)

Visually check the battery indicator (if equipped)
and any other indicator provided by the driven
machine manufacturer. See Indicators and
Controls – Electric Starter on page 21.

Check Engine Oil Level

Before you operate the engine check the engine
oil level. See Checking Engine Oil on page 33.

0000067A

(3)

(1)

(2)

CAUTION

• Only use the engine oil specified.

Other engine oils may affect warranty
coverage, cause internal engine
components to seize, or shorten
engine life.

• Prevent dirt and debris from

contaminating the engine oil. Carefully
clean the oil cap / dipstick and the
surrounding area before you remove
the cap.

• NEVER mix different types of engine

oil. This may adversely affect the
lubricating properties of the engine oil.

• NEVER overfill. Overfilling may result

in white exhaust smoke, engine
overspeed or internal damage.

0000005en

CAUTION

Be environmentally responsible. Follow
these procedures for hazardous waste
disposal. Failure to follow these
procedures may seriously harm the
environment.

• Follow the guidelines of the EPA or

other governmental agency for the
proper disposal of hazardous
materials such as engine oil, diesel
fuel and engine coolant. Consult the
local authorities or reclamation facility.

• NEVER dispose of hazardous

materials irresponsibly by dumping
them into a sewer, on the ground or
into ground water or waterways.

0000013en

PERIODIC MAINTENANCE

LV Operation Manual

69

Check For Engine Oil Leakage

Before you operate the engine check for any engine
oil leaks. If you discover an engine oil leak see your
authorized Yanmar industrial engine dealer or
distributor to repair the engine.

Check Engine Speed Control (First
Time Only)

Before you operate the driven machine for the first
time check the engine speed control. See the
instructions for your driven machine for proper
adjustments.

1. Check the engine speed control for smooth

operation and lubricate or clean as necessary.

2. Check engine speed control for proper

adjustments.

Check Spark Arrestor (If Equipped)

A clogged spark arrestor hinders exhaust gas flow
which reduces engine output, increases fuel
consumption, and makes starting difficult. Clean
the spark arrestor regularly.

Clean the spark arrestor (Figure 2, (1)) as follows:

1. Remove the locknut (Figure 2, (2)), end cap

(Figure 2, (3)) and diffuser discs (Figure 2, (4))
from the spark arrestor.

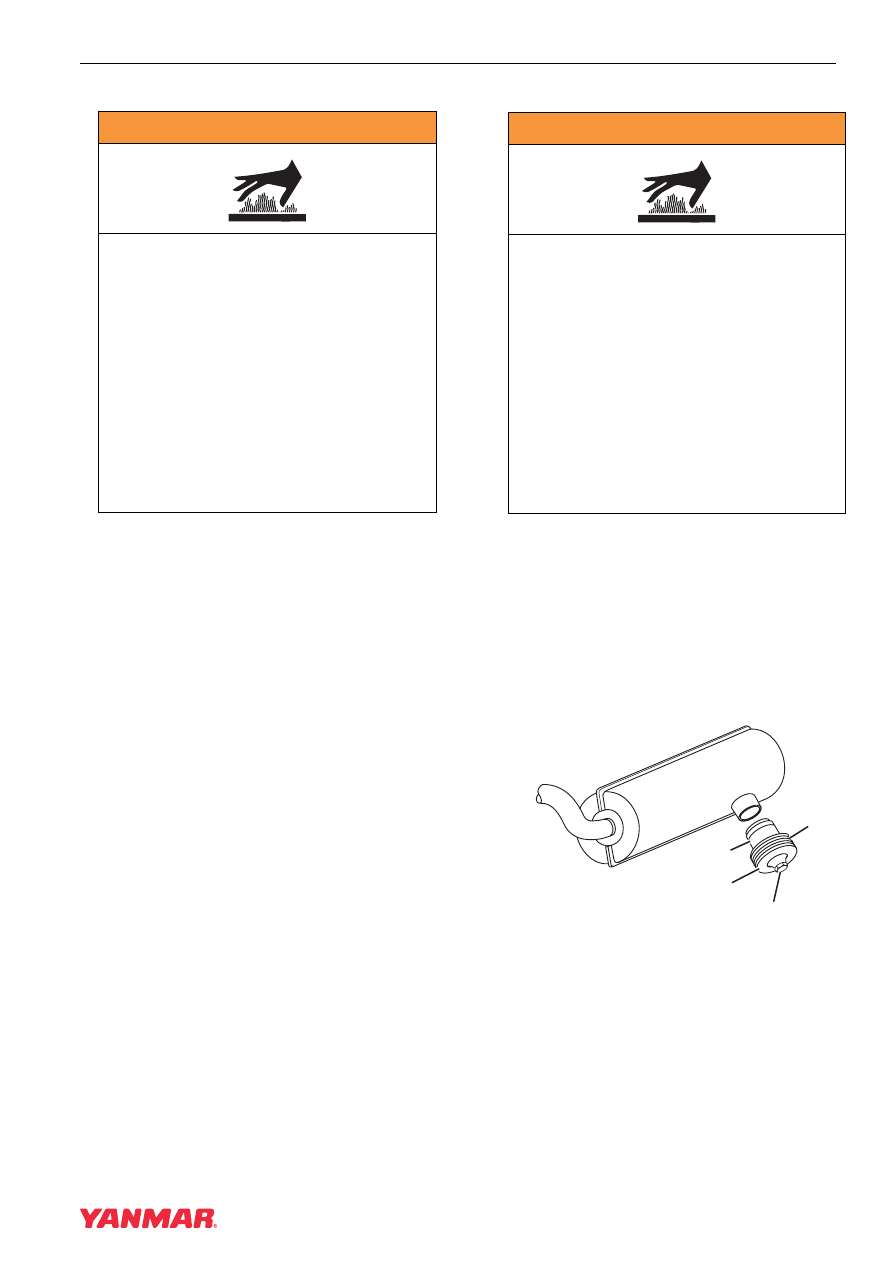

Figure 2

A

 WARNING

BURN HAZARD!

• Keep your hands and other body parts

away from hot engine surfaces such
as the muffler, exhaust pipe,
turbocharger (if equipped) and engine
block during operation and shortly
after you shut the engine down. These
surfaces are extremely hot while the
engine is operating and could
seriously burn you.

• Failure to comply could result in death

or serious injury.

0000015en

A

 WARNING

BURN HAZARD!

• Keep your hands and other body parts

away from hot engine surfaces such
as the muffler, exhaust pipe,
turbocharger (if equipped) and engine
block during operation and shortly
after you shut the engine down. These
surfaces are extremely hot while the
engine is operating and could
seriously burn you.

• Failure to comply could result in death

or serious injury.

0000015en

(1)

(4)

(3)

(2)

0001567A
