BEFORE YOU OPERATE

30

LV Operation Manual

3. High viscosity at low temperatures may result

in fuel delivery problems, injection pump
seizures, and poor injection nozzle spray
atomization.

4. FAME may have adverse effects on some

elastomers (seal materials) and may result in
fuel leakage and dilution of the engine
lubricating oil.

5. Even bio-diesel fuels that comply with a

suitable standard as delivered, will require
additional care and attention to maintain the
quality of the fuel in the equipment or other
fuel tanks. It is important to maintain a supply
of clean, fresh fuel. Regular flushing of the
fuel system, and/or fuel storage containers,
may be necessary.

6. The use of bio-diesel fuels that do not comply

with the standards as agreed to by the diesel
engine manufacturers and the diesel fuel
injection equipment manufacturers, or bio-
diesel fuels that have degraded as per the
precautions and concerns above, may affect
the warranty coverage of your engine. See
Yanmar Limited Warranty on page vii.

Filling the Fuel Tank

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• Only fill the fuel tank with diesel fuel.

Filling the fuel tank with gasoline may
result in a fire.

• NEVER refuel with the engine running.

• Wipe up all spills immediately.

• Keep sparks, open flames or any other

form of ignition (match, cigarette,
static electric source) away when
fueling / refueling.

• NEVER overfill the fuel tank.

• Fill the fuel tank and store fuel in a

well-ventilated area only.

• Failure to comply will result in death or

serious injury.

0000005en

BEFORE YOU OPERATE

LV Operation Manual

31

Note that a typical fuel tank is shown. The fuel
tank on your engine may be different. Also note
that the inlet fuel screen is shown removed
from the fuel tank for clarity. ALWAYS make
sure the inlet fuel screen remains inside of the
fuel tank while fueling!

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• Be sure to place the diesel fuel

container on the ground when
transferring the diesel fuel from the
pump to the container. Hold the hose
nozzle firmly against the side of the
container while filling it. This prevents
static electricity build-up which could
cause sparks and ignite fuel vapors.

• NEVER place diesel fuel or other

flammable material such as oil, hay or
dried grass close to the engine during
engine operation or shortly after shut
down.

• Failure to comply will result in death or

serious injury.

0000014en

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• Before you operate the engine, check

for fuel leaks. Replace rubberized fuel
hoses every two years or every 2000
hours of engine operation, whichever
comes first, even if the engine has
been out of service. Rubberized fuel
lines tend to dry out and become
brittle after two years or 2000 hours of
engine operation, whichever comes
first.

• Failure to comply will result in death or

serious injury.

0000015en

CAUTION

• Only use diesel fuels recommended by

Yanmar for the best engine
performance, to prevent engine
damage and to comply with EPA / ARB
warranty requirements.

• Only use clean diesel fuel.

• NEVER remove inlet fuel screen from

the filler port. If removed, dirt and
debris could get into the fuel system
causing it to clog.

0000004enLV

BEFORE YOU OPERATE

32

LV Operation Manual

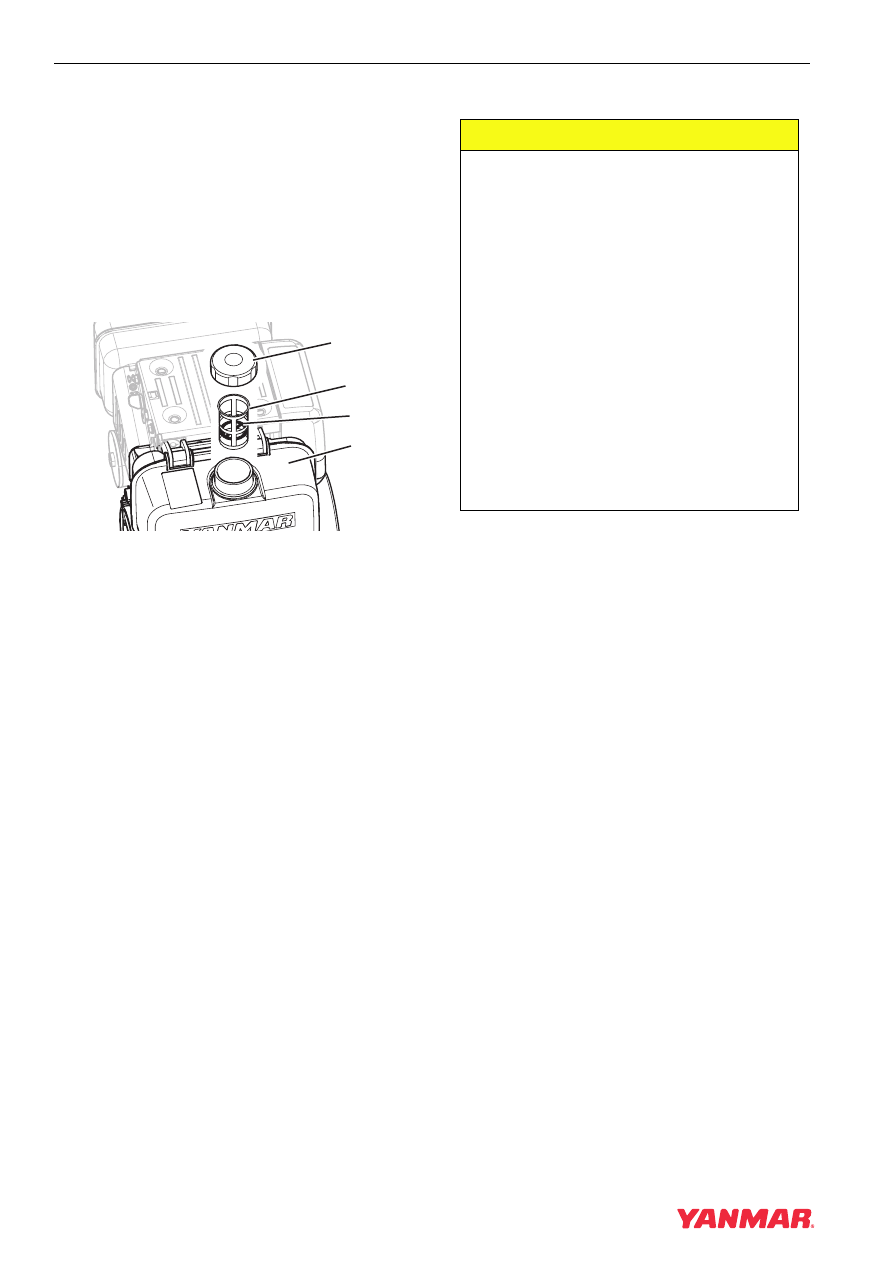

1. Clean the area around the fuel cap

(Figure 1, (1)).

2. Remove the fuel cap (Figure 1, (1)) from the

fuel tank (Figure 1, (3)).

3. Stop fueling when the fuel is at the same level

as the red ring (Figure 1, (4)) at the bottom of
the inlet fuel screen. NEVER overfill the fuel
tank.

4. Replace the fuel cap (Figure 1, (1)) and hand

tighten. Over-tightening the fuel cap will
damage it.

Figure 1

ENGINE OIL

Engine Oil Specifications

Use an engine oil that meets or exceeds the
following guidelines and classifications:

Service Categories

• API Service Categories CD or higher

• ACEA Service Categories E-3, E-4, and E-5

• JASO Service Category DH-1

Definitions

• API Classification (American Petroleum

Institute)

• ACEA Classification (Association des

Constructeurs Européens d’Automobilies)

• JASO (Japanese Automobile Standards

Organization)

Notes:

1. Be sure the engine oil, engine oil storage

containers, and engine oil filling equipment
are free of sediments and water.

0001552B

(1)

(2)

(3)

(4)

CAUTION

• Only use the engine oil specified.

Other engine oils may affect warranty
coverage, cause internal engine
components to seize, or shorten
engine life.

• Prevent dirt and debris from

contaminating the engine oil. Carefully
clean the oil cap / dipstick and the
surrounding area before you remove
the cap.

• NEVER mix different types of engine

oil. This may adversely affect the
lubricating properties of the engine oil.

• NEVER overfill. Overfilling may result

in white exhaust smoke, engine
overspeed or internal damage.

0000005en

BEFORE YOU OPERATE

LV Operation Manual

33

2. Change the engine oil after the first 50 hours

of operation and then at every 200 hours
thereafter.

3. Select the oil viscosity based on the ambient

temperature where the engine is being
operated. See SAE Service Grade Viscosity
Chart (Figure 2).

4. Yanmar does not recommend the use of

engine oil “additives.”

Additional Technical Engine oil
Requirements:

The engine oil must be changed when the Total
Base Number (TBN) has been reduced to 2.0.
TBN (mgKOH/g) test method; JIS K-201-5.2-2
(HCI), ASTM D4739 (HCI)

Engine Oil Viscosity

Select the appropriate engine oil viscosity based
on the ambient temperature and use the SAE
Service Grade Viscosity Chart in Figure 2.

Figure 2

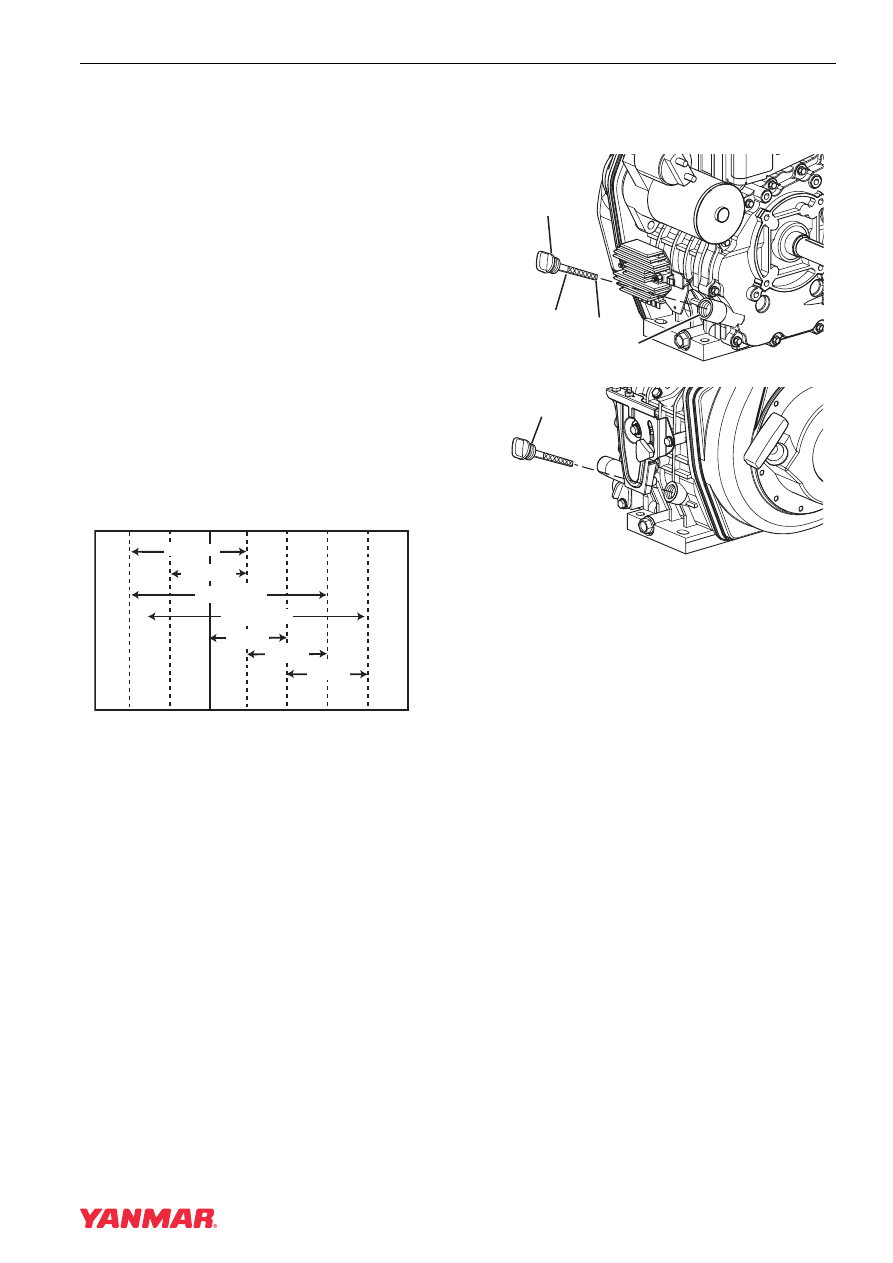

Checking Engine Oil

1. Make sure engine is level.

2. Remove oil cap / dipstick (Figure 3, (1)) from

either location and wipe with clean cloth.

3. Fully reinsert oil cap / dipstick but do not

screw in.

4. Remove oil cap / dipstick. The oil level should

be between upper (Figure 3, (2)) and lower
(Figure 3, (3)) lines on the oil cap / dipstick.

5. Fully reinsert oil cap / dipstick (Figure 3, (1))

and hand tighten. Over-tightening the oil cap /
dipstick will damage it.

Figure 3

Adding Engine Oil

1. Make sure engine is level.

2. Remove oil cap / dipstick (Figure 3, (1)).

3. Add indicated amount of engine oil at either

one of the engine oil filler ports
(Figure 3, (4)).

4. Wait one minute and check oil level.

5. Add more oil if necessary.

6. Fully reinsert oil cap / dipstick (Figure 3, (1))

and hand tighten. Over-tightening the oil cap /
dipstick will damage it.
