PRODUCT OVERVIEW

LV Operation Manual

21

AIR COOLED ENGINE

The LV engine is air-cooled by means of a cooling
fan. The cooling system consists of a fan
attached to the flywheel.

CONTROLS - RECOIL
STARTER

The LV Series engines are equipped with a recoil
or electric starter. This section explains the
controls available with the recoil starter.

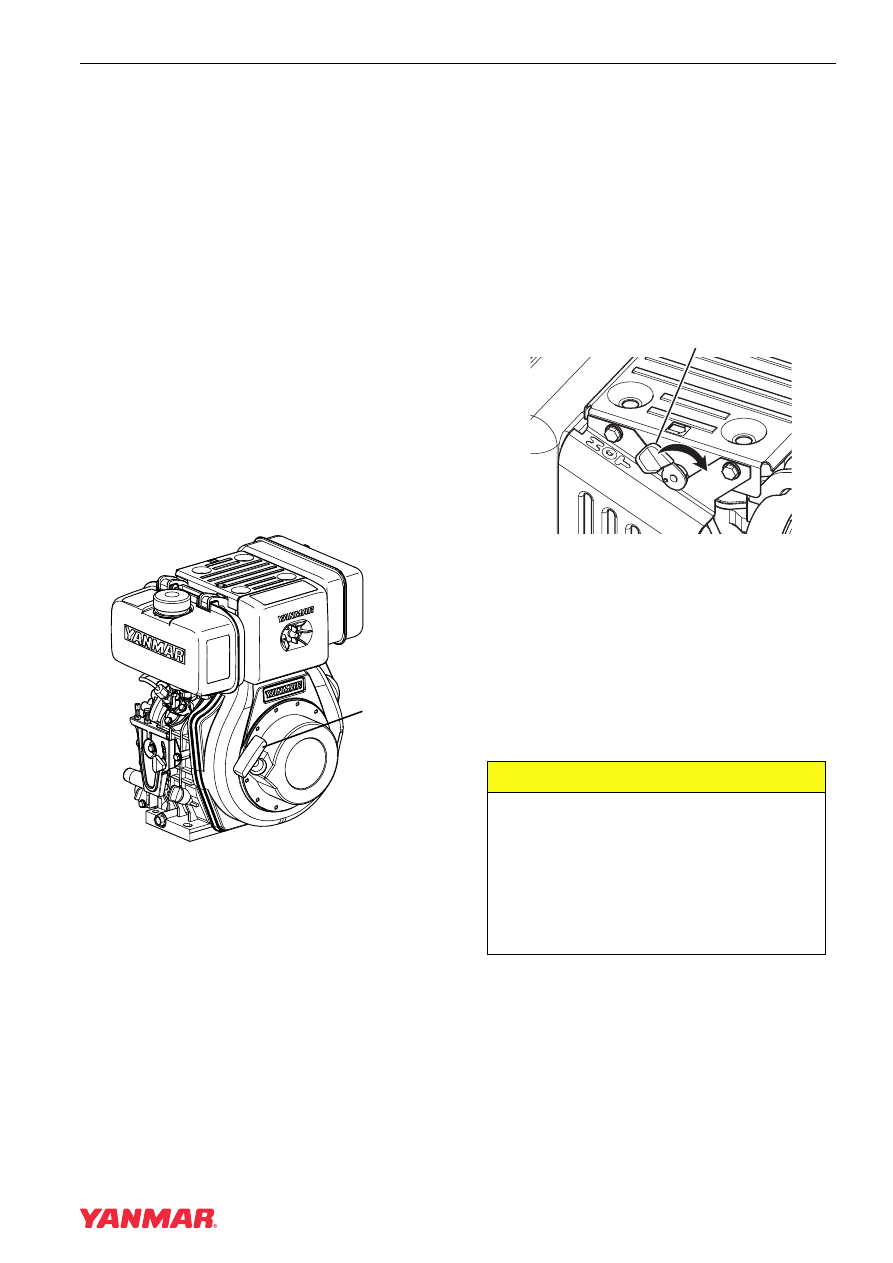

Recoil Starter

A recoil starter allows you to manually start an
engine by pulling on the recoil starter handle
(Figure 3, (1)). When you pull on the handle you
set the flywheel and crankshaft in motion. The
recoil starter is spring loaded so the handle and
attached cable automatically return to the recoil
starter assembly.

Figure 3

Decompression Lever

The decompression lever (Figure 4, (1)) helps
you start the engine by reducing the effort
needed to pull the recoil starter handle. The
decompression lever will automatically return to
the original position when the engine starts.
Some LV model engines have an automatic,
internal compression release mechanism and do
not have the external compression release lever.
Refer to the specific instructions for your driven
machine.

Figure 4

INDICATORS AND CONTROLS
– ELECTRIC STARTER

If an LV series engine is ordered with an electric
starter it will include a key switch and may also
have indicators to monitor engine functions.

(1)

0001126B

CAUTION

The illustrations and descriptions of
optional equipment in this manual, such
as the operator’s console, are for a
typical engine installation. Refer to the
documentation supplied by the optional
equipment manufacturer for specific
operation and maintenance instructions.

0000018en

0001347A

(1)

PRODUCT OVERVIEW

22

LV Operation Manual

Indicators

Battery - (Figure 5, (1)) - Your driven machine
may have a battery indicator that comes on if
there is a problem in the charging system. This
indicator does not indicate whether the battery is
discharged. See Troubleshooting Chart on
page 85.

Heat - If your engine has an inlet air heater, it may
have a heat indicator that lights when the inlet air
heater is activated. Follow the instructions
provided by the driven machine manufacturer for
the operation of this indicator.

Controls

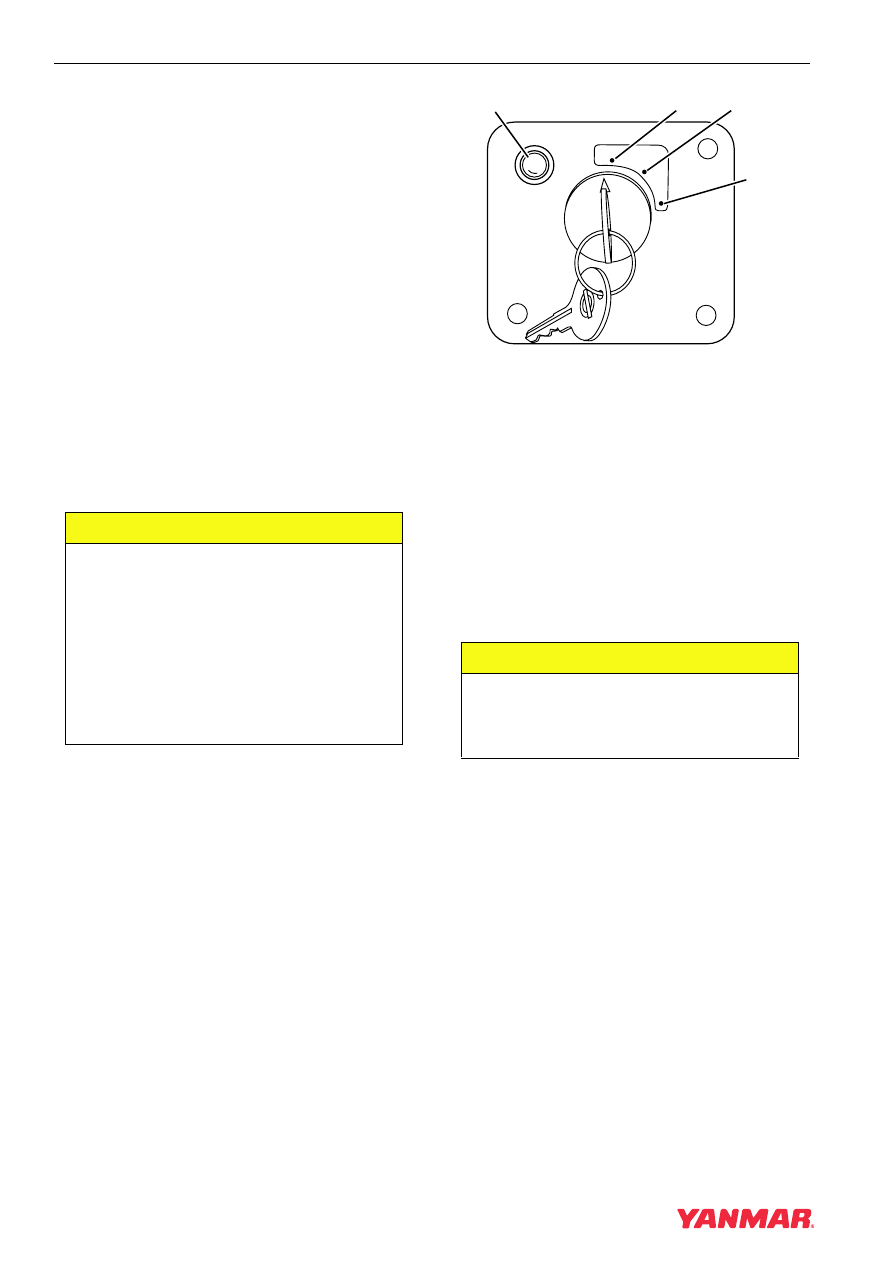

Key Switch

If your engine is equipped with electric start it
may have a three position key switch - OFF, ON,
and START. See Figure 5 for an illustration of a
typical key switch.

Figure 5

OFF (key straight up and down) (Figure 5, (2)) -
When you turn the key to this position the engine
shuts down. Electric current to the battery
indicator and other electric devices is shut off.
You can insert and remove the key in this
position.

ON (Figure 5, (3)) - This is the position the key
will be in when the engine is running. When the
engine is not running, use this position to
energize the optional devices such as indicators
or electric fuel pump.

START (Figure 5, (4)) - Turn the key to this
position to start the engine. As soon as the
engine starts, release the key and it will
automatically return to the ON position. Some key
switches may be equipped with a feature that
prevents you from turning the key to the START
position while the engine is running. In these
configurations, you cannot turn the key to the
START position without first returning the key to
the OFF position.

CAUTION

For maximum engine life, Yanmar



recommends that when shutting the
engine down, you allow the engine to
idle, without load, for 5 minutes. This
will allow the engine components that
operate at high temperatures, such as
the turbocharger (if equipped) and
exhaust system, to cool slightly before
the engine itself is shut down.

0000008en

CAUTION

Only hold the key in the START position
for 15 seconds or the starter motor will
overheat.

0000020en

OFF

ON

S

TA
R

T

0001549A

(1)

(2)

(3)

(4)

PRODUCT OVERVIEW

LV Operation Manual

23

Inlet Air Heater

Some engines may be equipped with an inlet air
heater. Heated inlet air helps the engine to start
easier in cold weather. During the engine starting
sequence the inlet air heater is activated for
several seconds. If the engine is equipped with an
air inlet heater timer, after the heat indicator goes
out, the engine can be started.

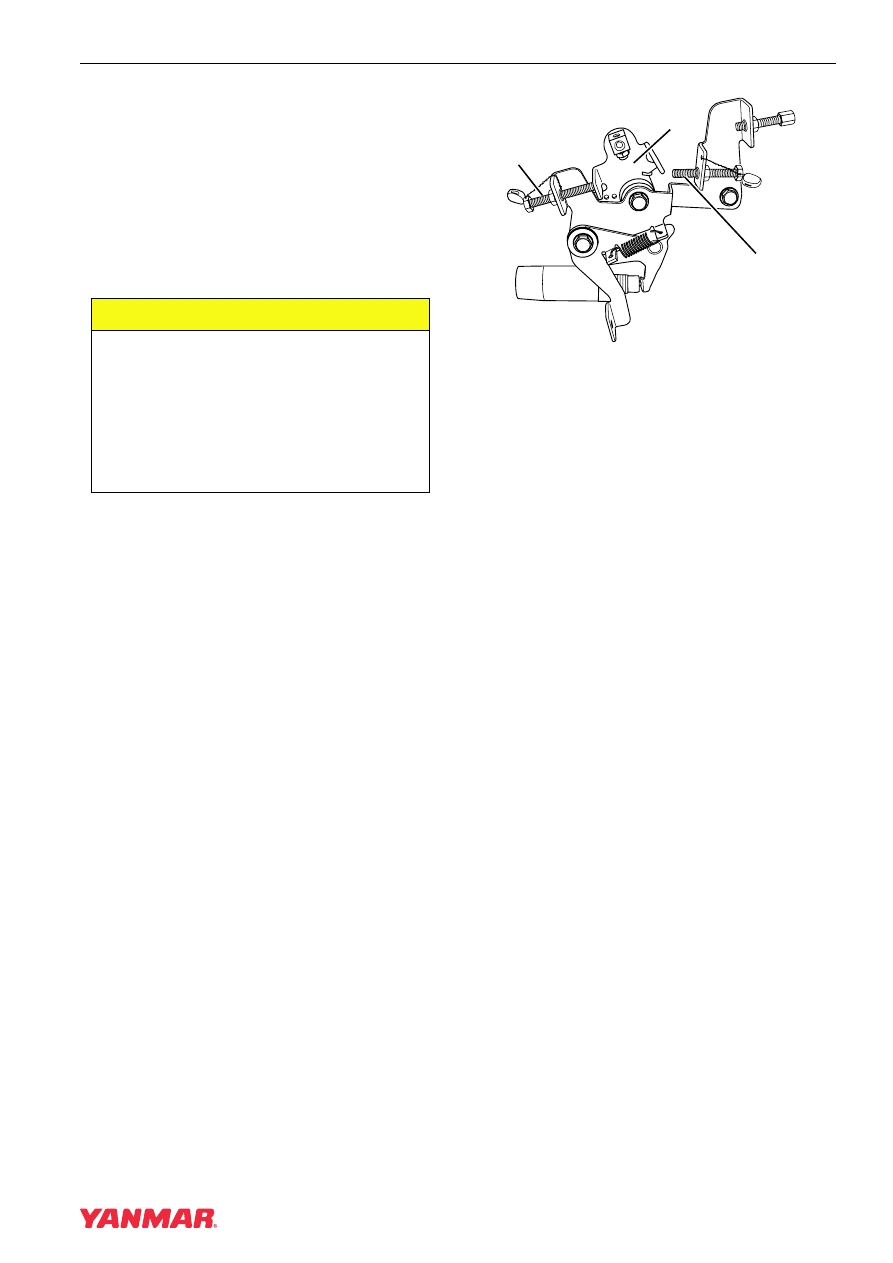

Engine Speed Controls

Several types of engine speed controls are
used in LV engine applications. This
illustration shows a typical example. Refer to
the operating instructions for the driven
machine.

The speed control lever (Figure 6, (1)) controls
the engine speed. The lever could be linked to the
engine speed control device.

The low idle speed limit screw (Figure 6, (2)) sets
engine speed while it is idling.

The high idle speed limit screw (Figure 6, (3))
restricts the maximum engine speed when the
engine is operated without a load.

Figure 6

CAUTION

NEVER attempt to adjust the low or high
idle speed limit screw. This may impair
the safety and performance of the
machine and shorten its life. If
adjustment is ever required, contact
your authorized Yanmar industrial
engine dealer or distributor.

0000045en

0001346A

(2)

(1)

(3)

LV Operation Manual

25

BEFORE YOU

OPERATE

LV Operation Manual

This section of the Operation Manual describes
the diesel fuel and engine oil specifications and
how to replenish them. It also describes the daily
engine checkout.

CAUTION

NEVER permit anyone to operate the
engine or driven machine without proper
training.

• Read and understand this Operation

Manual before you operate the
machine to ensure that you follow safe
operating practices and maintenance
procedures.

• Machine safety signs and labels are

additional reminders for safe operating
and maintenance techniques.

• See your authorized Yanmar industrial

engine dealer or distributor for
additional training.

0000002en

A

 DANGER

FIRE AND EXPLOSION HAZARD!

• Diesel fuel is extremely flammable and

explosive under certain conditions.

• Only fill the fuel tank with diesel fuel.

Filling the fuel tank with gasoline may
result in a fire.

• NEVER refuel with the engine running.

• Wipe up all spills immediately.

• Keep sparks, open flames or any other

form of ignition (match, cigarette,
static electric source) away when
fueling / refueling.

• NEVER overfill the fuel tank.

• Fill the fuel tank and store fuel in a

well-ventilated area only.

• Failure to comply will result in death or

serious injury.

0000005en
