Kawasaki Diesel MULE 4010 TRANS 4x4 (KAF950G9). Manual - part 67

WHEELS/TIRES 11-1

11

Wheels/Tires

Table of Contents

Exploded View........................................................................................................................

11-2

Specifications .........................................................................................................................

11-4

Wheel Alignment ....................................................................................................................

11-5

Toe-in Adjustment .............................................................................................................

11-5

Wheels (Rims) ........................................................................................................................

11-7

Wheel Removal.................................................................................................................

11-7

Wheel Installation..............................................................................................................

11-7

Wheel (Rim) Inspection.....................................................................................................

11-7

Wheel (Rim) Replacement................................................................................................

11-7

Tires .......................................................................................................................................

11-9

Tire Removal.....................................................................................................................

11-9

Tire Installation..................................................................................................................

11-9

Tire Inspection ..................................................................................................................

11-10

11-2 WHEELS/TIRES

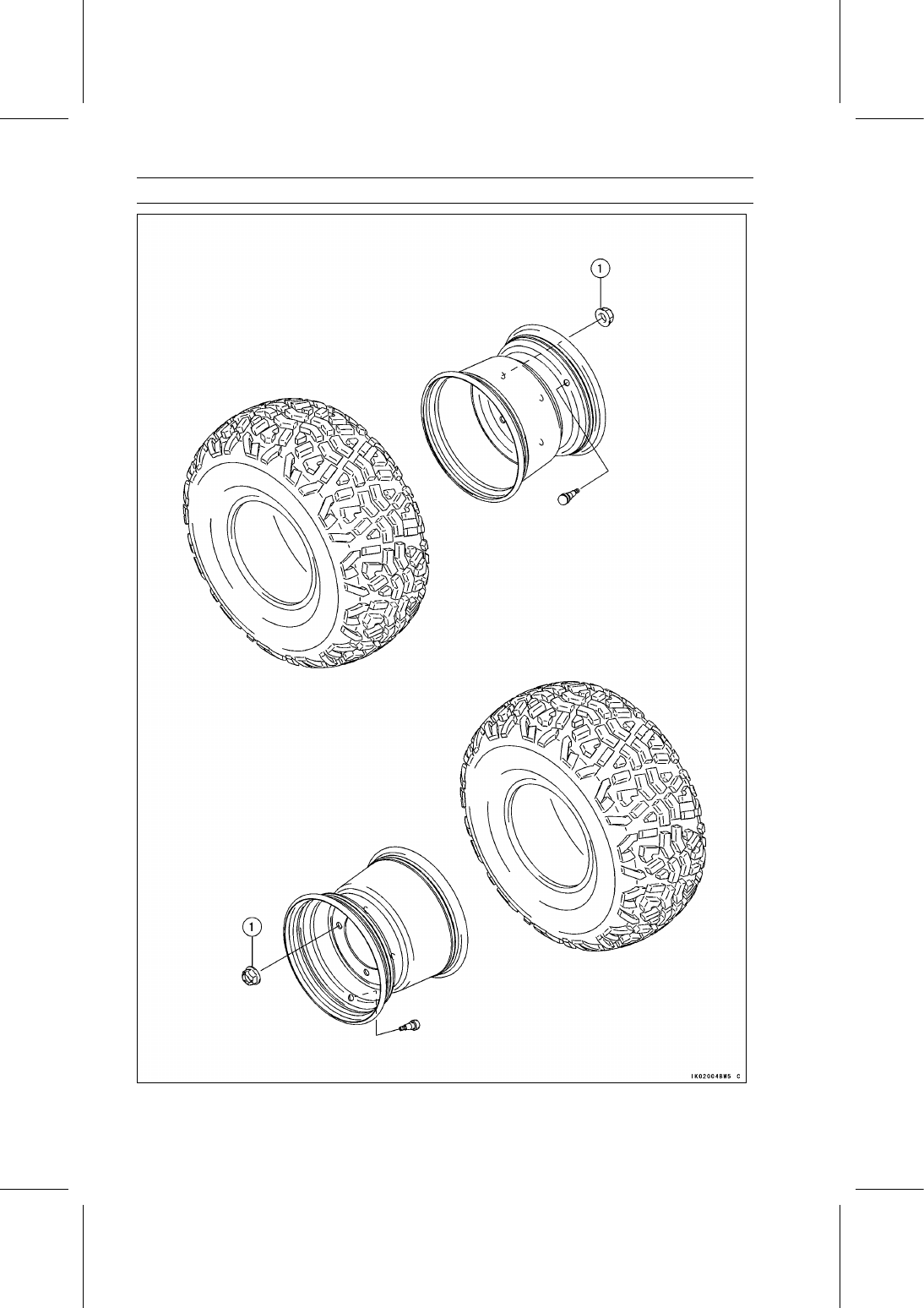

Exploded View

WHEELS/TIRES 11-3

Exploded View

Torque

No.

Fastener

N·m

kgf·m

ft·lb

Remarks

1

Wheel Nuts

137

14.0

101
