User manual

13



malfunction  or  power  distribution  malfunction.
Please  press  down  the  emergency  stop  on  the
control panel, so that to immediately shut down the
generator set. Under normal condition, please do not
use emergency stop to stop the generator set.

3.2.6



Normal stop the generator set

Before  stop  the  generator  set  under  normal
condition, first separate the load from this generator
set,  then  run  the  generator  set  with  no  load  for  a
certain  period  of  time(3  to  5  minutes),  so  that  to
make  sure  the  generator  set  become  fully  cooled,
after  that  the  generator  set  can  be  stopped.  (Please
do not make cooling running under idle speed)
For  some  generator  sets  which  have  been  installed
with  stop  solenoid,  it  is  impossible  to  stop  the
generator  set  by  cutting  off  the  key  switch  on  the
control panel. Correct operation is: to press the stop
button  when  the  power  of  the  control  panel  being
resumed, only in this way you can stop the generator
set.(press  the  stop  button  until  the  generator  set
fully stop running)

3.3



After Running

After  the  generator  set  stop  running,  it  is  necessary
to carry on following jobs:
To  check  if  the  generator  set  has  “three  leakage”

(lubricant, fuel, anti‐freeze leakage)

Shut down fuel valve
Shut  down  air  inlet  and  air  exhaust  facility  in  the

generator set’s working room(when necessary)

Shut down the generator set’s output air switch
Shut down the power key switch on the control panel,

take out the key and keep it in good condition (when
necessary)

When the generator set need to be shut down for a
long time or is under maintenance, please dis‐connect
the  start  battery’s  negative  polar  cable,  and  fully
discharge  the  fuel  and  anti‐freeze  liquid  when
necessary.
For  the  self‐start  generator  set,  some  of  the  above
terms  are  not  applicable.  After  the  self‐start
generator set stops, please keep it in the same status
as that of pre‐start (ready to start), so that it can start
at any time under emergency cases.



3.4

 Record for running

For  each  running  operation,  user  shall  make  record.
Running record has various forms. The basic content
shall  cover:  the  time  period  for  this  running,
accumulated  running  time  for  this  generator  set,
value  of  engine’s  oil  pressure  gauge,  temperature
meter,  output  voltage,  frequency,  maximum
power(current) etc. and the running situation, and if
there is any malfunction warning / generator set shut

down etc.

Only  when  the  correct  and  complete  record  for
running  (maintenance)  has  been  kept  very  well,  the
user  can  get  correct  and  excellent  after  sales
(warranty) service.

3.5

Matters need attention

Warning:
!  When  engine’s  temperature  is  very  low,  the  time

period  for  idle  speed  shall  be  properly  extended.
However, when the generator set become warm, it is
not allowed to run the generator set with idle speed
for a long time, it is not allowed to continuously run
the  generator  set  under  empty  or  small  load.  Such
kind of operation will cause server carbon deposition
and  oil  leakage  in  engine’s  turbo‐charger  and
exhaust system.

!  It  is  not  allowed  to  run  the  generator  set  with

overload in long time period, otherwise malfunction
will occur, which will decrease the generator set’s life
expectancy.


!  It  is  forbidden  to  detach  or  change  the  components

of the generator set when it is running.

!  The  coolant  which  is  going  to  be  added  need  to  be

the same specification as that of the original cooling
system. When open the cover of water adding hole,
please  pay  attention  to  the  temperature  and  avoid
the steam or high temperature coolant burst forth to
hurt people.

!  When  discharge  the  high  temperature  lubricant  oil,

please avoid being burnt.

!  The  fuel  being  used  shall  be  conform  to  national

standard,  otherwise  it  will  cause  malfunction  of  the
engine’s fuel pump or fuel injector.



!  For  the  engines  installed  with  turbo‐charger,  it  is

suggested  not  to  add  50%  or  above  instant  load  to
the generator set. Otherwise this will cause relatively
big stall to the generator set.

! For the large electricity consumption equipment, it is

suggested  that  the  users  need  to  use  methods  such
as  voltage  decrease  and  frequency  change  etc.  to
control the start, so that to reduce big impact on the
generator set when the facility start.

!  Backup  generator  sets  or  the  generator  sets  which

haven’t been run for a long time, it is suggested that
these kinds of generator sets shall be run to working
temperature at least one time a month. These kinds
of  generator  sets  need  to  be  continuously  run  with
full load for 4 hours at least one time per year.

!  For  the  generator  sets  which  are  connected  in

parallel  and  controlled  by  manual,  operators  must
make  sure  they  are  running  synchronously(same
frequency,  same  phase‐sequence,  same  phase,  and
same voltage) before switch on, and must switch off
before  trying  to  stop  the  generator  sets  group.



User manual

14



During the generator sets group running, please keep
watching  to  avoid  the  generator  sets  group  stop
running  because  of  individual  generator  set’s
malfunction.




3.6

 Operation for control system

3.6.1



Generator control panel operation

Our  generator  set  standard  supply  two  different
control  module:  one  is  single  generator  with  remote
start  function,  the  other  is  single  generator  with
Automatic Mains Failture (with ATS panel) .
Start‐up generator
1)  Set  every  circuit  breaker  and  switch  of  loads  to

“OFF”  position.

2)  Turn  the  Generator  set  Main  Circuit  Breaker  and

other circuit breakers to the  “OFF”  position.

3) Connect the engine battery cable with battery.
4) Turn on the panel power switch 1S1 (

Ref.



Appendix

circuit diagram) to the start position.

5) Press the module start button.
6) If generator set assemble pre‐heater (air intake or

water  pre‐heater).  The  Pre‐heat  engine  will
illuminate  on  module  LCD.  Preheating  time  varies
by  coolant  temperature.  Usually  water  pre‐heater
completes  in  about  60  seconds,  air  intake
pre‐heater completes 10 seconds. After preheating
the LCD puts out and the engine begins to start. It
will attempt to start again about 5 seconds later if
the engine fails to start.

7)  After  the  engine  starts  successfully,  allow  the

engine  to  warm  up  for  about  5  minutes.  If  the
engine could not fire during the pre‐set number of
attempts to start (start attempts number: 3 times),
the  Alarm  LCD  would  flash.  If  you  need  to  restart,
wait at least 30 seconds before the retry.

8) Check the reading of Voltage Meter and Frequency

Meter  by  operating  the  Voltmeter  Change‐Over
Switch.  Once  the  generator  set  is  running  at  the
correct voltage and frequency, Turn the Generator
set main circuit breaker to  “ON”.

9)  Turn  on  every  switch  or  circuit  breaker  of  loads

(from heavy to light load in sequence), send power
to the load side.

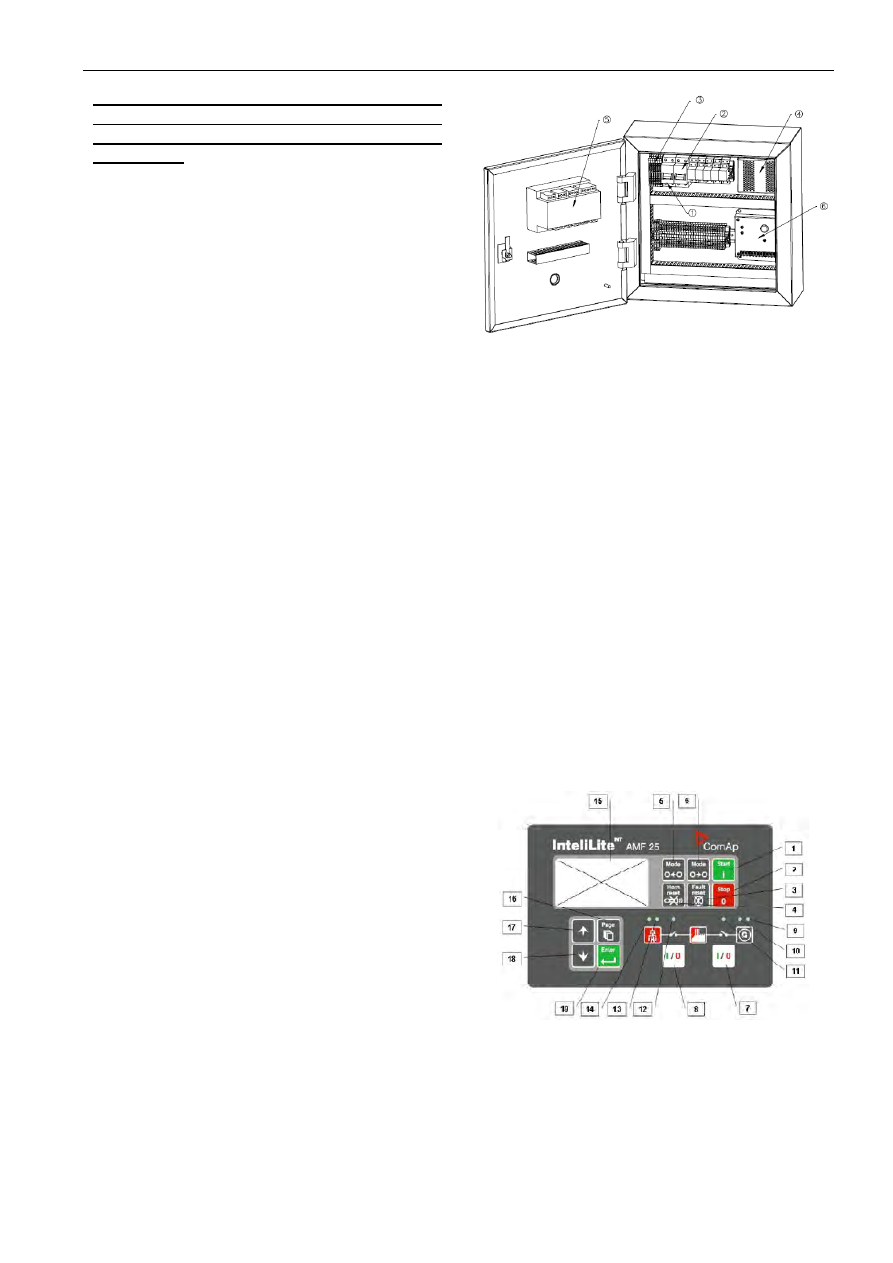

Control panel introduction




NO            Model
1              start panel power switch
2              battery charger switch
3              fuse
4              battery charger
5              control module
6              electric governor


3.6.2

Generating set control system

To  control  and  monitor  the  generating  set,  an
electronic  control  system  has  been  used.  P10/16
model  control  system  is  fitted  from  10  kVA  to  2000
KVA  single  generator  set  running  system.  P20/25
control  system  is  fitted  from  10  kVA  to  2000  kVA
transfer  with  mains  power.  Control  panel  provides  a
means  of  starting  and  stopping  the  generating  set,
monitoring

its

operation

and

output

and

automatically  shutting  down  the  set  in  the  event  of
critical  condition  arising  such  as  low  oil  pressure  or
high engine temperature.(DSE Control system please
read the DSE user’s manual)
P20/25 control system module introduction



Main function of P20/25
The  control  system  of  diesel  generator  set  is
developed  through  the  use  of  model  AMF20/25
module,  a  special  diesel  controller,  made  by  Czech
COMAP  Company.  This  module  is  mainly  used  for
auto/manual

start‐up,

protective

stop

and

manual/auto switchover the generator set power and
mains

power.

It

can

also

remote



User manual

15



control/measure/monitor  generator  set  through
computer.  The  AMF20/25  panel  has  a  LCD  to  display
generator

set

parameters,

and

has

OFF/MAN/AUTO/MEASUREMENT mode.

Introduction of pushbutton and LED in the AMF20/25
control panel
1. Start‐up      Start the engine.
2. Stop            Stop the engine.
3. Reset          Clean failure and alarm state.
4. Horn reset        Deactivates the horn
5. Mode left

Change the generator set mode.
left‐handed(MEASUREMENT‐AUTO‐MAN‐OFF)

6. Mode right

Change  the  generator  set  mode  left‐handed.
(OFF‐MAN‐AUTO‐MEASUREMENT)

7. Generator set power on/off

  Manual generator set power switch.

8. Mains power on/off

  Manual mains power switch.

9. Generator set power fault

Red  LED  flash,  generator  set  power  fault.  After
press reset pushbutton, red LED light (still fault and
alarm) or no (no alarm).

10. Generator set power in gear

Green LED light.

11. Connect generator set power present

  Green LED light, generator set output switch is on,

otherwise the green LED flash.

12. Connect mains power present

Green  LED  light,  mains  power  switch  is  on,
otherwise the green LED flash.

13. Mains power in gear

  Green LED light means mains power is in gear and

has the right voltage.

14. No mains power

Red  LED  flash  means  no  mains  power  and
generator  set  is  not  running;  red  LED  light,  means
generator set is running and mains power is active
but not connect.

15. LEDS present
16. Page    Display menu (calculate‐set‐history).
17.  Up    Page  up  selection,  select  screen  or  add  set

value.

18.  Down  Page  down  selection,  select  screen  or

minish set value.

19. Enter    Confirm selection.



Check parameter
A.  Press  page  push  button  several  times  to  select
MEASUREMENT menu
B. Use UP/DOWN pushbutton to check the detail
Operation and application

When  the  power  supply  LED  is  light  means  AMF
controller  is  active,  then  user  can  select  operation
type (OFF/MAN/AUTO/MEASUREMENT)
A. OFF mode
Start; stop; mains power on/off; generator set power
on/off is inactive in this mode
B. MAN mode

1. Press start pushbutton to start engine
2. When output voltage is in the set range

        a. Press mains power on/off pushbutton to turn
on the switch

    b.  Press  mains  power  on/off  pushbutton,  the

switch will be turned on, otherwise not if the
output voltage is not in gear

3. Press generator set power on/off pushbutton to

turn on the switch

4.  Press  mains  power  on/off  pushbutton,  the

switch  will  be  turned  on,  otherwise  not  if  the
mains power voltage is not in gear.

5. Press stop pushbutton for a while to stop engine

C. AUTO mode

1. When mains power is confirmed

        a. Controller turns on the mains power switch

    b.  Controller  start  engine  after  emergency

starting‐up delay

    c. If mains power comes back during the start‐up

period,  controller  will  turn  off  the  mains
power  switch  and  stop  engine  after  switch
delay

2.  After  engine  rotate  speed  is  higher  than  the

lowest set value in maximal delay, controller will
turn  on  the  generator  set  power  switch,
otherwise controller will alarm and stop engine

3. After mains power come back

        a.  Controller  will  turn  on  the  generator  set
power switch after the mains power comeback delay
        b. Controller will turn on the mains power switch
after the generator set power delay.
        c. Cool‐down and stop the engine
D. Alarm
User  can  activate  alarm  list  in  the  last  display  of
MEASUREMENT menu, Select MEASUREMENT menu,
press UP button, you will see all active alarm number
in  the  left  upper  LCD.  All  active  alarm  is  in  shadow
otherwise is not, and also not confirmed.
Press  reset  button  to  confirm  all  alarm,  all  inactive
alarm  will  be  canceled  at  once,  If  a  new  alarm
happens, this active alarm will be display in LCD and is
active state in main measurement screen.

P10/16 control system module introduction



User manual

16






Introduction of AMF10/16 control module

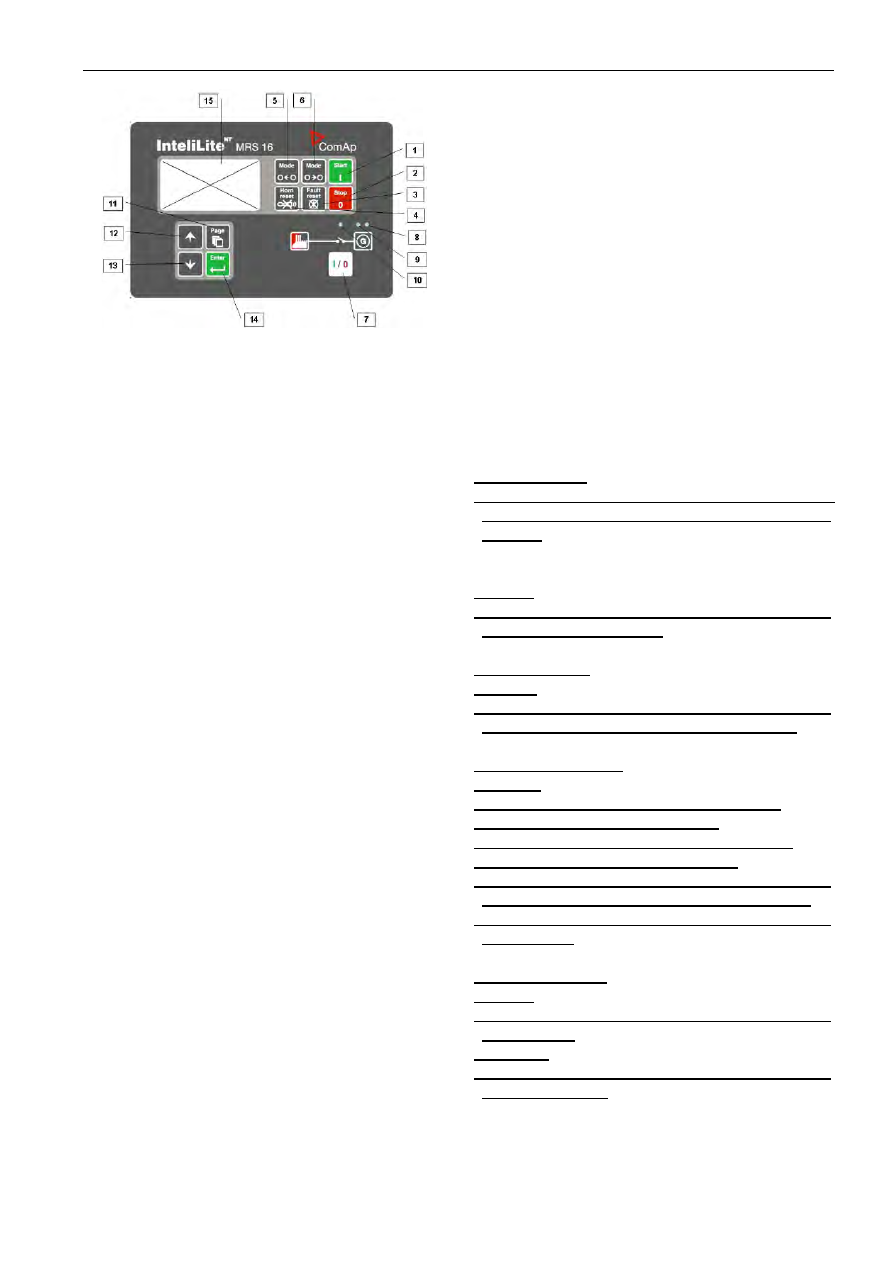

Introduction of iL‐MRS10/16 controller panel as follow

1. Start‐up. Start the engine.
2. Stop. Stop the engine.
3. Reset. Clean failure and alarm state.
4. Horn reset. deactivates the horn
5.  Mode  left.  Change  the  generator  set  mode
left‐handed (MEASUREMENT‐AUTO‐MAN‐OFF)
6.  Mode  right.  Change  the  generator  set  mode
left‐handed. (OFF‐MAN‐AUTO‐MEASUREMENT)
7. Generator set power on/off. Manual turn on/off the
generator set power switch
8. Generator set failure: red LED starts flashing when

generator set failure occur. After fault reset button
is  pressed,  goes  to  steady  light  (if  an  alarm  is  still
active) or is off (if no alarm is active)

9.  Generator  set  voltage  present:  green  LED  is  on,  if
gen voltage is present and within limits
10. Connect generator set power present. Green LED

light, generator set output switch is on, otherwise
the green LED flash.

11.  Page.  Cyclic  selection  of  the  display  mode
(measurement adjustment)
12.  Up.  Select  the  set  point,  select  the  screen  or
increase set value point
13.  Down.  Select  the  set  point,  select  the  screen  or
decrease set value point
14. Enter. Confirm the set point value
Introduction of function and operation
MRS10/16  self‐start  control  module  is  low  a  level  to
AMF20/25  control  module,  it  is  a  single  module
without  mains  power  measurement  function,  and
also  has  less  I/O  terminals  than  AMF20/25.  Besides,
their  other  function  and  operation  are  similar  or
same.








3.7

 ATS control panel

3.7.1 ATS panel general introduction

Our  customer  will  need  this  ATS  if  generator  set  is
used for self‐start standby power. In order to achieve
full  automatic  transfer  between  mains  power  and
generator  set  power  to  guarantee  all  load  present,
our ATS panel select the best ATS for all generator set.
And  to  the  most  possibility  to  serve  our  customers’
demand, we prepare two types of ATS: MRS and AMF.
Besides  MRS  and  AMF  can  be  jointed  to  a  double
standby ATS after a little change, which is used for 2
generator sets work together stand by mains power.
Please  reference  relevant  details  of  ATS  for  its
function, application, operation and so on.





Safty Attention:
! We are very pleasure for your support of our product,

before  you  use  our  ATS  please  read  this  instruction
carefully.

We  mark  three  attention  parts  in  accordance  with
different situation:
Danger:
! If you do wrong action, Personal death or other big

disaster must be happened.


Moving Attention
Danger :
!  When  you  move  ATS  by  crane  or  elevator,  don’t

stand beneath the ATS, to avoid personal death.


Installation Attention
Attention:
! All operators must be professional electrician.
! Cut off all power before installation.
! Fix screw in accordance with TORPUE standard.
! Place ATS on plane in vertical direction.
! Don’t install ATS in the environment, where are high

temperature, humidor or filled with corrosion gas.

! Connect neutral pole with “N” pole while you install

4poles of ATS.


Operation Attention
Danger:
!  Don’t  connect  energized  main  circuit  or  control  line

with terminal.

Attention:
! If ATS is tripping, cut off power source, find problem

and solve it at first.

Our  company  supply  ATS  panel  should  use  for  AMF
series  generator  control  module,  from  the  diagram
you can see it is very easy to connect cable and easy
install  ATS  panel.  Our  panel  can  use  in  AUTO  or















Content   ..  3  4  5  6   ..
