AIRTRONIC / AIRTRONIC M. Manual - part 9

33

1.1

Burner engine

1.2

Glow plug

1.5

Overheating and flame sensor

2.1

Controller

2.2

Dosing pump

2.7

Main fuse

12 volt = 20 A
24 volt = 10 A

2.7.1

Fuse, actuation 5 A

5.1

Battery

5.2.1

Battery operation switch d)
(operation, e.g. controlled by the ignition
key)

5.2.2

Battery separating switch d)
(Emergency off function for ADR / ADR99)

5.3

Auxiliary drive HA+

5.3.1

Switch, auxiliary drive

5.5

Generator D+

a)

Connection of the control unit and external
sensor according to the circuit diagram
“control units”
• rt

Power supply, plus – terminal 30

• ge

Switch-on signal – S+

• gr

Actual  temperature

•  wsrt Switch off burglar alarm system,

PIN 15, positive signal output for
relay, Imax = 200 mA
for ADR – feedback signal for timer

• br

Power supply, minus – terminal 31

• blws Diagnosis
• grrt

Nominal temperature

• brws Reference signal sensor

b)

Option
Activation of vehicle blower and / or
separate fresh air fan
The positive signal is only applied during the
“Low” control stage (PIN 16, positive signal
for relay, Imax = 200 mA)

c)

Wiring for operation to ADR / ADR99 (HGV
vehicle transporting dangerous goods,
e.g. tanker truck)

d)

When only one switching element is used for
item 5.2.1 and 5.2.2 it must be ensured that
on activating the function “open the battery
separating switch” (EMERGENCY OFF
function for ADR / ADR99 etc.), the switch
always separates immediately (regardless of
the heater status) and all the heater circuits
are disconnected from the battery.

Parts list for the circuit diagrams
Airtronic / Airtronic M and
Airtronic / Airtronic M – ADR mode

Electrical system

5

Please note!

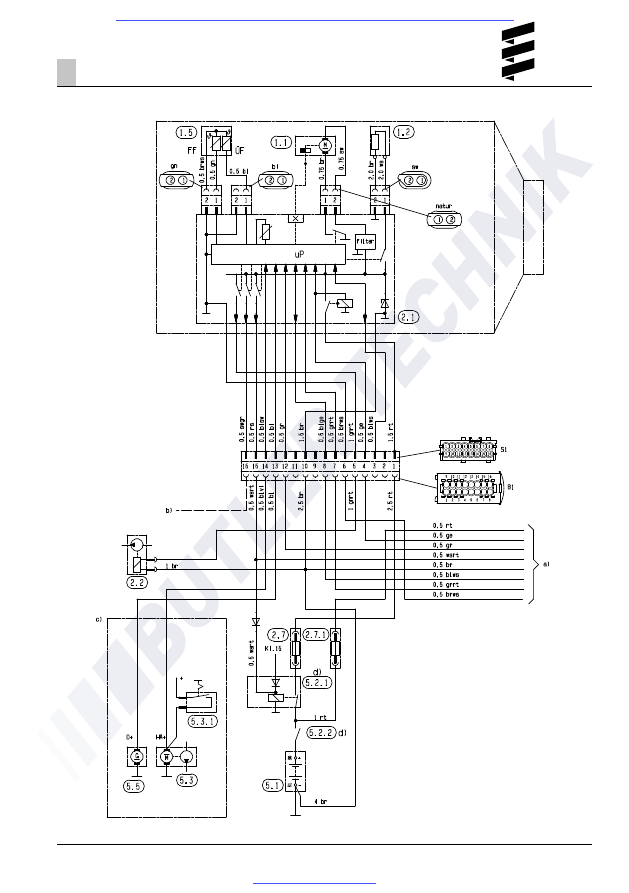

Circuit diagram for Airtronic / Airtronic M
on page 34.

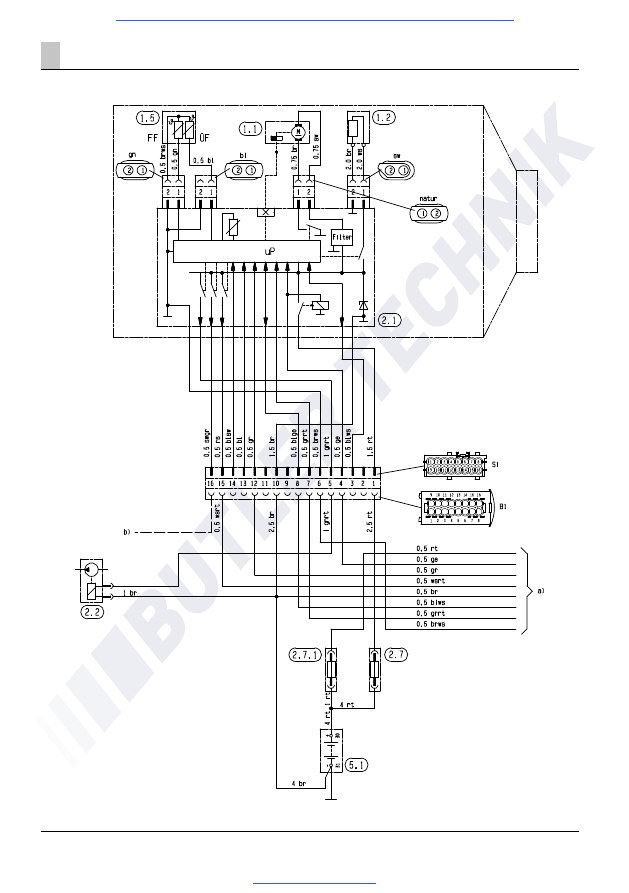

Circuit diagram for Airtronic / Airtronic M - ADR on
page 35.

34

Airtronic / Airtronic M

25 2069 00 98 01 B

Parts list page 32

Electrical system

5

35

Electrical system

5

Airtronic / Airtronic M – ADR mode

25 2069 00 96 01 C

Parts list page 32

36

EasyStart R+

1

Terminal 31 (negative)

2

–  –

3

Ventilate (switching signal –)

4

DAT cable

5

Pushbutton / LED (negative)

6

Temperature sensor (negative)

7

Terminal 30 (positive)

8

S+ (switching on signal)

9

LED (positive)

10

Diagnosis cable (K line)

11

Pushbutton (negative)

12

Temperature sensor (positive)

EasyStart R

1

Terminal 31 (negative)

2

–  –

3

–  –

4

DAT cable

5

Pushbutton / LED (negative)

6

–  –

7

Terminal 30 (positive)

8

S+ (switching on signal)

9

LED (positive)

10

Diagnosis cable (K line)

11

Pushbutton (negative)

12

– –

Pin assignment at connector B1

EasyStart T

1

Terminal 30 (positive)

rt

2

S+ (switching on signal)

ge

3

Terminal 31 (negative)

br

4

DAT cable

vi

5

Diagnosis cable (K line)

bl/ws

6

Terminal 58

gr/sw

7

Temperature sensor (positive)

gr

8

Temperature sensor (negative)

br/ws

9

–  –

–  –

Electrical system

5

Cable colours
sw

=

black

ws

=

white

rt

=

red

ge

=

yellow

gn

=

green

vi

=

violet

br

=

brown

gr

=

grey

bl

=

blue

li

=

purple

Parts list, circuit diagrams EasyStart R+ / R / T and
EasyStart T - ADR mode

2.15.1

Sensor – room temperature, display
(included in the EasyStart R+ scope of
supply, optional for EasyStart R / T)

2.15.9

Sensor – outdoor temperature, display

3.1.7

”ON / OFF“ button

3.1.16

Radio remote control button

3.1.17

”Mini controller“ control unit

3.2.15

EasyStart T timer

3.3.9

EasyStart R radio remote control
(stationary unit)

3.3.10

EasyStart R+ radio remote control
(stationary unit)

3.6.1

Adapter cable

3.8.3

Antenna

a)

Connection of control units at the heater

c)

Terminal 58 (lighting)

d)

Parking ventilation with vehicle blower
(optional)

e)

EasyStart T timer connection

g)

External ”ON / OFF“ button (optional)

h)

Parking ventilation with vehicle blower
(optional)

x)

ADR jumper

y)

Connect and insulate cables

• The timer / radio remote control must be connected

in accordance with the circuit diagrams
(page 37 – 41).

• Insulate unused cable ends.
• Connectors and bush housings are shown from the

cable inlet side.

• You must definitely create the jumper marked in the

circuit diagram with y.

Please note!

Pin assignment at the stationary unit connector
