AIRTRONIC / AIRTRONIC M. Manual - part 10





37

Electrical system

5

25 2361 00 97 01 C

Parts list page 36

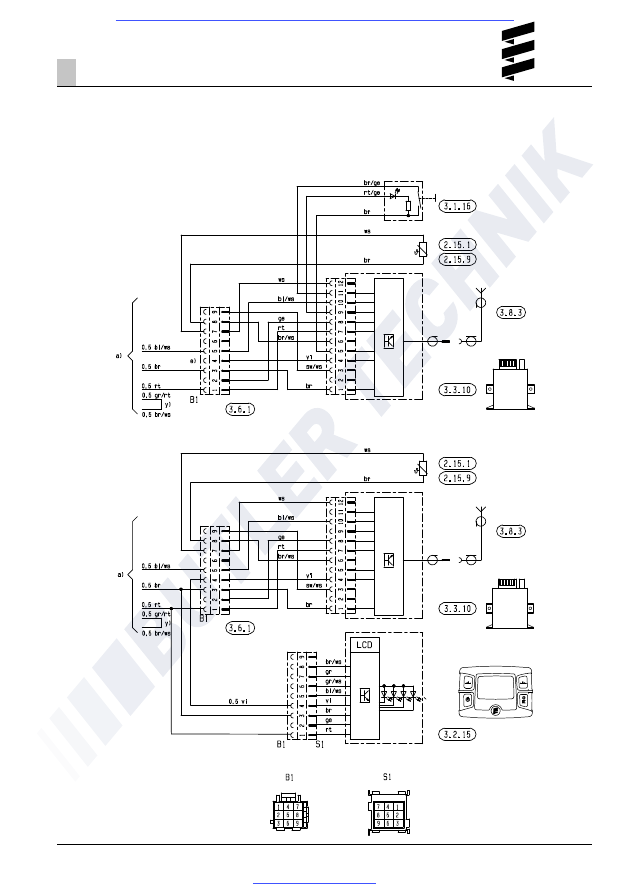

Circuit diagram - EasyStart R+ and
EasyStart R+ in combination with EasyStart T

38

Electrical system

5

Parts list page 36

25 2361 00 97 05 B

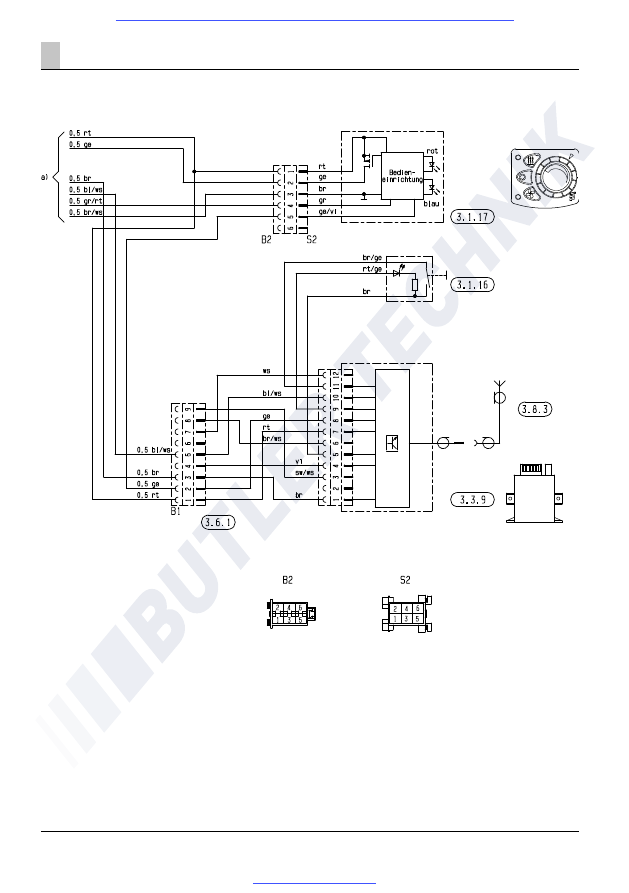

Circuit diagram – EasyStart R in combination with mini controller

39

Electrical system

5

Parts list page 36

25 2361 00 97 02 B

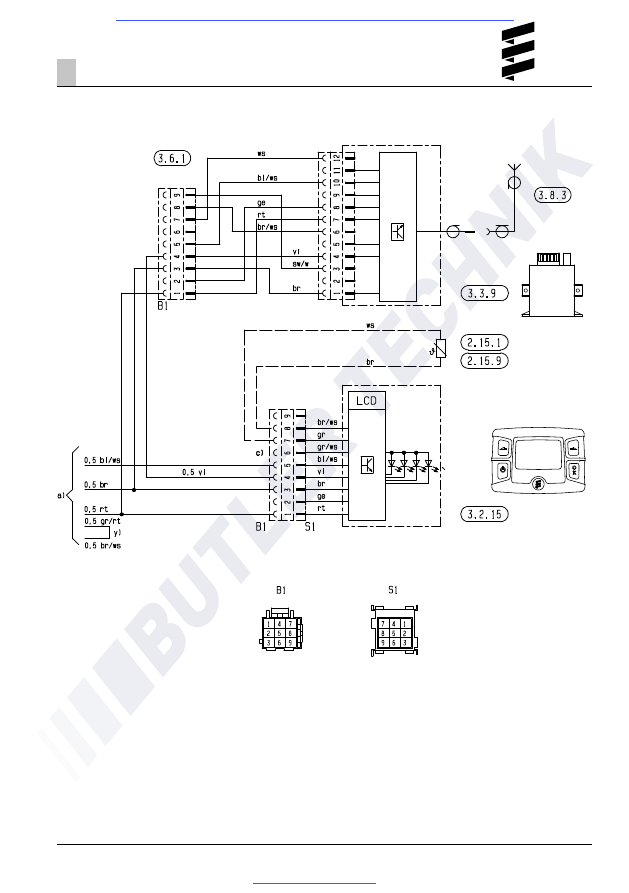

Circuit diagram – EasyStart R+ in combination with EasyStart T

40

Electrical system

5

Parts list page 36

25 2361 00 97 03 A

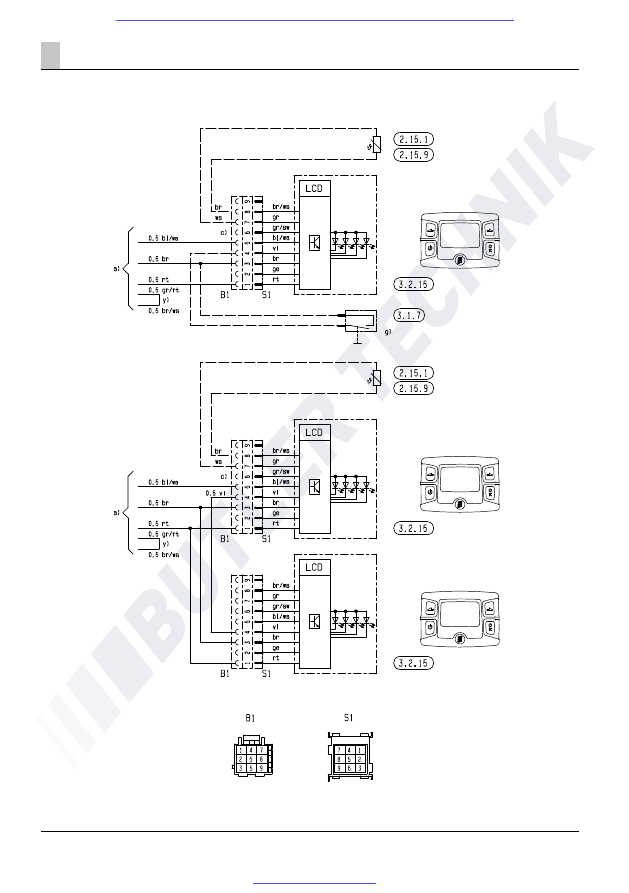

Circuit diagram - EasyStart T and
EasyStart T in combination with EasyStart T
