BBM MZ SERIES ZERO-TURN MOWER. Manual - part 5

SERVICE SECTION

SECTION 1: HYDROSTATIC SYSTEM

The hydrostatic system on MZ models is a sealed lifetime
transaxle system, so no maintenance is required.
Under the rear of the mower, you will find the two levers shown in
the image. These bypass levers serve as a neutral for moving the
mower while the engine is not running. Pull the levers out and
lock them into place to activate the bypass.

When adjusting the tracking on the mower, the length of the
pushrods can be changed by screwing the swivel joint in or out
on the ends of the rods. Shortening the overall length of the rod
slows the pump down. Lengthening the rod will increase the
speed of the pump.

PAGE 18

PAGE 19

SECTION 2: DRIVE BELT



Shown to the right is the MZ pump belt
tensioner. Tightening the two 3/4"  jam nuts
on the right  side will increase the belt tension.

The tension should be adjusted so that there is
between 60 to 65 lbs. of tension on the belt.
This can be checked with a belt tension gauge
as shown to the right.

PAGE 20

SECTION 3: ENGINE

540cc BRIGGS

This machine has an oil drain hose installed on the engine to
allow for easier oil changes. Bad Boy  recommends that the oil
and filter be changed after the initial 8 hrs of use, and at intervals
of 50 usage hours or yearly, whichever occurs first after that. The
oil capacity is 2 quarts. Bad Boy 10W-30 synthetic blend engine
oil is recommended for maximum protection.

The fuel filter is located in the fuel line about 12˝ from the
carburetor on the side of the engine. Replace the filter yearly.
Prior to the removal of the old filter, note the direction of fuel flow
as indicated on the filter. Have towels readily available in order
to quickly remove any fuel leakage. Always use new hose
clamps and ensure the security of the new filter by lightly pulling
on each hose. Always perform maintenance outdoors or in a well
ventilated area. Do not smoke or allow any open flames in the
vicinity of any maintenance activities.

The air cleaner is the engine’s only defense against damaging
foreign particles. It is very important that the air cleaner element
is inspected prior to each use. Remove
the element and tap its sides in order to remove debris. Do not
blow the filter out using compressed air. Doing so will greatly
reduce the air cleaner’s effectiveness. Replace yearly; more
often in dusty environments. Adhering to these practices will help
prevent loss of power and premature engine failure.

PAGE 21

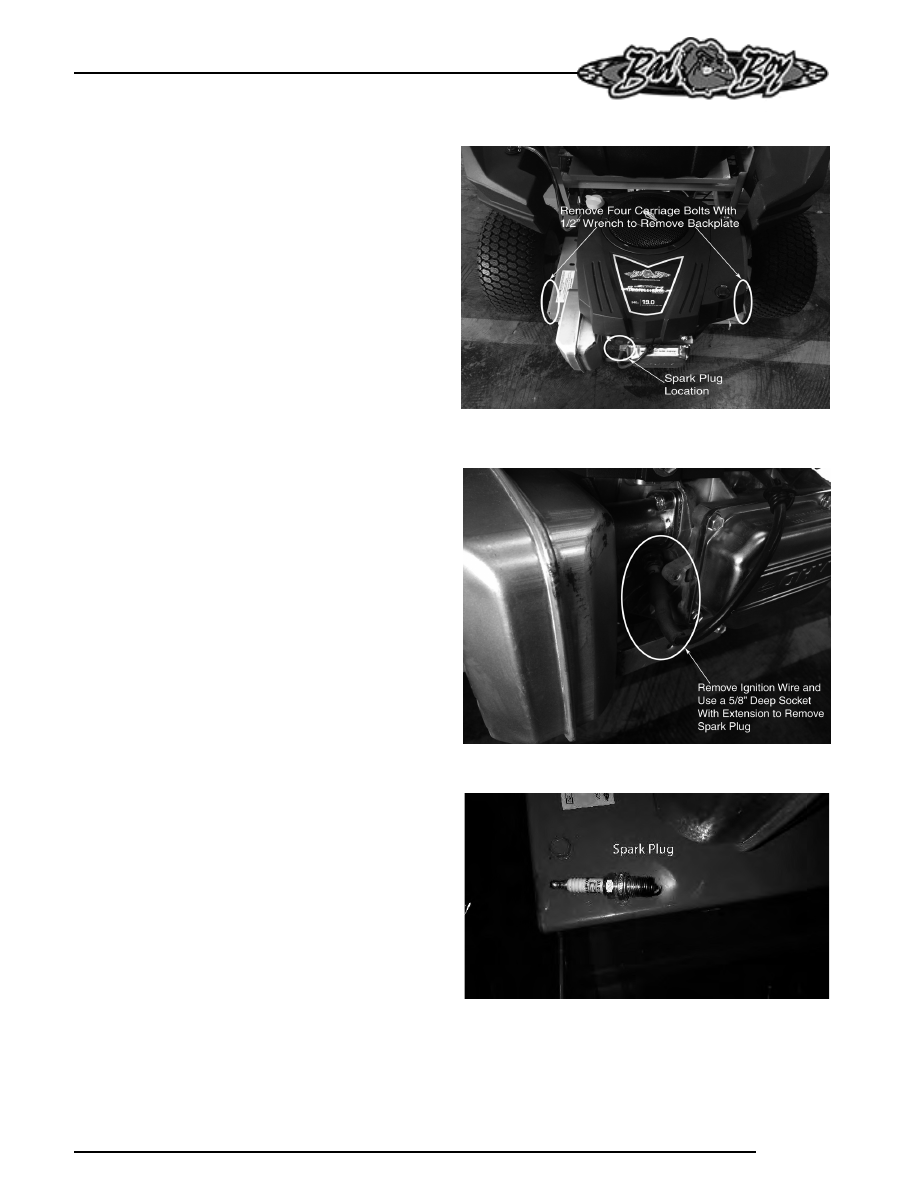

3.1 Changing the Spark Plug:

1) In order to access the spark plug you:

will need to remove the rear engine cover. This
can be done by removing the four carriage bolts
in the rear with a ½”  wrench.

2) Remove the ignition wire from the spark

plug  and  using  a  5/8”  deep  socket  and
extension take the spark plug off of the engine.

3) Check the spark plug gap or insert your

new spark plug.

4) When re-installing spark plug do not

overtighten the spark plug.
