BBM MZ SERIES ZERO-TURN MOWER. Manual - part 3

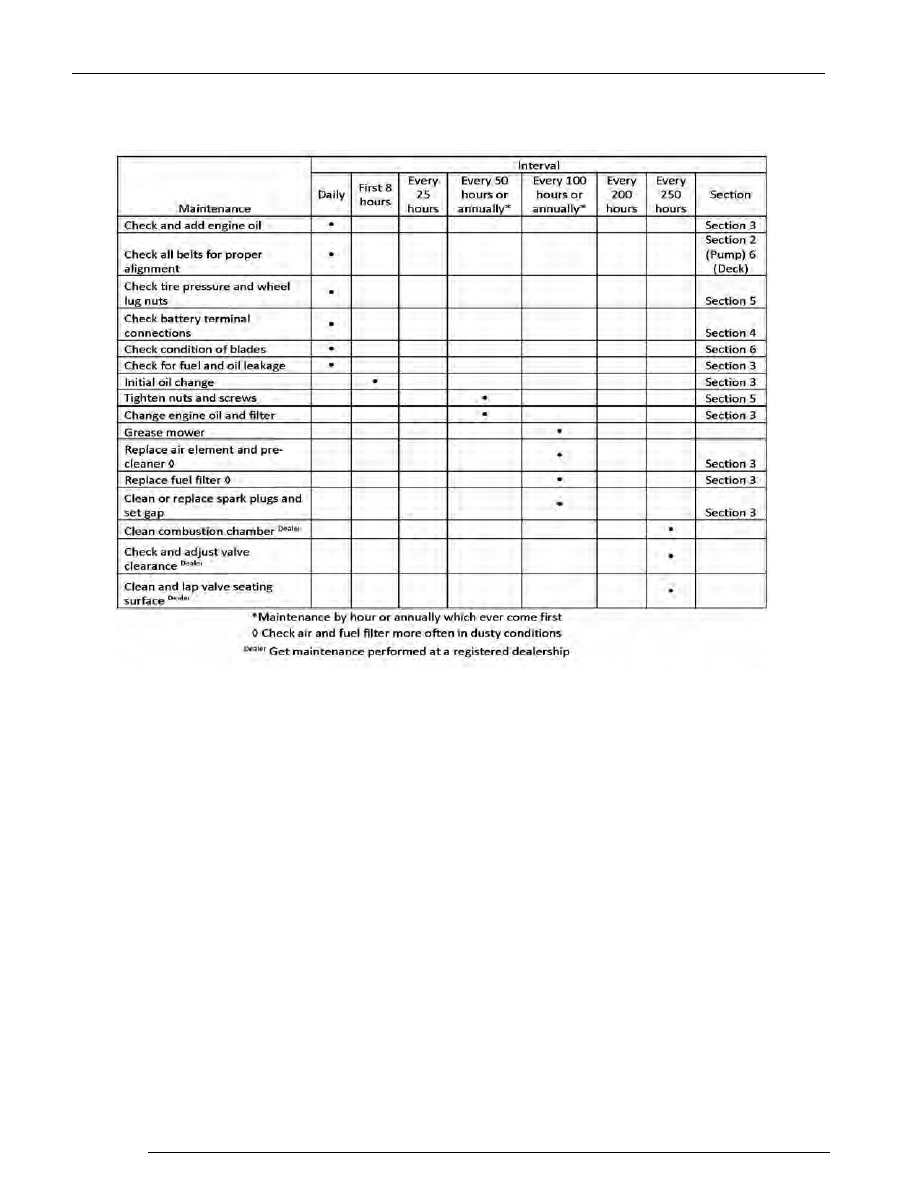

SECTION 4:

MOWER MAINTENANCE

SECTION 5:

 MOWER STORAGE & TRANSPORTATION

5.1  Keep machine from collecting debris by storing in a covered area while not in use.
5.2  Fuel can harm your machine if left for more than 30 days without changing, especially if the

fuel contains ethanol. Never use fuel with more than 10% ethanol by volume. E-15 is not
permitted.

5.3  Disconnect the negative battery cable when machine will be stored for more than 30 days.
5.4  Always secure machine properly when transporting machine.
5.5  Do not load machine on trailer with blades engaged.
5.6  Do not use ramps to load the machine.
5.7  Make sure Parking Brake is in “up” position.
5.8  In wet conditions tires may spin while loading / unloading. If necessary, wait for dry

conditions before loading / unloading.

5.9  Make sure mode of transportation is suitable to bear the weight of mower.
5.10   Deck height should be set at maximum before attempting to load.
5.11   Secure mower with at least two straps capable of securing weight of mower.

PAGE  10

PAGE 11

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Performed:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

MAINTENANCE LOG

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

Date:

Hours:

PAGE 12

SECTION 6:

 TROUBLESHOOTING

6.1

Q: How do I prevent an uneven cutting pattern and increase the quality of cut?

6.1

A: Check tire pressure, check blade sharpness (replace blades or sharpen at least once
per year or when needed), make sure blades are tightened properly, check spring and belt
tension, check the underside of the deck to ensure the mower deck is free of grass build-up
and debris, make sure your machine is at full throttle, and vary your mowing pattern each
time you cut your grass.

6.2

Q: What should I do if my mower won’t start?

6.2

A: Check battery charge and connection (grounds), check your fuel (make sure fuel is less
than 30 days old and contains no water), make sure your spark plug is in good condition
and spark plug wire is attached, and make sure air filter is clean (a dirty filter makes it more
difficult for the engine to draw air). Check the integrity of the 25 amp main fuse; also check
for any bare wires and/or bad connections.

6.3

Q: What should I do if the blades won’t engage?

6.3

A: Make sure the safety switch is plugged in on the bottom of seat. Check the underside
of the PTO engager to ensure the plug is secure at switch. Also check PTO fuse
underneath operator console (10amps)

6.4

Q: What type of fuel is recommended for my mower?

6.4

A: We recommend that you use a name brand fuel to ensure quality.  Use fuel with an
octane rating near 87. Higher octane fuels offer no benefit. Only fuels with an ethanol content
of 10% or less may be used. By law, E-15 fuel is not permitted. Usage of E-15 will result in
premature engine failure.

6.5



Q: Do you offer touch-up paint for your mowers?

6.5



A: Touch-up paint is available. Contact your local dealer for more information.

6.

6



Q:

How do I clean my mower?

6.

6



A:

It is recommended that you use an air hose or blower to remove dust and

debris from the mower, to ensure there is not a build up of grass

on the mower deck and engine compartment, which could become a fire

hazard. If you must wash the mower, ensure you run the engine to operating

temp to dry water and engage the blades to spin off any standing water on

the pulleys. Avoid spraying water onto electrical components and bearings, to

prevent premature failure of these parts.

PAGE 13

SECTION 7:

 CONTROLS

7.1

Ignition Switch—

Bad Boy mowers have a three position ignition switch: off, run, and start.



With key inserted, rotate it clockwise to START position and release key when engine

starts, and switch will automatically return to the RUN position.

7.2

Throttle Control—

A cable is connected to the engine throttle for controlling engine speed.

         Move lever forward to increase engine rpm, move lever backward to decrease engine rpm.

7.3

Choke Control—

(Not Shown) The choke control, located to the right of the operator’s

left,

is  a  ‘push-pull’ type.  When  the  choke  knob  is  pushed  in,  the  choke  is  in  the  off
(run)  position.  When  the  choke  is  pulled  out  it  is  in  the  on  (start)  position.  Do  not
operate the machine in the on (start) position

.

7.4

Control Levers—

These levers control the mower’s speed, direction, and neutral lock

.

These levers are used to steer, accelerate, decelerate and change direction.

7.5



Blade Engage Switch—

This switch engages the blades. Pull the switch up to engage the



blades and push the switch down to disengage the blades.

7.6



Deck Height Control—

The deck height dial is used to set the cut of the deck

.

7.1

7.5

7.2

7.6

7.4
