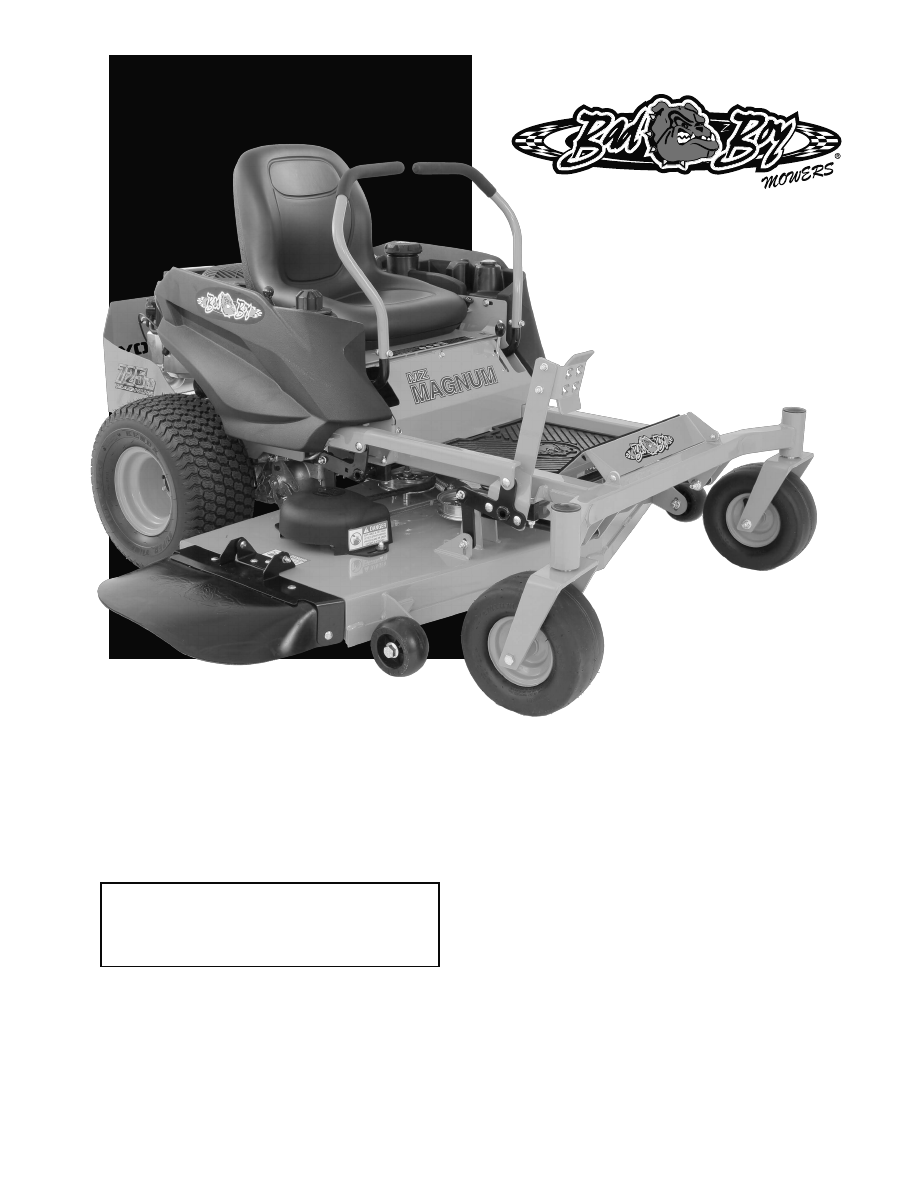

BBM MZ SERIES ZERO-TURN MOWER. Manual - part 1

For additional information, please see us at

www.badboymowers.com

Bad Boy, Inc.
102 Industrial Drive
Batesville, Arkansas 72501

©201

6  12-1

MZ

SERIES

ZERO-TURN MOWER

OWNER’S, SERVICE & PARTS MANUAL

PAGE  3

This manual applies to the following equipment:



Bad Boy MZ  Series

MZ 42" 540cc Briggs

MZ 42" KT725 Kohler

MZ Magnum 48˝ KT725 Kohler MZ

Magnum 54˝ KT740 Kohler MZ

Magnum 48” Kawasaki FR651V



MZ

Magnum 54” Kawasaki FR651V



COMMONLY USED ITEMS AND PART NUMBERS

42" MZ Deck Belt
48" MZ Deck Belt
54" MZ Deck Belt

MZ Pump Belt

063-5002-00
Pre-cleaner

063-5003-00

Element

Motor Oil

Fuel Filter

Spark Plug

Hi-Lift Fusion

Gator Blade

Wave Blade

Hi-Lift Fusion

Gator Blade

Wave Blade

Hi-Lift Fusion

Gator Blade

42" MZ Blade

54" MZ Blade

48" MZ Blade

Oil Filter

Air Filter

Wave Blade

041-4022-00
041-1470-00
041-1560-00
041-6400-00

038-0005-00

038-0003-00

038-4221-00

038-4222-00

N/A

038-4825-00

038-4827-00

038-4826-00

063-6000-00

063-6000-00

063-5001-00

038-5220-00

063-8018-00

063-5004-00

068-8017-00

Briggs Engine

Kohler Engine

Kawasaki Engine

Briggs Engine

Kohler Engine

Kawasaki Engine

063-4026-00

063-2097-00

Briggs Engine

Kohler Engine

Kawasaki Engine

10W-30 Motor Oil

- Bad Boy Synthetic Blend Motor Oil Recommended.

Briggs Engine

Kohler Engine

Kawasaki Engine

015-8000-00

015-8000-00

015-8001-00

SECTION 1:

BASIC INFORMATION

Congratulations on the purchase of your new Bad Boy Mower! The purpose of this manual is to assist
operators in maintaining and operating their machine. The information and instructions in this manual can
help you attain years of performance from your new Bad Boy. Also, check out our website to learn more
about the Bad Boy family.

1.1

1.2
1.3
1.4

All Bad Boy engines use 10W-30 engine oil. For maximum protection, Bad Boy synthetic blend
engine oil is recommended.
All Bad Boy Mowers use hi-temp multi-purpose grease. NLGI No. 2 for the grease fittings. MZ
models have 12 psi in both front and rear tires.
Most Briggs, Kohler,



and

 Kawasaki engines hold approximately two (2) quarts of motor oil. Be careful

not to over fill engine oil.  Refer to the engine’s service manual.

Warranty Registration

The Warranty Registration form must be completed within 30 days to validate your warranty. As the new
equipment owner, you are expected to see that the form is completed and forwarded to Bad Boy, Inc., at
time of delivery. Warranty is non transferable.

Warranty registration should be completed by the

selling dealership using the on-line registration site.

Model/Serial Number

Your MZ model serial numbers are found on the SIN plate underneath seat.

T

hese numbers can assist

you in the ordering of new parts when replacements become necessary.

Parts/Service

Only Bad Boy replacement parts are to be used on your mower.
Replacement parts are available through your local Bad Boy Mower Dealer. Remember to always provide
the follow

ing information when ordering parts:

1.

Correct part number

2. Correct serial number

All warranty repair and service must be handled through your authorized Bad Boy Mowers dealer.
To locate the nearest dealer, go to our website and click on Locate a Dealer.

EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT

Federal Evaporative Emission Control Warranty: Your Warranty Rights and Obligations
The Environmental Protection Agency (EPA), and Bad Boy Inc. are pleased to explain the evaporative emission control system’s warranty
on your 2017 equipment. New equipment that uses spark ignition engines for off-road use must be meet stringent anti-smog standards.
The evaporative emission control system on your equipment is designed, built, and equipped so it conforms at the time of sale to the
ultimate purchaser with the requirements of 40 CFR 1060. The evaporative emission control system is free from defects in materials and
workmanship that may keep it from meeting said requirements. Bad Boy Inc. must warrant the evaporative emission control system on
your equipment for two years provided there has been no abuse, neglect or improper maintenance. If an evaporative emission control
system component does fail in a manner that would cause the equipment to no longer meet the requirements of 40 CFR 1060 within the
first two years Bad Boy Inc. will replace the defective component. Your evaporative emission control system may include parts such as
fuel tanks, fuel lines, carbon canisters, fuel caps, valves, vapor hoses, clamps, or connectors.

PAGE 4

PAGE  5

2.1  Read, understand, and follow all instructions on the machine and in the manual before starting.
2.2  Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.
2.3  Always remain seated while operating the machine. If the machine is equipped with Roll Over Protection (ROPs), always buckle

your seat belt.

2.4  Only allow responsible adults who are familiar with the instructions to operate this machine.
2.5  Clear the area of objects such as rocks, wire, toys, etc., which could be thrown by the blades.
2.6  Always maintain a safe distance from people and pets just prior to, and during, operation. Stop the machine if anyone enters the area.
2.7  Never carry passengers.
2.8  Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
2.9  Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction as material may

ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

2.10 Never operate the machine without the discharge chute, grass catcher, or other safety devices correctly in place and functioning

properly.

2.11 Slow down before turning.
2.12 Always disengage blades, place steering controls in neutral, engage parking brake, and remove ignition key when leaving

operators seat. Never leave a running machine unattended.

2.13 Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the

machine, inspecting the machine for damage, removing the grass catcher, or unclogging the discharge guard.

2.14 Always operate machine in daylight or with adequate working lights.
2.15

   Do not operate the machine while under the influence of alcohol or drugs.

2.16 Watch for traffic when operating near or crossing roadways.
2.17 Always wear eye protection when operating or servicing the machine.
2.18 Always wear ear protection, such as earplugs, while mowing.
2.19 Use extra care when loading or unloading the machine into a trailer or truck.
2.20 Be alert of surroundings. Watch for rocks, stumps, mounds, depressions, and low hanging limbs or objects that could be

potentially hazardous while mowing.

2.21 Data indicates that operators 60 years of age and above are involved in a large percentage of riding mower related injuries.

These operators should periodically evaluate their ability to operate the riding mower safely enough to protect themselves and
others from serious injury.

 SECTION 2:

MOWER SAFETY GUIDELINES

Never allow untrained people to operate this machine. It is the owner’s responsibility to get training and see to it that anyone who has
permission to use your machine receives the proper training. Do not mow around people. The factory discharge chute is designed
to deflect debris downward, but it could be possible for debris to be thrown in a way that can cause damage to people or property.
Seek additional training when possible to learn more about safety techniques and practices.

This cutting machine is capable of

amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result
in serious injury or death.

GENERAL OPERATION
