PERIODIC MAINTENANCE

6LPA Series Operation Manual

59

12/05

Replacing the Fuel Filter Element

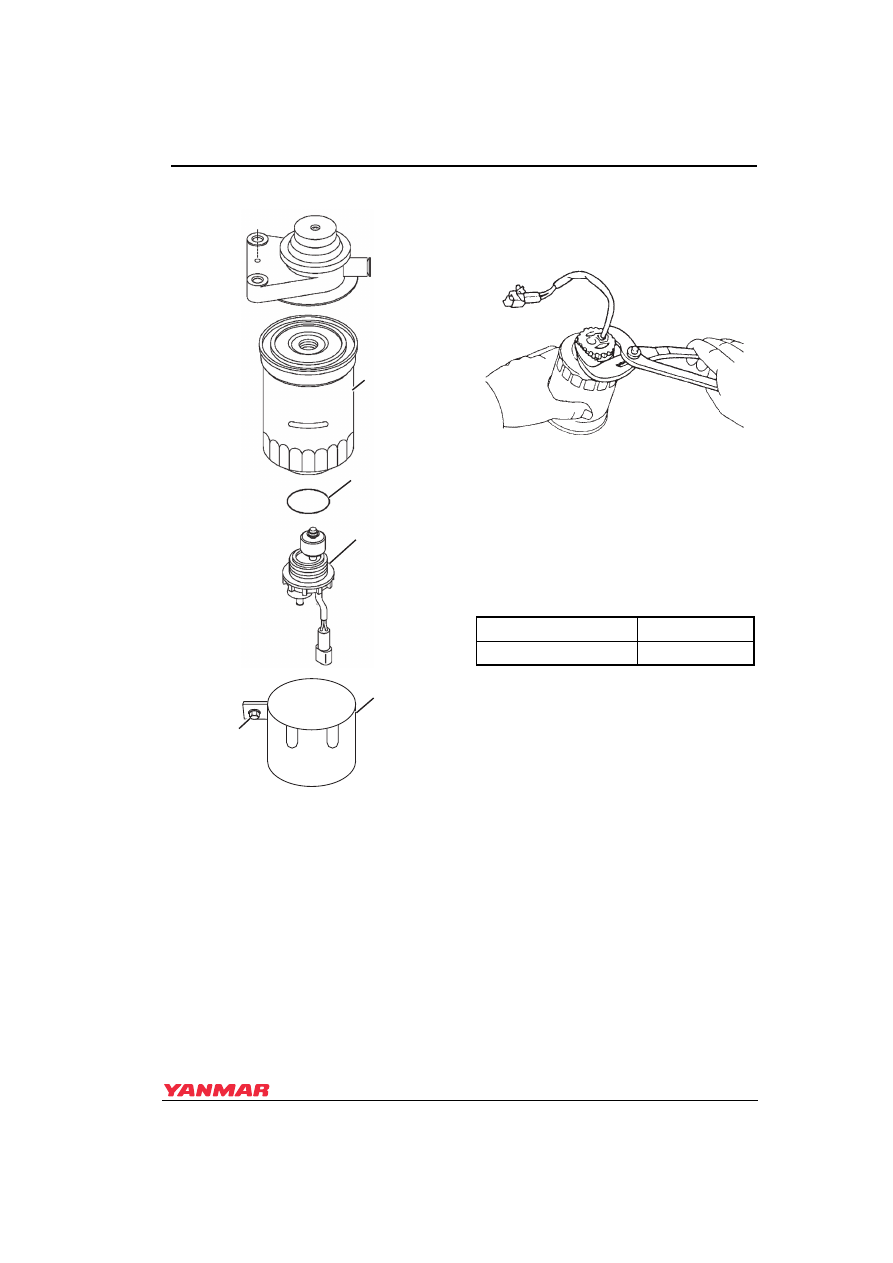

 Figure 3

Figure 3

1 – Mounting Screw (2 used)
2 – Housing
3 – Alarm Switch
4 – O-Ring
5 – Filter Element

1. Close the fuel cock of the fuel tank.
2. Remove the two mounting screws

(Figure 3, (1))

 and the housing

(Figure 3, (2))

.

3. Drain the fuel from the fuel drain cock

on the bottom of the fuel / water
separator.

4. Disconnect the alarm switch harness.

 Figure 4

Figure 4

5. Remove the alarm switch (Figure 3)

with a wrench.

6. Remove the filter element

(Figure 3, (5))

 with a filter wrench.

7. Install the alarm switch to the new fuel

filter.

8. Apply a thin film of clean diesel fuel to

the sealing surface of the new filter
gasket.

9. Install new filter and tighten hand-tight.

Use a filter wrench and tighten to
14.7 - 19.6 N·m (130.1 - 173.5 in.-lb).

10.Install filter and tighten hand-tight.
11.Connect the alarm switch harness.
12.Install the housing and mounting

screws.

13.Bleed the fuel system. See Bleeding

the Fuel System on page 29

. Dispose

of waste properly.

14.Start engine and check for leaks.

(5)

(4)

(3)

(2)

(1)

0004915

Component

Part No.

Fuel Filter Element

119773-55710

0004897

PERIODIC MAINTENANCE

60

6LPA Series Operation Manual

After you complete the initial 50 hour
maintenance procedures, perform the
following procedures every 50 hours
thereafter or monthly, whichever comes
first.

• Draining Water From the Fuel Tank

• Draining Fuel Filter / Water Separator

• Checking Battery Electrolyte Level

Draining Water From the Fuel Tank

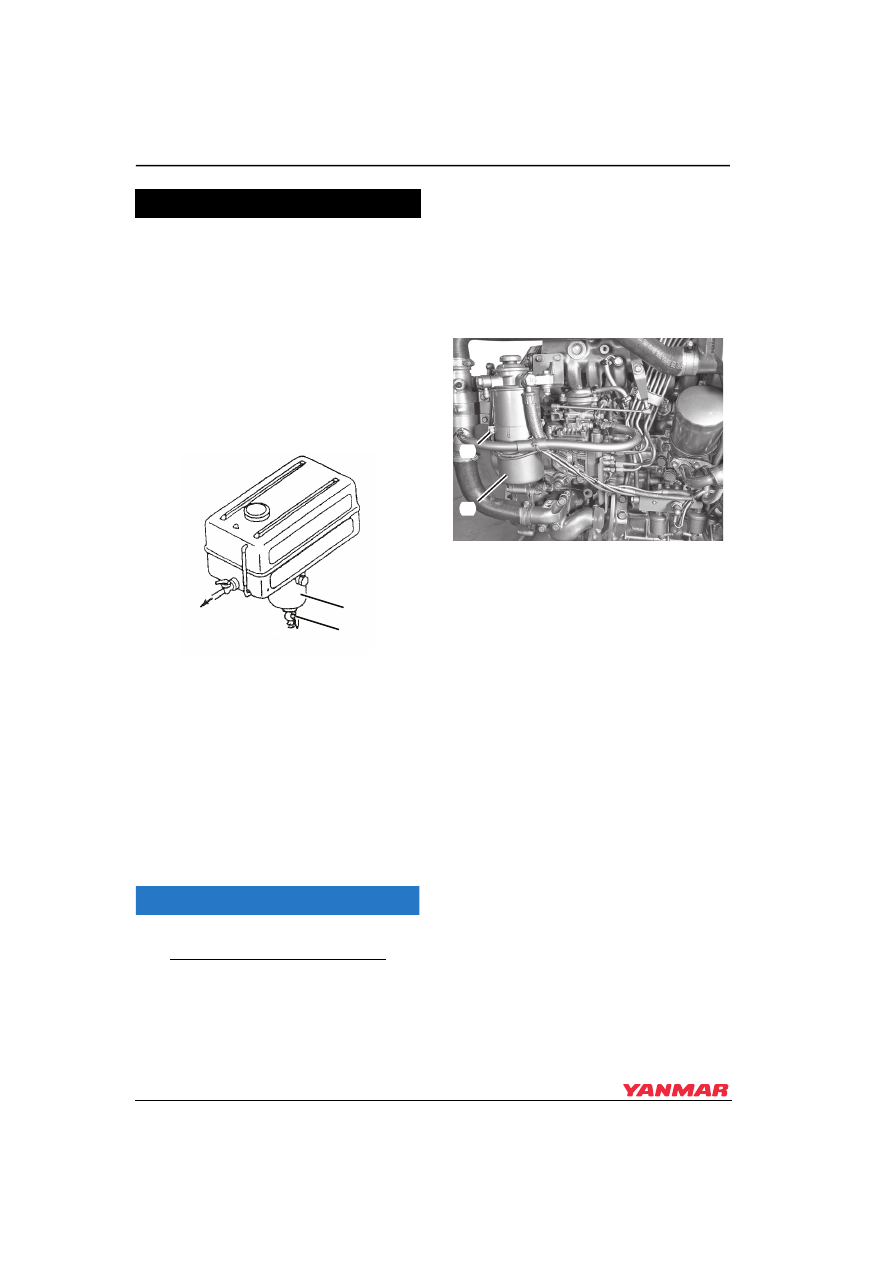

 Figure 5

Figure 5

1 – Sediment  Bowl
2 – Drain Cock
3 – Fuel Line To Engine

1. Put a pan under the drain cock

(Figure 5, (2))

 to catch fuel.

2. Open the drain cock and drain water

and sediment. Close the drain cock
when the fuel is clean and free of air
bubbles.

NOTICE

Dispose of waste properly.

Draining Fuel Filter / Water
Separator

Water and sediment can clog the fuel filter
and impair the function of the fuel injection
pump and valve. If heavy deposits of water
and sediment are drained, also drain the
fuel tank.

 Figure 6

Figure 6

1. Close the fuel cock of the fuel tank.
2. Remove the two mounting screws

(Figure 6, (1))

 and remove the housing

(Figure 6, (2))

.

3. Put a pan under the drain cock.
4. Loosen the drain cock of the water

separator and drain off any water or dirt
collected inside.

5. Install housing and mounting screws.
6. Bleed air from the fuel system. See

Bleeding the Fuel System on page 29

.

Every 50 Hours of Operation

(1)

(2)

(3)

0004898

(1)

(2)

0004916

PERIODIC MAINTENANCE

6LPA Series Operation Manual

61

12/05

Checking the Battery Electrolyte
Level (Serviceable Batteries Only)

WARNING

Batteries contain sulfuric acid. NEVER
allow battery fluid to come in contact
with clothing, skin or eyes. Severe
burns could result. ALWAYS wear
safety goggles and protective clothing
when servicing the battery. If battery
fluid contacts the eyes and / or skin,
immediately flush the affected area with
a large amount of clean water and
obtain prompt medical treatment.

NOTICE

NEVER turn off the battery switch (if
equipped) or short the battery cables
during operation. Damage to the electric
system will result.

Note:  Battery fluid tends to evaporate

in high temperatures, especially
in summer. In such conditions,
inspect the battery earlier than
specified.

1. Turn the battery master switch to OFF

(if equipped) or disconnect the negative
(-) battery cable.

2. Do not operate with insufficient battery

electrolyte as the battery will be
destroyed.

3. Remove the plugs and check the

electrolyte level in all cells.

NOTICE

NEVER attempt to remove the covers or
fill a maintenance-free battery.

4. If the level is lower than the minimum fill

level (Figure 7), fill with distilled water
(Figure 7)

 (available in the grocery

store) up to the upper limit (Figure 7) of
the battery.

WARNING

If operation continues with insufficient
battery fluid, the battery life is
shortened, and the battery may
overheat and explode.

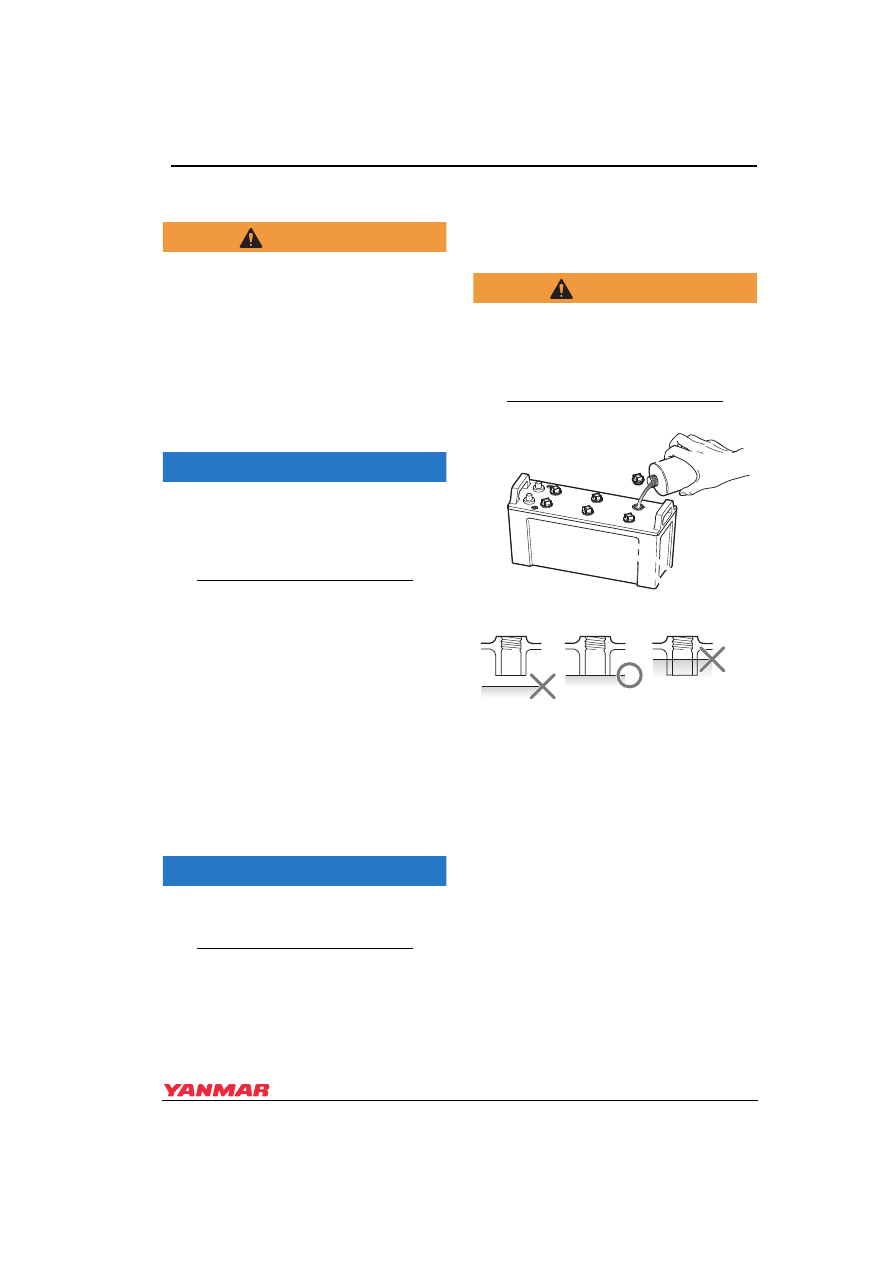

 Figure 7

Figure 7

0004566_s1

PERIODIC MAINTENANCE

62

6LPA Series Operation Manual

Perform the following maintenance every
125 hours of operation or 6 months,
whichever comes first.

• Changing the Engine Oil and

Replacing the Engine Oil Filter

Changing the Engine Oil and
Replacing the Engine Oil Filter

See Changing the Engine Oil and
Replacing the Engine Oil Filter Element on
page 57

.

Perform the following maintenance after
the initial 250 hours of operation.

• Checking the Fuel Injector Spray

Pattern

• Inspecting and Adjusting

Intake / Exhaust Valve Clearance

Checking the Fuel Injector Spray
Pattern

See your authorized Yanmar Marine dealer
or distributor.

Inspecting and Adjusting
Intake / Exhaust Valve Clearance

Proper adjustment is necessary to
maintain the correct timing for opening and
closing the valves. Improper adjustment
will cause the engine to run noisily,
resulting in poor engine performance and
engine damage. See your authorized
Yanmar Marine dealer or distributor to
adjust the intake / exhaust valve clearance.

Every 125 Hours of Operation

After Initial 250 Hours of
Operation
