PERIODIC MAINTENANCE

6LPA Series Operation Manual

55

12/05

Note:

These procedures are considered normal maintenance and are performed at the owner’s expense.

Seawater

Cooling

System

Check seawater

outlet discharge

c

During

Oper-

ation

Check or replace

the seawater

pump impeller

z

Check or replace

the zinc anodes

‘

Check and clean

the seawater

passage

z

Piping

Clean or replace

the exhaust /

water mixing

elbow

z

Check or replace

fuel line and

rubber hoses

c

z

Electrical

System

Check the alarm

and indicators

c

Check the

electrolyte level in

the battery

c

Adjust the tension

of the alternator

V-belt or replace

V-belt

c

z

Remote

Control

Handle

Check and

lubricate the

remote control

cable operation

c

Adjust the remote

control cable

c

Intake and

Exhaust

System

Wash turbo-

charger blower

z

Clean air cleaner

c

Adjust the intake

and exhaust valve

clearance

z

Initial

250

z

Lap the intake and

exhaust valves

z

Miscel-

laneous

Check and adjust

the power steering

oil pump belt

(6LPA-STZP2)

c

Replace the

timing belt

z

Replace the front

rubber damper

z

c

: Check or Clean

‘

: Replace

z

: Contact your authorized Yanmar marine dealer or distributor

System Item

Periodic Maintenance Interval

Daily

Every 50
hours or

monthly

whichever

comes first

Every 125

hours or

6 months

whichever

comes first

Every 250

hours or

1 year

whichever

comes first

Every 500

hours or

2 years

whichever

comes first

Every 1000

hours or

4 years

whichever

comes first

Every 1250

hours or

5 years

whichever

comes first

PERIODIC MAINTENANCE

56

6LPA Series Operation Manual

PERIODIC MAINTENANCE
PROCEDURES

WARNING

Exposure Hazard.
ALWAYS wear personal protective
equipment when performing periodic
maintenance procedures.

Daily Checks

Before you head out for the day, make sure
the Yanmar engine is in good operating
condition.

NOTICE

It is important to perform the daily checks
as listed in this Operation Manual. Periodic
maintenance prevents unexpected
downtime, reduces the number of
accidents due to poor engine performance
and helps extend the life of the engine.

Make sure you check the following items.

Visual Checks

1. Check for engine oil leaks.
2. Check for fuel leaks.

WARNING

Piercing Hazard.
Avoid skin contact with the
high-pressure diesel fuel spray
caused by a fuel system leak, such as
a broken fuel injection line.
High-pressure fuel can penetrate
your skin and result in serious injury.
If you are exposed to high-pressure
fuel spray, obtain prompt medical
treatment.

NEVER check for a fuel leak with your
hands.
ALWAYS use a piece of wood or
cardboard. Have your authorized
Yanmar Marine dealer or distributor
repair any damage.

3. Check for engine coolant leaks.
4. Check for damaged or missing parts.
5. Check for loose, missing or damaged

fasteners.

6. Check the electrical harnesses for

cracks, abrasions, and damaged or
corroded connectors.

7. Check hoses for cracks, abrasions, and

damaged, loose or corroded clamps.

8. Check the fuel filter / water separator

for presence of water and
contaminants. If you find any water or
contaminants, drain the fuel filter /
water separator. See Draining Fuel
Filter / Water Separator on page 60

. If

you have to drain the fuel filter / water
separator frequently, drain the fuel tank
and check for the presence of water in
your fuel supply. See Draining Water
From the Fuel Tank on page 60

.

NOTICE

If any problem is noted during the visual
check, the necessary corrective action
should be taken before operating the
engine.

Check Diesel Fuel, Engine Oil and
Engine Coolant Levels

Follow the procedures in Diesel Fuel on
page 26

, Engine Oil on page 30  and

Engine coolant on page 33

 to check these

levels.

PERIODIC MAINTENANCE

6LPA Series Operation Manual

57

12/05

Checking and Refilling Marine Drive
Oil

See Marine Drive Oil on page 32

.

Checking the Battery Electrolyte
Level

Check the battery electrolyte level before
use. See Checking the Battery Electrolyte
Level (Serviceable Batteries Only) on
page 61.

Checking the Alternator Belt

Check the belt tension before use. See
Checking and Adjusting the Alternator
V-Belt Tension on page 66.

Checking the Remote Control
Handle

Check the operation of the remote control
handle and ensure it moves smoothly. If it
is hard to operate, grease the joints of the
remote control cable and lever bearings. If
the lever is too loose, adjust the remote
control cable. See Checking and Adjusting
Remote Control Cables on page 64

.

Checking the Alarm Indicators

When operating the start switch on the
instrument panel, check that there is no
alarm message on the display and the
alarm indicators work normally. See
Control Equipment on page 15

.

Preparing Fuel, Oil and Coolant in
Reserve

Prepare sufficient fuel for the days
operation. Always store engine oil and
coolant in reserve (for at least one refill)
onboard, to be ready for emergencies.

Perform the following maintenance after
the initial 50 hours of operation.

• Changing the Engine Oil and

Replacing the Engine Oil Filter
Element



• Changing the Fuel Filter Element

Changing the Engine Oil and
Replacing the Engine Oil Filter
Element

The engine oil on a new engine becomes
contaminated from the initial break-in of
internal parts. It is very important that the
initial oil replacement is performed as
scheduled.

It is easiest and most effective to drain the
engine oil after operation while the engine
is still warm.

WARNING

If you must drain the engine oil while it
is still hot, stay clear of the hot engine
oil to avoid being burned. ALWAYS wear
eye protection.

After Initial 50 Hours of
Operation

PERIODIC MAINTENANCE

58

6LPA Series Operation Manual

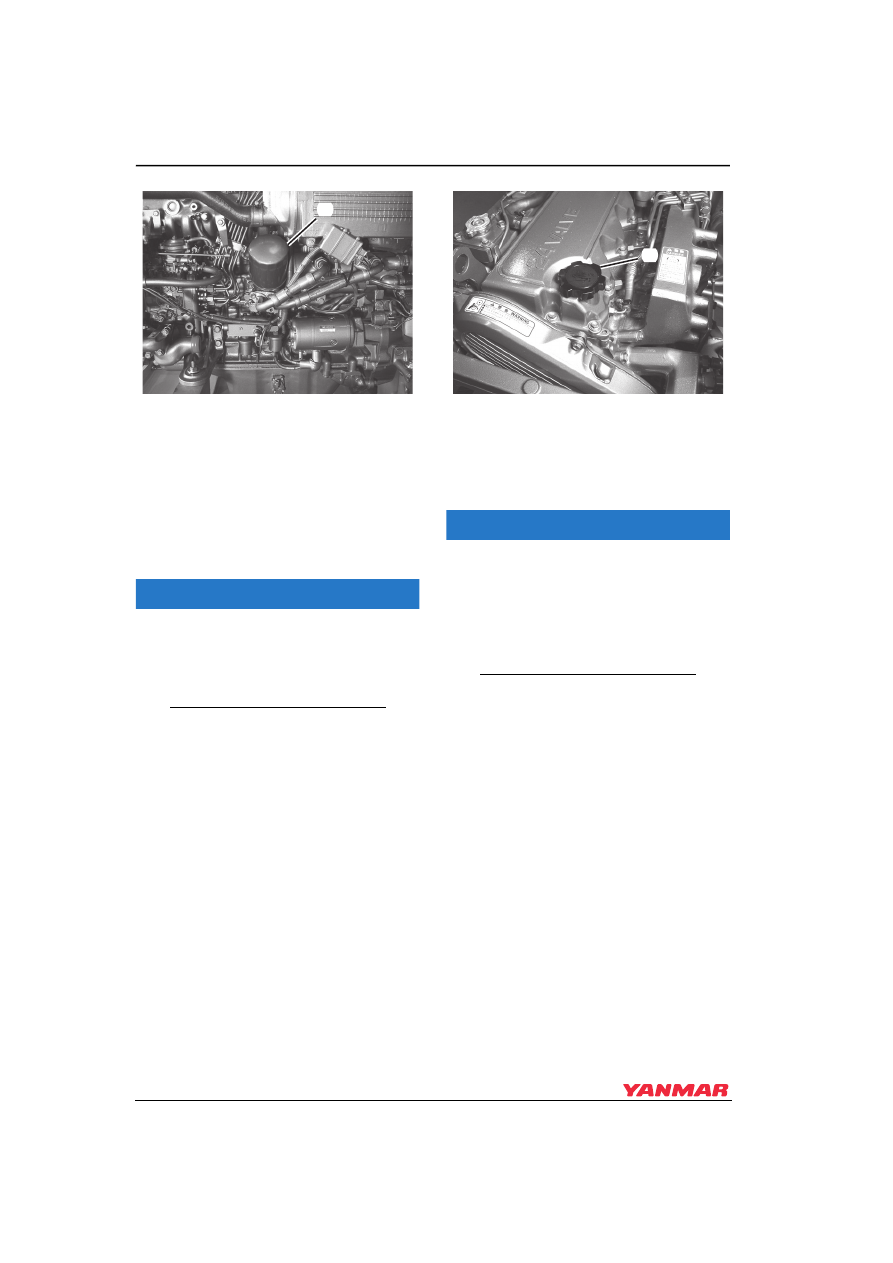

 Figure 1

Figure 1

1. Turn the engine OFF.
2. Remove the engine oil dipstick. Attach

the oil drain pump (if equipped) and
pump out the oil.
For easier draining, remove the engine
oil fill cap.

NOTICE

Prevent dirt and debris from
contaminating engine oil. Carefully
clean the dipstick and the surrounding
area before you remove the dipstick.

3. Turn the engine oil filter (Figure 1, (1))

counterclockwise with a wrench.

4. Remove the engine oil filter.
5. Apply a small amount of engine oil to

the seal of the new filter.

6. Install a new filter element and tighten

by hand until the seal touches the
housing.

7. Turn filter an additional 3/4 turn with a

filter wrench.

 Figure 2

Figure 2

8. Remove filler cap (Figure 2, (1)) and fill

with new engine oil through filler port.
See Engine Oil on page 30

.

NOTICE

NEVER mix different types of engine oil.
This may adversely affect the lubricating
properties of the engine oil.
NEVER overfill. Overfilling may result in
white exhaust smoke, engine overspeed
or internal damage.

9. Perform a trial run and check for oil

leaks.

10.Approximately 10 minutes after

stopping the engine, remove the oil
dipstick and check the oil level. Add oil
if the level is too low.

11.Dispose of waste properly.

(1)

0004899

(1)

0004900
