Reverse
Move the handle from NEUTRAL to REV
(reverse). This engages the clutch in
reverse and simultaneously increases the
engine speed. Pushing the handle further
in the same direction increases engine
speed to full speed.
Free Throttle Operation
When the boat is stopped (clutch is in
NEUTRAL) the idling speed of the engine
can be increased in the following manner:
1. Ensure the handle is in NEUTRAL.
2. Disengage the clutch:

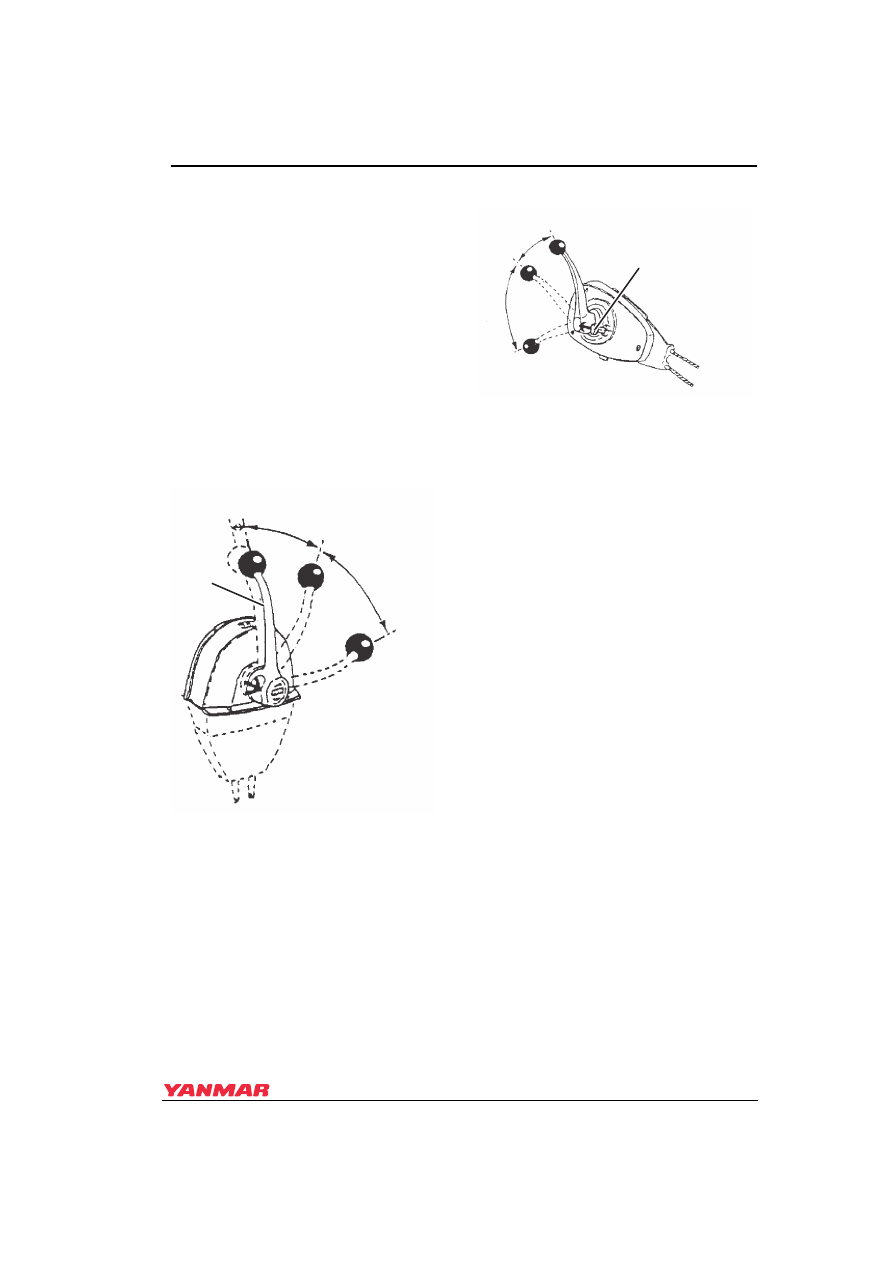

Figure 10
MT-3
Figure 11
1 – Neutral
2 – Low Speed
3 – High Speed
4 – Remote Control (Throttle)
Handle
Figure 11
MV
Figure 12
1 – High Speed
2 – Low Speed
3 – Neutral
4 – Free Throttle Button
3. • MT-3: Pull the throttle handle
all the way out.
• MV: Pull out the free throttle button
, located next to the
handle.
When the handle or button is pulled out,
move the handle to either FORWARD or
REVERSE to increase the idling speed.
Returning to Normal Operation
• MT-3: Move the throttle handle to
NEUTRAL (Figure 11, (1)). The lever
will automatically return to the normal
position.
• MV: Move throttle handle to NEUTRAL
. Push the free throttle
button in.
(4)
(1)
(2)
(3)
0004888
(1)
(2)
(3)
(4)
0004889
