TM 8000-10/1D
RIFLE, 5.56 MM, M16A2
TAMCN E14412M
NSN 1005-01-128-9936
ID 05538C
TM8K-024
DESCRIPTION AND FUNCTION
Rifle,
5.56 mm, M16A2 is a lightweight, air-cooled, gas-operated, magazine-fed, shoulder- or hip-fired
weapon designed for either automatic (three-round bursts) or semi-automatic (single shots) fire through the use of
a selector lever and has a fully adjustable rear sight. The bottom of the trigger guard opens to provide access to
the trigger while wearing winter mittens. The rifle accommodates either M193 or M855 5.56 mm ammunition. The
M855 ammunition has increased penetration and range in comparison to the M193 ammunition (600 meters vs.
460 meters).
TECHNICAL CHARACTERISTICS
Weight:
Muzzle Velocity (Approx)
3,100 ft/sec (945 mps)
w/o Magazine or Sling
7.5 lb (3.4 kg)
Rate of Fire (Max):
w/ Loaded Magazine
8.75 lb (3.97 kg)
Semi-automatic
45 rounds/min
and Sling
Burst
90 rounds/min
Length (w/ Compensator)
39.6 in. (100.65 cm)
Sustained
12 to 15 rounds/min
Range:
Cyclic
800 rounds/min
Max
3,865 yd (3,534 m)
Max Effective
601.48 yd (550 m)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Sling
1
Upper Receiver and Barrel Assembly
1
Bolt Carrier Assembly
1
Lower Receiver and Buttstock Assembly
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
E08927M
07700A
Launcher, Grenade, 40 mm
M203
E11587G
05975D
Sight, Night Vision, Individual Served Weapon
AN/PVS-4
E1798
Rifle Combat Optic (RCO)
REFERENCES
• TM 05538/10012-10A/1; Operator’s Manual, Rifles 5.56 mm, M16A2, M16A4, and Carbines 5.56 mm, M4 and
M4A1.
• TM 05538/10012-23&P; Maintenance Manual, Rifles 5.56 mm, M16A2, M16A3, M16A4, and Carbines 5.56
mm, M4 and M4A1.
• See SL-1-2 for a complete listing of applicable publications.
1-33
TM 8000-10/1D
RIFLE, 5.56 MM, M16A4
TAMCN E14412M
NSN 1005-01-383-2872
ID 05538C
TM8K-025
DESCRIPTION AND FUNCTION
Rifle, 5.56 mm, M16A4 is a lightweight, air-cooled, gas-operated, magazine-fed, shoulder-fired weapon that
can be fired in three-round bursts or semi-automatic single shots. The weapon has positive bolt locking. The
weapon has a fully adjustable rear sight and is configured with a flat-top upper receiver and barrel assembly with
a detachable carrying handle and integral rear aperture sight. The bottom of the trigger guard opens to provide
access to the trigger while wearing winter mittens.
TECHNICAL CHARACTERISTICS
Weight:
Muzzle Velocity (Approx)
3,100 ft/sec (945 mps)
w/o Magazine or Sling
7.5 lb (3.4 kg)
Rate of Fire (Max):
w/ Loaded Magazine
8.75 lb (3.97 kg)
Semi-automatic
45 rounds/min
and Sling
Burst
90 rounds/min
Length (w/ Compensator)
39.6 in. (100.65 cm)
Sustained
12 to 15 rounds/min
Range:
Cyclic
800 rounds/min
Max
3,865 yd (3,534 m)
Max Effective
601.48 yd (550 m)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Upper Receiver and Barrel Assembly
1
Lower Receiver and Buttstock Assembly
1
Bolt and Carrier Assembly
1
Charging Handle Assembly
1
Cartridge Magazine
1
Small Arms Sling
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
E08927M
07700A
Launcher, Grenade, 40 mm
M203
E11587G
05975D
Sight, Night Vision, Individual Served Weapon
AN/PVS-4
E17107G
11064A
Rifle Combat Optic (RCO)
REFERENCES
• TM 05538/10012-10A/1; Operator’s Manual, Rifles 5.56 mm, M16A2, M16A4, and Carbines 5.56 mm, M4 and
M4A1.
• TM 05538/10012-23&P; Maintenance Manual, Rifles 5.56 mm, M16A2, M16A3, M16A4, and Carbines 5.56
mm, M4 and M4A1.
• See SL-1-2 for a complete listing of applicable publications.
1-34
TM 8000-10/1D
RIFLE, SCOPED, LONG RANGE, .50 CALIBER, M107
TAMCN E14752M
NSN 1005-01-469-2133
ID 11110A
TM8K-026
DESCRIPTION AND FUNCTION
Rifle, Scoped, Long Range, .50 Caliber, M107, is a semi-automatic, air-cooled, long-range rifle. It is used to
destroy or disable targets at ranges greater than those achievable by conventional small arms, to engage lightly
armored vehicles and light fortifications, and for use by explosive ordnance disposal personnel in destroying
munitions and hazards from safe distances.
TECHNICAL CHARACTERISTICS
Caliber
.50 (12.7 x 99 mm)
Sights
SSDS
Weight (Unloaded)
28.5 lb (12.9 kg)
Range:
Length:
Max
7,450 yd (6,812 cm)
Overall
57 in. (144.8 cm)
Max Effective
2,000 yd (1,828 cm)
Takedown
38 in. (96.5 cm)
Barrel
29 in. (73.7 cm)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Upper Receiver Complete
1
Bolt Carrier Complete
1
Lower Receiver Complete
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
N/A
N/A
Box Magazine
N/A
N/A
N/A
Case, Carrying
N/A
N/A
89072C
Scout Sniper Day Scope
N/A
N/A
N/A
Telescope Adjustment Tools
N/A
REFERENCES
• TM 11110A-OI LRSR/SASR.
• TM 11110A-OR LRSR/SASR.
• See SL-1-2 for a complete listing of applicable publications.
1-35
TM 8000-10/1D
RIFLE, SNIPER, 7.62 MM, M40A3/A5
TAMCN E14602M
NSN 1005-01-495-0843
ID 05539D
TM8K-105
DESCRIPTION AND FUNCTION
Rifle, Sniper, 7.62 mm, M40A3/A5 is a heavy barrel, bolt-action, manually operated, magazine-fed, shoul-
der-fired weapon with an optical sight. The M40A3/A5 closed-bolt design offers a high degree of accuracy and
control while providing a greater degree of safety. An accessory rail has been added on at the front of the stock
providing more area to mount accessories. The M40A5 is equipped with muzzle break and suppressor.
TECHNICAL CHARACTERISTICS
Length:
Max Effective Range
1,000 yd (914 m)
w/ Suppressor
49.75 in. (126.4 cm)
Caliber
7.62 NATO
w/o Suppressor
44.0 in. (111.76 cm)
Telescope
SSDS
Barrel
24.0 in. (60.96 cm)
Telescope Weight
Approx 1.5 lb (.56 kg)
Weight:
Suppressor Weight
19 oz. (.54 kg)
w/ Suppressor
17.20 lb (7.8 kg)
Suppressor Length
9.8 in. (24.89 cm)
w/o Suppressor
16.05 lb (5.99 kg)
Suppressor Diameter
1.5 in. (3.81 cm)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Barrel and Receiver Assembly
1
Platform, Optical
1
Bipod Assembly
1
Stock Assembly
1
Bolt Assembly
1
Telescope Assembly
ASSOCIATED COMPONENTS
• Case, Carrying (hard cover)
• Soft Case
REFERENCES
• TM 05539D-10/1; Operator’s Manual, Sniper Rifle, 7.62 mm, M40A3.
• TM 05539D-24A&P/2; Maintenance Manual, Sniper Rifle, 7.62 mm, M40A3.
• See SL-1-2 for a complete listing of applicable publications.
1-36
TM 8000-10/1D
SHOTGUN, 12 GAGE, M1014, JOINT SERVICE COMBAT SHOTGUN (JSCS)
TAMCN E17612M
NSN 1005-01-472-3147
ID 10698A
TM8K-028
DESCRIPTION AND FUNCTION
The M1014 Combat Shotgun, is a semi-automatic weapon with a fixed, tubular magazine. It functions using
the Auto Regulating Gas Operated (ARGO) Twin Operating System with rotating bolt head and dual-locking lugs.
It is self-regulated for cartridges of varying length and power levels and functions reliably under all environmental
conditions. All controls and sling attachment points allow for ambidextrous operation.
TECHNICAL CHARACTERISTICS
Length (Overall):
Weight (Unloaded)
8.44 lb (3.15 kg)
Buttstock Extended
39.8 in. (101.09 cm)
Magazine Capacity:
7 rounds, 2.75-in shells
Buttstock Collapsed
34.9 in. (88.65 cm)
6 rounds, 3-in. shells
Caliber
12 gage
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Receiver
1
Barrel
1
Buttstock
1
Bolt Assembly
1
Pistol grip
ASSOCIATED COMPONENTS
• Sling
REFERENCES
• TM 10698A-10/1; Operator’s Manual, Combat, 12 gage, Semi-automatic, M1014.
• TM 10698A-23B&P/2; Maintenance Manual, Shotgun, Combat, 12 gage, Semi-automatic, M1014.
• See SL-1-2 for a complete listing of applicable publications.
1-37
TM 8000-10/1D
SHOTGUN, 12 GAGE, MOSSBERG 500A2
TAMCN E17622M
NSN 1005-01-371-5639
ID 09081A
TM8K-029
DESCRIPTION AND FUNCTION
Shotgun, 12 Gage, Mossberg 500A2 is a manually operated, repeating, magazine-fed, shoulder-fired
weapon. The action lock lever allows the action to be unlocked without engaging the trigger and is located on the
right side of the trigger group. When in the locked ON position, the safety prevents the firing of the weapon. When
the safety is OFF, a red dot will be exposed, indicating the weapon is fireable. The trigger controls the firing of the
weapon. The fore end assembly is used to open and close the bolt assembly, permitting loading and firing of the
weapon, and ejection of the spent cartridge.
TECHNICAL CHARACTERISTICS
Weight
6.9 lb (3.1 kg)
Magazine Capacity
5 shells
Length of Shotgun
37.8 in. (95.9 cm)
Caliber
12 gage
Length of Barrel
20 in. (50.8 cm)
Choke
Cylinder
Shell Length
2.75 in. (6.99 cm)
Type of Action
Slide (pump)
Type of Magazine
Tubular
Type of Firing Mechanism
Internal hammer
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Receiver
1
Barrel
1
Buttstock Assembly
1
Fore End
ASSOCIATED COMPONENTS
• Sling
REFERENCES
• TM SW370-BB-OPI-010; Operator’s Manual, Mossberg, Model 500A1, 500A2 Shotgun.
• TM SW370-AQ-MMO-010; Maintenance Manual, Mossberg, Model 500A1, 500A2 Shotgun.
1-38
TM 8000-10/1D
CHAPTER 2
TOWED ARTILLERY WEAPONS
TM 8000-10/1D
HOWITZER, MEDIUM, TOWED, 155 MM, M198
TAMCN E06657M
NSN 1025-01-026-6648
ID 08198A
TM8K-030
DESCRIPTION AND FUNCTION
Howitzer, Medium, Towed, 155 mm, M198 is a field artillery howitzer. It is constructed of aluminum and
steel and is air transportable by CH-53E helicopter and C-130 or larger fixed wing aircraft. The M198 has a maxi-
mum range of 22,400 meters with conventional ammunition and 30,000 meters using the M549 rocket assisted
projectile (RAP). Its use significantly extends the range, lethality, and counterbattery fires of the direct support
artillery battalions. The M198 fires all current and developmental 155 mm ammunition.
TECHNICAL CHARACTERISTICS
Length:
Maximum Range
32,820 yd (30,000 m)
Towed Position
40 ft, 3 in. (12.27 m)
Rate of Fire:
Stowed Position
24 ft, 8 in. (7.52 m)
Maximum
4 RPM
Width (Towed Position)
9 ft, 2 in. (2.79 m)
Sustained
2 RPM
Height (Towed Position)
9.5 ft (2.89 m)
Weight
15,750 lb (7,087.5 kg)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Carriage
1
Firing Baseplate
1
Cannon
1
Recoil Mechanism
ASSOCIATED COMPONENTS
• M17 Sights Tritium Powered Radio Active Device (RAD)
• M18 Sights Tritium Powered Radio Active Device (RAD)
• M139 Sights Tritium Powered Radio Active Device (RAD)
• M137 Sights Tritium Powered Radio Active Device (RAD)
• Collumator
2-1
TM 8000-10/1D
HOWITZER, MEDIUM, TOWED, 155 MM, M198 - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
M17 Fire Control Quadrant
M18 Fire Control Quadrant
M137 Panoramic Telescope
M138 Elbow Telescope
M139 Alignment Device
E01702E
00475A
Pump Kit, Hydraulic
M3
K46352E
01904A
Pail, Metal
A-A-1273
E12607B
02193A
Quadrant F/Control
M2
E02057M
04914B
Collimator, Aiming
M1A1
N61722E
08694A
Tool Kit, Org.
001008SL83
E02777B
09054A
Data/Dis., Directional
0D144(V)3
E03427B
09923A
Extractor, Assembly
M712
N/A
10915M
Mod. Kit, Gun
12965280
N/A
87570B
Actuating Cylinder
12007765
N/A
87596B
Rail, Recoil Mechanism
12007812
N/A
87597B
Yoke Assembly, Recoil
12007722
N/A
87598B
Cylinder Assembly
12008010
N/A
87600B
Counterbalance Breech
11578900
N/A
87602B
Cylinder Assembly
12007640
N/A
87603B
Valve, Assembly Oil
12007890
N/A
87606B
Mount, Telescope
M171
N/A
87607B
Mount, Telescope
M172
N/A
87608B
Elbow Assembly
11741201
N/A
87609B
Drive Unit
12008230
REFERENCES
• SL-3-08198A; Components List, Howitzer, Medium, Towed, 155 mm, M198.
• TM 9-1025-211-10; Operator’s Manual, Howitzer, Medium, Towed, 155 mm, M198.
• See SL-1-2 for a complete listing of applicable publications.
2-2
TM 8000-10/1D
HOWITZER, M777A2
TAMCN E06717M
NSN 1025-99-463-7551
ID 10407A
TM8K-031

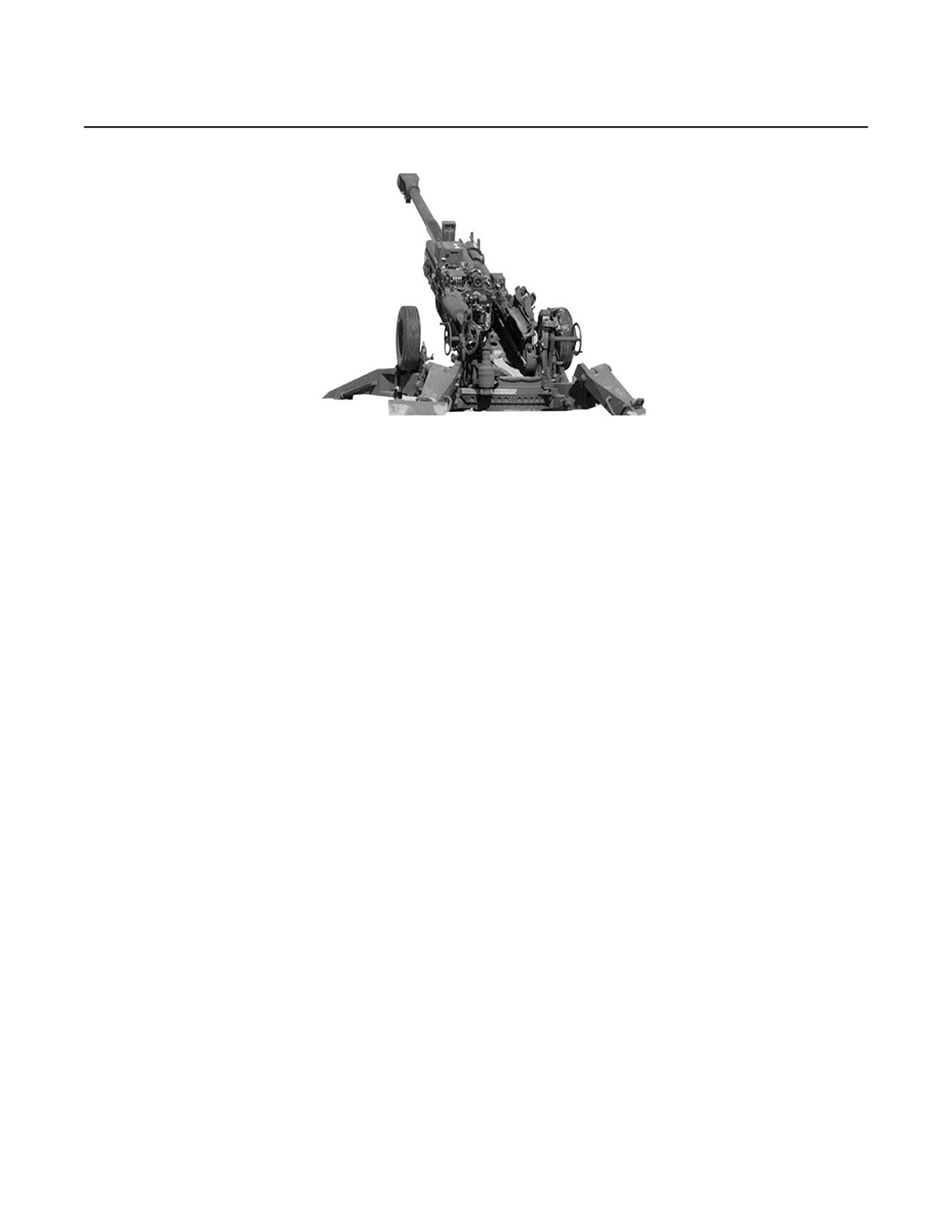

DESCRIPTION AND FUNCTION
The M777A2 Howitzer is an extended range weapon that can be towed by muzzle tow with any four-wheel
drive vehicle over 2.5 tons. The Howitzer is also transportable by rotary fixed wing aircraft. The body has trails,
spades, and stabilizers that can be folded for transportation and storage. The Howitzer has a low profile, may be
emplaced rapidly, and has a 6,400-mil speed shift capability.
TECHNICAL CHARACTERISTICS
Weight (w/o Basic Issue Items):
Length:
M777A2
9,840 lb (4,463 kg)
Firing Position:
Dimensions (Travel Conditions):
Center Traverse
35 ft (10.21 m)
Ground Clearance at
2 ft, 3 in. (0.66 m)
Maximum Traverse
35 ft, 4 in. (10.83 m)
Rear of Body
Towed Position
31 ft, 2-1/4 in. (9.51 m)
Height at Spades
7 ft, 2-2/3 in. (2.65 m)
Tread (Center-to-Center)
7 ft, 6-1/2 in. (2.30 m)
(Towed Position)
MAJOR COMPONENTS
Qty
Item
1
Cannon Tube, Breech Ring
1
Recoil
1
Carriage
1
DFCS
-DAGR
- Singars
2-3
TM 8000-10/1D
HOWITZER, M777A2 - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
K44962F
0737B
Kit, Bag Flyer
DUCK170
K43502E
01845B
Flashlight
TL122D
E12607B
02193A
Quadrant, Fire Control
M2
N/A
8J209B
Cover, Access
13005079
N/A
8J210B
Quadrant, Fire Control
M18A1
N/A
8J224B
Telescope, Elbow
M138A1
N/A
8J225B
Counter Box Assembly
12984734
N/A
8J226B
Mount, Telescope
M172A1
N/A
8J231B
Quadrant, Fire Control
M17A1
N/A
8J232B
Elbow Assembly
12984733
N/A
8J233B
Telescope, Panoramic
M137A2
N/A
8J234B
Mount, Telescope
M171A1
N/A
8J236B
Bearing Unit, Ball
13005082
N/A
8J237B
Telescope Subassembly
12961438
N/A
8J557B
Accumulator, Hydraulic
AM010422000
N/A
8J558B
Spade Damper Assembly
AMP020223000
N/A
8J559B
Transmission, Mechanism
AMP030020000
N/A
8J560B
Traverse Gearbox Assembly
AM020921000
N/A
8J767B
Computer, Digital
10057140-4
N/A
8K225B
PCCM
GD-561-PS
N/A
8K226B
Radio Enclosure Assembly
10059678
N/A
8K227B
Indicator, Digital
10059150-4
N/A
8K228B
Indicator, Digital
1005E9200
REFERENCES
2-4
TM 8000-10/1D
CHAPTER 3
TRACKED AND WHEELED COMBAT VEHICLES
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, PERSONNEL CARRIER (AAVP7A1)
TAMCN E08467K
NSN 2350-01-458-7410
ID 09674A
TM8K-097

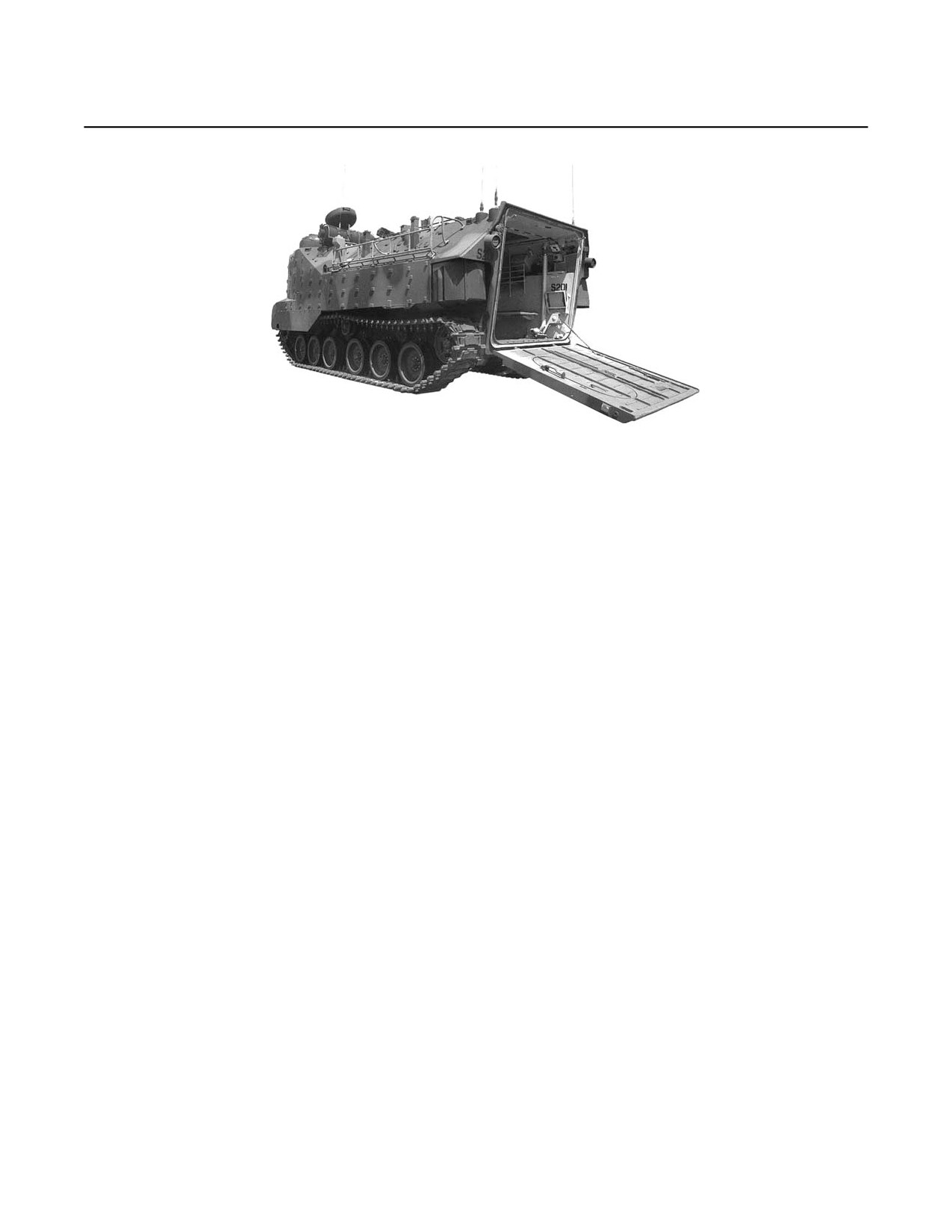

DESCRIPTION AND FUNCTION
Assault Amphibian Vehicle, Personnel Carrier (AAVP7A1 RAM/RS) is an armored, amphibious, full-tracked
landing vehicle and personnel carrier. The AAVP7A1 RAM/RS provides combat support for amphibious opera-
tions, carrying 21 fully equipped combat troops and a crew of three. The vehicle is designed to operate from ship
to shore, through rough water and surf zone, to inland objectives for subsequent operations ashore.
TECHNICAL CHARACTERISTICS
Crew
3
Grade Ascending Ability
Armament
Machine Gun, .50 Cal,
(Combat-Loaded):
M2HB (one needed)
Forward Slope
60 deg
Machine Gun, 40 mm,
Obstacle Ability:
MK19, MOD 3 (one
Solid Wall
3 ft (0.92 m)
needed)
Trench Spans
8 ft (2.44 m)
Dimensions:
Speed (Forward):
Length
321.32 in. (816.15 cm)
Land
45 mph (72.4 km/h)
Width
Water
8.2 mph (13.6 km/h)
w/o EAAK
130.61 in. (331.75 cm)
Speed (Reverse):
w/ EAAK
147.61 in. (374.93 cm)
Land
12 mph (19.3 km/h)
Height
130.56 in. (331.62 cm)
Water
4.5 mph (7.2 km/h)
Weight (w/ EAAK):
Electrical:
Combat-Loaded
52,504 lb (23,815 kg)
Voltage
24
Less Crew, Stowage
48,060 lb (21,800 kg)
Amperage
300
and Fuel
4 Batteries (12 volts each) connected in series (parallel)
Fuel System
171 gal. (647.23 L)
Cruising range:
Land
200 miles (321.87 km)
(Depending on terrain)
Water
7 hours
Draft (Combat-Loaded)
79 in. (201 cm)
3-1
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, PERSONNEL CARRIER, (AAVP7A1) - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Qty
Type/Model
Driver’s Night Viewer
2
AN/VAS-5A(V)6
Periscope
1
M27E4
Associated Component Identification Numbers
10004A
88948B
8G282B
8I401B
8J782B
8J788B
84403F
8F419C
8H667G
8I427B
8J784B
8J792B
84403G
8F419D
8H667H
8J779B
8J785B
84406D
8G280B
8I043B
8J780B
8J786B
84409B
8G281B
8I044B
8J781B
8J787B
REFERENCES
• TM 09674A-10/3B; Operator’s Manual, Assault Amphibian Vehicle.
• TM 09674A-25&P/4B; Maintenance Manual, Assault Amphibious Vehicle, 7A1 Family of Vehicles and RAM/RS.
• See SL-1-2 for a complete listing of applicable publications.
3-2
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, PERSONNEL CARRIER, MODEL 7A1,
(AAVP7A1), UPGUNNED WEAPONS STATION (UGWS)
TAMCN E3201
NSN 1010-01-233-9493
ID 10004A
TM8K-033

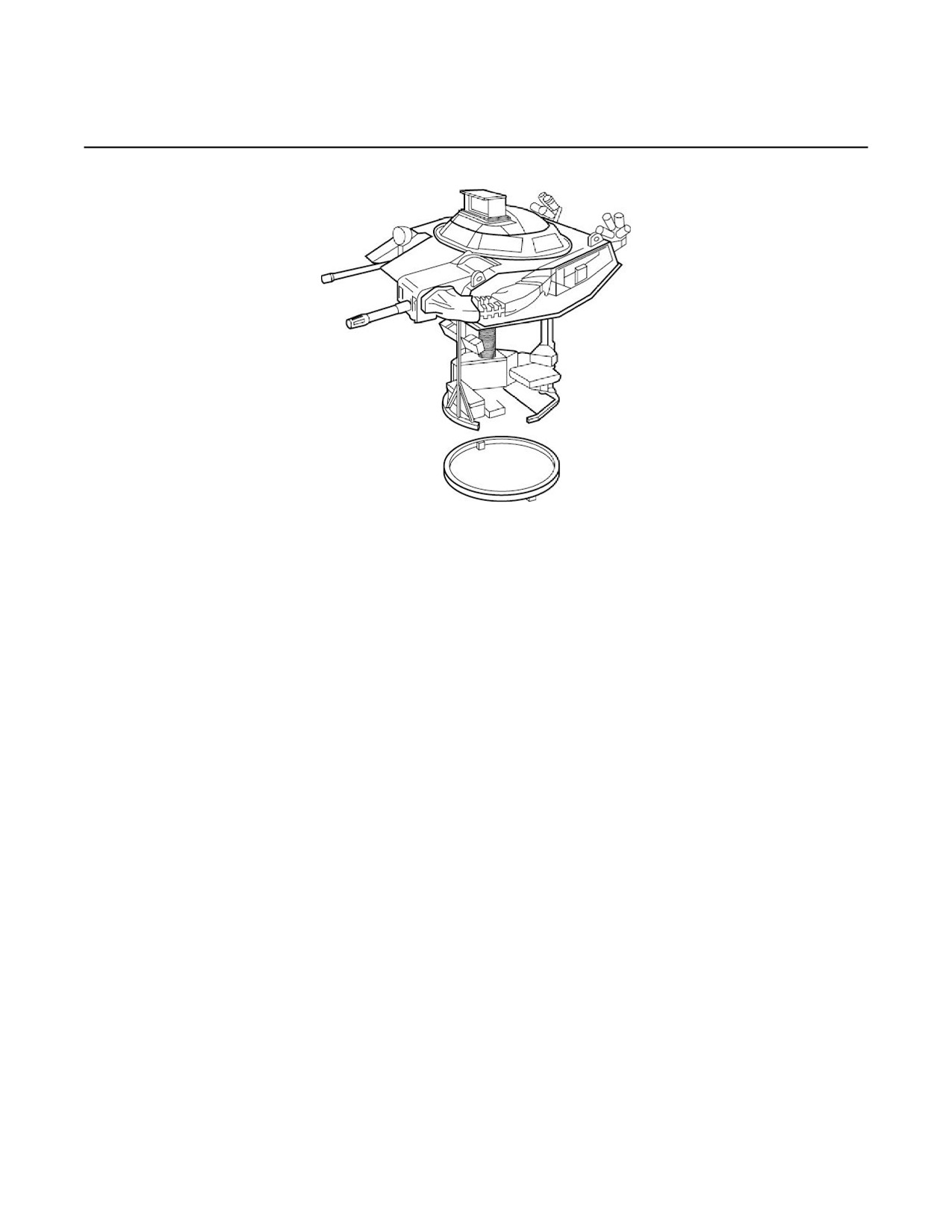

DESCRIPTION AND FUNCTION
The UGWS is constructed of armor plates welded together to form an outside ballistic structure. A basket is
attached to the structure, which houses the gunner and the equipment necessary to operate the station. The pri-
mary weapon is a 40 mm, MK 19 MOD 3 Machine Gun; the secondary weapon is a .50 cal, M2HB Machine Gun.
Two M257 four-tube smoke grenade launchers are mounted on the weapons station.
TECHNICAL CHARACTERISTICS
Weight (w/ Armament)
2,350 lb (1,067 kg)
Smoke Grenade:
Height (Overall)
76.7 in. (194.5 cm)
Launchers
Two M257 smoke grenade
Diameter
54 in. (137.1 cm)
launchers, four discharge
tubes each
Length
84 in. (213.4 cm)
(w/o Armament)
Max Range
22 to 55 yd (20 to 50 m)
Operation
Electric/manual
Sighting
Performance
Daylight
(a) Unity
(b) Optical, 7-Power
Traverse
360 deg continuous
Thermal
Elevation
+45 deg
Ammunition
Depression
-8 deg
40 mm
96 ready rounds
Armament
.50 cal
200 ready rounds
Primary:
40 mm, MK 19 MOD 3
Machine Gun
L8A1 Smoke Grenade
Four grenades each
launcher
Weight
75.6 lb (34 kg)
Lighting
Rate of Fire (Cyclic)
325 to 375 RPM
External Spotlight
100,000 candlepower
Muzzle Velocity
790 ft/sec (241 mps)
Utility Light
White or red light
Max Range
2,419 yd (2,212 m)
Dome Light
White or blue light
Secondary:
.50 cal, M2HB Machine Gun
Weight
110 lb (49.9 kg)
Rate of Fire (Cyclic)
450 to 550 RPM
Muzzle Velocity
2,810 ft/sec (857 nips)
Max Range
7,323 yd (6,700 m)
3-3
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, PERSONNEL CARRIER, MODEL 7A1,
(AAVP7A1), UPGUNNED WEAPONS STATION (UGWS) - CONTINUED
ASSOCIATED COMPONENTS
Qty
Item
Qty
Item
1
.50 Cal, M2HB Machine Gun E09997M
1
40 mm, MK 19, MOD 3 Machine Gun E0997
2
M257 Grenade Launcher
REFERENCES
• TM 10004A-10/1C, Operator’s Manual, Upgunned Weapons Station (UGWS), Assault Amphibious Vehicle,
Personnel, Model 7A1, AAVP7A1 with Components List.
• TM 10004A-25&P/2; Maintenance Manual, Assault Amphibian Vehicle Personnel, Model 7A1, (AAVP7A1),
Upgunned Weapons Station (UGWS).
• See SL-1-2 for a complete listing of applicable publications.
3-4
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, COMMAND (AAVC7A1)
TAMCN E07967K
NSN 2350-01-458-7318
ID 07268B
TM8K-098
DESCRIPTION AND FUNCTION
Assault Amphibian Vehicle, Command (AAVC7A1 Ram R/S) is a mobile command post for the maneuver
element commander and is a means to communicate with supporting arms, logistical support units, and other
units. The system is a state-of-the-art design, providing totally secure voice communication. Work stations and
direct access to the communication system are provided for nine staff persons. Communication equipment is
located along the port side and staff equipment on the starboard side.
TECHNICAL CHARACTERISTICS
Crew
3
Grade Ascending Ability
Armament
1-Machine gun M240B,
(Combat-Loaded)
7.62 mm
Forward Slope
60 deg
8-Rifle M16A4, 5.56 mm
Obstacle Ability:
(Troop Issue)
Solid Wall
3 ft (0.92 m)
Dimensions:
Trench Spans
8 ft (2.44 m)
Length
321.32 in. (816.15 cm)
Speed (Forward):
Width:
Land
45 mph (72.4 km/h)
w/o EAAK
130.61 in. (331.75 cm)
Water
8.2 mph (13.6 km/h)
w/ EAAK
147.61 in. (374.93 cm)
Speed (Reverse):
Height
130.56 in. (331.62 cm)
Land
12 mph (19.3 km/h)
Water
4.5 mph (7.2 km/h)
Weight (w/ EAAK):
Electrical:
Combat-Loaded
54,765 lb (24,841 kg)
Voltage
24
Less Crew, Stowage
51,360 lb (23,297 kg)
Amperage
300
and Fuel
Fuel System
171 gal. (647.23 L)
4 Batteries (12 volts ea) connected in series (parallel)
Cruising range:
Land
200 miles (321.87 km)
Water
7 hours
Draft (Combat-Loaded)
75.6 in. (192 cm)
3-5
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, COMMAND (AAVC7A1) - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Qty
Type/Model
Driver’s Night Viewer
2
AN/VAS-5A(V)6
Periscope
1
M27E4
Associated Component Identification Numbers
00146B
00379A
00398A
01076A
01592D
01695C
01846A
01905A
01907C
01909C
04667A
04669A
04670A
04674D
06790D
06790E
06790F
06791A
07429B
07430B
07867A
08114A
08150A
08336A
08337A
08366A
08491A
08548B
08549A
08551A
08794A
08854A
08980A
09094A
09285A
09471B
09570M
09668A
09674A
09987A
10247A
11584A
84236B
84236C
84338B
84338C
84403C
84403D
84403E
84403F
84403G
84404B
84406C
84406D
84406E
84409B
84409C
84441B
84442B
85059B
85655B
85656B
85657B
86386C
86499B
86501B
86523B
86979B
87541B
87542B
87543B
87544B
87545B
87546B
87548B
87548C
87550C
87553B
87555B
87556B
87557B
87558B
87559B
87559C
87560B
87561B
87562B
87566B
87894B
88104B
88152B
88626B
88643B
88643C
88653B
89431B
89433B
89434B
8A259B
8A264B
8A265B
8A266B
8A281B
8A282B
8A303B
8A313B
8A315B
8A326B
8A327B
8A602B
8A613B
8A643B
8A648B
8A850B
8A853B
8A854B
8A858B
8A950B
8A986B
8B001B
8B002B
8B004B
8B005B
8B015B
8B021B
8B024B
8B025B
8B026B
8B039B
8B177B
8B204B
8B211B
8B212B
8B214B
8B319B
8B320B
8B321B
8B322B
8B323B
8B324B
8B325B
8B334B
8B349B
8B418B
8B419B
8B469B
8B470B
8B471B
8B472B
8B473B
8B474B
8B475B
8B477B
8B478B
8B479B
8B484B
8B485B
8B486B
8B487B
8B488B
8B489B
8B490B
8B491B
8B492B
8B493B
8B496B
8B501B
8B508B
8B553B
8B554B
8B560B
8B630B
8B631B
8B921B
8B943B
8B948B
8B963B
8C128B
8C129B
8C131B
8C139B
8C140B
8C142B
8C144B
8C145B
8C147B
8C148B
8C149B
8C152B
8C153B
8C174B
8C193B
8C194B
8C195B
8C196B
8C199B
8C242B
8C433B
8C516B
8C529B
8C633B
8C651B
8C658B
8C687B
8C689B
8C690B
8C707B
8C708B
8C719B
8C720B
8C721B
8C722B
8C723B
8C724B
8C725B
8C726B
8C727B
8C728B
8C729B
8C730B
8C731B
8C732B
8C733B
8C864B
8C865B
8C866B
8C958B
8D020B
8D023B
8D024B
8D485B
8D509B
8D700B
8D729B
8D733B
8D739B
8D740B
8D741B
8D775B
8D790B
8D921B
8D922B
8D924B
8D925B
8D931B
8F152B
8F242B
8F244B
8F245B
8F246B
8F247B
8F250B
8F252B
8F254B
8F397B
8F462B
8F596B
8F597B
8F764B
8F866B
8F933B
8F934B
8F935B
8F936B
8F937B
8G018B
8G019B
8G020B
8G021B
8G112B
8G441B
8G865B
8H049B
8H567B
8H667G
8H667H
8I043B
8I044B
8I904B
3-6
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, COMMAND (AAVC7A1) - CONTINUED
REFERENCES
• TM 09674A-10/3B; Operator’s Manual, Assault Amphibian Vehicle.
• TM 07268B-25&P/2A; Assault Amphibious Vehicle, Command, Model 7A1, AAVC7A1 and AAVC7 RAM/RS
Supplement to TM 09674A-10/3.
• See SL-1-2 for a complete listing of applicable publications.
3-7
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, RECOVERY (AAVR7A1)
TAMCN E08567K
NSN 2350-01-458-7550
ID 07267B
TM8K-099
DESCRIPTION AND FUNCTION
Assault Amphibian Vehicle, Recovery (AAVR7A1 RAM R/S) is a recovery vehicle with field maintenance
capability through the third echelon. Principal equipment includes a hydraulic telescoping crane with a 6,000-
pound capacity, a 30,000-pound capacity recovery winch, as well as cutting, welding, and other portable mainte-
nance equipment.
TECHNICAL CHARACTERISTICS
Crew
5, 2-5 crew members are
Performance
not permanently assigned to
Cruising Range:
vehicle
Land (at 25 mph)
200 miles (321.87 km)
Armament
1-Machine Gun, M240B
under ideal conditions
7.62 mm
Water
7 hours
5-Rifle M16A2, 5.56 mm
Draft (Combat-Loaded)
68.1 in. (172.97 cm)
(Troop Issue)
Grade Ascending Ability
Dimensions:
(Combat-Loaded)
Length
320.40 in. (813.82 cm)
Forward Slope
60 deg
Width
129.25 in. (326.95 cm)
Obstacle Ability:
Height
129.25 in. (328.30 cm)
Solid Wall
3 ft (0.92 m)
Weight:
Trench Span
8 ft (2.44 m)
Combat-Loaded
54,069 lb (24,525 kg)
Speed (Forward):
Less Crew, Stowage
52,059 lb (23,614 kg)
Land
45 mph (72.41 km/h)
and Fuel
Water
8.2 mph (13.68 km/h)
Fuel System:
171 gal. (647.23 L)
Speed (Reverse):
4 Batteries (12 volts each)
Land
12 mph (19.31 km/h)
connected in series (parallel)
Water
4.5 mph (7.24 km/h)
Turning Radius (Land)
Pivot
3-8
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, RECOVERY (AAVR7A1) - CONTINUED
TECHNICAL CHARACTERISTICS - CONTINUED
Recovery Equipment
Hydraulic Crane
Electrical Power Source
Horizontal Reach Max Boom:
Alternator (Engine Driven)
Load Capacity
6,500 lb (12,724 kg)
Rating
14.2 kw. -17.4 KVA
Room Working Angle
0 to 65 deg
Output
120 VAC and 230 3 Phase
Crane Swing-Mount
14,000 lb (6,350.3 kg)
Speed
3,600 RPM
Capacity
Hydraulic Power Source
Crane Mount Rating
129,000 lb (58,513.4 kg)
Pump (Engine Driven)
Crane Swing Speed
1.5 RPM
Pressure
2,200 PSI (15,169 kPa)
Azimuth Rotational Speed
Delivery rate at 1,800
Crane Winch:
engine RPM and 1,680
Single-Line Rating
6,500 lb (2,724 kg)
pump RPM:
Line Speed
Section 1
20.0 gpm (121.12 lpm)
First Layer
25.6 fpm (7.81 mpm)
Section 2 and 3
20.0 gpm (75.7 lpm)
Second Layer
31.2 fpm (9.52 mpm)
Section 4
9.0 gpm (34.07 lpm)
Third Layer
36.7 fpm (11.47 mpm)
Air Compressor
Wire Rope
(2 stage reciprocating):
Diameter and Class
1/2 in. 6x9 wire
Operating Pressure
145 PSI to 175 PSI
Breaking Strength
23,000 lb (10,442 kg)
Speed
720 RPM
Length
85 ft (25.93 m)
Welder Power Supply
Recovery Winch:
Range:
Line Pull/Speed
MIG Welding
14 to 35 VDC, 250 Amp
Low Speed
Metallic ARC (Stick)
75 to 200 Amp, 40 VDC
Bare Drum
38,200 lb (17,327 kg) @
Welding (Gas)
OXY-ACL-Argon
22 fpm (6.71 mpm)
Torch
OXY-ACL
Full Drum
22,000 lb (9,979 kg) @
Speeds:
36 fpm (10.98 mpg)
Forward
4
High Speed
Reverse
2
Bare Drum
11,500 lb (5,216 kg) @
Water Jet Pumps
2 (qty)
97 fpm (29.59 mpm)
Capacity
14,000 gpm (52,990 lpm)
Full Drum
9,000 lb (4,082 kg) @
160 fpm (48.8 mpm)
Thrust
3.025 lb static (1.37 kg)
Wire Rope:
Location
Port and starboard aft
Diameter and Class
3/4 in. 6x37 wire
Breaking Strength
48,600 lb (22,064.4 kg)
Length
278 ft (84.79 m)
3-9
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, RECOVERY (AAVR7A1) - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Qty
Type/Model
Driver’s Night Viewer
1
AN/VAS-5A(V)6
Periscope
1
M27E4
Associated Component Identification Numbers
00146B
00363B
00373B
01076A
01592D
01695C
01816D
01846A
01905A
01907C
01909C
02964B
03014A
03210A
03223A
03239B
03424E
03533A
04667A
04669A
06790D
06790E
06790F
06791A
07429B
07430B
07797A
08114A
08150A
08336A
08337A
08491A
08548A
08548B
08551A
08794A
08854A
08980A
09094A
09570M
09668A
09674A
09987A
09988A
84236B
84236C
84338B
84338C
84403C
84403D
84403E
84403F
84403G
84404B
84406C
84406D
84406E
84409B
84409C
84441B
84442B
85059B
85655B
85656B
85657B
86386C
86499B
86501B
86523B
86979B
87541B
87542B
87543B
87544B
87545B
87546B
87548B
87548C
87550C
87553B
87555B
87556B
87557B
87558B
87559B
87559C
87560B
87561B
87562B
87566B
88104B
88626B
88643B
88643C
88653B
89431B
89433B
89434B
8A259B
8A264B
8A265B
8A266B
8A303B
8A313B
8A315B
8A326B
8A327B
8A602B
8A613B
8A643B
8A648B
8A950B
8A986B
8B001B
8B002B
8B004B
8B319B
8B320B
8B322B
8B323B
8B324B
8B325B
8B334B
8B349B
8B350B
8B351B
8B352B
8B353B
8B354B
8B355B
8B356B
8B357B
8B358B
8B359B
8B360B
8B361B
8B362B
8B418B
8B419B
8B469B
8B470B
8B508B
8B553B
8B554B
8B560B
8B630B
8B631B
8B921B
8C128B
8C129B
8C139B
8C140B
8C142B
8C144B
8C145B
8C147B
8C148B
8C149B
8C152B
8C153B
8C174B
8C193B
8C194B
8C195B
8C196B
8C199B
8C242B
8C433B
8C516B
8C529B
8C633B
8C651B
8C658B
8C687B
8C689B
8C690B
8C707B
8C708B
8C719B
8C720B
8C721B
8C722B
8C723B
8C724B
8C725B
8C726B
8C727B
8C728B
8C729B
8C730B
8C731B
8C732B
8C733B
8C864B
8C865B
8C866B
8C958B
8D020B
8D023B
8D024B
8D485B
8D507B
8D509B
8D700B
8D729B
8D733B
8D739B
8D740B
8D741B
8D775B
8D790B
8F244B
8F245B
8F246B
8F247B
8F250B
8F252B
8F254B
8F397B
8F462B
8F596B
8F597B
8F764B
8F866B
8F933B
8F934B
8F935B
8F936B
8F937B
8G018B
8G019B
8G020B
8G021B
8G112B
8G441B
8G553B
8G865B
8H667G
8H667H
8I008B
8I043B
8I044B
8I904B
8J018B
01816D
8D507B
8H667G
8H667H
8J561B
8J562B
3-10
TM 8000-10/1D
ASSAULT AMPHIBIAN VEHICLE, RECOVERY (AAVR7A1) - CONTINUED
REFERENCES
• TM 09674B-10/1C; Operator’s Manual, Assault Amphibian Vehicle (AAVR7A1).
• TM 072678-25&P12; Maintenance Manual, Assault Amphibian Vehicle (AAVR7A1).
• See SL-1-2 for a complete listing of applicable publications.
3-11
TM 8000-10/1D
BLADE, MINE CLEARING, M1A1
TAMCN E09967M
NSN 2590-01-230-8862
ID 09147A
TM8K-036
DESCRIPTION AND FUNCTION
The Mine Clearing Blade (MCB), when mounted to the front of the M1 or M1A1 Abrams Tank, is used to
clear 8-, 10- and 12-inch deep mines from a tank’s path. As the tank pushes the MCB through a minefield, loose
dirt and mines are rolled up onto moldboards and then pushed to the sides of tracks. A chain and dogbone
attached between the moldboards detonate any tilt rod mines in the center lane. A control box located in the
driver’s compartment provides operator control for raising and lowering the moldboards. A manual release system
allows moldboards to be lowered to the plowing position if the electrical system fails.
TECHNICAL CHARACTERISTICS
Length (Front to Back)
115 in. (292.0 cm)
Height:
Width:
Blade Mounted to Tank
53 in. (134.6 cm)
Side to Side w/o Extensions
148 in. (375.9 cm)
Blade at Stored Condition
29 in. (73.6 cm)
Side to Side w/ Extensions
176 in. (447.0 cm)
Power Requirement
24 VDC
Weight
7,560 lb (3,432 kg)
Ground Clearance
16.75 in. (42.5 cm)
(Travel Mode)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Mounting Frame
2
Lifting/Lowering Mechanism
2
Push Beam
1
Chain and Dogbone
2
Moldboard
1
Control Box
2
Skidshoe
ASSOCIATED COMPONENTS
• None
REFERENCES
• TM 2590-10/1; Operator’s Manual, Mine Clearing Blade.
• TM 2590-23&P2; Maintenance Manual, Mine Clearing Blade.
• See SL-1-2 for a complete listing of applicable publications.
3-12
TM 8000-10/1D
BRIDGE, ARMORED VEHICLE LAUNCHED
TAMCN E01507B
NSN 5420-00-889-2020
ID 08940A
TM8K-037
DESCRIPTION AND FUNCTION
Bridge, Armored Vehicle Launched is mounted on an M60A1 chassis. It provides a transportable bridge that
can be launched and retrieved. The mobility and flexibility allows dispersed and concentrated combat vehicle sup-
port over great distances. The armor provides maximum ballistic protection for the crew and is suitable for a
nuclear, biological, and/or chemical environment.
TECHNICAL CHARACTERISTICS
Dimensions (Travel Position):
Length (w/o Bridge)
28.3 ft (8.63 m)
Width (w/o Bridge)
12.0 ft (3.66 m)
Length (w/ Bridge)
37.0 ft (11.28 m)
Width (w/ Bridge)
13.2 ft (4.02 m)
Height (w/o Bridge)
10.0 ft (3.05 m)
Weight (w/o Bridge)
46.1 tons (42 metric tons)
Height (w/ Bridge)
12.8 ft (3.9 m)
Weight (w/ Bridge)
61 tons (55.3 metric tons)
ASSOCIATED COMPONENTS
• Transportable Bridge
REFERENCES
• SL-3-08940A/08942A; Components List, Bridge, Armored Vehicle Launched (AVLB).
• TM 5-5420-202-10; Operator’s Manual, Launcher and M60A1 Tank Chassis, Transporting: For Bridge,
Armored-Vehicle-Launched Scissoring Type, Class 60.
• TM 5-5420-202-20-1; Maintenance Manual, M60A1 Tank Chassis, Transporting: For Bridge, Armored-Vehicle-
Launched Scissoring Type, Class 60.
• See SL-1-2 for a complete listing of applicable publications.
3-13
TM 8000-10/1D
GUN, AUTOMATIC, 25 MM, M242
TAMCN E0947
NSN 1005-01-086-1400
ID 08672A
TM8K-106
DESCRIPTION AND FUNCTION
Gun, Automatic, 25 mm, M242 is the main gun for the LAV-25 and the Bradley Fighting Vehicle. An electric
motor, located on the bottom and to the rear of the auto gun receiver, drives all the moving parts inside the gun to
perform ammunition feeding, loading end firing, extraction, and ejection. The gun does not depend on barrel recoil
or expanding gases for operation. The auto gun receiver is attached to a rigid mount and does not recoil when the
gun is fired; only the barrel, breech, and bolt assemblies recoil. The firing pin is cocked just before firing to ensure
safe operation during the ram cycle. The bolt is seared (locked in the “open-bolt” position) when the trigger is
released. A receiver assembly mechanical interlock system stops the gun with the bolt locked in the breech posi-
tion if there is no recoil (round misfires or hangfires). The gun can be removed from a mount and another gun
installed in a short time. Two people can remove the automatic gun feeder, barrel assembly, and auto gun
receiver.
TECHNICAL CHARACTERISTICS
Caliber
25 mm
Barrel Length
80 in. (203.2 cm)
Weight
244 lb (110.5 kg)
Rate of Fire
Single shot, 100,
Length
108.7 in. (276.1 cm)
200 rounds/min
Height
15.0 in. (38.0 cm)
Range Max
11,156 yd (10,201 m)
Width
13.0 in. (33.0 cm)
Range Effective
1,641 yd (1,500 m)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Barrel Assembly
1
Auto Gun Receiver
1
Automatic Gun Feeder
ASSOCIATED COMPONENTS
• None
REFERENCES
• TM 08672A-23&P; Maintenance Manual for Gun, Automatic: 25 mm, M242.
• See SL-1-2 for a complete listing of applicable publications.
3-14
TM 8000-10/1D
M142 HIGH MOBILITY ARTILLERY ROCKET SYSTEM (HIMARS)
TAMCN E1500
NSN 1055-01-473-4350
ID 10937A
TM8K-117
DESCRIPTION AND FUNCTION
HIMARS is a C130 transportable, indirect fire, field artillery rocket system that is capable of firing all rockets
and missiles in the current Multiple Launch Rocket System (MLRS) family of munitions (MFOM). HIMARS battal-
ions are to be assigned to the Corps Field Artillery Brigades in support of light, airborne, air assault divisions, and
force/early entry contingency force operations. The overall system consist of the M142 Launcher, ammunition
trucks and trailers, MFOM, and its command and control (C2) system. The M142 launcher is made up of the on
board Universal Fire Control System (UFCS), XM1140 wheeled vehicle chassis, and the Launcher Module (LM).
The M142 launcher is capable of carrying one rocket pod or one Guided Missile launching assembly (GMLA),
each of which may contain six rockets or one missile, respectively.
TECHNICAL CHARACTERISTICS
GENERAL DATA
Crew:
3 (Driver, Gunner, Section Chief)
Fire Power (Rocket Munitions):
6 per rocket pod (RP)
Fire Power (Missile Munitions):
1 per guided missile launching
assembly (GMLA)
M142 WEIGHT DATA
M142 Empty:
28,197 lb (12,817kg)
M142 Combat Loaded:
34,985 lb (15,902 kg)
Max Tactical RP/GMLA:
5,030 lb (2,886 kg)
M142 SIZE DATA
Length:
25 ft, 8 in. (7,765 mm)
Width:
8 ft (2,438 mm)
Height (stowed):
10 ft, 3 in. (3,036 mm)
Height Max EL:
20 ft, 4 in. (6,200 mm)
Height (jury struts installed):
11 ft, 6 in. (3,457 mm)
3-15
TM 8000-10/1D
M142 HIGH MOBILITY ARTILLERY ROCKET SYSTEM (HIMARS) - CONTINUED
TECHNICAL CHARACTERISTICS - CONTINUED
M142 OPERATING TEMP RANGE DATA
Operating temperature range:
-32 to +60° C (-25 to +140°F)
PERFORMANCE DATA
Firing slope limits (rockets and missiles):
0 to 89 mils slope (0 to 5 degrees)
Reload slope limits:
0 to 89 mils slope (0 to 5 degrees)
Minimum/maximum fire zone elevation:
36 to 1,067 mils (2.03 to 60 degrees)
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
E09607M
08671A
M249 Squad Automatic Weapon
REFERENCES
• IETM 9-1055-1646-13&P
• TM 9-2300-310-14&P
• See SL-1-2 for a complete listing of applicable publications.
3-16
TM 8000-10/1D
LIGHT ARMORED VEHICLE (LAV) - ANTI-TANK (LAV-AT)
TAMCN E09427M
NSN 2320-01-123-1609
ID 08652A
TM8K-109
DESCRIPTION AND FUNCTION
LAV - Anti-Tank (LAV-AT) is armed with the TOW II Anti-Tank Guided Missile (ATGM), which is fired from a
modified Emerson Electric (M901A1) weapon station. The LAV-AT delivers accurate and destructive fire from def-
ilade positions against enemy tanks. It carries a crew of four (driver, commander, gunner, and loader), the TOW
weapon system, and ammunition.
TECHNICAL CHARACTERISTICS
Armament
Machine Gun, 7.62 mm, M60E3
Height
9.37 ft (2.86 m)
TOW II Anti-Tank Guided Missile
Fuel Capacity
71 gal. (268.73 L)
(ATGM)
Range:
437.5 miles (30 to 40 mph)
Max Speed:
704.1 km (48 to 64 km/h)
Land
62.2 mph (100.0 km/h)
Weight:
Water
6.5 mph (10.4 km/h)
Combat-Loaded
27,650 lb (12,440 kg)
Length
21.2 ft (6.46 m)
Empty Curb
24,850 lb (11,350 kg)
Width
8.20 ft (2.5 m)
Cargo Weight
2,800 lb (1,090 kg)
ASSOCIATED COMPONENTS
• Driver’s Night Viewer, AN/VVS-2(V)4
• Periscope, M17
REFERENCES
• TM 08652A-10/2B; Operator’s Manual Supplement, Light Armored Vehicle, Anti-Tank, LAV-AT.
• See SL-1-2 for a complete listing of applicable publications.
3-17
TM 8000-10/1D
LIGHT ARMORED VEHICLE (LAV) - COMMAND AND CONTROL (LAV-C2A1)
TAMCN E09467B
NSN 2320-01-123-1606
ID 08650A
TM8K-110
DESCRIPTION AND FUNCTION
Light Armored Vehicle (LAV) - Command and Control (LAV-C2A1) is armed with a pintle-mounted Machine
Gun, 7.62 mm, M240E1. The vehicle carries a suite of radios, a portable shelter, and an auxiliary power unit
(APU) to substitute for vehicle power when needed. The LAV-C2A1 provides the battalion commander and his
operational staff with the capability to effectively command and control the battalion or combat team. It carries a
crew of two (driver and commander), plus six operations/staff personnel.
TECHNICAL CHARACTERISTICS
Armament
Machine Gun, 7.62 mm, M240E1
Fuel Capacity
71 gal. (268.73 L)
Max Speed:
Range:
400 miles (30 to 40 mph)
Land
62.5 mph (100.0 km/h)
643.6 km (48 to 64 km/h)
Water
6.5 mph (10.4 km/h)
Weight:
Length
21.08 ft (6.43 m)
Combat-Loaded
27,060 lb (12,285.24 kg)
Width
8.20 ft (2.5 m)
Empty Curb
24,840 lb (11,277.36 kg)
Height
9.17 ft (2.79 m)
Cargo Weight
2,220 lb (1,007.88 kg)
ASSOCIATED COMPONENTS
• Driver’s Viewer, Enhanced (DVE)
• Periscope, M17
REFERENCES
• SL-3-08650B; Component’s List; Light Armored Vehicle, Command and Control, LAV-C2A1.
• See SL-1-2 for a complete listing of applicable publications.
3-18
TM 8000-10/1D
LIGHT ARMORED VEHICLE (LAV) - LIGHT ASSAULT (LAV-25A1)
TAMCN E09477M
NSN 2320-01-123-1602
ID 08594A
TM8K-111
DESCRIPTION AND FUNCTION
Light Armored Vehicle (LAV) - Light Assault (LAV-25A1) is armed with the stabilized M242, 25 mm Auto-
matic Cannon and a coaxially mounted M240, 7.62 mm Machine Gun in a two-man turret. The LAV-25A1 delivers
accurate and destructive direct fire against enemy personnel, lightly armored vehicles, and materiel targets. Its
capability to rapidly deploy/redeploy troops within the battle area permits their arrival at the point of commitment
with reduced casualties and fatigue. An auxiliary power unit (APU) supplies power when the LAV-25A1 is opera-
tional with the engine shut down. The LAV-25A1 carries a crew of three (driver, gunner, and commander) plus six
combat equipped infantrymen.
TECHNICAL CHARACTERISTICS
Armament
Cannon, Automatic, 25 mm, M242
Height
8.41 ft (2.6 m)
Machine Gun, 7.62 mm, M240
Fuel Capacity
71 gal. (268.73 L)
Max Speed:
Cruising Range
400 miles (643.6 km)
Land
62.2 mph (100.0 km/h)
Average Speed
30 to 40 mph (48 to 64 km/h)
Water
6.5 mph (10.4 km/h)
Weight:
Length
21.05 ft (6.4 m)
Combat-Loaded
28,400 lb (12,893.6 kg)
Width
8.20 ft (2.5 m)
Empty Curb
24,470 lb (11,109.4 kg)
ASSOCIATED COMPONENTS
• Driver’s Viewer, Enhanced (DVE)
• Periscope, M17
REFERENCES
• SL-3-08594B; Components List, Light Armored Vehicle, LAV-25A1.
• TM 08594A-10/1C; Operator’s Manual, LAV-25 Turret.
• TM 08594A-34/9; Maintenance Manual, LAV-25 Turret.
• See SL-1-2 for a complete listing of applicable publications.
3-19
TM 8000-10/1D
LIGHT ARMORED VEHICLE (LAV) - LOGISTICS (LAV-L)
TAMCN E09487B
NSN 2320-01-123-1612
ID 08654A
TM8K-112
DESCRIPTION AND FUNCTION
Light Armored Vehicle (LAV) - Logistics (LAV-L) consists of a cargo crane, loading/unloading hatches, and
a maximized payload capability for volume and weight. The LAV-L delivers rations, ammunition, fuel, spare parts,
and equipment to LAV vehicles/units deployed away from main roads and networks. It carries a crew of three
(driver, commander, and logistics crewman).
TECHNICAL CHARACTERISTICS
Armament
Machine Gun, 7.62 mm, M240
Fuel Capacity
71 gal. (268.73 L)
Max Speed:
Range:
437.5 miles at 30 to 40 mph
Land
62.5 mph (100.0 km/h)
(704.1 km at 48 to 64 km/h)
Water
6.5 mph (10.4 km/h)
Weight:
Length
21.22 ft (6.47 m)
Combat-Loaded
28,200 lb (12,802.8 kg)
Width
8.20 ft (2.50 m)
Empty Curb
22,760 lb (10,333.04 kg)
Height
9.08 ft (2.77 m)
Cargo Weight
4,000 lb (1,816 kg)
ASSOCIATED COMPONENTS
• Driver’s Viewer, Enhanced (DVE)
• Periscope, M17
REFERENCES
• SL-3-08654A; Component’s List; Light Armored Vehicle, Logistics, LAV-L.
• See SL-1-2 for a complete listing of applicable publications.
3-20
TM 8000-10/1D

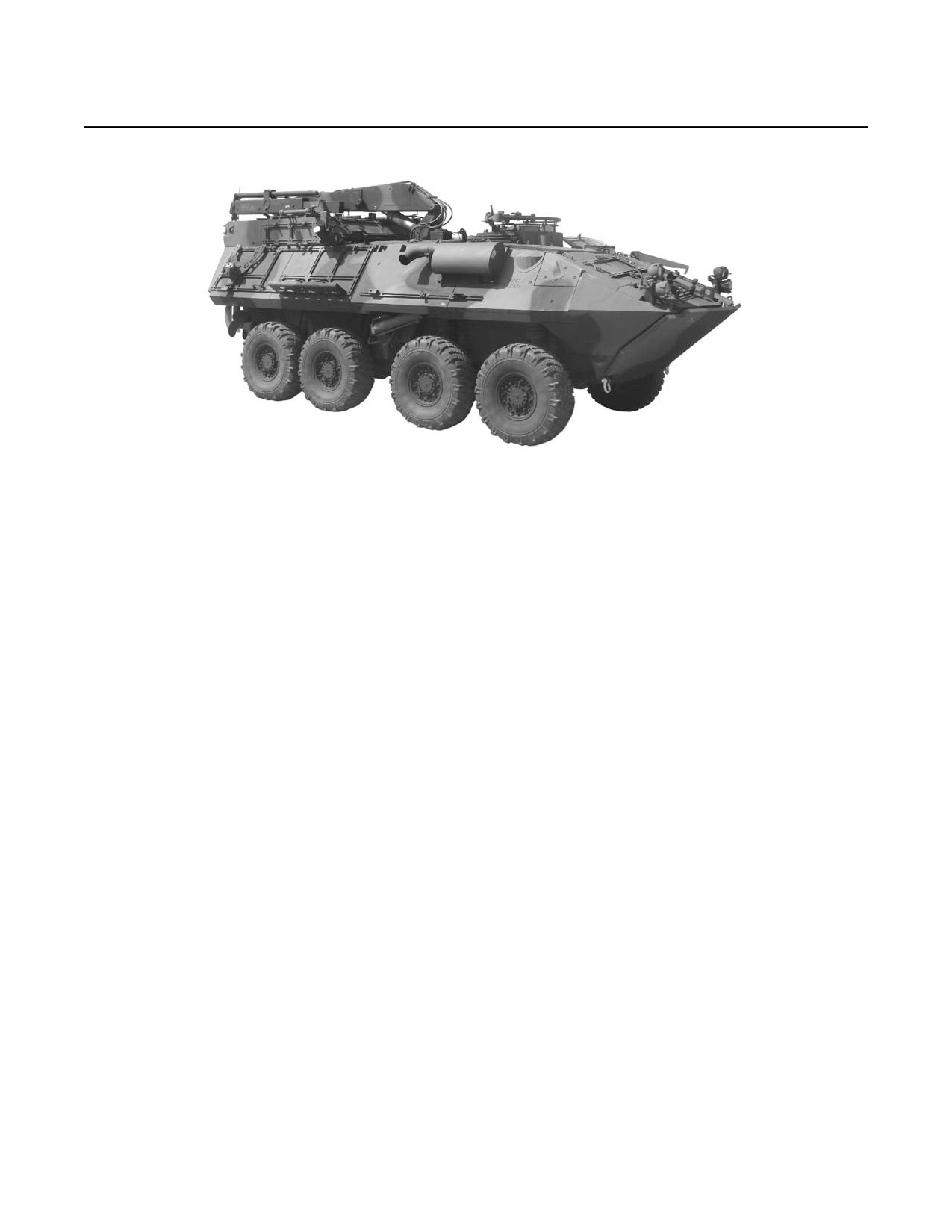

LIGHT ARMORED VEHICLE (LAV) - MAINTENANCE/RECOVERY (LAV-RA1)
TAMCN E09507B
NSN 2320-01-123-1608
ID 08651A
TM8K-113
DESCRIPTION AND FUNCTION
Light Armored Vehicle (LAV) - Maintenance/Recovery (LAV-RA1) is equipped with a boom crane, winch,
spade, compressed air for pneumatic tools, fuel, a transfer pump, and floodlights. The LAV-RA1 provides repair
and recovery services at the organizational and intermediate maintenance levels. An auxiliary power unit (APU)
supplies additional power for the vehicle’s maintenance and recovery equipment. The LAV-RA1 carries a crew of
five (driver, rigger, commander, and two maintenance/recovery crewmen) and has additional stowage capabili-
ties.
TECHNICAL CHARACTERISTICS
Armament
Machine Gun, 7.62 mm, M240
Fuel Capacity
71 gal. (268.73 L)
Max Speed:
Range:
437.5 miles at 30 to 40 mph
Land
62.5 mph (100.56 km/h)
(704.1 km at 48 to 64 km/h)
Water
6.5 mph (10.4 km/h)
Weight:
Length
20.96 ft (6.39 m)
Combat-Loaded
28,400 lb (12,893.60 kg)
Width
8.2 ft (2.5 m)
Empty Curb
26,900 lb (12,212.60 kg)
Height
8.58 ft (2.62 m)
Cargo Weight
1,500 lb (681 kg)
ASSOCIATED COMPONENTS
• Driver’s Viewer, Enhanced (DVE)
• Periscope, M17
REFERENCES
• SL-3-08651B; Components List; Light Armored Vehicle, Maintenance/Recovery, LAV-RA1.
• See SL-1-2 for a complete listing of applicable publications.
3-21
TM 8000-10/1D
LIGHT ARMORED VEHICLE (LAV) - MORTAR (LAV-M)
TAMCN E09497M
NSN 2320-01-123-1607
ID 08655A
TM8K-114
DESCRIPTION AND FUNCTION
Light Armored Vehicle (LAV) - Mortar (LAV-M) is armed with the 81 mm mortar, which can be fired from
inside or outside the vehicle. The LAV-M provides indirect fire support and carries a crew of five (driver, com-
mander, gunner, loader, and ammo handler), the mortar, and ammunition.
TECHNICAL CHARACTERISTICS
Armament
Machine Gun, 7.62 mm, M240
Height
7.02 ft (2.14 m)
Mortar, Medium, Extended
Fuel Capacity
71 gal. (268.73 L)
Range, 81 mm, M252
Range:
437.5 miles at 30 to 40 mph
Max Speed:
(643.6 km at 48 to 64 km/h)
Land
62.5 mph (100.0 km/h)
Weight:
Water
6.5 mph (10.4 km/h)
Combat-Loaded
26,300 lb (12,130.88 kg)
Length
21.0 ft (6.4 m)
Empty Curb
23,400 lb (10,678.08 kg)
Width
8.2 ft (2.5 m)
Payload
2,900 lb (1,452.8 kg)
ASSOCIATED COMPONENTS
• Driver’s Viewer, Enhanced (DVE)
• Periscope, M17
REFERENCES
• SL-3-08655A; Components List; Light Armored Vehicle, Mortar, LAV-M.
• See SL-1-2 for a complete listing of applicable publications.
3-22
TM 8000-10/1D

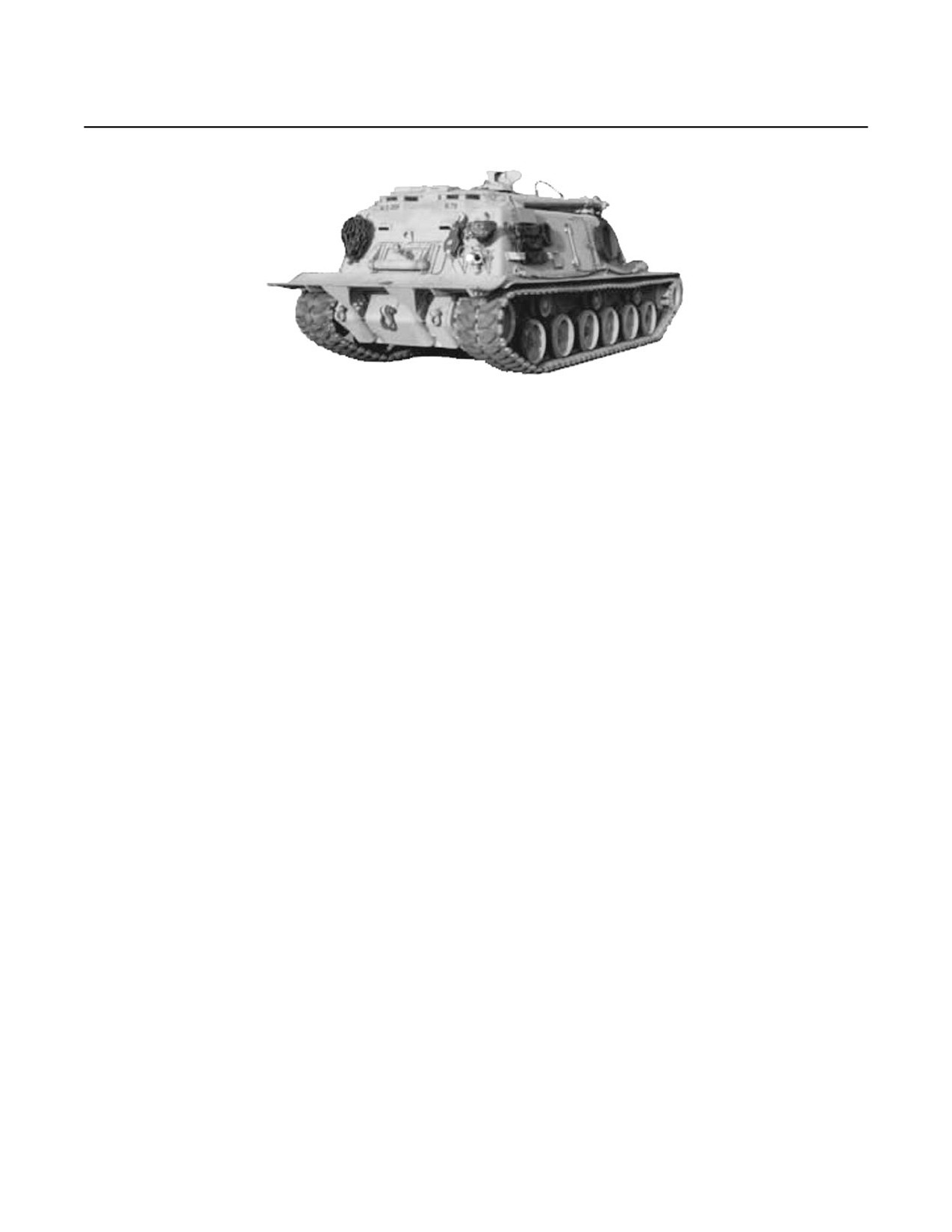

RECOVERY VEHICLE, HEAVY, FULL-TRACKED, M88A2
TAMCN E13787K
NSN 2350-01-390-4683
ID 07769B
TM8K-100
DESCRIPTION AND FUNCTION
The M88A2 Heavy Recovery Vehicle is an armored, full-tracked, low silhouette vehicle. It is used for hoist-
ing, winching, and towing operations for all vehicles up to 70 tons (63.49 metric tons). It is equipped to assist in
repairing disabled vehicles under field conditions. The vehicle carries a crew of three: commander, operator, and
mechanic/rigger.
TECHNICAL CHARACTERISTICS
Weight (Combat-Loaded)
139,600 lb (63,699 kg)
Performance (Continued):
Dimensions:
Grade Descending Ability 60%
Length
28.33 ft (8.64 m)
(Max)
Width
12 ft (3.66 m)
Side Slope Grade (Max)
30%
Height
9.75 ft (2.97 m)
Maximum Vertical Wall
42 in. (1.07 m)
Ground pressure
13.39 PSI (92.3 kPa)
Maximum Trench
8.5 ft (2.59 m)
Capacities
Crossing Width
(Refill Approximate):
Minimum Turning Radius
Pivot in one vehicle length
Fuel Tanks
413 gal. (1563 L)
Draw Bar Pull
107,000 lb (48,578 kg)
Main Engine Crankcase
18.5 gal. (70.02 L)
Boom Capacity
70,000 lb (31,780 kg)
Transmission (Refill)
17 gal. (64.35 L)
Boom Lift Height:
Main Winch
9.5 gal. (36.0 L)
8-ft Reach
22.5 ft (6.9 m)
Hoist Winch
9 pt (4.23 L)
4-ft Reach
25.13 ft (7.66 m)
Auxiliary Winch
6 pt (2.82 L)
Hoisting Capacity
Hydraulic System
80 gal. (302.8 L)
(Four-Part Line):
Electromagnetic Clutch
5.2 qt (4.94 L)
Spade Up
12,000 lb (5,448 kg)
Electrical System:
Spade Up w/ Lockout
50,000 lb (22,700 kg)
Batteries
Six 12 V
Blocks Installed
Battery Power
24 VDC
Spade Down
70,000 lb (31,780 kg)
Generator Power
28 ± 0.7 VDC
Main Winch:
Performance:
Cable Size
1.4 in. (0.0356 m)
Speed (Max)
25 mph (48.3 km/h)
Cable Length
320 ft (97.53 m)
(w/o Towed Load)
Useable Length
280 ft (85.34 m)
Cruising Range (Max)
314 mi (505.2 km)
Cable Speed
20 fpm (6.1 mpm)
Grade Ascending
60%
Straight Line Pull
140,000 lb (63,560 kg)
Ability (Max)
Power Brakes
w/Manual Back Up
3-23
TM 8000-10/1D
RECOVERY VEHICLE, HEAVY, FULL-TRACKED, M88A2 - CONTINUED
TECHNICAL CHARACTERISTICS (Continued)
Performance (Continued):
Communications Equipment:
Hoist Winch:
Radio Set and Interphone, Consisting of:
Cable Size
0.75 in. (0.019 m)
Radio Sets - AN/VRC-90A
Cable Length
225 ft (68.58 m)
Suppressor - MX 7778A
Useable Length
41 ft (12.5 m)
Intercommunication System - AN/VIC-1(V)
Straight Line Pull
17,500 lb (7,945 kg)
(Four Controls) or AN/VIC-3(V)
Auxiliary Winch:
(Four Controls and Loudspeaker)
Cable Size
0.375 in. (0.00952 m)
Smoke Grenade Equipment (M239) consisting of:
Cable Length
668 ft (203.60 m)
Grenade Bin
Useable Length
654 ft (199.34 m)
Canvas Covers
Straight Line Pull
6,000 lb (2,724 kg)
Push Button Control Unit
Auxiliary Equipment
Dischargers
Fire Extinguisher:
12 Red Phosphorous
Portable (2 Included)
Exhaust Smoke Generating System consisting of:
Type
Carbon dioxide (CO2)
Modification Kit 12275753
Volume
218 cu in. (3.57 L)
(Engine - NSN 2815-01-077-7856)
Weight Empty
5 lb (2.27 kg)
Modification Kit 1672388
Weight Fully-Charged
15.5 lb (7 kg)
(Hull - NSN 2590-01-084-6051)
Fixed (2 Banks of 4 Cylinders)
Fording:
Type
Carbon dioxide (CO2)
w/o Fording Kit
56 in. (1.422 m)
Volume
505 cu in. (8.28 L)
w/ Fording Kit
90 in. (2.286 m)
Weight Empty
10 lb (4.5 kg)
Weight Fully-Charged
45 lb (20.4 kg)
ASSOCIATED COMPONENTS
• None
REFERENCES
• TM 07769B-10/1; Operator’s Manual, Recovery Vehicle, Heavy, Full-Tracked, M88A2.
• TM 07769B-20/2-1; Maintenance Manual, Recovery Vehicle, Heavy Full-Tracked, M88A2.
• See SL-1-2 for a complete listing of applicable publications.
3-24
TM 8000-10/1D

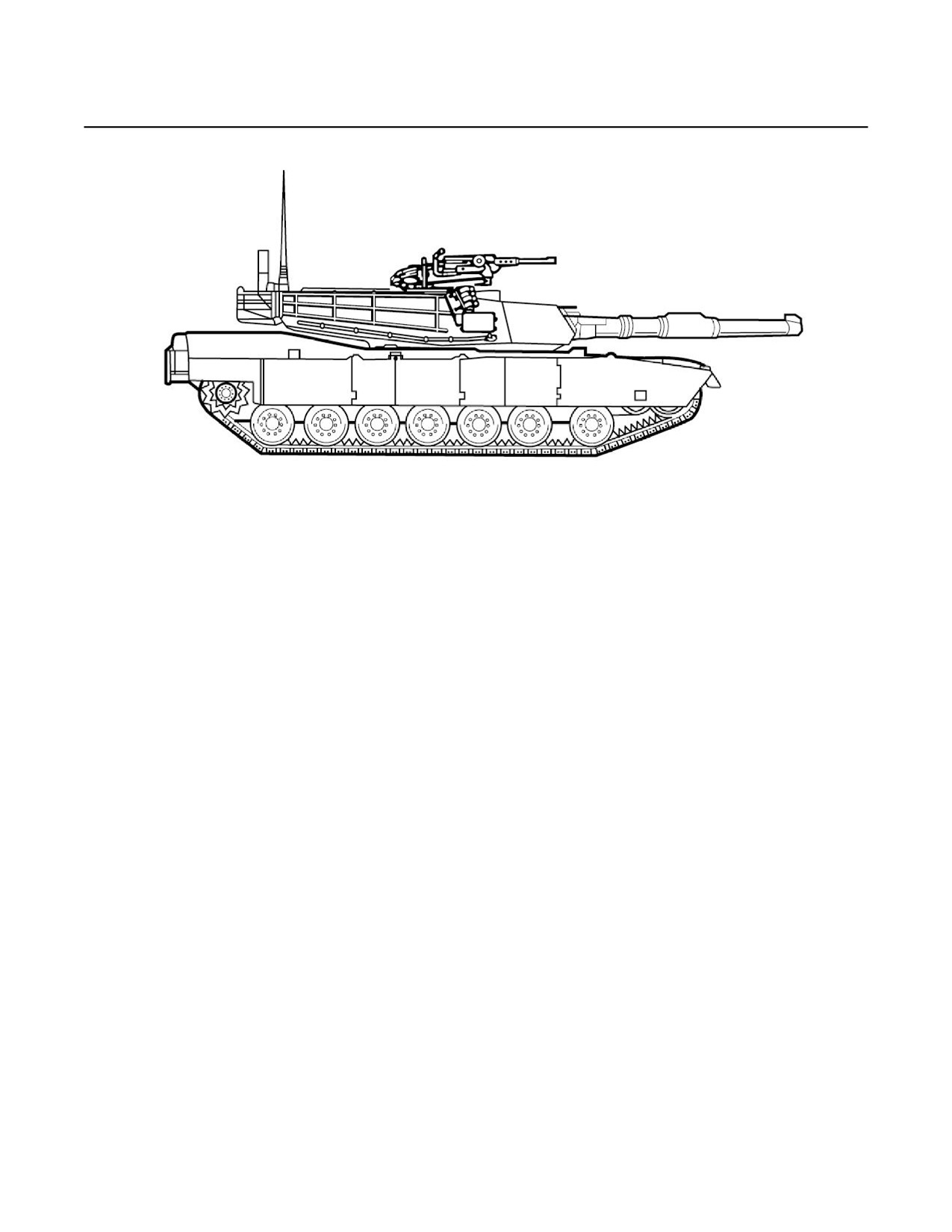

TANK, COMBAT, FULL-TRACKED, 120 MM GUN, M1A1
TAMCN E18887M
NSN 2350-01-087-1095
ID 08953A
TM8K-046
DESCRIPTION AND FUNCTION
Tank, Combat, Full-Tracked, 120 mm Gun, M1A1 is a heavily armored land combat vehicle operated by a
four-man crew consisting of the commander, gunner, loader, and driver. It is powered by a 1,500 horsepower tur-
bine engine, an automatic transmission, and two final drives. The main armament on the vehicle is the 120 mm
M256 main gun mounted on a traversable turret. Additional fire power is provided by a coaxial-mounted 7.62 mm
M240 machine gun, a 7.62 mm M240 at the loaders station, and a .50-caliber M48 machine gun mounted at the
Commander’s Weapon Station. Weld fabricated rolled, homogeneous armor, combined with hull and turret armor
assemblies, provide frontal armor protection. The turret front and sides, including the gun shield, are protected
against specified large caliber threats. Large caliber protection for the hull front is provided by an armor assembly
across the entire hull width with high obliquity upper and lower glacis plates. Hull side protection consists of
armored skirts and structure. The rear hull structure and rear grille doors give protection from small arms fire.
TECHNICAL CHARACTERISTICS
Weight Combat Loaded
67.6 tons
Width: (Continued)
(w/o Kits)
(61.3 m-ton)
Reducible
136 in. (348 cm)
Ground Clearance:
Pivot Steering
1.5 vehicle length max
Center Portion of Hull
18.5 in. (47.0 cm)
Turning Radius
20-ft radius (6.1 m)
Structure
Range (Constant Speed of
273 to 298 miles
Other Portions of Hull
16.5 in. (41.9 cm)
25 mph [40.2 km/h] on
(440 to 480 km)
Structure
Dry and Level Secondary
Ground Pressure
15 PSI
Roads w/o Refueling)
Height (Ground to Turret
96 in. (243.8 cm)
Fuel Capacity
504.4 gal. (1,909.2 L)
Roof)
Engine Oil Capacity
17 qt (16.1 L)
Max Tank Height:
Armament:
Overall
113.6 in. (288.5 cm)
Main Gun
120 mm, M256
Reducible Overall
103.5 in. (262.9 cm)
Coax Machine Gun
7.62 mm, M240
Length (Overall Main Weapon):
Commander’s Machine Gun .50 caliber, M2
Forward
386.9 in. (982.7 cm)
Commander’s Alternate
7.62 mm, M240
Rearward
355.6 in. (903.2 cm)
Machine Gun
Width:
Loader’s Machine Gun
7.62 mm, M240
Overall
143.75 in. ±.54 in.
(365.3 cm ±1.4 cm)
3-25
TM 8000-10/1D
TANK, COMBAT, FULL-TRACKED, 120 mm GUN, M1A1 - CONTINUED
ASSOCIATED COMPONENTS
TAM #
ID #
Nomenclature
Type/Model
N/A
N/A
Cannon 120 mm
M256
E09847M
02498C
Machine Gun, .50-Cal, Browning
M48
N/A
N/A
Machine Gun, 7.62 mm
M240 (2)
REFERENCES
• TM 08953A-10/1-1; Operator’s Controls, PMCS, Operation Under Usual Conditions.
• TM 08953A-10/1-2; Operator’s Manual; Unusual Conditions, Troubleshooting, and Maintenance.
• TM 08953A-10/1-3; Boresighting and Zeroing M1A1 Tank Armament (USMC only).
• SL-3-08953A; Components List, Tank, Combat, Full-Tracked, 120 mm Gun, M1A1.
• See SL-1-2 for a complete listing of applicable publications.
3-26
TM 8000-10/1D
CHAPTER 4
OPTICAL AND MISCELLANEOUS EQUIPMENT
TM 8000-10/1D
MINI THERMAL IMAGER (MTI)
TAMCN E00637G
NSN 5855-01-554-4673
ID 11532A
TM8K-047
DESCRIPTION AND FUNCTION
The Mini Thermal Imager (MTI) is a dual field of view, lightweight, hand-held/helmet mountable, pocket-
sized thermal imaging system. The MTI will increase the ability of the user to detect enemy threats at increased
ranges and surfaces in all environmental conditions, with video capabilities. The MTI will contain an integrated
(Class 1) eye-safe infrared laser pointer and a user selectable reticle.
TECHNICAL CHARACTERISTICS
Objective Lens
32 mm
Power Source
DL123A Lithium (two needed)
Field of View
29.00 deg diagonal
Length
5 in.
Weight (w/ battery)
11.5 oz
Width
2.8 oz
Height
2.2 in.
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Bag, Carrying, Softcase
1
Video Cable
1
Quick Reference Card
1
Neck Cord
1
Night Adaptive Filter/Demist Shield
1
Battery, 2 DL123A Lithium
1
Memory Stick
1
Eye Cup, Removable
ASSOCIATED COMPONENTS
• Helmet Adapter
• Lens, Tissue
• Mounting Bracket
REFERENCES
TM 11532A-OR
4-1
TM 8000-10/1D
WEAPON THERMAL SIGHT, AN/PAS-13B, (V)2 MEDIUM (MWTS)
AND AN/PAS-13B, (V)3 HEAVY (HWTS)
TAMCN E19757G
NSN 5855-01-464-3152 (MWTS)
ID 10092A
TAMCN E19767G
NSN 5855-01-464-3151 (HWTS)
ID 10091B
TM8K-049
DESCRIPTION AND FUNCTION
The Thermal Weapon Sight (TWS) is a lightweight, low-power, high-performance, forward-looking infrared
(FLIR) device that augments crew-served night vision sights. TWS is completely passive and, although primarily
designed for target detection and engagement with individual and crew-served weapons, it can also be used for
all-weather surveillance. The U.S. Marine Corps is procuring both the Medium Weapon Thermal Sight (MWTS)
and the Heavy Weapon Thermal Sight (HWTS) in FY05. The MWTS will be mounted to the M249 Squad Auto-
matic Weapon (SAW) and M240G Medium Machine Gun. The HWTS will be mounted to the M2 .50 cal Heavy
Machine Gun and MK19 40 mm Machine Gun. The MWTS can effectively engage targets out to 1,000 meters,
while the HWTS can effectively engage targets out to 2,000 meters. The HWTS is virtually the same size as the
MWTS with the exception of the overall length and larger diameter lens.
TECHNICAL CHARACTERISTICS
MWTS
HWTS
Length
15.5 in. (39.37 cm)
18.0 in. (45.72 cm)
Width
6.25 in. (15.87 cm)
6.25 in. (15.87 cm)
Height
6.25 in. (15.87 cm)
6.25 in. (15.87 cm)
Weight
4.19 lb (1.56 kg)
4.55 lb (1.70 kg)
Field of View (FOV)
Narrow (degrees)
MWTS 6, HWTS 3
Wide (degrees)
MWTS 18, HWTS 9
MAJOR COMPONENTS
Qty
Item
1
Case, Carrying
1
Mounting Bracket Assembly
ASSOCIATED COMPONENTS
• Bag, Carrying
• Battery, Dry
REFERENCES
• TM 10091A/10092A-10/1, Operator’s Manual, Sight, Thermal, AN/PAS-13B, (V)2 MWTS and (V)3 HWTS.
• TM 10091B/10092B-23&P/2, Maintenance Manual Sight, Thermal, AN/PAS-13B, (V)2 MWTS and (V)3 HWTS.
• See SL-1-2 for a complete listing of applicable publications.
4-2
TM 8000-10/1D

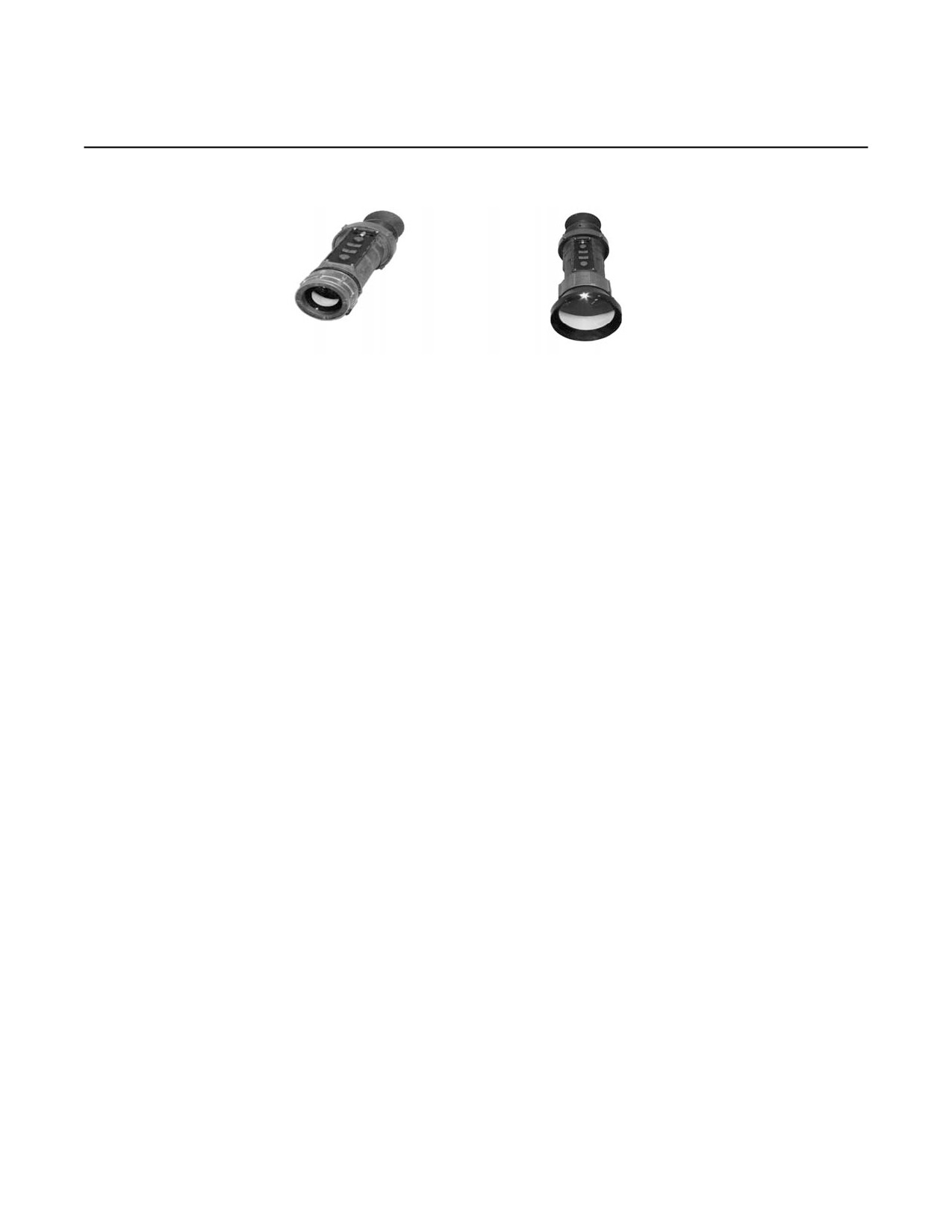

WEAPON THERMAL SIGHT, AN/PAS-13D, (V)2 MEDIUM (MWTS)
AND AN/PAS-13D, (V)3 HEAVY (HWTS)
TAMCN E1975
NSN 5855-01-524-4313 (MWTS)
ID 10092C
TAMCN E1976
NSN 5855-01-524-4314 (HWTS)
ID 10091C
V(2)
V(3)
TM8K-050
DESCRIPTION AND FUNCTION
The Thermal Weapon Sight is a self-contained, lightweight, compact, durable, battery-operated, infrared
imaging sensor used for target acquisition. It can be used under conditions of limited visibility such as darkness,
smoke, fog, dust and haze, and is effective during daylight hours. The MWTS and HWTS have the same design
but the difference lies in the telescope and the software. The system comes with a MIL-STD-1913 rail grabber
interface, including a vertical spacer. The MWTS can effectively engage targets out to 1,100 meters while the
HWTS can effectively engage targets out to 2,200 meters. The AN/PAS-13D (V)2 can be mounted on the M240B
Machine Gun and the M249 series. The AN/PAS-13D (V)3 can be mounted on the M16A1/A2 Rifle, M4 series, M2
Machine Gun, and the MK19 Machine Gun.
TECHNICAL CHARACTERISTICS
MWTS
HWTS
Length
13.5 in. (34.29 cm)
16 in. (40.64 cm)
Width
3.5 in. (8.89 cm)
4.25 in. (10.79 cm)
Height
4.75 in. (12.06 cm)
5.5 in. (13.97 cm)
Weight
2 lb, 9 oz (1.26 kg)
3 lb, 9 oz (1.4 kg)
(battery pack and rail
(battery pack and rail
grabber with spacer)
grabber with spacer)
Field of View
18 deg and 6 deg
9 deg and 3 deg
Power Requirements
AA 1.6 VDC Lithium or Alkaline (six needed)
Range of a 70% probability of recognition of a moving man with moderate clutter is:
w/ MWTS
1,202 yd (1,100 m)
w/ HWTS
2,406 yd (2,200 m )
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Case, Carrying
1
Case, Transit Storage
2
Pack, Battery
1
Cover, Battery Pack
ASSOCIATED COMPONENTS
• Kit, Lens Cleaning
• Towelettes, Anti-Fog
• Tape, Pressure Sensitive Adhesive
REFERENCES
• TM 10091C/10092C-IN/2, Unit and Direct Support Maintenance Manual (including Repair Parts and Special
Tools List) for Sight, Thermal AN/PAS-13D (V)1, (V)2, and (V)3.
• TM 10091C/10092C-OR/1, Operator's Manual Sight, Thermal AN/PAS-13D (V)1, (V)2, and (V)3.
4-3
TM 8000-10/1D

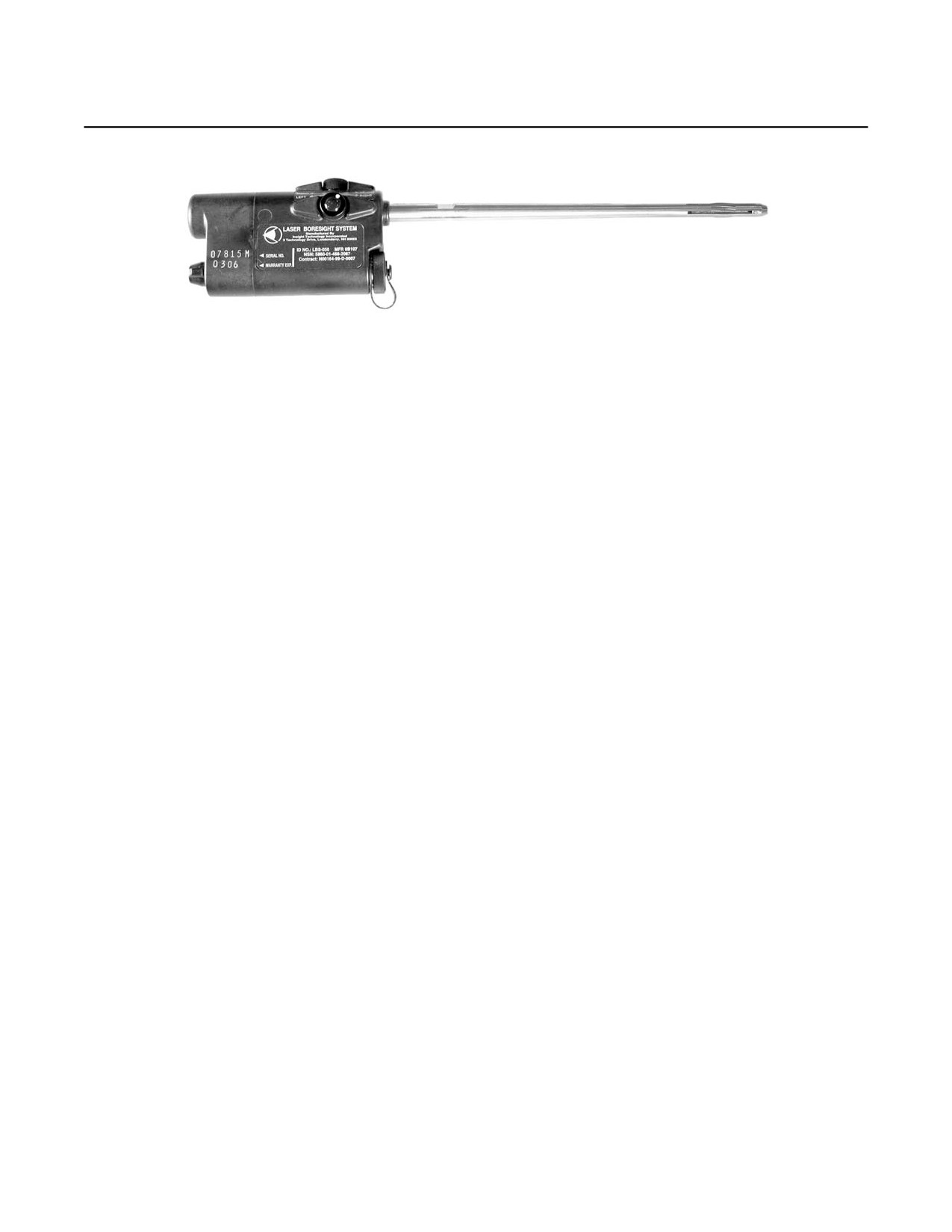

LASER BORELIGHT SYSTEM (LBS), AN/PEM-1
TAMCN E09567B
NSN 5860-01-471-2091
ID 10471B
TM8K-051
DESCRIPTION AND FUNCTION
The Laser Borelight System (LBS) is a Class 2 laser that emits a highly collimated beam of visible light for
precisely zeroing weapon sight to the weapon. This system facilitates zeroing of iron sights, image intensification
(I2) sights, thermal weapon sights, and laser aiming devices. The AN/PEM-1 has a low power laser setting that is
useful when performing weapon boresighting during daylight, low light, and darkness conditions. The LBS is used
in combination with the aiming light or weapon sight using naked eyes, powered optics, or night vision devices.
The LBS comes with 5.56 mm, 7.62 mm, and .50 cal. attachable mandrels. The AN/PEM-1 will replace the LBS-
050.
TECHNICAL CHARACTERISTICS
Weight (w/ one AA battery)
4.1 oz (.127 kg)
Height
2.3 in. (5.84 m)
Length
3.8 in. (9.65 cm)
Output Power
.9 mW (MAX)
Width
1.2 in. (3.04 cm)
Wavelength Beam
650 ± 30 Nm
Divergence
≤ .5 mrad
Power Source
1 AA battery
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Case, Soft Carrying
2
Batteries, AA Alkaline
1
Targets, Boresight
3
Mandrels, (5.56 mm, 7.62 mm, .50 cal)
1
Gage, Distance 10 m
ASSOCIATED COMPONENTS
• Adapter, Mandrel (40 mm Mk19)
• Adapter, Mandrel (40 mm M203)
• Target, M203 DNS
REFERENCES
• TM 10471-OI/1, Operator and Unit Maintenance Manual (Including Repair Parts and Special Tools List).
4-4
TM 8000-10/1D

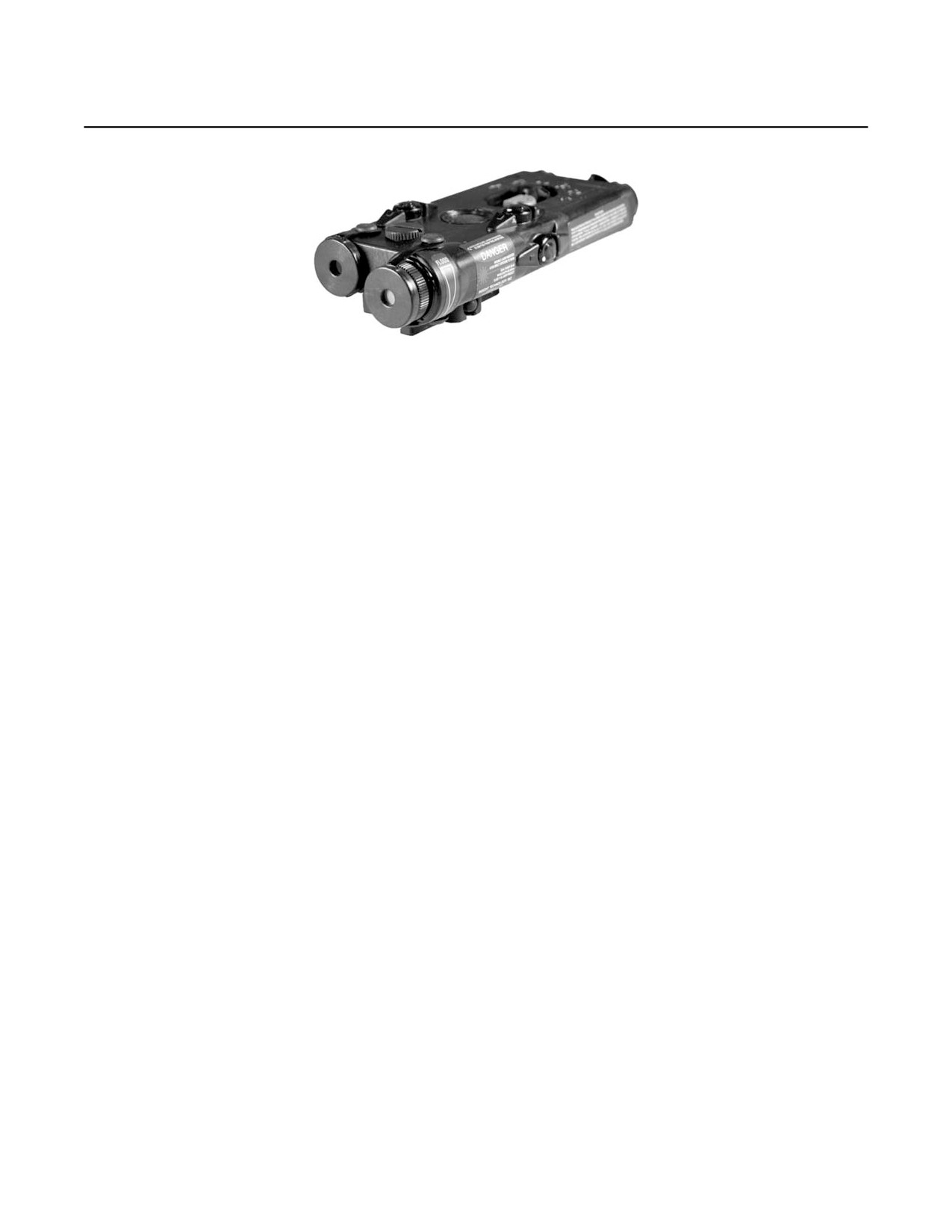

TARGET POINTER ILLUMINATOR/AIMING LIGHT (TPIAL), AN/PEQ-2A
TAMCN E17987G
NSN 5855-01-447-8992
ID 10470A
TM8K-052
DESCRIPTION AND FUNCTION
The AN/PEQ-2A is a lightweight, self-contained, battery-powered infrared (IR) aiming light/illuminator.
When zeroed to the weapon and activated, the AN/PEQ-2A projects an IR dot that illuminates the target and is
visible only with image intensifying night vision devices. The AN/PEQ-2A attaches to the upper receiver of the
M16A2 rifle and M240B Medium Machine Gun or any M16 Series Rail System.
TECHNICAL CHARACTERISTICS
Weight
7.5 oz (.21 kg)
Output Power:
Length
6.4 in. (6.26 cm)
Aim
25 mW (+10%)
Width
2.8 in. (7.12 cm)
Illuminator
30 mW (+50, -20%)
Height
1.2 in. (3.05 cm)
Beam Divergence:
Battery Type
AA batteries
Aim
0.5 mrad
Illuminator
1.0-115 mrad (min)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
TPIAL Assembly w/ Safety Block
1
Cable Switch, 20 in., Button
1
Rail Grabber Mounting Bracket
1
Bracket Adapter
1
Neck Cord 1 Strap, Retention
1
M16A2 Bracket Assembly
1
Cable Switch, 12 in., Membrane
ASSOCIATED COMPONENTS
• Bag, Textile
• Batteries, 1.5 V, AA
REFERENCES
• TM 10470A-OI/1, Operator’s and Maintenance Manual, Target Pointer, Illuminator/Aiming Light AN/PEQ-2A.
• See SL-1-2 for a complete listing of applicable publications.
4-5
TM 8000-10/1D
MEDIUM POWER LASER ILLUMINATOR (MPLI), AN/PEQ-4
TAMCN E17997G
NSN 5855-01-460-8365
ID 10580A
TM8K-053
DESCRIPTION AND FUNCTION
The Medium Power Laser Illuminator (MPLI) is a Class 4 laser pointing and illuminating system capable of
providing illumination and point capabilities for close air support (CAS). The MPLI will be used in conjunction with
image intensified (I2) night vision devices, such as the AN/PVS-7, AN/PVS14, and AN/AVS-6 Night Vision Gog-
gles.
TECHNICAL CHARACTERISTICS
Output Power
Low: 100 mw; High: 600-800 mw
Length
9.5 in. (24.13 cm)
Beam Divergence
min-1 mrad, Max-3 deg
Width
2.0 in. (5.08 cm)
Weight
0.75 lb (.34 kg)
Height
2.13 in. (5.42 cm)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Laser Assembly
1
Cover, Attenuator, Filter
3 and 6
Batteries, DL123 & AA
1
Cover, Solid
1
Battery Box, Spare
2
On/Off Switch, Detachable
1
Cable Switch, 24-in. Membrane
ASSOCIATED COMPONENTS
• Hexkey 5/32
• Bag, Carrying
• MIL-STD 1913 Mounting Rail
REFERENCES
• TM 10580A-12&P/1, Operator’s and Organizational Maintenance Manual.
4-6
TM 8000-10/1D
LIGHT MODULE, INTEGRATED LASER (ILLM), AN/PEQ-6A
TAMCN E09577B
NSN 5860-01-491-9639
ID 10820A
TM8K-054
DESCRIPTION AND FUNCTION
The AN/PEQ-6A Integrated Laser Light Module (ILLM) provides the user with visible or infrared illumination
of the target for target acquisition and visible or infrared target aiming point for fire control. Both laser beams can
be zeroed to the weapon and each other. The laser beams can also be operated in combination with the visible
and IR illumination beams. The AN/PEQ-6A is intended for use on the M9 pistol and Close Quarter Battle
Weapon, but can be attached to any weapon that uses a MIL-STD-1913 rail. Turning the illuminator’s bezel can
focus the visible illuminator beam.
TECHNICAL CHARACTERISTICS
Weight (w/ two DL123A
5.0 oz (.141 kg)
Output Power Visible Laser
<5 mW
Lithium Batteries)
Length
4.23 in. (10.74 cm)
Illumination White Light Beam
>60 Lumens
Width
1.53 in. (3.89 cm)
IR Aiming Laser
>0.7 mW
Height
1.97 in. (5 cm)
IR Illuminator Laser
>.15-.65 mW
MAJOR COMPONENTS
Qty
Item
1
Case, Carrying
ASSOCIATED COMPONENTS
• Bag, Carrying
REFERENCES
• TM 10820A-12&P/W1, Operator's Manual Laser Light Module.
4-7
TM 8000-10/1D
GRENADE LAUNCHER DAY NIGHT SIGHT MOUNT (GLDNSM), AN/PSQ-18A
TAMCN E17797B
NSN 1010-01-516-0953
ID 11065A
TM8K-055
DESCRIPTION AND FUNCTION
The AN/PSQ-18A is an enhanced aiming device designed to enable the combat shooter to rapidly and pre-
cisely fire the M203 40 mm grenade launcher in daylight, low light, and night conditions. The device has a built-in
range scale, an integrated aiming illuminating laser, an anti-cant indicator, and a built-in iron Backup sight.
TECHNICAL CHARACTERISTICS
Length
6.5 in.
LCD Display Resolution
+/- 5 m
Weight with AA Battery
17.7 oz
Accuracy
5 m
Height
4.0 in.
Peak Output Power:
Width
4.5 in.
Low Power
2.9-3.4 mW
Beam Divergence
Aim 0.8 mrad (max)
High Power
22.5-27.5 mW
Illuminator
53.0 mrad (max)
Battery Type
1.5 V AA Lithium/
Range
40 to 400 m
Alkaline (one needed)
ASSOCIATED COMPONENTS
• Safety Block
• Textile Carrying Case
• MIL-STD-1913 Mounting Rail
REFERENCES
• TM 11065A-OR, Operator and Unit Maintenance Manual AN/PSQ-18A in development.
4-8
TM 8000-10/1D

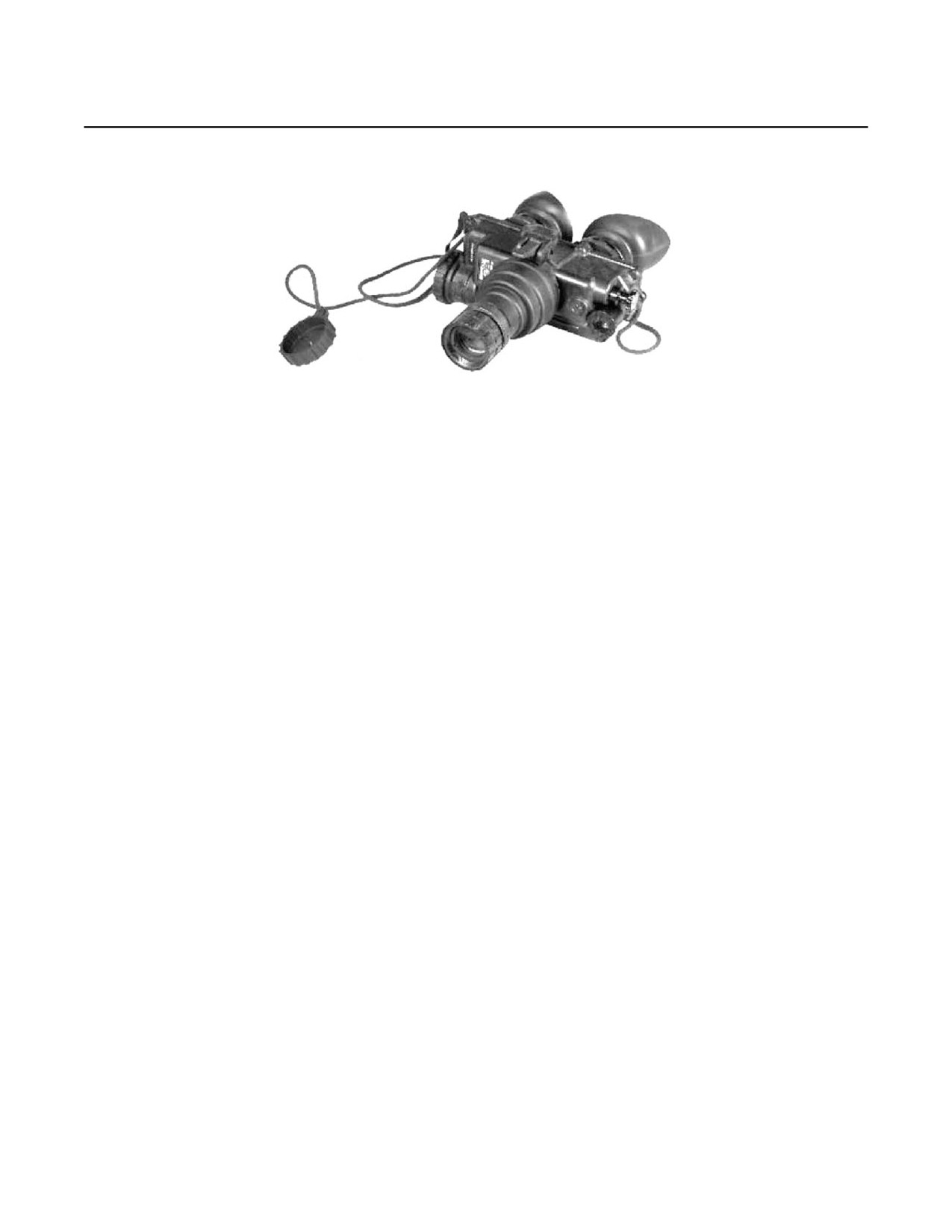

NIGHT VISION GOGGLES, INDIVIDUAL, AN/PVS-7B AND -7D
TAMCN E11522B
NSN 5855-01-228-0937 (7B)
ID 09500A
TAMCN E11522BA
NSN 5855-01-422-5413 (7D)
ID 10497A
TM8K-057
DESCRIPTION AND FUNCTION
The AN/PVS-7B and AN/PVS-7D are lightweight, hand-held or head-mounted night vision systems that
enable walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance, and first aid
administration in both moonlight and starlight. The goggles collect the available light from a scene illuminated by
the night sky and project an intensified image into the operator’s eye in the proper perspective. Its third generation
(GEN III) image intensification (I2) tube produces a clearer and sharper image than the second generation (GEN
II) tube found in the AN/PVS-5s. An internal electronic circuit controls the battery power to the I2. The IR illumina-
tion accommodates various operational requirements and difference in physical characteristics of the individual
operators.
TECHNICAL CHARACTERISTICS
Magnification
1.0X
Width
12 in. (30.48 cm)
Field of View
40 deg
Height
7 in. (17.78 cm)
Focus Range
7.87 in. (20 cm)
Length
17 in.
(7.9 deg) to infinity
Battery Requirements:
AA Alkaline, 1.5 VDC
Objective Focus
9.84 in. (25 cm) to infinity
(two needed) or Lithium L91
Weight
1.5 lb (56 kg)
(one needed)
Diopter Adjustment
+2 to -6 diopters
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Headmount Assembly
1
Light Interference Filter
2
Browpad
1
Goggles Assembly
1
Lens Cover
1
Case, Carrying
ASSOCIATED COMPONENTS
• Carrying Case
• Shipping and Storage Case (AR Item)
• Demist Shields
• Sacrificial Window
REFERENCES
• TM 09500A-10/1A, Operator’s Manual, Night Vision Goggles (NVG), AN/PVS-7B and AN/PVS-7D.
• TM 0095A-23&P/2A, Maintenance Manual, Night Vision Goggles, AN/PVS-7B.
4-9
TM 8000-10/1D

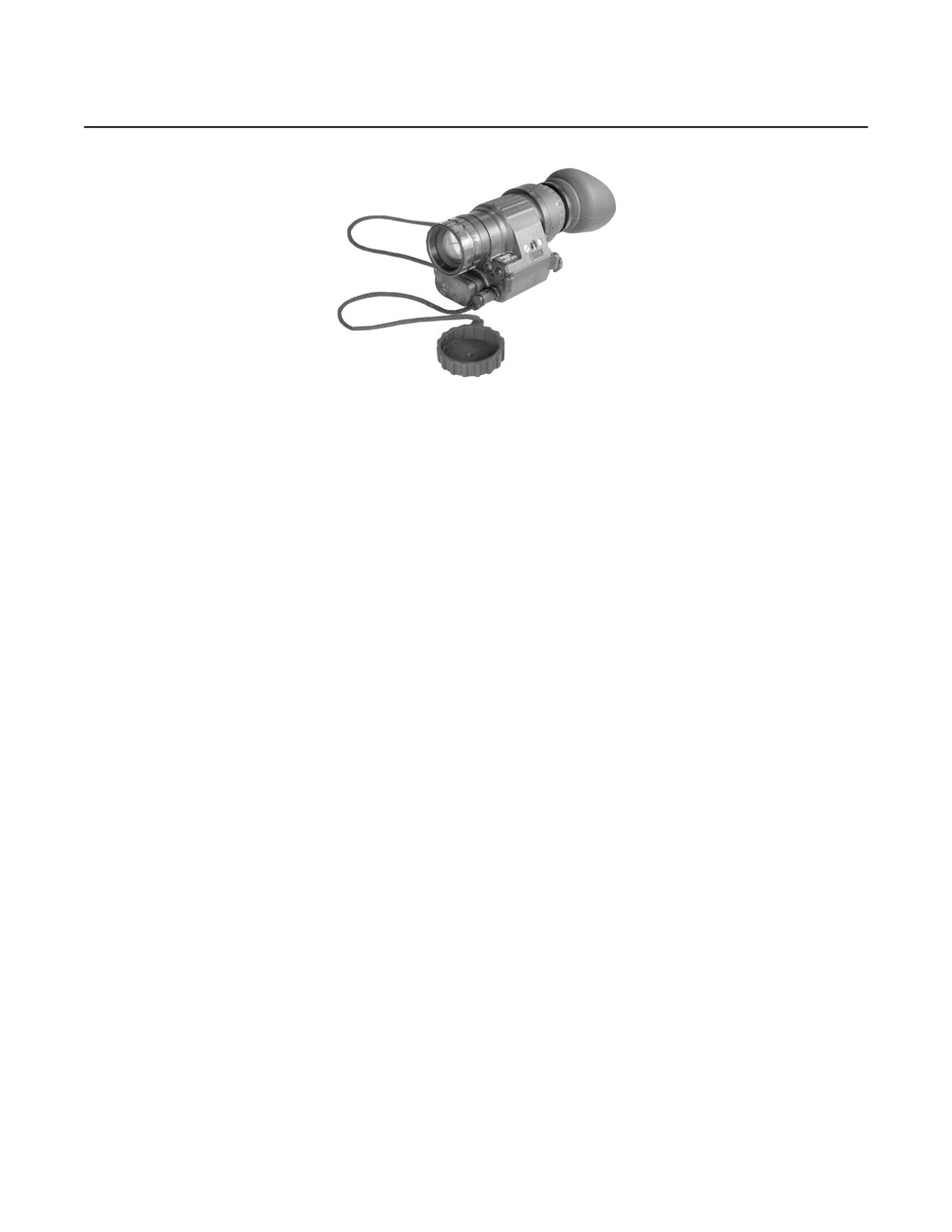

MONOCULAR NIGHT VISION DEVICE (MNVD), AN/PVS-14
TAMCN E11542B
NSN 5855-01-432-0524
ID 10271A
TM8K-058
DESCRIPTION AND FUNCTION
The AN/PVS-14 Monocular Night Vision Device (MNVD) is a lightweight, hand-held, head-mounted, helmet-
mounted, or weapon-mounted night vision system that enables walking, weapon firing, short-range surveillance,
map reading, vehicle maintenance, and first aid administration in both moonlight and starlight. It uses third gener-
ation (GEN III) image intensification (I2) technology. Each unit allows for vertical adjustment (by using head
strap), fore-and-aft adjustment, objective lens focus and eyepiece focus. The MNVD is a self-contained night
vision device that enables improved night vision using ambient light from the night sky. It is equipped with an
infrared (IR) source, low-battery indicator, and gain control. The AN/PVS-14 is smaller, lighter, and provides
greater latitude than the AN/PVS-7B/D.
TECHNICAL CHARACTERISTICS
Magnification
1X (3X with 3X magnifier)
Battery Type
AA Alkaline (two needed) or
Field of View
40 deg (13 deg with
AA Lithium L91 (two needed)
3X magnifier)
Monocular Operating
-59ºF to +120º F
Focus Range
9.84 in. (25 cm)
Temperature
(51ºC to +49ºC)
(9.8 deg) to infinity
Monocular Storage
-59°F to +185°F
Diopter Adjustment
+2 to -6 diopters
Temperature
(-51ºC to +85ºC)
Objective Lens Focus
9.84 in. (25 cm) to infinity
Illumination Required Overcast starlight to moonlight
Variable Gain
±10 to >3000
MAJOR COMPONENTS
Qty
Item
1
Head Mount Assembly
1
Monocular Assembly
1
Helmet Mount Assembly
ASSOCIATED COMPONENTS
• Case, Carrying
• Case, Shipping and Storage
REFERENCES
•
10271A-10/1A, Operator’s Manual, Monocular Night Vision Device (MNVD), AN/PVS-14.
•
10271A-23&P/2, Maintenance Manual, Monocular Night Vision Device (MNVD), AN/PVS-14.
4-10
TM 8000-10/1D
SIGHT, MINIATURE NIGHT (MNS), AN/PVS-17B AND -17C
TAMCN E11627G
NSN 5855-01-491-0140 (17B)
ID 10796B
TAMCN E11607G
NSN 5855-01-491-6967(17C)
ID 10796C
TM8K-59
DESCRIPTION AND FUNCTION
The AN/PVS-17 is a lightweight, compact, high performance device that will use the OMNI IV MX 10160
image intensifier tube. The system weighs less than 2 pounds, comes with a MIL-STD-1913 rail grabber interface,
and is immersible to 66 feet. The AN/PVS-17 consists of two configurations: AN/PVS-17B and AN/PVS-17C. The
17B incorporates a 2.25X magnification and the 17C incorporates a 4.5X magnification. The AN/PVS-17 can be
mounted to any weapon that uses the standard MIL-STD-1913 rail and will replace the AN/PVS-4 in select units.
The 17B is intended for mount on the M16 Series and the 17C is intended for mount on the M249 Squad Auto-
matic Weapon (SAW) and M240G Medium Machine Gun.
TECHNICAL CHARACTERISTICS
Magnification:
Temperature Range:
17B
2.25X ± .15X
Operating
-40ºF to +125.6ºF
17C
4.5X ± .3X
(-40ºC to +52ºC)
Field of View:
Storage
-59ºF to +159.8ºF
17B
17 deg vertical, 20 deg horizontal
(-51ºC to +71ºC)
17C
10 deg vertical, 8 deg horizontal
Maximum Altitude
45,000 ft (13,716 m)
Objective Focus
Infinity
Maximum Immersion
Eyepiece Focus
+3 to -3 diopters ±1
2 atmosphere seawater
66 ft fresh water
Battery Type
AA Alkaline (one needed) or
Height: 17B
4.75 in. (12.06 cm)
Lithium, 1.5 or 3.6 V (one needed)
17C
4.75 in. (12.06 cm)
Reticle Dot Size
0.6 mrad (2 MOA) 17C
Width:
17B
3.0 in. (7.62 cm)
0.3 mrad (1 MOA) 17B
17C
3.25 in. (8.25 cm)
Weight: 17B
2 lb (.97 kg)
17C
3 lb (136 kg)
MAJOR COMPONENTS
Qty
Item
Item
1
Case, Soft Carrying
M16 Mounting Kit
ASSOCIATED COMPONENTS
• Bag, Carrying
• Battery, AA Alkaline, 1.5 VDC
REFERENCES
• TM 10796-OR/1, Operator’s and Maintenance Manual, Miniature Night Sight (MNS), AN/PVS-17B&C.
• TM 10796-IN/1, Intermediate Maintenance Manual Including Repair Parts Special Tools for AN/PVS-17B and
17C, Miniature Night Sight.
4-11
TM 8000-10/1D
SIGHT, NIGHT VISION, CREW-SERVED, AN/TVS-5A
TAMCN E11592B
NSN 5855-01-422-8777
ID 07098D
TM8K-062
DESCRIPTION AND FUNCTION
The Sight, Night Vision, Crew-Served, AN/TVS-5A is a portable, battery-operated, GEN III I2 device used
for observation and aimed fire of weapons at night. It amplifies reflected light such as moonlight, starlight, and
skyglow so that the viewed scene becomes visible to the operator. The AN/TVS-5A can be tripod-mounted for
surveillance; however, it is generally used in the Marine Corps as a crew-served weapon sight. The AN/TVS-5A
can be mounted on the M2 .50 Caliber Machine Gun and the MK 19 40 mm Machine Gun.
TECHNICAL CHARACTERISTICS
Magnification
5.6X
Battery Type:
BA-5567/U (two needed)
Field of View
9 deg
Voltage
3.0 VDC
Eyepiece Focus
+3 to -6 diopters
Shelf Life
1 year at 70°F (21°C)
Objective Lens Focus
25 m to infinity
Operating Life
50 hours at normal
Range
1,093 to 1,312 yd (1,000 to
temperature
1,200 m) (for vehicle targets)
Battery Type:
BA-3058/U (two needed)
in starlight or moonlight
Voltage
.5 VDC
Reticle Adjustment
±2.5° (1/4-mil increments)
Shelf Life
9 months
Operating Conditions
-65°F to +125°F
Operating Life
50 hours at normal
(-54°C to +52°C)
temperature
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Case, Carrying
1
Mounting Bracket Assembly
1
Reticle Cell Assembly
1
Low Temperature Adapter Assembly
1
Cover, Daylight
ASSOCIATED COMPONENTS
• Bag, Carrying
• Battery, Dry
REFERENCES
• TM 11-5855-214-10, Operator’s Manual, Sight, Night Vision, AN/TVS-5A.
• TM 11-5855-214-23&P, Maintenance Manual, Sight, Night Vision, AN/TVS-5A.
• See SL-1-2 for a complete listing of applicable publications.
4-12
TM 8000-10/1D
EOTECH HOLOGRAPHIC DIFFRACTION SIGHT (HDS)
TAMCN N/A
NSN 1240-01-492-5264
ID 11059A
TM8K-063
DESCRIPTION AND FUNCTION
The EOTech Holographic Diffraction Sight (HDS) is a non-magnified optical sight that facilitates the rapid
engagement of targets at short- and mid-range distances. The holographic sight employs a heads-up display that
eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. The HDS is compatible
with all generations of night vision intensifier tubes and can be positioned in tandem with many image intensifica-
tion devices. The HDS is a SAC 1 SL-3 component that will be mounted on the M4A1 Close Quarter Battle
Weapon (CQBW).
TECHNICAL CHARACTERISTICS
Knurled Weaver Bolt Adjustment
Normal and Night Vision Modes
Anti-Reflection Material
1X
Automatic Shutdown
Magnification
Weight
11.5 oz (.32 kg)
Power Requirements
AA 1.5 VDC Alkaline
Battery (two needed)
MAJOR COMPONENTS
Qty
Item
1
Site Assembly
ASSOCIATED COMPONENTS
• Type N or AA Alkaline Batteries
•
7/64-in. Allen Wrench
REFERENCES
• EOTech User Manual
• CQBW Manuals
4-13
TM 8000-10/1D
LASER BORESIGHT SYSTEM (LBS)
TAMCN E09567B
NSN 5860-01-466-2087
ID 10471A
TM8K-064
DESCRIPTION AND FUNCTION
The Laser Boresight System (LBS) is used to boresight (align) the Thermal Weapon Sights (TWS), the
Medium Power Laser Illuminator, and other night vision devices to the various weapon systems to which they are
attached. The LBS comes with 5.56 mm, 7.62 mm, and .50 cal attachable mandrels.
TECHNICAL CHARACTERISTICS
Weight (w/ one AA battery)
4.5 oz (.13 kg)
Wavelength Beam
650 ± 30 mm
Length
3.8 in. (9.65 cm)
Battery
AA 1.5 V
Width
1.1 in. (2.8 cm)
Alkaline or Lithium
Divergence
≤ .8 mrad
(one needed)
Height
2.2 in. (5.6 cm)
Output Power
.9 mW (MAX)
MAJOR COMPONENTS
Qty
Item
1
Case, Carrying
ASSOCIATED COMPONENTS
• Bag, Carrying
• Battery, Dry
REFERENCES
• TM 10471A-12&P/1, Operator’s Manual, Laser Boresight System (LBS).
4-14
TM 8000-10/1D
SCOUT SNIPER PERISCOPE (SSP)
TAMCN E00957B
NSN 1240-01-571-5004
ID 11700A
TM8K-128
DESCRIPTION AND FUNCTION
The SSP will provide the Sniper with an improved observation capability providing increased survivability
and enhanced situation awareness. The SSP is a lightweight, variable power (4.5X-9.5X) telescopic device that
enhances Sniper maneuverability and observation capabilities, specifically in urban environments. The SSP will
include accessories to attach a flashlight and an AN/PVS-14 Monocular Night Vision Device.
TECHNICAL CHARACTERISTICS
Magnification
4.5X-9.5X
Recognition Range:
Field of View
4.5X: 9.5 deg
Weight
1.2 lb w/o attachments
9.5x: 5.0 deg
Length
TBD
MAJOR COMPONENTS
Qty
Item
1
Periscope Assembly
ASSOCIATED COMPONENTS
• AN/PVS-14
REFERENCES
• TBD
4-15
TM 8000-10/1D
AN/PAS-22 LONG-RANGE THERMAL IMAGER (LRTI)
TAMCN E19787G
NSN 5855-01-536-3532
ID 10988B
TM8K-066
DESCRIPTION AND FUNCTION
The LRTI is a stand-alone, portable binocular, hand-held, battery-operated style instrument used to
observe/orient, detect and identify targets, conduct surveillance, and assist in engaging targets during all lighting
conditions. It can be used under conditions of limited visibility and battlefield obscurants such as smoke, fog, and
sandstorms. This binocular will provide vision and range-finding capabilities for long-range observation and
reconnaissance. The LRTI shall operate to detect man-sized targets at a range of 3,600 meters. This binocular
thermal imager will replace the SOPHIE thermal system.
TECHNICAL CHARACTERISTICS
Magnification 2X
Extender with 1X to 4X
Fields of View:
electronic zoom
Narrow (HxV)
2.75 deg X 2.06 deg ± 5%
Focus Charge
Motorized
Wide (HxV)
8.25 deg X 6.18 deg ± 5%
Focus Range
30 m to infinity in NFOV
Length
9.6 in. (24.3 cm)
10 m to infinity in WFOV
Width
10 in. (25.4 cm)
Reticle Adjustment
Electronically generated
Height
3.95 in. (10.03 cm)
Weight
7 lb w/ batteries
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Pack, Carrying
1
Cleaning, Kit
1
2X Extender
1
Battery, Disposable
REFERENCES
• TM 10988B-OR/1, Operator's Manual, Thermal Sight, AN/PAS-22.
• TM 10988B-IN/1, Field Level Maintenance Manual, AN/PAS-22.
• See SL-1-2 for a complete listing of applicable publications.
4-16
TM 8000-10/1D
M49 TELESCOPE, STRAIGHT
TAMCN E19007B
NSN 6650-00-530-0960
ID 00591A
TM8K-067
DESCRIPTION AND FUNCTION
The M49 Telescope, Straight is an erect image instrument of the prism offset type that uses two Porro
prisms and the lenses in the eyepiece to erect and magnify an image. It has no reticle, has a fixed magnification,
and is used only for observation. The telescope is focused by turning the knurled focusing sleeve on the eye-
piece. The tripod, M15, supports the instrument about 1 foot above the ground and provides full rotation in azi-
muth and limited movement in elevation.
TECHNICAL CHARACTERISTICS
Magnification
20X
Objective
14.21 in. (36.10 cm)
Field of View
2 deg, 12 ft
Eyepiece
5.8 in. (14.73 cm)
Diameter of Exit Pupil
0.108 in. (.274 cm)
Volume
0.3 cu.ft
Equiv. Focal Length-Objective
14.21 in. (36.09 cm)
Length
14.5 in. (36.8 cm)
Equiv. Focal Length-Eyepiece
0.716 in. (1.81 cm)
Width
5 lb (2.3 kg)
Weight
1 lb, 12 oz (.794 kg)
MAJOR COMPONENTS
Qty
Item
Qty
Item
1
Objective Assembly
1
Body, Tube
1
Prism Housing Assembly
1
Eyepiece Assembly
1
Eyepiece Cover
1
Objective Cover
ASSOCIATED COMPONENTS
• Tripod M15
• Case, Telescope M164
• Case, Carrying M42A1
REFERENCES
• TM 9-6650-212-12, Operator’s and Organizational Maintenance Manual, Telescope, Observation, M49, W/E.
• TM 9-6550-212-20P, Maintenance Manual, Telescope, Observation, M49, W/E.
• See SL-1-2 for a complete listing of applicable publications.
4-17
TM 8000-10/1D
RIFLE COMBAT OPTICS (RCO), AN/PVQ-31A (A4) AND AN/PVQ-31B (M4)
TAMCN E17107G (A4)
NSN 1240-01-525-1648
ID 11064A (A4)
TAMCN E00177M (M4)
NSN 1240-01-534-1114
ID 11064B (M4)
TM8K-068
DESCRIPTION AND FUNCTION
The Rifle Combat Optics (RCO) is an optical aiming sight designed for use with the service rifle configured
with the MIL-STD-1913 Rail Adapter System. It attaches to the rail to provide the user a targeting tool to engage
distant daylight and near low-lit targets with increased identification certainty. The reticles of the two RCO scopes
appear identical. However, each reticle is specific to the ballistics of the weapon and is marked with identification
at the bottom center of the reticle display. The RCO is a slightly modified version of the ACOG. The RCO (A4) will
be mounted on the M16A2 or M16A4 Rifles. The RCO (M4) will be mounted on the M4A1 Carbine.
TECHNICAL CHARACTERISTICS
Magnification
4X
Eye Relief
1.5 in. (3.81 cm)
Field of View
7.0 deg, 36.8 ft @ 100 yd
Length
5.8 in. (14.73 cm)
Reticle Adjustment
19 in. (.453 kg) @ 300 yd
Weight
1 lb (.453 kg)
MAJOR COMPONENTS
Qty
Item
1
Case, Carrying, Lightweight
ASSOCIATED COMPONENTS
• Bag, Carrying
• TA31 Flattop Mount
• Battery, Dry
• Softcase, Lens Pen
• Case, Storage, Transport
• Lens Protector, Rubber
REFERENCES
• TM 11064-OI/1 Operator’s Manual for the AN/PVQ-31A and AN/PVQ-31B, Rifle Combat Optic.
• See SL-1-2 for a complete listing of applicable publications.
4-18
