TM 11275-15/3D

TACTICAL AIRFIELD FUEL DISPENSING SYSTEM (TAFDS)

TAMCN: B0675

TC-043

National Stock Number/ID Number

4930-01-094-0026

07391B

DESCRIPTION AND FUNCTION

The primary purpose of the Tactical Airfield Fuel Dispensing is used for receiving, storing, and dispensing

aviation fuel in support of expeditionary airfields. With the single fuel on the battlefield concept, the system will

be able to supply fuel to both aviation and ground assets. The system has a storage capacity of 320,000-gallons

and a pump capability up to 600 GPM. The system has 12 aircraft dispensing points for a multi-aircraft refueling

capability and a capability to receive fuel from multiple sources.

TECHNICAL DESCRIPTION

Operating Mode

Shipping Mode

Weight:

Dependent on mission

Weight:

Width:

Dependent on mission

Width:

Length:

Dependent on mission

Length:

Height:

Dependent on mission

Height:

Cube:

Dependent on mission

Cube:

Square Stowage:

Dependent on mission

Square Stowage:

Capacity:

23 gal.

Fuel Consumption per Hour

4.9 gph @ 2,500 RPM

Fuel data is based on 600 GPM Pump

Lift Capacity:

Replaced Item(s)

N/A

Transportability

Capable of being transported by organic Marine Corps motor transport and material

handling equipment and C-5, C-141, C-17, C-130 aircraft

Associated TAMCN(s)

B0572, B0574, B0626, B0696, B1585, B1420

2-80

TM 11275-15/3D

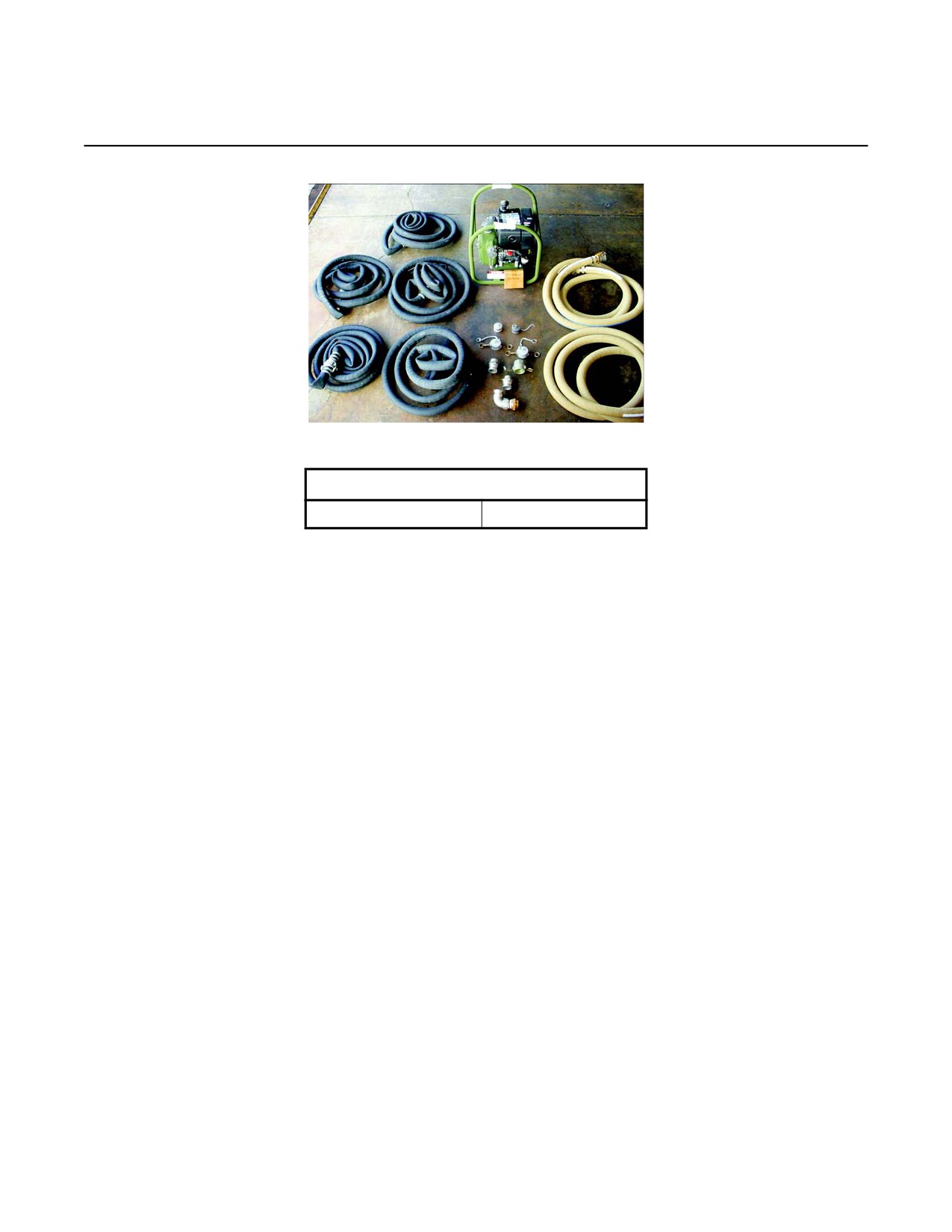

FORWARD AREA WATER POINT SUPPLY SYSTEM

TAMCN: B0676

TC-044

National Stock Number/ID Number

4320-01-110-1993

08936A

DESCRIPTION AND FUNCTION

The Forward Area Water Point Supply System (FAWPSS) is an expedient, self-contained potable water

storage and dispensing system. It consists of a 150 GPM pump, hoses, 500-gallon, collapsible coated-fabric

water drum, and ancillary components necessary to establish four distribution points. The FAWPSS is used in

conjunction with the 500-gallon, collapsible coated-fabric water drum (TAMCN B0571, 2-66).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

600 lb (272 kg)

Width:

Varies

Width:

48 in. (122 cm)

Length:

Varies

Length:

120 in. (305 cm)

Height:

Varies

Height:

36 in. (91 cm)

Cube:

Varies

Cube:

120 ft³ (3.40 m³)

Square Stowage:

Varies

Square Stowage:

40 ft² (3.72 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B00571

2-81

TM 11275-15/3D

AMPHIBIOUS ASSAULT FUEL SYSTEM

TAMCN: B0685

TC-045

National Stock Number/ID Number

4930-01-113-9173

06674C

DESCRIPTION AND FUNCTION

The primary purpose of the Amphibious Assault Fuel System (AAFS) is used for receiving, storing, transfer-

ring, and dispensing bulk fuel for all elements of the Marine Air-Ground Task Force (MAGTF). The system has

the capability to transfer bulk fuel to outlying expeditionary airfields, receiving from various sources, dispensing

to ground vehicles, pumping capability up to 600 GPM, and storing up to 1,120,000-gallons of bulk fuel product.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

140,164 lb

Width:

Varies

Width:

630 in. (1,600 cm)

Length:

Varies

Length:

650 in. (1,651 cm)

Height:

Varies

Height:

48 in. (122 cm)

Cube:

Varies

Cube:

11,375 ft³ (322.10 m³)

Square Stowage:

Varies

Square Stowage:

2,843.8 ft² (264.20 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-82

TM 11275-15/3D

TACTICAL PETROLEUM LABORATORY, MEDIUM

TAMCN: B0695

TC-046

National Stock Number/ID Number

6640-01-399-0483

10188A

DESCRIPTION AND FUNCTION

The Tactical Petroleum Laboratory, Medium (TPLM) provides those essential testing components integrated

in an ISO shelter to monitor the critical physical and chemical characteristics of aviation and ground fuels. Mili-

tary and commercial fuels (to include captured fuels) can be tested for composition and quality against minimum

standards as specified in MIL-STD-3004A, Quality Surveillance for Fuels, Lubricants and related products. The

TPLM also serves as the primary source for monthly correlation testing for filter effectiveness in support of the

Marine Wing Support Squadrons. Operational and ancillary equipment include the Air Conditioner, 36,000 BTU,

Vertical, b0013; Air Conditioner Skid Assembly, B2006 and 30 kW TQG, B0953/B0971.

TECHNICAL DESCRIPTION

Manufacturer/Integrator:

Raytheon

Capacity

Fuel Consumption per Hour:

Lift Capacity:

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

9,180 lb (4,536 kg)

Weight:

9,180 lb (4,536 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

240 in. (610 cm)

Length:

240 in. (610 cm)

Height:

96 in. (244 cm)

Height:

96 in. (244 cm)

Cube:

1,280 ft3 (36.25 m³)

Cube:

1,280 ft3 (36.25 m³)

Square Stowage:

160 ft3 (14.86 m²)

Square Stowage:

160 ft3 (14.86 m²)

Replaced Item(s)

N/A

Transportability

Capable of being transported by organic Marine Corps motor transport and material

handling equipment and C-5, C-141, C-17, C-130 aircraft

Associated TAMCN(s)

B0685, B0013, B2006, B0953, B0971

2-83

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 3 KW, 60 HZ

TAMCN: B0730

National Stock Number/ID Number

6115-01-285-3012

10155A

TC-281

DESCRIPTION AND FUNCTION

The 3 kW Generator Set, MEP-831A, is a self-contained, skid mounted, portable unit. It is equipped with

controls, instruments and accessories necessary for operation. The generator set consists of a diesel engine,

permanent magnet A/C generator, control box assembly, output/load panel, primary and auxiliary fuel systems,

enclosure cooling and ventilation system, engine exhaust assembly, and a 24 Vdc battery. The generator set is

designed to be used with any equipment requiring a small source of A/C power and operates in a “Hot and

Basic” climatic condition range of -25°F to 120°F. The generator set is portable and requires a six-person lift.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

4 gal.

Model:

MEP-831A

Fuel Consumption:

0.5 gph

Volts:

120/240

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

3,000 to 3,600

Length (in.):

34.8

Phase:

Width (in.):

27.8

Engine

Height (in.):

26.5

Manufacturer:

Yanmar

Weight (lb)

Model:

L70AE-D/DE

Dry:

304

Type:

4 Cycle

Wet (8 hrs fuel,

334

coolant, & POLs)

Cylinders:

14.6

Volume (ft³):

Displacement:

18.1 in.³ (0.296 L)

Aural Signature

Horsepower:

6.7 @ 3,600 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

19.5:1

Replaced Item(s)

MEP-016A, MEP-016B, MEP-016E

Transportability

All variants of the USMC M116 trailer and the LTT-MCC trailer

Associated TAMCN(s)

N/A

2-84

TM 11275-15/3D

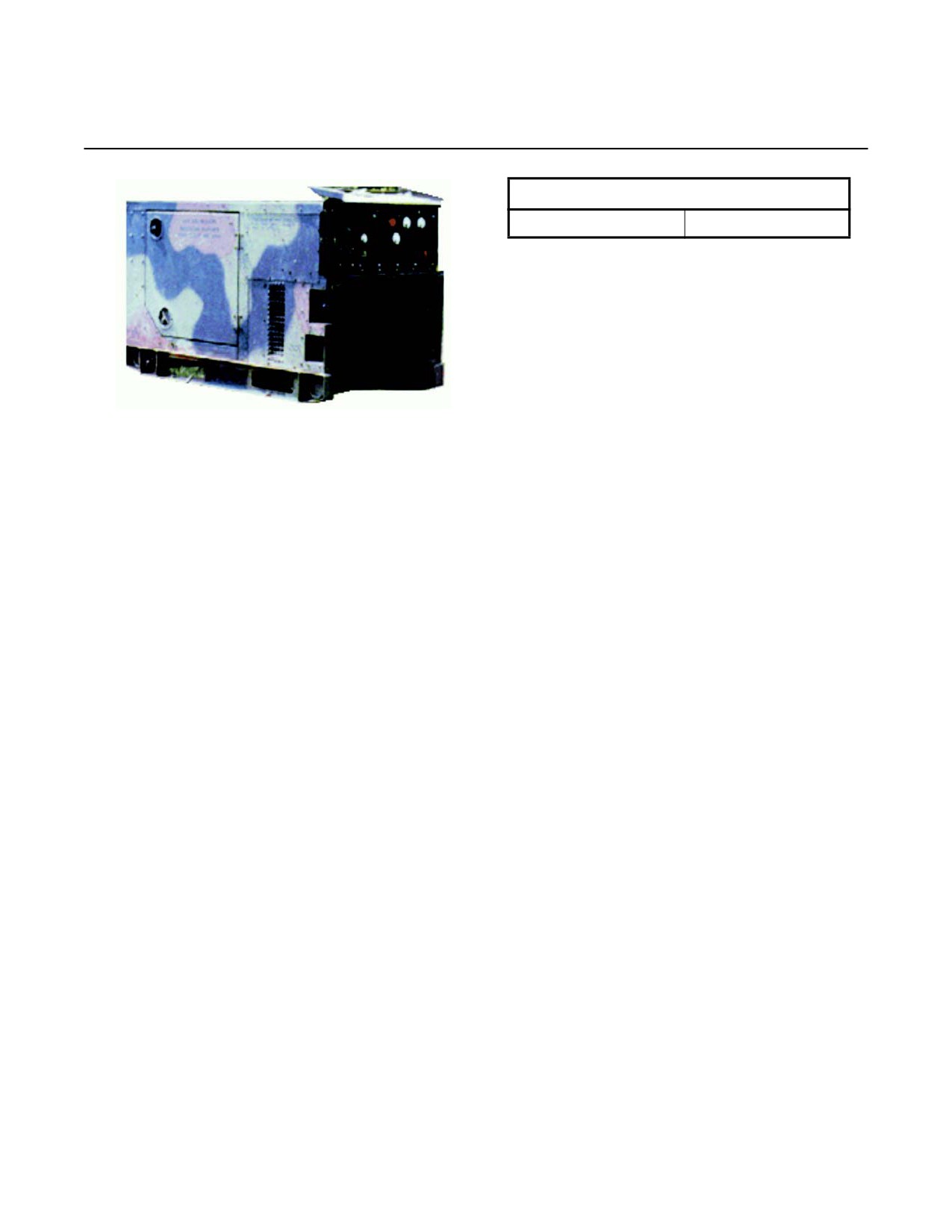

GENERATOR SET, DIESEL ENGINE, 10 KW, 60 HZ

TAMCN: B0891

National Stock Number/ID Number

6115-01-275-5061

09247A

TC-282

DESCRIPTION AND FUNCTION

The 10 kW Generator Set, MEP-803A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments and accessories necessary for operation. The generator set consists of a

diesel engine, brushless generator, excitation system, speed governing system, fuel system, 24 Vdc starting

system, control system and fault system. The generator set is designed to be used with any equipment requiring

a small source of A/C power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

9 gal.

Model:

MEP-803A

Fuel Consumption:

0.99 gph

Volts:

120/208/240

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,800

Length (in.):

Phase:

1 and 3

Width (in.):

Engine

Height (in.):

Manufacturer:

Onan

Weight (lb)

Model:

DN4M

Dry:

1,140

Type:

4 Cycle

Wet (8 hrs fuel,

1,242

coolant, & POLs:

Cylinders:

Volume (ft³):

Displacement:

114 in.³ (1.9 L)

Aural Signature

Horsepower:

24.1 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

18.5:1

Replaced Item(s)

MEP-003A

Transportability

All variants of the USMC M116 trailer and the LTT-MCC trailer

Associated TAMCN(s)

N/A

2-85

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 10 KW, 400 HZ

TAMCN: B0921

National Stock Number/ID Number

6115-01-274-7392

09248A

TC-283

DESCRIPTION AND FUNCTION

The 10 kW Generator Set, MEP-813A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments and accessories necessary for operation. The generator set consists of a

diesel engine, brushless generator, excitation system, speed governing system, fuel system, 24 Vdc starting

system, control system, and fault system. The generator set is designed to be used with any equipment requiring

a small source of A/C power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

9 gal.

Model:

MEP-813A

Fuel Consumption:

1.07 gph

Volts:

120/208/240

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

400

Dimensions

Speed (RPM):

2,000

Length (in.):

Phase:

1 and 3

Width (in.):

Engine

Height (in.):

Manufacturer:

Onan

Weight (lb)

Model:

DN4M

Dry:

1,170

Wet (8 hrs fuel,

Type:

4 Cycle

1,272

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

114 in.³ (1.9 L)

Aural Signature

Horsepower:

24.1 @ 2,000 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

18.5:1

Replaced Item(s)

MEP-112A

Transportability

All variants of the USMC M116 trailer and the LTT-MCC trailer

Associated TAMCN(s)

N/A

2-86

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 20 KW, 60 HZ

TAMCN: B0930

National Stock Number/ID Number

6115-01-531-0571

11125A

TC-284

DESCRIPTION AND FUNCTION

The MMG 25 is a fully enclosed, self-contained, skid-mounted, portable unit. It is equipped with controls,

instruments, and accessories necessary for operation as a single unit. The generator set consists of a diesel

engine, brushless generator, fuel system, 12 Vdc starting system, control system, and automatic safety shut-

down system. The generator set is designed to be used with any piece of equipment requiring a medium source

of A/C power.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Magnum

Fuel Capacity:

46 gal.

Model:

MMG 25

Fuel Consumption:

2.1 gph

Volts:

120/208

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

1,800

Length (in.):

77.5

Phase:

Width (in.):

36.25

Engine

Height (in.):

51.61

Manufacturer:

Isuzu

Weight (lb)

Model:

4LE1

Dry:

2,345 w/adapter

Wet (8 hrs fuel,

Type:

4 Cycle

2,655 w/adapter

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

133 in.³ (2.179 L)

Aural Signature

Horsepower:

31 @ 1,800 RPM

Audio Rating:

65dBA @ 23 feet

Compression:

21.5:1

Replaced Item(s)

N/A

Transportability

All variants of the USMC M116 trailer and the LTT-MCC trailer

Associated TAMCN(s)

N/A

2-87

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 30 KW, 60 HZ

TAMCN: B0953

National Stock Number/ID Number

6115-01-274-7389

09249A

TC-285-1

DESCRIPTION AND FUNCTION

The 30 kW Generator Set, MEP-805A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator,

excitation system, speed governing system, fuel system, 24 Vdc starting system, control system, and fault sys-

tem. The generator set is designed to be used with any piece of equipment requiring a medium source of A/C

power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

23 gal.

Model:

MEP-805A

Fuel Consumption:

2.60 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,800

Length (in.):

79.7

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

4239T

Dry:

2,732

Wet (8 hrs fuel,

Type:

4 Cycle

2,931

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

239 in.³ (3.9 L)

Aural Signature

Horsepower:

92 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

17.8:1

Replaced Item(s)

MEP-005A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-88

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 30 KW, 60 HZ

TAMCN: B0953

National Stock Number/ID Number

611501-461-9335

09249B

TC-285

DESCRIPTION AND FUNCTION

The 30 kW Generator Set, MEP-805B, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as single unit or in parallel with

another unit of the same class and mode. The generator set includes a diesel engine, brushless generator, cool-

ing system, excitation system, governing system, fuel system, 24 Vdc starting system, DCS, and fault system.

The generator set is designed to be used with any piece of equipment requiring a medium source of A/C power

and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

23 gal.

Model:

MEP-805B

Fuel Consumption:

2.60 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,800

Length (in.):

79.7

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

4045TF151

Dry:

2,732

Wet (8 hrs fuel,

Type:

4 Cycle

2,931

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

239 in.³ (3.9 L)

Aural Signature

Horsepower:

92 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

17.0:1

Replaced Item(s)

MEP-005A, MEP-805A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-89

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 30 KW, 400 HZ

TAMCN: B0971

National Stock Number/ID Number

6115-01-274-7394

09246A

TC-286-1

DESCRIPTION AND FUNCTION

The 30 kW Generator Set, MEP-815A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator,

excitation system, speed governing system, fuel system, 24 Vdc starting system, control system, and fault sys-

tem. The generator set is designed to be used with any piece of equipment requiring a medium source of A/C

power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

23 gal.

Model:

MEP-815A

Fuel Consumption:

2.75 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

400

Dimensions

Speed (RPM):

2,000

Length (in.):

79.7

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

4239T

Dry:

2,931

Wet (8 hrs fuel,

Type:

4 Cycle

3,015

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

239 in.³ (3.9 L)

Aural Signature

Horsepower:

92 @ 2,000 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

17.8:1

Replaced Item(s)

MEP-114A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-90

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 30 KW, 400 HZ

TAMCN: B0971

National Stock Number/ID Number

6115-01-462-0290

09246B

TC-286

DESCRIPTION AND FUNCTION

The 30 kW Generator Set, MEP-815B, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set includes a diesel engine, brushless generator, cool-

ing system, excitation system, governing system, fuel system, 24 Vdc starting system, DCS, and fault system.

The generator set is designed to be used with any piece of equipment requiring a medium source of A/C power

and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

23 gal.

Model:

MEP-815B

Fuel Consumption:

2.75 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

400

Dimensions

Speed (RPM):

2,000

Length (in.):

79.7

Phase:

1 and 3

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

4045TF151

Dry:

2,732

Wet (8 hrs fuel,

Type:

4 Cycle

2,931

coolant, & POLs):

Cylinders:

Volume (ft³):

Displacement:

239 in.³ (3.9 L)

Aural Signature

Horsepower:

92 @ 2,000 RPM

Audio Rating:

71dBA @ 7 meters

Compression:

17.0:1

Replaced Item(s)

MEP-114A, MEP-815A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-91

TM 11275-15/3D

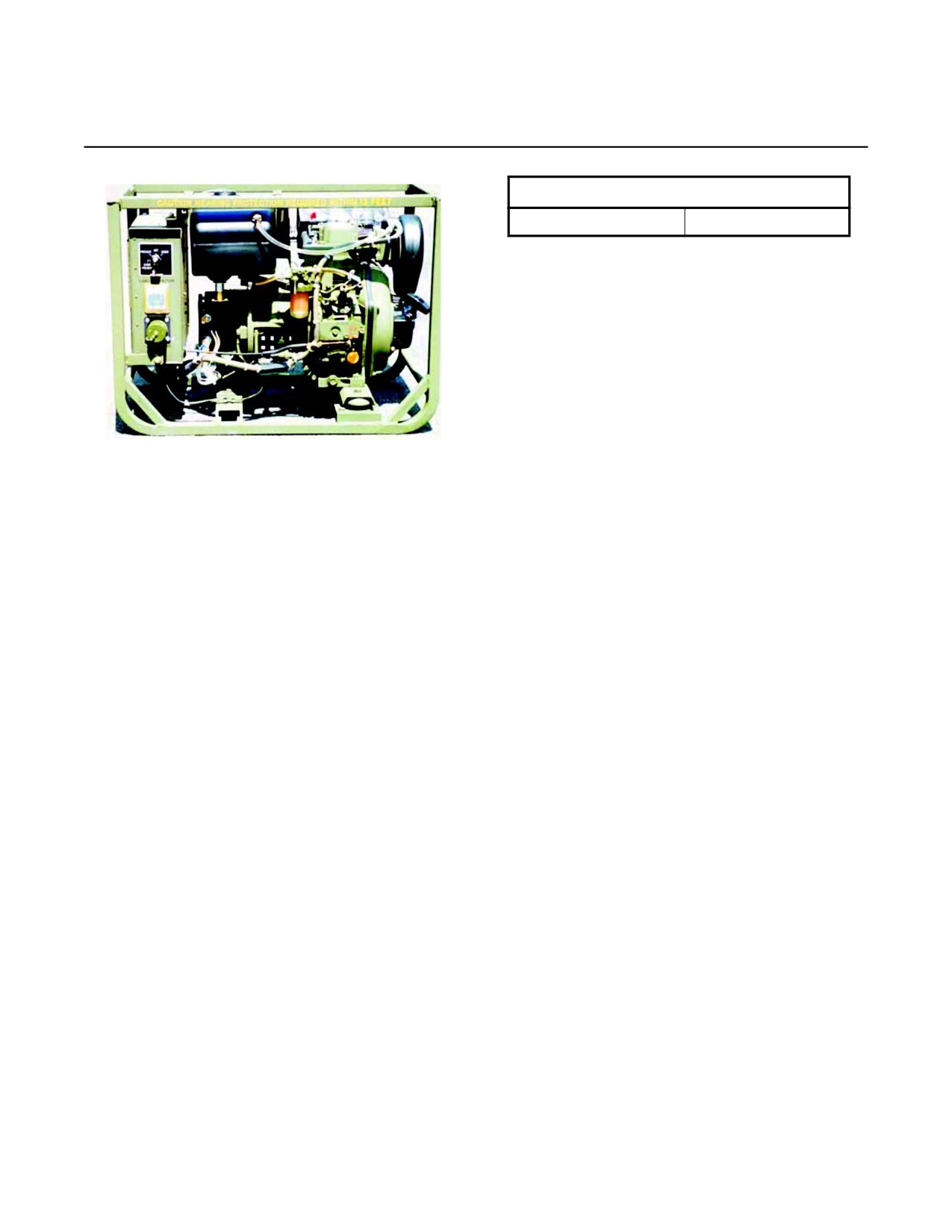

GENERATOR SET, DIESEL ENGINE, 2 KW, 60 HZ

TAMCN: B0980

National Stock Number/ID Number

6115-01-435-1565

11101A

TC-287

DESCRIPTION AND FUNCTION

The 2 kW Generator Set, MEP-531A, is a self-contained, skid mounted, portable unit. It is equipped with

controls, instruments and accessories necessary for operation. The generator set consists of a diesel engine,

direct drive A/C alternator, speed governing system, fuel system, 24 Vdc auxiliary cold weather starting system

(23°F or below), and generator control system. The generator set is designed to be used with any equipment

requiring a small source of A/C power and operates in a “Hot and Basic” climatic condition range of -51°F to

122°F. The generator set is portable and requires a four-person lift.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Dewey

Fuel Capacity:

1.6 gal.

Model:

MEP-531A

Fuel Consumption:

0.3 gph

Volts:

120

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

3,600 to 3,750

Length (in.):

29.5

Phase:

Width (in.):

Engine

Height (in.):

21.7

Manufacturer:

Yanmar

Weight (lb)

Model:

L48AE-DEG

Dry:

143.1

Wet (8 hrs fuel,

Type:

4 Cycle

152

coolant, & POLs):

Cylinders:

Volume (ft³):

5.9

Displacement:

Aural Signature

12.88 in.³ (0.211 L)

Horsepower:

4.2 @ 3,600 RPM

Audio Rating:

79dBA @ 7 meters

Compression:

19.9:1

Replaced Item(s)

N/A

Transportability

Four Person, Man Portable.

Associated TAMCN(s)

N/A

2-92

TM 11275-15/3D

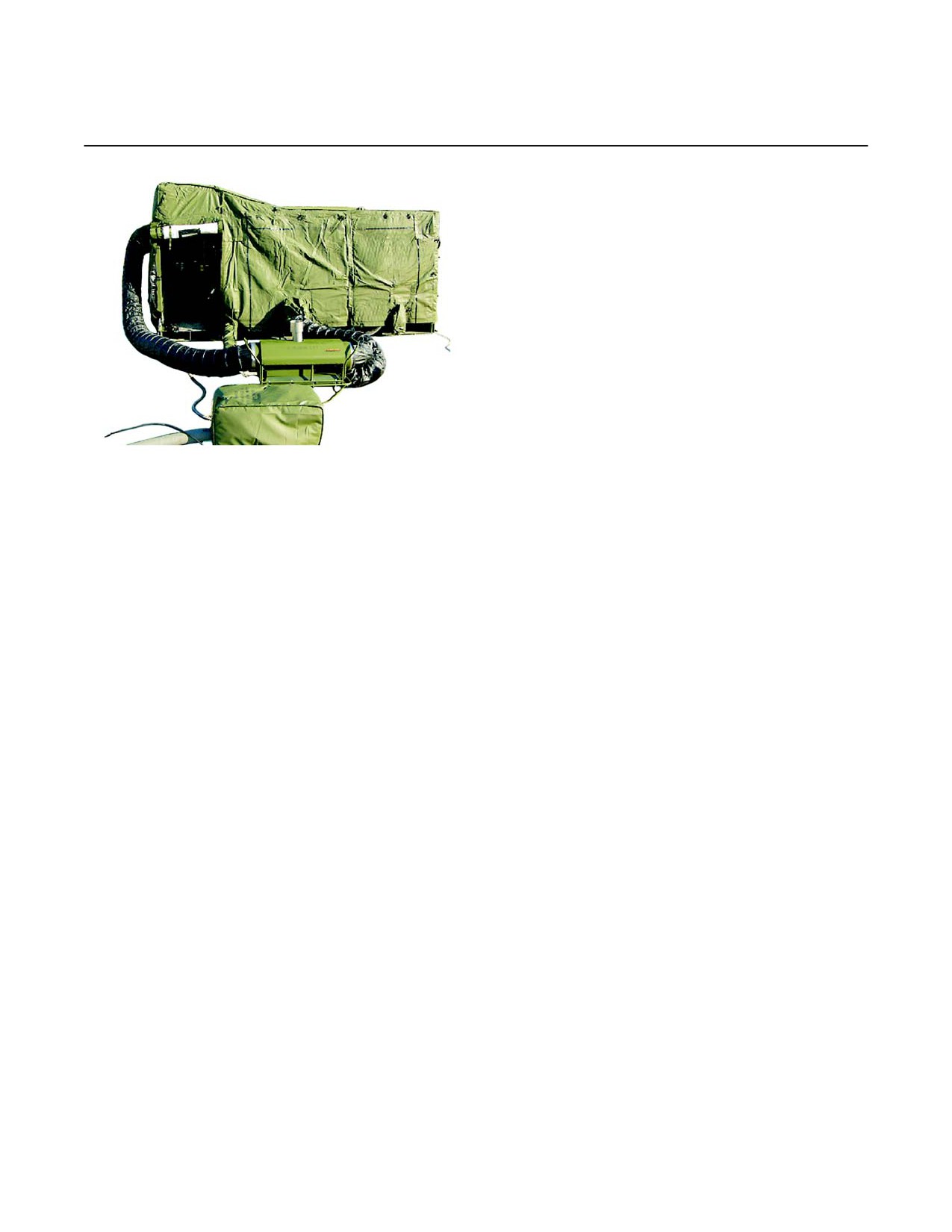

COLD WEATHER KIT

TAMCN: B1010

TC-509

DESCRIPTION AND FUNCTION

The Cold Weather Kit is employed during cold weather operations (temperatures below 32°F to -25°F) to

prevent water in the TWPS from freezing. The Cold Weather Kit is provided an extended capability module for

the MC-TWPS. One Cold Weather Kit is shipped per every two MC-TWPS. The module is housed in it’s own

metal shipping container.

TECHNICAL DESCRIPTION

Dimensions

Height:

36 in.

Length:

48 in.

Width:

48 in.

Weight:

2,191 lb

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-93

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 60 KW, 400 HZ

TAMCN: B1016

National Stock Number/ID Number

6115-01-274-7395

09245A

TC-288-1

DESCRIPTION AND FUNCTION

The 60 kW Generator Set, MEP-816A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator,

excitation system, speed governing system, fuel system, 24 Vdc starting system, control system, and fault sys-

tem. The generator set is designed to be used with any piece of equipment requiring a medium source of A/C

power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

43 gal.

Model:

MEP-816A

Fuel Consumption:

5.37 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

400

Dimensions

Speed (RPM):

2,000

Length (in.):

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

6059T

Dry:

3,606

Wet (8 hrs fuel,

Type:

4 Cycle

4,042

coolant, & POLs):

Cylinders:

Volume (ft³):

103

Displacement:

359 in.³ (5.9 L)

Aural Signature

Horsepower:

134 @ 2,000 RPM

Audio Rating:

72dBA @ 7 meters

Compression:

17.8:1

Replaced Item(s)

MEP-115

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-94

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 60 KW, 400 HZ

TAMCN: B1016

National Stock Number/ID Number

6115-01-462-0292

09245B

TC-288

DESCRIPTION AND FUNCTION

The 60 kW Generator Set, MEP-816B, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set includes a diesel engine, brushless generator, cool-

ing system, excitation system, governing system, fuel system, 24 Vdc starting system, DCS, and fault system.

The generator set is designed to be used with any piece of equipment requiring a medium source of A/C power

and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

43 gal.

Model:

MEP-816B

Fuel Consumption:

5.37 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

400

Dimensions

Speed (RPM):

2,000

Length (in.):

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

6068TF151

Dry:

3,603

Wet (8 hrs fuel,

Type:

4 Cycle

4,042

coolant, & POLs):

Cylinders:

Volume (ft³):

103

Displacement:

359 in.³ (5.9 L)

Aural Signature

Horsepower:

134 @ 2,000 RPM

Audio Rating:

72dBA @ 7 meters

Compression:

17.0:1

Replaced Item(s)

MEP-115A, MEP-816A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-95

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 60 KW, 60 HZ

TAMCN: B1021

National Stock Number/ID Number

6115-01-274-7390

09244A

TC-289-1

DESCRIPTION AND FUNCTION

The 60 kW Generator Set, MEP-806A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator,

excitation system, speed governing system, fuel system, 24 Vdc starting system, control system, and fault sys-

tem. The generator set is designed to be used with any piece of equipment requiring a medium source of A/C

power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

43 gal.

Model:

MEP-806A

Fuel Consumption:

5.06 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,800

Length (in.):

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

6059T

Dry:

3,556

Wet (8 hrs fuel,

Type:

4 Cycle

3,992

coolant, & POLs):

Cylinders:

Volume (ft³):

103

Displacement:

359 in.³ (5.9 L)

Aural Signature

Horsepower:

134 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

17.8:1

Replaced Item(s)

MEP-006A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-96

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 60 KW, 60 HZ

TAMCN: B1021

National Stock Number/ID Number

6115-01-462-0291

09244B

TC-289

DESCRIPTION AND FUNCTION

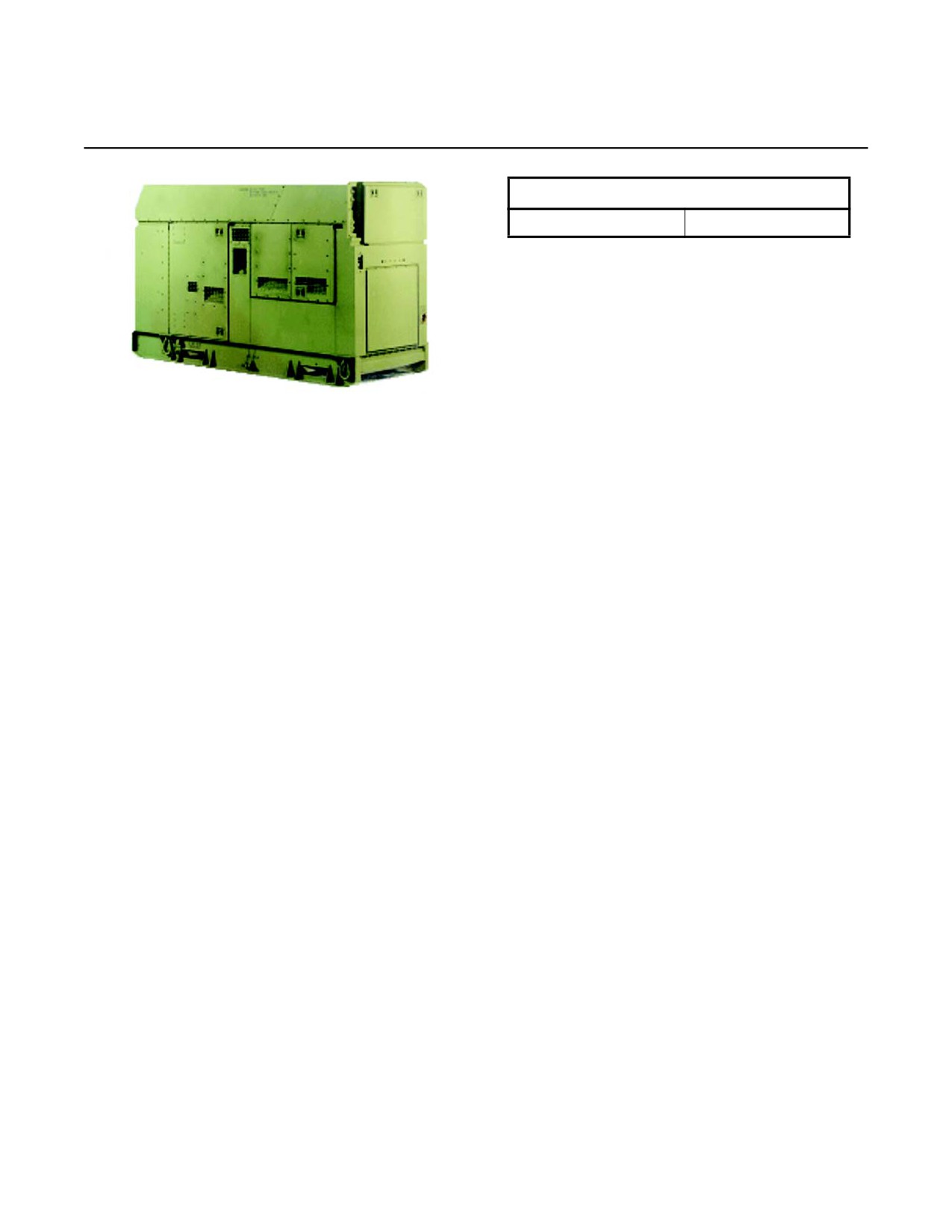

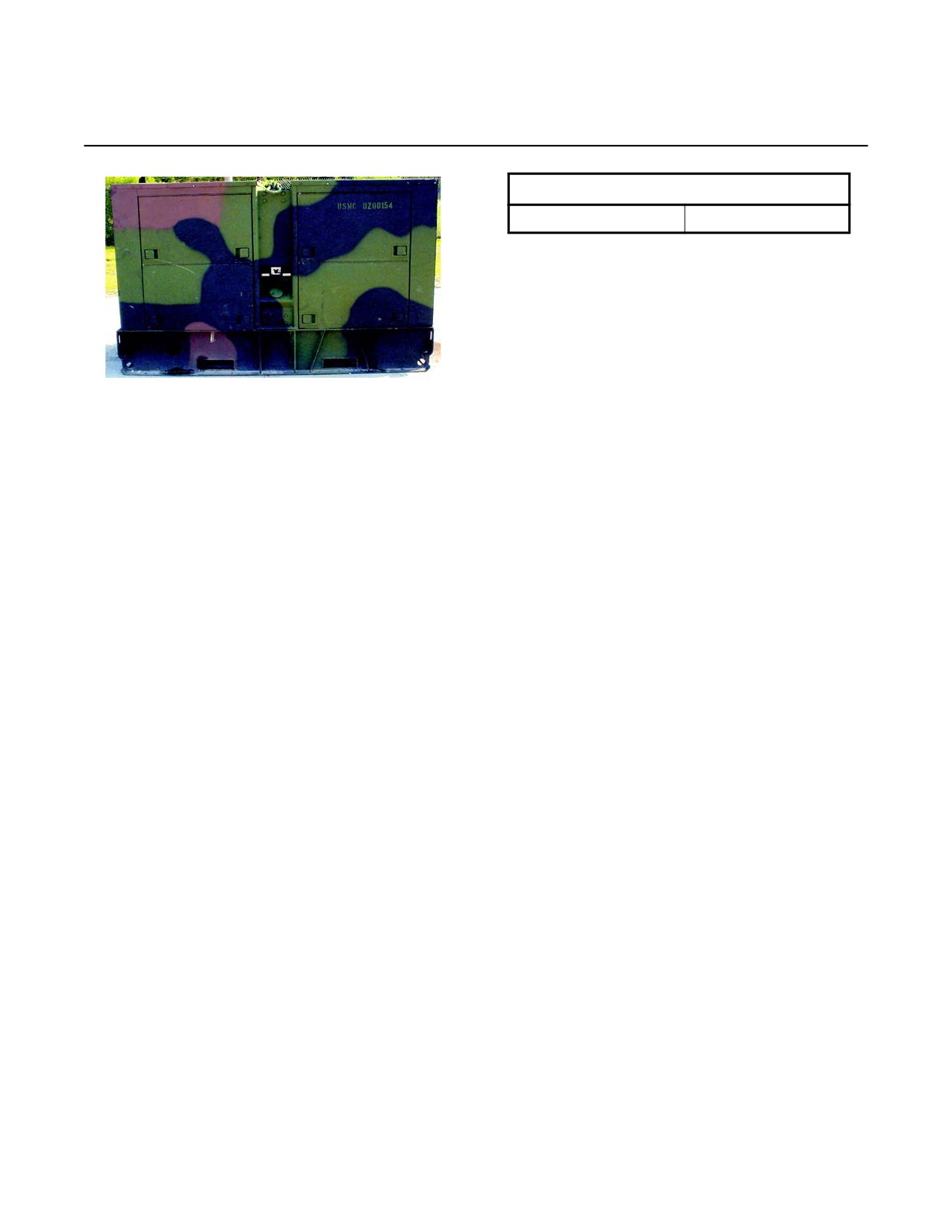

The 60 kW Generator Set, MEP-806B, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set includes a diesel engine, brushless generator, cool-

ing system, excitation system, governing system, fuel system, 24 Vdc starting system, DCS, and fault system.

The generator set is designed to be used with any piece of equipment requiring a medium source of A/C power

and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

MCII

Fuel Capacity:

43 gal.

Model:

MEP-806B

Fuel Consumption:

5.06 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,800

Length (in.):

Phase:

Width (in.):

35.7

Engine

Height (in.):

Manufacturer:

John Deere

Weight (lb)

Model:

6068TF151

Dry:

3,556

Wet (8 hrs fuel,

Type:

4 Cycle

3,992

coolant, & POLs):

Cylinders:

Volume (ft³):

103

Displacement:

359 in.³ (5.9 L)

Aural Signature

Horsepower:

134@1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

17.0:1

Replaced Item(s)

MEP-006A, MEP-806A

Transportability

All variants of the USMC M353 trailer

Associated TAMCN(s)

N/A

2-97

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 100 KW, 60 HZ

TAMCN: B1045

National Stock Number/ID Number

6115-00-133-9101

07464A

TC-290-2

DESCRIPTION AND FUNCTION

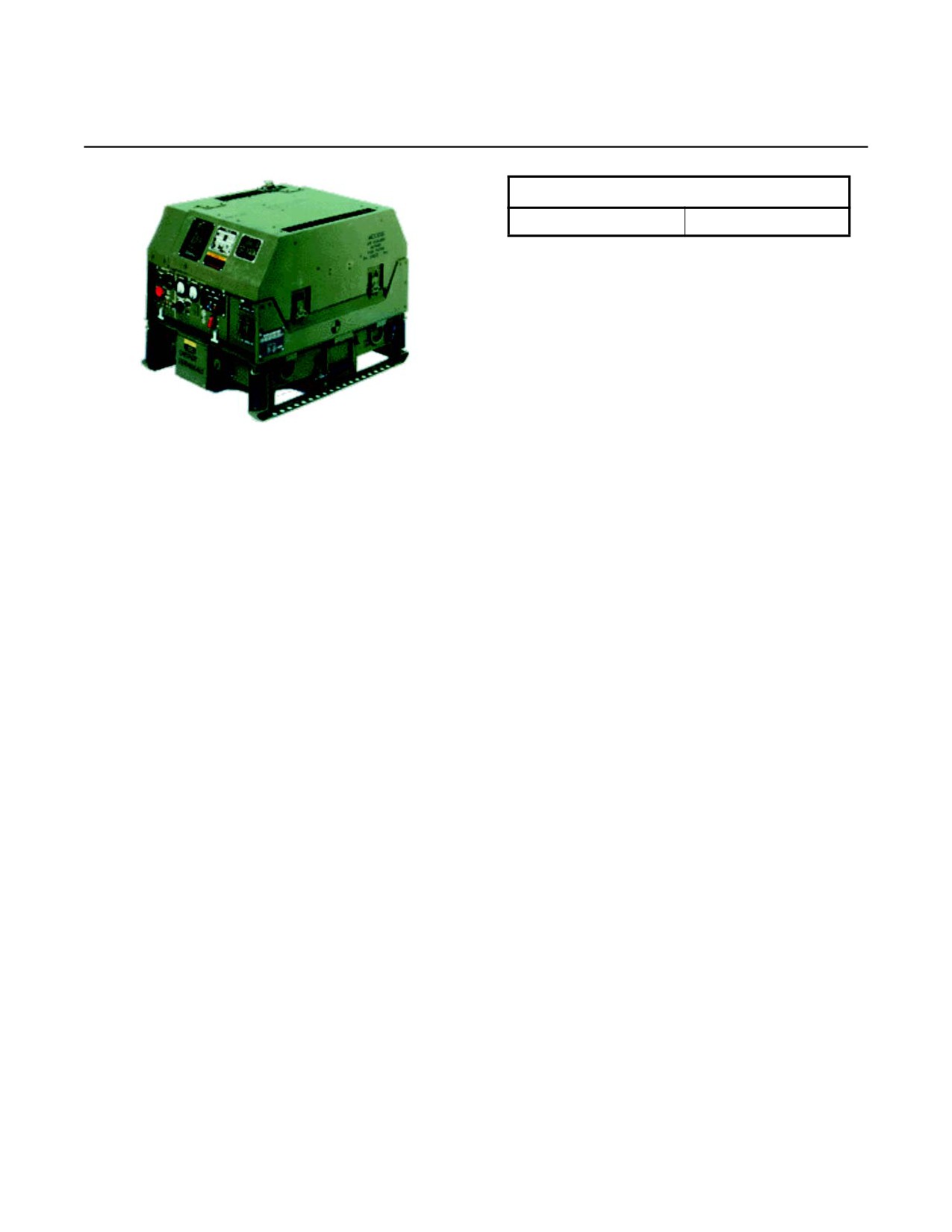

The Generator Set, Diesel Engine Driven, Skid Mounted, 100 kW, MEP-007A, is a self-contained, transport-

able source of A/C power. A 100 kW synchronous, brushless generator is directly powered by a six-cylinder,

water-cooled, four-cycle, turbocharged diesel engine. Both the engine and generator are mounted on a welded I-

beam skid base and contained within a steel-paneled housing enclosure. The generator set is provided with the

controls, instruments, and accessories necessary for its operation, monitoring, and control. The generator set is

designed to be used with any piece of equipment requiring a large source of external A/C power and operates in

a “Hot and Basic” climatic condition range of -25°F to 125°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Consolidated Diesel

Manufacturer:

Fuel Capacity:

90 gal.

Electric Co

Model:

MEP-007A

Fuel Consumption:

6 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

2,400

Length (in.):

106

Phase:

Width (in.):

Engine

Height (in.):

Manufacturer:

Caterpillar

Weight (lb)

Model:

D333C(T)

Dry:

6,680

Wet (8 hrs fuel,

Type:

4 Cycle, turbocharged

7,500

coolant, & POLs):

Cylinders:

Volume (ft³):

156

Displacement:

638 in.³ (10.45 L)

Aural Signature

Horsepower:

170 @ 1,800 RPM

Audio Rating:

72dBA @ 7 meters

Replaced Item(s)

N/A

Transportability

Medium Tactical Vehicle Replacement (MTVR)

Associated TAMCN(s)

N/A

2-98

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 100 KW, 60 HZ

TAMCN: B1045

National Stock Number/ID Number

6115-01-036-6374

07464B

TC-290-1

DESCRIPTION AND FUNCTION

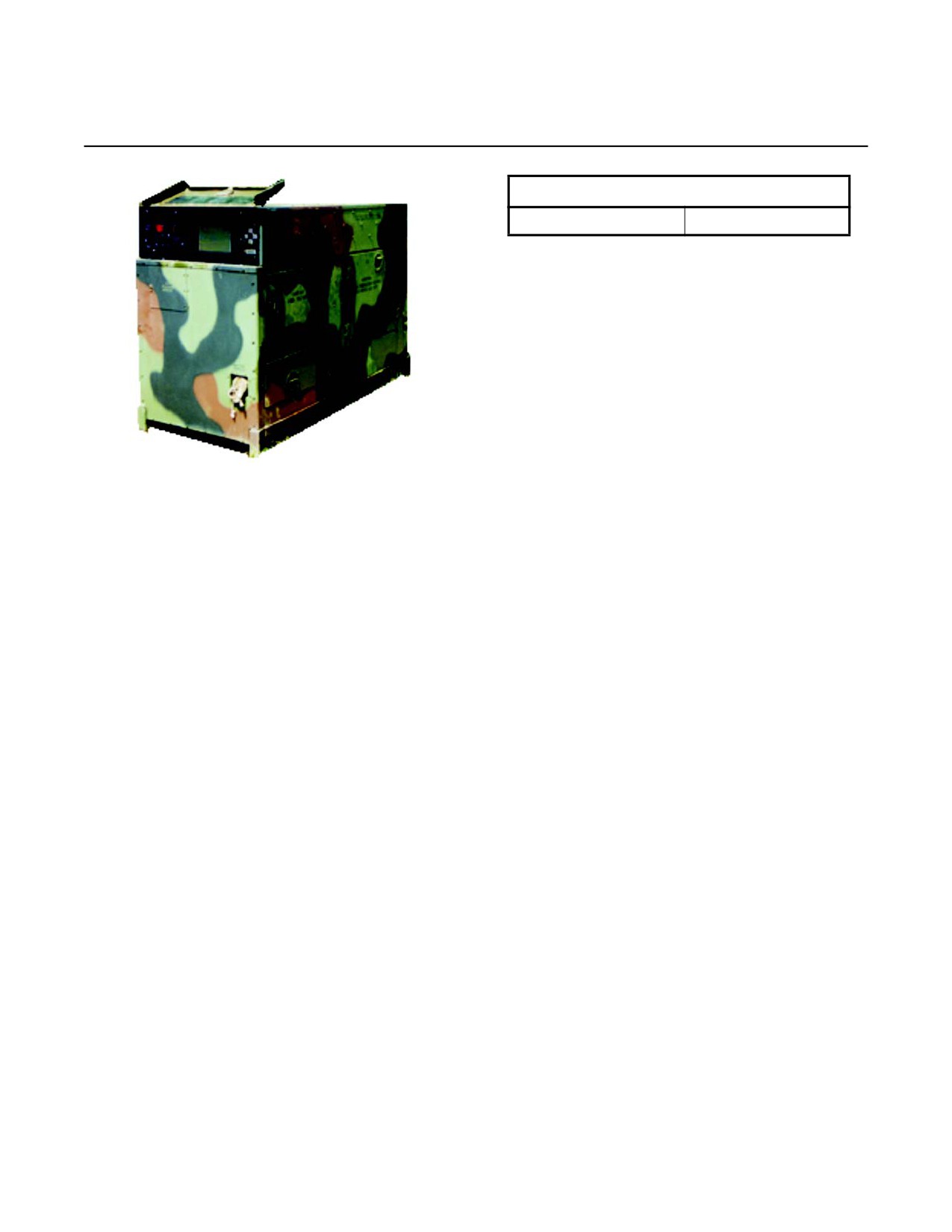

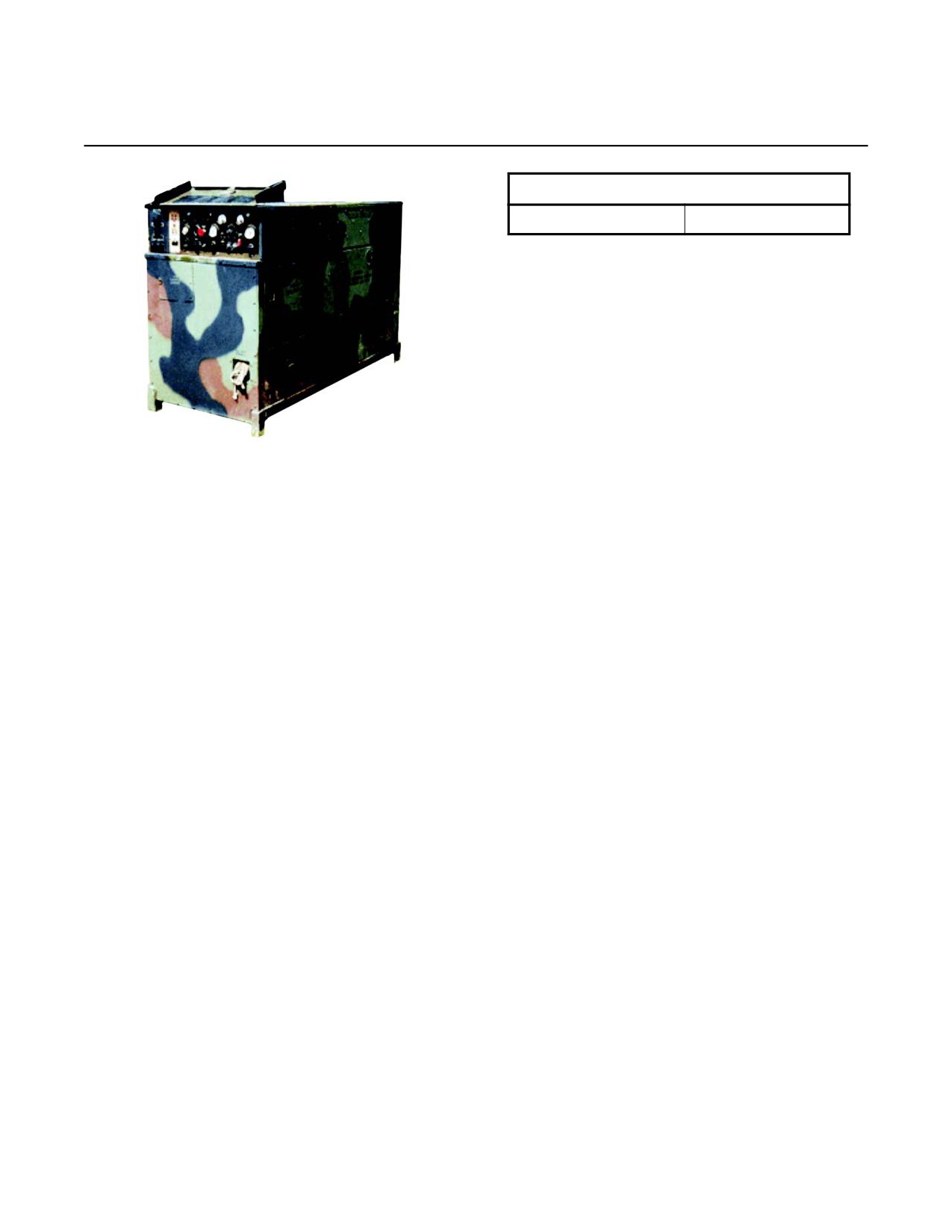

The Generator Set, Diesel Engine Driven, Skid Mounted, 100 kW MEP-007B, is a self-contained, transportable

source of A/C power. A 100 kW synchronous, brushless generator is directly powered by a six-cylinder, water-

cooled, four-cycle, turbocharged diesel engine. Both the engine and generator are mounted on a welded I-beam

skid base and contained within a steel-paneled housing enclosure. The generator set is provided with the controls,

instruments, and accessories necessary for its operation, monitoring, and control. The generator set is designed to

be used with any piece of equipment requiring a large source of external A/C power and operates in a “Hot and

Basic” climatic condition range of -25°F to 125°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

91 gal.

Model:

MEP-007B

Fuel Consumption:

6 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

2,400

Length (in.):

106

Phase:

Width (in.):

Engine

Height (in.):

Manufacturer:

Caterpillar

Weight (lb)

Model:

D3306(T)

Dry:

6,680

Wet (8 hrs fuel,

Type:

4 Cycle, turbocharged

7,500

coolant, & POLs):

Cylinders:

Volume (ft³):

156

Displacement:

638 in.³ (10.45 L)

Aural Signature

Horsepower

Audio Rating:

72dBA @ 7 meters

50Hz:

181 @ 1,500 RPM

60Hz:

217 @ 1,800 RPM

Replaced Item(s)

N/A

Transportability

Medium Tactical Vehicle Replacement (MTVR)

Associated TAMCN(s)

N/A

2-99

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, 100 KW, 60 HZ

TAMCN: B1045

National Stock Number/ID Number

6115-01-296-1463

07464C

TC-290

DESCRIPTION AND FUNCTION

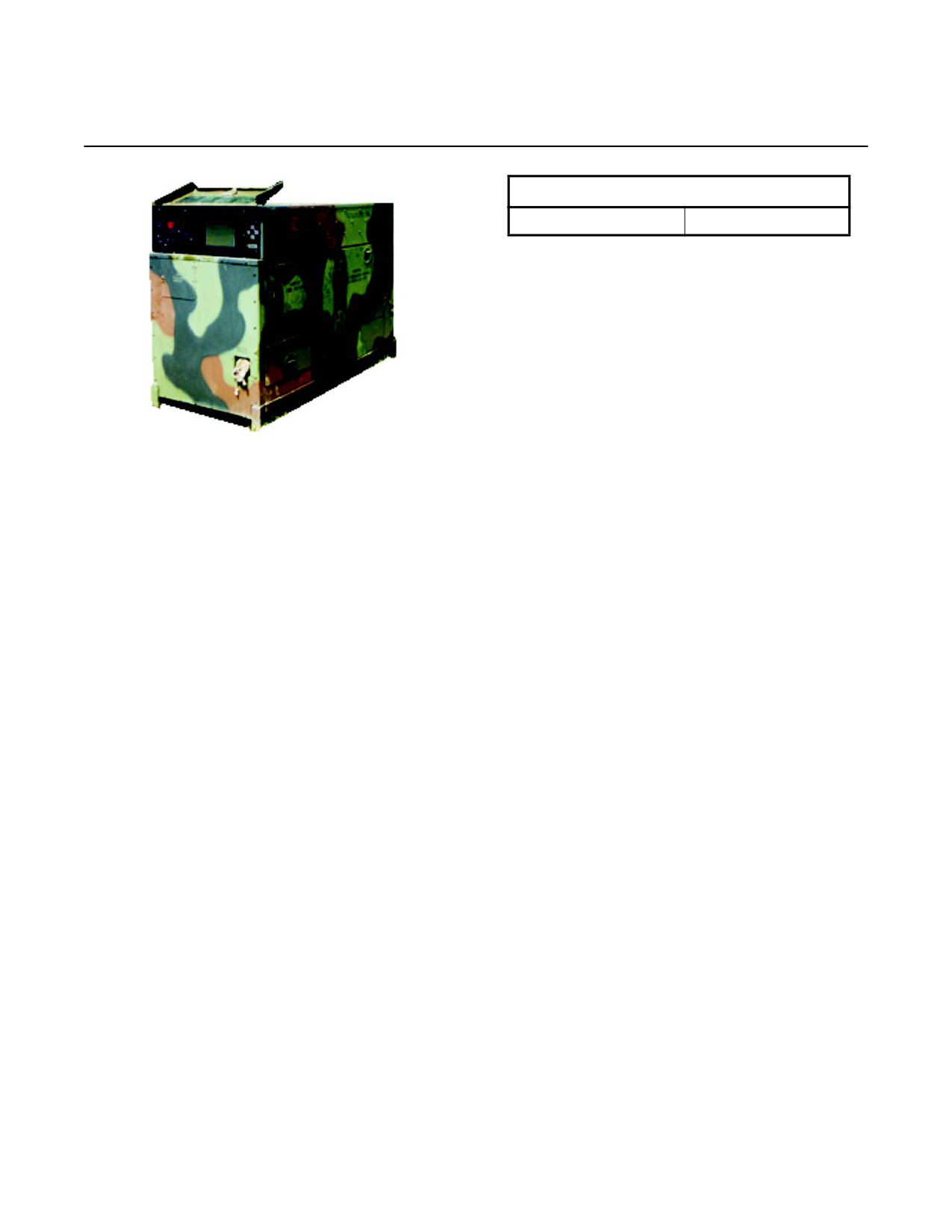

The 100 kW Generator Set, MEP-807A, is a fully enclosed, self-contained, skid-mounted, portable unit. It is

equipped with controls, instruments, and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator, exci-

tation system, speed governing system, fuel system, 24 Vdc starting system, control system, fault system, and

Electronic Modular Control Panel (EMCP). The generator set is designed to be used with any piece of equipment

requiring a large source of A/C power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

66 gal.

Model:

MEP-807A

Fuel Consumption:

7.85 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

2,400

Length (in.):

106

Phase:

Width (in.):

Engine

Height (in.):

Manufacturer:

Caterpillar

Weight (lb)

Model:

3126B

Dry:

5,500

Wet (8 hrs fuel,

Type:

4 Cycle

6,100

coolant, & POLs):

Cylinders:

Volume (ft³):

156

Displacement:

442 in.³ (7.25 L)

Aural Signature

Horsepower:

250 @ 1,800 RPM

Audio Rating:

72dBA @ 7 meters

Compression:

16.0:1

Replaced Item(s)

MEP-007A, MEP-007B, MEP-007C

Transportability

Medium Tactical Vehicle Replacement (MTVR)

Associated TAMCN(s)

N/A

2-100

TM 11275-15/3D

MOTORIZED ROAD GRADER

TAMCN: B1082

TC-054

National Stock Number/ID Number

3805-01-303-6152

09089A

(MPS and Prepo Norway only)

3805-01-150-4795

09089B

(All Others)

DESCRIPTION AND FUNCTION

The Motorized Road Grader is a self-propelled grading machine powered by a diesel engine. It is rubber-

tired, four-wheel drive, and has an articulated frame and front-wheel steer design. The primary use is for building

and maintaining roads and airfields. The fuel capacity is 75 gal. (284 L) with a maximum travel speed of 24.5

mph (39.4 kph).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

30,790 lb (13,966 kg)

Weight:

30,790 lb (13,966 kg)

Width:

95 in. (241 cm)

Width:

95 in. (241 cm)

Length:

327 in. (831 cm)

Length:

327 in. (831 cm)

Height:

127 in. (323 cm)

Height:

127 in. (323 cm)

Cube:

2,283.1 ft³ (64.65 m³)

Cube:

2,283.1 ft³ (64.65 m³)

Square Stowage:

215.7 ft² (20.04 m²)

Square Stowage:

215.7 ft² (20.04 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

J3087, U0002

2-101

TM 11275-15/3D

HELICOPTER EXPEDIENT REFUELING SYSTEM

TAMCN: B1135

National Stock Number/ID Number

4930-01-114-9930

07387C

TC-304

DESCRIPTION AND FUNCTION

The Helicopter Expedient Refueling System is designed for support of helicopter refueling operations in for-

ward areas and remote sites. It is normally used in Forward Arming and Refueling Point (FARP) operations. Ver-

satility, easily transportable, and quick setup are the key elements of the system. The HERS has a maximum

capacity of 18,000-gallons with 500-gallon bladders and 3,000-gallon collapsible tanks and a pumping capability

of 150 GPM. It may be deployed as a whole, in part, or with other tactical fuel systems.

TECHNICAL DESCRIPTION

Manufacturer:

Multiple Components

Fuel

Lift Capacity:

Fuel Consumption per Hour:

0.4 GPH

Fuel data based off

Capacity:

1.3 gallons

one 150 GMP Pump

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Dependent on mission

Weight:

6,134 (2,782 kg)

Width:

Dependent on mission

Width:

900 in. (2,286 cm)

Length:

Dependent on mission

Length:

1800 in. (4,572 cm)

Height:

Dependent on mission

Height:

144 in. (366 cm)

Cube:

Dependent on mission

Cube:

135,000 ft³ (3,822.77 m³)

Square Stowage:

Dependent on mission

Square Stowage:

1,250 ft² (116.13 m²)

Replaced Item(s)

N/A

Transportability

Capable of being transported by organic Marine Corps motor transport and material

handling equipment and C-5, C-141, C-17, C-130 aircraft

Associated TAMCN(s)

B0570, B0573, B2170, B2730

2-102

TM 11275-15/3D

HOSE REEL SYSTEM

TAMCN: B1139

TC-056

National Stock Number/ID Number

4930-01-462-1304

10596A

DESCRIPTION AND FUNCTION

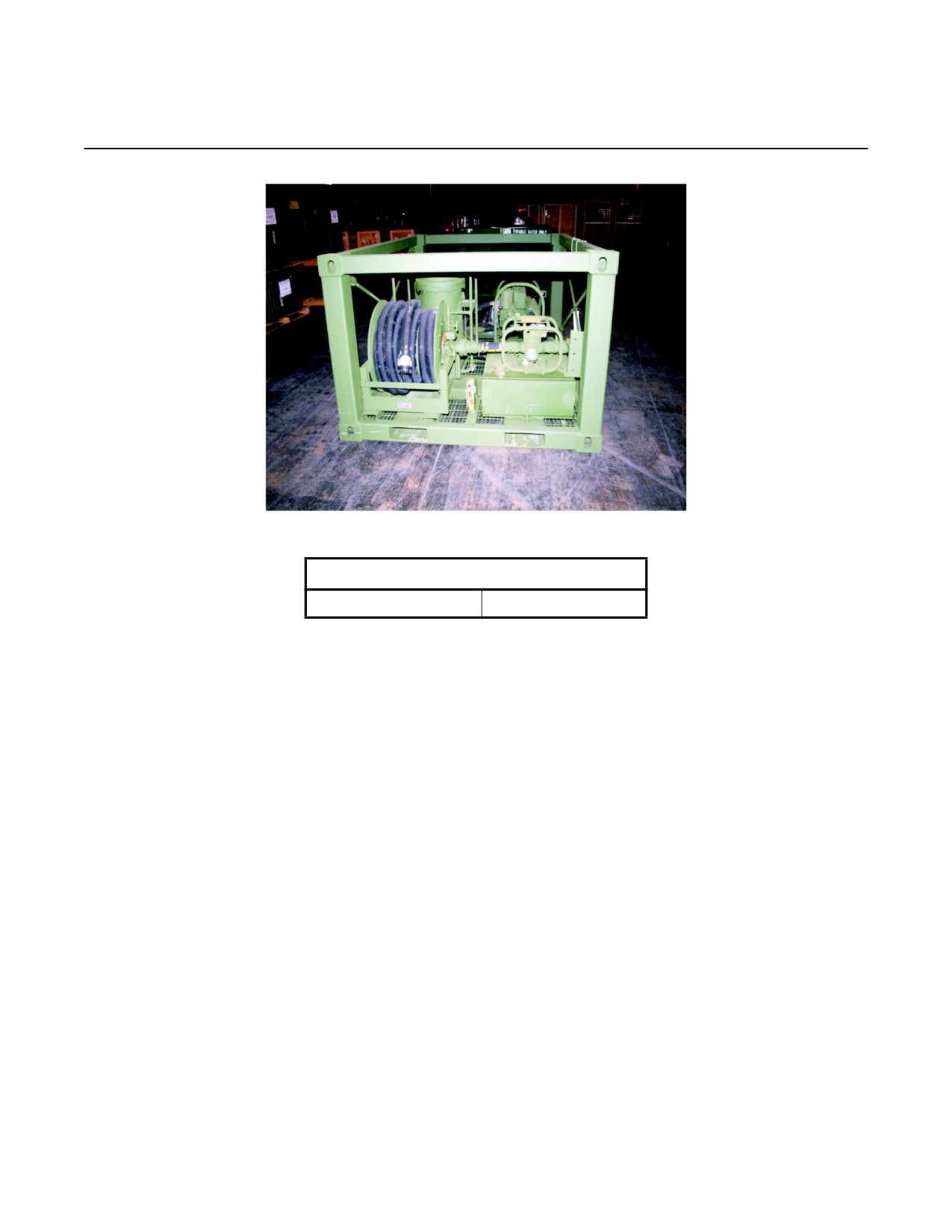

The Hose Reel System (HRS) provides bulk fuel transfer capability within the Marine Air-Ground Task Force

(MAGTF). Each system has a total of five miles of 6-inch lay-flat lightweight fuel hose on eleven hose reels

(each reel contains 2,400 foot or four sections of 6-inch by 600-foot lay-flat lightweight fuel hose). The HRS sys-

tem consists of two base units, two power units, eleven hose reels, and ancillary components necessary to inter-

connect to the other tactical fuel systems. The HRS has a manual deployment capability of 5 mph and a

powered deployment and retrieval capability of 2 to 2.5 mph.

OPERATING AND SHIPPING DATA

Operating Mode (Base with Reel and Power Unit)

Shipping Mode

Weight:

6,820 lb (3,094 kg)

Weight:

60,000 lb (27,216 kg)

Width:

96 in. (244 cm)

Width:

4 containers each 96 in. (244 cm)

Length:

79 in. (201 cm)

Length:

4 containers each 96 in. (244 cm)

Height:

83 in. (221 cm)

Height:

4 containers each 96 in. (244 cm)

Cube:

364.30 ft³ (10.3 m³)

Cube:

3,168 ft³ (89. 70 m³)

Square Stowage:

52.33 ft² (4.7 m²)

Square Stowage:

528 ft² (49.05 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-103

TM 11275-15/3D

HYPOCHLORINATION UNIT, PURIFICATION, 2-350

TAMCN: B1140

National Stock Number/ID Number

4610-01-364-4485

09476B

TC-365

DESCRIPTION AND FUNCTION

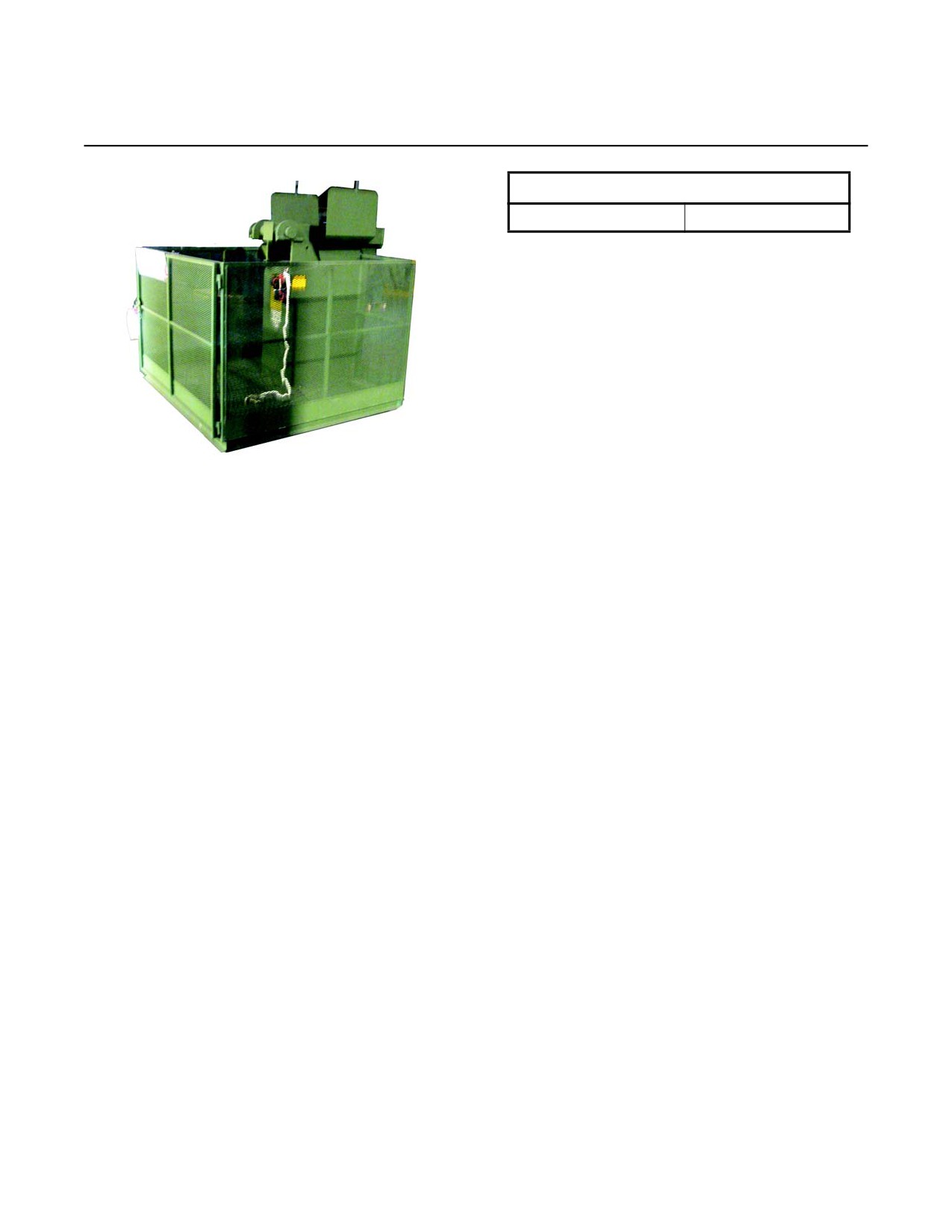

The Hypochlorination Unit, Purification is designed to mix a proportional amount of hypochlorite solution

(sanitizing agent) with water in the Tactical Water Distribution System (TWDS). The unit may be positioned in

the TWDS so that water is chlorinated prior to entering the storage tank or before delivery to the user.

TECHNICAL DESCRIPTION

Manufacturer:

Alpine Industries

Fuel

Lift Capacity:

N/A

Fuel Consumption per Hour:

N/A

Capacity:

N/A

OPERATING AND SHIPPING DATA

Operating Mode

N/A

Shipping Mode

Weight:

450 lb

Width:

34 in. (86 cm)

Length:

43 in. (109 cm)

Height:

38 in.

Cube:

33 ft³

Square Stowage:

Square Stowage: 1

1 ft²

Replaced Item(s)

N/A

Transportability

MTVR HMMWV

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-104

TM 11275-15/3D

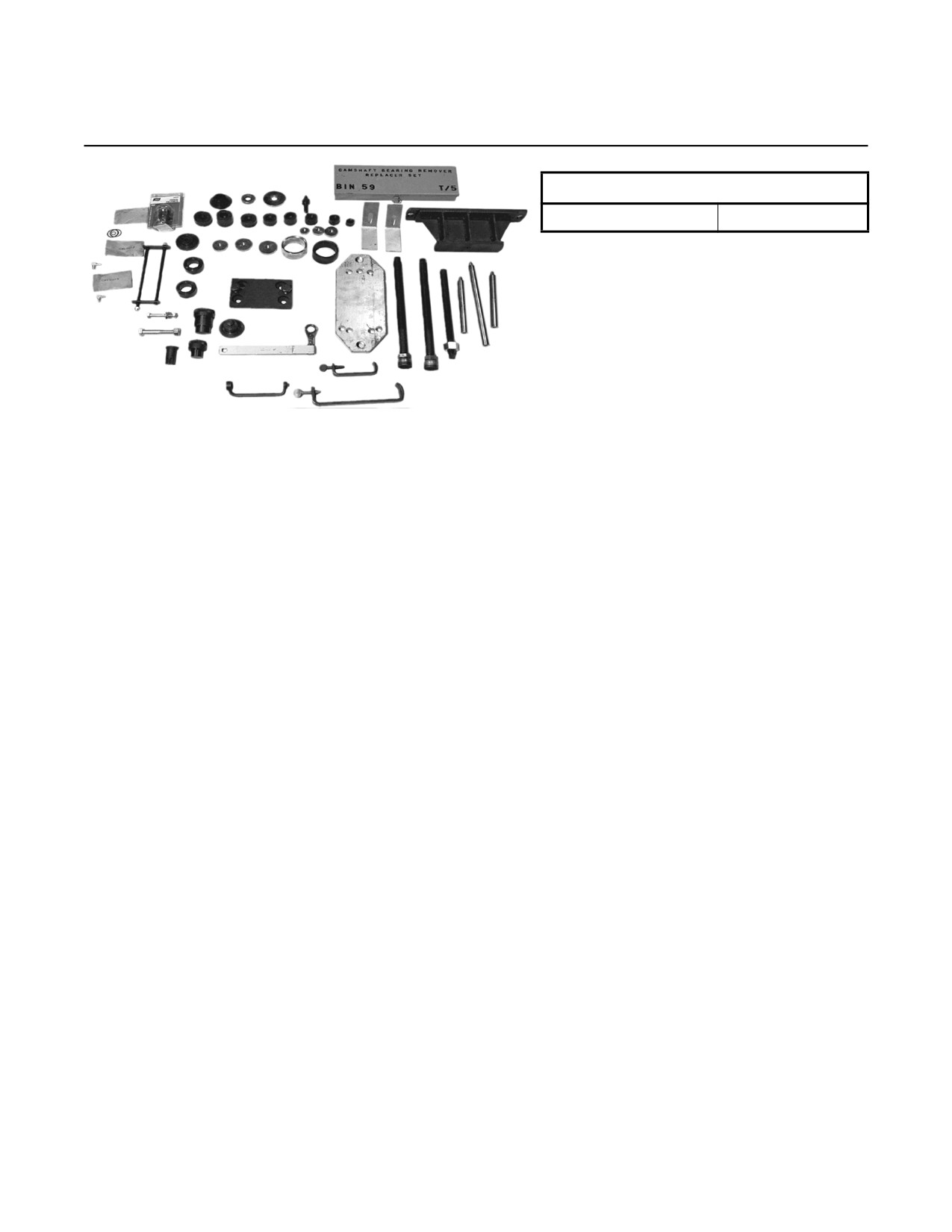

TOOL KIT, IM, F/TRACTOR, FT, W/ANGLE BLADE

TAMCN: B1191

National Stock Number/ID Number

5180-01-261-7881

09085A

TC-313

DESCRIPTION AND FUNCTION

The Tool Kit, Intermediate is a 3rd and 4th echelon tool kit for the Tractor, Full Tracked, w/Angle Blade T-5

(B2464).

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

Length (in.):

Model:

022165SL87

Width (in.):

Height (in.):

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2460, B2464

2-105

TM 11275-15/3D

MK 2 MOD 0 MINE CLEARANCE SYSTEM TRAILER MOUNTED

TAMCN: B1298

TC-506

National Stock Number/ID Number

1055-01-281-2770

09153A

DESCRIPTION AND FUNCTION

The MK 155 MOD 0/1 is a hydraulically elevated launch rail and container frame for the M58 Linear Demoli-

tion Charge (LDC). It mounts to the M353 general purpose trailer chassis. This mobility allows it to provide the

only responsive, explosive minefield/obstacle clearing capability in the Marine Corps inventory. The system is

operated from inside the host vehicle thus protecting the operators from direct and indirect fires during employ-

ment. The M58 Linear Demolition Charge will breach a lane approximately 8 m wide by 100 m long. When com-

bined with the M353 or M200 trailer chassis, and M58/68 line charge and MK22 rocket, the MK 155 becomes the

MK 2 MOD 0 Mine Clearance System. (M68 is the inert round).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight: w/LDC and Rocket

6,800 lb (3,084 kg)

Weight: w/LDC and Rocket

910 lb (413 kg)

Width:

95 in. (241 cm)

Width:

65 in. (165 cm)

Length:

187 in. (475 cm)

Length:

102 in. (259 cm)

Height:

71 in. (180 cm)

Height:

74 in. (188 cm)

Cube

729.9 ft³ (20.67 m³)

Cube:

283.9 ft³ (8.04 m³)

Square Stowage:

123.4 ft² (11.56 m²)

Square Stowage:

46 ft² (4.27 m²)

Capacity

Fuel Consumption per Hour

N/A

Lift Capacity:

TBD

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-106

TM 11275-15/3D

MAINTENANCE PLATFORM, AIR MOBILE CRANE

TAMCN: B1300

National Stock Number/ID Number

2320-01-312-2616

09377A

TC-060

DESCRIPTION AND FUNCTION

The Maintenance Platform is a boom-attached work platform, provides a leveling platform intended for rais-

ing personnel and equipment to a work situation. Allowable load including personnel and equipment is 600

pounds. The Platform is used with Air Mobile Crane (B0446 pg. 2-59).

TECHNICAL DESCRIPTION

Manufacturer:

Koehring Cranes and Excavators, Inc.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

600 lb (272 kg)

Weight:

1,005 lb (456 kg)

Width:

64 in. (163 cm)

Width:

64 in. (163 cm)

Length:

64 in. (163 cm)

Length:

76 in. (193 cm)

Height:

90 in. (229 cm)

Height:

66 in. (168 cm)

Cube:

Varies

Cube:

185.7 ft³ (5.26 m³)

Square Stowage:

Varies

Square Stowage:

33.7 ft² (3.13 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0446

2-107

TM 11275-15/3D

MK 1 MOD MINE CLEARANCE SYSTEM

TAMCN: B1315

TC-061

National Stock Number/ID Number

1055-01-226-6338

09962A

DESCRIPTION AND FUNCTION

The MK 154 Mine Clearance Launcher is a hydraulically elevated launch rail and container frame for three

(3) M59 Linear Demolition Charges. This kit is easily installed in an AAVP7A1 when required, and removed

when not needed. The MK154 launcher provides the only mobile, multiple shot, explosive minefield clearance

capability in the U.S. inventory. The system has the capability to launch from the water and employ against Shal-

low Water Mines (SWM) and continue inland. Operators deploy the line charges from inside the AAV, thus offer-

ing them protection from direct and indirect fires. The kit has the potential to clear one 8 x 300 m lane or three 8

x 100 m lanes, when all charges are deployed. When combined with the AAV, three M59/69 line charges and

three MK 22 rockets, the system becomes the MK 1 MOD 0 Mine Clearance System.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

3,040 lb (1,379 kg)

Weight:

8,790 lb (3,987 kg)

Width:

75 in. (191 cm)

Width:

95.9 in. (244 cm)

Length:

140 in. (356 cm)

Length:

175.8 in. (447 cm)

Height:

48 in. (122 cm)

Height:

60.5 in. (154 cm)

Cube:

291.7 ft³ (8.26 m³)

Cube:

591.6 ft³ (16.75 m³)

Square Stowage:

72.9ft² (6.77 m²)

Square Stowage:

117.3ft² (10.90 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-108

TM 11275-15/3D

MINEFIELD MARKING SET

TAMCN: B1320

TC-062

National Stock Number/ID Number

9905-01-186-7253

01291B

DESCRIPTION AND FUNCTION

The Minefield Marking Set consists of signs and other materials required for marking a safe lane of 400

yards through a minefield. It includes cyalume lightsticks, for night markings.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight: (3 boxes)

Varies

Weight:

900 lb (408 kg)

Width: (Stacked)

Varies

Width:

32 in. (81 cm)

Length: (Stacked)

Varies

Length:

34.5 in. (88 cm)

Height: (Stacked)

Varies

Height:

45 in. (114 cm)

Cube: (Stacked)

Varies

Cube:

28.8 ft³ (0.81 m³)

Square Stowage: (Stacked)

Varies

Square Stowage:

7.7 ft² (0.72 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-109

TM 11275-15/3D

AVIATION FUEL CONTAMINATION TEST KIT

TAMCN: B1420

National Stock Number/ID Number

6630-01-008-5524

01461B

6630-01-347-9670

01461C

TC-063

DESCRIPTION AND FUNCTION

The Aviation Fuel Contamination Test Kit is a portable petroleum quality surveillance kit consisting of com-

ponents and testing equipment capable of determining contamination levels in aviation fuels. The kit has the

capability to take in-line samples in tactical fuel systems, mobile refueling equipment, and commercial refueling

equipment. The kit can test for specific gravity, free-water, and particulate contamination in aviation fuel sam-

ples. The Aviation Fuel Contamination Test Kit is associated with the (TAMCN B0675, pg. 2-80) Tactical Airfield

Fuel Dispensing System and (TAMCN B0685, pg. 2-82) Amphibious Assault Fuel System.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

45 lb (20 kg)

Width:

Varies

Width:

14.5 in. (37 cm)

Length:

Varies

Length:

21.5 in. (55 cm)

Height:

Varies

Height:

16.5 in. (42 cm)

Cube:

Varies

Cube:

3 ft³ (0.08 m³)

Square Stowage:

Varies

Square Stowage:

2.2 ft² (0.20 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-110

TM 11275-15/3D

EXPEDIENT REFUELING SYSTEM (ERS)

TAMCN: B1570

TC-508

National Stock Number/ID Number

4930-01-182-5028

03707F

DESCRIPTION AND FUNCTION

The Expedient Refueling System is an easily transportable and high mobile tactical fuel system designed for

refueling of ground vehicles in advanced positions and consists of 150 GPM pump and ancillary components

necessary to establish two refueling points. The system is normally used in conjunction with the 500-gallon blad-

der and 3,000-gallon collapsible tank.

TECHNICAL DESCRIPTION

Manufacturer:

Multiple Components

Fuel

Lift Capacity:

Fuel Consumption per Hour:

0.4 gph

Capacity:

1.3 gal.

Fuel data based off

one 150 GPM Pump

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Dependent on mission

Weight:

243 lb (110 kg)

Width:

Dependent on mission

Width:

40 in. (102 cm)

Length:

Dependent on mission

Length:

50.6 in. (129 cm)

Height:

Dependent on mission

Height:

29.9 in. (68 cm)

Cube:

Dependent on mission

Cube:

31.5 ft³ (0.89 m³)

Square Stowage:

Dependent on mission

Square Stowage:

14.1 ft² (1.31 m²)

Replaced Item(s)

N/A

Transportability

Capable of being transported by organic Marine Corps motor transport and material

handling equipment and C-5, C-141, C-17, C-130 aircraft

Associated TAMCN(s)

B0570, B0573

2-111

TM 11275-15/3D

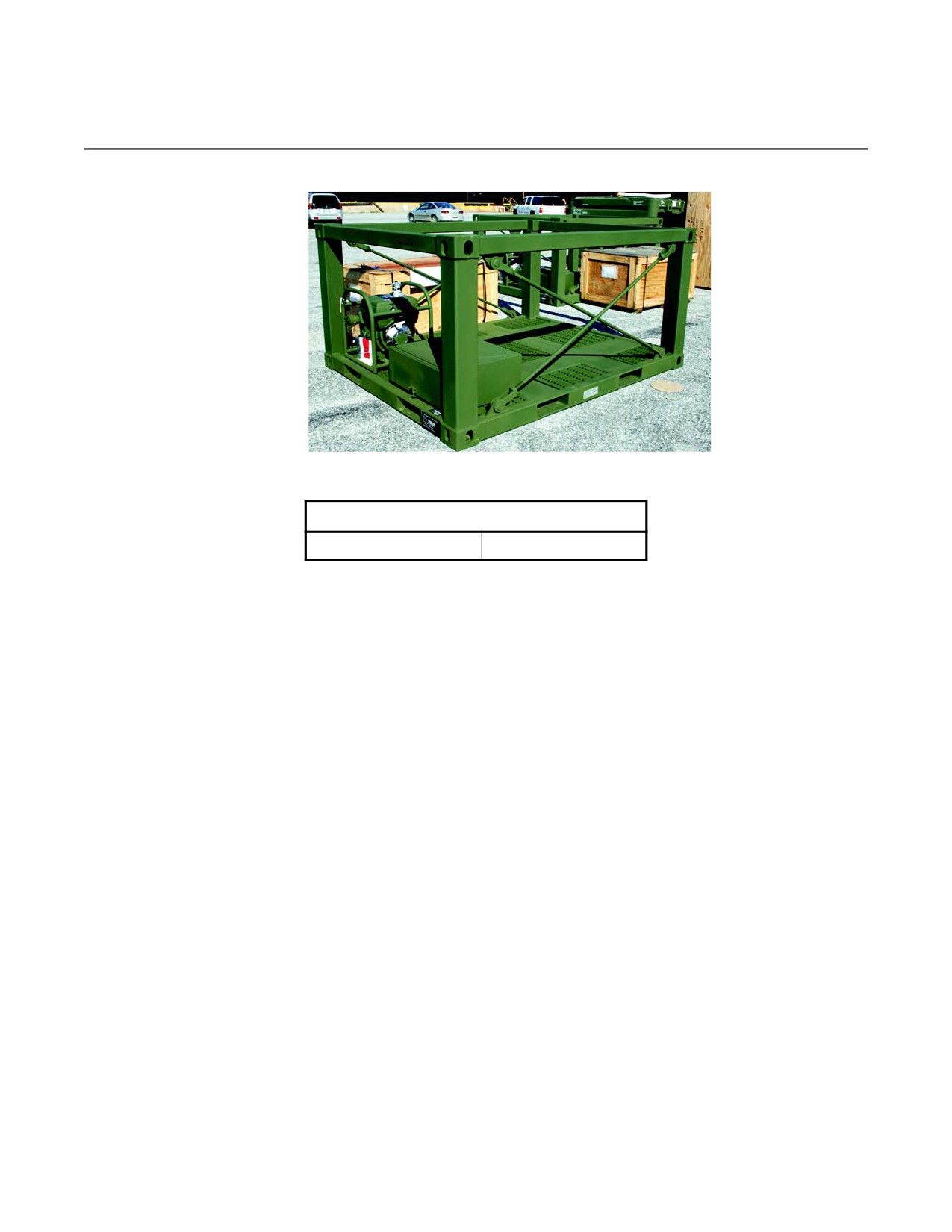

PUMP MODULE, FUEL SIX CONTAINER (SIXCON)

TAMCN: B1580

TC-067

National Stock Number/ID Number

4030-01-240-4579

09003A

DESCRIPTION AND FUNCTION

The Six Container (SIXCON) Fuel Pump Module is a component of the SIXCON system, a module system

consisting of five tank modules and one pump module. The six modules attached together to form an ISO/ANSI

configured 8 x 8 x 20 foot module. The SIXCON Fuel Pump Module has the capability for refueling and defueling

both aircraft and ground vehicles, it has a 150 GPM pumping rate, aviation grade fuel filtration, 50-foot of 2-inch

refueling hose with pressure and open port refueling nozzles, and ancillary components necessary for inter-con-

necting to the (TAMCN B2085 pg. 2-128) SIXCON Fuel Tank Module. The SIXCON fuel modules can be used

as a mobile refueling asset or as a stationary refueling capability.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Model

Weight:

2,300 lb (1,043 kg)

Weight:

2,300 lb (1,043 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

78 in. (198 cm)

Length:

78 in. (198 cm)

Height:

48 in. (122 cm)

Height:

48 in. (122 cm)

Cube:

207 ft³ (5.86m³)

Cube:

207 ft³(5.86 m³)

Square Stowage:

52 ft²(4.83m²)

Square Stowage:

52 ft²(4.83 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2085

2-112

TM 11275-15/3D

PUMP MODULE, WATER SIX CONTAINER (SIXCON)

TAMCN: B1581

TC-068

National Stock Number/ID Number

4320-01-318-1853

09444A

DESCRIPTION AND FUNCTION

The SIXCON Water Pump Module is a component of the SIXCON system, a module system consisting of

five tank modules and one pump module. The six modules attached together to form an ISO/ANSI configured 8

x 8 x 20 foot module. The SIXCON Water Pump Module has the capability for dispensing potable water, it has a

150 GPM pumping rate and includes ancillary components for two dispensing points. It is used with the (TAMCN

B2086, pg. 2-129) SIXCON Water Tank Module. The SIXCON Water modules can be used as a mobile water

dispensing asset or as a stationary dispensing capability.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

2,300 lb (1,043 kg)

Weight:

2,300 lb (1,043 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

78 in. (198 cm)

Length:

78 in. (198 cm)

Height:

48 in. (122 cm)

Height:

48 in. (122 cm)

Cube:

207 ft³ (5.86m³)

Cube:

207 ft³(5.86 m³)

Square Stowage:

52 ft² (4.83m²)

Square Stowage:

52 ft²(4.83 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2086

2-113

TM 11275-15/3D

PUMP, WATER, 350 GPM

TAMCN: B1582

National Stock Number/ID Number

4320-01-158-2954

09540A

TC-331

DESCRIPTION AND FUNCTION

The 350 GPM Water Pump is designed specifically to transfer water, and is the primary pump within the

Tank Farm Interconnection Sets. It consists of an air-cooled, three-cylinder diesel engine and a self-priming cen-

trifugal pump mounted on a two-wheel frame assembly. The pump has an output volume of 350 GPM at 275 foot

of head and a designed working pressure of 125 psi. It is used in the (TAMCN B2138, pg. 2-140) 350 GPM

Pump Tank Farm Interconnection Set.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

2,400 lb (1,089 kg)

Weight:

2,400 lb (1,089 kg)

Width:

54 in. (137 cm)

Width:

54 in. (137 cm)

Length:

78 in. (198 cm)

Length:

78 in. (198 cm)

Height:

48 in. (122 cm)

Height:

48 in. (122 cm)

Cube:

111 ft³ (3.14 m³)

Cube:

111 ft³ (3.14 m³)

Square Stowage:

30 ft²(2.79 m²)

Square Stowage:

30 ft²(2.79 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-114

TM 11275-15/3D

PUMP, FUEL, 600 GPM

TAMCN: B1583

National Stock Number/ID Number

4320-01-533-6417

11222A

TC-209

DESCRIPTION AND FUNCTION

The 600 GPM Fuel Pump is designed specifically to transfer fuel, and is the primary pump within the

(TAMCN B0675, pg. 2-80) Tactical Airfield Fuel Dispensing System and the (TAMCN B0685, pg. 2-82) Amphibi-

ous Assault Fuel System. It consists of a turbo-charged, four-cylinder diesel engine and a self-priming centrifu-

gal pump mounted on a two-wheel frame assembly. The pump has an output volume of 600 GPM at 340 foot of

head and a designed working pressure of 150 psi. It is an SL-3 component of AAFS and TAFDS.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

4,060 lb (1,841.6 kg)

Weight:

4,060 lb (1,841.6 kg)

Width:

70.4 in. (178.8 cm)

Width:

70.4 in. (178.8 cm)

Length:

151 in. (383.54 cm)

Length:

151 in. (383.54 cm)

Height:

71.8 in. (182.4 cm)

Height:

71.8 in. (182.4 cm)

Cube:

442 ft³ (12.50 m³)

Cube:

442 ft³ (12.50 m³)

Square Stowage:

73.35 ft² (6.81 m²)

Square Stowage:

73.35 ft² (6.81 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-115

TM 11275-15/3D

PUMP SET, 65 GPM, 50 FT HEAD

TAMCN: B1620

TC-330

National Stock Number/ID Number

4320-01-547-8734

00970C

DESCRIPTION AND FUNCTION

The 65 GPM Pump Set is a compact, frame mounted, general-purpose pump. It is comprised of a centrifugal

pump, gas or diesel engine, and ancillary hoses. The pump set is used in conjunction with the Tactical Water

Distribution System, Tank Farm Interconnection Sets, or as a general-use pump.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

220 lb (100 kg)

Weight:

220 lb (100 kg)

Width:

20 in. (51 cm)

Width:

20 in. (51 cm)

Length:

28 in. (71 cm)

Length:

28 in. (71 cm)

Height:

30 in. (76 cm)

Height:

30 in. (76 cm)

Cube:

9.7 ft³ (0.27 m³)

Cube:

9.7 ft³(0.27 m³)

Square Stowage:

3.9 ft² (0.36 m²)

Square Stowage:

3.9 ft² (0.36 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-116

TM 11275-15/3D

IMPROVED RIBBON BRIDGE RAFT SET RAMP BAY

TAMCN: B1625

TC-346

National Stock Number/ID Number

2090-01-316-2576

09439A

DESCRIPTION AND FUNCTION

The Improved Ribbon Bridge Raft Set, consists of two (2) ramp bays, five (5) interior bays and the necessary

components to construct a 5-bay conventional floating raft, capable of carrying tracked/wheeled vehicles up to

military load class (MLC) 80 in., and currents up to 8 fps. Shipping information includes a MK18 LVS rear body

unit used to transport both types of bays. The raft can be launched from the transporter at the shoreline and a

bridge erecting boat can help guide the raft. It is easily recovered, reloaded and refolded.

TECHNICAL DESCRIPTION

Lift Capacity

80-Ton of tracked vehicles

Manufacturer:

United Defense, York PA

or 100-Ton of wheeled

vehicles per raft set

Capacity

Fuel Consumption per Hour:

N/A

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

14,000 lb (6,350 kg)

Weight:

31,000 lb (14,061 kg)

Width:

338 in. (8.59 m)

Width:

126.6 in. (322 cm)

Length:

271 in. (6.9 m)

Length:

272.5 in. (692 cm)

Height:

53 in. (1.35 m)

Height:

151.5 in. (386 cm)

Cube:

1,412.6 ft³ (64.44 m³)

Cube:

3,034.6 ft³ (85.93 m³)

Square Stowage:

605.6 ft² (40.00 m²)

Square Stowage:

239.6 ft² (22.26 m²)

Replaced Item(s)

Standard Ribbon Bridge, Raft Set

Transportability

Common Bridge Transporter, pallet loading system

Associated TAMCN(s)

B0155

2-117

TM 11275-15/3D

REFRIGERATION UNIT, ENHANCE

TAMCN: B1645

National Stock Number/ID Number

4110-01-468-9792

10673A

TC-258

DESCRIPTION AND FUNCTION

The Refrigeration Unit is a 4,500 BTU, one-piece condenser/evaporator refrigeration unit. It is designed to

be used with an insulated container of rigid construction to form a complete combination freezer and chill box

and is used to cool/chill the 350 cubic foot capacity Refrigerator, Rigid Box, (TAMCN B1710).

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

Thermo King

Length (in.):

49.13

Model:

VM-105-MAX EL

Width (in.):

44.05

Power Req.

Height (in.):

33.50

Frequency (Hz):

50/60

Weight (lb.):

474

Voltage/ Phase:

208VAC/3-Phase

Volume (ft³):

41.99

Wires:

4-Wire

Horizontal/Vertical:

Horizontal

Max Power Consumption:

5 kW

Refrigerant

R-404A

Design Maximum

125°F

Capacity

Ambient Temperature:

Cooling (BTU/hr):

4,500

Min Ambient Cooling:

50°F

Heating (BTU/hr):

N/A

Min Ambient Heating:

-25°F

CFM:

N/A

Duct Size:

N/A

Replaced Item(s)

TAMCN B1645, ID: 08713A, NSN 4110-01-152-1946

Transportability

Mounted in Refrigerator, Rigid Box (B1710)/forklift portable

Associated TAMCN(s)

B1710

2-118

TM 11275-15/3D

REFRIGERATOR, RIGID BOX

TAMCN: B1710

National Stock Number/ID Number

4110-01-107-9078

08407A

TC-259

DESCRIPTION AND FUNCTION

The Refrigerator, Rigid Box is an insulated 350 cubic foot capacity container without a refrigeration unit. The

overall refrigerated container assembly is a one-piece welded steel frame with permanently assembled riveted

aluminum panels and is designed to be used with the Refrigeration Unit, Enhanced (TAMCN B1645).

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

Heller Truck Body

Length (in.):

117.3

Model:

MRC10

Width (in.):

96.3

Power Req.

Height (in.):

96.3

Frequency (Hz):

Weight (lb):

10,000

Voltage/Phase:

120VAC/1-Phase

629.6

Volume (ft³):

Wires:

N/A

Horizontal/Vertical:

Horizontal

Max Power Consumption:

N/A

Refrigerant

N/A

Design Maximum

N/A

Capacity

Ambient Temperature:

Cooling (BTU/hr):

N/A

Min Ambient Cooling:

N/A

Heating (BTU/hr):

N/A

Min Ambient Heating:

N/A

CFM:

N/A

Duct Size:

N/A

Replaced Item(s)

N/A

Transportability

Forklift Portable

Associated TAMCN(s)

B1645

2-119

TM 11275-15/3D

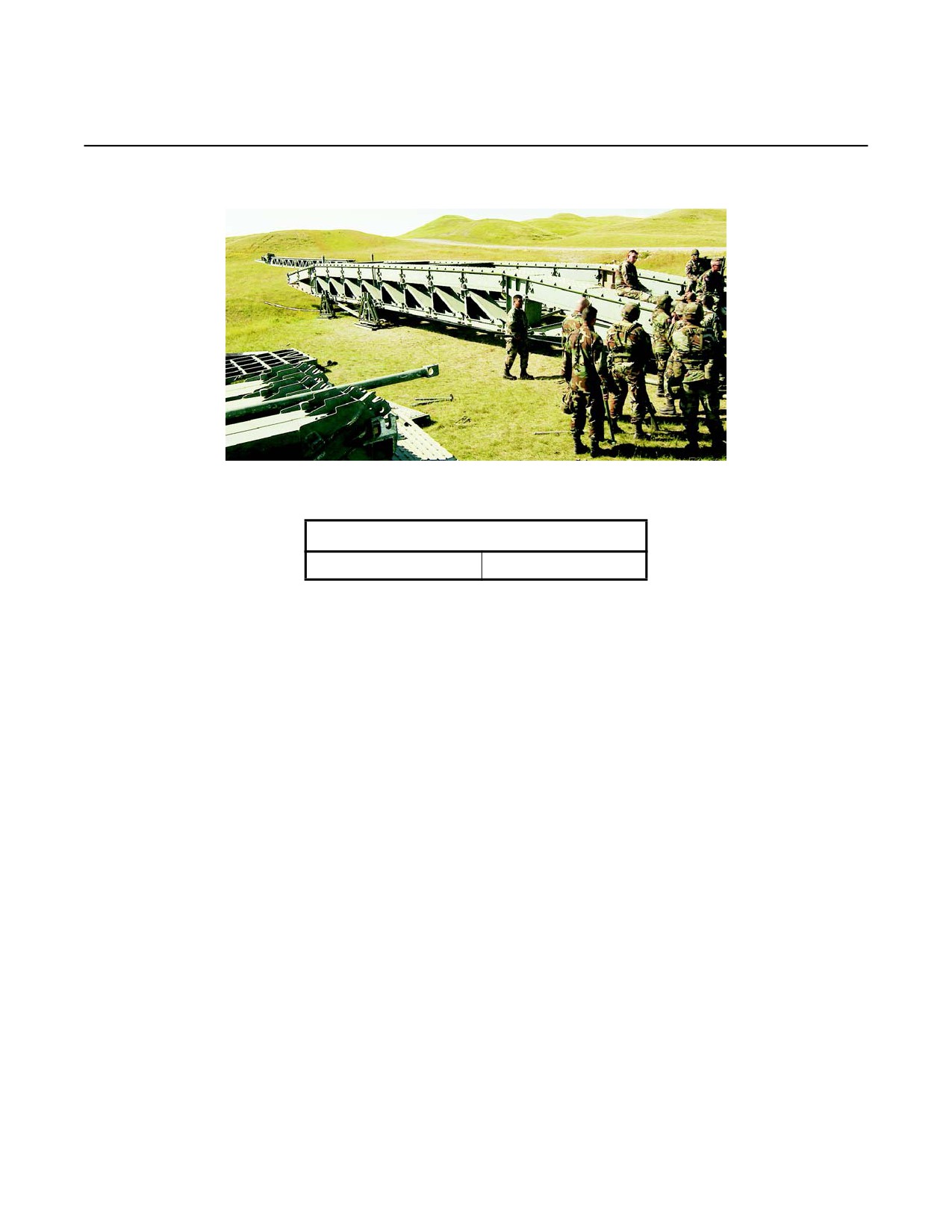

REINFORCEMENT SET, MEDIUM GIRDER BRIDGE (MGB)

TAMCN: B1720

TC-078

National Stock Number/ID Number

5420-01-139-1503

08710A

DESCRIPTION AND FUNCTION

The Reinforcement Set consists of reinforcing links that are connected to form a pair of chains beneath each

bridge girder. Links are connected to bottom panels at the ends of the bridge by reinforcing posts that enable the

system to be tensioned as the posts are pulled towards a vertical position by cable jacks. The kit is manufac-

tured in the same light alloy material as the bridge. It is used with the Medium Girder Bridge (MGB) (TAMCN

B0152, pg. 2-50).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

14,700 lb (6,668 kg)

Weight:

14,700 lb (6,668 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

96 in. (244 cm)

Length:

96 in. (244 cm)

Height:

240 in. (610 cm)

Height:

240 in. (610 cm)

Cube:

1,280 ft³ (36.25 m³)

Cube:

1,280 ft³ (36.25 m³)

Square Stowage:

64 ft² (5.95 m²)

Square Stowage:

64 ft² (5.95 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-120

TM 11275-15/3D

THREE SHANK, REAR MOUNTING RIPPER ATTACHMENT

TAMCN: B1775

National Stock Number/ID Number

3830-01-171-5776

06538D

TC-079

DESCRIPTION AND FUNCTION

The Ripper Attachment, is mounted on the Tractor, Medium, Full-Tracked (TAMCN B2462, pg. 2-158) and is

used to break up hard materials too compacted to be cut by the blades of tractors, graders, or scrapers. It is not

normally used for breaking concrete or large tree roots.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

5,800 lb (2,631 kg)

Weight:

5,800 lb (2,631 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

82 in. (208 cm)

Length:

82 in. (208 cm)

Height:

77 in. (196 cm)

Height:

77 in. (196 cm)

Cube:

349 ft³(9.88 m³)

Cube:

349 ft³ (9.88 m³)

Square Stowage:

54.4 ft² (5.05 m²)

Square Stowage:

54.4 ft² (5.05 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-121

TM 11275-15/3D

ROLLER, COMPACTOR, VIBRATORY, SELF-PROPELLED

TAMCN: B1785

TC-314

National Stock Number/ID Number

3895-01-453-8573

10494A

3895-01-550-8369

10494B

DESCRIPTION AND FUNCTION

Vibratory Compactor is diesel powered, articulated steering, with a bolt on padded shell kit, to support vari-

ous types of horizontal construction. The Vibratory Compactor will maintain the following capabilities: construc-

tion of roads, airfield complexes, dams, open storage areas, hard stands for vehicle and equipment parks, repair

of bomb damage on airfields, compaction of building sites.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

Caterpillar

Length (in.):

207

Model:

CS563D

Width (in.):

104

Height (in.):

131

Square Stowage:

167 sq ft

Cube Stowage:

1,685 cu ft

Weight (lb):

23,700 lb

Replaced Item(s)

N/A

Transportability

N/A

Associated TACMN(s)

U0006

2-122

TM 11275-15/3D

621B WHEELED TRACTOR-SCRAPER (WTS)

TAMCN: B1922

TC-347

National Stock Number/ID Number

3805-01-153-1854

08900A

3805-01-550-7164

08900B

DESCRIPTION AND FUNCTION

The Scraper-Tractor is an open bowl, pneumatic-tired, 2-Axle, 14 to 18 cubic yard capacity, single diesel-

powered, articulated frame-steer scraper. It is employed by engineer units in earthmoving operations in the main

battle area. It can be used as an earthmover and extractor during road or airfield construction, construction of

anti-armor ditches, weapon emplacements, and the hauling and employment of material for obstacles. It is not

approved for transporting by air mode.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

65,000 lb (29,484 kg)

Weight:

65,000 lb (29,484 kg)

Width:

136 in. (345 cm)

Width:

136 in. (345 cm)

Length:

499 in. (1,257 cm)

Length:

499 in. (1,257 cm)

Height:

141 in. (358 cm)

Height:

141 in. (358 cm)

Cube:

5,537.5 ft³ (156.80 m³)

Cube:

5,537.5 ft³(156.80 m³)

Square Stowage:

471.3 ft² (43.79 m²)

Square Stowage:

471.3 ft²(43.79 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

U0007

2-123

TM 11275-15/3D

CONSTRUCTION SHOP KIT

TAMCN: B1942

TC-218

National Stock Number/ID Number

4910-01-550-7118

08165B

DESCRIPTION AND FUNCTION

The Construction Shop Kit consists of construction corded hand and battery powered tools for building con-

struction and repair missions. It is stowed and transported in 5 ruggedized cases.

CONSTRUCTION SHOP KIT

NSN 4910-01-550-7118

Total Weight lb

# of Cases

Case Dimension

Power Tools

555

53”L X 26”W X 22”H

Drill Press and Nailers

664

39”L X 22.5”W X 25”H

Total

1,262

OPERATING AND SHIPPING DATA

Shipping Mode

Weight:

1,262 lb (572 kg)

Length Power Tools Case:

53 in. (135.0 cm)

Width Power Tools Case:

26 in. (66.0 cm)

Length Press and Nailer Case:

39 in. (99.5 cm)

Width Press and Nailer Case:

22.5 in. (57.2 cm)

Height Power Tools Case:

22 in. (56.0 cm)

Height Press and Nailer Case:

25 in. (64.0 cm)

Replaced Item(s)

B1943, B1944 retired and replaced by combined kit, TAMCN B1942

Transportability

5-Ton forklift

Associated TAMCN(s)

N/A

2-124

TM 11275-15/3D

SHOP EQUIPMENT, GENERAL PURPOSE, SET NO. 1

TAMCN: B1951

TC-348

National Stock Number/ID Number

4940-01-235-5080

09018A

DESCRIPTION AND FUNCTION

The Shop Equipment, General Purpose Repair, Semitrailer Mounted (SEGPRSM) is a semitrailer mounted

machinist van containing tools and equipment for use in maintenance and repair of mechanical equipment from 1st

to 4th echelon. It contains a 10 KW MEP-803A generator or can be driven by alternate AC power source. The van

requires input power of 208 volt, 3-phase, 60 Hz for operation. It has an air compressor, and capabilities include

drilling, welding, grinding, valve grinding, and honing. It can be open-weather or self contained, including a person-

nel heater. It has expanding canopies, and frames and curtain assemblies so that an enclosed work area may be

set up around the semitrailer.

TECHNICAL DESCRIPTION

Gross Vehicle Weight:

31,000 lb

Air Compressor:

Length:

351.5 in.

Rating/speed:

2 hp/1,735 rpm

Height:

125.5 in.

Air delivery:

5 cfm at 175 psi

Width:

97 in.

Cube:

2,476 ft

Shipping Weight:

30,150 lb

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-125

TM 11275-15/3D

SKID-MOUNTING ASSEMBLY, SMALL, REMOTE, AIR CONDITIONER

TAMCN: B2004

National Stock Number/ID Number

4120-00-327-5035

07678A

TC-082

DESCRIPTION AND FUNCTION

The Skid-Mounting Assembly, Small, Remote, Air Conditioner is an aluminum structural assembly with

accessories. It is used to mount standard military vertical air conditioners (TAMCN B0004 only) where it is nec-

essary for the unit to be located outside and away from a shelter, van or other temporary style enclosure.

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

COMMERCIAL SYS

Length:

39 in.

Model:

SMV-18

Width:

48 in.

Height:

56.5 in.

Weight:

306 lb

Volume:

61.2 ft³

Horizontal/Vertical:

Vertical

Replaced Item(s)

N/A

Transportability

Forklift Portable

Associated TAMCN(s)

B0004, B0012

2-126

TM 11275-15/3D

SKID-MOUNTING ASSEMBLY, LARGE, REMOTE AIR CONDITIONER

TAMCN: B2006

National Stock Number/ID Number

4120-00-575-7200

07768A

TC-507

DESCRIPTION AND FUNCTION

The Skid-Mounting Assembly, Large, Remote, Air Conditioner is an aluminum structural assembly with acces-

sories. It is used to mount standard military vertical air conditioners (TAMCN B0006 only) where it is necessary for

the unit to be located outside and away from a shelter, van or other temporary style enclosure.

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

KECO

Length:

60 in.

Model:

SMV-36

Width (in.):

46 in.

Height (in.):

74 in.

Weight (lb):

545 lb

Volume (ft³):

118.2 ft³

Horizontal/Vertical:

Vertical

Replaced Item(s)

N/A

Transportability

Forklift Portable

Associated TAMCN(s)

B0006

2-127

TM 11275-15/3D

SIXCON, FUEL STORAGE TANK MODULE

TAMCN: B2085

TC-083

National Stock Number/ID Number

5430-01-240-4578

09002A

DESCRIPTION AND FUNCTION

The SIXCON Fuel Storage Module is a component of the SIXCON system, a module system consisting of

five tank modules and one pump module. The six modules attached together to form an ISO/ANSI configured 8

x 8 x 20 foot module. The SIXCON Fuel Storage Module is a stainless steel tank encased within the module

frame and has a capacity of 900-gallons. It has the ancillary components necessary for inter-connecting to other

SIXCON Fuel Storage Modules and the (TAMCN B1580, pg. 2-112) SIXCON Fuel Pump Module. The SIXCON

fuel modules can be used as a mobile refueling asset or as a stationary refueling capability.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

9,550 lb (4,332 kg)

Weight:

2,600 lb (1,170 kg)

Width:

77 in. (196 cm)

Width:

77 in. (196 cm)

Length:

96 in. (248 cm)

Length:

96 in. (248 cm)

Height:

48 in. (122 cm)

Height:

48 in. (122 cm)

Cube:

203.95 ft³(5.78 m³)

Cube:

203.95 ft³ (5.78 m³)

Square Stowage:

52 ft² (4.83 m²)

Square Stowage:

52 ft² (4.83 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B1580

2-128

TM 11275-15/3D

WATER SIX CONTAINER (SIXCON) STORAGE TANK MODULE

TAMCN: B2086

TC-084

National Stock Number/ID Number

5430-01-203-9971

08990A

DESCRIPTION AND FUNCTION

The SIXCON Water Storage Module is a component of the SIXCON system, a module system consisting of

five tank modules and one pump module. The six modules attached together to form an ISO/ANSI configured 8

x 8 x 20 foot module. The SIXCON Water Storage Module is a stainless steel tank encased within the module

frame and has a capacity of 900-gallons. The water tank is covered with at least 1 inch of foam insulation to

keep stored water from freezing or heating up. It has the ancillary components necessary for inter-connecting to

other SIXCON Water Storage Modules and the (TAMCN B1581) SIXCON Water Pump Module. The SIXCON

Water Modules can be used as a mobile water dispensing asset or as a stationary dispensing capability.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

10,000 lb (4,536 kg)

Weight:

2,600 lb (1,179 kg)

Width:

77 in. (196 cm)

Width:

77 in. (196 cm)

Length:

96 in. (248 cm)

Length:

96 in. (248 cm)

Height:

48 in. (122 cm)

Height:

48 in. (122 cm)

Cube:

203.95 ft³ (5.78 m³)

Cube:

203.95 ft³ (5.78 m³)

Square Stowage:

52 ft² (4.83 m²)

Square Stowage:

52 ft² (4.83 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B1581

2-129

TM 11275-15/3D

SURVEY SET GENERAL PURPOSE

TAMCN: B2120

National Stock Number/ID Number

6675-01-273-7812

09130A

TC-309

DESCRIPTION AND FUNCTION

The Surveying Set, General Purpose is an instrument used for measuring vertical and horizontal angles. It is

capable of providing an erect, bright, high contrast image at 30X magnification that permits precise pointing even

in poor light.

TECHNICAL DESCRIPTION

Panel

Manufacturer:

Trimble Navigation Limited

2-130

TM 11275-15/3D

SWEEPER, ROTARY, VEHICLE MOUNTING

TAMCN: B2127

TC-230

National Stock Number/ID Number

3830-01-504-2618

09199B

DESCRIPTION AND FUNCTION

The Sweeper is truck mounted on a 32,000 pound Gross Vehicle Weight Ratio (GVWR) International 4300/

DT 466 cab chassis with diesel engine and an automatic transmission. The optimal sweeping speed is 10 to 15

mph (16 to 24 km/h). The unit also comes equipped with a rear mounted, spring arm suspended vacuum hose to

spot clean difficult to reach areas. The Sweeper will operate in dry and wet conditions. The Sweeper module

includes a 115 hp (86 kW) diesel auxiliary engine, centrifugal fan, vacuum pick-up hood, dust separator, dust

control system and a hydraulically tilting 8 cubic yard debris hopper. The Sweeper is equipped with dual steer-

ing, brake and accelerator controls for right and left-hand driving. It can also supply compressed air on demand.

The Sweeper is designed to cleaning runways, expeditionary airfields, and other stabilized areas of debris that

can cause foreign object damage (FOD) to aircraft.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

20,650 lb (9,367 kg)

Weight:

20,650 lb (9,367 kg)

Width:

105 in. (267 cm)

Width:

105 in. (267 cm)

Length:

280 in. (711 cm)

Length:

280 in. (711 cm)

Height:

127 in. (323 cm)

Height:

127 in. (323 cm)

Cube:

5,494 ft³ (156 m³)

Cube:

5,494 ft³ (156 m³)

Square Stowage:

516 ft² (48 m²)

Square Stowage:

516 ft² (48 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-131

TM 11275-15/3D

COLLAPSIBLE FABRIC 3,000 GALLON WATER TANK

TAMCN: B2130

TC-086

National Stock Number/ID Number

5430-01-469-8774

01034F

5430-01-359-4774

01034E

5430-01-540-5357

01034H

5430-01-470-7380

01034G

DESCRIPTION AND FUNCTION

The purpose of 3,000 Gallon Collapsible Fabric Water Tank is for storage of potable and non-potable water

in support of Water Supply Support Equipment and tactical water purification systems. It is constructed of

impregnated fabric and designed for quick set-up/tear-down. The tank is equipped with a zipper top to prevent

contamination and two 2-inch valves.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

24,120 lb (10,041 kg)

Weight:

617 lb (280 kg) (Empty)

Width:

Varies

Width:

47 in. (119 cm)

Length:

Varies

Length:

73 in. (185 cm)

Height:

Varies

Height:

21 in. (53 cm)

Cube:

Varies

Cube:

42 ft³ (1.19 m³)

Square Stowage:

Varies

Square Stowage:

24 ft² (2.23 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-132

TM 11275-15/3D

TANK FARM INTERCONNECTION SET, DUAL TANK

TAMCN: B2131

National Stock Number/ID Number

4610-01-120-7526

09495A

TC-087

DESCRIPTION AND FUNCTION

The Dual Tank Kit is designed to interconnect two (TAMCN 2631) 50,000 gallon and/or (TAMCN 2632)

20,000 gallon collapsible storage tanks. The kit consists of four-inch hoses, valves, and connectors necessary to

inter-connect the collapsible water storage tanks within the water supply tank farm.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

880 lb (399 kg)

Width:

Varies

Width:

63 in. (160 cm)

Length:

Varies

Length:

63 in. (160 cm)

Height:

Varies

Height:

34 in. (86 cm)

Cube:

Varies

Cube:

78.1 ft³ (2.21 m³)

Square Stowage:

Varies

Square Stowage:

28 ft² (2.60 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-133

TM 11275-15/3D

BAG FILLER TANK FARM INTERCONNECTION SET

TAMCN: B2132

TC-088

National Stock Number/ID Number

4610-01-120-7528

09537A

DESCRIPTION AND FUNCTION

The Bag Filler Tank Kit is used to provide an alternative distribution point within the water supply tank farms.

The kit consists of various size hoses, valves, nozzles, and connectors necessary to connect the alternate distri-

bution point to the water supply tank farm.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

715 lb (324 kg)

Width:

Varies

Width:

48 in. (122 cm)

Length:

Varies

Length:

60 in. (152 cm)

Height:

Varies

Height:

24 in. (61 cm)

Cube:

Varies

Cube:

40 ft³ (1.13 m³)

Square Stowage:

Varies

Square Stowage:

20 ft² (1.86 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-134

TM 11275-15/3D

4-INCH HOSE TANK FARM INTERCONNECTION SET

TAMCN: B2133

National Stock Number/ID Number

4610-01-140-6775

09721A

TC-089

DESCRIPTION AND FUNCTION

The Four Inch Hose Tank Set is designed to provide the medium to high volume discharge point from the

water supply support tank farm. This interconnecting set contains four-inch hoses, valves, couplings and

assorted hardware.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

600 lb (272 kg)

Width:

Varies

Width:

24 in. (61 cm)

Length:

Varies

Length:

48 in. (122 cm)

Height:

Varies

Height:

26 in. (66 cm)

Cube:

Varies

Cube:

32 ft³ (0.90 m³)

Square Stowage:

Varies

Square Stowage:

16 ft² (1.49 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-135

TM 11275-15/3D

2-INCH HOSE TANK FARM INTERCONNECTION SET

TAMCN: B2134

National Stock Number/ID Number

4610-01-140-6776

09481A

TC-090

DESCRIPTION AND FUNCTION

The Two Inch Tank Set is designed to provide the low to medium volume distribution points from the water

supply tank farm. This interconnecting set contains two-inch hoses, valves, couplings, and assorted hardware.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

305 lb (138 kg)

Width:

Varies

Width:

24 in. (61 cm)

Length:

Varies

Length:

48 in. (122 cm)

Height:

Varies

Height:

26 in. (66 cm)

Cube:

Varies

Cube:

18 ft³ (0.51 m³)

Square Stowage:

Varies

Square Stowage:

8 ft² (0.74 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-136

TM 11275-15/3D

4-INCH DISCHARGE HOSE TANK FARM INTERCONNECTION SET

TAMCN: B2135

National Stock Number/ID Number

4610-01-120-7522

07563A

TC-091

DESCRIPTION AND FUNCTION

The Four Inch Tank Hose Interconnection Set, Discharge Hose provides the two crossover hose lines for the

water supply tank farm. The kit contains all required four-inch hoses, tees, couplings, and hardware for either

input or discharge to the Water Supply Support System.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

370 lb (168 kg)

Width:

24 in. (61 cm)

Length:

48 in. (122 cm)

Height:

26 in. (66 cm)

Cube:

32 ft³ (0.91 m³)

Square Stowage:

8 ft² (0.74 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0571, B1620, B2130, B2131, B2132, B2133, B2134, B2135, B2136, B2137, B2138,

B2139, B2391, B2394, B2395, B2631, B2632

2-137

Military reference books and manuals (2009-2023, Volume 8) - page 36
