TM 11275-15/3D

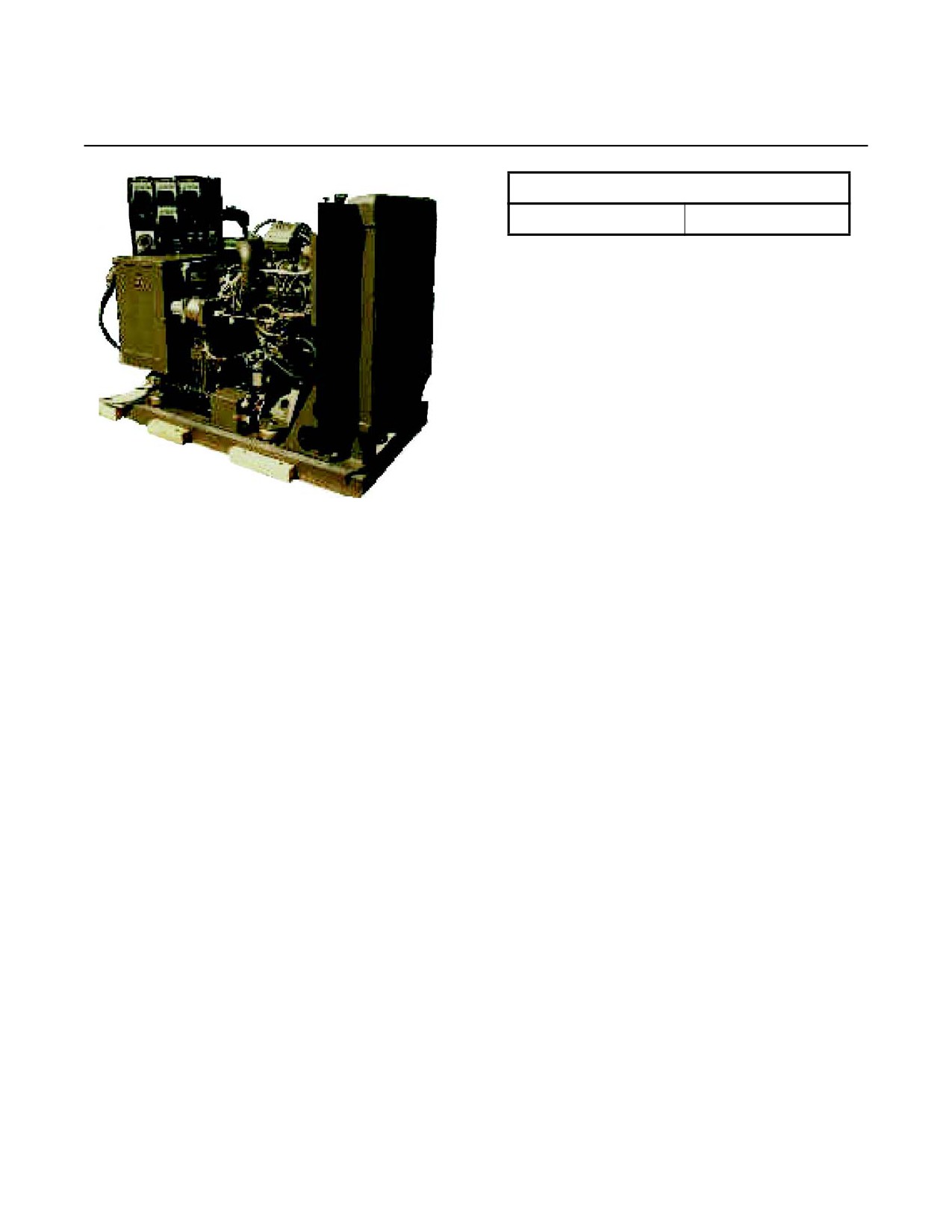

GENERATOR SET, DIESEL ENGINE, MODEL MEP-903A

TAMCN: B0016

National Stock Number/ID Number

6115-01-431-3062

11559A

TC-324

DESCRIPTION AND FUNCTION

The Auxiliary Power Unit (APU), MEP-903A, is a self-contained, slide frame mounted, portable unit. It is

equipped with controls, instruments and accessories necessary for operation. The generator set consists of a die-

sel engine, direct drive AC alternator, speed governing system, fuel system, 24 Vdc auxiliary cold weather starting

system (23°F or below), and generator control system. The unit has redundant local and remote controls, self

bleeding fuel system for vehicle or remote fuel tank interconnections. The generator set is designed to be used with

the Standard Integrated Command Post System (SICPS) and the Warfighter Information Network - Tactical Shel-

ters. Climatic condition range of -32°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

KECO

Fuel Capacity:

3.5 qt

Model:

MEP-903A

Fuel Consumption:

N/A

Volts:

120VAC

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

3,600

Length (in.):

37.5

Phase:

120V 1-Phase, 2-Wire; 120/

Width (in.):

26.25

240V 1-Phase, 3-Wire

Engine

Height (in.)

28.5

Manufacturer:

Kubota, Ltd

Weight (lb):

Model:

D722-B

Dry:

N/A

Type:

4 Cycle

Wet (coolant,/POLs):

460

Cylinders:

Volume (ft³):

16.25

Displacement:

12.88 in³. (0.211)

Aural Signature

Horsepower:

116.3 @ 3,600 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

19.9:1

Replaced Item(s)

N/A

Transportability

SICPS & WIN -T HMMWV SHELTERS

Associated TAMCN(s)

N/A

2-10

TM 11275-15/3D

TOOL BOX SET FOR LOADER SCOOP TYPE

TAMCN: B0017

TC-510

National Stock Number/ID Number

5280-01-571-4894

11703A

DESCRIPTION AND FUNCTION

The Tool Box Set comprises supplemental tools required for the general maintenance of the Loader, Scoop

Type, Model 624KR, TAMCN B0063, NSN 3805-01-549-7814. These tools are not part of any existing tool set,

chest or kit in the Marine Corps’ inventory.

TECHNICAL DESCRIPTION

Manufacturer:

John Deere

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

23 lb

Weight:

24 lb

Width:

8 in.

Width:

9.5 in.

Length:

24 in.

Length:

25 in.

Height:

9 in.

Height:

10 in.

Capacity

Fuel Consumption per Hour

N/A

Lift Capacity

N/A

Replaced Item(s)

N/A

Transportability

Can be transported on various items of equipment.

Associated TAMCN(s)

B0063

2-11

TM 11275-15/3D

INTEGRATED TRAILER-ECU-GENERATOR (ITEG)

TAMCN: B0018

National Stock Number/ID Number

2330-01-556-9648

11490A

TC-257

DESCRIPTION AND FUNCTION

The Integrated Trailer-Environmental Control Unit (ECU), Generator (ITEG) is an integrated HMMWV-tow-

able unit that is designed to support highly mobile command and control systems and other forward-deployed

operations centers and activities that displace often and have limited access to external power sources. The

generator produces 22 kW of electrical power (maximum of 9 kW for external use) and can parallel with other

GET units and the MEP-805B Tactical Quiet Generator. The ECU provides complete environmental air condi-

tioning including cooling, heating, ventilation, and filtering and has a nominal cooling capacity of 120,000 BTU

and a nominal heating capacity of 47,000 BTU. The integral trailer is based on the standard M1102 trailer chas-

sis designed with high ground clearance and run flat tires.

TECHNICAL DESCRIPTION

Unit

Fuel

Manufacturer:

GDC4S

Fuel Capacity:

19.7 gal.

Model:

GET Spiral 1

Fuel Consumption:

2.5 gph

Generator

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Voltage/Phase:

208VAC/3-Phase

Length (in.):

169.3

Wires:

4-Wire

Width (in.):

86.6

Max Power:

22 kW

Height (in.):

73.5

Min Export Power:

7 kW

Weight (lb):

3,910 (wet)

ECU

624

Volume (ft³):

Cooling (BTU/hr):

120,000

Refrigerant

R-22

Heating (BTU/hr):

47,000

Design Ambient Temp:

131°F

Duct Size:

(2) 12 in. for Supply

Min Ambient Cooling:

75°F

(1) 18 in. for Return

Trailer

Min Ambient Heating:

-24°F

Gross Weight Max:

4,200 lb

Available Payload

290 lb

Replaced Item(s)

N/A

Transportability

Towable by HMMWV

Associated TAMCN(s)

N/A

2-12

TM 11275-15/3D

613C WATER DISTRIBUTOR

TAMCN: B0024

TC-241

National Stock Number/ID Number

3825-01-497-0690

11243A

DESCRIPTION AND FUNCTION

The 613C Water Distributor transports and distributes a maximum of 2,525 gal. (9,558 L) of water, providing

soil stabilization, dust control and compaction capabilities. The machine also provides power washing and de-

icing operations when required.

TECHNICAL DESCRIPTION

Manufacturer:

Caterpillar

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode (Air Transport)

Weight (Empty):

33,505 lb (15,198 kg)

Weight:

33,985 lb (15,415 kg)

Width:

102 in. (259 cm)

Width:

102 in. (259 cm)

Length:

423 in. (1,074 cm)

Length:

423 in. (1,074 cm)

Height:

116 in. (296 cm)

Height:

96 in. (244 cm)

Cube:

2,896 ft³(82.34 m³)

2,397 ft³(67.87 m³)

Square Stowage:

300 ft²(27.82 m²)

Fuel

Shipping Mode (OCONUS Rail)

Fuel Consumption per Hour:

6 gal/hr

Weight:

33,085 lb (15,007 kg)

Width:

102 in (259 cm)

Length:

425 in (1,079 cm)

Height:

99 in (251 cm)

Cube:

2,484 ft³ (70.14 m³)

Square Stowage:

301 ft²(27.95 m²)

Replaced Item(s)

N/A

Transportability

Truck, rail, internal air transport (C-130 and above), external air transport (CH-47),

ship Sealift transport, roll-on roll-off ships)

Associated TAMCN(s)

N/A

2-13

TM 11275-15/3D

TRAILER-MOUNTED HYDROSEEDER

TAMCN: B0025

National Stock Number/ID Number

3710-01-535-7449

11241A

TC-202

DESCRIPTION AND FUNCTION

The T-90 Hydroseeder is a trailer-mounted machine that provides dust control on helipads, airfields, lines of

communications, and base camps. Dust palliatives are loaded into the palliative tank either full strength or

diluted with water. When diluted, the mixture is kept in suspension by a hydraulically powered agitator and recir-

culation system.

TECHNICAL DESCRIPTION

Manufacturer:

Finn

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

13,250 lb (6,010 kg)

Weight:

5,420 lb (2,458.5 kg)

Width:

85 in. (215.9 cm)

Width:

85 in. (215.9 cm)

Length:

194 in. (492.8 cm)

Length:

194 in. (492.8 cm)

Height:

111 in. (282 cm)

Height:

95 in. (241.3 cm)

Cube:

1,059 ft³(30 m³)

Cube:

907 ft³(26 m³)

Square Stowage:

114 ft²(11 m²)

Square Stowage:

114 ft²(11 m²)

Operating Mode (with Spray Bar)

Fuel

Weight:

13,250 lb (6,010 kg)

Fuel Consumption per Hour

6 gal/hr

Width:

93 in. (236 cm)

Length:

199 in. (505 cm)

Height:

111 in. (282 cm)

Cube:

1,189 ft³(34 m³)

Square Stowage:

129 ft²(12 m²)

Replaced Item(s)

N/A

Transportability

Truck, rail, air (C-130 and above), ship (Sealift transport, roll-on roll-off ships)

Associated TAMCN(s)

N/A

2-14

TM 11275-15/3D

SKID-MOUNTED HYDROSEEDER

TAMCN: B0026

TC-203

National Stock Number/ID Number

3710-01-534-9817

11234A

DESCRIPTION AND FUNCTION

The T-120 Hydroseeder is a skid-mounted machine that provides dust control on helipads, airfields, lines of

communications, and base camps. Dust palliatives are loaded into the palliative tank either full strength or

diluted with water. When diluted, the mixture is kept in suspension by a hydraulically powered agitator and recir-

culation system.

TECHNICAL DESCRIPTION

Manufacturer:

Finn

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

15,130 lb (6,862.8 kg)

Weight:

4,700 lb (2,131.9 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

194 in. (492.8 cm)

Length:

194 in. (492.8 cm)

Height:

101 in. (256.5 cm)

Height:

65 in. (165 cm)

Cube:

1,088.6 ft³ (31 m³)

Cube:

701 ft³(20 m³)

Square Stowage:

129 ft²(12 m²)

Fuel

Fuel Consumption

6 gal/hr

Replaced Item(s)

N/A

Transportability

MTVR

Associated TAMCN(s)

N/A

2-15

TM 11275-15/3D

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX, INDOOR MODEL,

5 KW, GFCI PROTECTED

TAMCN: B0027

National Stock Number/ID Number

6110-01-532-1794

11185A

TC-264

DESCRIPTION AND FUNCTION

The 5 kW GFCI protected, Indoor model, Power Distribution Box is part of the Mobile Electric Power Distri-

bution-Replacement (MEPDIS-R) system. MEPDIS-R is designed to provide electrical power distribution in a

field environment. The MEPDIS-R system provides a flexible, modular, recoverable, safe power distribution

capability that can be quickly emplaced and recovered for later reuse. The 5 kW Indoor Power Distribution Box

provides 18 GFCI-protected single-phase 15A receptacles to power tent lighting or other equipment. It is

designed to be deployed in a tent or sheltered environment.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB-30NA-AQQ-S3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

40.3

Phase:

1 and 3

2.4

Volume (ft³):

Technical Data

Input:

5-Wire, 3-Phase, 30 Amp. Lamps on each phase

IEC 309 Pin & Sleeve Commercial Male Connector

Output:

9 Each: 3-Wire, 1-Phase, 120VAC, GFCI Covered Duplex Receptacles

All circuit breaker protected

Cords:

6 cord sets, 50 ft ea. 5-20 Plug to 5-15R Receptacles (4 per cord)

Replaced Item(s)

Field Wiring Harness (B0608) (when used with new tent lights)

Transportability

Two Handle, Man Portable

Associated TAMCN(s)

N/A

2-16

TM 11275-15/3D

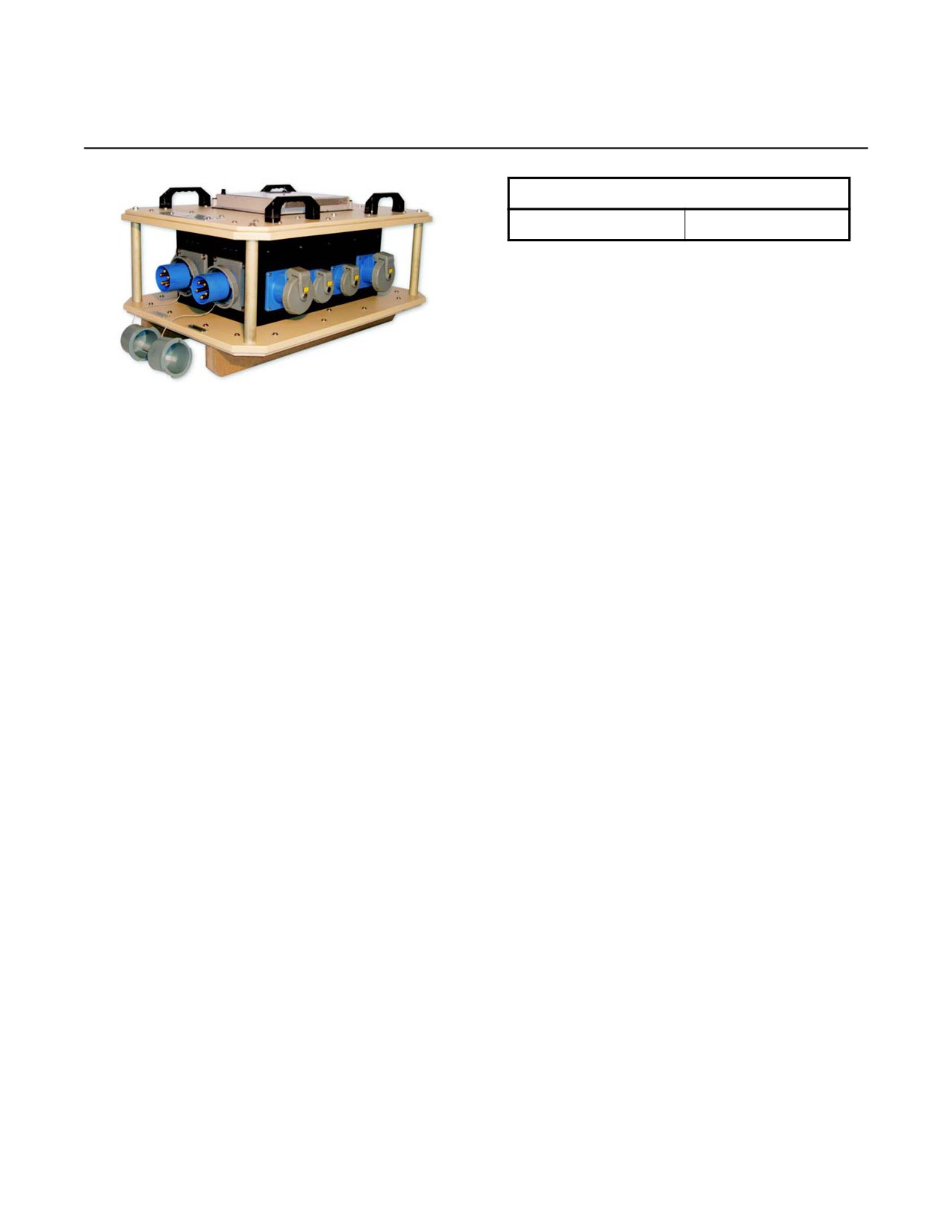

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX,

OUTDOOR MODEL, 5 kW NON-GFCI PROTECTED

TAMCN: B0028

National Stock Number/ID Number

6110-01-532-1821

11186A

TC-265

DESCRIPTION AND FUNCTION

The 5 kW Non-GFCI protected, outdoor model Power Distribution Box is part of the Mobile Electric Power

Distribution-Replacement (MEPDIS-R) system. MEPDIS-R is designed to provide electrical power distribution in

a field environment. The MEPDIS-R system provides a flexible, modular, recoverable, safe power distribution

capability that can be quickly emplaced and recovered for later reuse. The 5 kW Outdoor Power Distribution Box

provides (6) 20A and (3) 30A single phase pin and sleeve connectors for its associated output cord sets. The

output cords each provide (4) 15A receptacles to power tent lighting, conveniences, or other equipment.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB-30BA-A22-S3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

44.1

Phase:

1 and 3

2.4

Volume (ft³):

Technical Data

Input:

5-Wire, 3-Phase, 30 Amp. Lamps on each phase

IEC 309 Pin & Sleeve Commercial Male Connector

Output:

6 Each: 3-Wire, 1-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

3 Each: 3-Wire, 1-Phase, 30 Amp IEC 309 Pin & Sleeve receptacle

All circuit breaker protected

Cords:

6 cord sets, 50 ft ea. 20 Amp Plug, each with (4) 5-15R Receptacles

3 cord sets, “Y” configuration, 50 ft ea. 20 Amp Plug with (2) 25 ft legs, each with (2) 5-15R

Receptacles. Each cord set length is 75 ft overall

Replaced Item(s)

Field Wiring Harness (B0608) (when used with new tent lights)

Transportability

Two Handle, Man Portable

Associated TAMCN(s)

N/A

2-17

TM 11275-15/3D

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX, 15 KW

TAMCN: B0029

National Stock Number/ID Number

6110-01-532-1764

11183A

TC-266

DESCRIPTION AND FUNCTION

The 15 kW Power Distribution Box is part of the Mobile Electric Power Distribution-Replacement (MEPDIS-R)

system. MEPDIS-R is designed to provide electrical power distribution in a field environment. The MEPDIS-R sys-

tem provides a flexible, modular, recoverable, safe power distribution capability that can be quickly emplaced and

recovered for later reuse. The 15 kW Power Distribution Box has two 60A input connectors to permit load parallel-

ing and load transfer. The panel provides (4) 30A 3-Phase, (3) 20A single-phase output connectors, and a covered

duplex receptacle.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB-60MA-F22QS3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

81.2

Phase:

1 and 3

3.1

Volume (ft³):

Manufacturer:

LEX Products

Technical Data

Input:

2 Each: 5-Wire, 3-Phase 60 Amp. Lamps on each phase

IEC 309 Pin & Sleeve Commercial Male Connector

Both circuit breaker protected

Output:

4 Each: 5-Wire, 3-Phase, 30 Amp IEC 309 Pin & Sleeve receptacle

4 Each: 3-Wire, 1-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

1 GFCI Covered Duplex Receptacle, 120VAC, 1-Phase

All circuit breaker protected

Replaced Item(s

15 kW MEPDIS (B0595)

Transportability

Two Handle, Man Portable

Associated TAMCN(s)

N/A

2-18

TM 11275-15/3D

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX, 30 KW

TAMCN: B0030

National Stock Number/ID Number

6110-01-532-1809

11184A

TC-267

DESCRIPTION AND FUNCTION

The 30 kW Power Distribution Box is part of the Mobile Electric Power Distribution-Replacement (MEPDIS-R)

system. MEPDIS-R is designed to provide electrical power distribution in a field environment. The MEPDIS-R sys-

tem provides a flexible, modular, recoverable, safe power distribution capability that can be quickly emplaced and

recovered for later reuse. The 30 kW Power Distribution Box has two 100A input connectors to permit load parallel-

ing and load transfer. The Power Distribution Box provides multiple output connectors to allow the connection of

other Power Distribution Boxes to create a Power Distribution System.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB100MA-P22QS3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

163.0

Phase:

1 and 3

Volume (ft³):

Technical Data

Input:

2 Each: 5-Wire, 3-Phase 100 Amp. Lamps on each phase

IEC 309 Pin & Sleeve Commercial Male Connector

Both circuit breaker protected

Output:

4 Each: 5-Wire, 3-Phase, 60 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 5-Wire, 3-Phase, 30 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 5-Wire, 3-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 3-Wire, 1-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

1 GFCI Covered Duplex Receptacle, 120VAC, 1-Phase

All circuit breaker protected

Replaced Item(s

30 kW MEPDIS (B0600)

Transportability

Four Handle, Four Person Man Portable

Associated TAMCN(s)

N/A

2-19

TM 11275-15/3D

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX, 100 KW

TAMCN: B0031

National Stock Number/ID Number

6110-01-532-1835

11182A

TC-268

DESCRIPTION AND FUNCTION

The 100 kW Power Distribution Box is part of the Mobile Electric Power Distribution-Replacement (MEPDIS-

R) system. MEPDIS-R is designed to provide electrical power distribution in a field environment. The MEPDIS-R

system provides a flexible, modular, recoverable, safe power distribution capability that can be quickly emplaced

and recovered for later reuse. The 100 kW Power Distribution Box has two sets of cam-type 5-Wire inputs to per-

mit load paralleling and load transfer. The Power Distribution Box provides multiple output connectors to allow

the connection of other Power Distribution Boxes to create a Power Distribution System.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB350MA-P2WQA3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

279.4

Phase:

1 and 3

Volume (ft³):

Technical Data

Input:

2 Each: Cam Type 16, 5-Wire, 400 Amp. Lamps on each phase

Both Switched

Output:

1 Each: Cam Type 16, 5-Wire, 200 Amp

4 Each: 5-Wire, 3-Phase, 100 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 5-Wire, 3-Phase, 60 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 5-Wire, 3-Phase, 30 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 5-Wire, 3-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

2 Each: 3-Wire, 1-Phase, 20 Amp IEC 309 Pin & Sleeve receptacle

1 GFCI Covered Duplex Receptacle, 120VAC, 1-Phase

All circuit breaker protected

Replaced Item(s)

100 kW MEPDIS (B0605)

Transportability

Four Handle, Four Person Man Portable, Forklift Portable

Associated TAMCN(s)

N/A

2-20

TM 11275-15/3D

MEPDIS-REPLACEMENT, POWER DISTRIBUTION BOX, 300 KW

TAMCN: B0032

National Stock Number/ID Number

6110-01-532-1776

11187A

TC-269

DESCRIPTION AND FUNCTION

The 300 kW Power Distribution Box is part of the Mobile Electric Power Distribution-Replacement (MEPDIS-

R) system. MEPDIS-R is designed to provide electrical power distribution in a field environment. The MEPDIS-R

system provides a flexible, modular, recoverable, safe power distribution capability that can be quickly emplaced

and recovered for later reuse. The 300 kW Power Distribution Box has three sets of cam-type 5-Wire inputs to

permit load paralleling and load transfer. The Power Distribution Box provides multiple output connectors to

allow the connection of other Power Distribution Boxes to create a Power Distribution System.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

LEX Products

Length (in.):

Model:

DB350MA-P2WQS3

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

320

Phase:

1 and 3

Volume (ft³):

17.33

Technical Data

Input:

3 Each: Cam Type 16, 5-Wire, 400 Amp. Lamps on each phase

Both switched

Output:

2- 208Y/120 Volt, 3-Phase, 400 Amp, Cam Type 16

2- 208Y/120 Volt, 3-Phase, 100 Amp IEC 309

1 GFCI Covered Duplex Receptacle, 120VAC, 1-Phase

All circuit breaker protected

Replaced Item(s)

N/A

Transportability

Four Handle, Four Person Man Portable, Forklift Portable

Associated TAMCN(s)

N/A

2-21

TM 11275-15/3D

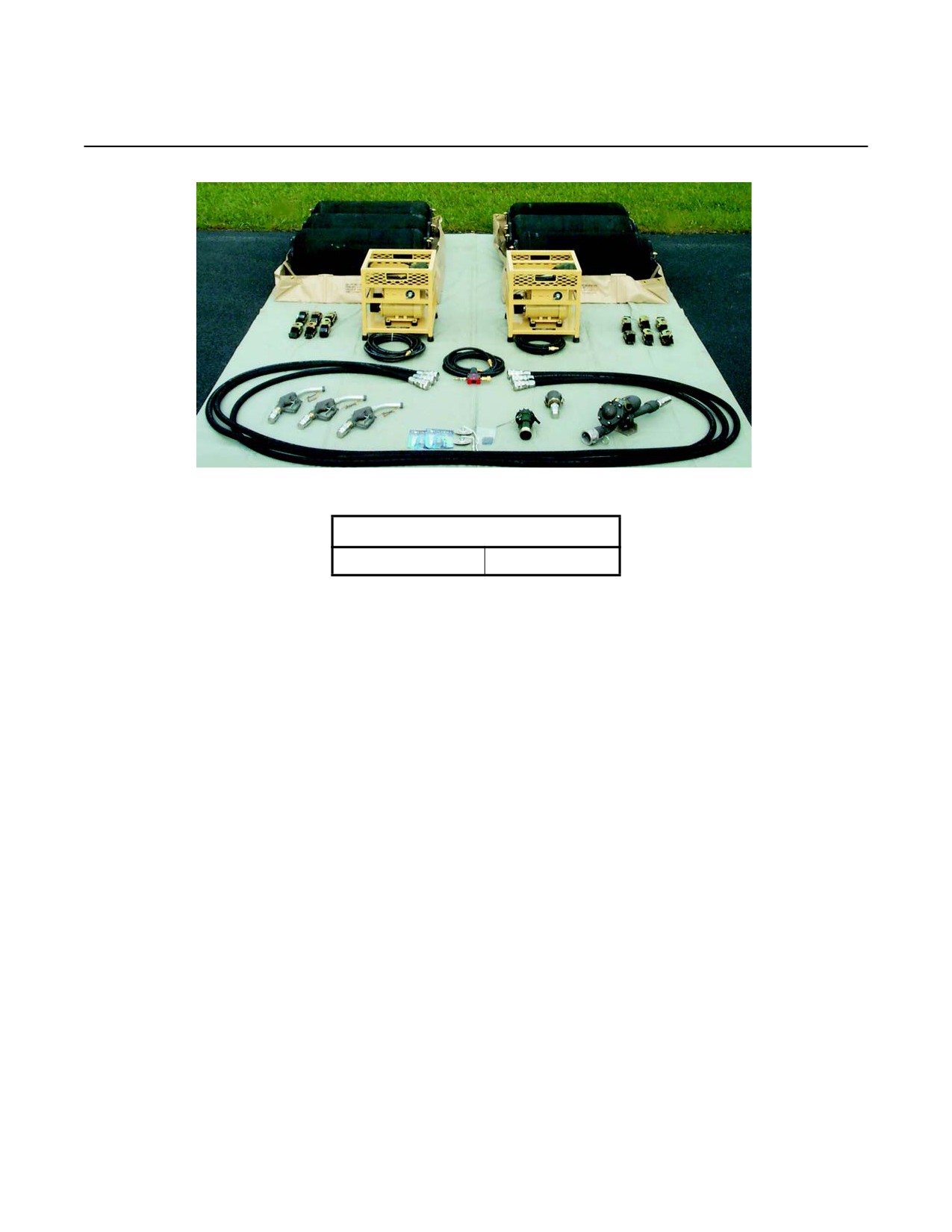

GROUND EXPEDIENT REFUELING SYSTEM (GERS), MEDIUM

TAMCN: B0036

TC-212

National Stock Number/ID Number

4930-01-533-9826

11219A

DESCRIPTION AND FUNCTION

The Ground Expedient Refueling System (GERS) provides storage, transport, and issue of fuel to ground

equipment and vehicles. The medium GERS system will provide units and isolated sites with the means to

extend the range and operating time of vehicles, equipment, and weapon systems.

OPERATING AND SHIPPING DATA

Capacities

Bladders:

Four 155 gal. bladders

Bladder Weight Full:

1,238.5 lb ea.

System Fuel Capacity:

620 gal.

System Weight Empty:

937 lb

Bladder Weight Empty:

169 lb ea.

System Weight Full:

5,891 lb

Replaced Item(s)

N/A

Transportability

MTVR, HMMWV, LVSR

Associated TAMCN(s)

B0037

2-22

TM 11275-15/3D

GROUND EXPEDIENT REFUELING SYSTEM (GERS), SMALL

TAMCN: B0037

TC-211

National Stock Number/ID Number

4930-01-533-9830

11220A

DESCRIPTION AND FUNCTION

The Ground Expedient Refueling System (GERS) provides storage, transport, and issue of fuel to ground

equipment and vehicles. The small GERS system will provide units and isolated sites with the means to extend

the range and operating time of vehicles, equipment, and weapon systems.

OPERATING AND SHIPPING DATA

Capacities

Bladders:

Six 28 gal. bladders

Bladder Weight Full:

249 lb ea.

System Fuel Capacity:

168 gal.

System Weight Empty:

601 lb

Bladder Weight Empty:

56 lb ea.

System Weight Full:

1,760 lb

Replaced Item(s)

N/A

Transportability

MTVR, HMMWV, LVSR

Associated TAMCN(s)

B0036

2-23

TM 11275-15/3D

ALL TERRAIN CRANE (ATC)

TAMCN: B0038

TC-351

National Stock Number/ID Number

3810-01-538-4030

11262A

DESCRIPTION AND FUNCTION

The All Terrain Crane (ATC) is a rubber tired, hydraulic boom, all terrain crane capable of lifting and swing-

ing a maximum of 80,000 pounds. The ATC will support construction and materiel handling tasks, as well as,

loading and unloading supplies and equipment. It will be used to load/unload break bulk cargo from a fixed port

or pier; on and off airfield runways; and over unprepared and uneven surfaces. It will also be capable of being

driven over primary and secondary highways to include sand, snow, and mud. The ATC is fielded with a set of

lifting slings. The lifting capacity of these slings is 40-Ton.

OPERATING AND SHIPPING DATA

Manufacturer:

Terex Crane, Inc.

Shipping Mode

Operating Mode

Weight:

69,555 lb (31,550 kg)

Weight:

72,080 lb (32, 695 kg)

Width:

102 in. (259 cm)

Width:

102 in. (259 cm)

Length:

450 in. (1,143 cm)

Length:

450 in. (1,143 cm)

Height:

136.9 in. (348 cm)

Height:

142 in. (361 cm)

Cube:

3,772 ft³(103 m³)

Cube:

3,772 ft³(107 m³)

Square Stowage:

317 ft²(29.4 m²)

Square Stowage:

Capacity

317 ft²(29.4 m²)

Fuel Consumption per Hour:

9.5 gph

Lift Capacity:

80,000 lb

Replaced Item(s)

B0443

Transportability

C-17 and C-5 aircraft transport, marine vessels

Associated TAMCN(s)

B0171, B0176, U0015

2-24

TM 11275-15/3D

AIRFIELD DAMAGE REPAIR (ADR) KIT

TAMCN: B0039

TC-326

National Stock Number/ID Number

3895-01-539-0585

11275A

DESCRIPTION AND FUNCTION

The Airfield Damage Repair (ADR) Kit provides Marine Wing Support Squadrons and Engineer Support Bat-

talions with the capability to create usable landing surfaces by means of new construction and/or repair of exist-

ing facilities. The ADR Kit includes a Caterpillar Model 277B Multi Terrain Loader (MTL) with multiple work tool

attachments, tools, and consumable supplies.

OPERATING AND SHIPPING DATA

ISO Container No. 1, 2, and 3

Weight (Container No. 3)

Length:

20 ft (6.15 m)

Empty:

9,500 lb (4,309 kg)

Width:

8 ft (2.438 m)

Loaded:

31,600 lb (14,334 kg)

Height:

8 ft 6 in. (2.591 m)

Cube:

1,360 ft (418.5 m)

Weight (Container No. 1)

Capacity

Empty:

5,900 lb (2,676 kg)

Fuel Consumption per Hour:

3.25 gal. for MTL

Loaded:

23,000 lb (10,433 kg)

Cube:

1,360 ft (418.5 m)

Weight (Container No. 2)

Empty:

6,200 lb (2,812 kg)

Loaded:

16,000 lb (7,257 kg)

Cube:

1,360 ft (418.5 m)

Replaced Item(s)

N/A

Transportability

Transported by M870 A1 & A2 Trailer. Can be moved by B0392 (RTCH)

Associated TAMCN(s)

B0040

2-25

TM 11275-15/3D

277C MULTI-TERRAIN LOADER

TAMCN: B0040

TC-334

National Stock Number/ID Number

3805-01-550-0883

11284B

DESCRIPTION AND FUNCTION

The 277C MTL is a full-tracked, diesel engine driven, hydraulically operated, multi-terrain loader with a roll

over/falling object protective structure. It is used for earth moving as well as general construction work.

OPERATING AND SHIPPING DATA

Manufacturer:

Caterpillar

Operating Mode

Shipping Mode

Weight:

9,411 lb (4,268 kg)

Weight:

9,411 lb (4,268 kg)

Width:

75 in. (1.9 m)

Width:

75 in. (1.9 m)

Exterior Length w/bucket:

145 in. (3.6 m)

Length w/bucket:

145 in. (3.6 m)

Exterior Length w/o bucket:

115 in. (2.9 m)

Length w/o bucket:

115 in. (2.9 m)

Exterior Height:

82 in. (2.0 m)

Height:

82 in. (2.0 m)

Square Stowage:

76 ft²(7 m²)

Capacity

Fuel Consumption per Hour

3 gph

Replaced Item(s)

N/A

Transportability

Truck, Rail, Air, Marine Vessel

Associated TAMCN(s)

B0039, U0017

2-26

TM 11275-15/3D

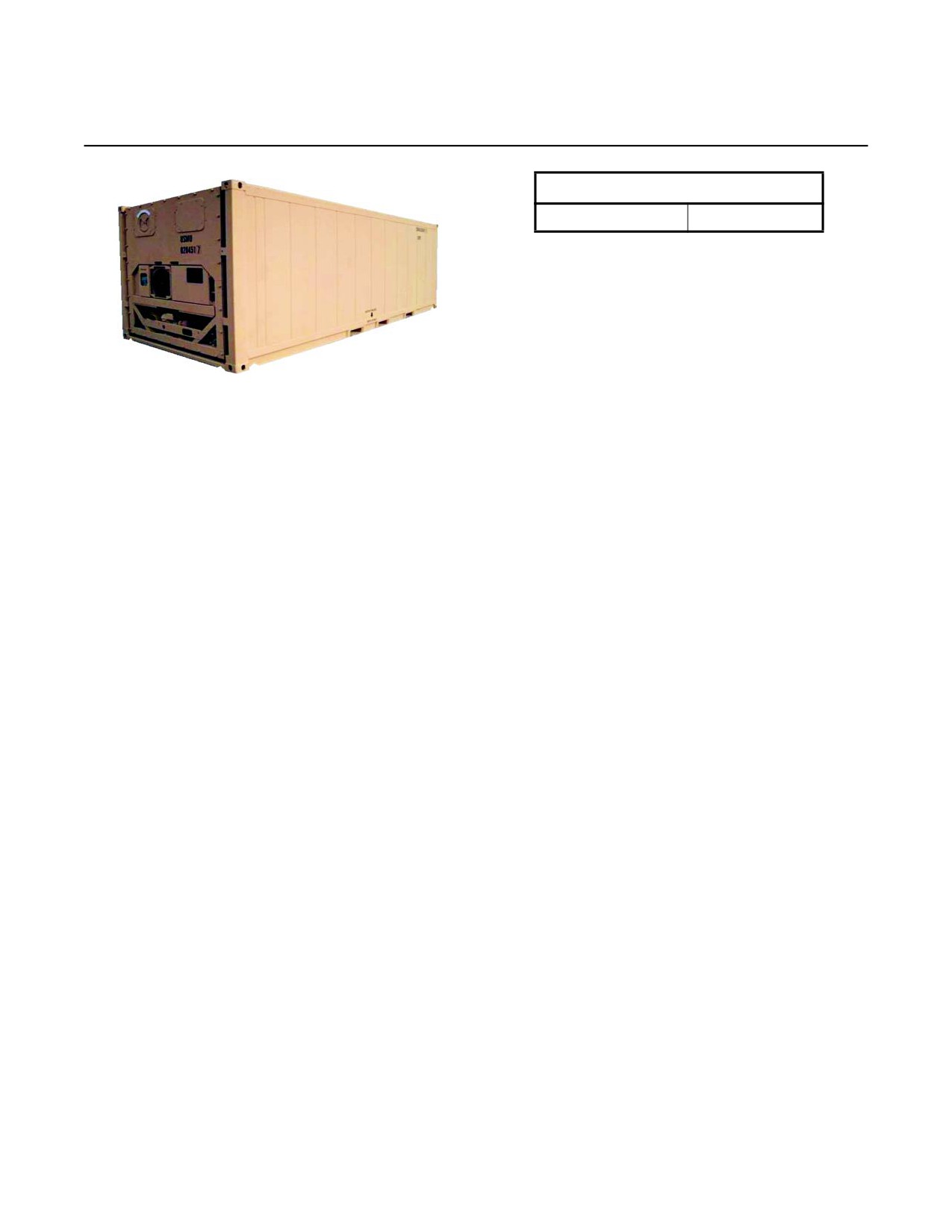

LARGE FIELD REFRIGERATION SYSTEM (LFRS)

TAMCN: B0049

National Stock Number/ID Number

4130-01-562-9914

11574A

TC-500

DESCRIPTION AND FUNCTION

The LFRS will comprise a 8x8x20 insulated container that meets ISO Type 1, 20 foot standards (ISO-20).

The LFRS will be dual mode to refrigerate or freeze perishable items. The LFRS will support numerous custom-

ers, to include Marine Corps Field Food Service System (FFSS) and will be also support Mortuary Affairs. Exact

configuration is still to be determined, but will be accomplished with a kit added to the LFRS basic unit.

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

SeaBox Inc

Length (in.):

Model:

SB541.0

Width (in.):

Height (in.):

Power Req.

Weight (lb):

8,500

Frequency (HZ):

950

Volume (ft³):

Voltage/Phase:

208VAC/3 phase

Wires:

4-Wire

Max Power Consumption:

12kW

Capacity

Cooling (Btu/hr):

36,000

Refrigerant:

R-404a

CFM:

N/A

Design Maximum

135°F

Ambient Temperature:

Duct Size:

N/A

Min Ambient Cooling

-25°F

Replaced Item(s)

B1645, B1710

Transportability

Forklift Portable

Associated TAMCN(s)

N/A

2-27

TM 11275-15/3D

BATH SHOWER UNIT

TAMCN: B0055

TC-008

National Stock Number/ID Number

4510-01-163-6775

10006A

DESCRIPTION AND FUNCTION

The Field Expeditionary Bath Shower unit consists of six separate but identical and interchangeable shower

modules, with interconnecting hoses, electric feed water and drain pumps, and a drain hose. The M-80 Water

Heater supplied with the unit is a self-contained, oil-fired boiler capable of providing 120°F water at 18-GPM.

Each module consists of a fiberglass base, a top frame, six vertical supports, a cover, and two-shower heads.

The individual modules can be connected together in any quantity desired.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

1,000 lb (453 kg)

Weight:

1,000 lb (453 kg)

Width:

72 in. (183 cm)

Width:

36 in. (91 cm)

Length:

216 in. (549 cm)

Length:

72 in. (183 cm)

Height:

72 in. (183 cm)

Height:

72 in. (183 cm)

Cube:

Varies

Cube:

108 ft³(3.05 m³)

Square Stowage:

Varies

Square Stowage:

18 ft²(1.67 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2130

2-28

TM 11275-15/3D

JOINT ASSAULT BRIDGE (JAB)

TAMCN: B0057

National Stock Number/ID Number

5420-01-545-7365

11374A

TC-232

DESCRIPTION AND FUNCTION

The Joint Assault Bridge (JAB) is a full-tracked armored engineer vehicle designed to improve the mobility,

maintainability, and survivability of the Marine Air Ground Task Force (MAGTF) and Army Mobility Augmentation

Company (MAC) providing the rapid assault bridging of wet and dry gaps and complex obstacles, up to 60 ft

(18.29 m) in length.

The JAB consists of an M1A1 Abrams Main Battle Tank using an A2 suspension, a hybrid bridge launching

mechanism, the modified BR90 Bridge Launcher, mounted on the M1A1 hull, a newly designed High Pressure

Hydraulic System (HPHS) and the existing MLC-70 AVLB Scissors Bridge. Additional GFE includes the AN/

VRC-103 Radio System, Defense Advanced GPS Receiver (DAGR), AN/VIC-3 Intercommunications Suite,

Embedded Diagnostics system and Smoke Grenade Launcher. The USMC variant will include a JAB Dozer

Blade.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

70-Ton*

Weight:

55.6-Ton*

Width:

161.6*

Width:

150.2*

Length:

491.4*

Length:

427.86*

Height:

152.2*

Height:

131.2*

Cube:

3010*

Cube:

4,599*

Square Stowage:

3010*

Square Stowage:

4,600*

Capacity

Fuel Consumption per Hour:

44.2 gph

* Data will be verified at DT2.

Replaced Item(s)

Potential to replace AVLB

Transportability

The JAB is required to be shipped by land (tractor trailer, rail), sea (ships (Navy and

Sealift), LCAC and lighters) and air. The following ships LHA 1, LHD 1, LPD 4 and 7,

LPD 17, LSD 41, and LSD 49 classes, LMSRs, RO/RO, LCUs, LCACs and lighters used

for LOTS. Based on MIL-STD-1366 Table 25 the C-5 and C-17 would be the potential

aircraft for transport.

Associated TAMCN(s) TAMCN E01497B, TAMCN E08927M, E08907M, TAMCN A01267GA

2-29

TM 11275-15/3D

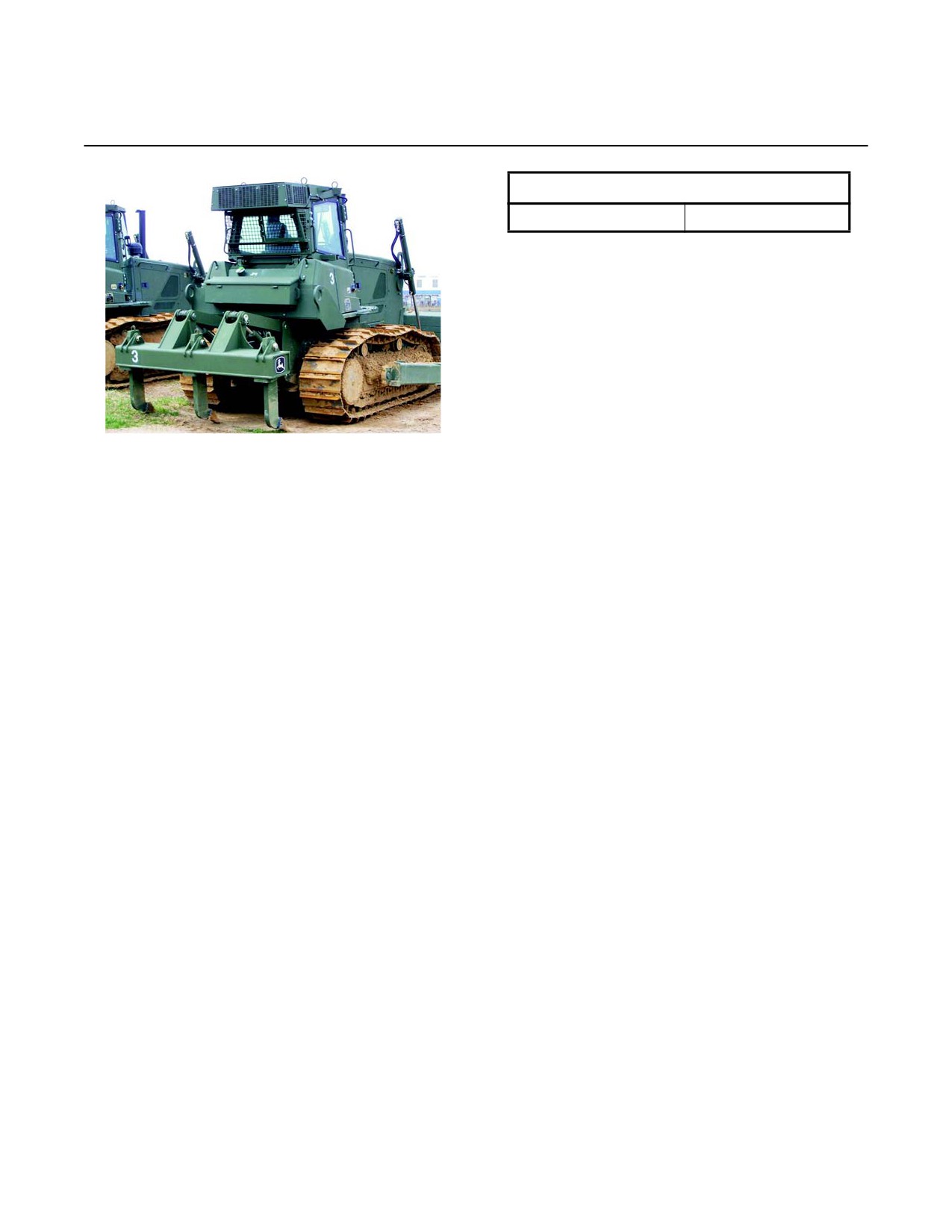

MEDIUM CRAWLER TRACTOR (MCT)

TAMCN: B0060

National Stock Number/ID Number

2320-01-558-5671

11503A

TC-315

DESCRIPTION AND FUNCTION

The Medium Crawler Tractor (MCT) is a diesel-engine driven, COTS, militarized crawler type, medium-draw-

bar pull tractor. The tractor is equipped with Roll Over Protection Structure (ROPS) and Falling Objects Protec-

tive Structure (FOPS), hydraulically powered semi-U (straight) type blade with a minimum drawbar pull of 35,000

pounds. The tractor is equipped with all components necessary to enable the tractor to function the following

attachments: a 3-shank ripper or a rear-mounted winch and drawbar/towing coupler.

TECHNICAL DESCRIPTION

Manufacturer:

John Deere

Model:

850JR

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Dimensions

Length (w/o Attachments):

218.6 in.

Length:

219 in.

w/Ripper

258.3 in.

Width:

102 in.

w/Winch

236 in.

Height:

141 in.

Width (Blade):

140 in.

Square Stowage:

322 sq ft

Reduced Width (Blade Removed)

104 in.

Cube Stowage:

3,795 cu ft

Maximum Height:

131 in.

Weight:

69,800 lb

GVW (w/o Attachments)

45,420 lb

Capacity

w/Ripper

50,480 lb

Fuel Consumption per Hour:

7 gph

w/Winch

48,960 lb

w/Armored Cab

w/o Attachments

51,160 lb

w/Ripper

56,220 lb

w/Winch

54,700 lb

Replaced Item(s)

B2462

Transportability

Truck, Rail, Air C141 and Larger, RO/RO ships with Blade = 140 in

Truck, Rail, Air C141 and Larger, RO/RO ships with no Blade = 104 in

Associated TAMCN(s)

B0079, B0081, U0013, B0085

2-30

TM 11275-15/3D

COOLING AND REFRIGERATION EXPEDITIONARY KIT (CREK)

TAMCN: B0061

TC-501

National Stock Number/ID Number

4120-01-558-5664

11502A

DESCRIPTION AND FUNCTION

The CREK consists of four transport cases comprised of hand tools, cylinders, fluxes, solder, brazing alloys

and equipment for testing and repairing the family of ECUs and field refrigeration systems. The kit also includes

equipment for charging, purging and testing refrigerant in a hermetically sealed refrigerating unit. Some tools

require 120/240VAC, 50/60HZ.

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

Wright Tools

Case 1 is 22.50”x22.43”x21.25” / weighs 83 lb

Model:

W270001

Case 2 is 31.50”x22.87”x19” / weighs 104 lb

Case 3 is 31.50”x22.87”x19” / weighs 107 lb

Power Req.

Case 4 is 24.81”x19.37”x13.87” / weighs 63 lb

Frequency (Hz)

50/60

Voltage/Phase

120/240VAC/1 Phase

Replaced Item(s)

B2280, B2290, B1713

Transportability

Man Portable

Associated TAMCN(s)

N/A

2-31

TM 11275-15/3D

LINEMAN’S TOOL KIT

TAMCN: B0062

TC-271

National Stock Number/ID Number

5180-01-550-0145

11509A

DESCRIPTION AND FUNCTION

The Tool Kit, Lineman's is a standardized lineman’s basic tool kit that provides a wide range of necessary

tools for the basic electrician. The Tool Kit, Lineman's will enable Marines at the organizational level in Military

Occupational Specialty (MOS) 1141, to install, operate and maintain heating equipment, mobile electric power

generating sources, electrical distributions systems and repair of telephone/telegraph wire. The tools in the Tool

Kit, Lineman's are warranted for life and are configuration-controlled.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer: Black & Company Management INC.

Length (in.):

27.2 in.

Model:

TK 1141

Width (in.):

16 in.

Height (in.):

22.5 in.

Square Stowage:

3 sq ft

Cube Stowage:

5.63 cu ft

Weight (lb):

55 lb

Replaced Item(s)

B2240 Tool Kit, Lineman’s Electrician

Transportability

Two Handle, Two Person, Man Portable

Associated TAMCN(s)

N/A

2-32

TM 11275-15/3D

TRACTOR, RUBBER-TIRED, ARTICULATED STEERING, MULTI-PURPOSE (TRAM)

TAMCN: B0063

TC-306

National Stock Number/ID Number

3805-01-549-7814

11412A

DESCRIPTION AND FUNCTION

The Multi-Purpose Tractor is a diesel-powered, four-wheel drive, rubber-tired, articulated steering tractor.

The TRAM is designed for shoveling, hoisting, and discharging bulk materials such as earth, aggregate, and

snow.

TECHNICAL DESCRIPTION

Manufacturer:

John Deere

Fuel Consumption per hour:

8 gph

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

37,449 lb (16,986 kg)

Weight:

37,449 lb (16,986 kg)

Width (with Bucket):

108 in. (274 cm)

Width (w/out Bucket or Fork):

104 in. (264 cm)

Length (with Fork):

339 in. (861 cm)

Length (w/out Bucket or Fork):

258 in. (655 cm)

Height:

132 in. (335 cm)

Height:

132 in. (335 cm)

Cube:

2,797 ft³ (79 m³)

Cube:

2,050 ft³ (58 m³)

Square Stowage:

253 ft² (23 m²)

Square Stowage:

185 ft² (17 m²)

Replaced Item(s)

B2567, JD644 TRAM

Transportability

Truck, rail, air (C141 or larger) sea (roll-on roll-off ships)

Associated TAMCN(s)

U0014, B0017

2-33

TM 11275-15/3D

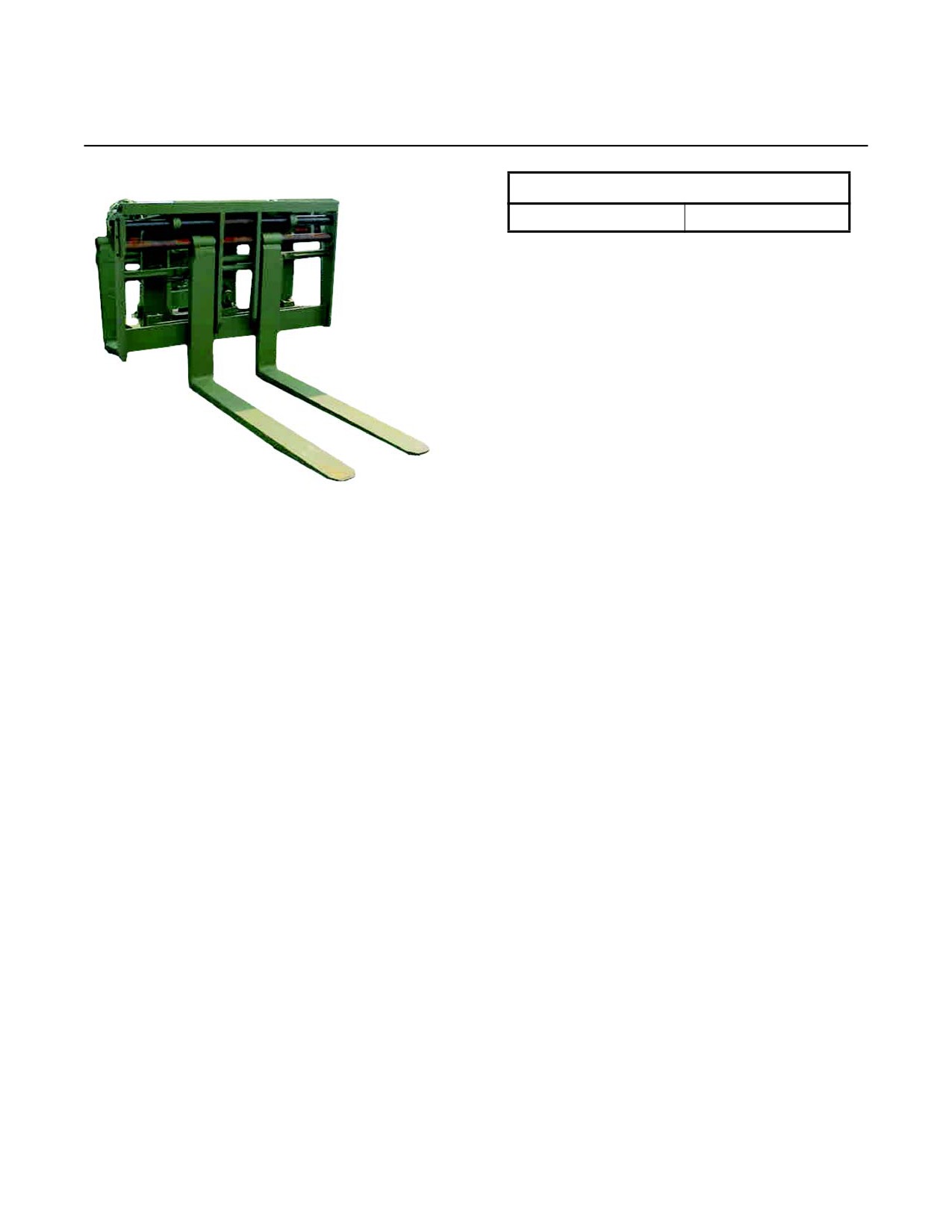

FORKLIFT ATTACHMENT

TAMCN: Not TAMCN Controlled

National Stock Number/ID Number

3830-01-482-8569

09146C

TC-042

DESCRIPTION AND FUNCTION

The Forklift Attachment is for lifting and positioning various types of loads weighing up to 10,000 pounds. It

is used on the Tractor, Rubber-Tired, Articulated Steering, Multi-Purpose (TRAM) TAMCN B2567 and B0063.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

3,260 lb (1,479 kg)

Weight:

3,260 lb (1,479 kg)

Width:

78.8 in. (200 cm)

Width:

78.8 in. (200 cm)

Length:

88.5 in. (225 cm)

Length:

88.5 in. (225 cm)

Height:

62.5 in. (159 cm)

Height:

62.5 in. (159 cm)

Cube:

252.9 ft³ (7.16 m³)

Square Stowage:

48.4 ft² (4.5 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2567, B0063

2-34

TM 11275-15/3D

MULTI-PURPOSE BUCKET

TAMCN: Not TAMCN Controlled

National Stock Number/ID Number

3830-01-482-8567

09149C

TC-013

DESCRIPTION AND FUNCTION

The Multi-Purpose Bucket, 4-in-1, 2 1/2 yd (2.29 m) is used as a front end scoop bucket for picking up vari-

ous types of fill material and loading the same into fill haulers. The Bucket, is used on the Tractor, Rubber-Tired,

Articulated Steering, Multi-Purpose (TRAM) TAMCN B2567 and B0063.

OPERATING AND SHIPPING DATA

Manufacturer:

ACS Industries

Operating/Shipping Mode

Capacity

Weight:

3,400 lb (1,542 kg)

Fuel Consumption per Hour:

N/A

Width:

108 in. (274 cm)

Length:

52 in. (132 cm)

Height:

48 in. (122 cm)

Cube:

156.1 ft³(4.42 m³)

Square Stowage:

39 ft² (3.62 m²)

Replaced Item(s)

N/A

Transportability

Can be transported on an MTVR

Associated TAMCN(s)

B2567, B0063

2-35

TM 11275-15/3D

CONTAINERIZED BATCH LAUNDRY (CBL) UNIT

TAMCN: B0066

TC-327

National Stock Number/ID Number

3510-01-549-8384

B00667B

DESCRIPTION AND FUNCTION

The Containerized Batch Laundry (CBL) is a 100K Generator powered COTS Laundry item configured into a

standard 8 x 8 x 20 foot ISO Container and consists of two individual 55 pound washers, two industrial 75 pound

dryers, and a 30 GPM supply pump. Ancillary equipment required for the operation of the CBL will be stored and

shipped in a TRICON from the manufacturer with each initial issue CBL.

OPERATING AND SHIPPING DATA

Shipping Mode

(CBL) Weight:

11,600 lb (5,262 kg)

Height:

8 ft (20.32 m)

Width:

8 ft (20.32 m)

Cube:

0.740 ft³(0.021 m³)

Length:

20 ft (50.80 m)

Square Stowage:

1.104 ft²(0.102 m²)

TRICON Physical Characteristics

Empty Configuration

Storage Shipping Configuration

Length

96 in.

Width

77.5 in.

Height

96 in.

Weight

2.845 lb

4,120 lb

Stowage

413.33 cu ft

Replaced Item(s)

CBL will replace at attrition B12267B, the Field Laundry Unit, Bare Base, on a one

for two basis

Transportability

Truck, rail, air, ship (Sealift transport, roll-on roll-off ships)

Associated TAMCN(s)

B1045, B2130

2-36

TM 11275-15/3D

CLIMBER’S SET, TREE, AND POLE

TAMCN: B0069

TC-321

National Stock Number/ID Number

5180-01-550-8373

11418A

DESCRIPTION AND FUNCTION

The Climber's Set, Tree and Pole, Model TK-1141/C, provides climbing equipment which allows the Line-

man to ascend poles or trees and secure himself without the aid of a ladder. This permits freedom of the hands

while working aloft. The set also contains tools for hoisting needed items from ground level, as well as required

personal protective equipment. The set consists of a case, three trays of equipment, and equipment stored in

the bottom of the case. Trays are numbered 1 through 3 starting with the top tray.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer: Black & Company Management Inc.

Length (in.):

45 in.

Model:

TK 1141/C

Width (in.):

24-1/2 in.

Height (in.):

24-1/2 in.

Square Stowage:

8 sq ft

Cube Stowage:

16-1/2 cu ft

Weight (lb):

175 lb

Replaced Item(s)

B2240

Transportability

Two Handle, Two Person, Man Portable

Associated TAMCN(s)

N/A

2-37

TM 11275-15/3D

LIGHTWEIGHT WATER PURIFICATION SYSTEM (LWPS)

TAMCN: B0071

TC-502

National Stock Number/ID Number

TBD

DESCRIPTION AND FUNCTION

The Lightweight Water Purification System (LWPS) is a lightweight, modular, highly transportable, self-con-

tained water purification system consisting of four functional components: 1) Raw Water, 2) Pre-filtration, 3)

Reverse Osmosis, and 4) Product Water. It also provides four optional extended capability modules: 1) Ocean

Intake Structure System 2) Nuclear, Biological, Chemical (NBC) Water Treatment System, 3) Cold Weather, and

4) NBC Survivability.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

TBD

Weight:

TBD

Width:

TBD

Width:

TBD

Length:

TBD

Length:

TBD

Height:

TBD

Height:

TBD

Cube:

TBD

Cube:

TBD

Square Stowage:

TBD

Square Stowage:

TBD

Replaced Item(s)

B2628

Transportability

Truck, rail, air, ship (Sealift transport, roll-on roll-off ships)

Associated TAMCN(s)

N/A

2-38

TM 11275-15/3D

AIR CONDITIONER, 0.75-TON, 9,000 BTU/HR, 60 HZ

TAMCN: B0074

National Stock Number/ID Number

4120-01-552-5223

11453A

TC-256

DESCRIPTION AND FUNCTION

The 9,000 BTU ECU will provide a replacement for the current 9,000 BTU Shelter Mounted Air Conditioner

and be capable of providing complete environmental control, to include cooling, heating, dehumidification, venti-

lation, and filtering for various types of portable military shelters or tactical vehicles. The 9K address a specialize

need that certain units in the Marine Corp have for a highly mobile power and environmental control source.

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

NordicAir, Inc.

Length (in.):

26.8 in.

Model:

GSQ343ZABNWOGO

Width (in.):

23.8 in.

Height (in.):

16.1 in.

Power Req.

Weight (lb):

187 lb

Frequency (Hz):

5.9 ft

Volume (ft³):

Voltage/Phase:

110-130VAC/1-Phase

Min opening size:

16.25 in. (H) x 24 in. (W)

Wires:

3-Wire

Length (in.):

26.8 in.

Max Power Consumption:

2.5 kW

Capability

Capacity

Vertical/Horizontal

Horizontal

Cooling (BTU/hr):

9,000

Refrigerant

R-22

Heating (BTU/hr):

4,300

Design Maximum

Ambient Temperature:

135°F

CFM:

370

Min Ambient Cooling:

45°F

Duct Size:

N/A

Min Ambient Heating:

-25°F

Replaced Item(s

B0001, Power Cable: #12 AWG cable with 3-prong NEMA 5-20P plug

Transportability

Transported with supported shelter/man portable

Associated TAMCN(s)

N/A

2-39

TM 11275-15/3D

SMALL FIELD REFRIGERATION SYSTEM (SFRS)

TAMCN: B0075

National Stock Number/ID Number

4130-01-565-7655

11609A

TC-503

DESCRIPTION AND FUNCTION

The SFRS will be comprised of an 8’x8’x6.5’ (TRICON container) insulated container that can be interlocked

to meet ISO standards. The SFRS will be dual mode to refrigerate or freeze perishable items. SFRS will support

numerous customers, to include Marine Corps Field Food Service System (FFSS).

TECHNICAL DESCRIPTION

Unit

Dimensions

Manufacturer:

Sea Box Inc.

Length (in.):

77.5

Model:

SB531.0

Width (in.):

Power Req.

Height (in.):

Frequency (Hz):

50/60

Weight (lb):

3,360

Voltage/Phase:

208 VAC

Volume (ft³):

282

3 phase

Wires:

4 wire

Max Power:

2.5 kW

Consumption:

Capacity

Cooling (BTU/hr):

5,000

Refrigerant:

R-134a

Heating (BTU/hr):

N/A

Design Maximum

135°F

Ambient Temperature:

CFM:

N/A

Min Ambient Cooling:

-25°F

Duct Size:

N/A

Replaced Item(s)

B1645, B1710

Transportability

Forklift Portable

Associated TAMCN(s)

N/A

2-40

TM 11275-15/3D

MULTI-TERRAIN LOADED WORK TOOL

TAMCN: B0076

TC-335

National Stock Number/ID Number

3805-01-553-4073

11470A

DESCRIPTION AND FUNCTION

The Multi-Terrain Loader Work Tool Carrier consists of two stackable storage units that allow for the storage

and transportation of the attachments that are associated to the Multi-Terrain Loader, TAMCN B0040.

OPERATING AND SHIPPING DATA

Shipping Mode

Both (Shorter on Top of

UNIT 1 (Taller Section)

Taller Section)

Weight:

3,240 lb (1,470 kg)

Weight:

6,460 lb (2,930 kg)

Width:

96 in. (8 ft)

Width:

96 in. (8 ft)

Length:

158 in. (13.17 ft)

Length:

158 in. (13.17 ft)

Height:

51 in. (4.25 ft)

Height:

93 in. (7.75 ft)

Cube:

447.67 ft³

Cube:

816.54 ft³

Square Stowage:

105.33 ft²

Square Stowage:

105.33 ft²

UNIT 2 (Shorter Section)

Weight:

3,220 lb (1,461 kg)

Width:

96 in. (8 ft)

Length:

158 in. (13.17 ft)

Height:

42 in. (3.5 ft)

Cube:

368.76 ft³

Square Stowage:

105.33 ft²

Replaced Item(s)

N/A

Transportability

MTVR

Associated TAMCN(s)

B0040 (MTL 277C)

2-41

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, MODEL MEP-802A

TAMCN: B0077

National Stock Number/ID Number

6115-01-274-7387

09292A

TC-322

DESCRIPTION AND FUNCTION

The 5 kW Generator Set, MEP-802A, is a self contained, skid mounted, portable unit. It is equipped with

controls, instruments and accessories necessary for operation. The generator set consists of a diesel engine,

brushless generator, excitation system, speed governing system, fuel system, 24 Vdc starting system, control

system and fault system. The generator set is designed to be used with any equipment requiring a small source

of A/C power and operates in a “Hot and Basic” climatic condition range of -25°F to 120°F.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

5 gal.

Model:

MEP-802A

Fuel Consumption:

.57 gph

Volts:

120/208/240

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

1,800

Length (in.):

50.4

Phase:

1 and 3

Width (in.):

31.8

Engine

Height (in.)

36.2

Manufacturer:

Onan

Weight (lb):

Model:

DN2M

Dry:

800

Type:

2 Cycle

Wet (coolant,/POLs):

888

Cylinders:

Volume (ft³):

Displacement:

57 in.³ (0.9 L)

Aural Signature

Horsepower:

111.0 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

18.5:1

Replaced Item(s)

N/A

Transportability

LTT-MCC Trailer

Associated TAMCN(s)

N/A

2-42

TM 11275-15/3D

120M MOTORIZED ROAD GRADER

TAMCN: B0078

TC-511

National Stock Number/ID Number

3805-01-566-0558

11621A

DESCRIPTION AND FUNCTION

The 120M Motorized Road Grader is a self-propelled grading machine powered by a diesel engine. It has

rubber tires, six-wheel drive, and an articulated frame with front-wheel steer design. It is equipped with a 12’

blade with a minimum shoulder reach of 6’ outside the wheels and has a minimum lift above ground of 16”. It is

reconfigurable to accept an armored cab. The advanced joystick control system replaces the traditional array of

levers and steering wheel, which greatly simplifies motor grader operation by placing total machine, drawbar,

and moldboard control into both of the operator’s hands. Applications of the 120M include grading coarse and

fine soil, creating low and high bank slopes, flat and V-ditches, scarifying, removing snow, and building and

maintaining roads and airfields.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

37,000 lb

Weight with split cab removed:

37,000 lb

With Armor

44,000 lb

Weight with split cab removed

and armor cab installed:

43,000 lb

Width:

105 in.

Width:

105 in.

Length:

352 in.

Length:

352 in.

Height:

129 in.

Height with split cab removed:

102 in.

Cube:

2,759.2 ft³

Cube:

2,181.7 ft³

Square Stowage:

256.7 ft²

Square Stowage:

256.7 ft²

Manufacturer

Caterpillar

Capacity

Fuel Consumption per Hour:

4 gallons

Lift Capacity:

N/A

Replaced Item(s)

B1082

Transportability

C-5 and C-17 aircraft

Associated TAMCN(s)

N/A

2-43

TM 11275-15/3D

RIPPER ATTACHMENT, 3-SHANK, REAR MTG F/TRACTOR

TAMCN: B0079

National Stock Number/ID Number

3830-01-562-6715

11569A

TC-317

DESCRIPTION AND FUNCTION

The Ripper Attachment, 3-Shank, Rear Mounting is mounted on the Medium Crawler Tractor (B0060) and is

used to break up hard materials too compacted to be cut by the blades of tractors, graders, or scrapers. It is not

normally used for breaking concrete or large tree roots.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

GR Manufacturing

Length (in.):

Model:

AT352525

Width (in.):

Height (in.):

Square Stowage:

42 ft²

Cube Stowage:

217 ft³

Weight (lb):

44.80

Replaced Item(s)

B1775

Transportability

N/A

Associated TAMCN(s)

B0060

2-44

TM 11275-15/3D

WINCH ATTACHMENT, SINGLE DRUM

TAMCN: B0081

National Stock Number/ID Number

3830-01-562-6695

11570A

TC-316

DESCRIPTION AND FUNCTION

The Winch, Attachment, Single Drum is a hydraulically powered winch. It is mounted on the Medium Crawler

Tractor (TAMCN B0060). The winch is used for towing, loading, recovery, and self-recovery operations.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

Allied Systems

Length (in.):

Company Inc.

Model:

AT354444

Width (in.):

Height (in.):

Square Stowage:

14.7 ft²

Cube Stowage:

64.9 ft³

Weight (lb):

2,925

Replaced Item(s)

B2705

Transportability

N/A

Associated TAMCN(s)

B0060

2-45

TM 11275-15/3D

GENERATOR SET, DIESEL ENGINE, MODEL MEP-809A

TAMCN: B0083

National Stock Number/ID Number

6115-01-296-1462

11598A

TC-323

DESCRIPTION AND FUNCTION

The 200 kW Generator Set, MEP-809A, 50/60 Hz is a self-contained, skid mounted, portable unit. It is

equipped with controls, instruments and accessories necessary for operation as a single unit or in parallel with

another unit of the same class and mode. The generator set consists of a diesel engine, brushless generator,

excitation system, speed governing system, fuel system, 24 Vdc starting system, control system and fault sys-

tem, and Electronic Modular Control Panel (EMCP). This generator set is designed to be used with any equip-

ment requiring a large source of A/C power and operates in a “Hot and Basic” climatic condition range of -25°F

to 120°F. This generator set is portable and requires forklift support.

TECHNICAL DESCRIPTION

Generator Set

Fuel

Manufacturer:

Fermont

Fuel Capacity:

128 gal.

Model:

MEP-809A

Fuel Consumption:

16 gph

Volts:

120/208/240/416

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

50/60

Dimensions

Speed (RPM):

1,500/1,800

Length (in.):

114

Phase:

Width (in.):

Engine

Height (in.)

Manufacturer:

Caterpillar

Weight (lb):

Model:

C12

Dry:

8,200

Type:

4 Cycle

Wet (coolant,/POLs):

9,300

Cylinders:

Volume (ft³):

Displacement:

732 in.³ (12.0L)

Aural Signature

Horsepower:

395 @ 1,800 RPM

Audio Rating:

70dBA @ 7 meters

Compression:

18.5:1

Replaced Item(s)

N/A

Transportability

LVSR/MTVR

Associated TAMCN(s)

N/A

2-46

TM 11275-15/3D

BRIDGE ERECTION BOAT (BEB)

TAMCN: B0114

TC-336

National Stock Number/ID Number

1940-01-526-7164

10020C

DESCRIPTION AND FUNCTION

The Bridge Erection Boat (BEB) is an aluminum-hulled, twin-diesel, twin jet workboat, which supports bridg-

ing operations. The BEB is designed to provide propulsion and maneuvering thrust to the Standard Ribbon

Bridge (SRB) and Improved Ribbon Bridge (IRB). The BEB can be transported, launched, and retrieved with an

improved boat cradle (IBC) or BEB launcher.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

10,000 lb (no fuel)

Weight:

10,000 lb

Width:

98.0 in. (248.92 cm)

Width:

98.0 in. (249 cm)

Length:

315.0 in. (800.1 cm)

Length:

315.0 in. (800.1 cm)

Height:

184.0 in. (467.36 cm)

Height:

103.0 in. (261.62 cm)

(with mast up)

(with mast down, cabin

on, measured to top of

cabin spotlight)

Cube:

3,287 ft³ (381.3 m³)

Cube:

1,251 ft³ (381.30³)

Square Stowage:

215 ft² (65.5 m²)

Square Stowage:

215 ft² (65.5 m²)

Capacity

Fuel Consumption per Hour:

9 gph

Lift Capacity:

4,400 lb

Manufacturer

Aluminum Chambered

Boats, Inc.

Replaced Item(s)

Bridge Erection Boat MK 2

Transportability

Improved Boat Cradle or BEB Launcher. MK18 LVS rear body unit

Associated TAMCN(s)

IRB - B0155; Rafting Set: B1625

2-47

TM 11275-15/3D

BRIDGE ERECTION BOAT MKII TACTICAL TRAILER

TAMCN: B0115

TC-337

National Stock Number/ID Number

1940-01-527-9596

11104A

DESCRIPTION AND FUNCTION

The Bridge Erection Boat MKII Tactical Trailer is a 3-axle 15,000 pound GVW rated trailer designed to sup-

port and transport the MKIII Bridge Erection Boat (BEB) (TAMCN: B01147B).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

3,000 lb

Weight:

3,000 lb

Width:

109 in. (276.9 cm)

Width:

109 in. (276.9 cm)

Length:

372 in. (944.9 cm)

Length:

372 in. (944.9 cm)

Height:

18 in. (45.7 cm)

Height:

18 in. (45.7 cm)

Cube:

423 ft³ (128.9 m³)

Cube:

423 ft³ (128.9 m³)

Square Stowage:

281 ft² (85.6 m²)

Square Stowage:

281 ft² (85.6 m²)

Capacity

Fuel Consumption per Hour:

N/A

Lift Capacity:

10,000 lb

Manufacturer

Boat Masters, Inc.

Replaced Item(s)

BEB MK II Tactical Trailer

Transportability

Medium Tactical Vehicle Replacement (MTVR)

Associated TAMCN(s)

B01147B - BEB

2-48

TM 11275-15/3D

BRIDGE ERECTION SET

TAMCN: B0120

TC-010

National Stock Number/ID Number

5420-00-172-3519

108675A

DESCRIPTION AND FUNCTION

The Bridge Erection set contains those components necessary to erect the single story and double story

Medium Girder Bridge (MGB) (TAMCN B0152, pg. 2-50).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

5,960 lb (2,703 kg)

Width:

Varies

Width:

81 in. (206 cm)

Length:

Varies

Length:

171 in. (434 cm)

Height:

Varies

Height:

91 in. (231 cm)

Cube:

Varies

Cube:

729.4 ft³(20.65 m³)

Square Stowage:

Varies

Square Stowage:

96.2 ft² (8.9 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-49

TM 11275-15/3D

MEDIUM GIRDER BRIDGE (MGB)

TAMCN: B0152

TC-338

National Stock Number/ID Number

5420-00-172-3520

08676A

DESCRIPTION AND FUNCTION

The Medium Girder Bridge (MGB) is a deck-type, two-girder bridge system providing a 4-meter wide road-

way to span wet or dry gaps. The MGB is a lightweight, bridging system quickly erected by hand in various con-

figurations and lengths with minimum site preparation. Bridges up to Military Load Class (MLC) 70 (tracked) or

100 (wheeled) can be constructed and dismantled quickly by trained Marine Corps Engineer units to keep pace

with operations.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

63,719 lb (28,902 kg)

Width:

Varies

Width:

96 in. (244 cm)

Length:

Varies

Length:

96 in. (244 cm)

Height:

Varies

Height:

240 in. (610 cm)

Cube:

Varies

Cube:

1,280 ft³(36.25 m³)

Square Stowage:

Varies

Square Stowage:

64 ft² (5.95 m²)

Manufacturer

Williams Fairey

England Limited

Capacity

Fuel Consumption per Hour:

N/A

Lift Capacity:

varies (see chart)

Replaced Item(s)

LVS Mk48/18

Transportability

LVS Mk48/18

Associated TAMCN(s)

The MGB System is comprised of three separate Tables of Authorized Materiel

Control Numbers (TAMCNs); The Medium Girder Bridge (B0152), the Bridge Erection

Set (B0120), and the Link Reinforcement Set (B1720)

2-50

TM 11275-15/3D

BRIDGE, FLOATING, IRB 80T, 100T RAFTING SET, RIBBON BRIDGE,

CONSTRUCTION OUTFIT RAMP BAY AND INTERIOR BAY DATA

TAMCN: B0155

National Stock Number/ID Number

5420-01-550-5433

11518A

DESCRIPTION AND FUNCTION

The IRB, B0155, is a floating wet gap bridge sys-

tem capable of carrying a Military Load Class (MLC)

80/100-Ton vehicle in stream currents of 10 fps (5.9

mph). The IRB consists of 12 interior and 5 ramp bays

and is capable of breaking down into two MLC 80/

100-Ton vehicle rafting sets. The Rafting Set, B1625,

utilized as a ferry, is the preferred method of conduct-

ing wet gap crossings. The Rafting Set consists of 5

interior bays and 2 ramp bays.

TC-339

OPERATING AND SHIPPING DATA FOR RAMP BAY AND INTERIOR BAY

Ramp Bay Operating Mode

Interior Bay Operating Mode

Weight:

14,000 lb (6,350 kg)

Weight:

14,000 lb (6,350 kg)

Width:

28 ft 3 in. (8.6 m)

Width:

28 ft 2 in. (8.6 m)

Length:

22 ft 4 in. (6.8 m)

Length:

22 ft 7 in. (6.9 m)

Height:

4 ft 1 in. (1.2 m)

Height:

4 ft 5 in. (1.3 m)

Cube:

806.6 ft³ (22.8 m³)

Cube:

1412.6 ft³ (40.00 m³)

Square Stowage:

487.58 ft² (45.30 m²)

Square Stowage:

640 ft² (59.46 m²)

Ramp Bay Shipping Mode

Interior Bay Shipping Mode

Weight:

14,000 lb (6,350 kg)

Weight:

14,000 lb (6,350 kg)

Width:

10 ft 5 in. (3.2 m)

Width:

10 ft 10 in. (3.3 m)

Length:

22 ft 4 in. (6.8 m)

Length:

22 ft 7 in. (6.9 m)

Height:

7 ft 7 in. (2.3 m)

Height:

7 ft 8 in. (2.3 m)

Manufacturer

General Dynamics

Santa Barbara Systems

Capacity

Fuel Consumption per Hour:

N/A

Lift Capacity:

80-Ton of tracked vehicles or

100-Ton of wheeled vehicles

per raft set.

Replaced Item(s)

Standard Ribbon Bridge

Transportability

LVSR MK18, LVSR MK18A1, LVSR

Associated TAMCN(s)

B0114 Bridge Erection Boat Mark III

2-51

TM 11275-15/3D

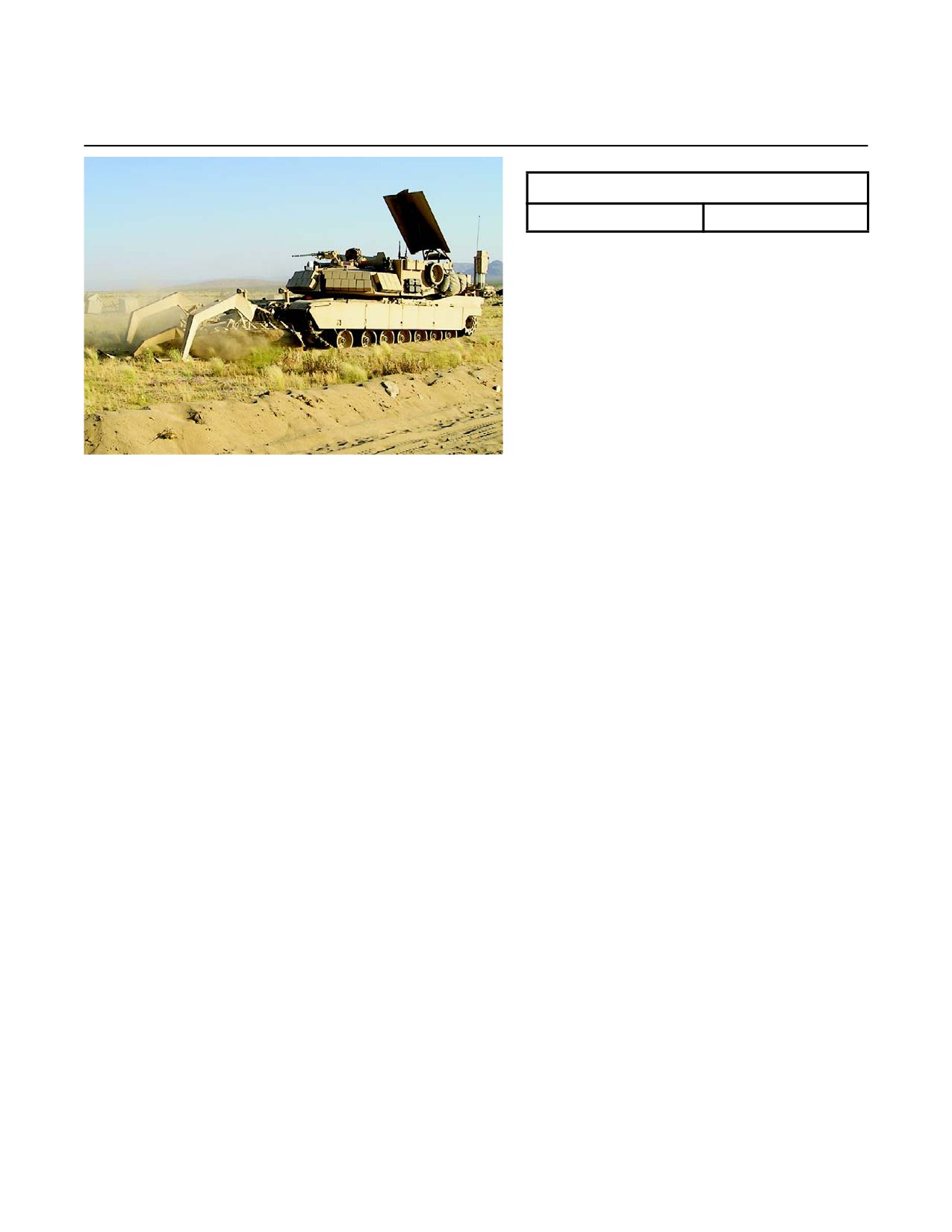

ASSAULT BREACHER VEHICLE (ABV)

TAMCN: B01607B

National Stock Number/ID Number

2350-01-511-7783

10984A

TC-333

DESCRIPTION AND FUNCTION

The Assault Breacher Vehicle (ABV) is based on the M1A1 chassis. Integrated subsystems include an

armored turret, Full-Width Mine Plow (FWMP), Combat Dozer Blade (CDB), Linear Demolition Charge System

(LDCS), Lane Marking System (LMS), Integrated Vision System (IVS), Thermal Weapon Sight (TWS), Vehicle

Intercommunication Set (AN/VIC-3), AN/VRC-103 Radio System, Embedded Diagnostics (ED) System, Defense

Advanced Global Positioning System (GPS) Receiver (DAGR), and a Weapon Platform Station (WPS). The

inclusion of the Rapid Ordnance Removal System (RORS) and the Surface Mine Plow (SMP) as part of the

Front End Equipment (FEE) will be addressed at a later date. The ABV is assigned to and employed by the

Combat Engineer Battalion (CEB) as part of a synchronized operation to rapidly breach obstacles and create

lanes for the MAGTF.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

63-Ton

Weight:

63-Ton

Width:

144 in., 179 in. with LMS

Width:

144 in., 179 in. with LMS

deployed

Length:

312 in., 486 in. with FWMP

Length:

312 in., 486 in. with FWMP

Height:

115 in.

Height:

115 in.

Cube:

3,363 ft

Cube:

3,363 ft

Square Stowage:

358 ft

Square Stowage:

358 ft

Replaced Item(s)

N/A

Transportability

Transportation shall be in accordance with MCO P4600.7, “Marine Corps

Transportation Manual” and the Defense Transportation Regulation, DoD 4500.9.

The ABV is transportable by road, rail, air, and ship

Associated TAMCN(s)

E09847M, B0161, B0162, B0044

2-52

TM 11275-15/3D

BUCKET, CLAMSHELL

TAMCN: B0171

TC-340

National Stock Number/ID Number

3815-01-551-5938

09198B

DESCRIPTION AND FUNCTION

The Bucket, Clamshell is hydraulically operated and capable of working at, above and below ground level. It

is capable of digging loose to medium type soils and suitable for excavating vertical shafts or footings, filling bins

or hoppers, and unloading aggregate from flat bottom gondola railroad cars. The Bucket, Clamshell is used on

the All Terrain Crane MAC-50 (TAMCN B0038).

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

Terex Corporation

Length (in.):

75 in.

Model:

KM602

Width (in.):

39 in.

Height (in.):

42 in.

Square Stowage:

21 sq ft

Cube Stowage:

71 cu ft

Weight (lb):

2,700 lb

Replaced Item(s)

NSN: 3815-01-291-9224

Transportability

Item can be transported on MTVR vehicle

Associated TAMCN(s)

B0038

2-53

TM 11275-15/3D

BUCKET, CONCRETE

TAMCN: B0176

National Stock Number/ID Number

3815-01-291-9223

09197A

TC-312

DESCRIPTION AND FUNCTION

The Bucket, Concrete is an upright type that can be used on any crane with at least one drum and sufficient

capacity to handle the bucket with wet concrete loads of approximately 3,550 pounds. All welded construction is

designed to handle concrete of normal slump mixtures. Discharge gates can be operated by one man and dis-

charge of load can be controlled by the operator. The Bucket, Concrete is used on the Crane, High Speed, High

Mobility (TAMCN B0043).

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer: PPM Cranes Inc. & Anvil Attachments, LLC

Length (in.):

48 in.

Model:

P88048

Width (in.):

48 in.

Height (in.):

65 in.

Square Stowage:

16 sq ft

Cube Stowage:

87 cu ft

Weight (lb):

700 lb

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-54

TM 11275-15/3D

ROUGH TERRAIN CONTAINER HANDLER (RTCH) VEHICLE

TAMCN: B0391

TC-014

National Stock Number/ID Number

3930-01-082-3758

08758A

3930-01-269-4938

09117A

DESCRIPTION AND FUNCTION

The Rough Terrain Container Handler (RTCH) is a diesel-powered, all-wheel drive, articulated steer con-

tainer (8 x 8 x 20 foot ISO/ANSI container module) handler with a lift capacity of 50,000 lb (22,280 kg). It has a

fording capacity of 60 inches and capable of operating in rough terrain. The primary purpose of this vehicle is to

lift, move stack or unstack containers. The top handler is shipped separately.

TECHNICAL DESCRIPTION

Manufacturer:

Caterpillar

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

ID (09117A)

ID (08758A)

Weight:

103,730 lb (47,051 kg)

Weight:

103,230 lb (4,682 kg)

Width:

138 in. (350 cm)

Width:

140 in. (356 cm)

Length:

420 in. (1,067 cm)

Length:

423 in. (1,074 cm)

Height:

166 in. (422 cm)

Height:

167 in. (424 cm)

Cube:

5,507.9 ft³(156 m³)

Cube:

5,723.2 ft³ (162.06 m³)

Square Stowage:

402.5 ft² (37.39 m²)

Square Stowage:

411.3 ft² (38.21 m²)

Capacity

Fuel Consumption:

9.5 gph

Lift Capacity:

50,000 lb

Replaced Item(s)

N/A

Transportability

Rail, highway, marine

Associated TAMCN(s)

N/A

*Top handler: 3,960 lb (1,796 kg) 94.5 x 238.3 x 18.6 in. (240 x 605 x 47 cm)

2-55

TM 11275-15/3D

ROUGH TERRAIN CONTAINER HANDLER (RTCH), KALMAR

TAMCN: B0392

TC-341

National Stock Number/ID Number

3930-01-522-7364

11078A

DESCRIPTION AND FUNCTION

The RTCH-RT 240 is designed to lift, move, stack, or unstuck 20 to 40 ft (6.10 to 12.19 m) by 8 ft (2.44 m)

wide ISO containers. The RTCH-RT 240 has a lift capacity of 53,000 lb (24,040 kg) and operates on hard and/

or unimproved surfaces, including beach operations.

TECHNICAL DESCRIPTION

Manufacturer:

Kalmar

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

118,000 lb (53,524 kg)

Weight:

118,000 lb (53,524 kg)

Width:

143.7 in. (365 cm)

Width:

143.7 in. (365 cm)

Length:

452.4 in. (1,149 cm)

Length:

590.4 in. (1,499.6 cm)

Height:

157.5 in. (400 cm)

Height:

117.6 in. (298.7 cm)

Operational Traveling Cube:

7630 ft³ (216 m³)

Cube:

5773.8 ft³ (163.5 m³)

Square Stowage:

451.4 ft²(41.9 m²)

Square Stowage:

589 ft² (54.7 m²)

Capacity

Fuel Consumption per Hour:

9.5 gph

Lift Capacity:

53,000 lb

Replaced Item(s)

B0391

Transportability

Rail, air (C-5 and C-17), ship, and highway (tractor-trailer x 2)

Associated TAMCN(s)

J0002 Breakout Cable Kits

2-56

TM 11275-15/3D

AIR COMPRESSOR WITH PNEUMATIC TOOLS

TAMCN: B0395

National Stock Number/ID Number

4310-01-498-8886

08917B

TC-015

DESCRIPTION AND FUNCTION

The portable air compressor is a trailer mounted unit which will furnish compressed air at the rate of 260

CFM at a pressure of 100 psi. It is designed to run at its rated capacity under adverse conditions of heat, cold,

rain and dust, and will operate pneumatic tools as well as provide compressed air for bridging and bulk fuel oper-

ations. The compressor is used by Combat Engineers Battalion, Engineer Support Battalion, Artillery Regiment,

Ground Combat Support and Marine Aircraft Wing units. Pneumatic tools are components (SL-3 items) of the

compressor unit.

OPERATING AND SHIPPING DATA

Manufacturer:

Doosan Infracore

International

(Ingersoll Rand)

Operating Mode

Shipping Mode

Weight:

7,300 lb (3,311 kg)

Weight:

7,300 lb (3,311 kg)

Width:

96 in. (244 cm)

Width:

96 in. (244 cm)

Length:

202 in. (513 cm)

Length:

202 in. (513 cm)

Height:

75 in. (190 cm)

Height:

75 in. (190 cm)

Cube:

841.7 ft³ (23.83 m³)

Cube:

841.7 ft³ (23.83 m³)

Square Stowage:

134.7 ft² (12.51 m²)

Square Stowage:

134.7 ft² (12.51 m²)

Capacity

Fuel Consumption per hour:

6 gph

Replaced Item(s)

250 CFM Air Compressor

Transportability

Rail, highway, ship

Associated TAMCN(s)

N/A

2-57

TM 11275-15/3D

HIGH SPEED, HIGH MOBILITY, (HSHM) CRANE

TAMCN: B0443

TC-350

National Stock Number/ID Number

3810-01-268-1737 (w/o Pile Driver Capability)

09109A

3810-01-320-1920

09109B

DESCRIPTION AND FUNCTION

The High Speed, High Mobility (HSHM) Crane (NSN: 3810-01-268-1737) is a diesel-powered, rubber-tired

crane with a hydraulic boom. It is capable of all general crane operations, clamshell, container handling and

general lifting up to 50,000 pounds. It is capable of operating over rough terrain. The Heavy Crane attachments

include: Bucket, Concrete (TAMCN: B0176) and Bucket, Clamshell (TAMCN: B0171).

TECHNICAL DESCRIPTION

Manufacturer:

P&H Crane

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

69,825 lb (31,672 kg)

Weight:

69,825 lb (31,672 kg)

Width:

102 in. (259 cm)

Width:

102 in. (259 cm)

Length:

499.8 in. (1,269 cm)

Length:

499.8 in. (1,269 cm)

Height:

136.9 in. (348 cm)

Height:

136.9 in. (348 cm)

Cube:

4,097.8 ft³ (116.04 m³)

Cube:

4,097.8 ft³ (116.04 m³)

Square Stowage:

354 ft² (32.89 m²)

Square Stowage:

354 ft² (32.89 m²)

Capacity

Fuel Consumption per Hour:

7 gph

Lift Capacity:

50,000 lb

Replaced Item(s)

30 Ton Drott Crane

Transportability

Air, rail, and highway transportable. Can utilize M870 trailer to transport

Associated TAMCN(s)

B0176, B0171, U0004

2-58

TM 11275-15/3D

ROUGH TERRAIN AIR MOBILE CRANE (AMC)

TAMCN: B0446

TC-219

National Stock Number/ID Number

3810-01-165-0646

09166A

3810-01-516-9718

09166B

DESCRIPTION AND FUNCTION

The Mobile Air Crane, is an air transportable, diesel-powered, rubber-tired, four-wheel drive, four-wheel

steer, 7.5-Ton capacity, hydraulically operated crane. It performs general material handling, construction tasks,

and aviation support. It is capable of operating in or over unimproved areas and rough terrain. The attachment

is the Maintenance Platform, Air Mobile Crane (TAMCN B1300).

TECHNICAL DESCRIPTION

Manufacturer:

Terex

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

24,230 lb (10,991 kg)

Weight:

24,230 lb (10,991 kg)

Width:

96 in. (183 cm)

Width:

96 in. (183 cm)

Length:

308.2 in. (782 cm)

Length:

308.2 in. (782 cm)

Height:

92.5 in. (235 cm)

Height:

92.5 in. (235 cm)

Cube:

1,584 ft³ (34.0 m³)

Cube:

1,584 ft³ (34.0 m³)

Square Stowage:

205 ft² (14.2 m²)

Square Stowage:

205 ft² (14.2 m²)

Capacity

Fuel Consumption per Hour:

4 gph

Lift Capacity:

7.5-Ton

Replaced Item(s)

N/A

Transportability

Air transportable

Associated TAMCN(s)

B1300, U0005

2-59

TM 11275-15/3D

SQUAD DEMOLITION KIT (SDK)

TAMCN: B0471

TC-239

National Stock Number/ID Number

1375-01-468-4400

00482B

DESCRIPTION AND FUNCTION

The Squad Demolition Kit (SDK) consists of tools and equipment that enable Marines to conduct demolition

operations. It includes crimpers, wire reels, pelican case, bandoleers, backpack, electrical circuit test equipment,

and blasting machines. This kit also includes the MK-152 Remote Control Firing Device to give the capability of

remotely firing electrical blasting caps at a nominal range of 2 to 5 kilometers.

OPERATING AND SHIPPING DATA

Shipping Mode

Weight:

80 lb (36.3 kg)

Height:

13 in. (33 cm)

Width:

18 in. (46 cm)

Cube:

4.47 ft³ (0.13 m³)

Length:

33 in. (84 cm)

Square Stowage:

4.1 ft² (0.38 m²)

For components see TM 11482A-10

Replaced Item(s)

N/A

Transportability

Man Portable

Associated TAMCN(s)

E03592E

2-60

TM 11275-15/3D

DEMOLITION EQUIPMENT SET

TAMCN: B0472

National Stock Number/ID Number

1385-00-212-4591

01518A

TC-108

DESCRIPTION AND FUNCTION

The Demolition Equipment Set is for use by individual demolitionists. It consists of tools, accessories, and

specially designed containers and carrying attachments, less explosives, for performing demolition tasks.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

7 lb (3 kg)

Width:

Varies

Width:

9.1 in. (23 cm)

Length:

Varies

Length:

10.5 in. (27 cm)

Height:

Varies

Height:

7.5 in. (19 cm)

Cube:

Varies

Cube:

.4 ft³ (0.01 m³)

Square Stowage:

Varies

Square Stowage:

.7 ft² (0.07 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-61

TM 11275-15/3D

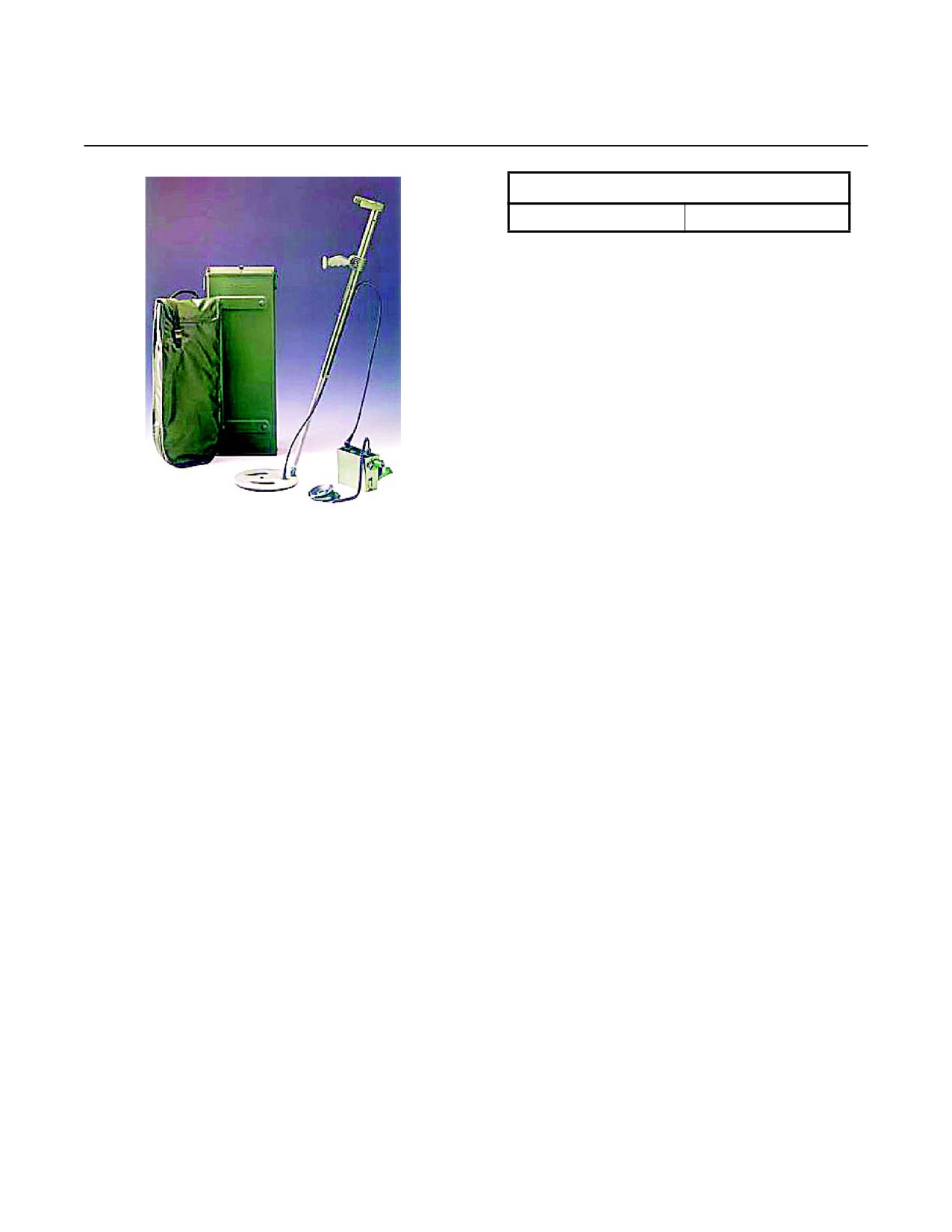

MINE DETECTOR, AN/PSS-12

TAMCN: B0475

National Stock Number/ID Number

6665-21-906-1023

03701E

TC-342

DESCRIPTION AND FUNCTION

The AN/PSS-12 Mine Detector is a man-portable metallic mine-detection system that is used to detect Anti-

Personnel land mines. The AN/PSS-12 is designed to detect mines with very small proportions of metal content

above ground and beneath the surface of fresh or salt water. Its compact, lightweight frame, makes the AN/PSS-

12 ideal for fast and accurate terrain reconnaissance.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

8.5 lb (3.8 kg)

Weight:

13.7 lb (6.2 kg)

Width:

10.5 in. (26.67 cm)

Width:

12.4 in. (32 cm)

Length:

63 in. (160.0 cm)

Length:

31.6 in. (80.26 cm)

Height:

5.8 in. (14.73 cm)

Height:

4.9 in. (12.45 cm)

Cube:

1.11 ft³ (0.031 m³)

Square Stowage:

2.72 ft²(0.253 m²)

Power Requirements: Four (4) 1.5V (D cell) batteries

Replaced Item(s)

AN/PSS-11

Transportability

Man-portable

Associated TAMCN(s)

N/A

2-62

TM 11275-15/3D

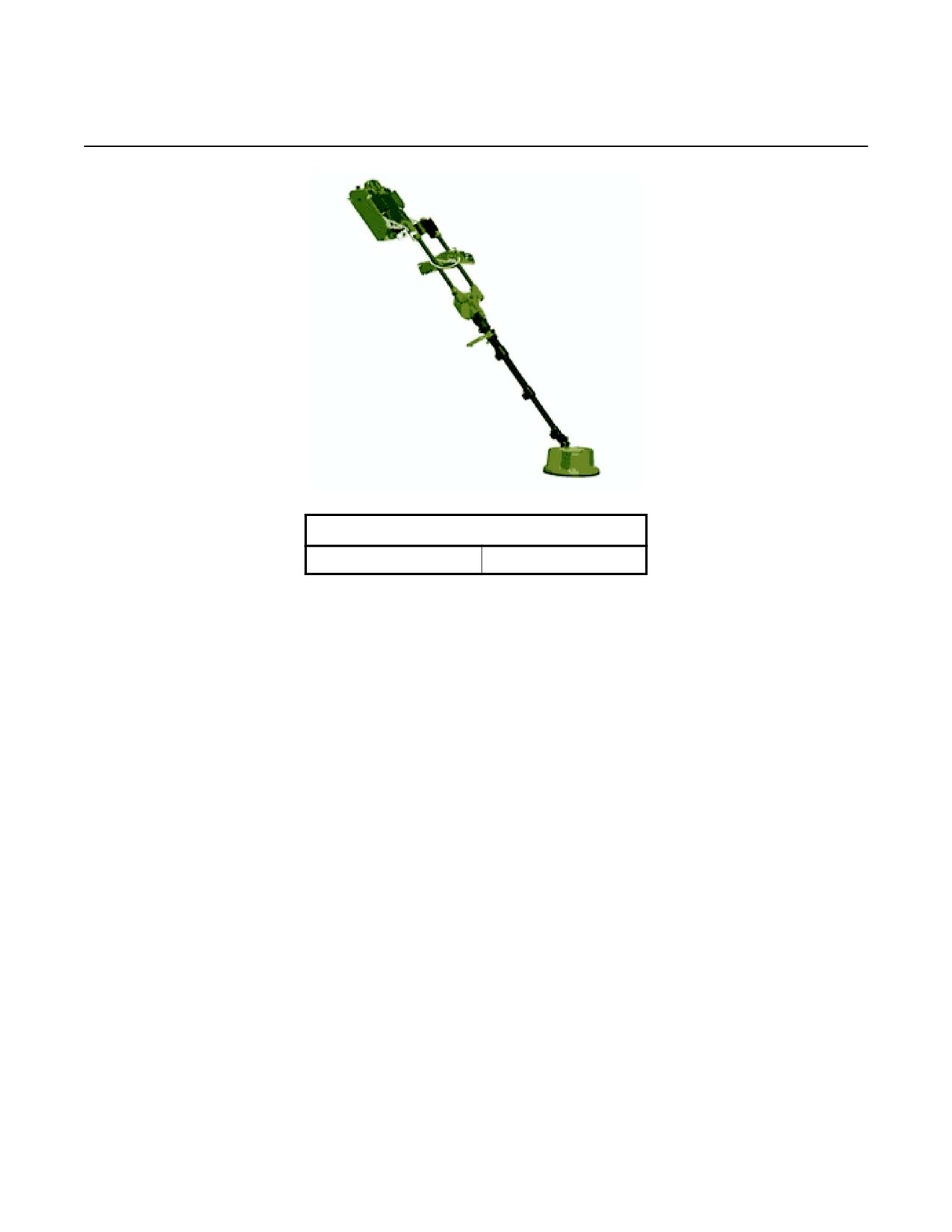

ADVANCED MINE DETECTOR, AN/PSS-14

TAMCN: B0476

TC-228

National Stock Number/ID Number

6665-01-527-4643

11001B

DESCRIPTION AND FUNCTION

The Handheld Standoff Mine Detection Systems (HSTAMIDS), AN/PSS-14 is a man-portable mine detector

that enables the accurate detection of anti-tank and anti-personnel, metallic and non-metallic mines and Unex-

ploded Ordnance (UXO). It comes with Through-the Wall detection capabilities.

TECHNICAL DESCRIPTION

Manufacturer:

L3/Cyterra

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

10.8 lb (4.8 kg)

Weight:

28.8 lb (13.0 kg)

Width:

8.0 in. (20.32 cm)

Width:

19.0 in. (48.26cm)

Length:

62.0 in. (157.48 cm)

Length:

13.0 in. (20.32 cm)

Height:

6.0 in. (15.24 cm)

Height:

8.0 in. (20.32 cm)

Cube:

1.72 ft³

Cube:

3.69 ft³

Square Stowage:

3.0 ft² (0.9144 m)

Square Stowage:

1.0 ft² (0.3048 m)

Capacity

Fuel Consumption per Hour:

N/A

Lift Capacity:

N/A

Replaced Item(s)

AN/PSS-12

Transportability

Man transportable /HMMWV

Associated TAMCN(s)

N/A

2-63

TM 11275-15/3D

FIXED DRAWBAR ATTACHMENT

TAMCN: B0525

National Stock Number/ID Number

2590-01-155-1586

06536B

TC-020

DESCRIPTION AND FUNCTION

The Rear Mounted Drawbar Attachment is mounted on the rear of the Medium, Full-Tracked Tractor,

(TAMCN B2462, pg. 2-158) and serves as a towing hitch for artillery pieces, heavy duty cargo trailers, and towed

earthmoving equipment.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

406 lb (184 kg)

Weight:

406 lb (184 kg)

Width:

14 in. (36 cm)

Width:

14 in. (36 cm)

Length:

27 in. (69 cm)

Length:

27 in. (69 cm)

Height:

30 in. (76 cm)

Height:

30 in. (76 cm)

Cube:

6.6 ft³ (0.19 m³)

Cube:

6.6 ft³ (0.19 m³)

Square Stowage:

2.6 ft² (0.24 m²)

Square Stowage:

2.6 ft²(0.24 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B2462

2-64

TM 11275-15/3D

COLLAPSIBLE COATED-FABRIC FUEL DRUM

TAMCN: B0570

National Stock Number/ID Number

8110-00-965-2313

04486B

TC-021

DESCRIPTION AND FUNCTION

The Collapsible Coated-Fabric Fuel Drum is a durable, non-vented hermetically sealed, collapsible coated-

fabric container used to store and transport aviation turbine fuels, gasolines, and other bulk petroleum products.

It is designed for use with the Helicopter Expedient Refueling System (HERS) (TAMCN B1135, pg. 2-102) and

associated with the Expedient Refueling System (ERS) (TAMCN B1570, pg. 2-111). It is cylindrical when filled to

capacity. Yoke, Towing and Lifting (TAMCN B2730, pg. 2-175) is required if the drum is to be towed or lifted.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

3,235 lb (Full) (1,467 kg)

Weight:

365 lb (Empty) (165 kg)

Width:

47 in. (119 cm)

Width:

42 in. (107 cm)

Length:

80 in. (203 cm)

Length:

80 in. (203 cm)

Height:

15 in. (38 cm)

Cube:

69.6 ft³ (1.97 m³)

Cube:

29.2 ft³ (0.83 m³)

Square Stowage:

26.1 ft² (2.42 m²)

Square Stowage:

23.3 ft² (2.16 m²)

Replaced Item(s)

N/A

Transportability

MTVR, Sling Lift, LVSR

Associated TAMCN(s)

B1135, B1570, B2730

2-65

TM 11275-15/3D

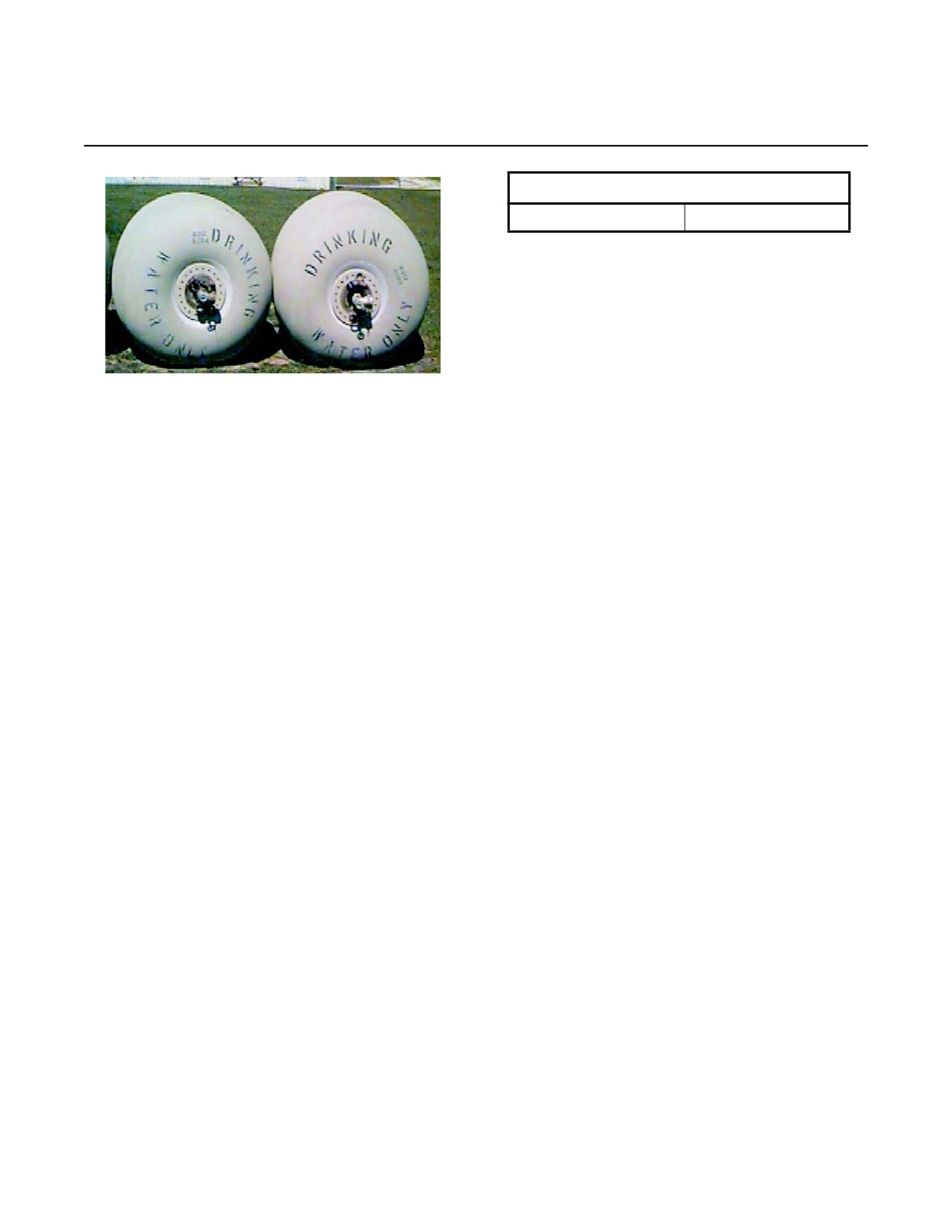

500 GALLON COLLAPSIBLE COATED-FABRIC POTABLE WATER DRUM

TAMCN: B0571

National Stock Number/ID Number

8110-01-122-0015

08935A

TC-022

DESCRIPTION AND FUNCTION

The 500 Gallon Collapsible Potable Water Drum is a durable non-vented, hermetically sealed, collapsible

fabric container used to store and transport drinking water. It is cylindrical when filled to capacity. It is designed

for use with the Forward Area Water Point Supply System FAWPSS (B0676, pg. 2-81). The drum is fitted with

two 2-inch cam-lock type filler/discharge ports and may be folded for storage. Yoke, towing and lifting (TAMCN

B2730, pg. 2-175) is required if the drum is to be towed or lifted. This equipment is associated with the FAWPSS

(B0676, pg. 2-81).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

4,645 lb (2,106 kg)

Weight:

365 lb (165 kg)

Width:

47 in.* (119 cm)

Width:

46 in. (117 cm)

Length:

80 in. (203 cm)

Length:

94 in. (239 cm)

Height:

32 in. (81 cm)

Height:

45 in. (114 cm)

Cube:

69.6 ft³ (1.97 m³)

Cube:

113 ft³ (3.20 m³)

Square Stowage:

26.1 ft² (2.42 m²)

Square Stowage:

30 ft² (2.79 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0676, B2730

* Diameter

2-66

TM 11275-15/3D

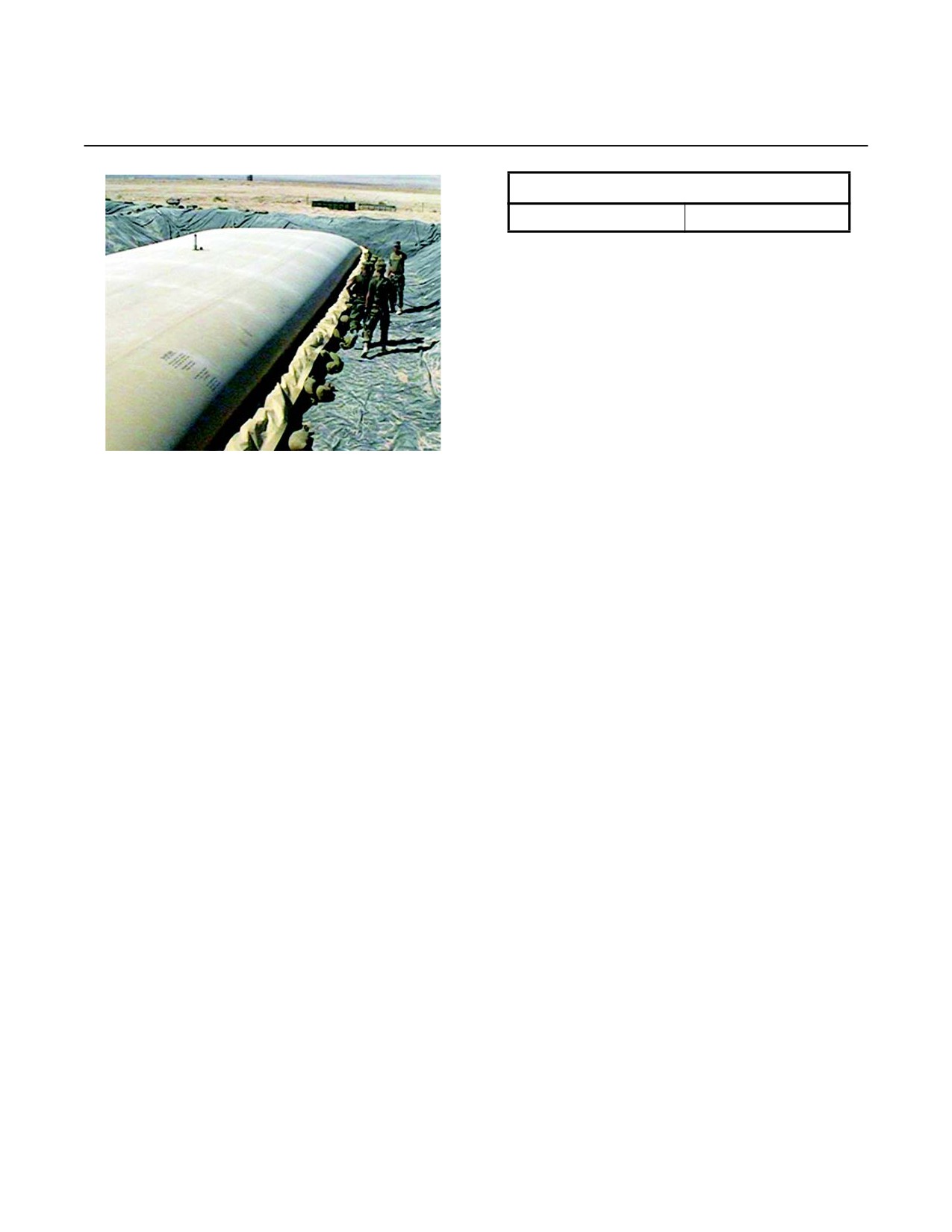

50,000 GALLON COLLAPSIBLE, COATED-FABRIC, FUEL TANK ASSEMBLY

TAMCN: B0572

National Stock Number/ID Number

5430-01-479-5116

10761A

TC-023

DESCRIPTION AND FUNCTION

The 50,000 Gallon Collapsible Tank is constructed of impregnated fabric and equipped with 4-inch elbow

hose connections for storage of bulk petroleum products. The 50,000 Gallon Collapsible Coated-Fabric, Fuel

Tank assembly includes an aluminum tank chest, ground cloth, emergency repair kit, and required components

for venting and draining. This assembly is designed for use with the Tactical Airfield Fuel Dispensing Sys-

tem (TAFDS) B0675, pg. 2-80) and the Amphibious Assault Fuel System (AAFS) (TAMCN B0685, pg. 2-82).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

1,640 lb (743 kg)

Width:

24.83 ft (7.57 m)

Width:

45 in. (114 cm)

Length:

64.5 ft (19.66 m)

Length:

94 in. (239 cm)

Height:

4.83 ft (1.47 m)

Height:

45 in. (114 cm)

Cube:

Varies

Cube:

113 ft³ (3.20 m³)

Square Stowage:

Varies

Square Stowage:

30 ft² (2.79 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0685, B0675

2-67

TM 11275-15/3D

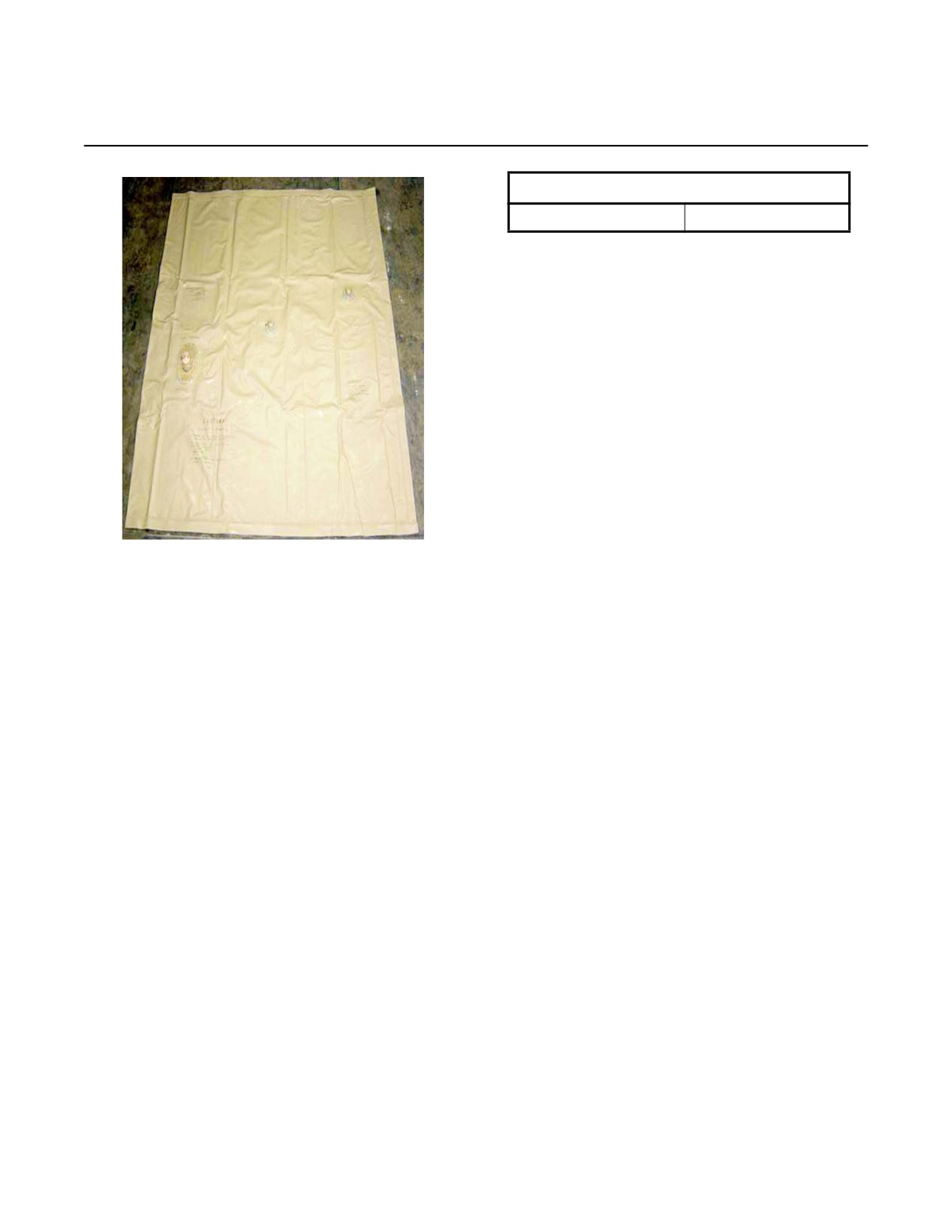

3,000 GALLON COLLAPSIBLE, COATED-FABRIC, FUEL TANK ASSEMBLY

TAMCN: B0573

National Stock Number/ID Number

5430-01-485-0103

10803A

TC-024

DESCRIPTION AND FUNCTION

The 3,000 Gallon Collapsible Tank is constructed of impregnated fabric and equipped with 2-inch and 4-inch

elbow hose connections for storage of bulk petroleum products. The 3,000 Gallon Collapsible Tank assembly

includes a ground cloth, emergency repair kit, and required components for venting and draining. This assembly

is designed for use with the Helicopter Expedient Refueling System (HERS) (TAMCN B1135, pg. 2-102) and

associated with the Expedient Refueling System (ERS) (TAMCN B1570, pg. 2-111).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

617 lb (Empty)

Width:

14 ft (4.27 m)

Width:

47 in. (119 cm)

Length:

14 ft (4.27 m)

Length:

73 in. (185 cm)

Height:

34 in. (86 cm)

Height:

21 in. (53 cm)

Cube:

Varies

Cube:

42 ft³ (1.19 m³)

Square Stowage:

Varies

Square Stowage:

24 ft² (2.23 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B1135

2-68

TM 11275-15/3D

20,000 GALLON COLLAPSIBLE, COATED-FABRIC, FUEL TANK ASSEMBLY

TAMCN: B0574

National Stock Number/ID Number

5430-01-058-6293

08106A

TC-025

DESCRIPTION AND FUNCTION

The 20,000 Gallon Collapsible Tank is constructed of impregnated fabric and equipped with 4-inch elbow

hose connections for storage of bulk petroleum products. The 20,000 Gallon Collapsible Tank assembly

includes an aluminum tank chest, a ground cloth, emergency repair kit, and required components for venting

and draining. This assembly is designed for use with the Tactical Airfield Fuel Dispensing System (TAFDS)

(TAMCN B0675, pg. 2-80) and the Amphibious Assault Fuel System (AAFS) (TAMCN B0685, pg. 2-82).

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

Varies

Weight:

1,100 lb (499 kg)

Width:

Varies

Width:

31 in. (79 cm)

Length:

Varies

Length:

138 in. (351 cm)

Height:

Varies

Height:

18 in. (46 cm)

Cube:

Varies

Cube:

45 ft³ (1.27 m³)

Square Stowage:

Varies

Square Stowage:

30 ft² (2.70 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

B0685, B0675

2-69

TM 11275-15/3D

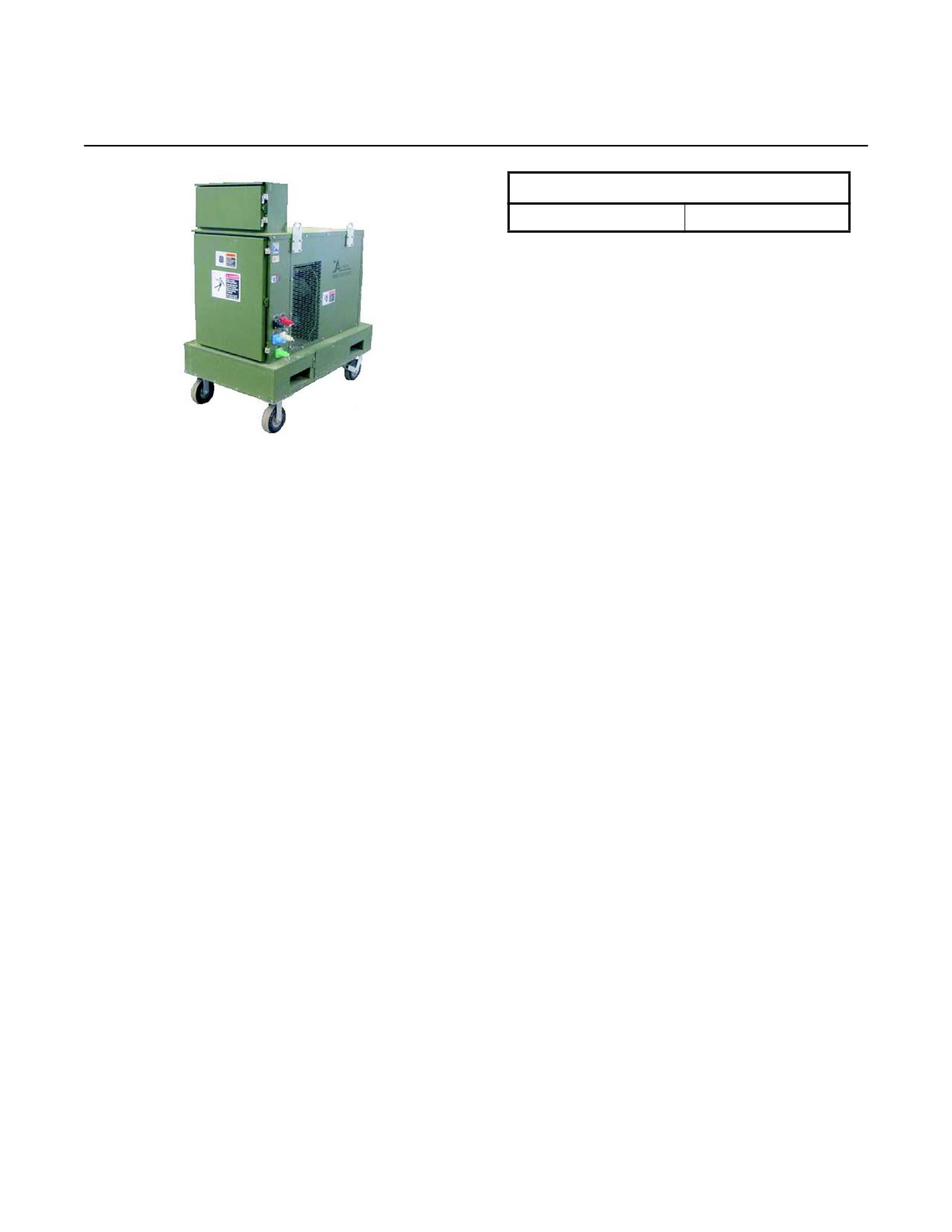

DUMMY LOAD, GENERATOR SET, 100 KW

TAMCN: B0579

National Stock Number/ID Number

5985-00-471-0223

07500A

TC-343

DESCRIPTION AND FUNCTION

The new 100 kW Load Bank is a modified COTS item that is being purchased to replace the aging legacy

Load Bank/Dummy Load (TAMCN B0579). The Load Bank consists of a rugged, weather-proof enclosure con-

taining banks of resistors that can be connected to a generator to simulate a load. They will be used outdoors

throughout all theaters of operations by Marine Corps aviation and ground equipment maintenance units for pre-

ventive and corrective maintenance, exercise and testing of various size mobile tactical generators.

TECHNICAL DESCRIPTION

Set

Dimensions

Manufacturer:

Avtron Inc.

Length (in.):

55.4

Model:

LSH100D42423

Width (in.):

33.1

Volts:

120/208 VAC or 240/416 VAC

Height (in.):

63.1

Frequency (Hz):

50/60/400

Weight (lb):

856

Phase:

Temperature Range

Loading Ability

Variable, 3-phase

Operating:

-40° F to 131°F

2 kW to 100 kW Resistive Load

Storage:

-40° F to 160°F

Fan Blower, Air-cooled

Replaced Item(s)

DE1-0001, TAMCN B0579, ID # 07500B

Transportability

USMC M116A3 trailer and the LTT-MCC trailer

Associated TAMCN(s)

N/A

2-70

TM 11275-15/3D

DUMMY LOAD, GENERATOR SET, 100 KW

TAMCN: B0579

National Stock Number/ID Number

6150-01-306-2943

07500B

TC-504

DESCRIPTION AND FUNCTION

The Dummy Load, Generator Set, 100kW provides electrical load simulating capabilities for maintenance

and operational evaluation of mobile electrical power sources. It is a self-contained, air-cooled, skid-mounted

unit, suitable for indoor and outdoor use. The unit contains all instruments, controls, and power loads for testing

AC generators. The unit is capable of being trailer mounted.

TECHNICAL DESCRIPTION

Set

Dimensions

Manufacturer:

Bruce Industries

Length (in.):

52.25

Model:

DE1-0001

Width (in.):

Volts:

120/208/240/416

Height (in.):

41.75

Frequency (Hz):

60/400

Weight (lb):

807

Phase:

Volume (ft³):

Loading Ability

Variable, 3-phase

Temperature Range

100kW resistive

Operating:

-40° F to +131°F

load, air-cooled.

Storage:

-76° F to +160°F

Replaced Item(s)

B0579, A578 Load Bank, ID 07500, NSN: 6150-01-471-0223

Transportability

N/A

Associated TAMCN(s)

All variants of the USMC M116 trailer and the LTT-MCC trailer.

2-71

TM 11275-15/3D

M9 ACE ARMORED COMBAT EARTHMOVER

TAMCN: B0589

TC-344

National Stock Number/ID Number

2350-00-808-7100

09599A

DESCRIPTION AND FUNCTION

The M9 ACE is a tracked, highly mobile, armored earthmover capable of supporting the maneuver element

in offensive and defensive operations. It accomplishes critical combat engineer tasks such as preparing hull def-

ilade fighting positions for guns and tanks, and preparing protected positions for other critical battlefield systems

to increase their survivability. The M9 ACE will prepare combat roads, remove roadblocks and other obstacles,

and prepare access routes at water obstacles. It also performs countermobility tasks such as preparing antitank

ditches. The M9 ACE requires a single operator and can attain a speed of 30 mph on land. The system is config-

ured for on and off-loading in C130 and C5 aircraft.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

54,000 lb (ballasted) (24,494 kg)

Weight:

36,000 lb (travel mode) (16,329 kg)

Width:

126 in. (w/extensions) (320 cm)

Width:

110 in. (w/o extensions) (280 cm)

Length:

246 in. (625 cm)

Length:

246 in. (625 cm)

Height:

107 in. (windshield stowed) (272 cm)

Height:

96 in. (reducible) (244 cm)

Cube:

1,919 ft³(54.34 m³)

Cube:

1,503 ft³ (42.56 m³)

Square

215 ft² (19.97 m²)

188 ft² (17.47 m²)

Storage:

Stowage:

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-72

TM 11275-15/3D

MOBILE ELECTRIC POWER DISTRIBUTION, 15 KW PANEL

TAMCN: B0595

National Stock Number/ID Number

6110-01-273-2387

09127A

TC-273

DESCRIPTION AND FUNCTION

The 15 kW Power Distribution System is a skid-mounted unit used in combination to provide a network of

multiple 120/208V, 1-Phase loads and 120V, 1-Phase loads from a remote generator or facility power. Circuit

breakers are accessed through a hinged cabinet cover and input/output receptacles are covered. Cables inter-

connect the individual power distribution panel board assemblies. All assemblies consist of a box and frame

assembly and a cover assembly. It is equipped with a circuit board assembly, indicator lights, and input/output

receptacles. It includes one input and two output cables.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

UNICOR

Length (in.):

Model:

PD015

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

Phase:

Volume (ft³):

4.0

Technical Data

Input:

5-Wire, 3-Phase, 60 Amp Main Breaker

Output:

Two (2) - 3-Phase, 20 Amp, 208/120VAC

Nine (9) - 1-Phase, 20 Amp, 120VAC

Cords:

1 - Input/2 - Output

Replaced Item(s)

N/A

Transportability

Two Handle, Man Portable

Associated TAMCN(s)

N/A

2-73

TM 11275-15/3D

MOBILE ELECTRIC POWER DISTRIBUTION, 30 KW PANEL

TAMCN: B0600

National Stock Number/ID Number

6110-01-272-6953

09125A

TC-274

DESCRIPTION AND FUNCTION

The 30 kW Power Distribution System is a skid-mounted unit used in combination to provide electrical power to

a network of multiple 120/208V, 1-Phase loads and 120V, 1-Phase loads from a remote generator or facility power.

Circuit breakers are accessed through a hinged cabinet cover and input/output receptacles are covered. Cables

interconnect the individual power distribution panel board assemblies. All assemblies consist of a box, a frame

assembly, and a cover assembly. It is equipped with a circuit breaker, rear access door assemblies, and front and

rear receptacles. This set includes one input and nine output cables, and an eyebolt for lifting.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

UNICOR

Length (in.):

Model:

PD030

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

161

Phase:

Volume (ft³):

24.63

Technical Data

Input:

5-Wire, 3-Phase, 100 Amp Main Breaker

Output:

Four (4) - 3-Phase, 60 Amp, 208/120VAC

Two (2) - 3-Phase, 30 Amp, 208/120VAC

Two (2) - 3-Phase, 20 Amp, 208/120VAC

Two (2) - 1-Phase, 20 Amp, 208/120VAC

Cords:

1 - Input/9 - Output

Replaced Item(s)

N/A

Transportability

Two Handle, Man Portable

Associated TAMCN(s)

N/A

2-74

TM 11275-15/3D

MOBILE ELECTRIC POWER DISTRIBUTION, 100 KW PANEL

TAMCN: B0605

National Stock Number/ID Number

6110-01-272-6952

09124A

TC-275

DESCRIPTION AND FUNCTION

The 100 kW Power Distribution System is a skid-mounted unit used in combination to provide electric power

to a network of multiple 120/208V/1-Phase loads and 120V/1-Phase loads from a remote generator or facility

power. Circuit breakers are accessed through a hinged cabinet cover and input/output receptacles are covered.

Cables interconnect the individual power distribution panel board assemblies. All assemblies consist of a box, a

frame assembly, and a cover assembly. It is equipped with rear access door assemblies, and front and rear

panel receptacles. This set includes five input and 17 output cables, and an eyebolt for lifting.

TECHNICAL DESCRIPTION

Panel

Dimensions

Manufacturer:

UNICOR

Length (in.):

Model:

PD100

Width (in.):

Volts:

120/208

Height (in.):

Frequency (Hz):

Weight (lb):

345

Phase:

Volume (ft³):

36.94

Technical Data

Input:

5-Wire, 3-Phase, 350 Amp Main Breaker

Output:

Four (4) - 3-Phase, 100 Amp, 208/120VAC

Two (2) - 3-Phase, 60 Amp, 208/120VAC

Two (2) - 3-Phase, 30 Amp, 208/120VAC

Two (2) - 3-Phase, 20 Amp, 208/120VAC

Cords:

5 - Input/17 - Output

Replaced Item(s)

N/A

Transportability

Forklift Portable

Associated TAMCN(s)

N/A

2-75

TM 11275-15/3D

FIELD WIRING HARNESS

TAMCN: B0608

TC-505

National Stock Number/ID Number

6150-01-254-1666

09049A

DESCRIPTION AND FUNCTION

The Field Wiring Harness MLK-0000 provides electrical power distribution and illumination through recepta-

cle circuits/power outlets for various field unit complexes. The unit is portable and suitable for the use in indoor/

outdoor environments. Standard electrical requirements for the Field Wiring Harness are the electrical power

distribution panels. The cable assemblies are grouped into separate duffel bags and labeled as follows, “GP”

Tent 10 duffel bags, “CP” Tent 2 duffel bags and “Maintenance Tent” 1 duffel bag.

TECHNICAL CHARACTERISTICS

Unit

Dimensions

Manufacturer:

UNICOR

CP Tent Bag

Model:

MLK-0000

Length (in.):

Width (in.):

Cable Data

Height (in.):

Item #

Part #

NSN

Weight (in.):

MLK-1001

6150-01-283-7872

Volume (ft³):

MLK-1008

6150-01-283-7874

GP Tent Bag

MLK-1002

6150-01-287-3881

Length (in.):

MLK-1003

6150-01-293-7873

Width (in.):

MLK-1004

6150-01-290-1735

Height (in.):

MLK-1005

6150-01-283-8769

Weight (in.):

MLK-1010

6150-01-283-8735

Volume (ft³):

MLK-1009

6150-01-283-8741

MT Tent Bag

MLK-1005

6150-01-283-7901

Length (in.):

MLK-1006

6150-01-283-8734

Width (in.):

Height (in.):

Weight (in.):

Volume (ft³):

Replaced Item(s)

N/A

Transportability

Transported with supported shelter

Associated TAMCN(s)

N/A

Note: Refer to SL-3 09049A for new Cable Data/Item description as listed above

2-76

TM 11275-15/3D

COMPRESSED AIR FOAM SYSTEM-MOBILE (CAFS-M)

TAMCN: B0625

TC-039

National Stock Number/ID Number

4210-01-468-3460

10671A

DESCRIPTION AND FUNCTION

The Compressed Air Foam System-Mobile (CAFS-M) is comprised of a compressed air foam fire extinguish-

ing assembly mounted in the bed of a M1097A2 High Mobility, Multi-purpose, Wheeled Vehicle (HMMWV). This

combination provides a mobile platform for the transportation of firefighting personnel and fire extinguishing

equipment. The system produces foam (class A foams for structural; class B foams for fuel) by using a combina-

tion of water mixed with a concentrated foaming agent, which is then combined with compressed air to make

with varying consistencies. The foam consistency can be adjusted for suppression of class A to class B fires.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

10,300 lb (4,672 kg)

Weight:

10,300 lb (4,672 kg)

Width:

86.5 in. (220 cm)

Width:

86.5 in. (220 cm)

Length:

190.5 in. (484 cm)

Length:

190.5 in. (484 cm)

Height:

72 in. (183 cm)

Height:

72 in. (183 cm)

Cube:

125 ft³ (3.54 m³)

Cube:

125 ft³ (3.54 m³)

Square Stowage:

576 ft² (53.51 m²)

Square Stowage:

576 ft² (53.51 m²)

Replaced Item(s)

N/A

Transportability

N/A

Associated TAMCN(s)

N/A

2-77

TM 11275-15/3D

FIRE SUPPRESSION SYSTEM (FSS)

TAMCN: B0626

TC-040

National Stock Number/ID Number

4210-01-494-4642

10840A

DESCRIPTION AND FUNCTION

The Fire Suppression System (FSS) is comprised of a twin agent fire extinguishing assembly mounted

inside the bed of a M1097A2 High Mobility Multi-Purpose Wheeled Vehicle (HMMWV). The system consist of

80-gallons of pre-mixed Aqueous Film Forming Foam (AFFF) and 200 pounds of dry chemical (Potassium Bicar-

bonate), both fire suppressants are expelled by compressed gas through a twinned hand line and a single noz-

zle. The FSS’s mission is to provide fire suppression and fire fighting capability for class A and B type fires in

support of bulk fuel storage sites, Ammunition Supply Points (ASP), and base camp operations, and Forward

Arming and Refueling Point (FARP) missions.

OPERATING AND SHIPPING DATA

Operating Mode

Shipping Mode

Weight:

8,935 lb (4,053 kg)

Weight:

8,070 lb (3,660 kg)

Width:

86.5 in. (220 cm)

Width:

86.5 in. (220 cm)

Length:

190.5 in. (484 cm)

Length:

190.5 in. (484 cm)

Height:

72 in. (183 cm)

Height:

72 in. (183 cm)

Cube:

125 ft³ (3.54 m³)

Cube:

125 ft³ (3.54 m³)

Square Stowage:

576 ft² (53.51 m²)

Square Stowage:

576 ft² (53.51 m²)

Replaced Item(s)

B0625, Compressed Air Foam System-Mobile, by attrition

Transportability

N/A

Associated TAMCN(s)

N/A

2-78

TM 11275-15/3D

FLOODLIGHT SET, SELF-CONTAINED

TAMCN: B0640

TC-278-1

Shipping Mode

TC-278

Operating Mode

National Stock Number/ID Number

6230-01-530-8890

11120A

DESCRIPTION AND FUNCTION

The Floodlight Set (FLS) is a self-contained system with a power plant capable of providing up to five acres

of 360 degree general illumination and security use. It can also provide accessory power with at least 12 hours

of continuous operation. It has a primary tower with three mast-mounted lights and tripod-mounted ground lights

that are capable of continuous field deployment in a wide variety of environmental extremes and rough terrain.

For flexibility, the set is configured so that it can be mounted on the USMC M116A3 and LTT-MCC trailers.

TECHNICAL DESCRIPTION

Set

Fuel

Manufacturer:

Magnum LLC

Fuel Capacity:

6.5 gal. (24.61 L)

Model:

MLT5060MIT

Fuel Consumption:

0.5 gph

Volts:

120/240

Fuel Requirement:

Diesel/JP-8

Frequency (Hz):

Dimensions

Speed (RPM):

1,800

Length (in.):

79.59 (127.6 stowed)

96 with outriggers extended

Phase:

Width (in.):

(46 stowed)

Engine

Height (in.):

Manufacturer:

Mitsubishi

Weight (lb)

Model:

S3L2-W261ML

Dry:

1862 lb

Type:

4 Cycle

Wet:

1920 lb

205.14

Cylinders:

Volume (ft³):

(Mast in stowed position)

Displacement:

80.4 in.3 (1.318 L)

Aural Signature

Horsepower:

16.36 @ 1,800 RPM

Audio Rating:

85dBA

Compression:

22:1

Replaced Item(s)

Model # SM-4A3-0, TAMCN B0635

Transportability

USMC M-116A3 and LTT-MCC trailers

Associated TAMCN(s)

N/A

2-79

Military reference books and manuals (2009-2023, Volume 8) - page 35
