Military reference books and manuals (2009-2023, Volume 5)

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

Table 1-1. Support Equipment Description

EQUIPMENT

FUNCTION

ILLUSTRATION

Adapter Box Assy

Used with Rocket Motor/Ident Test Set

Box Assembly for performing CLS

P/N JCM-17683

missile electrical checks.

Adapter, Capsule

Interface between TTL

Pneumatic

Capsule/TOTEM Capsule pneumatic

coupling and pressurization equipment.

P/N 7324001-01

Adapter, Endlift,

Handle CNU-308/E Shipping Container

Container Mk 156 Mod 0

with pallet truck.

P/N 5166882

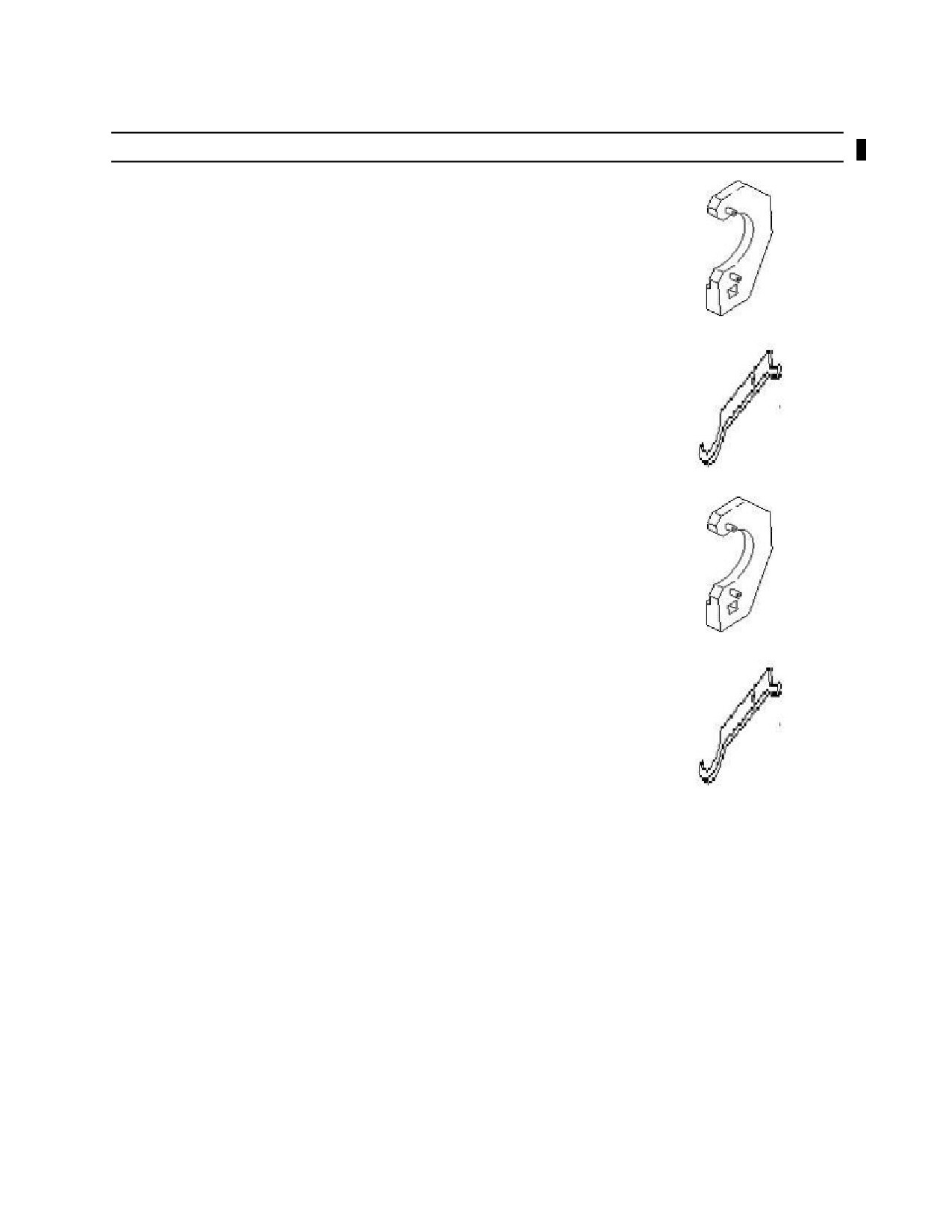

Adapter, Hook Mk 91

Use with forklift and sling to handle

Mod 0

uncontainerized TTL and Mk 10

weapons.

P/N 2643315

Adapter, Hook Mk 176

Use with forklift and sling to handle

Mod 0

uncontainerized CLS weapons.

P/N 6213621

Adapter, Missile Round

Perform VLS weapon pressure check

Pneumatic Test

and pressure service.

P/N 6242918-1

104

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Adapter, Support Cradle,

Supports forward end of CLS weapon

Forward Mk 168 Mod 0

when connected to the Mk 26

Uprighting Fixture.

P/N 5917395

Adapter, Trunnion Bearing

Attaches to CLS weapon to act as pivot

Assembly Mk 174 Mod 0

to permit transitioning between vertical

and horizontal during onload/off-load.

P/N JCM-17863

Alignment Guide, Nose

Aligns nose cover/capsule screw holes

Cover Attachment

to attach nose cover to Capsule Mk 1

Mod 0/TOTEM Capsule.

P/N 76Z7894-1

Alignment Guide, Nose

Aligns nose cover/capsule screw holes

Cover Attachment

to attach nose cover to Capsule Mk 3

Mod 0/TOTEM Capsule.

P/N 76Z7897-3

Alignment Tool, Guidance

Maintain control of the Cruise Missile

Set

Guidance Set during 109A warheading

and dewarheading.

P/N 6145719

Assembly, Chain and

Secure weapons and containers in small

Adjuster

boats.

P/N MB-1/CGU-4E

105

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

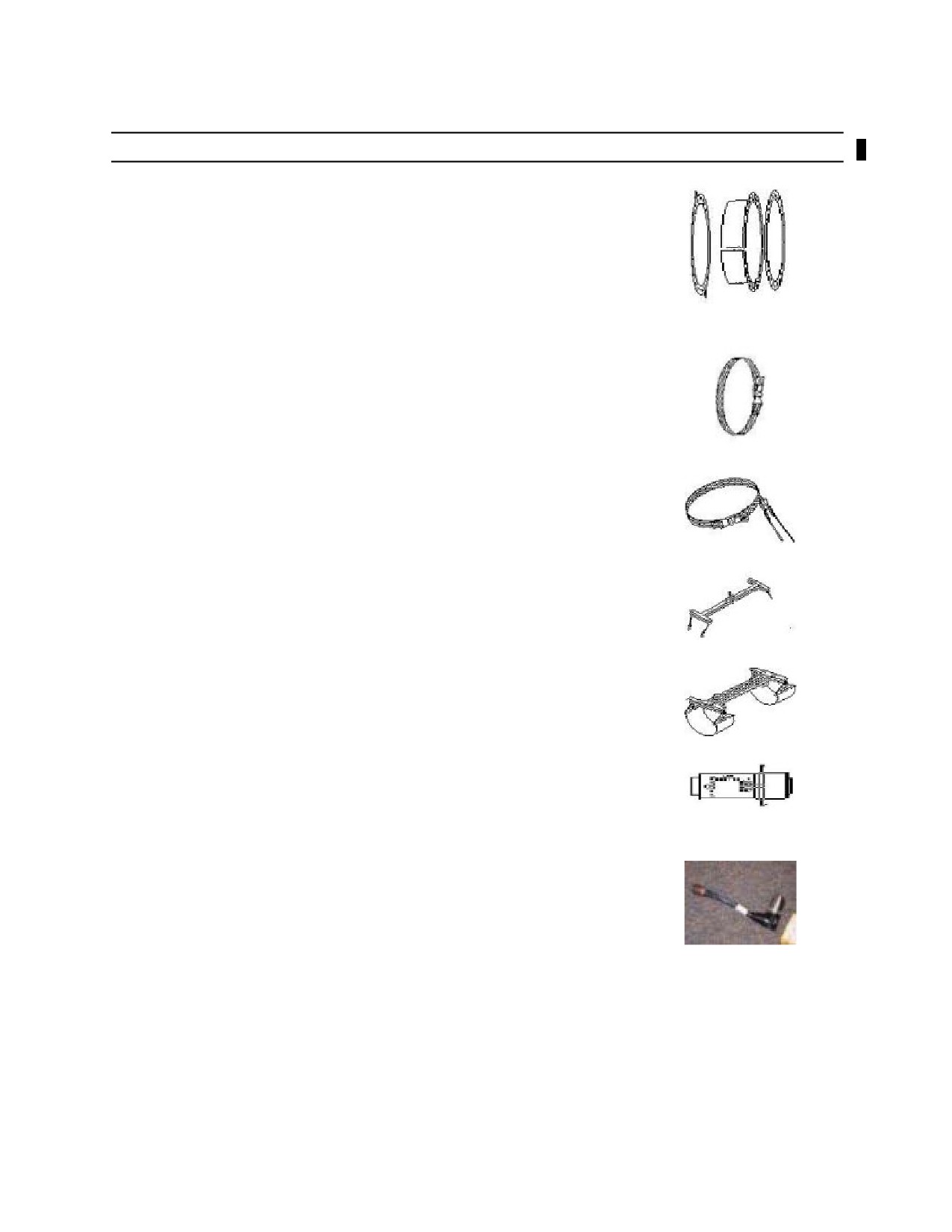

Assembly, Protective

Protect O-rings on CLS weapon.

Sleeve, O-ring

P/N 101-

5951066/4/5/50/6

(SSN 688)

P/N 7066384-71

(SSN 774)

Band, CLS,

Used with Taglines Mk 4 Mod 0 to

TOMAHAWK, Mk 90

maintain control of uncontainerized

Mod 0

CLS weapons.

P/N 5167268

Band, Mk 87 Mod 0

Used with Taglines Mk 3 Mod 0 to

maintain control of uncontainerized

P/N 5166711

TTL and Mk 10 weapons.

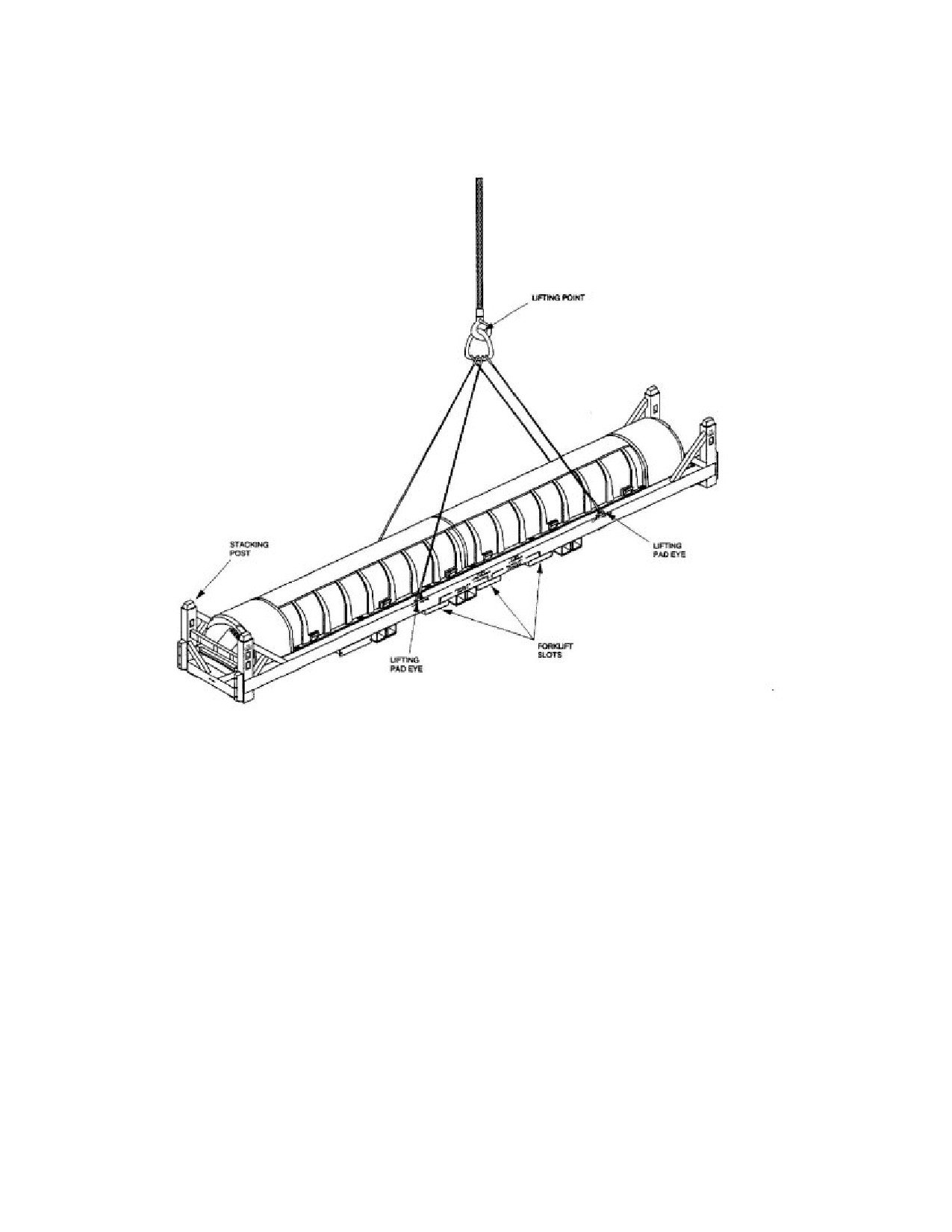

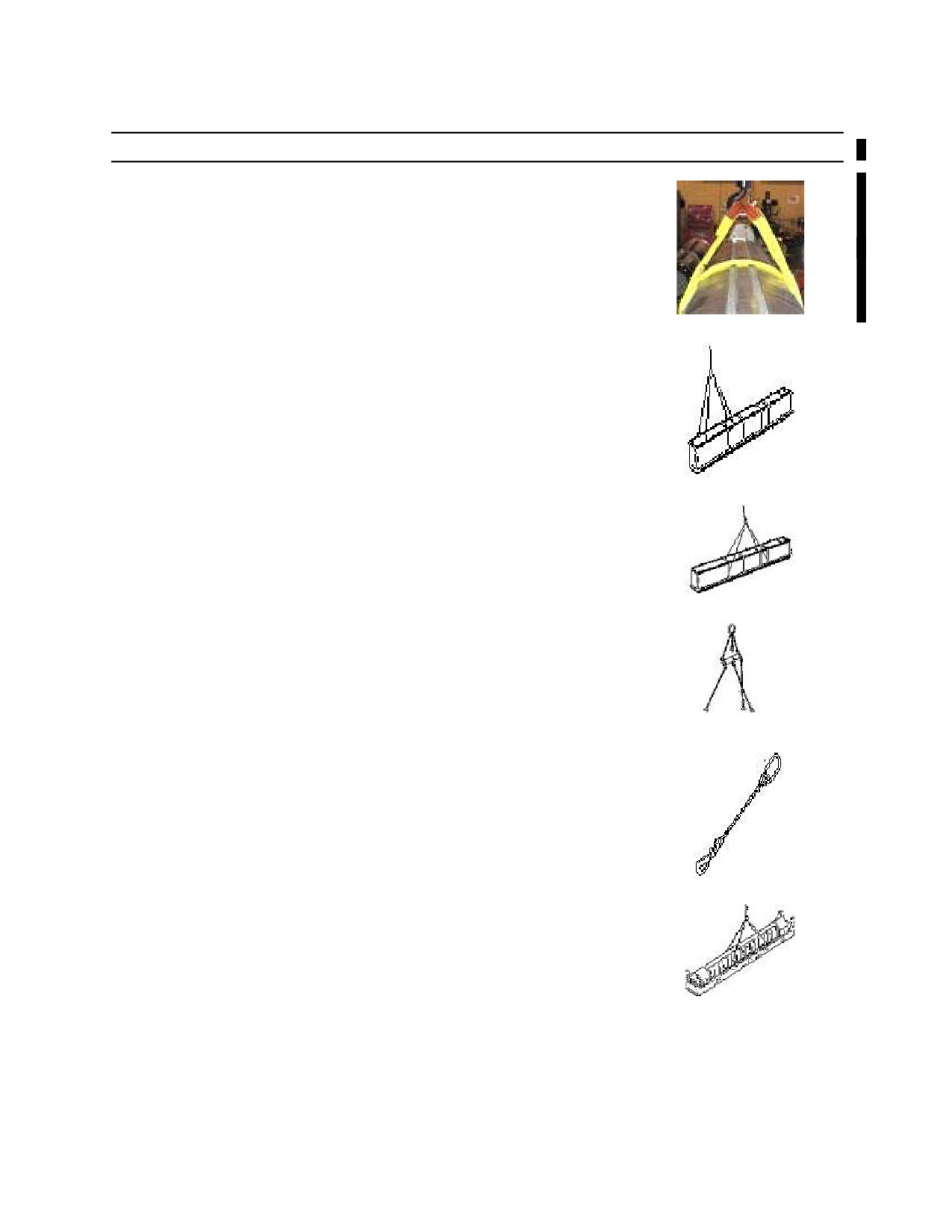

Beam, Hoisting, AUR

Handle containerized TTL and Mk 10

Container Mk 46 Mod 0

weapons.

P/N 5167804

Beam, Lifting, MK 44,

Handle uncontainerized TTL and Mk

Mod 0

10 weapons.

P/N 5167164

Cable Adapter Umbilical

Used with Rocket Motor/Ident Test Set

Assy

Box Assembly for performing TTL

P/N 3193140-028-

missile electrical checks.

101

Cable Adapter Umbilical

Used with Rocket Motor/Ident Test Set

Assy

Box Assembly for performing TTL

P/N 3193140-

missile electrical checks.

028-102

(Conventional

Use Only)

106

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Cable Assy

Used with Rocket Motor/Ident Test Set

Box Assembly for performing missile

P/N 3193140-013-

electrical checks.

101

Canister Loader, VLS, Mk

Encanister/decanister VLS weapons

33 Mod 0

P/N 5167196

Cap, Faraday, Upper

Provides electrical shielding for the

Umbilical Connector

electrical umbilical connector on CLS

AUR and CLS Loading and Handling

P/N JCM-14339-001

Training Shape.

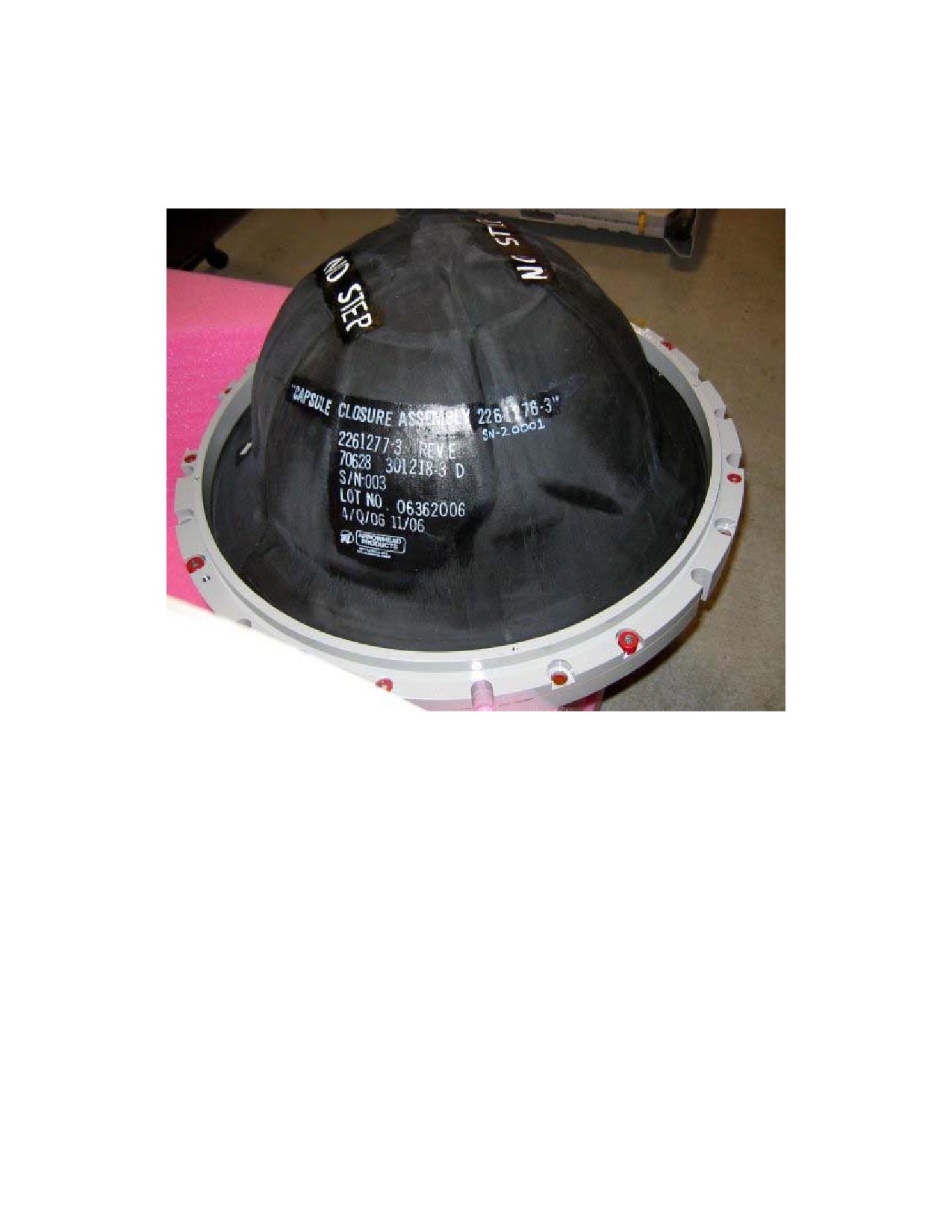

Container, Closure

Protects the CLS AUR and CLS

Shipping

Loading and Handling Training Shape

Capsule Closure Assembly during

P/N JCM-14843-002

transport and handling.

Cover Assy, Shock Plate Used to cover the AUR bore holes in

the middle and lower shock plates.

P/N 7124611-002

Provides a flat, non-skid surface

without raised handles and will prevent

items from falling into the MAC cell.

Cover Assy, Top Hat

Placed over loaded AURs to protect

them from damage after the CLC

P/N 7124611-004

has been removed, during the AUR

close-out procedure, or in the event that

an AUR has to be pulled and replaced.

Provides a level surface strong enough

for a worker to stand on.

Cover Assy, Top Plate

Used to cover the MAC AUR cells

and to provide a flat, non-skid surface

P/N 7124611-003

without raised handles. It prevents

items from falling into the MAC cell.

107

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Cover, Capsule Loading

Used instead of CPC when

loading/offloading CLS AUR and

P/N JCM-17759

CLS Loading and Handling Training

Shape, when working on weapons

loaded in missile tube or MAC cell.

Protects the Capsule Closure Assembly.

Cover, Closure Protective

Protects the CLS AUR and CLS

(CPC), Mk 19 and Clamp

Loading and Handling Training Shape

Ring

Capsule Closure Assembly during

transport and handling.

P/N JCM-14865-001

Cover, Counterbore

Installed on missile tube aboard

SSN-688 class to prevent personnel,

P/N 101-5580126-

tools, water, debris, etc from entering

171

(SSN 688)

empty missile tube.

Cover, Counterbore

Installed on missile tube aboard

SSN-774 class to prevent personnel,

P/N 7066384-73

tools, water, debris, etc from entering

(SSN 774)

empty missile tube.

Cover, Counterbore

Inserted into the individual AUR

stowage locations, supported on the

P/N 7124611-001

Datum B of SSGN MAC AUR cell. It

permits inspection of the counterbore

area prior to loading and prevents items

from falling into the AUR cell.

108

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Cover, Missile Tube

Protect muzzle hatch magnets in hatch

Muzzle Hatch and Magnet

opening of submarine.

Protective

P/N 101-5951066-54

(SSN 688)

Cover, Missile Tube

Muzzle Hatch and Switch

Probe Protective

P/N 7066384-72

(SSN 774)

Cover, Muzzle Face

Used to prevent damage to muzzle

Protective

hatch gasket sealing surface in missile

tube.

P/N 101-5951066-49

Cover, Safety MTEL

Installed on MTEL prior to CLS

weapon onload/after offload. Protects

P/N JCM-14566-001

MTEL, missile tube, and MAC cell

(SSGN).

Cover, VLS Missile Tube,

Installed over spent CLS to prevent

CLS Spent Capsule

personnel, tools, debris, etc from

entering spent capsule.

P/N 6510965

Cradle Mk 33 Mod 0

Secure and transport TTL and Mk 10

weapons by truck and small boat.

P/N 6213118

109

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Cradle Mk 34 Mod 0

Secure and transport CLS weapons by

small boat.

P/N 6213249

Cradle, Undersea

Transfer weapons on small boats.

Weapons Transporting

Mk 27 Mod 0

P/N 5165994

Device, Tie-down

Secure weapons and containers in small

boats.

P/N CGU-1/B

Dolly Assembly, Missile

Transport Mk 30 Shipping and Storage

Handling Mk 34 Mod 0

Skid.

P/N 5167224

Dolly, VLS Transport Mk

Transport Mk 14 Canister

35 Mod 0

P/N 5167396

Fixture, CLS Capsule

Transition CLS weapons between

Uprighting Mk 26 Mod 0

vertical and horizontal during onload

and off-load.

P/N 5917401

or Mk 26 Mod 1

P/N 6213396

Fixture, Missile

Move the missile about nine inches

Positioning MTU-68/E

out of/into the capsule during

UGM-109A-1 warheading and

P/N 76Z3550-30

dewarheading.

110

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Fixture, Tilt Mk 23 Mod 0

With Kit A, transition Mk 14 Canister

between the horizontal and vertical

P/N 5167473

positions. With Kit B, transition CLS

weapon between vertical and horizontal

for onload and offload.

Gauge, Load Button

Verify any TTL capsule load button

is not oversized, bent or otherwise

P/N 7339399/No

distorted so as to cause problems during

NSN

tube loading aboard a submarine

Hoist, Chain, Hand, 2-ton,

Used with Hoisting Sling Mk 157 to

15-ft Lift

change position of lifting adapter or

MTEL.

P/N LHH-2B-15

Hydraulic Power Unit

With MTEL, provides insertion and

(HPU) Mk 8 Mod 0

extraction force to seat/unseat CLS

weapons (except ballast can) into/out of

P/N JCM-14899-001

the missile tube/MAC cell.

Installation Guide Mk 116

Align MTEL to prevent missile tube

Mod 0

damage during MTEL installation and

removal.

P/N JCM-14375-001

Kit, Pressure Servicing

Pressurize TTL and Mk 10 weapons

Mk 182 Mod 0

P/N 5759440

Kit, Pressure Servicing,

Pressurize CLS AUR and CLS Loading

CLS Forward Mk 184

and Handling Training Shape forward

Mod 0

section.

P/N 6199900

Consists of:

111

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Closure Pressure Hose

Pneumatic Adapter

P/N 6146684

CPC Pneumatic Adapter

P/N 6199896

Pressurizing Gear Tester

T3159

P/N 5545882

CLS Pressurizing Hose

Assembly, FWD

P/N 6146623

Lifting Adapter Assembly

Attaches to CLS weapon (except

Mk 169 Mod 0

ballast can) to upright, lift or lower

CLS weapon during submarine

P/N JCM-14699-001

onload/off-load.

Missile Tube

Aligns, and with HPU, inserts/extracts

Extension/Loader

CLS weapon (except ballast can)

(MTEL) Mk 23 Mod

into/out of missile tube/MAC cell.

P/N JCM-14455-002

Multi-Test Box Mk 71

Verify electrical continuity and isolation

Mod 0

of specific wires in the pyro harness.

P/N 6574418

112

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Pin, Trunnion

Alternate to Mk 174 Trunnion Bearing

Adapter to transition the All-Up-Round

P/N 5768606

Simulator and CLS Ballast Can

between vertical and horizontal during

onload/off-load.

Platform, Loading

Used on SSN 688 Class submarines for

access to missile tubes.

P/N 5580126

Platform, Loading

Used on SSN 774 Class submarines for

access to missile tubes.

P/N 7066384-A1

Platform, MTEL Work

Allows access to the area above

the MTEL during SSGN handling

P/N 7126403-002

operations.

Plug Assembly, Moisture

Seals pressure/vent port on CLS AUR,

and Dust

AUR Simulator and CLS Loading and

Handling Trainer.

JCM-17838/4730-

01-346-3387

Pressure Vacuum

Purge and backfill warhead cavity and

Distributor H3353

missile during 109A warheading and

dewarheading.

P/N 5758382

113

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Protective Shield,

Installed on the CLS AUR and CLS

Umbilical Cable

Loading and Handling Training Shape

umbilical cable during off-load to

P/N JCM-17873

prevent damage from contact with

the missile tube while extracting the

weapon from the tube. Not required

with new design umbilical cable

with angled cable flange penetrator

overmold.

Pump, Submersible, 440

Remove ballast from CLS ballast can.

Volt with Foot Valve

Assembly

Retainer, Separation Nut

Prevent Mk 10 separation nut lockring

Lockring Wrench

wrench from backing out of lockring

and rounding holes.

P/N 76L5319-1

Security Band Assembly Attaches over nose cover

of UGM-109A-1 to prevent

P/N 5979383

unauthorized/inadvertent tube load

aboard the submarine.

Security Cover 4FZ

Replaces electrical connector protective

cover on UGM-109A-1 aboard

P/N 76A2994-1

submarine to allow connection of 4FZ

security system.

114

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Sling, Hoisting, Container

Handle CNU-308/E Shipping

HLU-265/E

Container.

P/N 76Z3525-16

or Mk 152 Mod 0

P/N 5167256

Sling, Lifting Mk 95 Mod

Handle uncontainerized TTL and Mk

10 weapons.

P/N 2642629

Sling, Lifting Mk 114

Handle uncontainerized TTL and Mk

Mod 0

10 weapons in areas where clearance

does not allow use of Mk 95 Sling.

P/N 2643810

Sling, Lifting Mk 162

Connect lifting apparatus and lifting

Mod 0

device. Shall not be used to handle

CLS AUR and AURS.

P/N 1001-6212682

Sling, Lifting Assembly

Handle CLS loading platform.

P/N 5580126-271

(SSN 688)

P/N 7066384-A14

(SSN 774)

Sling, Lifting Assembly

Used to lift ballast can.

P/N 6510856 (SSN

688)

P/N 7066384-A13

(SSN 774)

115

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Sling, Lifting, AUR, Mk

Handle uncontainerized CLS weapons.

154 Mod 0

P/N 5167321

Sling, Lifting, AUR

Remove/install AUR Simulator

Simulator Shipping Skid

Shipping Skid covers.

Cover

P/N 5951067

Sling, Lifting, AUR

Handle AUR Simulator Shipping Skid

Simulator Shipping Skid

P/N 6510902

Sling, Lifting and Tilting

Transition the Lifting Adapter and

(Lifting Adapter/MTEL)

MTEL between vertical and horizontal.

Mk 157 Mod 1

P/N JCM-14748-002

Sling, Pendant Mk 165

Interface between lifting device and

Mod 0

load.

P/N 6213009

or Mk 165 Mod 1

P/N 6213750

Sling, Weapon, Handling

Handle Mk 30 AUR Shipping and

Mk 153 Mod 0

Storage Skid or Mk 34 AUR Simulator

Shipping and Storage Skid

P/N 5167582

116

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

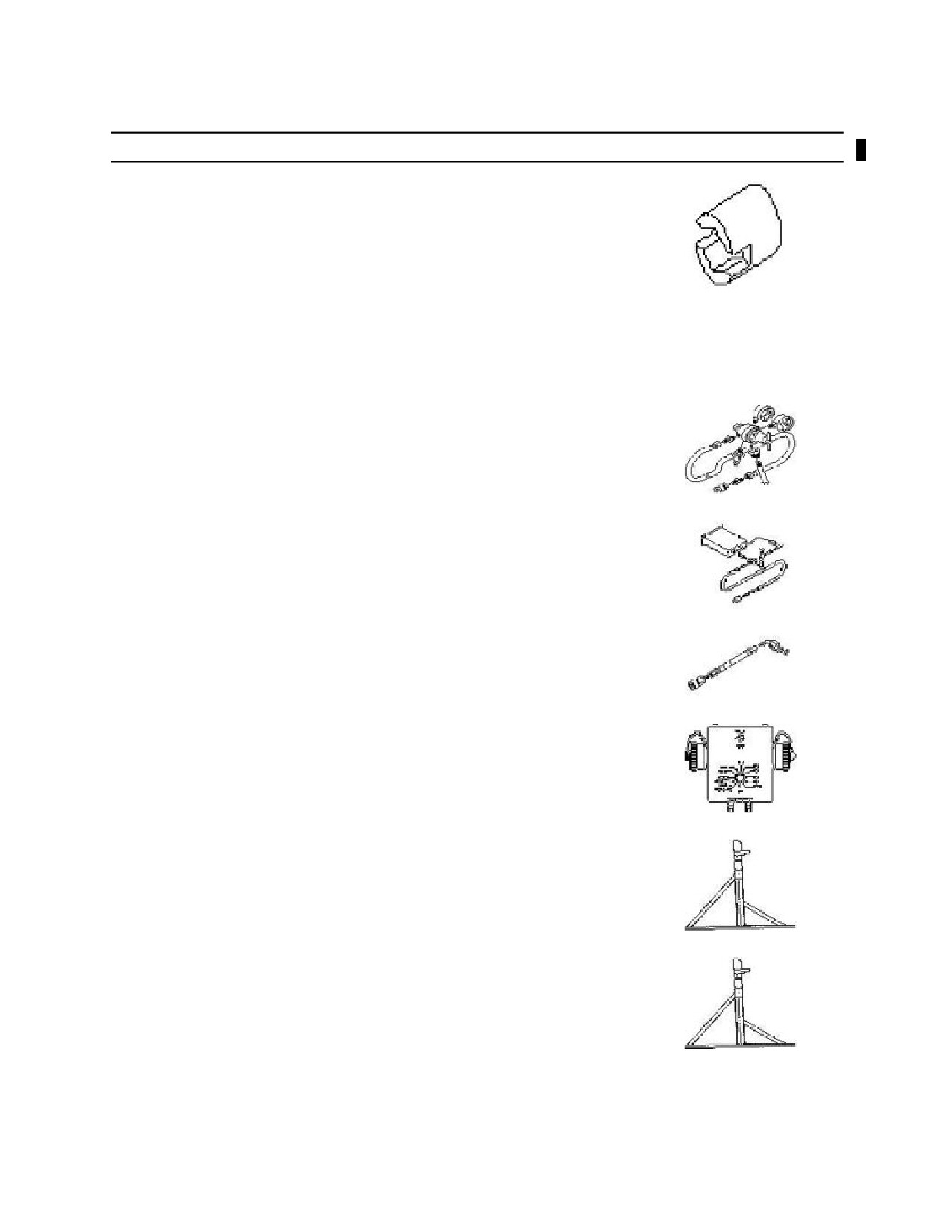

Socket, Special, 3/8-inch

Remove/install Moisture and Dust Plug

Assembly.

P/N JCM-16654

Special Hose Assembly

Perform Mk 14 Canister nitrogen line

leak check.

P/N 6309846

Consists of:

Regulator Hose Assembly

P/N 6309846-1

Digital Pressure Gage

Hose Assembly

P/N 6309846-2/ Setra

Model 360

Pneumatic Test Adapter

P/N 6309846-3

Rocket Motor/Ident Test

Used when performing missile

Set, Box Assy

electrical checks.

6557811

Stand, Deployment

Used to support sections of SSN 688

Class loading platform.

P/N 6510854

Stand, Deployment

Used to support sections of SSN 774

Class loading platform.

P/N 7066384-A3

117

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Straps, Tie-down, Special

Secure weapons and containers in small

Purpose

boats.

P/N CBU

Strongback, Horizontal,

Handle Mk 14 Mod 1 Canister

VLS Mk 3 Mod 0

P/N 5598249-9

Strongback, Horizontal,

Handle Mk 14 Mod 1 or Mod 2 Canister

VLS Mk 3 Mod 1

P/N 72511117-9

Strongback, Vertical, VLS

Onload/off-load Mk 14 Canister

Mk 4 Mod 0

P/N 5497606

Support System Mk 8

Support TTL and Mk 10 weapons in

Mod 0

storage.

P/N 6213373

Tagline, Mk 3 Mod 0

With Mk 87/Mk 90 Band, maintain

control of uncontainerized weapons

P/N 5166715

during handling. Maintain control of

or Mk 4 Mod 0

containers during handling.

P/N 5166702

118

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

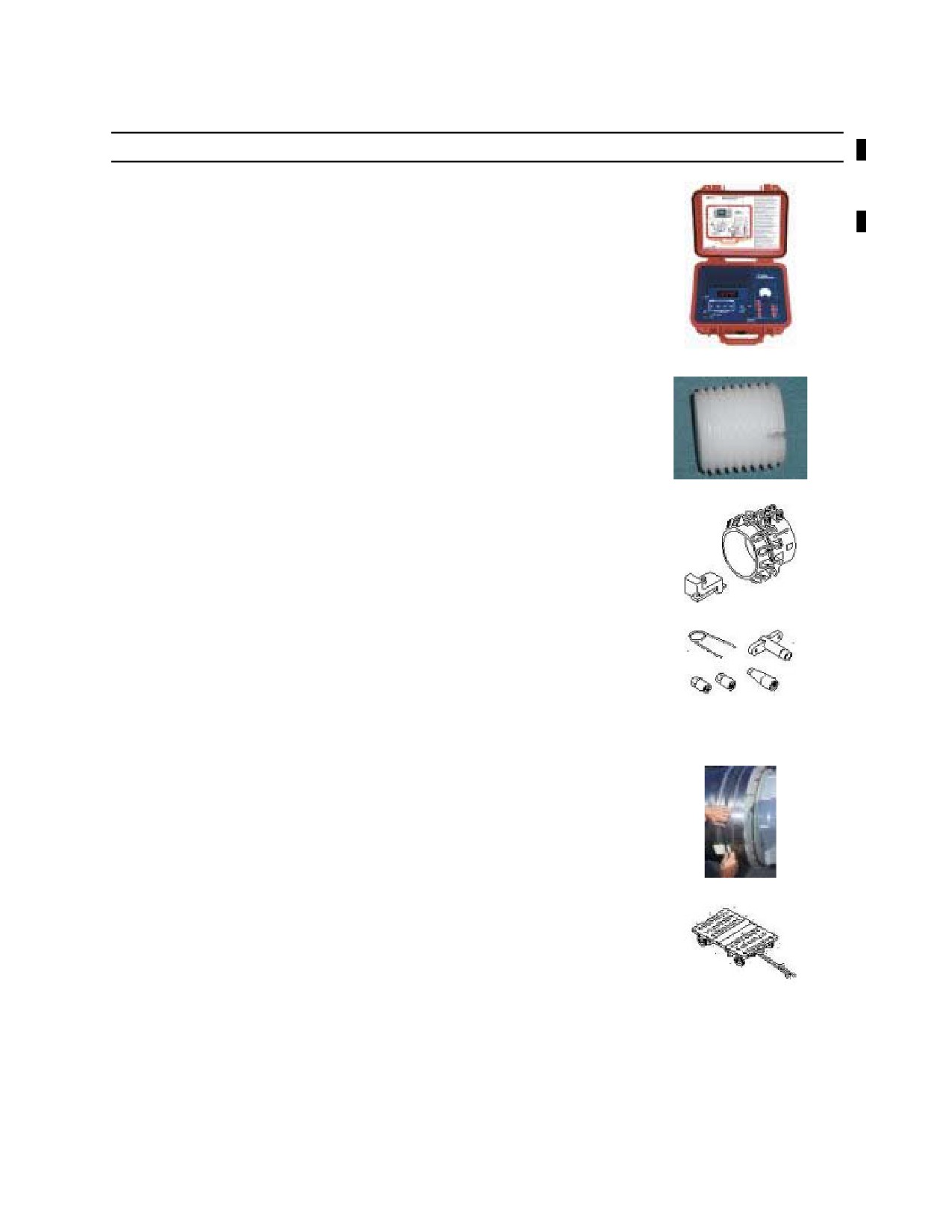

Tester, Igniter,

Used for testing the igniters in solid

Amptec Model

fuel rocket engines, detonation circuits

630AN/630BN/641N

in warheads, explosive separation bolts

or any other squib actuated devices.

Threadsaver, Trunnion

Used in place of trunnion bearing

Bearing

assemblies to preserve threads in

trunnion bearing holes.

P/N JCM-17679

Tool Kit, Nose Diaphragm Remove/install nose diaphragm

during UGM-109A-1 warheading and

P/N 76Z0667-1

dewarheading.

Tool Kit, Special Weapons Set of four tools to: align

missile/capsule; detach/attach holdback

P/N 76Z6333-8

nuts; protect holdback assembly; and

remove/install booster lanyard nut

during UGM-109A-1 warheading and

dewarheading.

Tool, Lip Seal

Used to install lip seals.

P/N JCM-17678

Trailer, Munitions Aero

Transport containerized and

51 B/C/D

uncontainerized weapons.

P/N 67A314F100

119

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Truck, Handlift Mk 45

Handle CNU-308/E Shipping Container

Mod 2

P/N 5167104

Truck, Pallet, Low Lift

Handle CNU-308/E Shipping Container

Trunnion

Used when lowering the CLS AUR

into the Mk 23 Tilt Fixture. Can also be

P/N JCM-14514-001

used for uprighting the All-Up-Round

Simulator and Ballast Can.

Umbilical Breakout Box

Perform VLS weapon electrical tests.

(UBOB) Mk 674 Mod 1

P/N 7379010

Universal Restraint Stand

Warhead 109A. May be used for

Mk 121 Mod 0

maintenance on TTL, Mk 10 and VLS

weapons

P/N 6146521

Vertical Launch System

Determine VLS canister code plug

(VLS) Canister Code Plug

configuration.

Test Set Mk 673 Mod 0

P/N 6375451

Weapons Skid Aero 21C

With Mk 130 Mod 0 Extension Handle,

Aero 64A/64B Soft Belt Adapters

P/N 64A114H1-4

and front and rear Aero 58A/58B

or Munitions Transporter

Skid Adapters installed, transport

MHU-191-M

uncontainerized TTL and Mk 10

P/N 1500AS100-1

weapons.

120

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

EQUIPMENT

FUNCTION

ILLUSTRATION

Wrench, Canister

Loosen and tighten separation nut

Separation Nut Lockring

lockring during Mk 10 encanisterization

and decanisterization.

P/N 76Z4738-1

Wrench, Spanner

Tighten CLS AUR and CLS Loading

and Handling Training Shape umbilical

P/N JCM-17635

cable connector P130B

Wrench, Canister

Loosen and tighten separation nut

Separation Nut Lockring

lockring during Mk 10 encanisterization

and decanisterization.

P/N 76Z4738-1

Wrench, Spanner

Tighten CLS AUR and CLS Loading

and Handling Training Shape umbilical

P/N JCM-17635

cable connector P130B

121

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

Table 1-2. Shipboard Equipment Used for

TOMAHAWK Support

EQUIPMENT

FUNCTION

ILLUSTRATION

Adapter, Dolly

Adapt tender stowage rack dollies to

support TTL weapons.

P/N SK5711-735

Chocks, Portable

Adapt stowage rack for TTL stowage

(Stowage Rack)

on board AS- 39 Class submarine

tenders.

P/N SK5111-738

Decking, Small Boat

Provide a platform to secure weapons

(LCM Mk 6)

in LCM Mk 6. Consists of four deck

sections secured together with iron

bolts and angle irons.

Dolly, Stowage Rack

Stow TTL weapons on AS-39 Class

Submarine Tenders. A telescoping tug

bar is used with the dolly. All dollies

are modified with the Adapter, Dolly,

P/N SK5711-735.

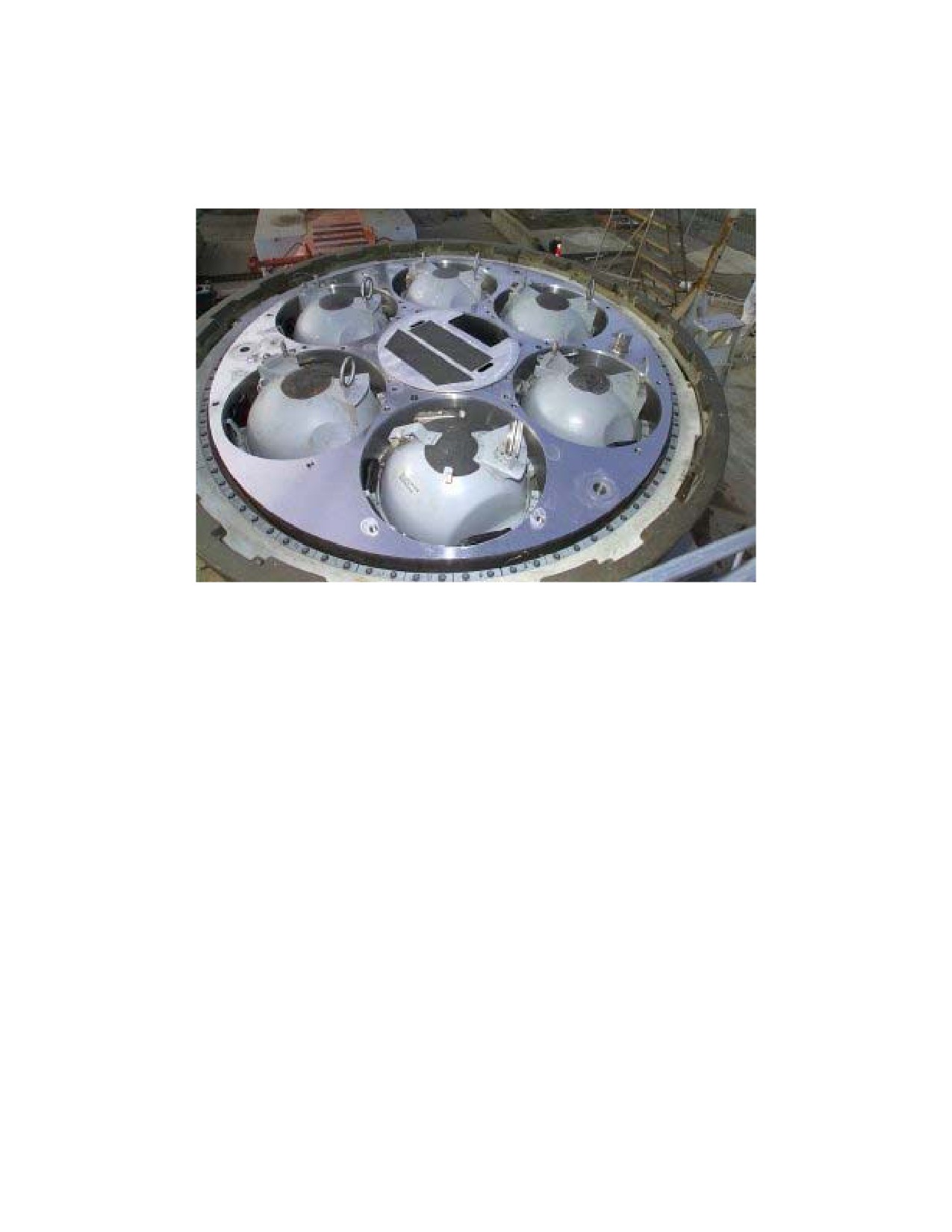

Plenum Cell Cover

Seals the bottom of a launcher cell

Assembly

to permit launch gases to be vented

through the uptake into the atmosphere

Sill Assembly

Seal the Mk 14 Canister in the launch

cell to divert launch gases to the

atmosphere via the plenum cell.

123

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

Table 1-3. Reference Documentation

DOCUMENT NUMBER

TITLE

Record Book All-Up-Round (AUR) Volumetric Shape

Record Book Missile Tube Ballast Can (MTBC)

0348-LP-078-1000

Technical Manual for Magazine Sprinkler System

0924-LP-066-6010/-6020

Electrically Suspended Gyro Navigator (ESGN)

AN/WSN-3A(V)2

0967-LP-529-6010

Dual Miniature Inertial Navigation System (DMINS)

AN/WSN-1(V)2

0978-LP-040-0910

Weapon Delivery Systems Equipments Manual for SSN

688 Class Submarines

ASME/ANSI B30.5-1989

Safety Standards for Mobile and Locomotive Cranes

ASME/ANSI B30.8-1988

Safety Standards for Floating Cranes and Floating

Devices

CINCLANTFLTINST 8010.4

Atlantic Fleet Conventional Ordnance Management

Manual

CINCPACFLTINST 8010.12

Pacific Fleet Ammunition Requisitioning and Reporting

Guide

CMP PUB 4440/2

Record Book for TOMAHAWK Test Missile (TOTEM)

CMP PUB PMA 280-1203

User’s Logistics Support Summary (ULSS) for the

TOMAHAWK Cruise Missile UGM-109-1 and

TOMAHAWK Cruise Missile UGM-109-2

CMP PUB PMA 280-1207

Integrated Logistics Support Plan (ILSP) for Sea

Launched Cruise Missile (SLCM) TOMAHAWK

All-Up-Round

CMP PUB ULSS 4105-D

Advanced TOMAHAWK Weapon Control System

AN/SWG-4(V) Launch Control Group Replacement

(TL4 Configuration)

CMP PUB ULSS PMA 280-1205

VLS Mk 14 Canisters with TOMAHAWK Cruise

Missiles at Intermediate Maintenance Activities and

Limited Maintenance Activities

CMPINST 5102.1

Explosive Mishap Reporting Procedures

Code of Federal Regulations Title

Shipping

124

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

Code of Federal Regulations Title

Transportation

DOD Regulation 4500.32-R

Defense Transportation System, Policies and Procedures

DOD-STD-1686

Electrostatic Discharge Control Program for Protection

of Electrical and Electronic Parts, Assemblies and

Equipment (Excluding Electrically Initiated Explosive

Devices)

ILSP-167 P/D

Integrated Logistics Support Plan (ILSP) for Vertical

Launching System Mk 41

JCS PUB 6 VOL II Part

Joint Reporting Structure (JRS) Volume II, Joint Reports,

Part 4, Nuclear Weapons (NUREP)

MD 4790.100/.200

Shore Activity Maintenance Data Collection System

MD 55658

Checkout Procedures and Inspection Requirements for

Vertical Launching System Umbilical Breakout Box Mk

674 Mod 0

MD 56068

User’s Manual for VLS Canister Code Plug Test Set Mk

673 Mod 0

MIL-STD-129

Marking for Shipment and Storage

MIL-STD-1320-235

Truckloading Encapsulated TOTEM, TOTEM Capsule

and Expended Capsule

MIL-STD-1320-246

Truckloading CLS Ballast Cans Chocked

MIL-STD-1320-264

Truckloading VLS Canisters Mk 13, 14 & 15 and All

Mods and Mixed Loads "Empty and w/o PHS&T"

MIL-STD-1949

Military Standard Inspection Magnetic Particle

MIL-STD-2000

Standard Requirements for Soldered Electrical and

Electronic Assemblies

MIL-STD-410

Nondestructive Testing Personnel Qualification and

Certification

MIL-STD-6866

Military Standard Inspection Liquid Penetrant

NAVAIR 19-15BC-13

Operations and I-Level Maintenance Instructions with

Illustrated Parts Breakdown, Weapons Skid Aero 21C;

Part Number 64A114H-4

NAVSEA Dwg. 6213981

Truckload Guided Missile U/RGM-109 (TOMAHAWK)

in Shipping and Storage Container CNU- 308/E

125

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

NAVSEA Dwg. 6213982

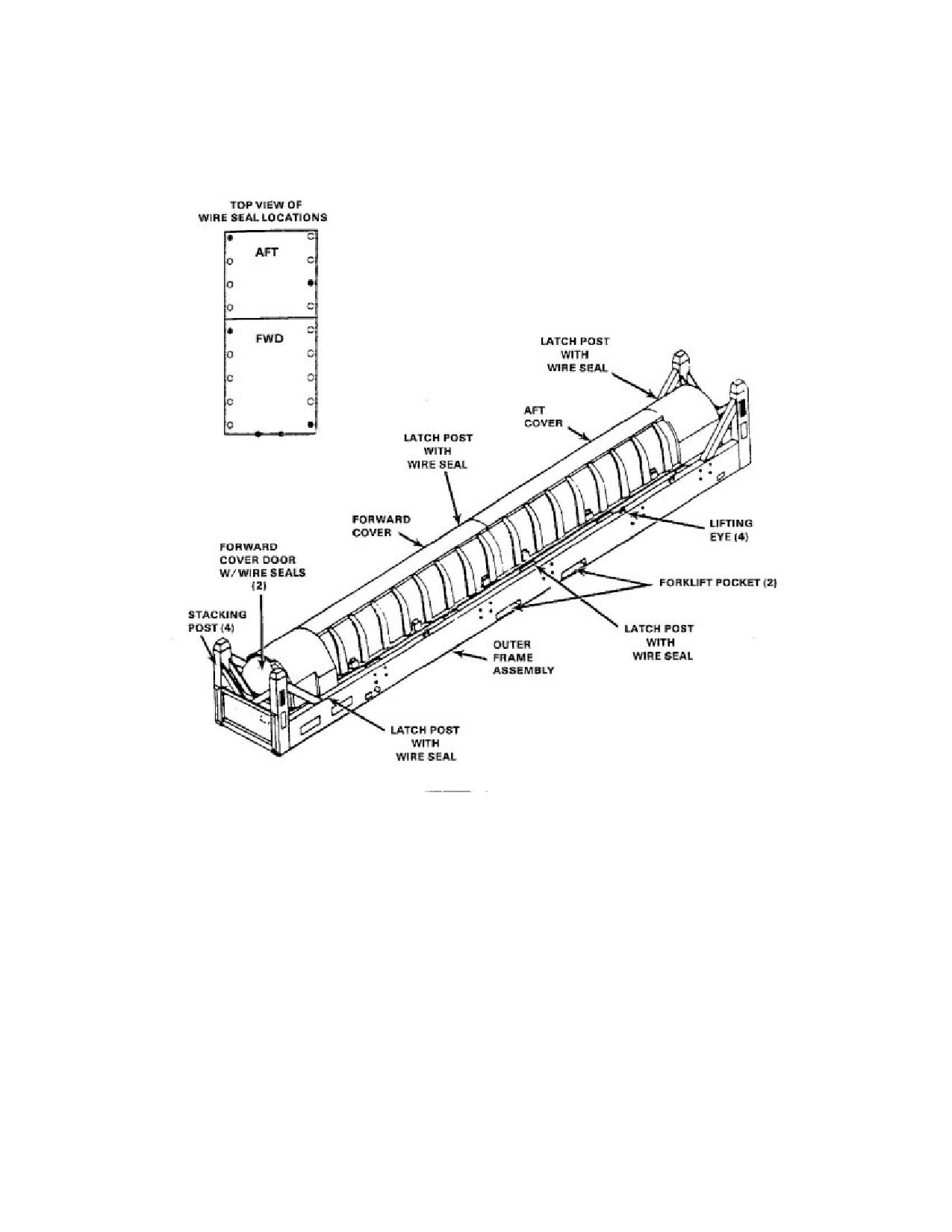

Truckload Guided Missile UGM-109-2 (TOMAHAWK-

CLS) in Shipping and Storage Skid Mk 30 Mods 0, 1

and 2

NAVSEA Dwg. 6213983

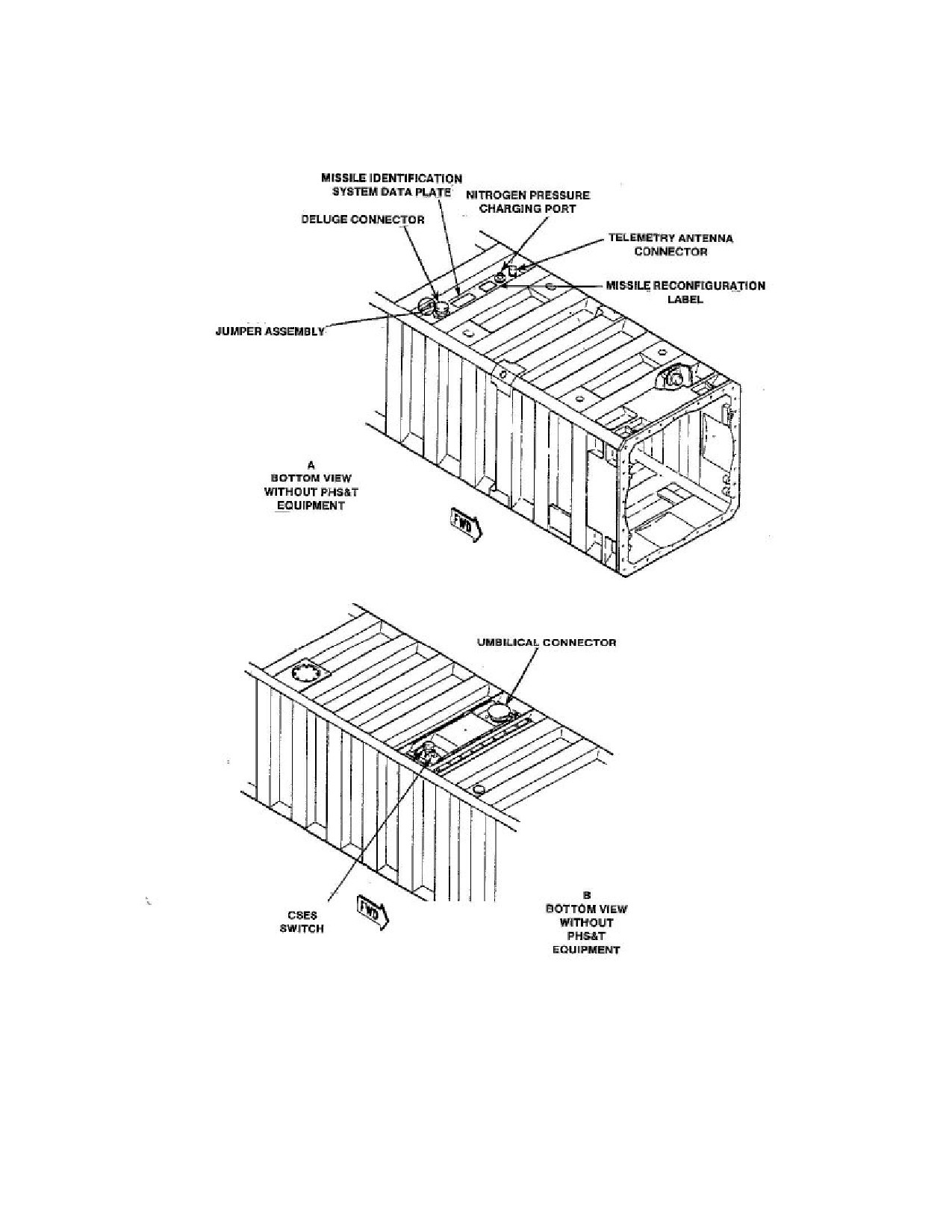

Truckload Guided Missile RGM-109 (TOMAHAWK) in

VLS Canister Mk 14 Mods 0 and 1

NAVSEA Dwg. 6213987

Truckload, Guided Missile RGM-109 (TOMAHAWK) in

VLS Canister MK 14 Mods 0 and 1 and Guided Missile

U/RGM-109 (TOMAHAWK) in Container CNU-308/E

NAVSEA Dwg. 6214071

ISO Container Load, Shipping and Storage Skid Mk 30

Mods (TOMAHAWK) in 40 Ft Full Height Open Top

ISO Container

NAVSEA OD 44979

Firing Craft Operating Procedures and Checklists

NAVSEA OD 46574

Weapon and Combat Systems Quality Assurance

Requirements for Shore Stations and Engineering Agents

NAVSEA OD 48845

Metrology Requirements List

NAVSEA OD 48854

Field Calibration Activity Metrology Requirements List

NAVSEA OP 2239

Explosive Driver’s Handbook

NAVSEA OP 3206

Handling and Stowage of Naval Ordnance Aboard

Ammunition Ships

NAVSEA OP 3221

Loading and Stowage of Military Explosives Aboard

Breakbulk Merchant Ships

NAVSEA OP 3347

United States Navy Ordnance Safety Precautions

NAVSEA OP 3565

Radio Frequency Hazards to Ordnance, Personnel and

Fuel

NAVSEA OP 4

Ammunition Afloat

NAVSEA OP 5, Vol I

Ammunition and Explosives Ashore Regulations for

Handling, Storing, Production Renovation and Shipping

NAVSEA OR 99 Series

Intermediate and Depot Maintenance Instructions for

(Specified Handling and Support Equipment)

NAVSEAINST 5511.28

Guided Missiles: Security Classification Guide

NAVSEAINST 8020.9

Non-Nuclear Ordnance and Explosive Handling

Qualification and Certification Program

NAVSEAINST 8020.13

Emergency Response Procedures for Transportation

Accidents

126

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

NAVSEAINST 8023.2

US Navy Explosive Safety Policies, Requirements and

Procedures (Department of Navy Explosive Safety Policy

Manual)

NAVSEAINST 4855.7

Reporting of Unsatisfactory Material

NAVSUP PUB 409

MILSTRIP/MILSTRAP Desk Guide

NAVSUP PUB 437

Military Standard Requisitioning and Issue Procedures

(MILSTRIP)

NAVSUP PUB 4500

Consolidated Hazardous Items List (CHIL)

NAVSUP PUB 485

Afloat Supply Procedures

NAVSUP PUB 505

Preparing Hazardous Materials for Air Shipment

NAVSUPINST 4400.189

Reporting of Non-Conforming and Quality Deficient

Material Obtained Through the Supply Systems

NAVSUPINST 4423.14

Navy Uniform Source, Maintenance and Recoverability

Codes

NAVSUPINST 4440.120

Disposition of Used or Damaged Material

NAVSUPINST 4600.70

Military Traffic Management Regulations

NSPCCINST P8010.12

Supply Management of Ammunition

NTP-A-20-7703

Navy Training Plan (NTP) UGM-109 TOMAHAWK

Cruise Missile Submarine Torpedo Tube Launch (TTL)

and SSN 688 Class Vertical Launch System (VLS)

Capsule Launching System (CLS)

OD 44979

Firing Craft Operating Procedures and Checklists for

Weapon Loading and Handling Systems SSN 774 Class

OPNAVINST 4790.4

Ships’ Maintenance and Material Management (3M)

Manual

OPNAVINST 5102.1

Mishap Investigation and Reporting

OPNAVINST 5510.1

Department of Navy Information and Personnel Security

Program Regulation

OPNAVINST 5530.13

Physical Security Instructions for Sensitive Conventional

Arms, Ammunition and Explosives (A A&E)

OPNAVINST C8126.1/DOD

Nuclear Weapons Security Manual

C-5210.41M

OPNAVINST S5513.2

Cruise Missile Classification Guide

127

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

PEO(CU) INST 4601.1

Physical Security Measures for Sea Launched Cruise

Missiles During Transportation

PEO(CU) INST 8023.1

TOMAHAWK Conventional All-Up-Round Qualification

and Certification

PEO(CU) INST 8800.1

TOMAHAWK Missile Nomenclature

PEO(CU) letter 5513 Ser

Security Classification Guidance

PEO(CU)/142 12 May 1990

PEO(CU) P1540/1

Capsule Launching System (CLS) Missile Tube Loading

and Handling Trainer Assembly Setup/Breakdown and

Maintenance Procedures

PEO(W) PUB 4440

Record Book for TOMAHAWK Cruise Missile

PEO(W) INST 4440.2

TOMAHAWK Cruise Missile Record Book (PEO(W)

PUB 4440)

S4140-AA-ASY-010

Capsule Launching System (CLS) Submarine Missile

Tube Trainer Assembly Setup/Breakdown and

Maintenance Procedures

S9086-T8-STM-010/CH593

Naval Ships’ Technical Manual, Chapter 593, Pollution

Control

S9086-XG-STM-000/CH-613

Navy Ships’ Technical Manual - Chapter 613, Wire, Fiber

Rope and Rigging

S9086-XG-STM-010

Naval Ships’ Technical Manual, Chapter 700, Shipboard

Ammunition Handling and Stowage

S976-AC-MMA-010

Instructions for Missile Tube Ballast Can: Description,

Installation, Maintenance and Repair

S9CG0-B2-CSM-000/ CG 59-CG

Combat System Technical Operator Manual (CG 59 thru

CG 64)

S9CG0-BU-CSM-000/ CG 52-CG

Combat System Technical Operator Manual (CG 52 thru

CG 55)

S9CG0-BY-CSM-000/ CG 56-CG

Combat System Technical Operator Manual (CG 56 thru

CG 58)

S9DDG-BT-CSM-000

Combat System Technical Operator Manual for DDG-51

Class

S9SSN-W4-SSM-Series

Ship Systems Manual for SSN 688 Class

SECNAVINST 4855.5

Product Quality Deficiency Report Program

128

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

SECNAVINST 5000.2

Implementation of Defense Acquisition Management

Policies, Procedures, Documentation, and Reports

SG420-AP-MMM-010

NAVSEA Periodic Testing Arrangements for Ordnance

Handling Equipment

SG420-BQ-MMA-010

Lift System Strikedown CG 47 Class Ship

SG420-BU-MMA-050

NAVSEA SSN 688 Class Weapon Delivery System

Equipment Manual, Volume 5 - Vertical Launch System

SG420-C9-MME-010

Operation and Maintenance Instruction with Parts List

Intermediate and Depot Maintenance Levels Virginia

Class Vertical Launch System (VLS) Loading Platform

SG420-CC-MME-010

Vertical Launch System Loading Platform

SG420-DG-IEM-090

Introduction to Vertical Launch System Mechanical

Equipment

SG420-DG-IEM-100

Vertical Launch System Mechanical Equipment

SG420-DG-IEM-120

Missile Tube Control and Indication Equipment

SG420-DG-IEM-130

Weapons Launch Console

SW020-AC-SAF-010/-020/-030

Transportation and Storage Data for Ammunition,

Explosives and Related Hazardous Materials

SW020-AG-SAF-010

Navy Transportation Safety Handbook for Ammunition,

Explosives and Related Hazardous Materials

SW260-DE-MMO-000

TOMAHAWK Weapon System Mk 36 and Mk 37 (Block

III)

SW261-PB-MMO-000

TOMAHAWK Weapon System Mk 37 (Block III)

SW279-AC-OMP-010

All-Up Round Electronic Simulator (AURES) Mk 101

AURES User Manual

SW279-AC-OMP-020

All-Up Round Electronic Simulator (AURES) Mk 101

Mod 4 AURES User Manual

SW279-AD-URM-010

Users Manual For All-Up Round Electronic Simulator

(AURES) Mk 112

SW281-DO-MMM-010 thru 050

VLS Systems Manual

SW282-B4-GTP-010

CCS Mk 1 Mod 0 General Information Manual

SW282-B4-MMO-010 thru 050/(C)

CCS Mk 1 Mod 0/2 - Description, Operation and

CCS Mk 1

Maintenance SSN 688 Class

SW394-AF-MMO-010 thru 050

Vertical Launch System Mk 41

129

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

SW394-AG-MMA-010

Description, Operation, Installation and Maintenance

Instructions for AUR Simulator

SW394-EE-PRO-010

Vertical Launching System (VLS) Canister Dockside

Handling Procedures

SW395-AA-IFM-010/ SWIM 010

Submarine Torpedo Tubes and Weapons Handling

- 060

Systems Interface Manual

SW820-AA-WHM-010/

TOMAHAWK Cruise Missile UGM-109-1 Intermediate

UGM-109-1

Level Activity Handling and Stowage

SW820-AD-WHS-010/

TOMAHAWK Cruise Missile UGM-109-2 Intermediate

UGM-109-2

Level Activity Handling, Loading and Stowage

SW820-AD-WHS-030/

TOMAHAWK Vertical Launch All-Up-Rounds, Handling

UGM/RGM-109

and Stowage Aboard AS-39 Class

SW820-AF-OMP-

TOMAHAWK Support and Test Equipment Description,

010/TOMAHAWK EQUIP

Maintenance and Repair Parts Breakdown (RPB)

SW820-AF-OMP-020/VLS/SSN

TOMAHAWK Support and Test Equipment Description,

SUPP EQUIP

Maintenance and Repair Parts Breakdown (RPB)

(Vertical Launch System/Submarine Launch (VLS/SSN)

Support Equipment)

SW820-AP-MMI-010

TOMAHAWK Cruise Missile System Description

SW820-AP-MMI-020

TOMAHAWK Cruise Missile General Handling

Procedures

SW820-AP-MMI-030

TOMAHAWK Cruise Missile Maintenance Procedures

SW820-AP-MMI-040

TOMAHAWK Cruise Missile UGM-109A-1 Warhead

Installation/Removal and Air Vehicle Maintenance

SW850-D9-PRO-010/ REM MSL

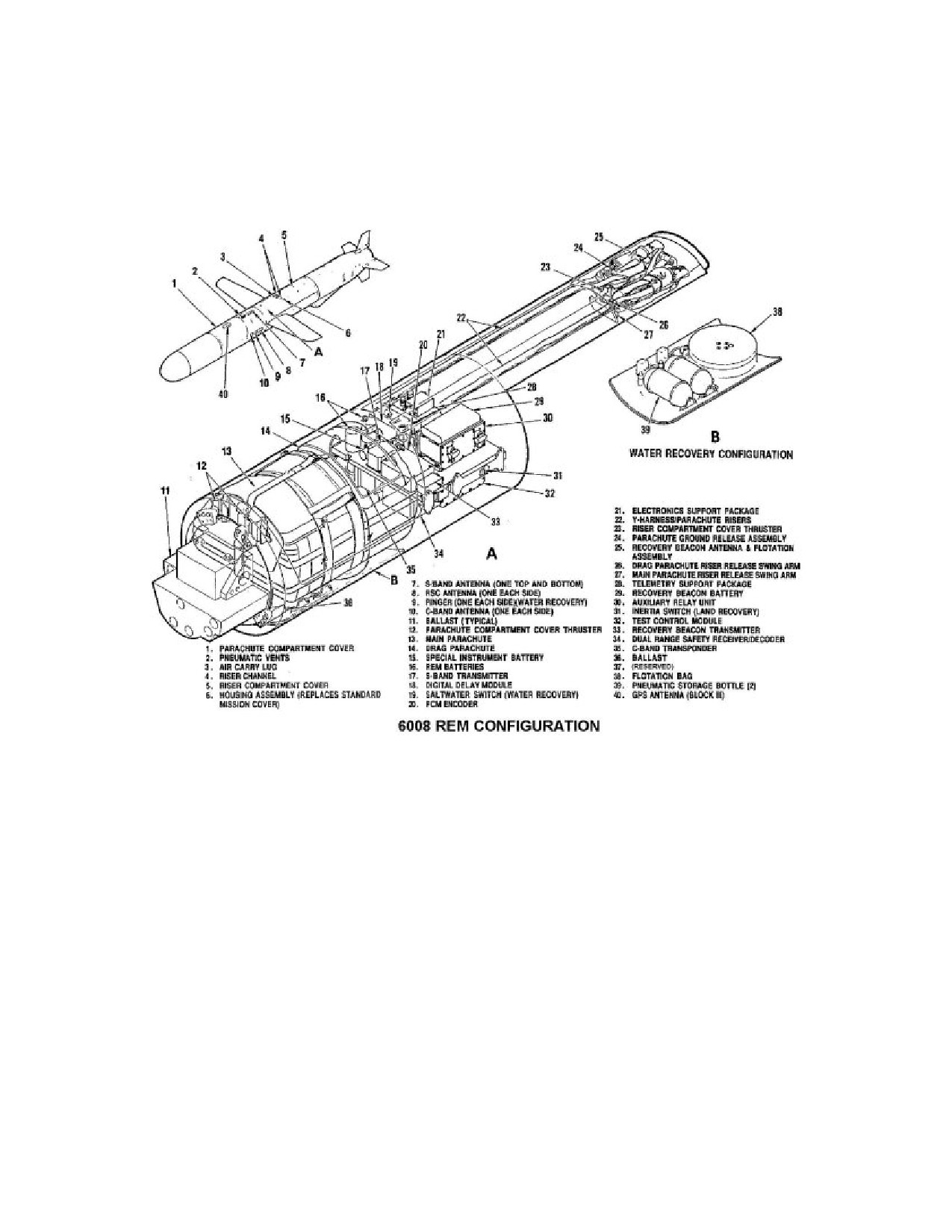

TOMAHAWK Cruise Missile Recovery Procedures:

RECOVERY

Recovery Exercise Module (REM) Configurations

SW850-EA-MMM-010/ TOTEM

TOMAHAWK Test Vehicles Description, Operation,

Maintenance and Repair Parts Breakdown (RPB)

TOMAHAWK Test Missile (TOTEM) UTM-109-1

SW850-EA-MMM-020/ CTS

TOMAHAWK Test Vehicles Description, Operation,

Maintenance and Repair Parts Breakdown (RPB)

TOMAHAWK Crew Training Shape (CTS)

UTM-109-1A

SW850-EA-MMM-

TOMAHAWK Test Vehicles Employment Procedures

050/EMPLOYMENT

130

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

SW850-EA-MMM-060

TOMAHAWK Test Vehicles; COTS TOTEM

Description, Operation, Maintenance and Repair Parts

Breakdown (RPB)

SW850-EB-MMM-010/TOMFISH

TOMAHAWK Inert Fitment Shape (TOMFISH)

Description, Certification, Verification, Operation,

Maintenance and Repair Parts Breakdown (RPB)

(Submarine and Tender/Shorebase)

SW850-FA-MMM-010/WIT MK

TOMAHAWK Warhead Installation Trainer Mk 35

Mod 0 Description, Operation and Maintenance with

Repair Parts List (RPL) and Quality Assurance Test and

Inspection Procedures (QATIP) (Shorebase)

SWOP

0-1

Numerical Index to Joint Nuclear Weapons Publications

SWOP

0-1B

Numerical Index to Joint Nuclear Weapons Publications -

Navy Supplement

SWOP

4-1

Glossary of Nuclear Weapons Material

SWOP

5-8

Unsatisfactory/Information Report

SWOP

20-5

Plutonium Contamination Standards

SWOP

20-7

Nuclear Safety Criteria

SWOP

20-11

Firefighting with Nuclear Warheads

SWOP

45-51

Transport of Nuclear Weapons Material

SWOP

45-56

Instructions for Logistical Movement of Nuclear

Weapons. Includes SAFEPOT Maintenance with IPB and

Command Disablement Procedures

SWOP

50-2

Procedures for the Use and Control of Logistics Codes

for Permissive Action Linked (PAL) Equipped Weapons

SWOP

100-4

Custody, Accountability and Control of Nuclear Weapons

and Nuclear Material

SWOP DE-2

Operator Maintenance Instruction with IPB for

Disablement Equipment

SWOP H-1

Navy Nuclear Weapons Handling Equipment Certification

Policies and Maintenance Instructions

SWOP W80.82-0

Weapon Summary, TOMAHAWK Land-Attack Missile

UGM- 109A

SWOP W80.82-1

Depot Level Warhead Assembly, Test, Maintenance and

Storage Procedures (Shorebase) Ship and Sub

131

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

DOCUMENT NUMBER

TITLE

SWOP W80.82-9

Operator and Organizational Maintenance, TOMAHAWK

Land-Attack Missile UGM-109A

TO300-AM-ORD-10 (NAVSEA

Weapons and Combat Systems Quality Assurance

OD 465743)

Requirement for Shore Stations and Engineering Agents

TW120-AA-PRO-010

Nuclear Weapons Radiological Controls Program

TW510-AA-PRO-020/TMIS

Torpedo Management Information System Submarine

Organizational Level Maintenance Activity Reporting

Instructions for Submarine Fired Weapons/Vehicles

TW510-AA-PRO-030/ TMIS

Torpedo Management Information System Intermediate

Level Maintenance Activity Reporting Instructions for

Submarine Fired Weapons/Vehicles

TWA390-BA-GSE-010

Attack Submarine Vertical Launch System Peculiar

Support Equipment Item Management Plan

ULSS PMA 280-1206

TOMAHAWK Cruise Missiles for Transhipment

Activities.

132

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

Table 1-4. Abbreviations and Acronyms

ABBREVIATION/ACRONYM

DEFINITION

AA&E

Arms, Ammunition and Explosives

ACC

Attack Control Console

ACN

Advance Change Notice

ACR

Anticircular Run

ADM

Air Data Module

Ammunition Ship

AEL

Allowance Equipage List

AFA

Analog Filter Assembly

AFIRT

Aft Flange Installation and Removal Tool

AGR

Anti-Jam Global Positioning System Receiver

ANSI

American National Standards Institute

AOE

Fast Combat Support Ship

APL

Allowance Parts List

APML

Assistant Program Manager, Logistics

Submarine Tender

ASDS

Advanced Seal Delivery System

ASME

American Society of Mechanical Engineers

ATR

Ammunition Transaction Report

AUR

All-Up-Round

AURBb

All-Up-Round Ballast, Grade B

AURES

All-Up-Round Electronic Simulator

AURS

All-Up-Round Simulator

AURVS

All-Up-Round Volumetric Shape

AVCC

Alternator Voltage Control Converter

BDI

Battle Damage Information

BDII

Battle Damage Indication Imagery

BIT

Built-in-Test

BPU

Battery Power Unit

Bend Radius

133

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

BSTR

Booster

BUS

Bus Voltage

CAGE

Commercial and Government Entity

CAIMS

Conventional Ammunition Integrated Management System

CAL

Calibration

CATMIS

Canister Asset Tracking Management Information System

CC/A

Combat Control Acoustics Set

CCA

Capsule Closure Assembly; Circuit Card Assembly

CCC

Central Computer Complex

CCLS

Composite Capsule Launching System

CCN

Certification Control Number

CCS

Combat Control System; Central Control Station

CCW

Counter-Clockwise

Command Disable

CDS

Command Disable System

Center of Gravity; Guided Missile Cruiser

CHIL

Consolidated Hazardous Items List

CHT

Collection, Holding and Transfer

CII

Configuration Item Identifier

CINCLANTFLTINST

Commander-in-Chief, Atlantic Fleet Instructions

CINCPACFLTINST

Commander-in-Chief, Pacific Fleet Instructions

Checklist

CLC

Capsule Loading Cover

CLF

Combat Logistics Force

CLS

Capsule Launching System

CMA

Cruise Missile Airframe

CMFR

Cruise Missile Feedback Report

CMGS

Cruise Missile Guidance Set

CMP

Cruise Missile Project

CMP PUB

Cruise Missiles and Joint Unmanned Aerial Vehicles

Publication

134

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

CMPINST

Cruise Missiles and Joint Unmanned Aerial Vehicles

Instruction

CMTS

Combined Missile Test Set

CNTT

Chief, Naval Technical Training

COE

Certificate of Equivalency

COSAL

Coordinated Shipboard Allowance List

COSBAL

Coordinated Shorebase Allowance List

COTS TOTEM

Commercial Off The Shelf TOMAHAWK Test Missile

CPC

Closure Protective Cover

CPSL

Capsule

CRF

Container Repair Facility

CRPA

Controllable Radiation Pattern Antenna

CRS

Corrosion Resistant Steel

CSAS

Configuration Status Accounting System

CSES

Canister Safe Enable Switch; Combat System Electronic

Space

CTS

Crew Training Shape

Clockwise

DAMA

Demand Assigned Multiple Access

DCASPRO

Defense Contract Administration Services Procurement

Office

DCM

DC-DC Converter Module

DCP

DSMAC Control Processor

DDG

Guided Missile Destroyer

DDS

Dry Dock Shelter

DECAN

Decanisterization

DECAP

Decapsulate

DIU

DSMAC Illuminator Unit

DIUE

DSMAC Illuminator Unit Electronics

DIUR

DSMAC Illuminator Unit Reflector

DLS

Digital Linear Switch

DMINS

Dual Miniature Inertial Navigation System

135

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

DMS

Digital Missile Simulator

DOD

Department of Defense

DODIC

Department of Defense Information Code

DOE

Department of Energy

DOT

Department of Transportation

DPG

Digital Pressure Gauge

DRAI

Dead Reckoning Analyzer Indicator

DSMAC

Digital Scene Matching Area Correlation

DSN

Defense Switching Network

DSP

DSMAC Signal Processor

DTD

Data Transfer Device; Dated

DTG

Data Terminal Group

E-CMFR

Electronic Cruise Missile Field Report

EAB

Emergency Air Breathing

EBW

Exploding Bridgewire (Squib)

ECP

Engineering Change Proposal

EED

Electroexplosive Device

EID

End Item Description

EMI

Electromagnetic Interference

EMS

Environmental Monitoring Sensor

ENCAN

Encanisterization

ENCAP

Encapsulate

EOD

Explosive Ordnance Disposal

EPA

Environmental Protection Agency

EQUIP

Equipment

ESD

Electrostatic Device; Electrostatic Discharge

ESDS

Electrostatic Discharge Sensitive

ESGN

Electrically Suspended Gyro Navigator

ESM

Electronic Support Measures

ESQD

Explosive Safety Quantity Distance

ESSD

Electrostatic Sensitive Devices

136

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

EXT

Extend; Extraction

FBM

Fleet Ballistic Missile

FCA

Fleet Calibration Activity

FCS

Fire Control System

FEDLOG

Federal Logistics Data

FFIRT

Forward Flange Installation and Removal Tool

FIC

Firing Interlocks Closed

Frequency Modulation

Flash Point

FTCTU

Fleet Training Center Training Unit

GEU

Guidance Electronics Unit

GFE

Government Furnished Equipment

GN₂

Gaseous Nitrogen

GPS

Global Positioning System

GPSS

Global Positioning System Subsystem

Guidance System

GSM

Guidance Set Mockup

H&S

Health and Status

Helium

HEPA

High Efficiency Particulate Air

HERO

Hazards of Electromagnetic Radiation to Ordnance

Mercury

HPU

Hydraulic Power Unit

HRA

Hydraulic Ram Assembly

HTML

HyperText Markup Language

HYD

Hydraulic

IAW

In Accordance With

I/O

Initial Outfitting; Input/Output

Interlocks Closed

Inside Diameter; Identification

IFF

Identification Friend or Foe

137

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

ILSP

Integrated Logistics Support Plan

IMA

Intermediate Maintenance Activity

IMMM

In-Flight Mission Modification Messages

IMU

Inertial Measuring Unit

InHg

Inches of Mercury

INS

Insertion; Inertial Navigation Set

INST

Installation; Instruction

INSTL

Installation

Inspection Point

IPB

Illustrated Parts Breakdown

IRTU

Insulation Resistance Test Unit

ISEA

In-Service Engineering Agent

ITL

Intent to Launch

IW/ER

Insensitive Warhead/Extended Range

JRS

Joint Reporting Structure

JTA

Joint Test Assembly

Kilobyte

Kilowatt

Land Attack

LCG

Launch Control Group

LCM

Landing Craft, Mechanized

LCU

Landing Craft, Utility; Launch Control Unit

LFS

Launch Capable Flight Software

LLCE

Limited Life Component Exchange

Lo-temp

Low temperature

LOG

Logistics

LOGAIR

Logistics Airlift

Low Pressure

LSEQ

Launch Sequencer

LTP

Launch Test Payload

MAC

Military Airlift Command, Multiple All-Up-Round Canister

138

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

MCE

Maximum Credible Event

MCIO

Mission Control Input/Output

MCM

Mission Control Module

MCP

Mission Control Processor

MDD

Maintenance Due Date

MDS

Missile Designator Series

MEASURE

Metrology Automated System for Uniform Recall and

Reporting

METRL

Metrology Requirements List

MIC

Missile Interface Console

MIL-SPEC

Military Specification

MIL-STD

Military Standard

MILSTAMP

Military Standard Transportation and Movement

Procedures

MILSTRIP

Military Standard Requisitioning and Issue Procedures

MIP

Maintenance Index Page

MIS

Missile Identification System

Mark

Mod

Model; Modification

MON

Monitor

MRA

Missile Radar Altimeter

MRC

Maintenance Requirements Card

MRSS

Midbody Range Safety Subsystem

Military Specification

MSA

Mine Safety Apparatus

MSD

Material Support Date

MSDDC

Military Surface Deployment & Distribution Command

MSDS

Material Safety Data Sheet

MSEM

Maintenance Standard Electronic Module

MSL

Missile

MTB

Multi-test Box

139

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

MTBC

Missile Tube Ballast Can

MTCP

Missile Tube Control Panel

MTEL

Missile Tube Extension Loader

Millivolts

NALC

Naval Ammunition Logistics Code

NAS

Naval Air Station

NAVICP-M

Navy Inventory Control Point Mechanicsburg

NAVMAG

Naval Magazine

NAVMAT

Navy Material Command

NAVMATINST

Naval Material Command Instruction

NAVSEA

Naval Sea Systems Command

NAVSEAINST

Naval Sea Systems Command Instruction

NAVSUP

Naval Supply Systems Command

NAVSUP PUB

Naval Supply Systems Command Publication

NAVSUPINST

Naval Supply Systems Command Instruction

NAVSURFWARCENDET

Naval Surface Warfare Center Detachment

Normally Closed

NCC

Navigation Control Console

NESIP

Naval Explosive Safety Improvement Plan

NL TOTEM

Encapsulated No-Launch No-Wet TOMAHAWK Test

Missile

No.

Number

NOTTS

Naval Ordnance Transportation Tracking System

Navigation Processor

NSDSA

Naval Sea Data Support Activity

NSN

National Stock Number

NSSF

Naval Submarine Support Facility

NSTM

Naval Ship’s Technical Manual

NSWC

Naval Surface Warfare Center

NSWCDET

Naval Surface Warfare Center Detachment

NSWCDIVPH

Naval Surface Warfare Center Division, Port Hueneme

140

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

NTIK

Non-Tactical Instrumentation Kit

NTP

Navy Training Plan

NTSP

Navy Training System Plan

NUREP

Nuclear Weapons Report

NUWC

Naval Undersea Warfare Center

NUWCDIV

Naval Undersea Warfare Center Division

NUWCDIVNPT

Naval Undersea Warfare Center Division, Newport

NWAD

Naval Weapons Assessment Division

NWS

Naval Weapons Station

Ordnance Data; Outside Diameter

OFP

Operational Flight Program

OLSS

Operational Logistics Support Summary

Operating Procedure; Ordnance Publication

OPNAV

Office of Chief of Naval Operations

OPNAVINST

Chief, Naval Operations Instruction

Ordnance Requirement

ORDALT

Ordnance Alteration

OSHA

Occupational Safety and Health Administration

OTH

Over the Horizon

OTL

Operational Test Launch

OTLP

Operational Test Launch Payload

PAL/CD

Permissive Action Link/Command Disable

P/N

Part Number

PCM

Pulse Code Modulation

PEO(CU)INST

Program Executive Officer, Cruise Missiles and Joint

Unmanned Aerial Vehicles Instruction

PEO(U&W)

Program Executive Officer for Unmanned Aviation and

Strike Weapons

PEO(W)

Program Executive Office for Strike Weapons and

Unmanned Aviation

PEO(W)INST

Program Executive Office for Strike Weapons and

Unmanned Aviation Instruction

141

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

PFU

Power Filter Unit

Procedural Guide

PGA

Pneumatic Gauge Assembly

PHS&T

Packaging, Handling, Storage and Transportation

PIP

Push-In-Pull

P/L

Position Launch

PLA

Plain Language Address

PMS

Planned Maintenance System

PPCA

Pyro and Power Control Assembly

PPM

Parts Per Million

PROM

Programmable Read Only Memory

PSA

Power Switching Amplifier

psid

Pound(s) Per Square Inch Differential

psig

Pound(s) Per Square Inch Gauge

PTMCR

Preliminary Technical Manual Change Request

PUB

Publication

P/V

Pressure/Vent

Pressure Velocity

PVC

Pressurization/Vent Control

PVD

Pressure Vacuum Distributor

PVTV

Pressure Vent Test Vehicle

PVTV

Pressure Vent Test Vehicle TOMAHAWK Test Missile

PWD

Programmed Warhead Demolition

Q-D

Quantity-Distance

Quality Assurance

QAST

Quality Assurance Service Test

QATIP

Quality Assurance Test and Inspection Procedure

QDR

Quality Deficiency Report

QUICKTRANS

Contractor-Operated Logistics Airlift

Radar Altimeter

RASS

Random Access Storage Set

142

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

RDX

Cyclonite

REM

Recovery Exercise Module

REPROG

Reprogram

Radio Frequency

RFI

Ready-For-Issue

RGAP

Rate Gyro/Accelerometer Package

RJA

Relay Junction Assembly

RLEP

Remote Launch Enable Panel

Rocket Motor

RMUC

Reference Measuring Unit and Computer

RNS

Radio Navigation Set

ROID

Report of Item Discrepancy

RPB

Repair Parts Breakdown

RPL

Repair Parts List

RPU

Receiver Processor Unit

RSC

Range Safety Command

RSEU

Range Safety Electronics Unit

RSS

Range Safety System

S&TE

Support and Test Equipment

S/N

Serial Number

SAFEPOT

Small Arms Fire Enclosure for the Protection of Ordnance

in Transit

SAMDS

Shore Activity Maintenance Data System

SATCOM

Satellite Communications

SATNAV

Satellite Navigation

Shore Base

SCG

Storage Compatibility Group

SCS

Submarine Combat System

SDL

Satellite Data Link

SEC

Second

SHIPALT

Ship Alteration

143

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

SIB

Ship Information Book

SIP

Standard Inspection Procedure

SLCM

Sea Launched Cruise Missile

SMDC

Shielded Mild Detonating Cord

SMR

Source, Maintenance and Recoverability

SMTT

Submarine Missile Tube Trainer

SOF

Special Operations Forces

SPAWAR

Space and Naval Warfare Systems

SPU

Secondary Power Unit

SRA

Specialized Repair Activity

SSGN

Submarine, Guided-Missile, Nuclear Propulsion

SSN

Submarine, Nuclear Propulsion (Fast Attack)

STA

Station

START

Strategic Arms Reduction Treaty

SUBASE

Submarine Base

SUBROC

Submarine Rocket

SWF

Strategic Weapons Facilities

SWFTR

Submarine Weapon Field Trouble Report

SWL

Safe Working Load

SWOP

Special Weapons Ordnance Publication

T&E

Test and Evaluation

TACTOM

Tactical TOMAHAWK

TAE

Ammunition Ship (Military SEALIFT)

TALMIP

TOMAHAWK AUR Logistics and Maintenance Technical

Information Products

TCG

Track Control Group

TCM

TOMAHAWK Cruise Missile

TEMP

Temperature

TERCOM

Terrain Contour Matching

TFBR

Technical Feedback Report

TGT

Target

144

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

TLAM

Land-Attack TOMAHAWK Missile

TMDER

Technical Manual Deficiency/Evaluation Report

TMIS

Torpedo Management Information System

TMPS

Theater Mission Planning System

TNT

Trinitrotoluene

TOA

Time of Arrival

tol

Tolerance

TOMFISH

TOMAHAWK Fitment Shape

TOMIS

TOMAHAWK Management Information System

TOT

Time-On-Target

TOTEM

TOMAHAWK Test Missile

Trainer (i.e., Warhead Installation Trainer TR1001)

TRB

Record Book for TOMAHAWK Cruise Missile, PEO(W)

PUB 4440

TRNR

Trainer

TRS

Technical Repair Standard

TRT

Tensioner Rigging Tool

TSN

TOMAHAWK Strike Network

TTL

Torpedo Tube Launched

TVC

Thrust Vector Control

TWCS

TOMAHAWK Weapon Control System

TWS

TOMAHAWK Weapons System; Tactical Weapons

Simulator

TYCOM

Type Commander

UBOB

Umbilical Breakout Box

UIC

Unit Identification Code

ULSS

User’s Logistics Support Summary

UOC

Usable on Code

UR/IR

Unsatisfactory/Information Report

URL

Uniform Resource Locator

UWARS

Universal Restraint Stands

145

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

ABBREVIATION/ACRONYM

DEFINITION

VDA

Variable Dive Attack Maneuver

VDC

Volts DC

VLA

Vertical Launch Anti-Submarine Rocket

VLC

Vertical Launch Console; Vertical Launch Center

VLS

Vertical Launching System

VLT

Vertical Launch TOMAHAWK

VLV

Valve

VSA

Vertical Support Assembly

W/H

Warhead

WARHD

Warhead

Work Boat

WCC

Weapon Control Console

WDC

Weapon Data Converter

WH INST TRNR

TOMAHAWK Warhead Installation Trainer

WIT

Warhead Installation Trainer

WIU

Warhead Interface Unit

WLC

Weapon Launch Console

WMP

Weapon Monitor Panel

WPNSTA

Weapons Station

WSA

Warhead Support Assembly

146

SW820-AP-MMI-010

REVISION 15

27 MARCH 2009

CHAPTER 1

Table 1-5. Summary of Reports

WEAPON

GOVERNING

SYSTEM

REPORT

MEDIA

DIRECTIVE

PURPOSE OF REPORT

UGM-109-1

ELECTRONIC

Web-based

An electronic reporting

UGM-109-2

CRUISE

E-CMFR

system that replaces the

RGM-109-2

MISSILE

Form lo-

former CMFR system.

RGM-109-4

FIELD

cated in

For use by Intermediate

REPORT

TOMA-

Maintenance Activities to

(E-CMFR)

HAWK

report damaged, faulty,

Manage-

or failed equipment,

ment In-

ineffective documentation,

formation

routine requests for

System

technical assistance,

(TOMIS)

corrective maintenance

database

and/or results of PMS

accomplishment for

RGM-/UGM-109C/D/E

AURs and related

equipment.

UGM-

NUCLEAR

NAVSEA

SWOP 5-8

Report damaged, faulty

109A-1

WEAPONS

Form

or failed equipment or

UNSATISFAC-

8110/4

ineffective documentation

TORY/ INFOR-

for 109A and related

MATION RE-

equipment.

PORT (UR/IR)

UGM-109-1

PMS

NAVSEA

OPNAVINST

Report PMS

UGM-109-2

TECHNICAL

Form

4790.4

documentation

RGM-109-2

FEEDBACK

4790/7B

deficiencies.

RGM-109-4

REPORT

(TFBR)

UGM-109-1

CONVEN-

Ammuni-

CINCLANT-

Report transfer/change

UGM-109-2

TIONAL AM-

tion Trans-

FLTINST

in condition of items

RGM-109-2

MUNITION

action Re-

8010.4/ CINC-

identified in PEO(CU)

RGM-109-4

INTEGRATED

port

PACFLTINST

INST 8800.1.

MANAGE-

8010.12/ NSPC-

MENT SYS-

CINST P8010.12

TEM (CAIMS)

147

Military reference books and manuals (2009-2023, Volume 5) - page 40
