Volvo V70 (2016 year). Manual

02 Safety

}}

Option/accessory, for more information, see Introduction.

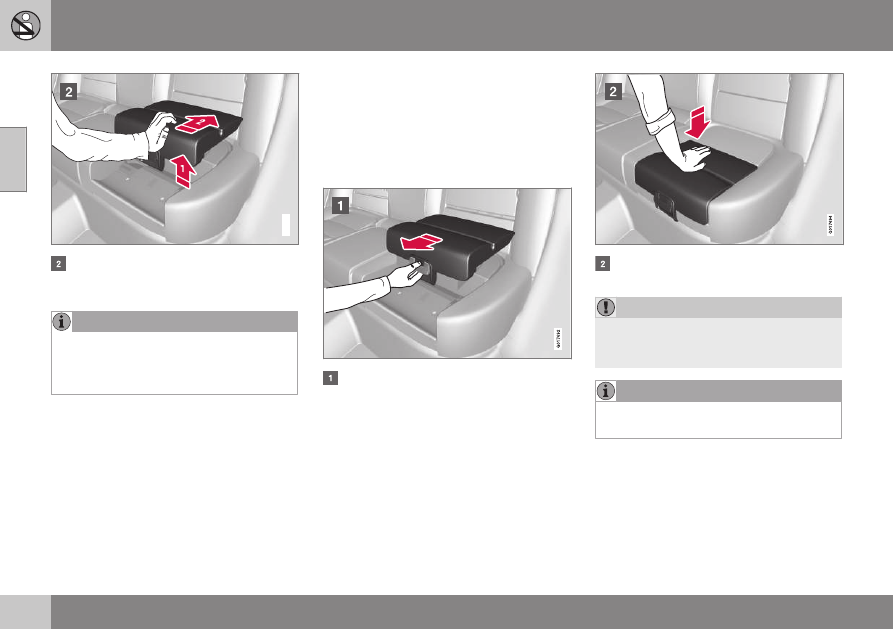

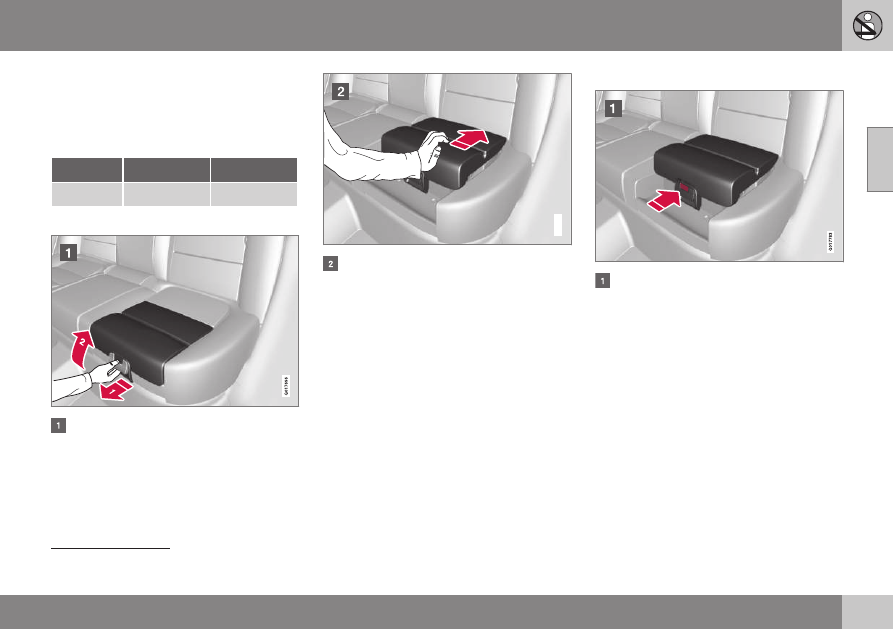

Two-stage booster seat* - raising

The integrated booster seat (p. 50) in the rear

seat can be folded up into two stages. How

many stages the cushion should be folded up

depends on the child's weight.

Stage 1

Stage 2

Weight

22-36 kg

15-25 kg

Stage 1

Pull the handle forward and up in order to

release the booster cushion.

G017697

Press the booster cushion backwards to

lock.

Stage 2

Start from the lower stage. Press the but-

ton.

Lower stage.

Upper stage.

02 Safety

Option/accessory, for more information, see Introduction.

G017784

Lift the booster cushion up at the front

edge and press it back against the back-

rest to lock.

NOTE

It is not possible to adjust the booster seat

from stage 2 to stage 1. It must first be

reset by being fully folded down (p. 52)

into the seat cushion.

Related information

•

Two-stage booster seat* - lowering

(p. 52)

Two-stage booster seat* - lowering

The integrated booster seat (p. 50) in the rear

seat can be folded down from the upper or

lower stage to fully lowered position in the

seat cushion. However, it is not possible to

adjust the booster cushion from the upper

stage to the lower stage.

Pull the handle forwards to release the

cushion.

Press down with your hand in the centre

of the cushion in order to lock it.

IMPORTANT

Check that there are no loose objects (e.g.

toys) left behind in the space under the

cushion before lowering.

NOTE

Before the rear backrest is lowered, the

booster cushion must be lowered first.

Related information

•

Two-stage booster seat* - raising (p. 51)

02 Safety

}}

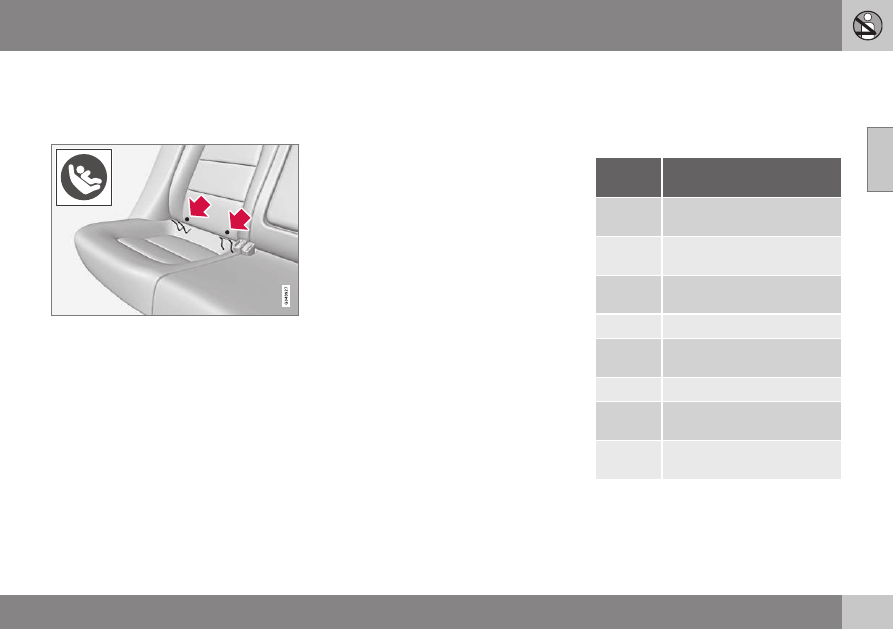

Child seat - ISOFIX

ISOFIX is a fixture system for car child seats

(p. 44) that is based on an international stand-

ard.

Mounting points for the ISOFIX fixture system

are concealed behind the lower section of the

rear seat backrest, in the outer seats.
The location of the mounting points is indi-

cated by symbols in the backrest upholstery

(see preceding illustration).
Press the seat cushion down to access the

mounting points.
Always follow the manufacturer's installation

instructions when connecting a child seat to

the ISOFIX mounting points.

Related information

•

ISOFIX - size classes (p. 53)

•

ISOFIX - types of child seat (p. 55)

•

General information on child safety (p. 43)

ISOFIX - size classes

There is a size classification for child seats

using the ISOFIX (p. 53) fixture system in

order to assist users in choosing the correct

type of child seat (p. 55).

Size

class

Description

Full size, front-facing child

seat

Reduced size (alt. 1), front-

facing child seat

Reduced size (alt.2), front-fac-

ing child seat

Full size, rear-facing child seat

Reduced size, rear-facing

child seat

Rear-facing infant seat

Transverse infant seat, left-

hand

Transverse infant seat, right-

hand

02 Safety

}}

ISOFIX - types of child seat

Child seats are in different sizes – cars are in

different sizes. This means that not all child

seats are suitable for all seats in all car mod-

els.

Type of child seat

Weight

Size class

Passenger seats for ISOFIX installation of child seats

Front seat

Outer rear seat

Infant seat transverse

max 10 kg

Infant seat, rear-facing

max 10 kg

(IL)

Infant seat, rear-facing

max 13 kg

(IL)

Child seat, rear-facing

9-18 kg

(IL)

02 Safety

Type of child seat

Weight

Size class

Passenger seats for ISOFIX installation of child seats

Front seat

Outer rear seat

Front-facing child seat

9-18 kg

(IUL)

X: The ISOFIX position is not suitable for ISOFIX child seats in this weight class and/or size class.
IL: Suitable for specific ISOFIX child seats. These child seats may be intended for a particular car model, limited or semi-universal categories.
IUF: Suitable for front-facing ISOFIX child seats that are universally approved in this weight class.

Volvo recommends rear-facing child seats for this group.

Make sure you select the right size class

(p. 53) of child seat with ISOFIX (p. 53) fixture

system.

02 Safety

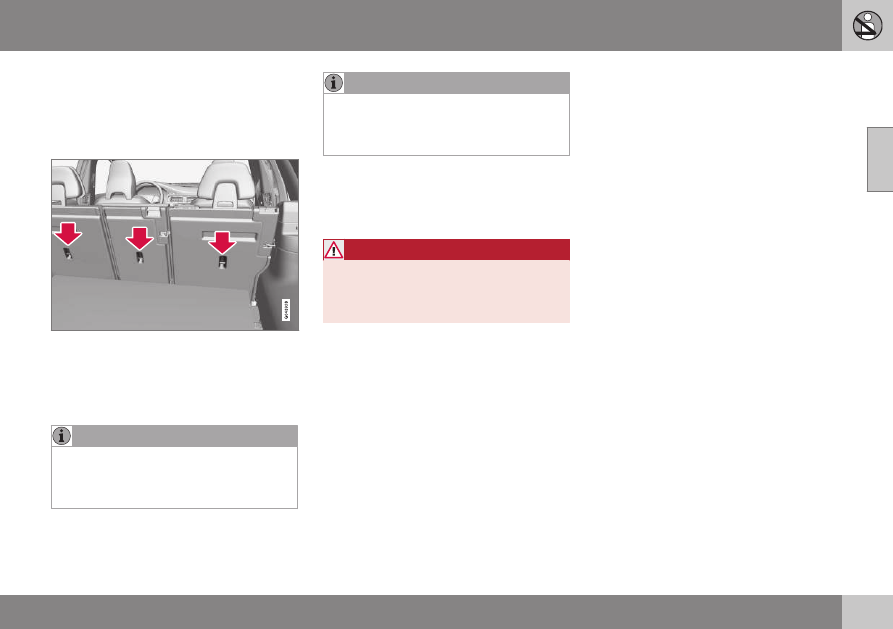

Child seats - upper mounting points

The car is equipped with upper mounting

points for certain front-facing child seats

(p. 44). These mounting points are located on

the rear of the seat.

The upper mounting points are primarily

intended for use with front-facing child seats.

Volvo recommends that small children should

sit in rear-facing child seats to as late an age

as possible.

NOTE

Fold the head restraints in order to facili-

tate fitting this type of child seat in cars

with folding head restraints on the outer

seats.

NOTE

In cars with a cargo cover over the lug-

gage compartment, this must be removed

before child seats can be attached to the

securing points.

For detailed information on how the child seat

should be tensioned in the upper mounting

points, see the seat manufacturer's instruc-

tions.

WARNING

The child seat's straps must always be

drawn through the hole in the head

restraint leg before they are tensioned at

the attachment point.

Related information

•

General information on child safety (p. 43)

•

Child seats - location (p. 49)

•

Child seat - ISOFIX (p. 53)

03 Instruments and controls

Option/accessory, for more information, see Introduction.

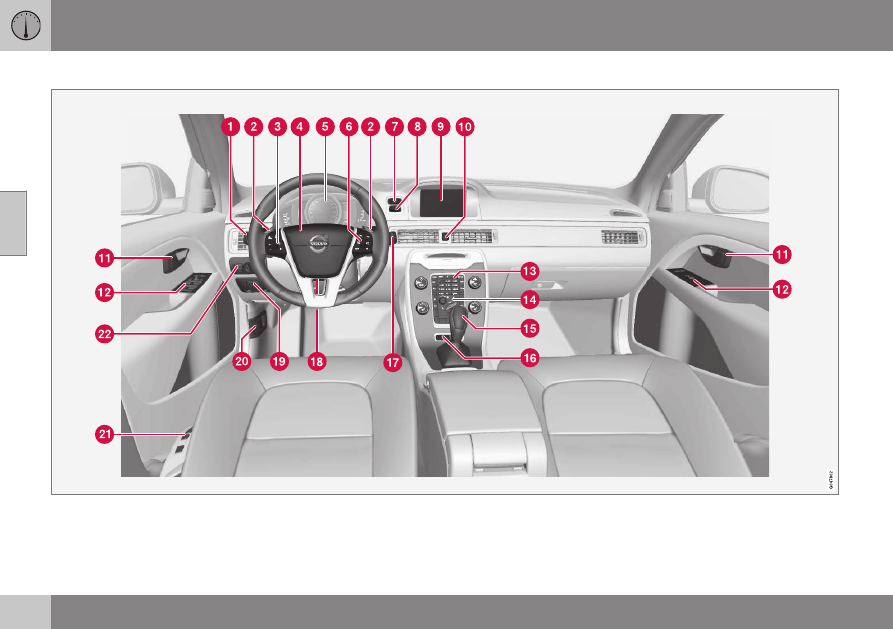

Function

See

Menus and mes-

sages, direction

indicators, main/

dipped beam, trip

computer

Manual gear chang-

ing in an automatic

gearbox*

Cruise control*

Horn, airbags

Combined instru-

ment panel

(p. 65).

Menu navigation,

audio control,

phone control*

(p. 116) and

the Sensus

Infotainment

supplement.

START/STOP

ENGINE button

(p. 265).

Ignition switch

(p. 80).

Screen for infotain-

ment system and

display of menus

(p. 116) and

the Sensus

Infotainment

supplement.

Function

See

Hazard warning

flashers

(p. 96).

Door handle

Control panel

Control panel for

infotainment system

and menu naviga-

tion

(p. 116) and

the Sensus

Infotainment

supplement.

Control panel for cli-

mate control

Gear selector

Controls for active

chassis (Four-C)*

(p. 195).

Wipers and washing

(p. 104).

Steering wheel

adjustment

(p. 86).

Parking brake

(p. 295).

Bonnet opener

(p. 360).

Function

See

Seat adjustment*

(p. 83).

Headlamp control,

opener for fuel filler

flap and tailgate

(p. 88),

(p. 302) and

(p. 185).

Related information

•

Outside temperature gauge (p. 74)

•

Trip meter (p. 74)

•

Clock (p. 75)

03 Instruments and controls

Option/accessory, for more information, see Introduction.

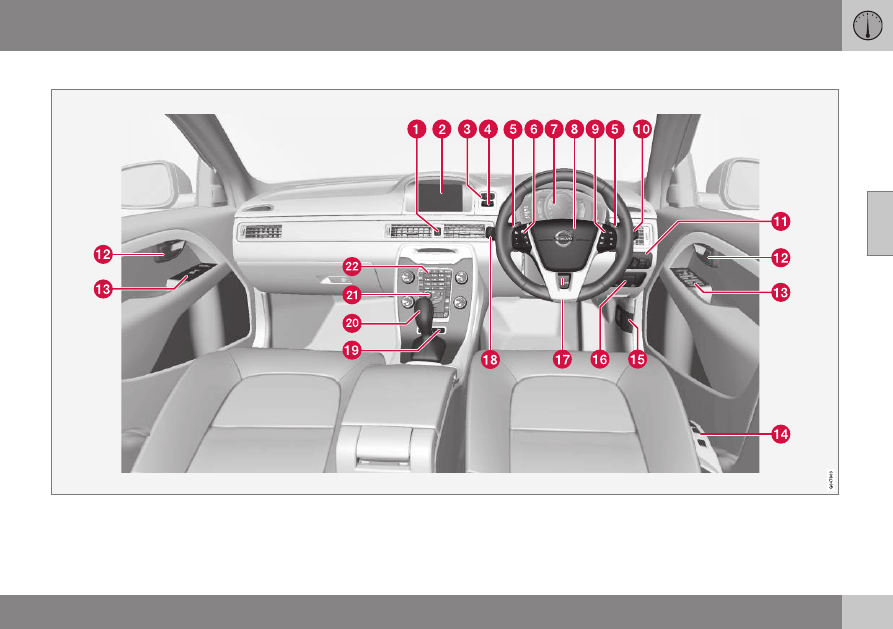

Function

See

Hazard warning

flashers

(p. 96).

Screen for infotain-

ment system and

display of menus

(p. 116) and

the Sensus

Infotainment

supplement.

START/STOP

ENGINE button

(p. 265).

Ignition switch

(p. 80).

Manual gear chang-

ing in an automatic

gearbox*

(p. 273).

Cruise control*

(p. 203) and

(p. 205).

Combined instru-

ment panel

(p. 65).

Horn, airbags

(p. 86) and

(p. 31).

Menu navigation,

audio control,

phone control*

(p. 116) and

the Sensus

Infotainment

supplement.

Wipers and washing

(p. 104).

Function

See

Headlamp control,

opener for fuel filler

flap and tailgate

(p. 88),

(p. 302) and

(p. 185).

Door handle

Control panel

Seat adjustment*

Bonnet opener

Parking brake

Steering wheel

adjustment

(p. 86).

Menus and mes-

sages, direction

indicators, main/

dipped beam, trip

computer

Controls for active

chassis (Four-C)*

Gear selector

Function

See

Control panel for cli-

mate control

(p. 136).

Control panel for

infotainment system

and menu naviga-

tion

(p. 116) and

the Sensus

Infotainment

supplement.

Related information

•

Outside temperature gauge (p. 74)

•

Trip meter (p. 74)

•

Clock (p. 75)

03 Instruments and controls

}}

Combined instrument panel

The combined instrument panel's information

display shows information on some of the

car's functions, as well as messages.

•

Analogue combined instrument panel -

overview (p. 65)

•

Digital combined instrument panel - over-

view (p. 66)

•

Combined instrument panel - meaning of

indicator symbols (p. 70)

•

Combined instrument cluster - meaning

of warning symbols (p. 72)

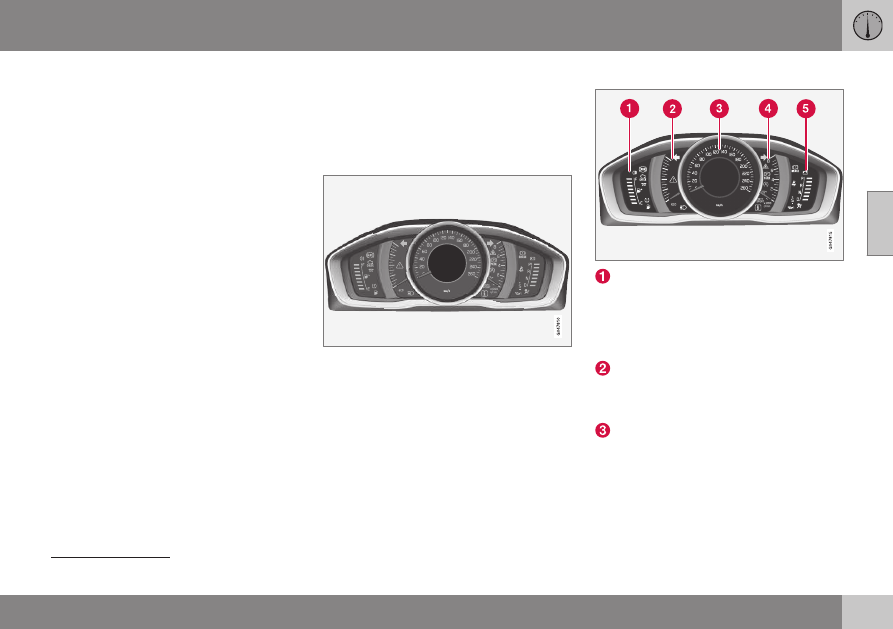

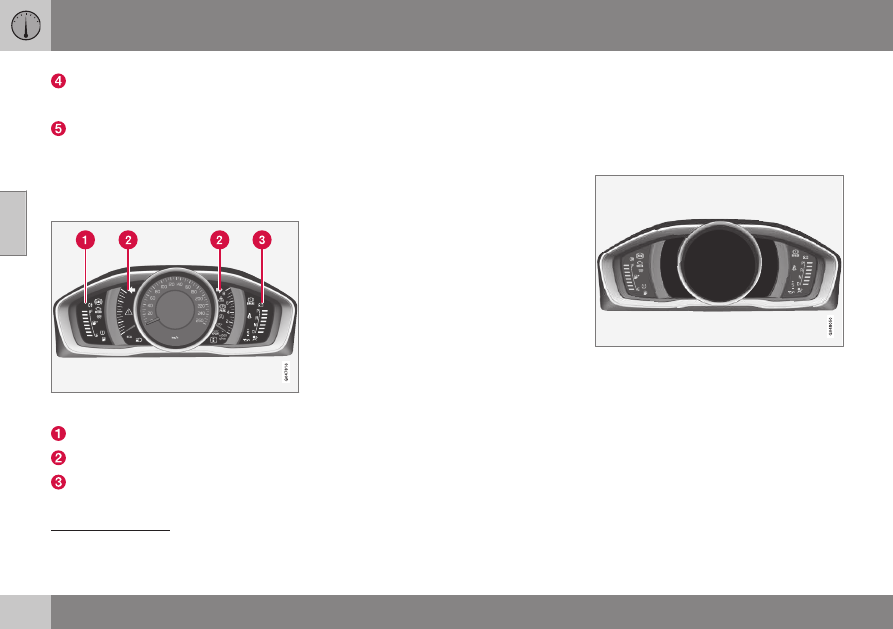

Analogue combined instrument panel

- overview

The combined instrument panel's information

display shows information on some of the

car's functions, as well as messages.

Information display

Information display, analogue instrument panel.

The combined instrument panel's information

display shows information on some of the

car's functions, e.g. cruise control and trip

computer, as well as messages. The informa-

tion is shown with symbols and text. There

are further descriptions under the functions

that use the display.

Gauges and indicators

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indi-

cator symbol for low level in the fuel tank

is illuminated. See also Trip computer -

supplementary information (p. 127) and

Filling up with fuel (p. 302).
Eco meter The meter provides an indica-

tion of how economically the car is being

driven. The higher the reading on the

scale, the more economical it is.
Speedometer

When the display's message "Distance to empty fuel tank:" starts to show "

----

", the marking becomes red.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Tachometer. The meter indicates engine

speed in thousands of revolutions per

minute (rpm).
Gear shift indicator

/Gear position indica-

tor

See also Gear shift indicator*

(p. 272), Automatic gearbox --

Geartronic* (p. 273) or Automatic gear-

box -- Powershift* (p. 276).

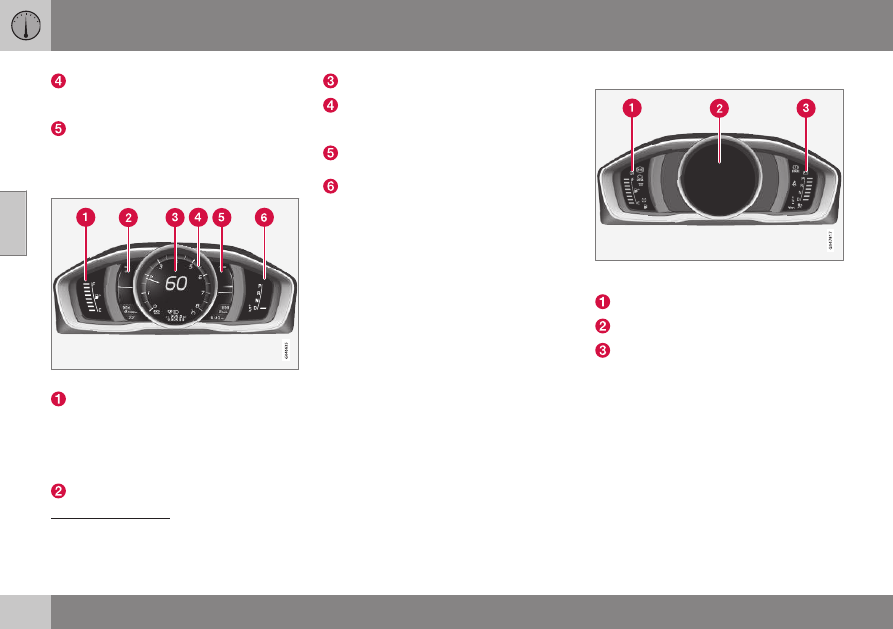

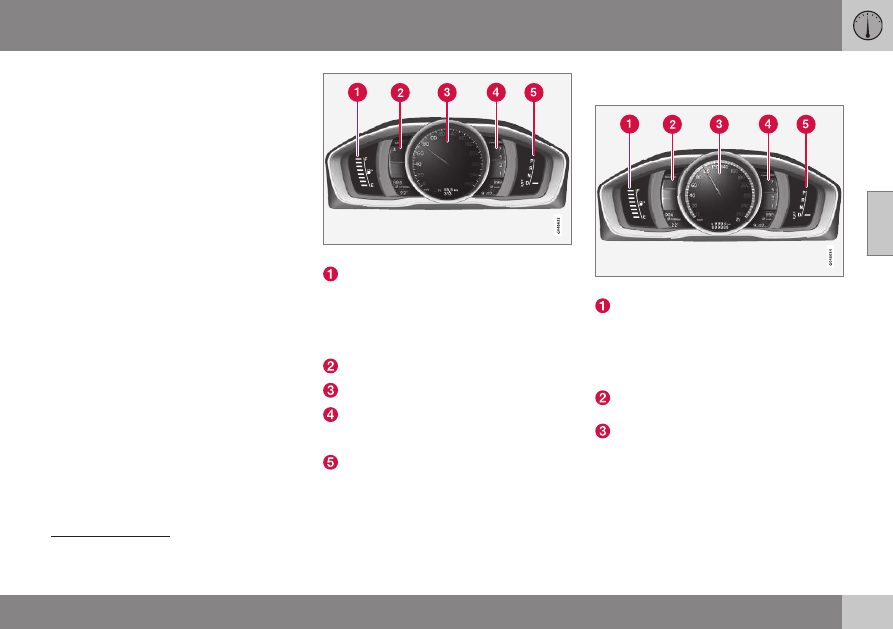

Gauges and indicators, theme "Eco".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indi-

cator symbol for low level in the fuel tank

is illuminated. See also Trip computer -

supplementary information (p. 127) and

Filling up with fuel (p. 302).

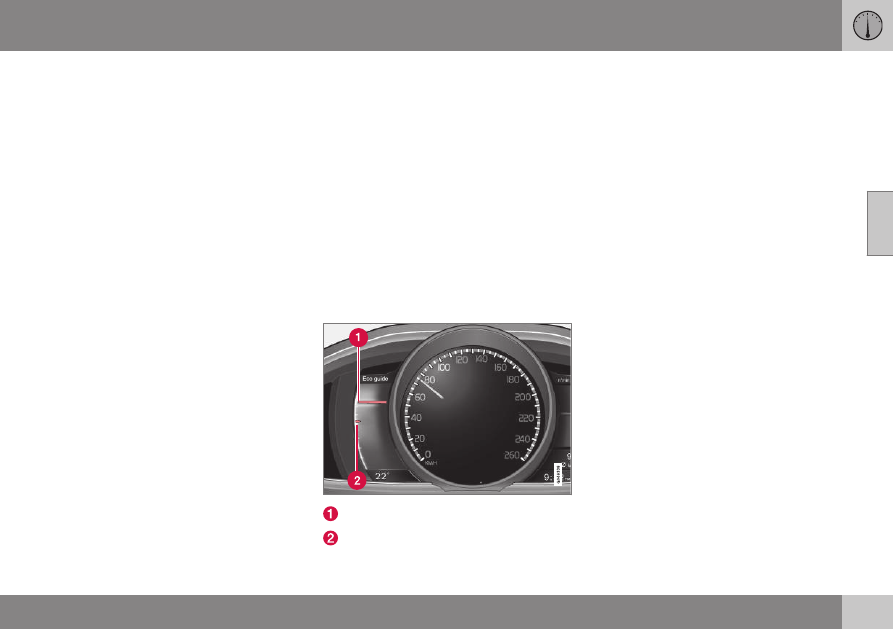

Eco guide. See also Eco guide & Power

guide* (p. 69).
Speedometer

When the display's message "Distance to empty fuel tank:" starts to show "

----

", the marking becomes red.

Manual gearbox.

Automatic gearbox.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Tachometer. The meter indicates engine

speed in thousands of revolutions per

minute (rpm).
Gear shift indicator

/Gear position indica-

tor

. See also Gear shift indicator*

(p. 272), Automatic gearbox --

Geartronic* (p. 273) or Automatic gear-

box -- Powershift* (p. 276).

Gauges and indicators, theme "Performance".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indi-

cator symbol for low level in the fuel tank

is illuminated. See also Trip computer -

supplementary information (p. 127) and

Filling up with fuel (p. 302).
Temperature gauge for engine coolant

Speedometer

Tachometer. The meter indicates engine

speed in thousands of revolutions per

minute (rpm).
Power guide. See also Eco guide &

Power guide* (p. 69).
Gear shift indicator

/Gear position indica-

tor

. See also Gear shift indicator*

(p. 272), Automatic gearbox --

Geartronic* (p. 273) or Automatic gear-

box -- Powershift* (p. 276).

Indicator and warning symbols

Indicator and warning symbols, digital instrument

panel.

Indicator symbols

Indicator and warning symbols

Warning symbols

Manual gearbox.

Automatic gearbox.

When the display's message "Distance to empty fuel tank:" starts to show "

----

", the marking becomes red.

Certain engine variants do not have systems to warn of oil pressure loss. In cars with these variants the symbol for low oil pressure is not used. Warning for low oil level is via display text. For

more information, see Engine oil - general (p. 362).
