SPECIFICATIONS

382

Engine specifications

The following table provides technical data for
the respective engines. Engine specifications for
Special Edition vehicles may vary.

Some of the engines listed here may not be
available in all markets.

Engine specifications

Engine

T5 AWD

Engine designation

B4204T11

Output (kW/rps)

179/93

Output (hp/rpm)

240/5600

Torque (Nm/rps)

350/25-75

Torque (ft. lbs./rpm)

258/1500–4500

No. of cylinders

4

Bore (in/mm)

3.23/82

Stroke (in/mm)

3.67/93.2

Displacement

1.97 liters (120.2 cu. in.)

Compression ratio

10.8:1

Related information

•

Coolant – specification and volume (p. 385)

•

Oil specifications (p. 383)

•

Oil volume (p. 384)

SPECIFICATIONS

383

Oil specifications

Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils
may not offer the same fuel economy, engine
performance, or engine protection.

Volvo recommends:

Refer to the warranty and Service Records infor-
mation booklet for information on oil change
intervals and oil type requirements.

NOTE

This vehicle comes from the factory with syn-
thetic oil.

Oil additives must not be used.

Oil viscosity

Incorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide good
fuel economy and engine protection. See the vis-
cosity chart.

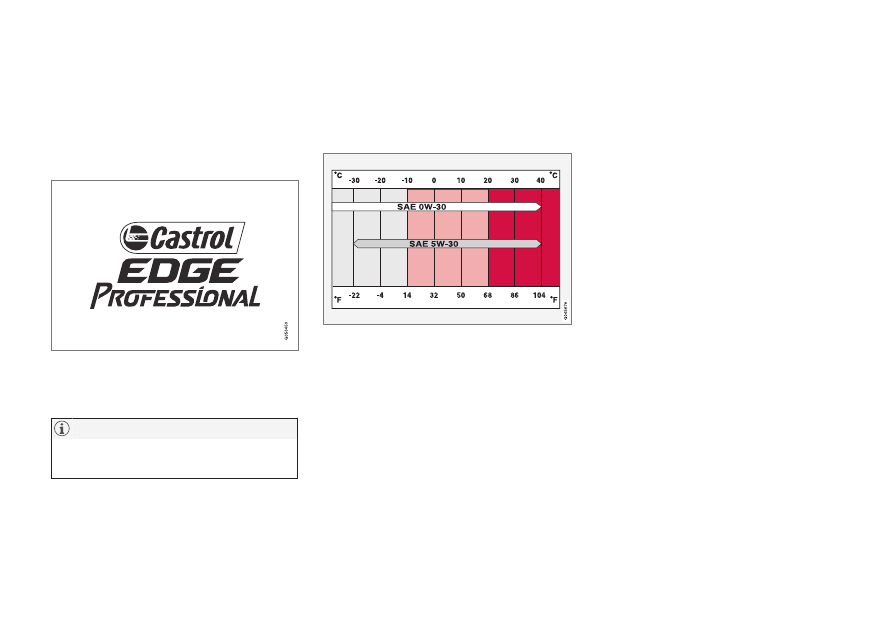

Viscosity chart

Extreme engine operation

SAE 0W-30 oil meeting ACEA A5/B5 require-
ments is recommended for extreme driving con-
ditions.

Related information

•

Oil volume (p. 384)

•

Engine compartment – engine oil (p. 339)

SPECIFICATIONS

384

Oil volume

The following table provides the recommended
oil volume for the engine in your vehicle. Some

engines may not be available in all markets.
Engine specifications for Special Edition vehi-
cles may vary.

Engine model

Approx. volume (incl. filter)

4-cylinder

5.9 US qts (5.6 liters)

Related information

•

Engine compartment – engine oil (p. 339)

•

Oil specifications (p. 383)

SPECIFICATIONS

385

Coolant – specification and volume

The table lists coolant volumes and specifica-
tions.

System

Volume

Specification

B4204T11

8.7 US qts.
(8.3 liters)

Coolant with
corrosion inhibi-
tor mixed with
water (50/50
mix), see pack-
aging.

Related information

•

Engine compartment – coolant (p. 342)

Transmission oil – specification and

volumes

The table lists transmission oil

1

 volumes and

specifications.

Automatic
transmis-
sion

Volume

Specifica-
tion

TF-80SD

7.4 US qts
(7 liters)

Transmis-
sion fluid
AW1

TG-81SC

7 US qts ( 6.6
liters)

TF-71SC

7.1 US qts (6.8
liters)

Related information

•

Label information (p. 376)

Brake fluid – specification and

volume

Brake fluid transfers braking force when the
brake pedal is depressed to the master cylinder
and to the slave cylinders on each wheel.

Specification: Volvo Original Dot 4 class 6 or
equivalent

Volume: 0.63 US qts (0.6 liters)

Related information

•

Engine compartment – brake fluid (p. 343)

1

Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS

386

Power steering – specification

This fluid is used to help reduce and regulate
steering force.

Specification:Power steering fluid recom-
mended by Volvo.

Related information

•

Engine compartment – power steering fluid
(p. 343)

Fuel tank volume – specification

and volume

The table lists the fuel tank volume for your vehi-
cle.

Volume

Specification

17.8 US gallons (67.5 liters)

–

Related information

•

Refueling – opening/closing fuel filler door
(p. 289)

•

Refueling – opening/closing fuel cap
(p. 290)

•

Refueling – octane rating (p. 287)

•

Engine specifications (p. 382)

SPECIFICATIONS

387

Tire inflation – pressure table

The following tire pressures are recommended
by Volvo for your vehicle. Refer to the tire infla-

tion placard (see Tire inflation – general informa-
tion (p. 308) for its location) for information spe-

cific to the tires installed on your vehicle at the
factory.

Some of the tire sizes listed here may not be
available for all models in all markets.

Tire size

Cold tire pressure for up to five persons

Front

psi (kPa)

Rear

psi (kPa)

235/50 R18

36 (250)

36 (250)

235/45 R19

39 (270)

39 (270)

Temporary spare tire

T125/80R17

60 (420)

60 (420)

NOTE

Please consult a Volvo retailer’s Parts depart-
ment for the most up-to-date specifications.

SPECIFICATIONS

388

Air conditioning – specification and

volume

The air conditioning system in your vehicle con-
tains the following:

Refrigerant: R134a (HFC134a)

Volume: 1.7 lbs (770 g)

Compressor oil: PAG

Battery specifications

If the battery is replaced, replace it with a battery
of the same cold start capacity as the original
(see the decal on the battery).

General information

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.

12 volt system with a voltage-regulated alterna-
tor. Single pole system in which the chassis and
engine block are used as conductors. The nega-
tive terminal is connected to the chassis.

Voltage (V)

12

Cold start capacity
(Cold Cranking
Amperes - CCA) (A)

760

Dimensions, L×W×H in.
(mm)

10.9×6.9×7.5

(278×175×190)

Capacity (Ah)

70

Symbols – general information

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

Introduction

The symbols in the vehicle's various displays are
divided into three main categories:

•

Warning symbols

•

Indicator symbols

•

Information symbols

The following tables list the most common sym-
bols, their meaning and the pages in this manual
that provide more detailed information.

NOTE

Not all of the symbols shown in the related
articles are available in all models or on all
markets. Local variations may occur.

Warning symbol

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

Information symbol

: The information symbol illuminates and a

text message is displayed to provide the driver

SPECIFICATIONS

389

with necessary information about one of the vehi-
cle's systems.

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)

Warning symbols

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

: The information symbol illuminates and a

text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.

Symbols in the main instrument panel

Warning symbols in the instrument panel

Symbol

Description

See

Low oil pressure

(p. 77)

Parking brake

A

(p. 77)

SRS airbags

(p. 77)

Seat belt reminder

(p. 77)

Generator not charging

(p. 77)

Symbol

Description

See

Fault in the brake system

(p. 77)

Warning symbol

(p. 77)

A

The symbol is Park only on models with the optional digital

instrument panel.

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)

SPECIFICATIONS

* Option/accessory.

390

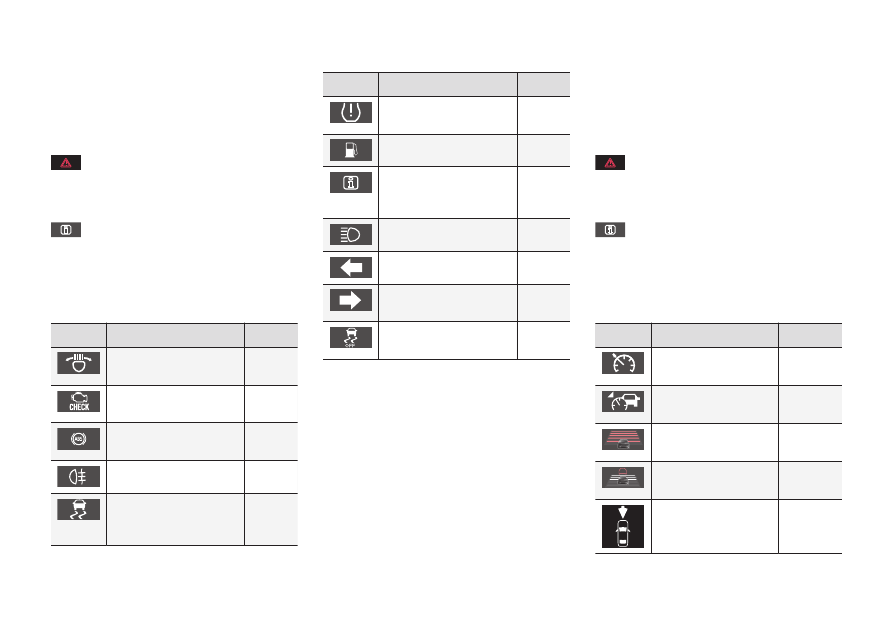

Indicator symbols

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

: The information symbol illuminates and a

text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.

Indicator symbols in the instrument
panel

Symbol

Description

See

Fault in the Active Bend-
ing Light (ABL)

*system

(p. 75)

Malfunction indicator
light

(p. 75)

Anti-lock brake system
(ABS)

(p. 75)

Rear fog lights on

(p. 75)

Stability system, Hill
Descent Control, Trailer
Stability Assist

*

(p. 75)

Symbol

Description

See

Tire pressure monitoring
sensor (TPMS)

(p. 75)

Low fuel level

(p. 75)

Information symbol, see
text in information dis-
play

(p. 75)

High beam indicator

(p. 75)

Left turn signal indicator

(p. 75)

Right turn signal indica-
tor

(p. 75)

Stability system , Sport
mode

(p. 175)

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)

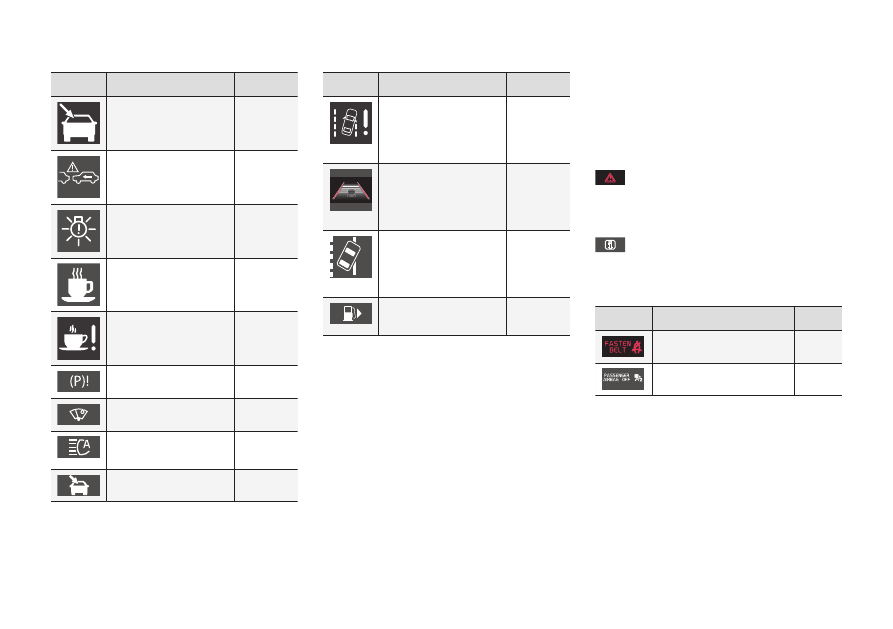

Information symbols

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

: The information symbol illuminates and a

text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.

Information symbols in the instrument
panel

Symbol

Description

See

Adaptive Cruise Con-
trol

*

(p. 183)

Adaptive Cruise Con-
trol

*

(p. 183)

Adaptive Cruise Con-
trol

*

(p. 183)

Adaptive Cruise Con-
trol

* (Distance alert)

(p. 183)

Radar sensor

*

(p. 193)

SPECIFICATIONS

* Option/accessory.

391

Symbol

Description

See

Camera sensor, laser
sensor

(p. 215)
(p. 208)

Collision Warning with
Full Auto-brake and
Pedestrian Detection

*

(p. 220)

Active Bending Lights
(ABL)

*

(p. 95)

Driver Alert System

*

(p. 222)

Driver Alert System

*

(p. 222)

Parking brake

(p. 280)

Rain sensor

*

(p. 103)

Active High Beams
(AHB)

*

(p. 94)

Windshield sensor

*

(p. 94)

Symbol

Description

See

Driver Alert System

*

(Lane Departure
Warning/Lane
Keeping Aid)

(p. 228)

Driver Alert System

*

(Lane Departure
Warning/Lane
Keeping Aid)

(p. 228)

Driver Alert System

*

(Lane Departure
Warning/Lane
Keeping Aid)

(p. 228)

Fuel tank on passeng-
er's side of the vehicle

(p. 289)

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)

Information symbols – ceiling

console

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

: The information symbol illuminates and a

text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.

Symbol

Description

See

Seat belt reminder

(p. 32)

Occupant Weight Sensor

(p. 38)

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)

SPECIFICATIONS

* Option/accessory.

392

Information symbols – center

console

The following tables list the most common warn-
ing and indicator lights and symbols and a refer-
ence to where more detailed information can be
found.

: The red warning symbol illuminates to

indicate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.

: The information symbol illuminates and a

text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.

Symbol

Description

See

Audio files

Sensus Infotain-
ment supple-
ment

CD folder

Sensus Infotain-
ment supple-
ment

Video files

Sensus Infotain-
ment supple-
ment

Bluetooth-con-
nected cell
phone

Sensus Infotain-
ment supple-
ment

Symbol

Description

See

Bluetooth

TM

hands-free

Sensus Infotain-
ment supple-
ment

HD radio

Sensus Infotain-
ment supple-
ment

Park Assist

*

(p. 238)

Related information

•

Information displays – indicator symbols
(p. 75)

•

Information displays – warning symbols
(p. 77)

•

Information display – messages (p. 117)
