MAINTENANCE AND SERVICING

347

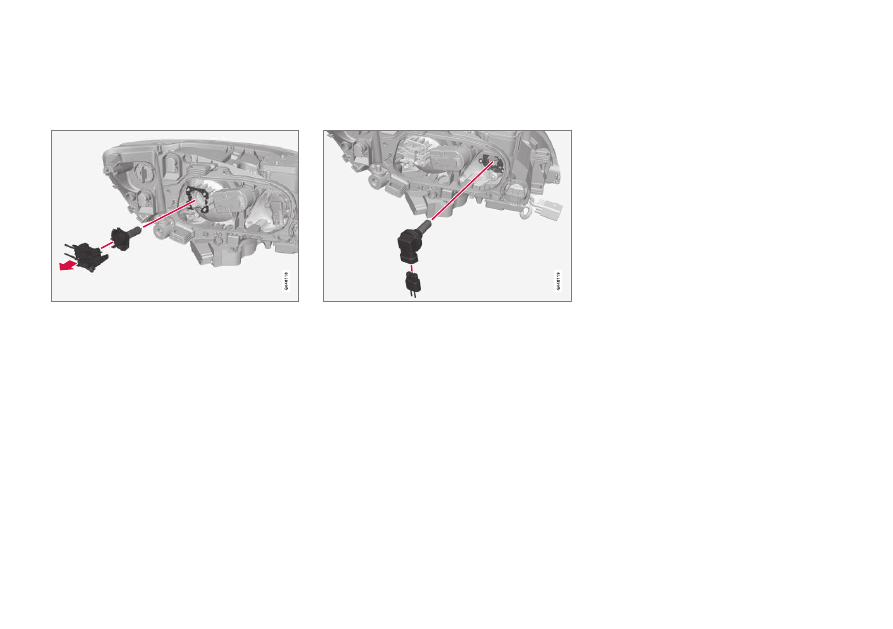

Bulbs – low beam, Halogen

The low beam bulb is concealed by the larger
cover.

1. Remove the headlight housing from the vehi-

cle (see Bulbs – headlight housing (p. 345)).

2. Remove the cover over the bulbs (see Bulbs

– cover (p. 346)).

3. Unplug the connector from the bulb.

4. Remove the bulb by pulling it straight out.

5. The guide lug on the new bulb should be

straight up when the bulb is inserted into the
holder and the bulb should snap into place.

6. Put the cover back into position and reinstall

the headlight housing.

Related information

•

Bulbs – specifications (p. 351)

Bulbs – high beam, Halogen

The high beam bulb is concealed behind the
larger cover.

1. Remove the headlight housing from the vehi-

cle (see Bulbs – headlight housing (p. 345)).

2. Remove the cover over the bulbs (see Bulbs

– cover (p. 346)).

3. Remove the bulb by turning it counterclock-

wise and pulling it straight out.

4. Remove the connector from the bulb.

5. Press the new bulb into the socket and turn

it clockwise to put it in place. It can only be
secured in one position.

6. Reinsert the bulb holder into the headlight

housing.

7. Put the cover back into position and reinstall

the headlight housing.

Related information

•

Bulbs – specifications (p. 351)

MAINTENANCE AND SERVICING

348

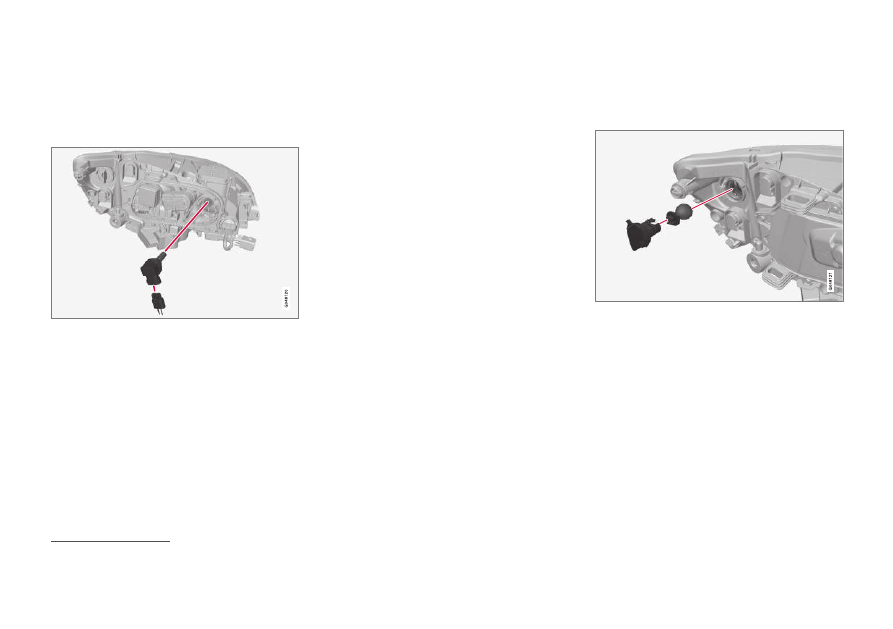

Bulbs – extra high beam

The extra high beam bulb is concealed by the
larger cover.

Extra high beam

1. Remove the headlight housing from the vehi-

cle (see Bulbs – headlight housing (p. 345)).

2. Remove the cover over the bulbs (see Bulbs

– cover (p. 346)).

3. Remove the bulb by turning it counterclock-

wise and pulling it straight out.

4. Remove the connector from the bulb.

5. Press the new bulb into the socket and turn

it clockwise to put it in place. It can only be
secured in one position.

6. Put the cover back into position and reinstall

the headlight housing.

Related information

•

Bulbs – specifications (p. 351)

Bulbs – front turn signals

The turn signal bulb is concealed behind the
smaller cover.

1. Remove the headlight housing from the vehi-

cle (see Bulbs – headlight housing (p. 345)).

2. Remove the cover by pulling it straight out.

3. Pull the holder to access the bulb.

4. Press in the bulb and turn it to remove it

from the holder.

5. Press and turn the new bulb into place.

6. Reinsert the bulb holder into the headlight

housing.

7. Put the cover back into position and reinstall

the headlight housing.

Models with optional Active Bending Lights only.

MAINTENANCE AND SERVICING

349

Related information

•

Bulbs – specifications (p. 351)

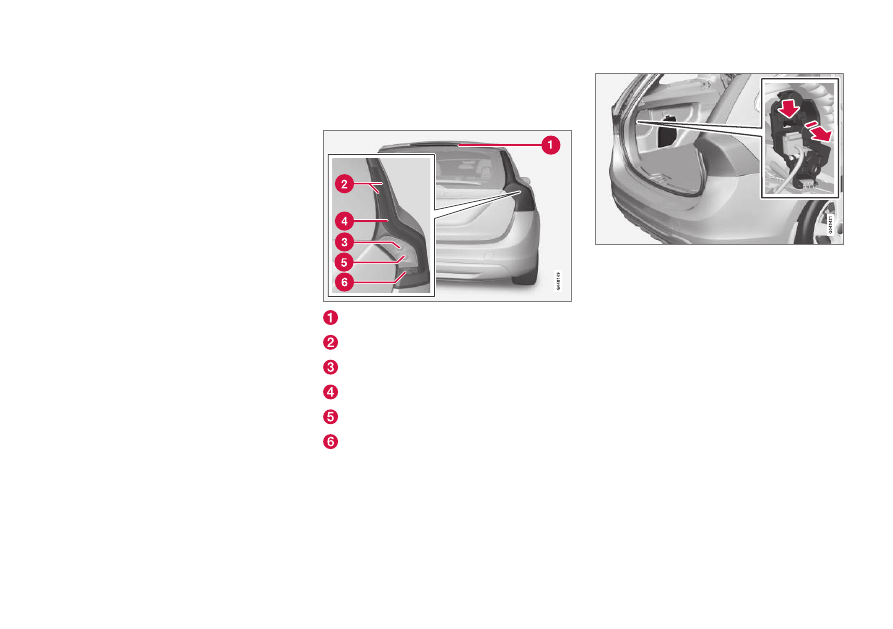

Bulbs – taillight housing

The backup lights, fog lights and turn signals are
replaced from inside the cargo area

Brake light (LED)

Parking lights/side marker light (LED)

Turn signal

Brake light (LED)

Backup light

Rear fog light

1. Open the panel.

2. Pull the insulation in front of the bulb holder

straight out.

3. Press down the catch and pull out the bulb

holder.

4. Remove the defective bulb by pressing it in

and turning it counterclockwise.

5. Press a new bulb into place and turn it clock-

wise.

6. Hold down the catch and press the bulb

holder back into place.

7. Put the insulation and panel back in place.

Related information

•

Bulbs – introduction (p. 344)

•

Bulbs – specifications (p. 351)

MAINTENANCE AND SERVICING

350

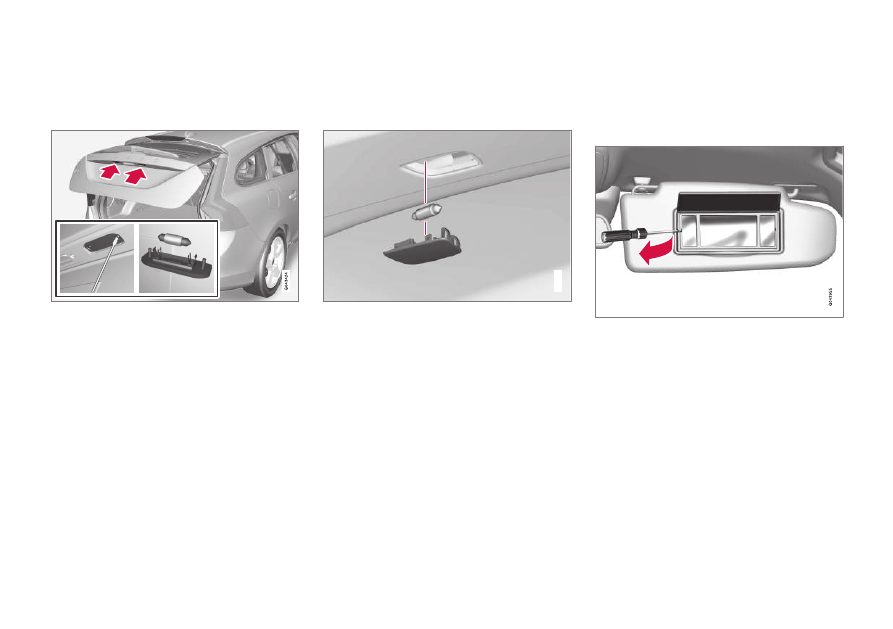

Bulbs – license plate lighting

The license plate lighting is located next to the
tailgate handle.

1. Remove the screws with a screwdriver.

2. Carefully detach the entire bulb housing and

pull it out.

3. Replace the bulb.

4. Reinsert the entire bulb housing and tighten

the screws.

Related information

•

Bulbs – specifications (p. 351)

Bulbs – cargo area lighting

The cargo area light is located in the ceiling
liner.

G031942

1. Insert a screwdriver and gently turn so that

the bulb housing comes loose.

2. Replace the bulb.

3. Check that the bulb illuminates and press it

back into the bulb housing.

Related information

•

Bulbs – specifications (p. 351)

Bulbs – vanity mirror lighting

The vanity mirror bulbs are located behind the
lens.

Removing the lens

1. Insert a screwdriver underneath the side of

the lens and carefully pry up the lug on the
edge.

2. Carefully detach and lift out the lens.

3. Use needle nose pliers to pull the bulb

straight to the side. Replace the bulb. Do not
exert too much pressure on the bulb with the
pliers to help avoid damaging it.

Reinstalling the lens

1. Put the lens back into position.

2. Press it into place.

Related information

•

Bulbs – specifications (p. 351)

MAINTENANCE AND SERVICING

}}

* Option/accessory.

351

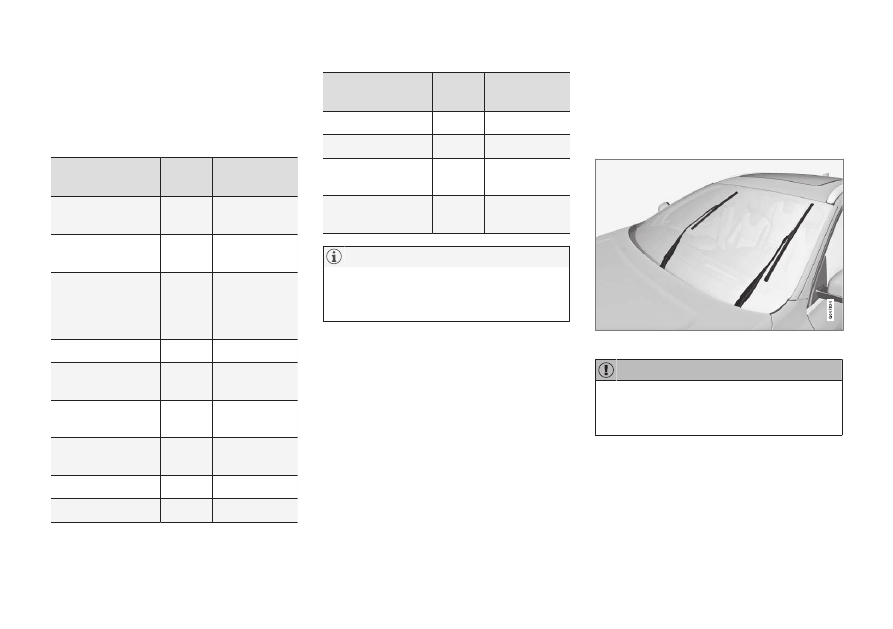

Bulbs – specifications

The following bulbs can be replaced by the vehi-
cles owner. All other bulbs should only be
replaced by a trained and qualified Volvo service
technician.

Lighting function

Wat-

tage

Bulb

Low beam (halo-
gen)

H11 LL

High beam (halo-
gen)

Extra high beam
(models with
Active Bending
Lights

H7 LL

Front turn signals

PY24W

License plate light-
ing

C5W LL

Vanity mirror light-
ing

1.2

W2x4.6d type

Glove compart-
ment lighting

SV8.5 (length

43mm)

Rear turn signals

PY21W LL

Rear fog light

H21W LL

Lighting function

Wat-

tage

Bulb

Backup light

H21W LL

Brake light

P21W LL

Cargo area lighting

SV8.5 (length

43mm)

Front footwell
lighting

W2, 1x9.5d

type T10

NOTE

Please consult a Volvo retailer’s Parts depart-
ment for the most up-to-date bulb specifica-
tions.

Related information

•

Bulbs – introduction (p. 344)

Wiper blades – service position

The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.

Wiper blades in service position

CAUTION

Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.

MAINTENANCE AND SERVICING

352

To put the windshiield wipers in the service posi-
tion:

1. Insert the remote key into the ignition slot

and press the START/STOP ENGINE but-
ton briefly to put the ignition in mode I (see
Ignition modes (p. 82) for detailed informa-
tion about the ignition modes).

2. Press the START/STOP ENGINE button

again briefly to switch the ignition off.

3. Within 3 seconds, move the right steering

wheel lever up and hold it for at least 1 sec-
ond.
> The wipers will then move to the vertical

(service) position on the windshield.

The wipers can be returned to the normal posi-
tion by pressing the START/STOP ENGINE but-
ton briefly to put the ignition in mode I (or by
starting the engine).

CAUTION

If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield before
returning the wipers to the normal position to
help avoid scratching the paint on the hood.

Related information

•

Engine compartment – washer fluid (p. 354)

Wiper blades – windshield

The wiper blades should be replaced regularly
for best effect.

The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.

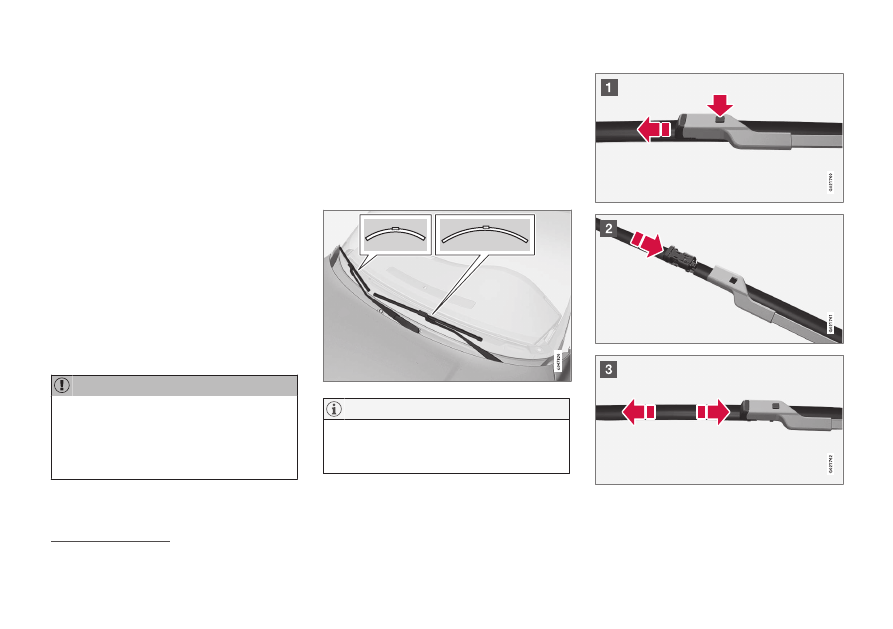

Replacing the windshield wiper blades

NOTE

The windshield wiper blades are different
lengths. The blade on the driver’s side is
longer than the one on the passenger side.

Not necessary on vehicles with the optional keyless drive.

MAINTENANCE AND SERVICING

353

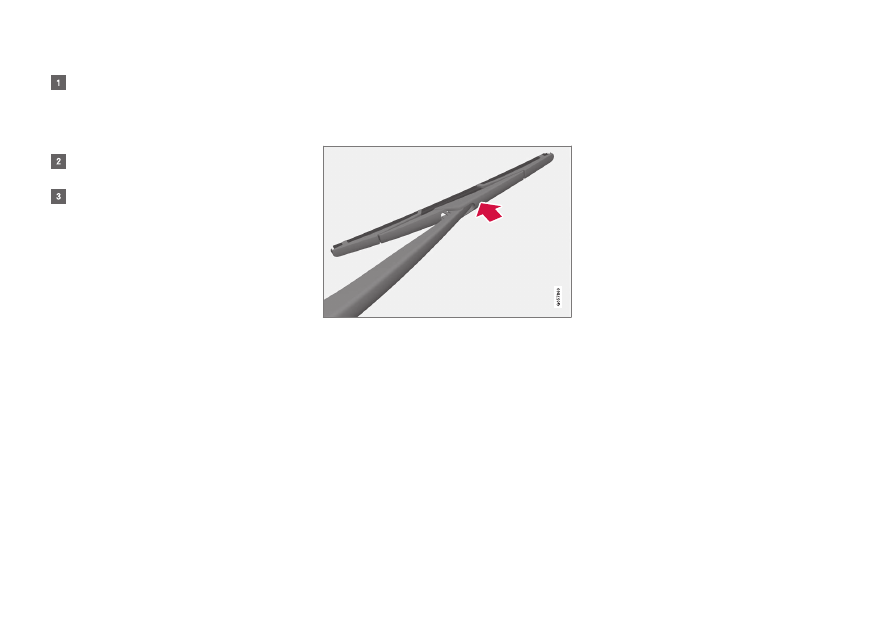

With the wipers in the service position, fold
out the wiper arm from the windshield. Press
the button on the wiper blade attachment
and pull the wiper blade straight out, parallel
with the wiper arm.

Slide in the new wiper blade until it clicks
into place.

Check that the blade is securely in place.

4. Press the wipers back against the wind-

shield.

To return the wipers from the service position to
the normal position, fold the wipers back against
the windshield and press the START/STOP
ENGINE button briefly to put the ignition in mode
I (or start the engine).

Cleaning

Keeping the windshield and wiper blades clean
helps improve visibility and prolongs the service
life of the wiper blades. Clean the wiper blades
with a stiff-bristle brush and lukewarm soap solu-
tion or car washing detergent.

Related information

•

Engine compartment – washer fluid (p. 354)

•

Wiper blades – service position (p. 351)

Wiper blades – tailgate

The wiper blades should be replaced regularly
for best effect.

Replacing the tailgate wiper blade

1. Fold the wiper arm outward.

2. Angle the wiper blade out slightly from the

wiper arm.

3. Grasp around the wiper arm and press the

wiper blade forward (at the arrow) with your
thumb to detach it.

4. Press the new wiper blade into place and

check that it seats securely.

5. Fold the wiper arm back toward the tailgate

window.

Cleaning

Keeping the wiper blade clean helps improve visi-
bility and prolongs its service life. Clean it with a

stiff-bristle brush and lukewarm soap solution or
car washing detergent.

Related information

•

Engine compartment – washer fluid (p. 354)

MAINTENANCE AND SERVICING

354

Engine compartment – washer fluid

Washer fluid helps keep the windshield and
headlights clean. During cold weather, the reser-
voir should be filled with windshield washer sol-
vent containing antifreeze. Use Volvo Original
Washer Fluid or the equivalent with a recom-
mended pH value between 6 and 8.

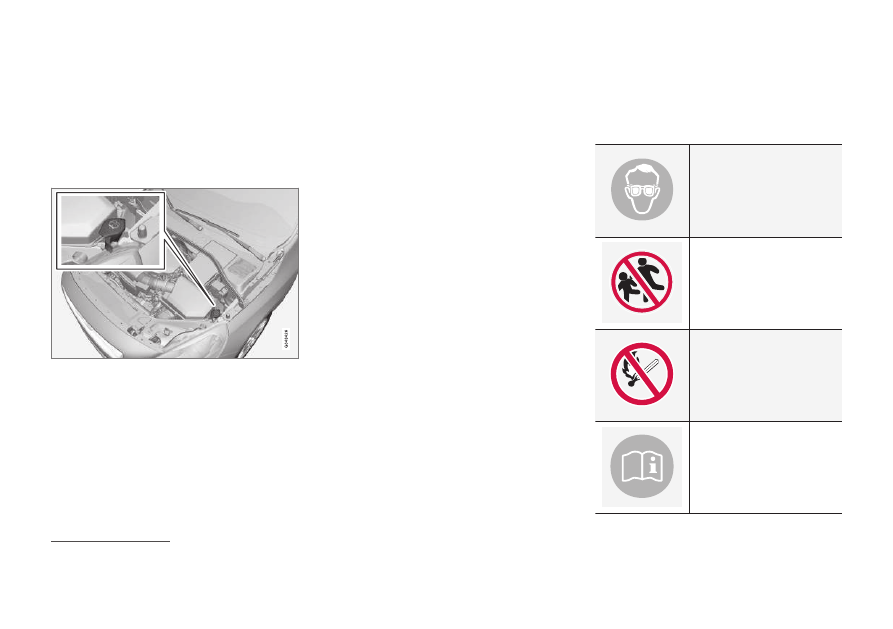

Location of the washer fluid reservoir

The windshield and headlight washers share a
common reservoir.

The washer fluid reservoir is located on the driv-
er's side of the engine compartment. For capaci-
ties, see the printed Owner's Manual.

Specification:Use a washer antifreeze recom-
mended by Volvo, mixed with water.

Volume:

•

6.8 US qts (6.5 liters)

•

4.7 US qts (4.5 liters

)

Related information

•

Wiper blades – service position (p. 351)

Battery – symbols

There are information and warning symbols on
the battery.

Symbols on the battery

Wear protective goggles.

Keep away from children.

Avoid smoking, open
flames, and/or sparks.

See the owner's manual.

Models without headlight washers

MAINTENANCE AND SERVICING

}}

355

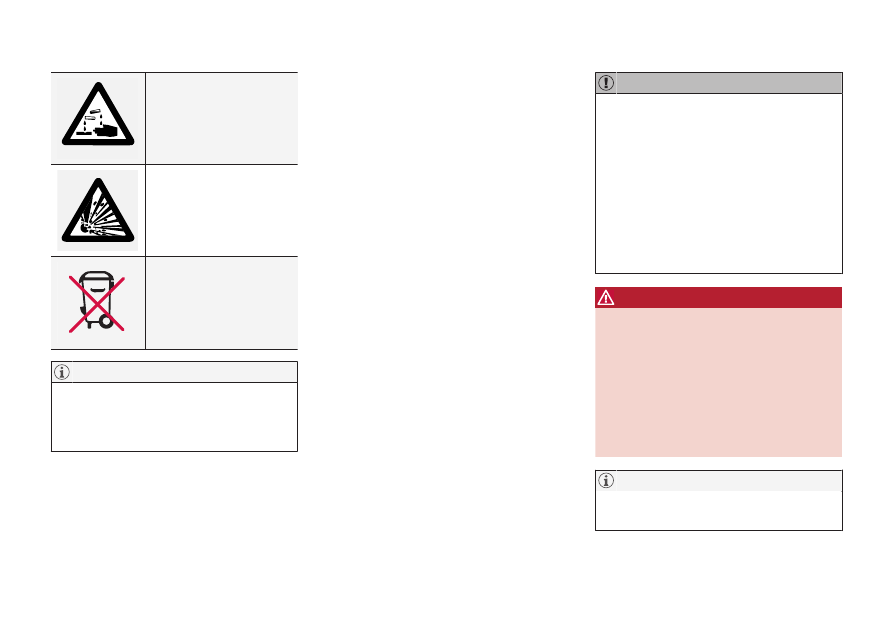

Contains corrosive acid.

Risk of explosion

Recycle properly

NOTE

Used batteries should be disposed of in an
environmentally responsible manner. Consult
your Volvo retailer or take the used batteries
to a recycling station.

Related information

•

Battery – changing (p. 357)

•

Battery – handling (p. 355)

•

Battery – maintenance (p. 356)

Battery – handling

The battery's service life is affected by the num-
ber of starts, if it has been discharged, driving
style, driving conditions, weather conditions ,etc.

Handling

•

Check that the battery cables are correctly
connected and tightened.

•

Never disconnect the battery when the
engine is running (for example, when replac-
ing the battery).

•

If the battery is fully discharged a number of
times, this may shorten its service life.

•

The service life of a battery is affected by
factors such as the number of starts, driving
conditions and climate. Extreme cold may
also further decrease the battery’s starting
capacity.

•

Because the battery’s starting capacity
decreases with time, it may be necessary to
recharge it if the vehicle is not driven for an
extended period of time or if the vehicle is
usually only driven short distances.

•

Never use a quick charger to charge the bat-
tery. Only traditional types of battery chargers
should be used.

CAUTION

The infotainment system's energy-saving fea-
ture may not function correctly or at all,
and/or a message may be displayed if a bat-
tery charger or jumper cables are not con-
nected properly.

•

The negative terminal on the battery must
never be used to connect a jumper cable
or a battery charger. Only the ground
point on the chassis may be used.

See Jump starting (p. 262) for an illustration
and additional information.

WARNING

•

Never expose the battery to open flame
or electric spark.

•

Do not smoke near the battery.

•

Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.

NOTE

The life of the battery is shortened if it
becomes discharged repeatedly.

MAINTENANCE AND SERVICING

356

Related information

•

Battery – changing (p. 357)

•

Battery – maintenance (p. 356)

•

Battery – symbols (p. 354)

Battery – maintenance

Proper battery maintenance can help prolong its
service life.

Maintenance

•

Use a screw driver to open the caps or cover
and a flashlight to inspect the level.

•

If necessary, add distilled water. The level
should never be above the indicator.

•

The fluid level should be checked if the bat-
tery has been recharged.

•

After inspection, be sure the cap over each
battery cell or the cover is securely in place.

•

Check that the battery cables are correctly
connected and properly tightened.

•

Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.

•

The battery should be disconnected from the
vehicle when a battery charger is used
directly on the battery.

•

To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.

•

If the battery is fully discharged a number of
times, this may shorten its service life. Keep-
ing the battery fully charged helps prolong its
service life.

•

The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.

•

CAUTION

•

Always use distilled or deionized water
(battery water).

•

Never fill above the level mark in the cell.

Related information

•

Battery – changing (p. 357)

•

Battery – handling (p. 355)

•

Battery – symbols (p. 354)

MAINTENANCE AND SERVICING

* Option/accessory.

358

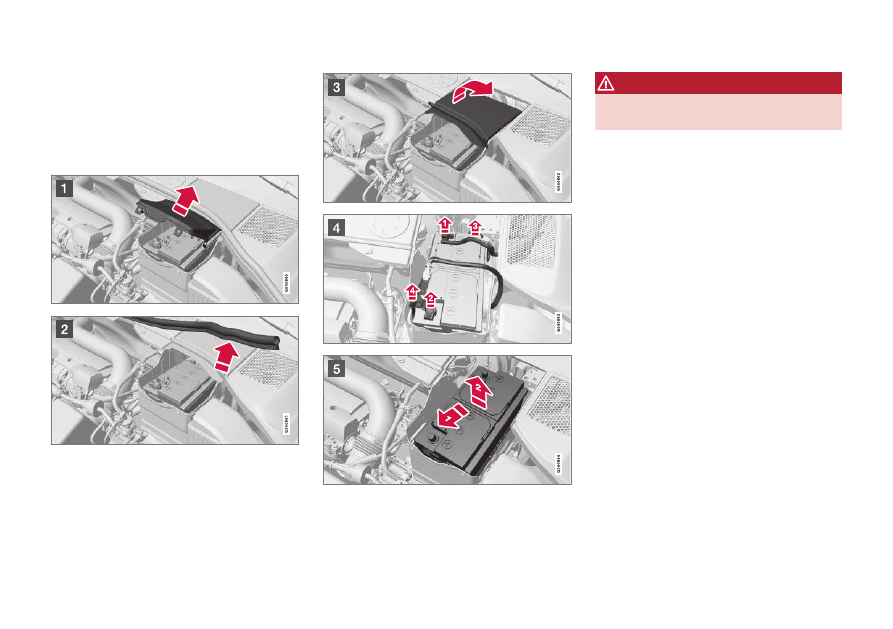

Removal

Switch off the ignition, remove the remote key
from the ignition slot and wait at least 5 minutes
before disconnecting the battery so that all infor-
mation in the vehicle's electrical system can be
stored in the control modules.

Open the clips on the front cover and remove
the cover.

Release the rubber molding so that the rear
cover is free.

Remove the rear cover by pulling it away.

Detach the black negative cable.

Detach the red positive cable

Detach the ventilation hose from the bat-

tery

Loosen the screw holding the battery

clamp.

Move the battery to the side and lift it up.

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.

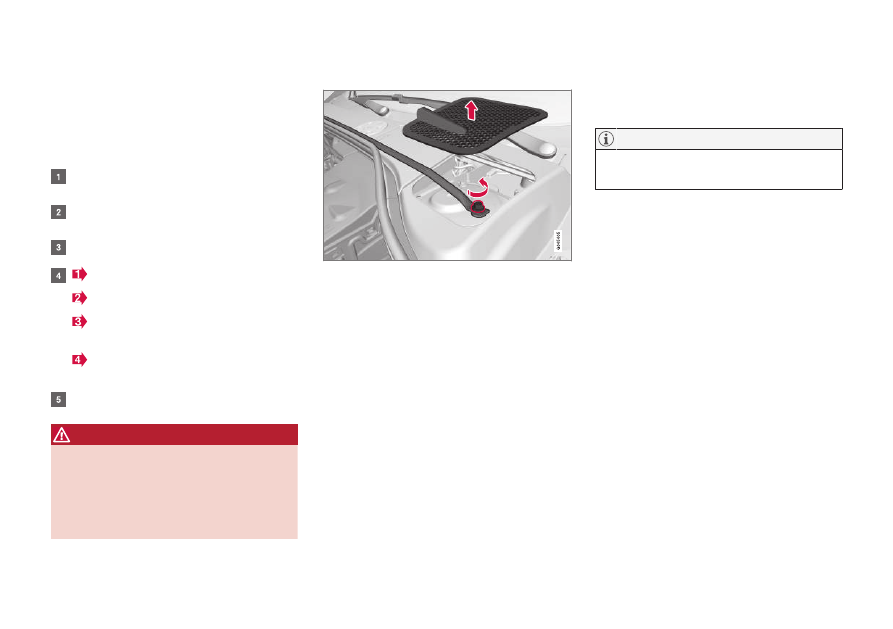

Rally bar R-Design models*

Rally bar and bulkhead hatch

Vehicles with the optional R-Design package are
equipped with a rally bar in the engine compart-
ment that must be removed before the battery
can be replaced.

1. Remove the hatch in the bulkhead on both

sides of the engine compartment (pry them
up carefully with a plastic knife or similar
object).

2. Remove the screw on each side of the

engine compartment holding the rally bar in
place.

3. Lift out the rally bar.

> The battery can now be removed (see the

instructions in the previous section).

•

After a new battery has been installed (see
the following section), reinstall the rally bar in
the reverse order.

NOTE

When reinstalling the rally bar, tighten the
screws to 22 ft lbs (30 Nm).

MAINTENANCE AND SERVICING

359

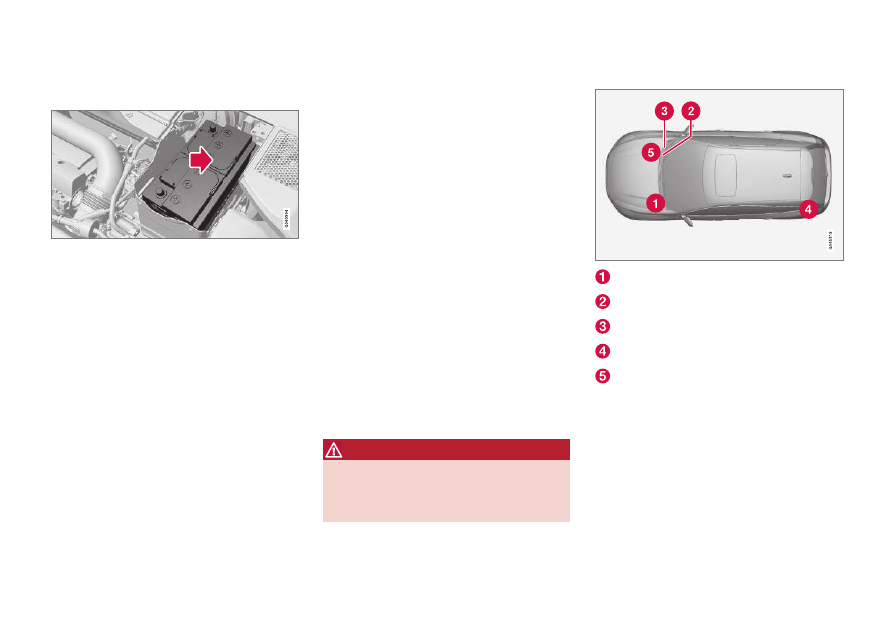

Installation

1. Lower the battery into the battery box.

2. Move the battery inward and to the side until

it reaches the rear edge of the box.

3. Tighten the clamp that secures the battery.

4. Connect the ventilation hose.

> Be sure that it is correctly connected to

the battery and the vent in the vehicle's
body.

5. Connect the red positive cable.

6. Connect the black negative cable.

7. Press in the rear cover. (See Removal).

8. Reinstall the molding. (See Removal).

9. Reinstall the front cover and secure it with

the clips. (See Removal).

Related information

•

Battery – handling (p. 355)

•

Battery – symbols (p. 354)

Fuses – introduction

The fuses help protect the vehicle's electrical
components from overloading.

There are relay/fuseboxes located in the engine
compartment, the passenger compartment and
the cargo area.

If an electrical component fails to function, this
may be due to a blown fuse. The easiest way to
see if a fuse is blown is to remove it.

To do so:

1. Pull the fuse straight out. If a fuse is difficult

to remove, a special fuse removal tool is
located on the inside of the engine com-
partment fusebox cover.

2. From the side, examine the curved metal wire

in the fuse to see if it is intact.

If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).

If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified Volvo
service technician.

WARNING

Never use metal objects or fuses with higher
amperage than those stated on the following
pages. Doing so could seriously damage or
overload the vehicle's electrical system.

Location of the fuseboxes

Engine compartment

Under the glove compartment

Cargo area (under the floor)

Engine compartment cold zone (Start/Stop
only)

MAINTENANCE AND SERVICING

}}

* Option/accessory.

361

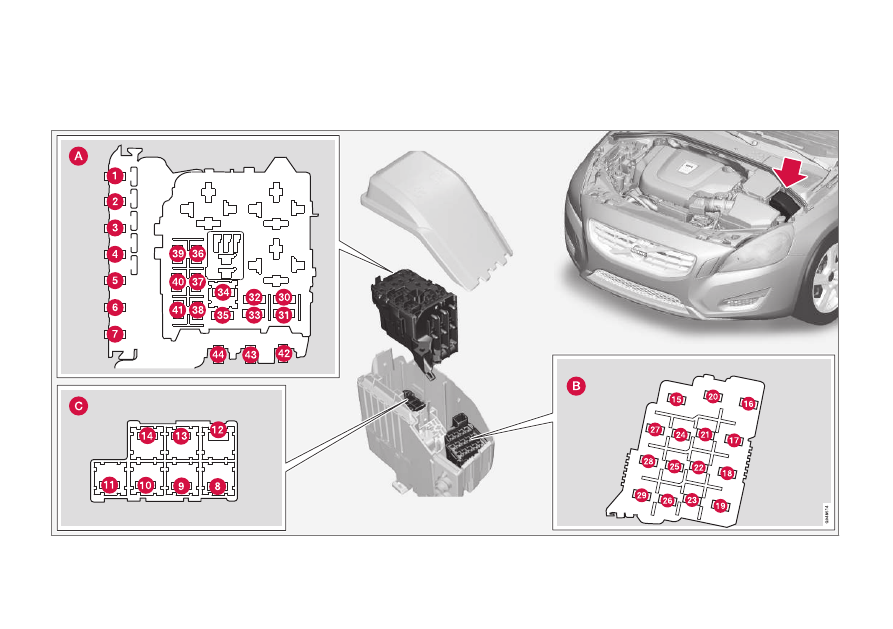

Engine compartment, upper

Engine compartment, front

Engine compartment, lower

Positions

These fuses are all located in the engine com-
partment box. Fuses in C are located under A.

A decal on the inside of the cover shows the
positions of the fuses.

•

Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be removed
or replaced by a trained and qualified Volvo
service technician.

•

Fuses 16 – 33 and 35 – 41 may be changed
at any time when necessary.

There is a special fuse removal tool on the under-
side of the cover.

Pos

Function

Circuit breaker: central
electrical module under
the glove compartment

Pos

Function

Circuit breaker: central
electrical module in the
cargo compartment

Circuit breaker: central
electrical module under
the glove compartment

–

Headed windshield

*, driv-

er's side

Windshield wipers

–

Climate system blower

Headed windshield

*, pas-

senger's side

ABS pump

ABS valves

Headlight washers

Pos

Function

Active Bending Lights-
headlight leveling

Central electrical module
(under the glove compart-
ment)

ABS

Adjustable steering force

Engine Control Module
(ECM), transmission, SRS

Heated washer nozzles

Lighting panel

Relay coils

Auxiliary lights

Horn

Relay coils, Engine Control
Module (ECM)

MAINTENANCE AND SERVICING

362

Pos

Function

Control module - auto-
matic transmission

A/C compressor (not 4-
cyl. engines)

Relay-coils A/C, relay coils
in engine compartment
cold zone for Start/Stop

Starter motor relay

Engine control module (4-
cyl. engines)

Ignition coils (5-cyl.
engine)

Engine Control Module (4-
cyl. engines)

Engine Control Module (5-
cyl. engine)

4-cyl. engines: mass air
meter, thermostat, EVAP
valve

5-cyl. engine: Injection
system, engine control
module

Pos

Function

A/C compressor (5-cyl.
engine), engine valves, oil
level sensor (5-cyl. only)

Engine valves/oil pump/
center heated oxygen
sensor (4-cyl. engines)

Front/rear heated oxygen
sensors (4-cyl. engines),
EVAP valve (5-cyl.
engine), heated oxygen
sensors (5-cyl. engine)

Oil pump/crankcase venti-
lation heater/coolant
pump (5-cyl. engines)

Ignition coils (4-cyl.
engines)

Fuel leakage detection (5-
cyl. engine), control mod-
ule for radiator shutter (5-
cyl. engine)

Fuel leakage detection,
A/C solenoid (4-cyl.
engines)

7.5

Coolant pump (4-cyl.
engines)

Pos

Function

Cooling fan

60 or 80
(4-cyl.
engines)

60 (5-cyl.
engines)

Power steering

100

This position is not used on vehicles with the optional Start/

Stop function, refer to the table "Engine compartment cold

zone" in Fuses – engine compartment cold zone (Start/Stop

only) (p. 367).

Related information

•

Fuses – glove compartment (p. 363)

•

Fuses – cargo area/trunk (p. 366)

Volvo V60 Cross Country (2018 year). Manual - part 21
