6. Switch the ignition on.
This completes the synchronization.
Troubleshooting
Vehicle cannot be locked or unlocked
Remote control is disrupted by objects, poor weather conditions or transmitters on the same frequency band close to the vehicle (e.g. cell phones), as well as by a
drained button cell.
The central locking switches off briefly to protect it from overloading.
1. Close the driver door.
Or: Synchronize the vehicle key Synchronizing a vehicle key .
Or: Change the battery cell in the vehicle key
Replacing the button cell battery .
The indicator light is not blinking
If the indicator light in the vehicle key does not blink when you press one of the buttons, then the button cell battery in the vehicle key must be replaced.
You can get an additional or replacement vehicle key from an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
“Keyless Access” with push-button start
Introduction
Keyless Access makes it possible to unlock and lock the vehicle without actively using the key. A valid vehicle key must be present within the vicinity of the vehicle t
use this function.
Unlocking or locking using Keyless Access

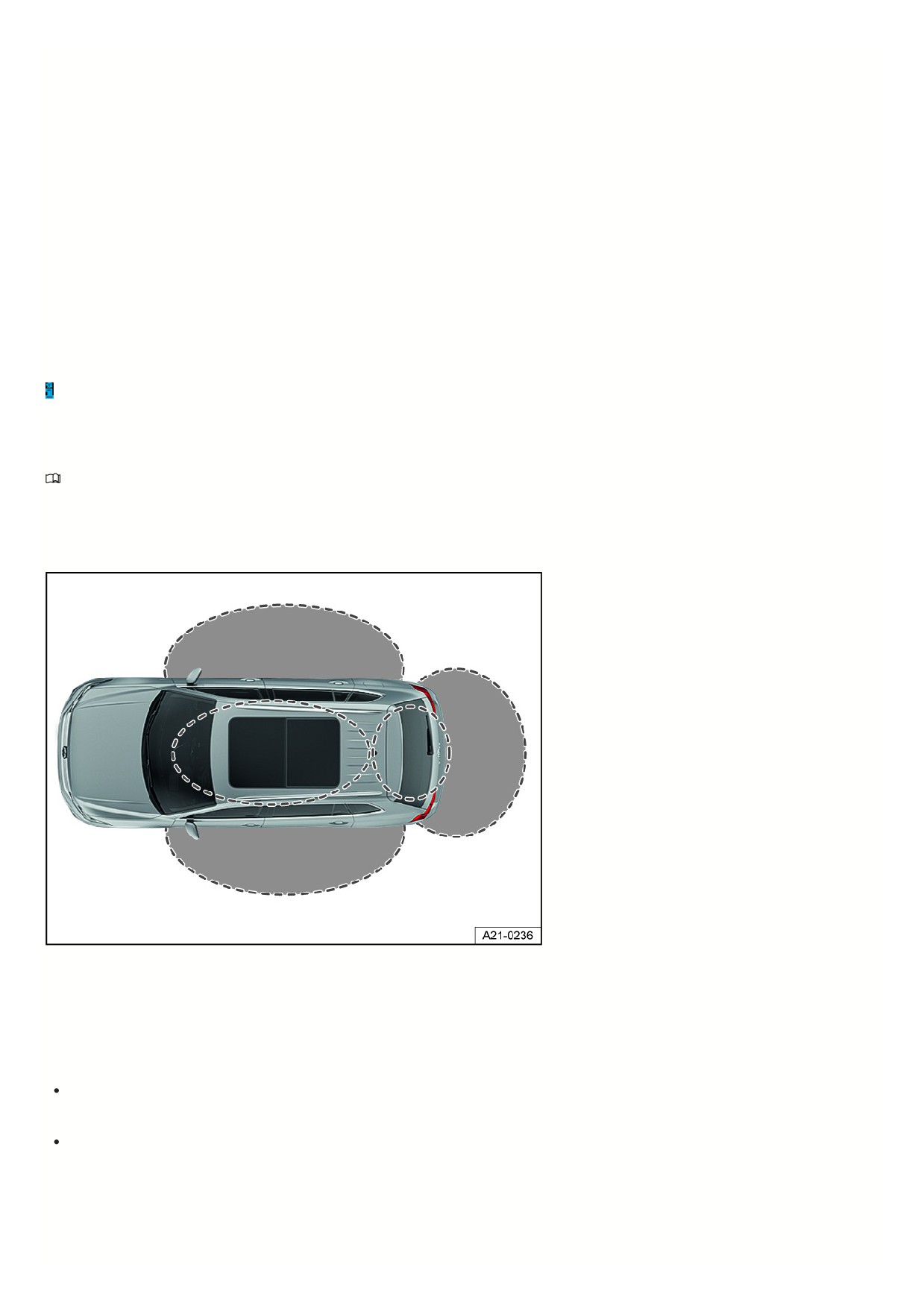

Fig. 57 Keyless Access: Sensor ranges (general example).
Configuring Keyless Access
The behavior of Keyless Access can be set in the Vehicle menu in the Infotainment system.
Keyless Access can be set so that pushing the button either unlocks the driver door only or unlocks all doors.
The following settings can be applied:
To unlock: Press the button once, driver door unlocks.
Press the button twice, all doors unlock.
To lock: Press the button once, driver door locks.
Press the button twice, all doors lock.
If the Keyless Access function is deactivated, it may be subject to functional limitations.
83

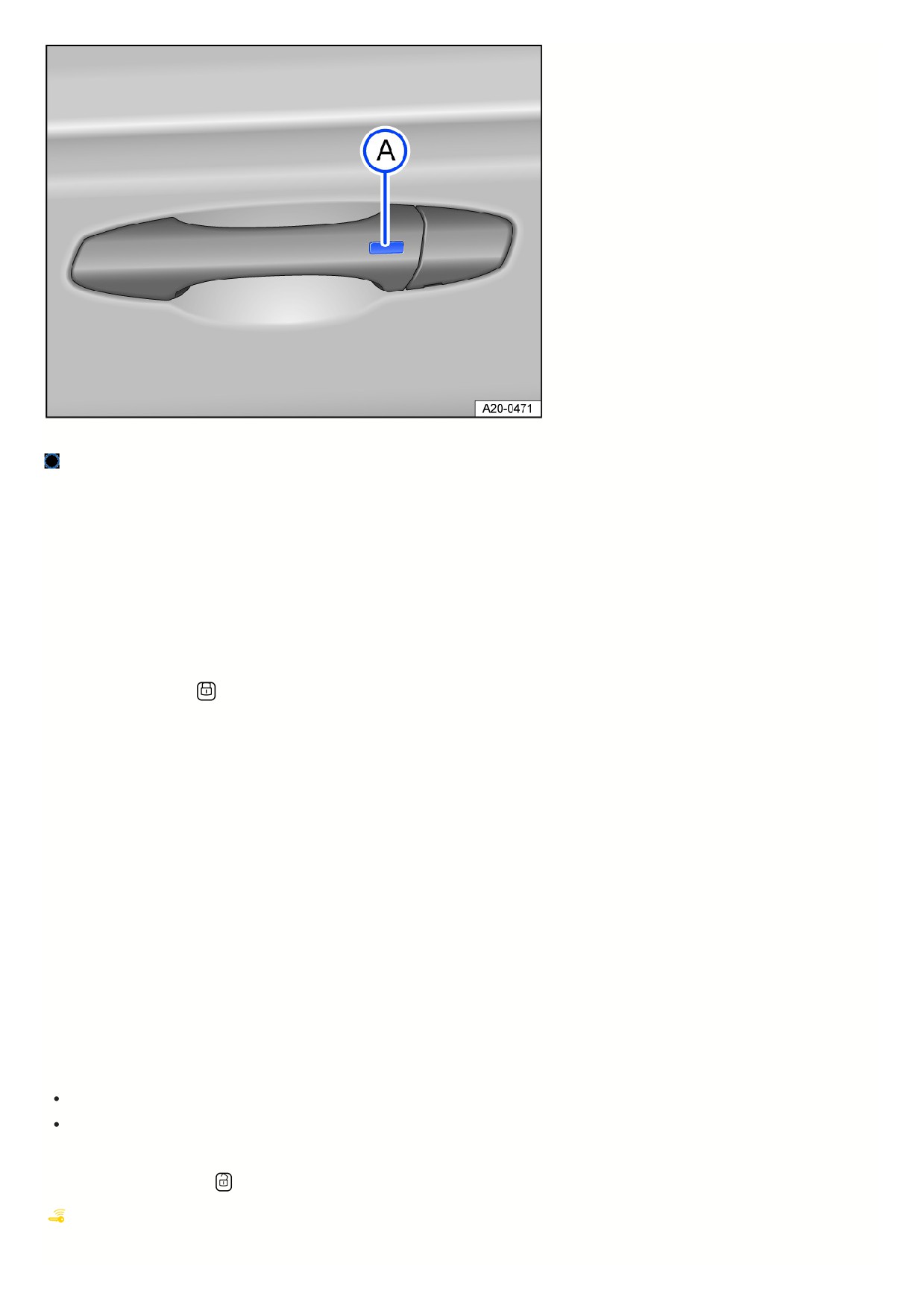

Fig. 58 In door handle: Button to unlock or lock.
Button on the outside of the door handle.
Unlocking the vehicle
1. Press the button on the outside of the door handle fig. 58.
Locking the vehicle
1. Park the vehicle.
2. Press the button on the outside of the door handle fig. 58.
Deactivating Keyless Access temporarily
You can temporarily deactivate the Keyless Access with push-button start unlocking function to prevent the vehicle from being unlocked and started by unauthorized
people:
1. Lock the vehicle with the
button on the vehicle key.
2. Within five seconds of locking the vehicle, press the button on the outside of the door handle once fig. 58. Do not grasp the door handle during this process.
Keyless Access is now temporarily deactivated.
3. To check that it has actually been deactivated, wait at least 10 seconds and then pull on the door handle.
The door should not open.
The next time the vehicle is unlocked, you must use the vehicle key. Keyless Access will be reactivated the next time the vehicle is unlocked.
Troubleshooting
If Keyless Access is not working
The sensor function may be impaired if the sensor is dirty.
1. Clean the sensors.
If all turn signals flash four times
The vehicle key that was last used is still in the vehicle.
1. Remove the key and lock the vehicle.
Automatic sensor deactivation
The sensors will deactivate automatically under the following conditions:
If the vehicle is not unlocked or locked for a long period of time
If a sensor is triggered too frequently
Reactivating the sensor pads:
1. Unlock the vehicle using the
button on the vehicle key.
Valid vehicle key cannot be detected
The yellow indicator light turns on. A message will also appear in the instrument cluster display.
84
The vehicle key is no longer in the vehicle or within range of the sensors.
1. Do not switch the ignition off.
2. Bring the vehicle key back into the vehicle or within range of the sensors.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
NOTICE
Strong streams of water or vapor could activate the sensors in the door handles if a valid vehicle key is located near the vehicle. This may cause the windows to
open and moisture may enter the vehicle interior. This could lead to damage to the vehicle interior.
Never direct the jet of a high pressure cleaner or a steam jet directly towards the sensors in the door handles.
If at least one window is open and the sensors in one door handle are permanently activated, then all windows will close.
If the message Keyless faulty. appears in the instrument cluster display, there may be a malfunction in the Keyless Access system. Contact an authorized
Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
Doors and central locking button
Introduction
The doors can be manually locked and in some cases unlocked, for example if the vehicle key or the central locking system is malfunctioning.
The central locking system allows you to unlock and lock all doors, the trunk lid, and the fuel filler flap from one location.
The vehicle can be locked when the ignition has been switched off or if the driver has exited the vehicle when the engine is stopped.
An image in the instrument cluster display indicates if one or more doors have not opened or closed correctly.
Do not continue driving!
1. Safely park the vehicle, if necessary.
2. Open the respective door and close it again.
The image is also displayed when the ignition is switched off, and it turns off several seconds after the doors are closed and the vehicle has been locked.
WARNING
If a door is not closed correctly, it can open suddenly while driving and cause serious or fatal injuries.
Stop immediately and close the door.
When closing the door, make sure it engages securely and completely. When closed, the door must be flush with the areas of the vehicle body that are
around the door.
WARNING
When the door is being held open by the door arrester, it may close by itself in high winds or on inclines, which can cause serious injuries.
Always hold the door handle firmly when opening and closing the door.
WARNING
Opening and closing the doors and trunk lid without due care can be dangerous and result in serious injuries.
Do not open or close the doors and trunk lid if anyone is in the way.
WARNING
The central locking system locks all the doors. In case of an emergency or accident, locked doors can make it more difficult for first responders to access the
vehicle interior. When the vehicle is locked from the outside, the doors and power windows cannot be opened from the inside. There is a risk of serious or fatal
injuries.
Never leave children, people requiring assistance or animals unattended in the vehicle.
WARNING
85
All doors can be locked from the inside using the central locking button. Otherwise, children, people requiring assistance or animals could be locked inside the
vehicle. In an emergency, they may not be able to exit the vehicle without assistance or help themselves. Otherwise, they may be subjected to very high or low
temperatures. There is a risk of serious or fatal injuries.
Never leave children, people requiring assistance or animals unattended in the vehicle.
NOTICE
Removing caps without due care may result in damage to the vehicle.
When using the emergency locking or emergency unlocking feature, remove and reinstall the parts carefully and correctly.
When the vehicle is locked from the inside, it reduces the risk of opening the doors unintentionally and of unauthorized people entering the vehicle.
Indicator light in the driver's door
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The indicator light for the central locking system is located in the driver's door.
The indicator light shows the status of the central locking system for around 30 seconds after the vehicle is locked.
The red LED light blinks at short intervals for around 2 seconds.
The status of the central locking system is then displayed for around 28 seconds:
Vehicles without SAFELOCK
If the red LED light blinks at long intervals, the vehicle is locked.
After around 30 seconds, the LED light blinks at slow intervals.
Special conditions
If the red LED light comes on continuously, there is a fault in the central locking system or the anti-theft alarm system.
Automatic locking and unlocking
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Depending on how your vehicle is equipped, settings for the central locking can be configured in the Vehicle settings menu in the Infotainment system.
Automatic locking (Auto Lock)
The vehicle locks automatically at speeds of about 15 km/h (9 mph) or higher. If the vehicle is locked, the
indicator light will turn yellow in the central locking
button.
Automatic unlocking (Auto Unlock)
If one of the following conditions apply, all doors and the trunk lid will unlock automatically:
If the vehicle is stationary and the vehicle key has been removed
For vehicles with an automatic gearbox: The parking lock is engaged and the ignition is switched off.
Or: if the door handle has been pulled.
Or: if airbags have deployed during a collision
Troubleshooting.
The Auto Unlock function makes it possible for first responders to access the inside of the vehicle.
Central locking button
Please read the introductory information and heed the Warnings and Notice
and Introduction.
86

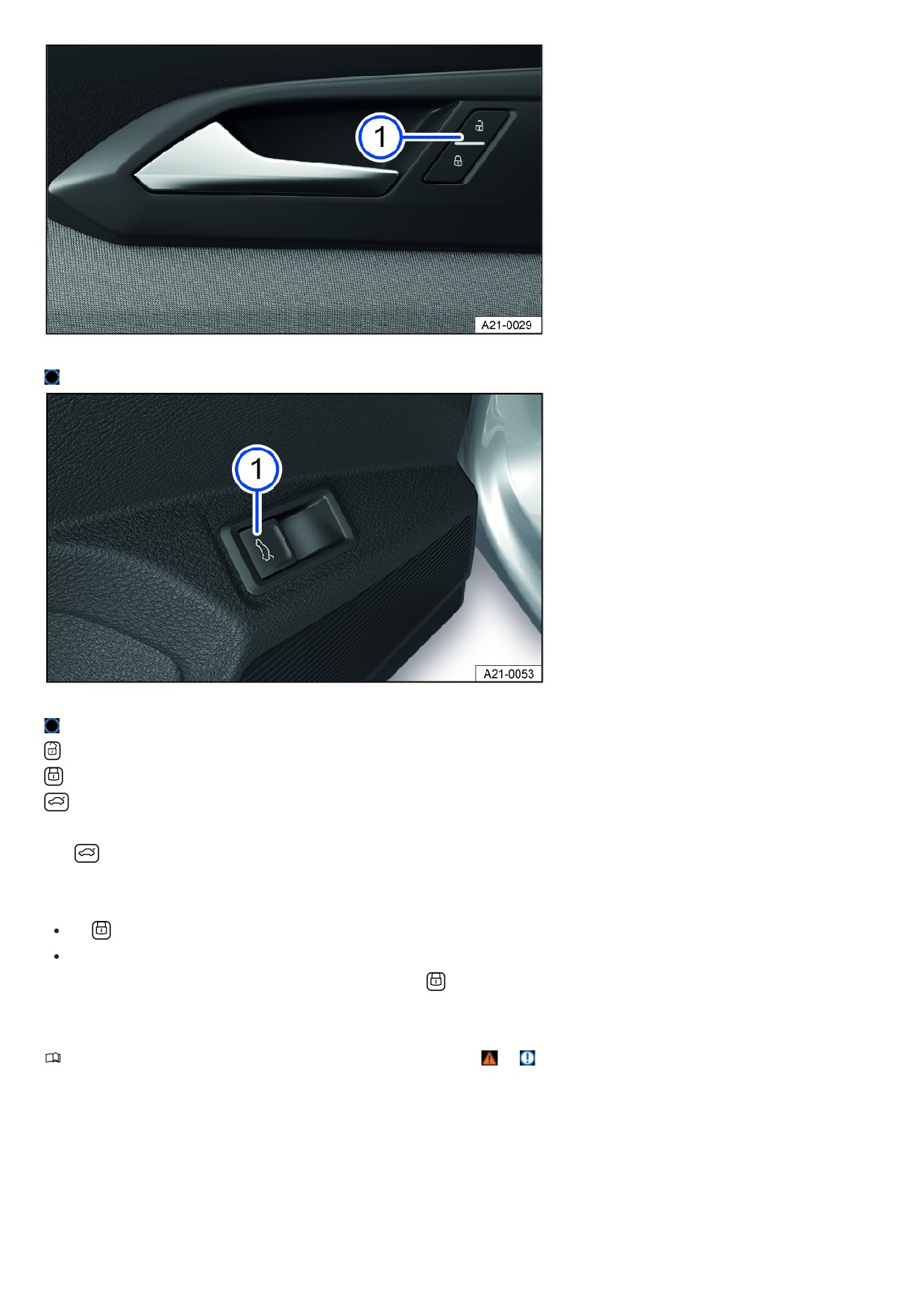

Fig. 59 In the driver's door: Central locking button (general example).
Central locking button.

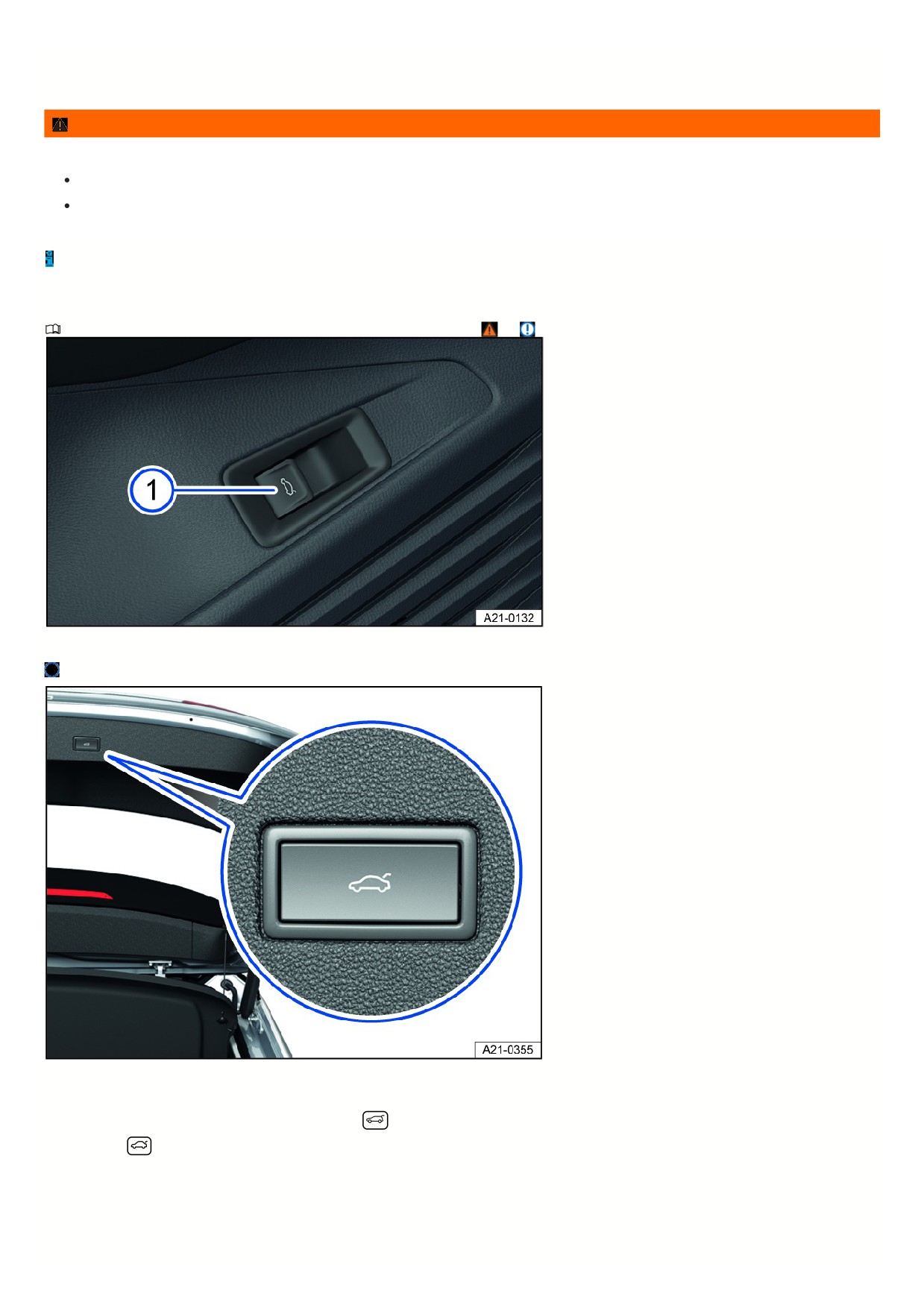

Fig. 60 In the driver's door: Button for powered opening of the trunk lid (general example).
Button for powered opening of the trunk lid.
- Unlock the vehicle.
- Lock the vehicle.
- Open the trunk lid.
The central locking button functions both when the ignition is on or off, but only when all the doors are closed.
If the
button in the driver door is pressed, only the trunk lid will open. All doors remain locked.
If the vehicle is locked from the outside using the vehicle key, the central locking buttons will be disabled.
If the vehicle is locked from the inside using the central locking button, then:
The
indicator light in the button will turn yellow if all doors are closed and locked.
The anti-theft alarm system will not be activated Anti-theft alarm system.
The doors can be opened from the inside by pulling the door handle. The
indicator light in the button turns off. The unopened doors and the trunk lid will remai
locked and cannot be opened from the outside.
Opening and closing the driver's door in an emergency
Please read the introductory information and heed the Warnings and Notice
and Introduction.
87

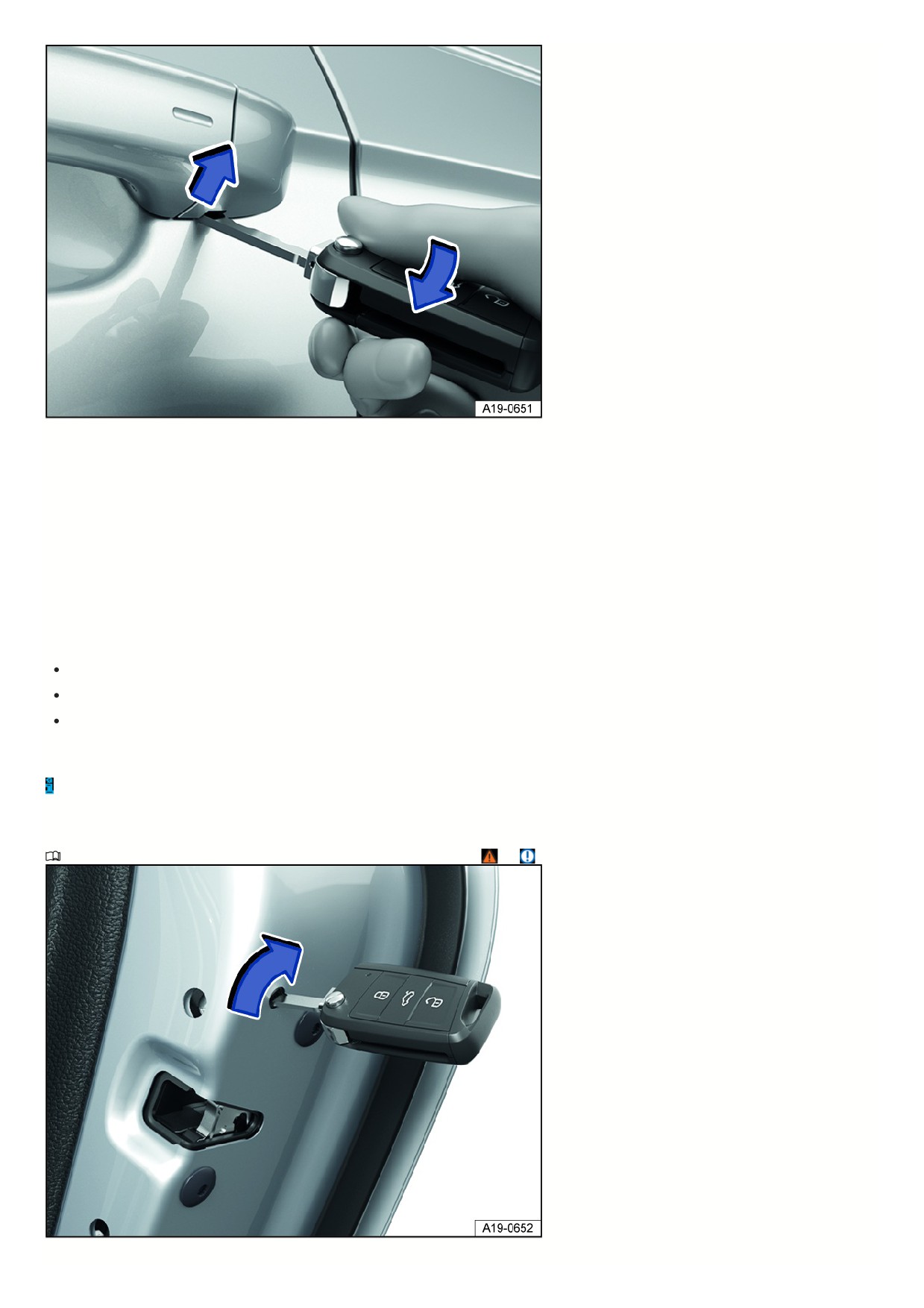

Fig. 61 Driver’s door handle: prying off the cap.
Generally, all doors will lock when locking manually. Only the driver door will unlock when unlocking manually.
Note the information about the anti-theft alarm system Anti-theft alarm system.
1. Position the key bit or emergency key on the notch in the driver door handle from below.
2. Hold your index finger under the key bit.
3. Use the vehicle key to pry the cap off in the direction of the arrow fig. 61.
4. Insert the key bit in the lock cylinder and unlock or lock the vehicle.
5. Pull on the door handle and reinstall the cap.
Special considerations for manual unlocking
An alarm is triggered when the driver's door is opened Anti-theft alarm system.
An emergency start must be performed after unlocking Troubleshooting.
Switch the ignition on to turn off the alarm.
The electronic immobilizer will detect a valid vehicle key.
The anti-theft alarm system is not activated when the vehicle is manually locked using the key bit
Anti-theft alarm system.
Locking the front passenger door and rear doors in an emergency
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Fig. 62 On the front of the right rear door: emergency locking the vehicle with the vehicle key (general example).
88
The front passenger door and the rear doors can each be locked manually.
The anti-theft alarm system is not activated when this happens Anti-theft alarm system.
1. Open the door.
2. Remove the rubber seal in the front of the door.
3. Insert the key bit or emergency key into the slot and turn it fig. 62.
4. Reattach the rubber seal.
5. Check that the door is locked.
6. Have the vehicle checked immediately by a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
If a door is locked manually, it will unlock again when the vehicle is unlocked or if that door is opened from the inside.
Doors can be unlocked and opened from the inside by pulling the door handle.
Child safety lock
Please read the introductory information and heed the Warnings and Notice
and Introduction.

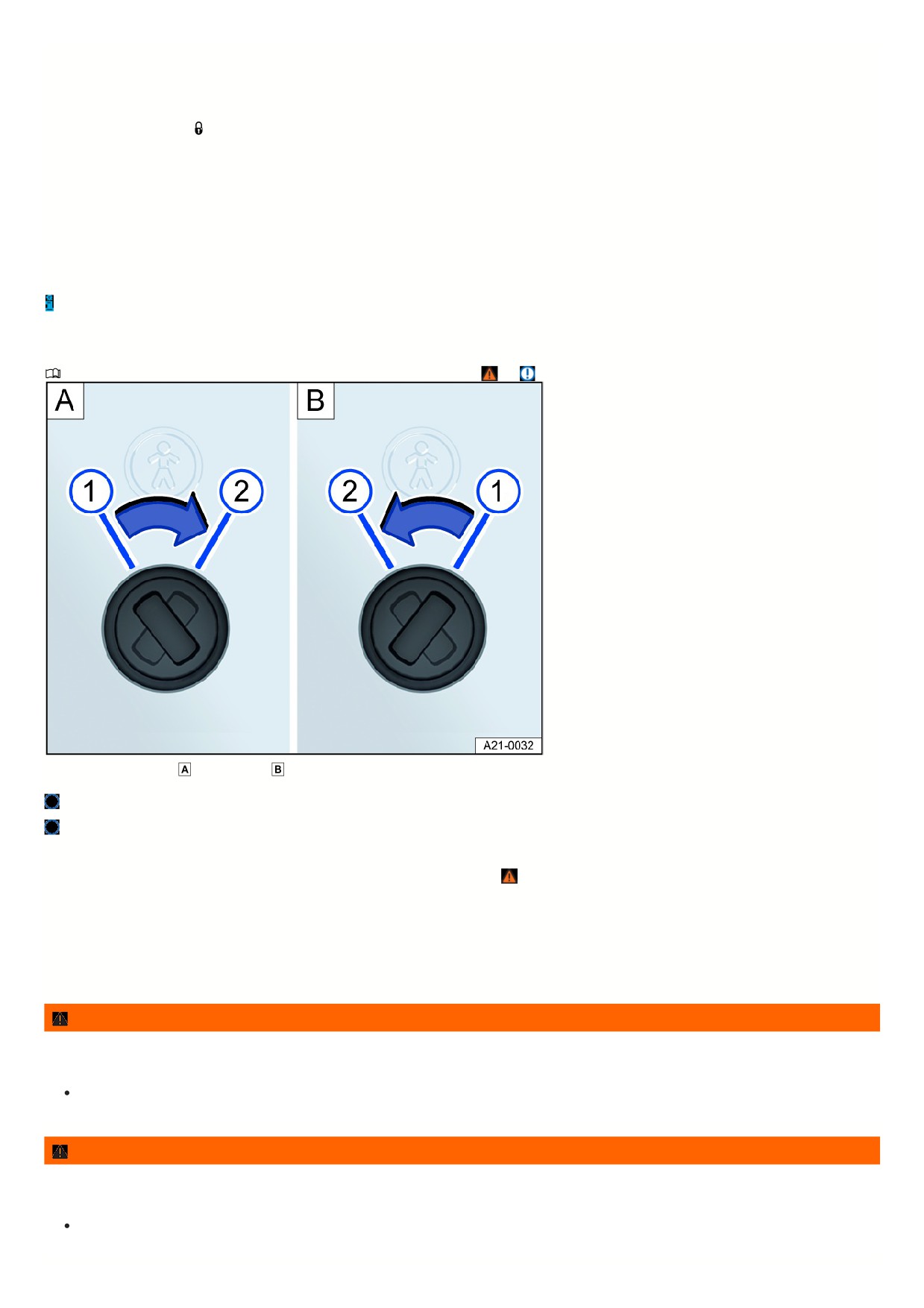

Fig. 63 Child safety lock:
left rear door,
right rear door.
Child safety lock is switched off.
Child safety lock is switched on.
The child safety locks are located on the inner door panels of the rear doors.
The child safety lock reduces the risk of the rear doors being opened from the inside
When the child safety lock is switched on, the door can only be opened from the outside.
Switching the child safety lock on or off
1. Unlock the vehicle the open the respective rear door.
2. Bring the slot into the corresponding position fig. 63.
WARNING
When the child safety lock is switched on, that door cannot be opened from the inside. This can result in people locking themselves inside the vehicle. In an
emergency, they may not be able to exit the vehicle without assistance or help themselves.
Never leave children or people requiring assistance unattended in the vehicle when the doors are locked.
WARNING
If you leave children, people requiring assistance or animals unattended in the vehicle, they may be subjected to very high or low temperatures. There is a risk of
serious or fatal injuries.
Never leave children, people requiring assistance or animals unattended in the vehicle.
89
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
and Introduction.
If the indicator light does not turn off
The red LED in the vehicle door flashes briefly and then stays on.
There is a malfunction in the locking system.
1. Contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
If the turn signals are not flashing
The turn signals are not blinking as confirmation when locking the vehicle:
1. Check whether all of the doors and the trunk lid and engine hood are closed.
2. Close any doors and trunk lid or engine hood that are not closed.
If the vehicle is locking automatically
The vehicle will lock again automatically after approximately 45 seconds if one of the following conditions apply:
The vehicle was unlocked, but not opened
The ignition was not switched on
The trunk lid was not opened.
Locking with a second vehicle key
For vehicles with Keyless Access with push-button start: If a second vehicle key is used to lock the vehicle from outside, the vehicle key inside the vehicle is
immediately disabled so that it cannot be used to start the engine; it is still possible to perform an emergency start, however.
1. To enable the vehicle key inside the vehicle so that it can be used to start the engine as usual, press the
button on the remote control vehicle key inside th
vehicle
Locking the vehicle after an airbag deploys
The entire vehicle unlocks when an airbag deploys in a collision. Depending on the severity of the damage, it may be possible to lock the vehicle as follows after the
collision:
1. Switch the ignition off.
2. Open the driver door and shut it again.
3. Lock the vehicle.
NOTICE
Strong streams of water or vapor could activate the sensors in the door handles if a valid vehicle key is located near the vehicle. This may cause the windows to
open and moisture may enter the vehicle interior. This could lead to damage to the vehicle interior.
Never direct the jet of a high pressure cleaner or a steam jet directly towards the sensors in the door handles.
It may not be possible to unlock or lock the vehicle using Keyless Access if the 12 V vehicle battery or button cell battery in the vehicle is weak or drained. The
vehicle can be manually unlocked or locked.
If there is no valid vehicle key in the vehicle or one is not detected, a message will appear in the instrument cluster display. This can occur if another signal
interferes with the remote control vehicle key or if the remote control vehicle key is covered by an object, such as a metal case.
Anti-theft alarm system
The vehicle may be equipped with an anti-theft alarm system.
The anti-theft alarm system monitors the doors, the hood, and the trunk lid.
The anti-theft alarm system is automatically activated when you lock the vehicle.
If an attempt is made to access the vehicle without using the appropriate vehicle key, this triggers the anti-theft alarm system, which emits audible and visual
warning signals for up to five minutes.
When is the alarm triggered?
If a door that was unlocked manually using the vehicle key is opened.
If the hood is opened.
If the trunk lid is opened.
If the ignition is switched on with an invalid vehicle key.
If the diagnostic connection is used when the anti-theft alarm system is active.
9
Switching off the alarm
1. Unlock the vehicle with the
unlock button on the vehicle key.
Or: switch on the ignition using a valid vehicle key.
2. For vehicles with Keyless Access with push-button start: Grasp the door handle
“Keyless Access” with push-button start .
The anti-theft alarm system will not work correctly if the 12 V vehicle battery is weak or drained.
If you have integrated a trailer into the anti-theft alarm system, breaking the connection to the trailer may trigger the anti-theft alarm system
Trailer towing
Trunk lid
Introduction
The trunk lid is unlocked and locked together with the doors.
On vehicles with Keyless Access, the trunk lid is automatically unlocked when opening
“Keyless Access” with push-button start .
If individual door opening or the opening of one side of doors is activated in the Infotainment system settings for opening and closing, you must press the
but
on the remote control vehicle key twice to unlock the trunk lid.
On vehicles with Keyless Access you must press the sensor on the inside of the driver's or front passenger's door handle twice to do this.
WARNING
Uncontrolled or unintentional release: opening and closing the trunk lid can cause accidents and serious injuries.
Do not open or close the trunk lid if anyone is in the way.
Always keep the trunk lid closed while driving.
Close and lock the trunk lid and all doors when the vehicle is not in use.
Check that, when closed, the trunk lid is flush with the areas of the vehicle body around it.
WARNING
Depending on the season, the temperature inside the vehicle could become very high or low, which can lead to serious injuries, illness or death, especially for
very young children.
Make sure that no one remains in the vehicle.
Never let children play in or on the vehicle unattended, especially when the trunk lid is open. Children could enter the luggage compartment, close the lid,
and then lock themselves in.
WARNING
The vehicle may not always detect when the trunk lid is not latched if a cargo rack that is carrying cargo is mounted on the trunk lid. If the trunk lid is not latched,
it may open suddenly while driving. This may cause serious injuries.
Check that, when closed, the trunk lid is flush with the areas of the vehicle body around it.
WARNING
If there is a heavy load of snow or cargo on the trunk lid, the additional weight may cause the lid to lower, which can result in serious injuries.
Never open the trunk lid if there is a heavy load of snow or cargo such as a cargo rack on it.
Remove the snow or cargo before opening the trunk lid.
If necessary, support the trunk lid or remove the cargo and/or snow before opening the trunk lid.
WARNING
Closing the trunk lid incorrectly may lead to the rear window shattering and cause serious injuries.
Do not push the trunk lid closed with your hand on the rear window.
NOTICE
91
Using the opening mechanism incorrectly may damage the component and could prevent the trunk lid from closing.
Never attach or secure cargo on the opening mechanism.
NOTICE
Using the rear window wiper incorrectly may damage the component and result in it breaking off.
Never attach or secure cargo to the rear window wiper.
NOTICE
Using the rear spoiler incorrectly may damage the component and result in it breaking off.
Never attach or secure cargo to the rear spoiler.
Opening and closing the trunk lid
Please read the introductory information and heed the Warnings and Notice
and Introduction.

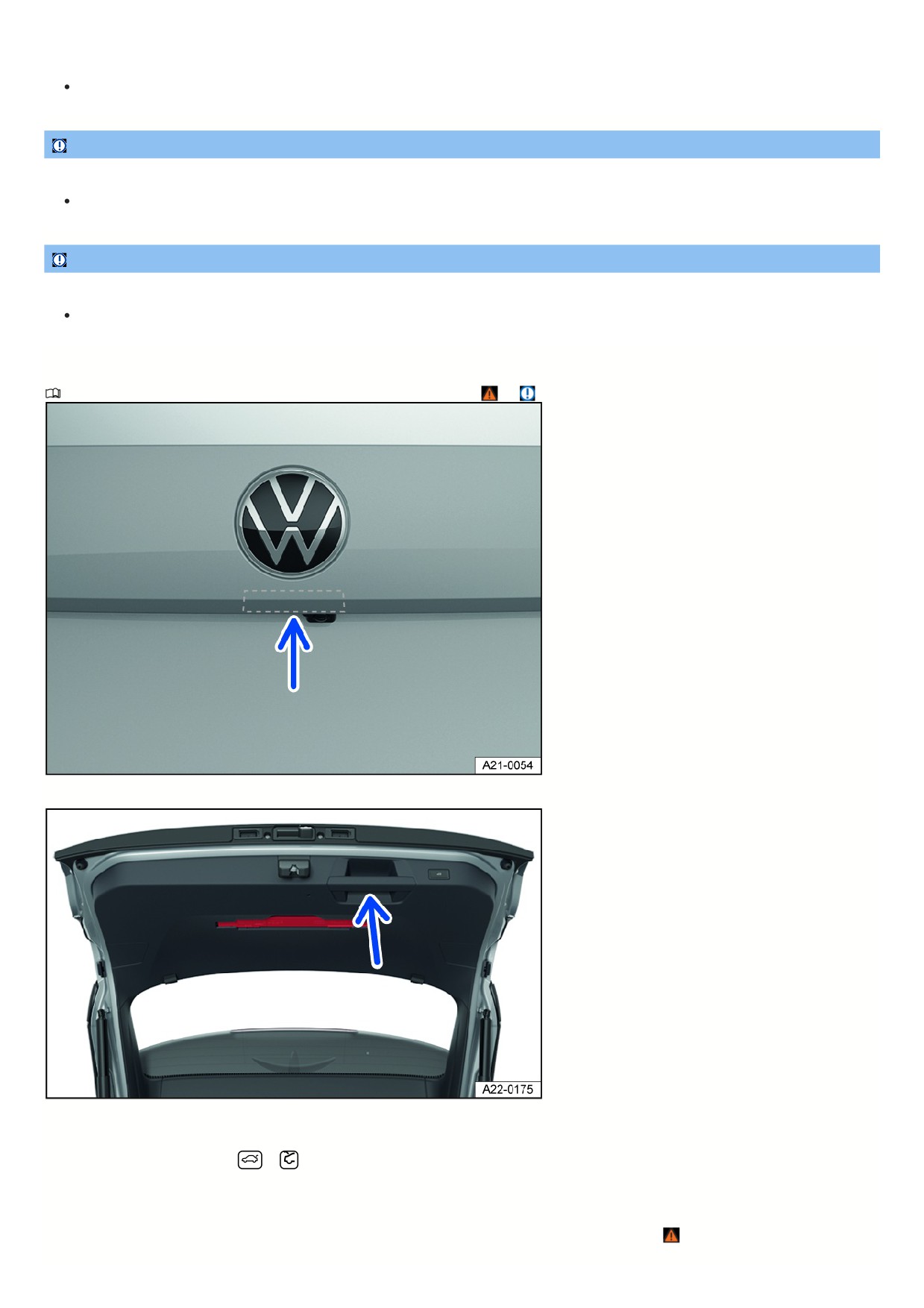

Fig. 64 In the trunk lid: Button to open the trunk lid (general example).
Fig. 65 In the open trunk lid: handle for closing the trunk lid (general example).
Opening the trunk lid
1. To unlock the trunk lid, press the
or
button on the vehicle key.
2. Raise the trunk lid using the button fig. 64.
Closing the trunk lid
1. Pull the trunk lid downward firmly using the handle in the interior trim panel until it latches shut in the lock fig. 65,
92
An image in the instrument cluster display indicates if the trunk lid has not opened or closed correctly.
The trunk lid locks automatically while driving.
WARNING
Closing the trunk lid incorrectly or carelessly may lead to serious injuries.
When opening the trunk lid, take care to pull it all the way up.
When closing the trunk lid, make sure your hands are not within the closing range of the lid.
If the trunk lid is not opened within several minutes after unlocking, it will lock again automatically.
Power opening and closing the trunk lid
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Fig. 66 In the driver's door: unlock button for the trunk lid.
Release button.
Fig. 67 In the open trunk lid: Button for power closing the trunk lid.
Power opening the trunk lid
1.
5-Seat: To unlock the trunk lid, briefly press and hold the
button on the vehicle key.
Or: pull the
button in the driver door upward fig. 66.
The parking lock P must be engaged.
Or: press the button on the trunk lid.
The trunk lid will open automatically.
93
Power closing the trunk lid
1. Press the button in the trunk lid when it is open fig. 67.
5-Seat: Or: pull the
button in the driver door upward when the ignition is switched on until the trunk lid is closed.
5-Seat: Or: On vehicles with Keyless Access with push-button start: briefly press and hold the
button on the vehicle key. The remote control vehicle key
must be near the trunk lid to use this feature.
Or: Begin closing the trunk lid by hand until it closes by itself.
The trunk lid is closed.
Interrupting the opening or closing process
1. Press one of the
buttons while the lid is opening or closing.
Or: press the button on the trunk lid while the lid is opening or closing fig. 67.
The trunk lid can now be moved by hand. It is necessary to use more force when doing this.
Pressing the
button again moves the trunk lid back to the original position.
Chimes
When the trunk lid is opened or closed from inside the vehicle or using the vehicle key, chimes will sound.
Changing and saving the opening angle
If the space behind or above the vehicle is not large enough to allow the trunk lid to open completely, you can change how far the trunk lid opens.
1. Interrupt the opening process at the preferred open position.
The trunk lid must be at least half open.
2. Press and hold the
button in the trunk lid until the emergency flashers start flashing fig. 67.
The adjusted opening angle is saved.
There will be an audible signal and the emergency flashers will flash to indicate that the setting was saved.
Resetting and saving the opening angle
For that the trunk lid to open fully again, the opening angle must be reset and saved again.
1. Push the open trunk lid all the way up by hand. It is necessary to use more force when doing this.
2. Press and hold the
fig. 67 button in the trunk lid until the emergency flashers start flashing.
This resets the opening angle.
An audible signal will sound and the emergency flashers will flash to indicate that the process is completed.
WARNING
Closing the trunk lid incorrectly or carelessly may lead to serious injuries.
When closing the trunk lid, make sure your hands are not within the closing range of the lid.
NOTICE
If you open or close the trunk lid when there is not enough space, this may cause damage.
Before opening or closing the trunk lid, check whether there is enough room, e.g. in garages.
Trunk lid with Easy Open motion sensor
Please read the introductory information and heed the Warnings and Notice
and Introduction.
94

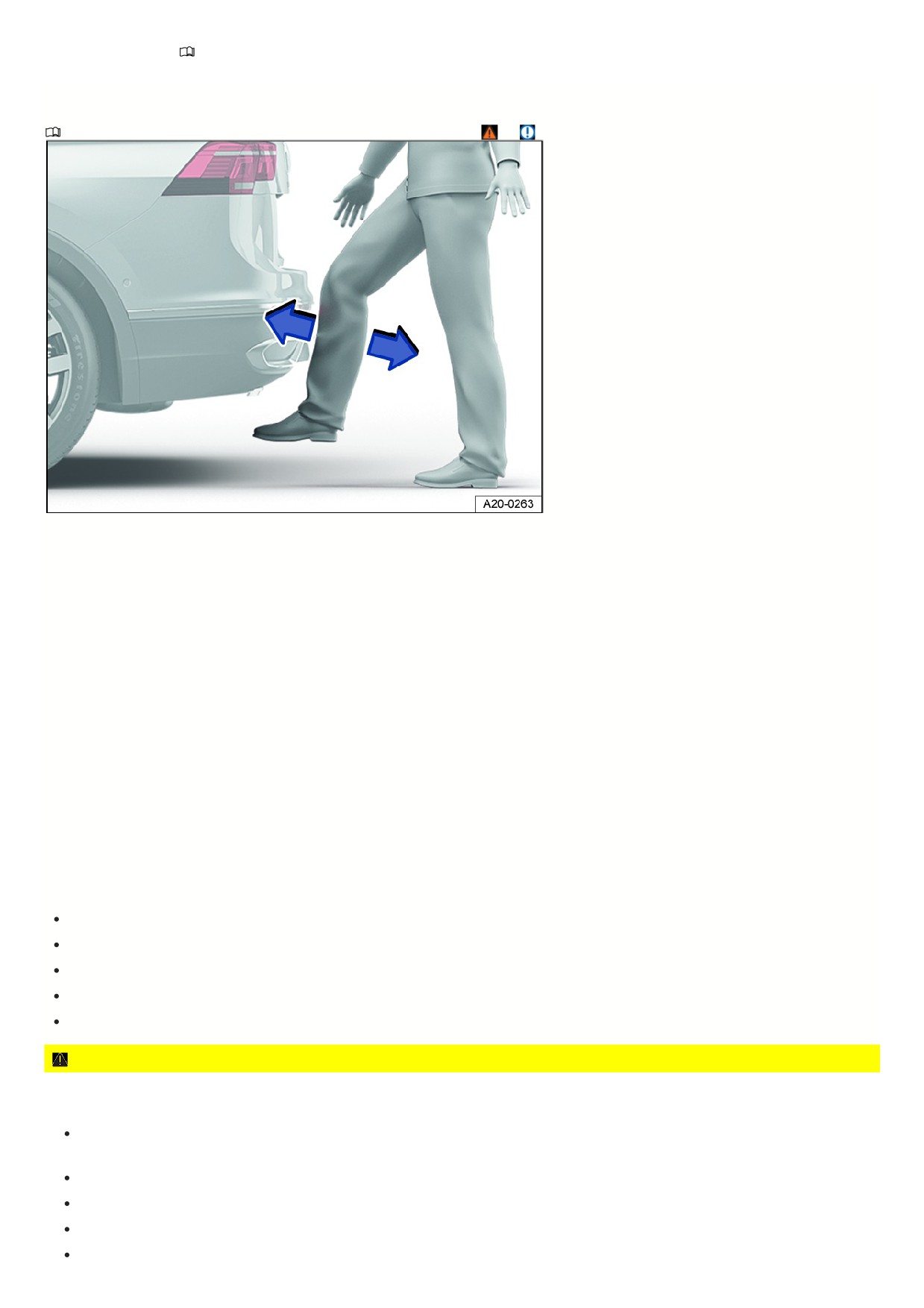

Fig. 68 General example of the sensor-controlled luggage compartment opener (Easy Open).
If a valid vehicle key is located near the trunk lid, the trunk lid can be unlocked and opened with foot motion.
1. Position your foot behind the middle of the bumper.
2. Quickly swing the lower part of your leg close to the bumper fig. 68.
3. Quickly remove the lower part of your leg once more from the bumper.
Visual feedback is given via the turn signals. The trunk lid will open.
Activating or deactivating the Easy Open function
The Easy Open function can be activated and deactivated in the Infotainment system:
1. Select the Vehicle menu.
2. Select the Exterior submenu.
3. Swipe to the side and activate or deactivate Easy Open.
Or:
1. Swipe to the side and select the Central locking menu item.
2. Scroll down the list and activate or deactivate Easy Open.
If Easy Open is activated, Easy Close is also active, depending on the vehicle equipment
Automatic trunk lid closing Easy Close.
The Easy Open function is only available when Keyless Access is activated “Keyless Access” with push-button start .
The sensor-controlled luggage compartment opener (Easy Open) function may be triggered inadvertently in the following situations:
During refueling operations in which a tank hose is brought to the lower rear area of the vehicle.
If there is a sweeping motion under the rear bumper.
If a strong stream of water or steam passes.
During maintenance and repair work in the area of the rear bumper.
If there are moving gates in the vicinity of the bumper.
CAUTION
If a valid vehicle key is detected near the trunk lid, the sensor-controlled luggage compartment opener (Easy Open) function may trigger unintentionally and
open the trunk lid in some cases. If the trunk lid opens unintentionally, it may cause injuries to people and/or damage to objects within the trunk lid’s range of
motion.
After parking the vehicle, switch off the sensor-controlled luggage compartment opener (Easy Open) function via the Infotainment system if you park
close to obstacles, e.g. street lamps, posts and garage doors, or if you park in an underground car park with a low ceiling.
Always make sure that no valid vehicle keys are left unattended near the trunk lid.
Always turn off the sensor-controlled luggage compartment opener (Easy Open) function via the Infotainment system before any and all maintenance
and repair work is performed on the vehicle.
Always turn off the sensor-controlled luggage compartment opener (Easy Open) function via the Infotainment system before washing the vehicle.
Always switch off the sensor-controlled luggage compartment opener (Easy Open) function via the Infotainment system before mounting a bicycle rack or
95
hitching a trailer
Introduction.
Automatic trunk lid closing Easy Close
Please read the introductory information and heed the Warnings and Notice
and Introduction.

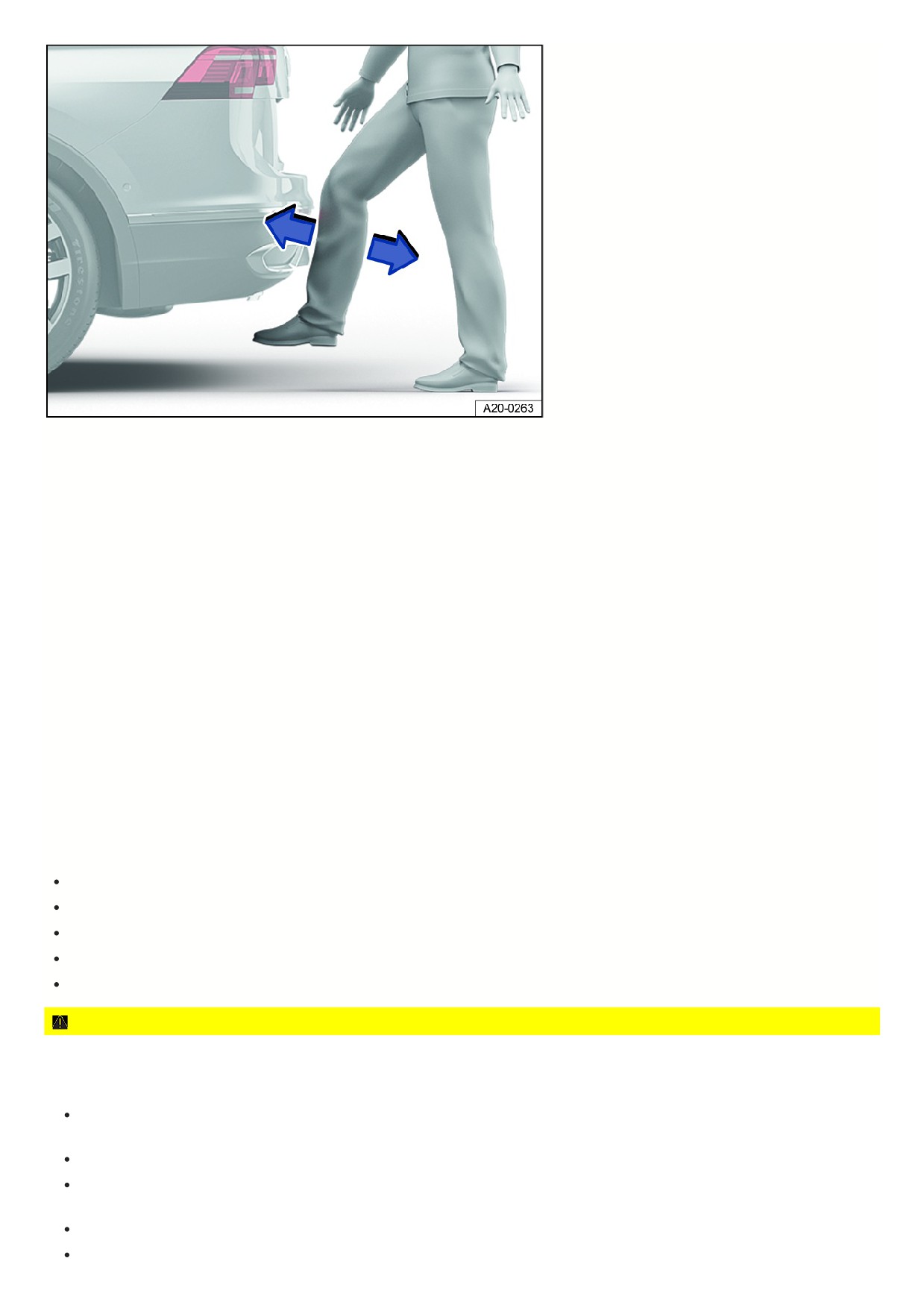

Fig. 69 General example of the trunk lid with sensor-controlled closing (Easy Close).
You can only activate the Easy Close function if a valid remote control vehicle key is detected near the trunk lid.
1. Position your foot behind the middle of the bumper.
2. Quickly swing the lower part of your leg close to the bumper fig. 69.
3. Quickly remove the lower part of your leg once more from the bumper.
Easy Close is activated for approx. 20 seconds. A chime will confirm successful activation.
The trunk lid is closed as soon as all valid vehicle keys are removed from the area near the trunk lid.
The trunk lid will lock automatically after it closes if the vehicle was previously locked and there is not a valid vehicle key inside the vehicle.
Easy Close permits locking a maximum of one vehicle key in the luggage compartment.
The locking procedure is interrupted as soon as a vehicle key returns nearby. The trunk lid re-opens.
Activating or deactivating the Easy Close function
The function Easy Close can be activated or deactivated together with the sensor-controlled luggage compartment opener (Easy Open) function in the Vehicle
menu in the Infotainment system Trunk lid with Easy Open motion sensor.
The Easy Close function is only available when Keyless Access is activated “Keyless Access” with push-button start .
The Easy Close function may be triggered inadvertently in the following situations:
During refueling operations in which a tank hose is brought to the lower rear area of the vehicle.
If there is a sweeping motion under the rear bumper.
If a strong stream of water or steam passes.
During maintenance and repair work in the area of the rear bumper.
If there are moving gates in the vicinity of the bumper.
CAUTION
If a valid vehicle key is detected near the trunk lid, the Easy Close function may trigger unintentionally and close the trunk lid in some cases. If the trunk lid
closes unintentionally, it may cause injuries to people and/or damage to objects within the trunk lid’s range of motion.
After parking the vehicle, switch off the Easy Close function via the Infotainment system if you park close to obstacles, e.g. street lamps, posts and garage
doors, or if you park in an underground car park with a low ceiling.
Always make sure that no valid vehicle keys are left unattended near the trunk lid.
Always make sure that there are no people in the swivel range of the trunk lid.
Do not hold on to anything in the path of the trunk lid.
Always turn off the Easy Close function via the Infotainment system before any and all maintenance and repair work is performed on the vehicle.
96
Always switch off the Easy Close function via the Infotainment system before washing the vehicle.
Always switch off the Easy Close function via the Infotainment system before mounting a bicycle rack or hitching a trailer
Introduction.
If another trunk lid function is activated while closing the trunk lid or objects are detected in the area of the trunk lid, the closing process is automatically
interrupted.
If the vehicle is locked and the Easy Close function is started, the trunk lid will lock automatically once it is closed. If the vehicle is completely unlocked and the
Easy Close function is started, the trunk lid will not lock automatically once it is closed.
Mechanically unlocking the trunk lid using the emergency release
Please read the introductory information and heed the Warnings and Notice
and Introduction.

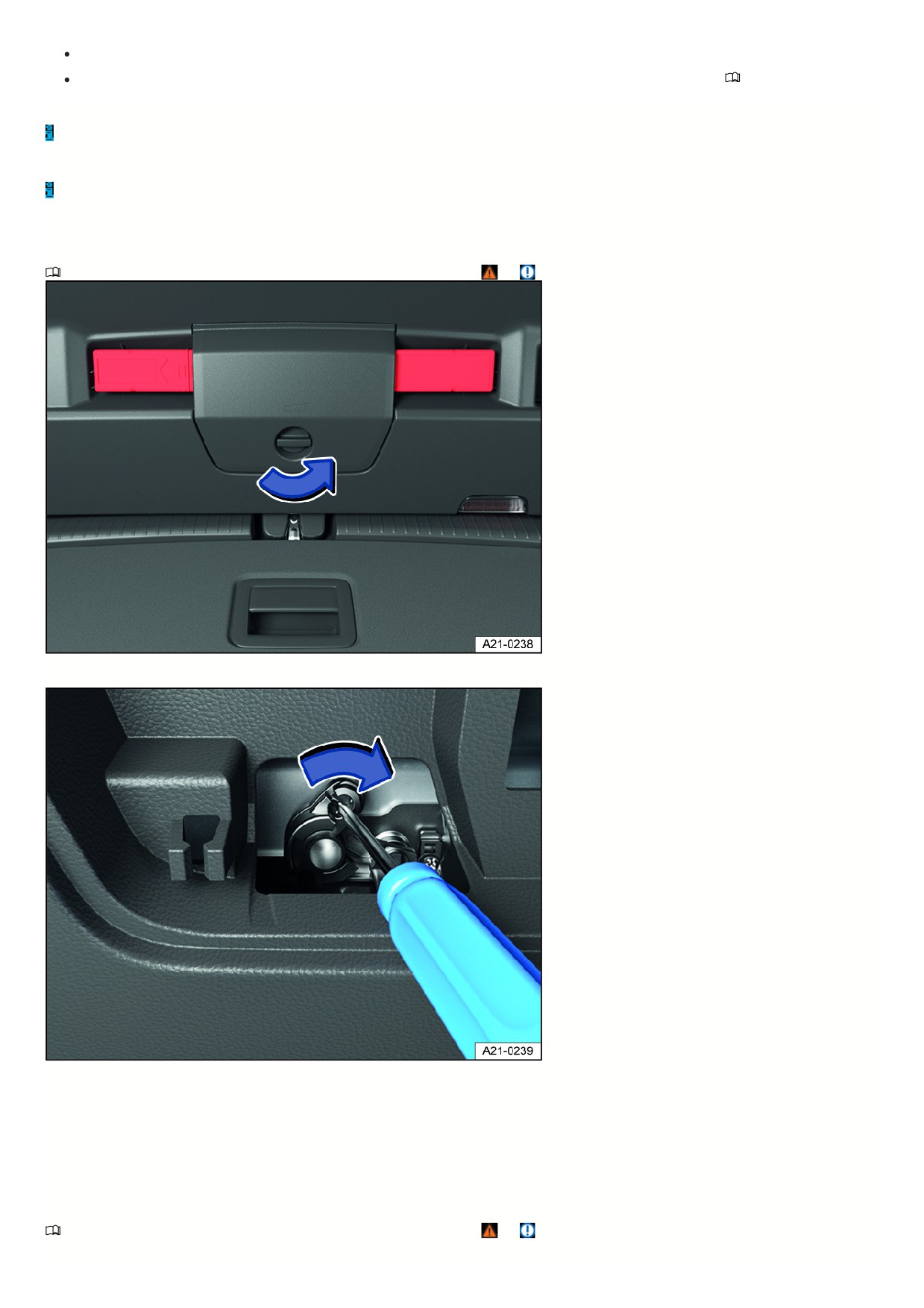

Fig. 70 In the trunk lid: open the holder for the warning triangle.
Fig. 71 In the trunk lid: emergency release for the trunk lid.
Mechanically unlocking the trunk lid using the emergency release
1. Turn the catch of the holder for the warning triangle 90° counterclockwise fig. 70.
2. Open the holder of the warning triangle and take out the warning triangle.
3. To unlock the trunk lid, insert a suitable object into the opening in the release lever and move it across in the direction of the arrow fig. 71.
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
and Introduction.
If the trunk lid will not open or close
97
Check if the trunk lid is being blocked by an object.
The trunk lid can be moved by hand. It is necessary to use more force when doing this.
If the trunk lid is operated too frequently within a short period of time, then the lid motor will automatically switch off to reduce the risk of overheating. Until the l
motor has cooled down, the trunk lid can be opened and closed by hand using extra force.
When in trailer mode, the power trunk lid can only be opened and closed at the trunk lid.
If the 12-volt vehicle battery or fuse is disconnected or malfunctioning, the trunk lid must be closed by hand.
If all turn signals flash four times
The vehicle key that was last used is still in the vehicle.
1. Remove the key and lock the vehicle.
If the trunk lid is difficult to move
The mechanism for opening the trunk lid may not always work automatically when the outside temperatures are around the freezing point.
1. Guide the trunk lid farther upward by hand.
The Easy Open sensor function is not working
Easy Open only works when the ignition is switched off.
Clean the sensors in the rear bumper.
The trailer hitch is extended.
The vehicle was retrofitted with a trailer hitch.
Easy Open may be deactivated in heavy precipitation to reduce the risk of false activation.
Windows
Opening and closing the windows

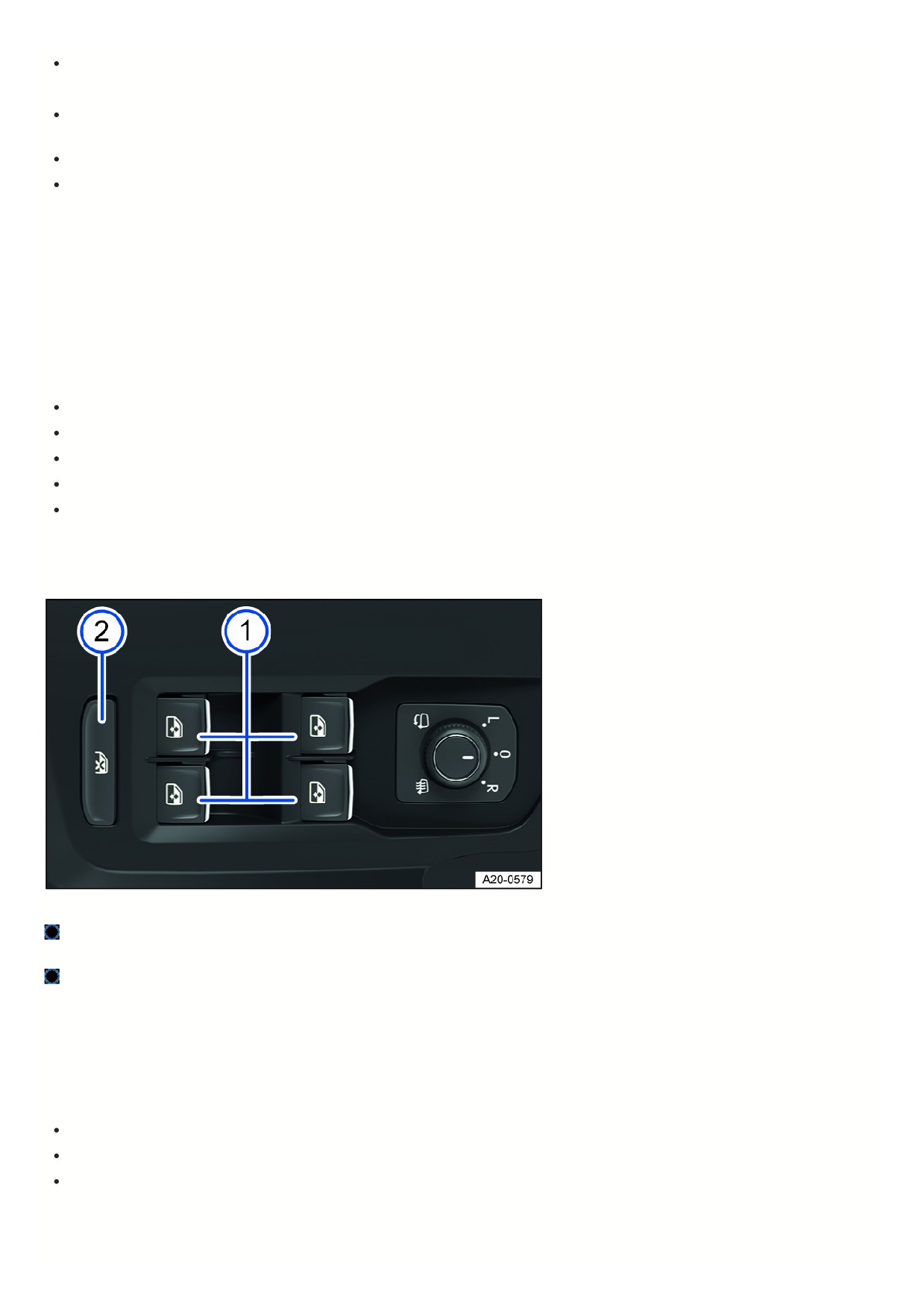

Fig. 72 In the driver door: Power window buttons.
Opening the window: press the switch.
Closing the window: pull the switch.
Deactivating the power window buttons in the rear doors: press the switch.
This button is only located in the driver door.
The windows can still be opened or closed using the switches in the doors for a brief period after the ignition has been switched off, as long as the driver’s or front
passenger door is not opened.
One-touch opening and closing function
The one-touch opening and closing function allows the windows to be completely opened or closed. To use this feature, do not hold the window switch up or down.
To start the one-touch closing function, pull the window switch upward briefly to the second level.
To start the one-touch opening function, press the window switch downward briefly to the second level.
To stop the one-touch opening or closing function, pull or press the switch for that window again.
Convenience opening and closing
Opening
98
The windows can be opened from outside the vehicle using the vehicle key when the ignition is switched off.
1. Press and hold the unlock button on the vehicle key.
2. To stop the function, release the unlock button.
Closing
1. On vehicles with Keyless Access with push-button start: press the sensor surface or locking button on the door handle for a few seconds, until the windows are
closed “Keyless Access” with push-button start . The vehicle key must be nearby to use this feature.
When all of the windows and the power sunroof are closed, the turn signals will blink once as a confirmation.
2. To stop the function, remove your finger from the sensor or switch.
You can select the convenience opening settings in the Vehicle settings menu in the Infotainment system.
WARNING
Careless or unintended use of the power windows can cause serious injuries.
Do not open or close the power windows if anyone is in the way.
Always take all vehicle keys with you when leaving the vehicle.
Note that the windows can still be opened or closed using the door buttons for a brief period after the ignition has been switched off, as long as the driver's
or front passenger door is not opened.
When driving with children seated on the rear bench seat, always disable the rear power windows so that the windows cannot be opened or closed.
WARNING
If the vehicle is locked, the windows can no longer be opened and will prevent people from escaping from the vehicle interior. In an emergency, this could cause
serious or fatal injuries.
Never leave children or people requiring assistance unattended in the vehicle when the vehicle is locked.
NOTICE
If the windows are open, precipitation can enter the vehicle and soak the interior equipment, which could restrict the function of the controls or damage them.
Close all windows if there is precipitation.
If the power windows are malfunctioning, the one-touch opening and closing function and the pinch protection may not function correctly. Contact a suitably
qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Convenience opening and closing only functions if the one-touch opening and closing function is activated for all the power windows.
Power window pinch protection
The power window pinch protection can reduce the risk of being pinched and injured when the windows are closing.
If the window cannot close due to resistance or an obstacle, then the window will reopen immediately
1. Check why the window did not close.
2. Try again to close the window.
If the window will not close again, then the pinch protection will be disabled for several seconds.
If the window still cannot close, then the window will stop at the place where it meets resistance. If you press the switch again within several seconds, the window
will close without pinch protection
Closing windows without pinch protection
1. Try to close the windows again within a few seconds by holding the switch. This will disable the pinch protection.
If the closing process takes longer than several seconds, then pinch protection will be enabled again. If there is resistance to the window moving or an obstacle
is blocking the window, then the window will reopen automatically.
2. If the window still cannot close, then contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
WARNING
Closing the window when pinch protection is disabled can result in serious injuries.
Always be careful when closing the windows.
99
Do not close windows if anyone is in the way.
Note that the pinch protection does not prevent fingers or body parts from being trapped against the window frame.
Pinch protection also occurs when using the convenience closing function with the vehicle key.
Troubleshooting
One-touch up/down feature
If the 12 V vehicle battery is disconnected or drained when the windows are not completely closed, then the one-touch up/down feature will not work. It must be
reprogrammed using the following steps:
1. Switch the ignition on.
2. Close all windows and doors.
3. Pull the switch for the desired window and hold it in that position for several seconds.
4. Release the switch, then pull it upward again and hold it.
The one-touch up and down features will then be fully functional.
The automatic power windows can be reprogrammed individually, or multiple windows can be reprogrammed at the same time.
Controls are responding differently than expected
Moisture, dirt and grease may limit the functioning of the controls.
1. Always keep the control panels clean and dry.
Sunroof
Opening and closing the tilting and sliding panoramic sunroof
The term “sunroof” is used as a synonym for the panoramic sliding/tilting sunroof.

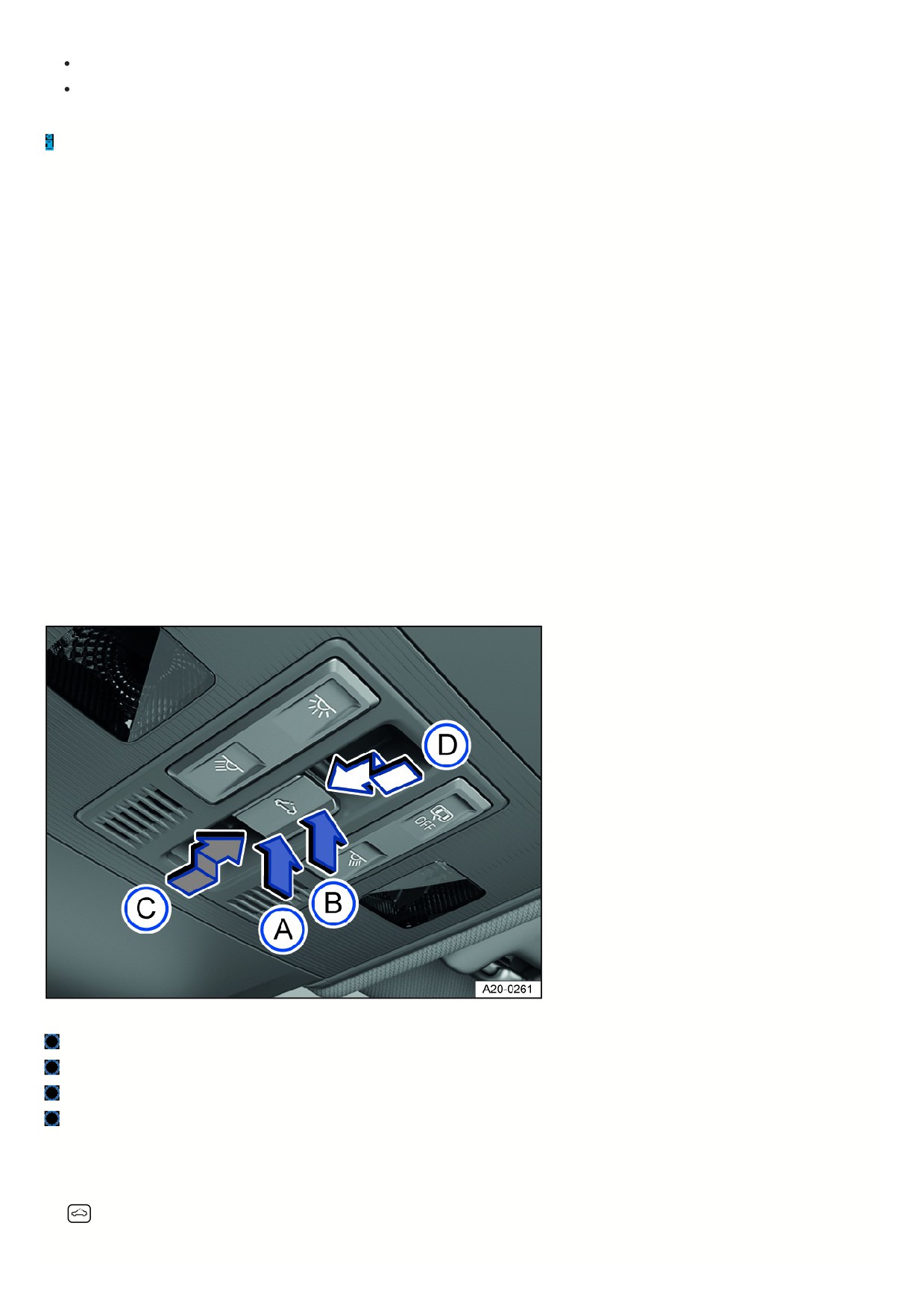

Fig. 73 In the headliner: sunroof button.
Close the power sunroof when tilted.
Tilt the power sunroof.
Open the power sunroof or stop the automatic process.
Close the power sunroof or stop the automatic process.
The sunroof is a roof opening system consisting of two glass pieces. The rear glass piece is fixed and cannot be opened.
The sunshade automatically opens automatically with the sunroof when it is in front of the sunroof. The sunshade can be completely closed only if the sunroof is
closed.
The
button has two levels.
First level: tilt, open, or close the sunroof completely or partially.
1
Second level: automatically open or close the sunroof completely.
You can stop the automatic process by pressing the button again.
Tilting the power sunroof
Manual process: Press the fig. 73
button to the first level.
Automatic process: Press the fig. 73
button to the second level.
Closing the power sunroof when tilted
Manual process: Press the fig. 73
button to the first level.
Automatic process: Press the fig. 73
button to the second level.
Opening the power sunroof
Manual process: Press the fig. 73
button to the first level.
Automatic process up to comfort position: press the fig. 73 button until the second level is reached.
Closing the power sunroof
Manual process: press the fig. 73 button until the first level is reached.
Automatic process: press the fig. 73 button until the second level is reached.
Stopping the automatic opening or closing process
1. Press the fig. 73 or fig. 73 button again.
WARNING
Careless or unintended use of the power sunroof may cause serious or fatal injuries.
Do not open or close the power sunroof if anyone is in its path.
Note that the power sunroof can still be opened or closed for a brief period after the ignition has been switched off, as long as the driver's or front
passenger door has not been opened.
WARNING
If you leave vehicle keys unattended in the vehicle, children or unauthorized people may lock the vehicle, start the engine, switch on the ignition or activate the
power sunroof. This can cause accidents and serious or fatal injuries.
Always take all vehicle keys with you when leaving the vehicle.
NOTICE
Opening or tilting the power sunroof when there is precipitation, particularly snow and ice, may cause damage to the vehicle interior and the electrical system.
Remove snow and ice from the vehicle roof before using the power sunroof in winter temperatures.
Always close the power sunroof before leaving the vehicle and when there is precipitation.
NOTICE
If you use a power sunroof with a roof rack mounted, the power sunroof may be damaged.
Keep the power sunroof closed when using a roof rack.
Remove leaves and other loose objects from the power sunroof guide rails regularly, either by hand or with a vacuum cleaner.
The pinch protection will not function correctly if the sunroof is malfunctioning. Contact a suitably qualified professional. Volkswagen recommends contacting
an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Tilting and sliding panoramic sunroof convenience opening and closing
Convenience opening and closing
The sunroof can be opened and closed from outside the vehicle using the vehicle key.
Does not apply to the US or Canada: Press and hold the unlock or lock button on the vehicle key. The sunroof will be tilted or closed.
For vehicles with Keyless Access with push-button start: Hold your finger on the unlock sensor in the door handle for several seconds until the tilting and slidin
1 1
panoramic sunroof is closed Unlocking or locking using Keyless Access .
Remove your finger from the unlock or lock button to stop the function.
When using the convenience closing function, all windows in the doors and the sunroof will be closed. When all of the windows and the power sunroof are closed,
the turn signals will blink once as a confirmation.
Settings for the sunroof can be adjusted in the vehicle settings in the Infotainment system.
Sunroof pinch protection
The pinch protection reduces the risk of pinching injuries
. If the sunroof is obstructed while it is closing, it will open again automatically.
1. Check why the sunroof is not closing.
2. Try again to close the sunroof.
3. If the sunroof is still not able to close, close the sunroof without pinch protection.
Closing the sunroof without pinch protection
1. Press the
button to the second level until the sunroof is completely closed
Opening and closing the tilting and sliding panoramic sunroof .
2. If the power sunroof still cannot close, then contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
If you release the switch during the closing process, then the sunroof will open again automatically.
WARNING
Closing the power sunroof without pinch protection may result in serious or fatal injuries.
Always be careful when closing the power sunroof.
Do not close the power sunroof if anyone is in its way, especially if it is closing without pinch protection.
Note that the pinch protection does not prevent fingers or body parts from being trapped against the roof frame.
Pinch protection also occurs when convenience closing the windows and sunroof with the vehicle key.
Troubleshooting
If the sunroof is not closing
The sunroof only works when the ignition is on. The sunroof can still be opened or closed for a brief period after the ignition has been switched off, as long as
the driver’s or front passenger's door has not been opened.
If it is not possible to close the sunroof using the power controls, the sunroof must be closed manually. Some vehicle components must be removed in order to
close the sunroof manually. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Controls are responding differently than expected
Moisture, dirt and grease may limit the functioning of the controls.
1. Always keep the control panels clean and dry.
1 2
Steering wheel
Adjusting the steering wheel position

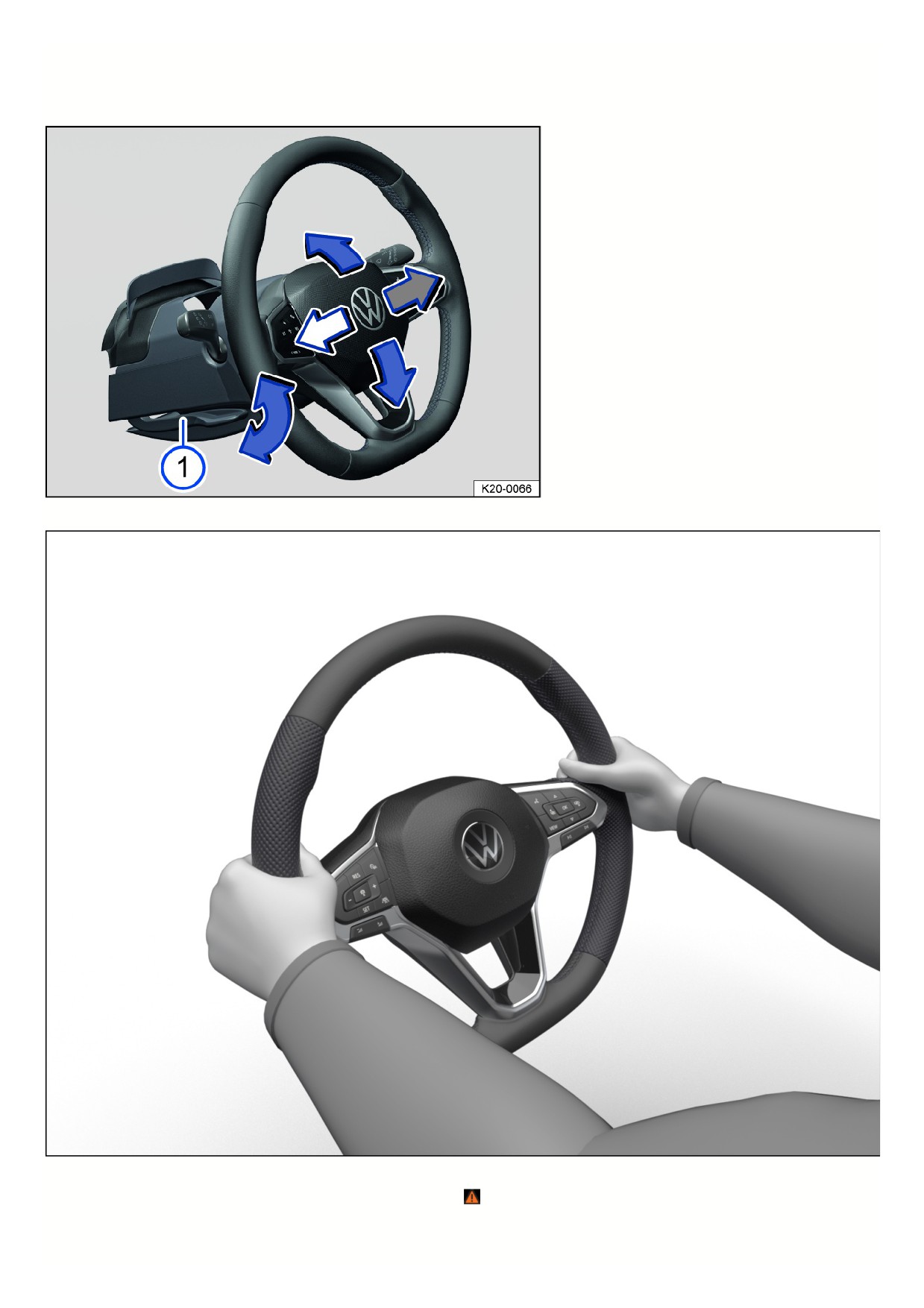

Fig. 74 Under the steering wheel in the steering column trim panel: lever to adjust the steering wheel position manually (general example).
Fig. 75 On the steering wheel: nine o’clock and three o’clock position.
Only adjust the steering wheel before driving or while the vehicle is stationary
1. Tilt the lever fig. 74 downward.
2. Adjust the steering wheel so that it can be firmly held at the outer edge with both hands at the nine o’clock and three o’clock position fig. 75.
1 3
3. Press the lever all the way up until it locks flush with the steering column trim panel
WARNING
Incorrect use of the steering wheel adjuster and an incorrect steering wheel adjustment could cause serious or fatal injuries.
Always push the lever fig. 74
upward into its locked position after adjusting so that you do not change the steering wheel position unintentionally while
driving.
Never adjust the steering wheel while driving. If you find the steering wheel must be adjusted while driving, stop the vehicle safely and adjust the steering
wheel correctly.
The steering wheel must always face toward the chest and never toward the face. Otherwise, the protective function of the driver’s front airbag may be
limited in the event of an accident.
To reduce the risk of injuries if the driver's front airbag deploys, always hold the outer edge of the steering wheel firmly with both hands in the nine o'clock
and three o'clock position fig. 75.
Never hold the steering wheel in the twelve o'clock position or in any other way, such as holding the center of the steering wheel. Otherwise, the arms,
hands, and head could be seriously injured if the driver’s front airbag deploys.
1 4
Seats and head restraints
Front seats
Introduction
The following information describes the various options for adjusting the front seats. Always make sure the seats are adjusted to the correct position
Introduction.
WARNING
Driving in an incorrect seating position due to seats being adjusted incorrectly may cause serious injuries.
Adjust the front seats according to the correct seating position each time before driving and make sure all passengers have their safety belts fastened
correctly.
Move the front passenger seat all the way back.
WARNING
Adjusting the seats incorrectly can cause accidents and serious injuries.
Only adjust the seats when the vehicle is stationary. Otherwise, the position of the seats could change unexpectedly while driving and you could lose
control of the vehicle. You could also put yourself in an incorrect seating position.
Only adjust the height, angle, and forward/back position of the front seats when there is no one within the seat’s range of movement.
Do not restrict the movement of the seats by placing objects within their range of movement.
The adjusting and locking areas of the seats must not be dirty.
WARNING
Using seat covers or protective covers incorrectly can result in unintentionally operating the seat adjusters, and the front seats could move unexpectedly while
driving. This could cause you to lose control of the vehicle. This can cause accidents and injuries. The electrical components in the front seats could also be
damaged.
Never install or secure seat covers and protective covers on the electrical controls.
Only use seat covers or protective covers that are specifically approved for use in your vehicle.
WARNING
Lighters in the vehicle can become damaged or ignite unintentionally. This can cause severe burns and vehicle damage.
Before adjusting any seat, always make sure that there are no cigarette lighters near the moving parts of the seat.
NOTICE
Objects with sharp edges can damage the seats.
Never touch the seats with sharp-edged objects. Sharp-edged objects, such as zippers, rivets on clothing, or belts, can cause surface damage. Open
hook and loop fasteners can also cause damage.
Manually adjusting front seats
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The information that follows describes all possible controls. Depending on the seat version, the number of controls may vary.
The controls on the front passenger seat are a mirror image of those for the driver seat.
A seat may have both manual and power controls.
1 5

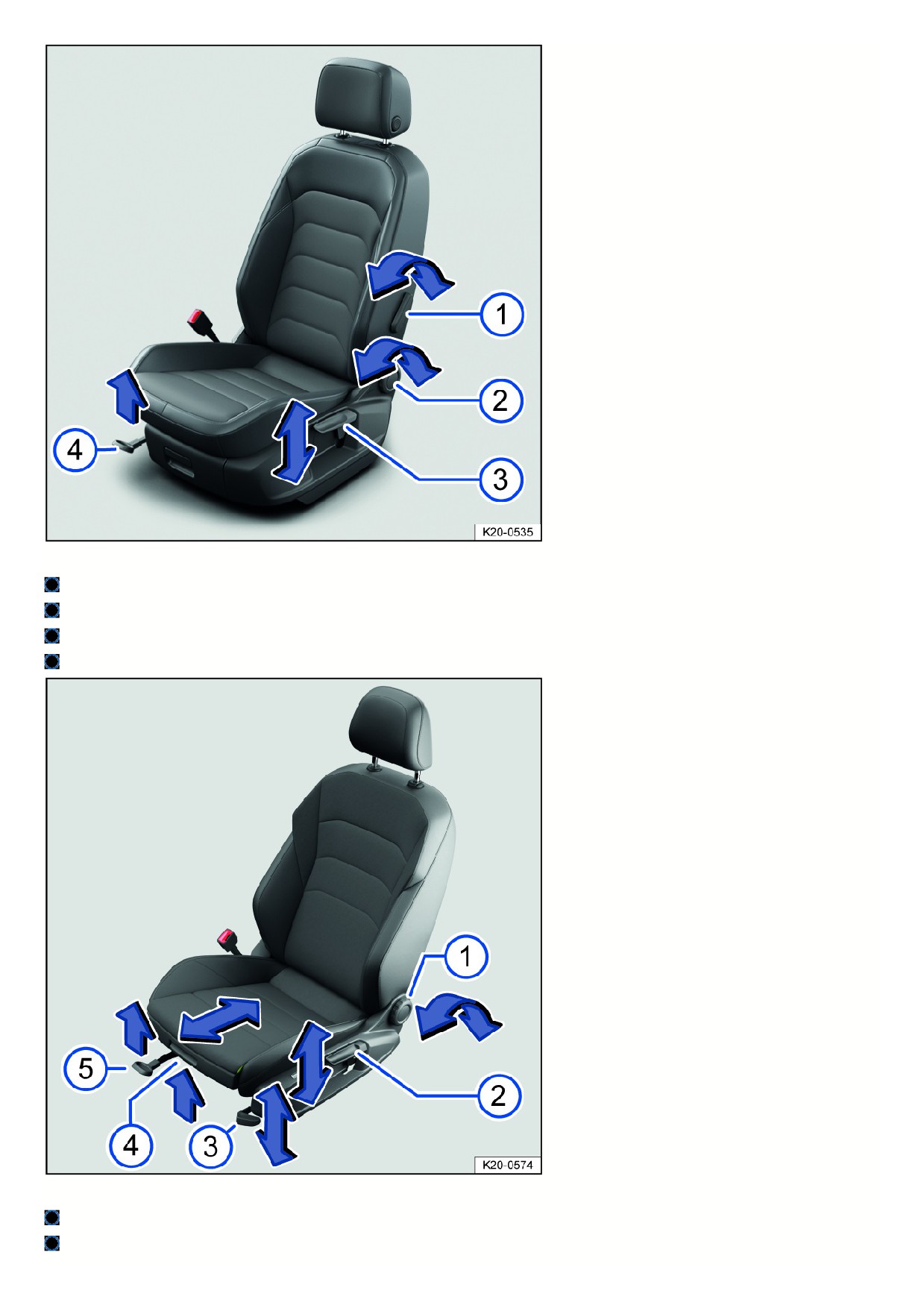

Fig. 76 On the driver seat: Controls (variant 1).
Operate the lever to adjust the lumbar support.
To adjust the backrest, turn the handwheel with nothing resting on the backrest.
If necessary, move the lever upward or downward multiple times to adjust the height of the seat.
Pull the lever to slide the front seat forward or backward. The front seat must lock into place after the lever is released.
Fig. 77 On the driver seat: Controls (variant 2).
To adjust the backrest, turn the handwheel with nothing resting on the backrest.
If necessary, move the lever upward or downward multiple times to adjust the height of the seat.
1 6
Pull or push the lever several times if necessary to adjust the seat cushion angle.
Lift the grip to move the seat cushion forward or backward.
Pull the lever to slide the front seat forward or backward. The front seat must lock into place after the lever is released.
Fig. 78 On the driver seat: Controls (variant 3).
Pull the lever to slide the front seat forward or backward. The front seat must lock into place after the lever is released.
Press and hold the lever to adjust the tilt of the backrest, and release it once the seat backrest is in the preferred position. Release the lever to secure the
backrest. The seat backrest must lock into place after the lever is released.
If necessary, move the lever upward or downward multiple times to adjust the height of the seat.
Adjusting power front seats
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The electric controls differ depending on the country and vehicle equipment and may vary according to the seat design.
The controls on the front passenger seat are a mirror image of those for the driver seat.
A seat may have both manual and power controls.

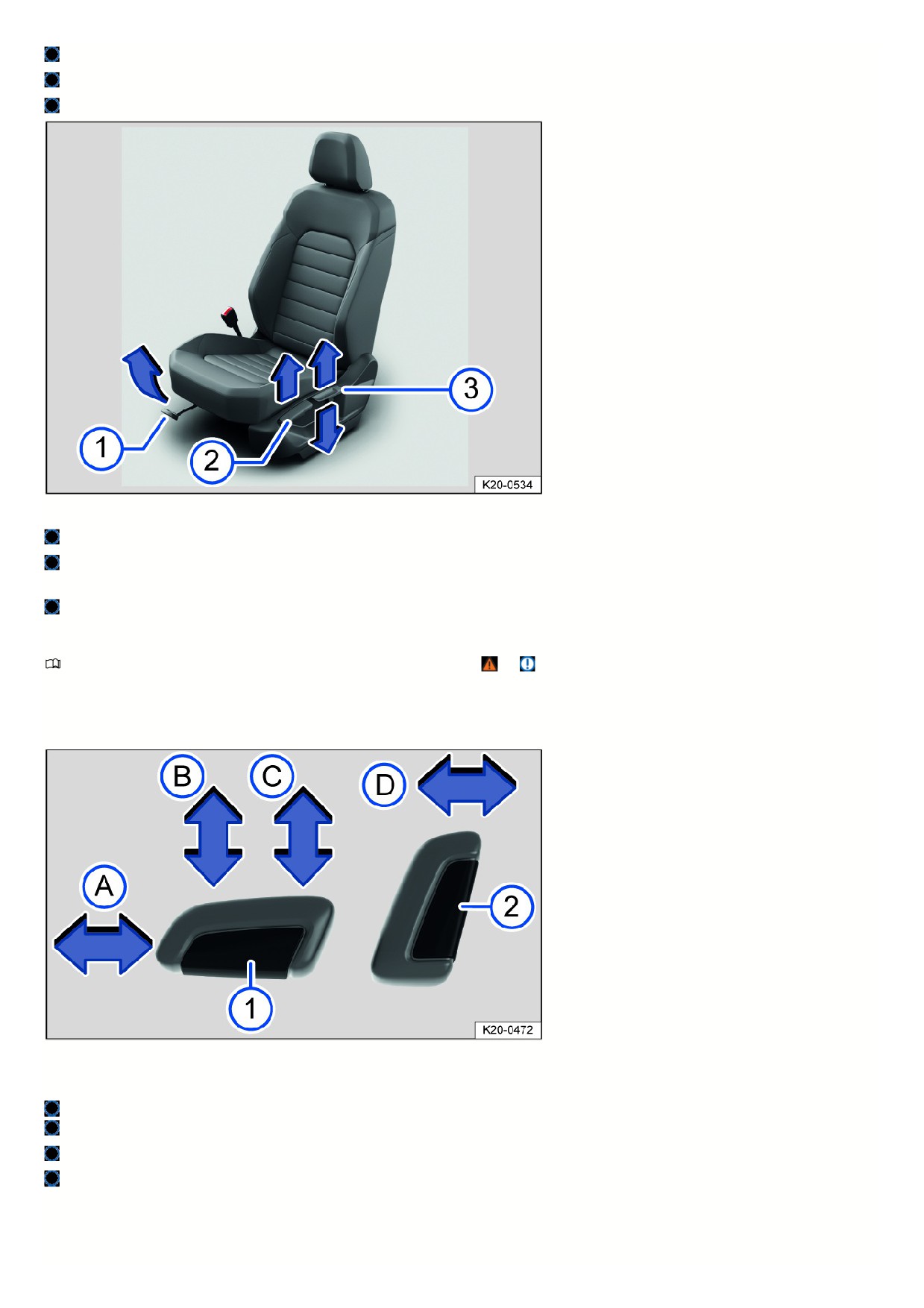

Fig. 79 Switch on the driver seat: Adjusting the front seat forward/back, the height and angle of the seat surface, and the front seat backrest.
Press the switch in the direction of the arrow:
Slide the seat forward or backward.
Adjust the angle of the seat surface.
Adjust the height of the seat.
Adjust the angle of the backrest.
1 7

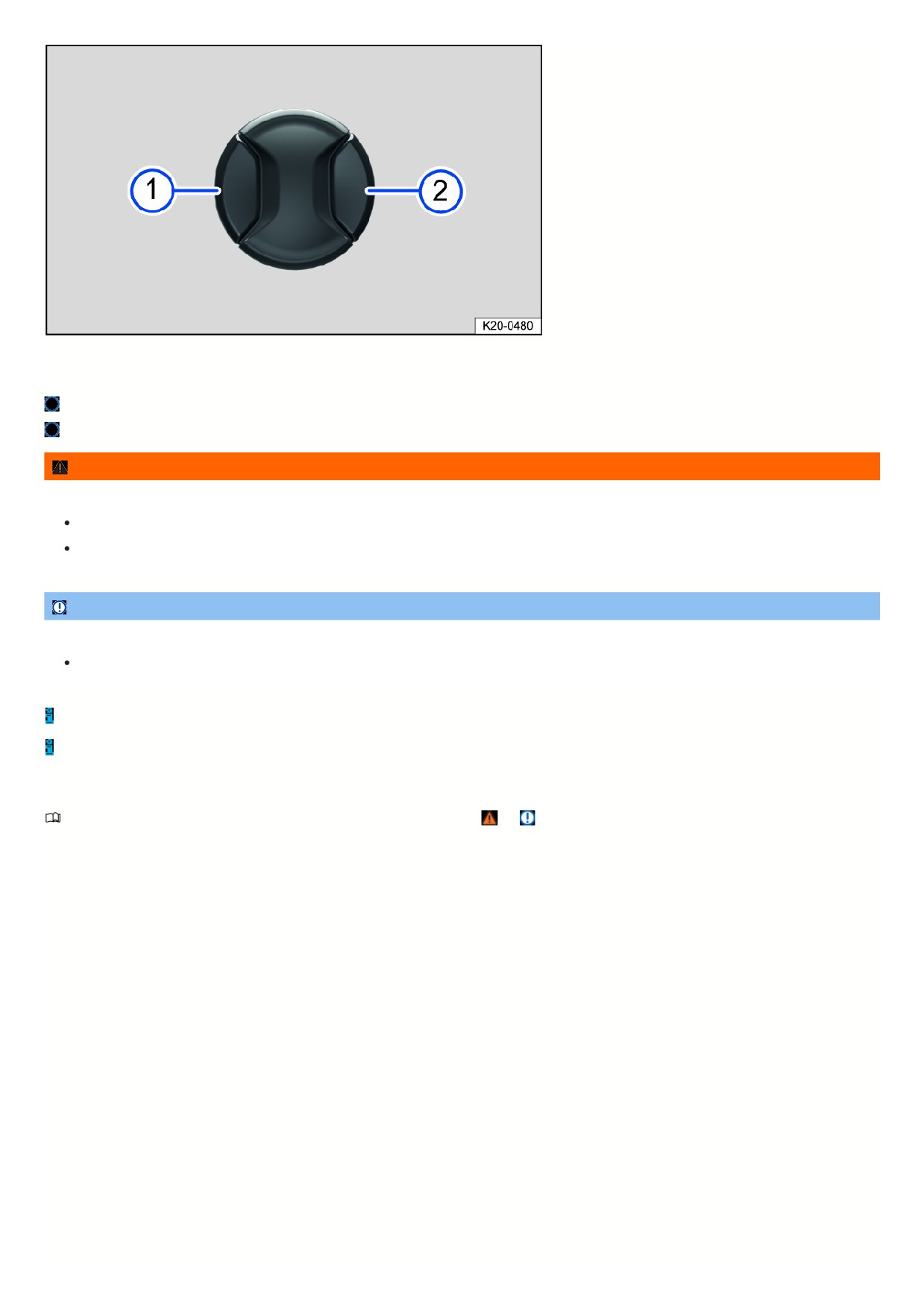

Fig. 80 Switch on the driver seat: Adjusting the lumbar support.
Press the switch in the direction you would like the lumbar support to move.
Move the curvature of the lumbar support forward.
Move the curvature of the lumbar support backward.
WARNING
Careless or unintended use of the power front seats can cause serious injuries.
The power front seats can also be adjusted when the ignition is switched off. Never leave children or people requiring assistance in the vehicle.
In case of an emergency, interrupt the power adjustment by pressing another switch.
NOTICE
Incorrect usage may damage the electric components in the front seats.
Do not kneel on the front seats and do not otherwise concentrate pressure on specific points of the seat cushion and backrest.
If the 12 V vehicle battery charge level is too low, the seat may not be able to be adjusted with the power controls.
Seat adjustment is canceled while the engine is starting.
Folding the front passenger backrest forwards
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The front passenger seat backrest can be folded down and locked in a horizontal position.
If objects are transported on the folded front passenger seat, the front passenger's front airbag must be deactivated.
Folding the front passenger backrest forwards
1 8

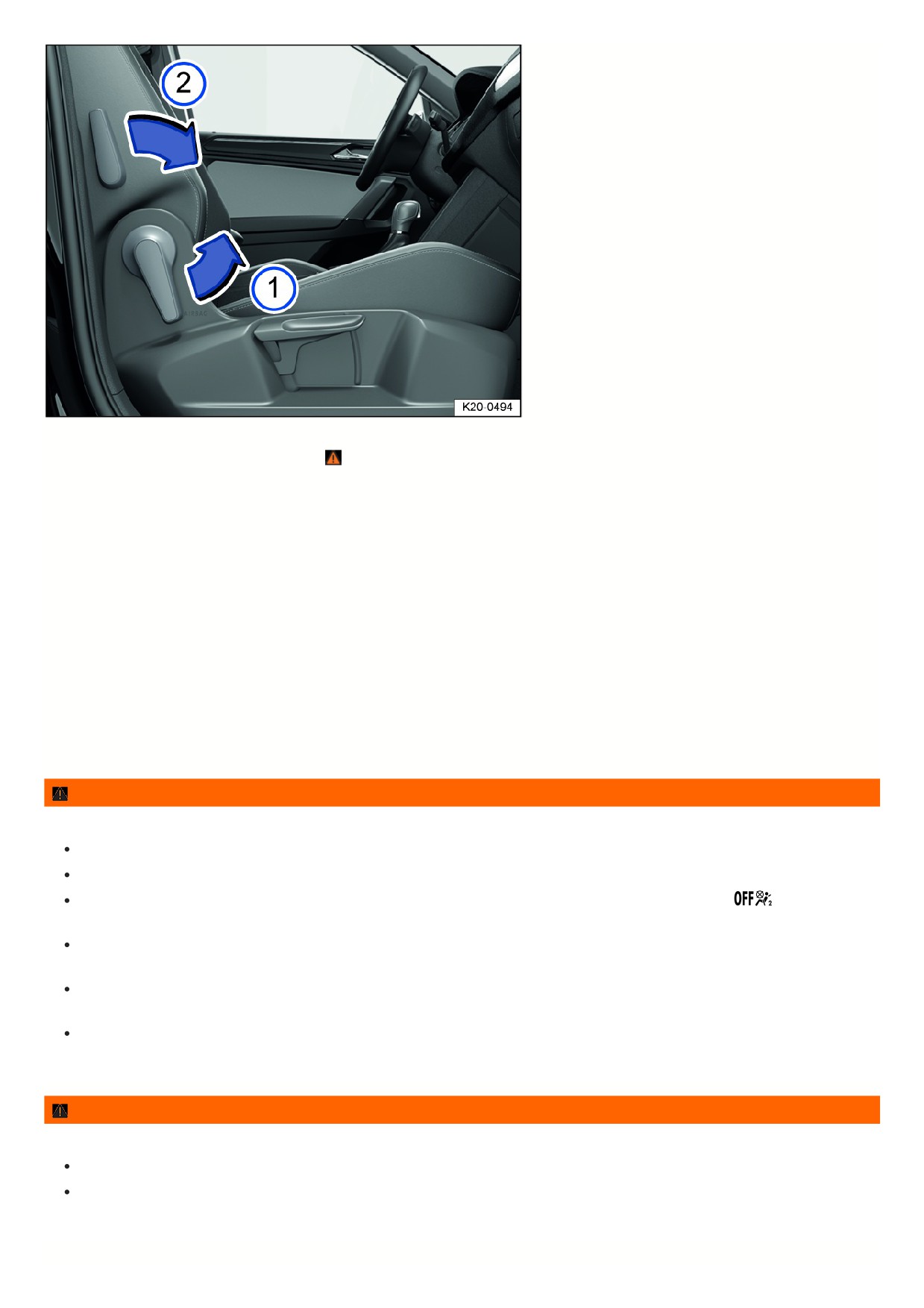

Fig. 81 Front passenger seat: Fold backrest forwards.
1. Remove objects from the front passenger seat
2. Set the front passenger seat as low as possible.
3. Move the front passenger seat as far back as possible.
4. Move the head restraints all the way down.
5. Unlock the front passenger backrest in the direction of the arrows fig. 81.
6. Fold the front passenger backrest forwards in the direction of the arrows fig. 81 into the horizontal position.
The front passenger backrest must engage securely in the folded down position.
Unfolding the front passenger backrest
Do not have any objects or body parts near the hinge when unfolding.
1. To unfold the front passenger backrest unlock it again fig. 81.
2. Fold the front passenger backrest backwards into the upright position.
The front passenger backrest must engage securely in the folded out, upright position.
WARNING
Folding and unfolding the front passenger backrest in an uncontrolled or careless manner can cause severe injury.
Only fold or unfold the front passenger backrest when the vehicle is stationary.
Always ensure that no people or animals are in the way of the backrest when folding down the front passenger backrest.
As long as the front passenger backrest is folded down, the front airbag must be deactivated and the PASSENGER AIR BAG
indicator light must
be illuminated.
Keep hands, fingers, feet, and other parts of the body out of the range of operation of the seat hinges and seat locking mechanism when folding the
backrest forward and back.
Floor mats or other objects must not become caught in the area of the hinges. The floor mats or other objects could get caught in the front passenger
backrest hinges. This can lead to the front passenger backrest not being securely locked when unfolded to the upright position.
The front passenger backrest must be securely locked when being unfolded to the upright position. A front passenger backrest which is not securely
locked can move unexpectedly and cause severe injury.
WARNING
The uncovered seat mountings or hinges can lead to severe injury during a braking maneuver or accident when the front passenger backrest is folded down.
Never transport adults or children on the front passenger seat when the front passenger backrest is folded down.
Only the seat behind the driver seat on the rear bench seat may be used when the front passenger backrest is folded down. This also applies to child
seats.
1 9
WARNING
Objects that are not secured or are secured incorrectly can cause serious injuries in the event of sudden driving and braking maneuvers or a collision. This is
especially true if the airbags deploy and strike objects, causing them to fly through the vehicle interior.
Store all objects securely in the vehicle. Follow the legal regulations whilst doing so.
As long as the front passenger backrest is folded down, the front airbag must be deactivated and the PASSENGER AIR BAG
indicator light must
be illuminated.
Rear seats
Introduction
The following information describes the various options for adjusting the rear seats. Always make sure the seats are adjusted to the correct position
Correct
seating position.
WARNING
Incorrectly positioned rear seats increase the risk of serious injuries if an accident occurs.
Before every journey, ensure that the rear seats are positioned so that all passengers are sitting upright and have their safety belts on correctly.
Only adjust the rear seats when there is no one within the range of movement of the seats.
WARNING
If you adjust the rear seats while driving, you will adopt the wrong sitting position. In addition, the rear seats may move unexpectedly during the journey. This will
increase the risk of serious injuries if an accident occurs.
Only adjust the rear seats when the vehicle is stationary.
WARNING
Lighters in the vehicle can become damaged or ignite unintentionally. This can cause severe burns and vehicle damage.
Before adjusting any seat, always make sure that there are no cigarette lighters near the moving parts of the seat.
WARNING

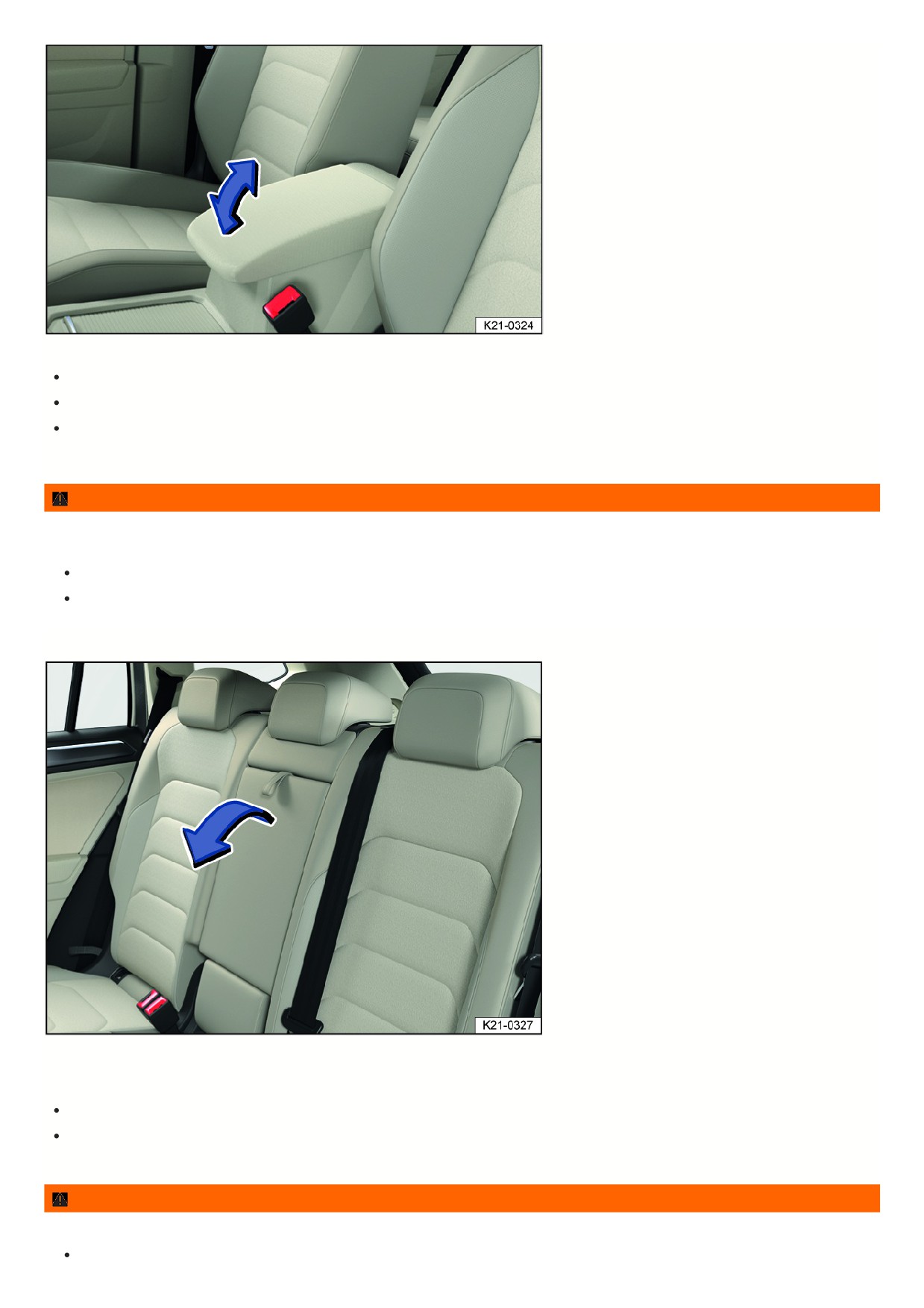

Incorrect use of the rear center armrest may cause serious injuries.
The rear center armrest must always be folded up during journeys.
If the center armrest is folded down, the center rear bench seat must never be used by either adults or children.
Never allow an adult or child to ride on the center armrest.
WARNING
In the event of an accident or when the trunk lid is being closed, persons taller than 1.60 m (5 ft, 3 inches) or children on booster seats who are sitting in the third
row of seats can suffer serious head injuries.
Do not allow any persons taller than 1.60 m (5 ft, 3 inches) to sit in the third row of seats.
Do not allow any children to sit on booster seats in the third seat row if the total height of the child including booster seat exceeds 1.60 m (5 ft, 3 inches).
When you close the trunk lid, make sure that no adults or children are in the swivel range of the trunk lid.
NOTICE
Objects in the luggage compartment may get into the space between the seat and the luggage compartment floor when the rear seat is adjusted. This may
cause damage.
Remove all objects located between the seat and luggage compartment floor before you move the rear seat.
NOTICE
Objects with sharp edges can damage the seats.
11
Never touch the seats with sharp-edged objects. Sharp-edged objects, such as zippers, rivets on clothing, or belts, can cause surface damage. Open
hook and loop fasteners can also cause damage.
Adjusting the rear bench seat
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The rear backrest is split into two sections that are different sizes. Each section can be adjusted separately.
Adjusting the rear bench seat forward or backward

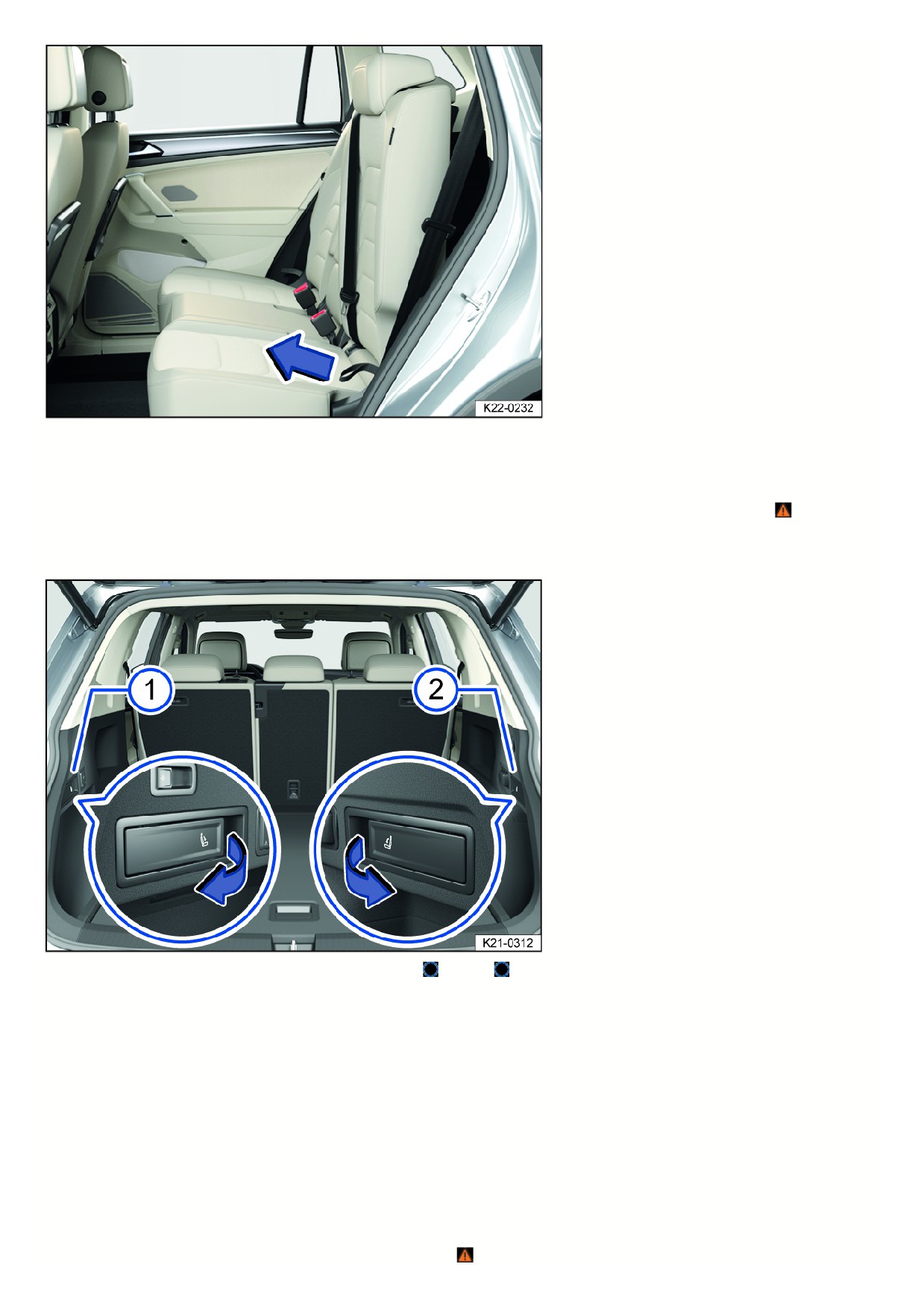

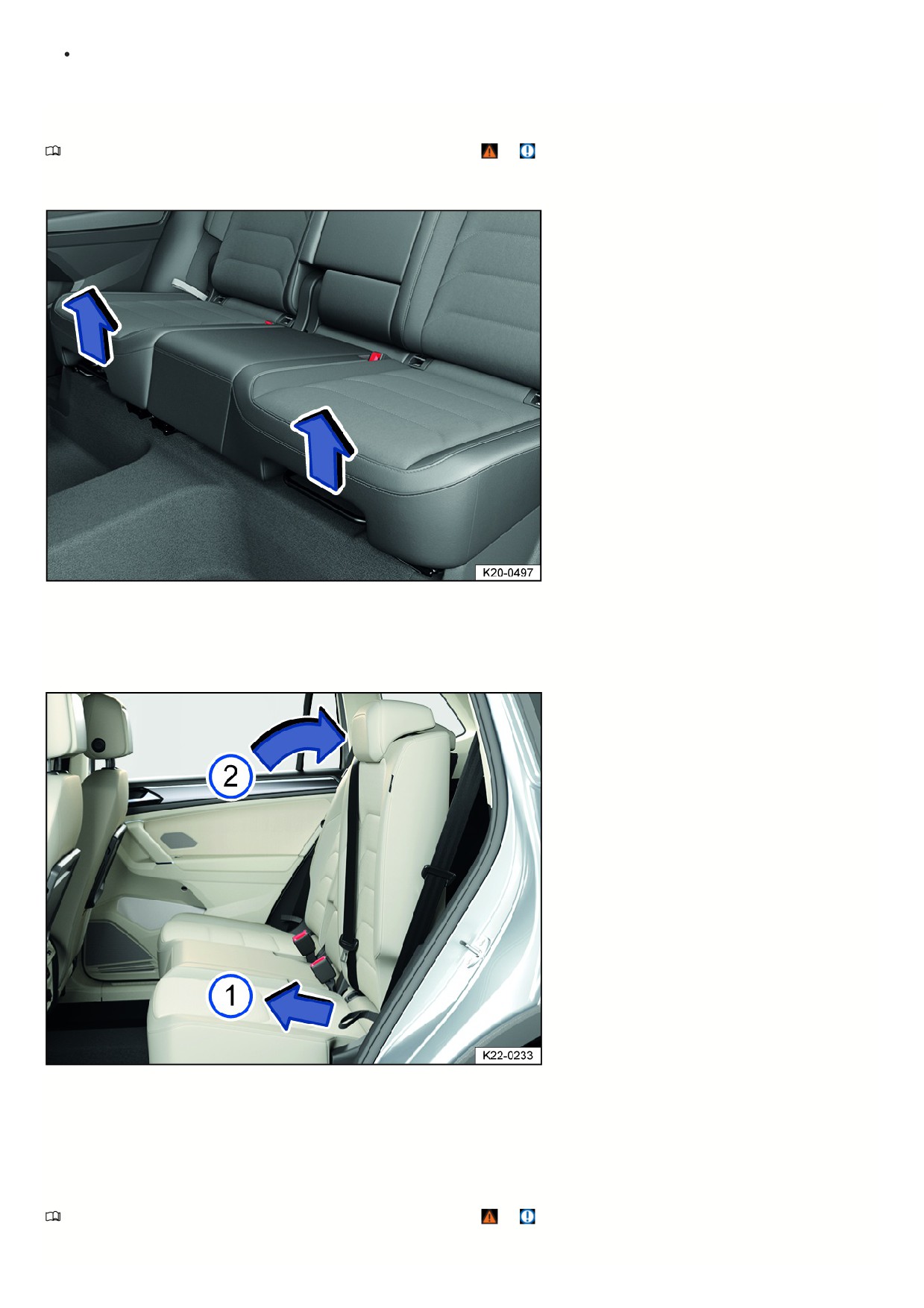

Fig. 82 Under the seat cushion in the rear bench seat: Adjusting lever.
1. Pull the right or left lever upward in the direction of the arrow fig. 82 and slide the corresponding section of the rear bench seat forward or backward.
2. Release the lever and allow the section of the rear bench seat to engage by sliding slightly forward or backward.
Adjusting the rear seat backrest
Fig. 83 Adjust the rear seat backrest.
1. Press on the right or left rear seat backrest with your hand, while pulling its loop with the other hand fig. 83.
2. Push the rear seat backrest against the spring force with your hand to move it to the desired position fig. 83.
3. Let go of the loop and lock the rear seat backrest in place by gently sliding it forward or backward until it engages.
Folding the rear bench seat backrest forward or backward
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Folding the rear seat backrest forward and down
111

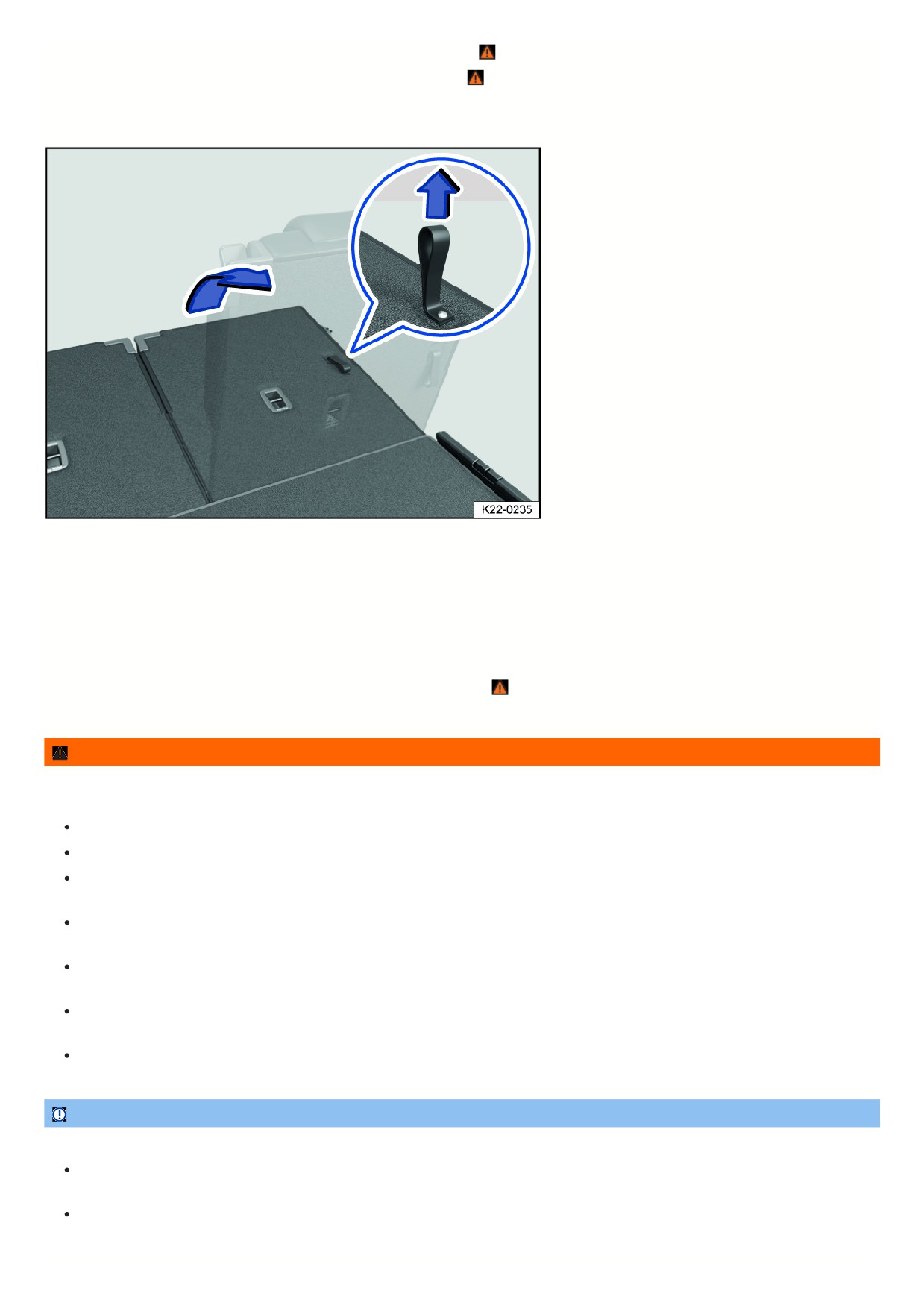

Fig. 84 Rear bench seat: Folding the rear seat backrest up and down.
1. Move the head restraints all the way down.
2. Move the rear bench seat all the way back.
3. Pull the loop fig. 84 forward in the direction of the arrow while supporting the backrest, and slowly fold the rear seat backrest forward
4. Push the rear seat backrest down all the way by hand until it engages.
Folding the seat backrest forwards using the remote release lever

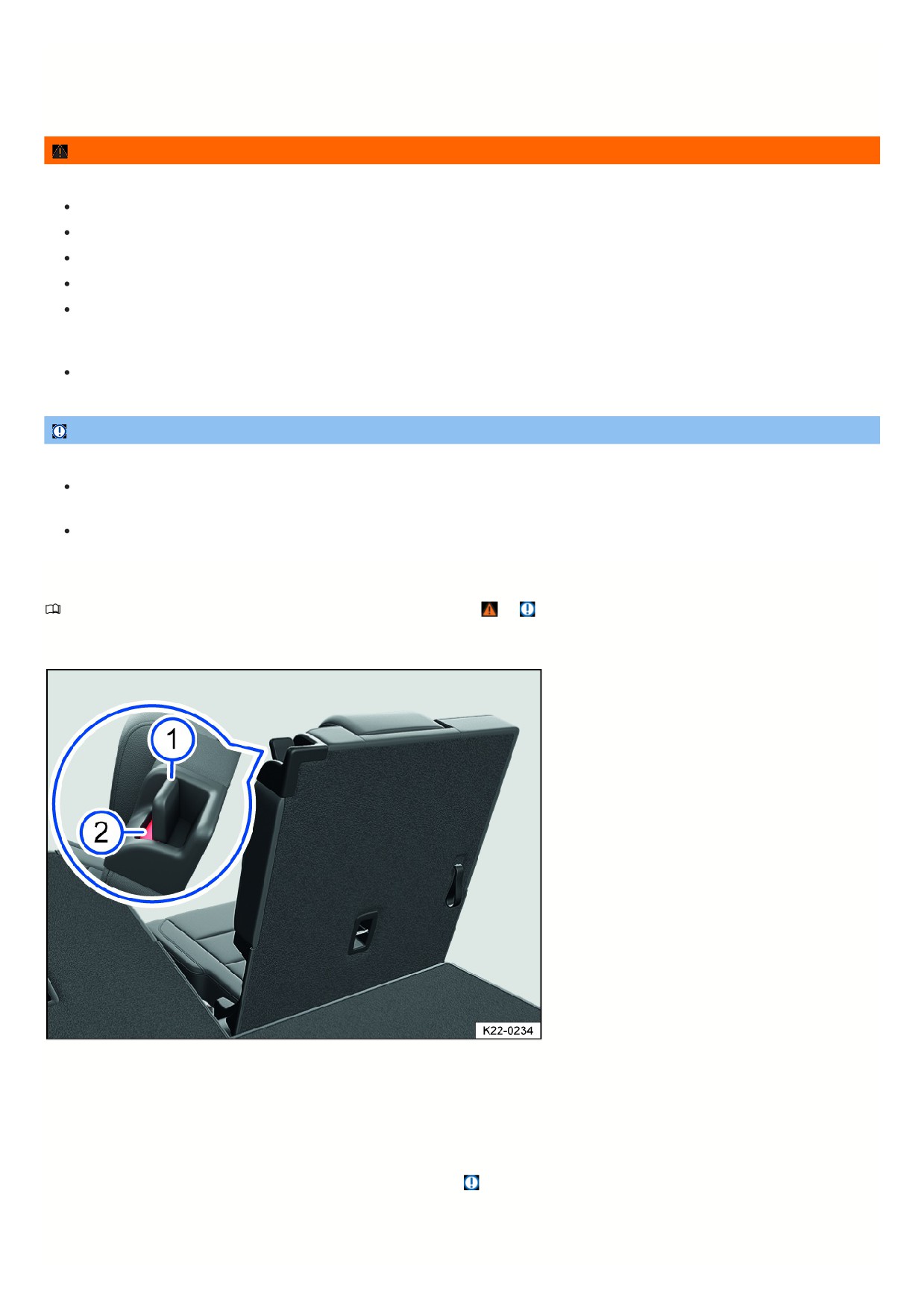

Fig. 85 In the luggage compartment: Remote unlocking lever for the left
and right
part of the rear seat backrest.
1. Move the head restraints all the way down.
2. Open the trunk lid.
3. Pull the remote release lever fig. 85 for the backrest section to be folded forward in the direction of the arrow.
This portion of the rear seat backrest is now unlocked and can be folded forward and down.
4. Close the trunk lid if necessary.
Folding the rear seat backrest up and back
1. Release the rear seat backrest with the loop.
The rear seat backrest springs out of its locks.
2. Hold the loop tightly and fold the rear seat backrest up and back.
3. Make sure the safety belt is not trapped.
4. Push the rear seat backrest firmly into its catch until it securely engages
112
The rear seat backrest must be securely engaged.
5. Adjust the rear seat backrest if necessary.
6. Adjust the head restraints if necessary.
WARNING
Folding and unfolding the rear seat backrest in an uncontrolled or careless manner may cause severe injury.
Always take care that no people or animals are in the way of the rear seat backrest when folding it forward and down.
Never fold the rear seat backrest forward or back while driving.
Make sure the safety belt is not pinched or damaged when folding the rear seat backrest back.
Keep hands, fingers, feet and other body parts away from the rear seat backrest when folding forward or back.
Each rear seat backrest must always be securely engaged to ensure that the safety belts in the rear seats can provide the maximum protection. Take
extra care especially with the middle seat in the rear bench seat. If a seat on the rear bench is used without the rear seat backrest being engaged, the
vehicle occupant will move forward with the rear seat backrest in the event of sudden braking and driving maneuvers or a collision.
Never allow people to sit in a rear seat if that rear seat backrest is folded forward or is not engaged.
NOTICE
Folding and unfolding the rear seat backrest in an uncontrolled or careless manner may cause damage to the vehicle or other objects.
Before folding the rear seat backrest forward, always adjust the front seats so that the head restraint or padding on the rear seat backrest does not press
against the front seats.
Before folding the rear seat backrest forward, always take care that there are no objects in its path.
Folding the third row seat into the cargo floor position
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Each rear seat can be folded forward individually to increase the size of the luggage compartment.
Folding the third row seats into the cargo floor position
Fig. 86 Third row seat: folding the rear seat into the cargo floor position.
1. Open the trunk lid.
2. Move the head restraints all the way down.
3. Release the safety belts from both belt buckles to reduce the risk of damage to the seat and safety belt.
4. Push the seats in the second row forward.
5. Remove any objects from the footwell in front of and behind the rear seat
6. Remove any objects from the seat well behind the rear seat.
7. To release the rear seat backrest, pull the release lever fig. 86 all the way back.
113
8. Guide the rear seat backrest down by hand until it lies flat on the seat frame
Adults or children should not ride in the rear seat when it is folded forward
9. Close the trunk lid.
Folding the third row seats back
Fig. 87 Third row seat: folding the rear seat back.
1. Push the seats in the second row forward.
2. Open the trunk lid.
3. To fold the rear seat backrest back, pull on the loop on the rear seat backrest fig. 87.
Or: Fold the rear seat backrest back from the passenger compartment by hand.
The red marking on the release lever fig. 86 must no longer be visible.
4. Pull and press on the rear seat backrest to make sure that it is latched in place
5. Close the trunk lid.
WARNING
Uncontrolled or unintentional folding of the rear seat backrests can cause serious injuries. If a seat is used without the backrest being locked in place, the
passenger will move forward with the backrest in the event of sudden braking and driving maneuvers or a collision.
Never fold the rear seat backrest forward or back while driving.
Make sure the safety belt is not pinched or damaged when folding the rear seat backrest back.
Keep hands, fingers, feet, and other parts of the body out of the range of operation of the seat hinges and seat locking mechanism when folding the
backrest forward and back.
Floor mats or other objects can become caught in the hinges on the rear seat backrest or seat. This can prevent the rear seat backrest or rear seat from
locking when folded into the upright position.
Each rear seat backrest must always be locked in the upright position to ensure that the safety belts in the rear seats can provide the maximum
protection.
A red marking on the release lever fig. 86 indicates that the rear seat backrest is not latched. The red marking must not be visible when the backrest is
latched.
Never allow people to sit in a rear seat if that rear seat backrest or the rear seat is folded forward or is not engaged.
NOTICE
Objects in the footwell in front of and behind the rear seats can be damaged when the rear seats are folded forward or back.
Objects in the seat well behind the third row seats can be damaged when the third row seats are folded forward or back. Remove any objects before
folding the seat forward or back.
Securing elements and cover mounts that are secured on the rail system can be damaged when the third row seats are folded forward or back, which
can cause damage to the rear seats. Remove the securing elements and cover net mounts from the rail system before folding the seats forward or back.
114
Head restraints
Introduction
The information that follows describes how the head restraints can be adjusted and removed. Always make sure the seats are adjusted to the correct position
Correct seating position.
All seats are equipped with head restraints. The head restraints are specially approved for the relevant seat and should not be installed in another seat in the
vehicle.
The center rear head restraint (depending on the vehicle equipment) is only intended for the center seat on the rear bench seat. Therefore do not install this head
restraint in any other position.
There are notches in the head restraint supports so that they can be locked in different positions. Only head restraints which are correctly mounted can lock into the
notches within the adjustable range. To prevent the head restraints from being removed unintentionally after mounting, there are stops at the top and bottom of the
adjustable range.
Correct head restraint adjustment
Adjust the head restraint so that the upper edge of the head restraint is in line with the upper portion of the head as much as possible, but not lower than eye level.
Position the back of the head as close as possible to the head restraint.
Head restraint adjustment for shorter persons
Slide the head restraint all the way down, even if the head is then below the upper edge of the head restraint. When the head restraint is in the lowest position, ther
may be a small gap between the head restraint and the backrest.
Head restraint adjustment for taller persons
Move the head restraint up all the way.
WARNING
Driving with head restraint that have been removed or adjusted incorrectly increases the risk of serious or fatal injuries in the event of an accident or sudden
driving and braking maneuvers.
If a person is sitting in a seat, always drive with the head restraint correctly installed and adjusted on that seat.
If a person is sitting in a seat, adjust the head restraint according to their height.
Never adjust the head restraint while driving.
NOTICE
Removing and fitting the head restraints incorrectly may cause damage.
When removing and installing the head restraint, make sure the head restraint does not hit the headliner, the front seat backrest, or other vehicle
components.
Adjusting the head restraints
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Adjusting the height of the head restraints
115

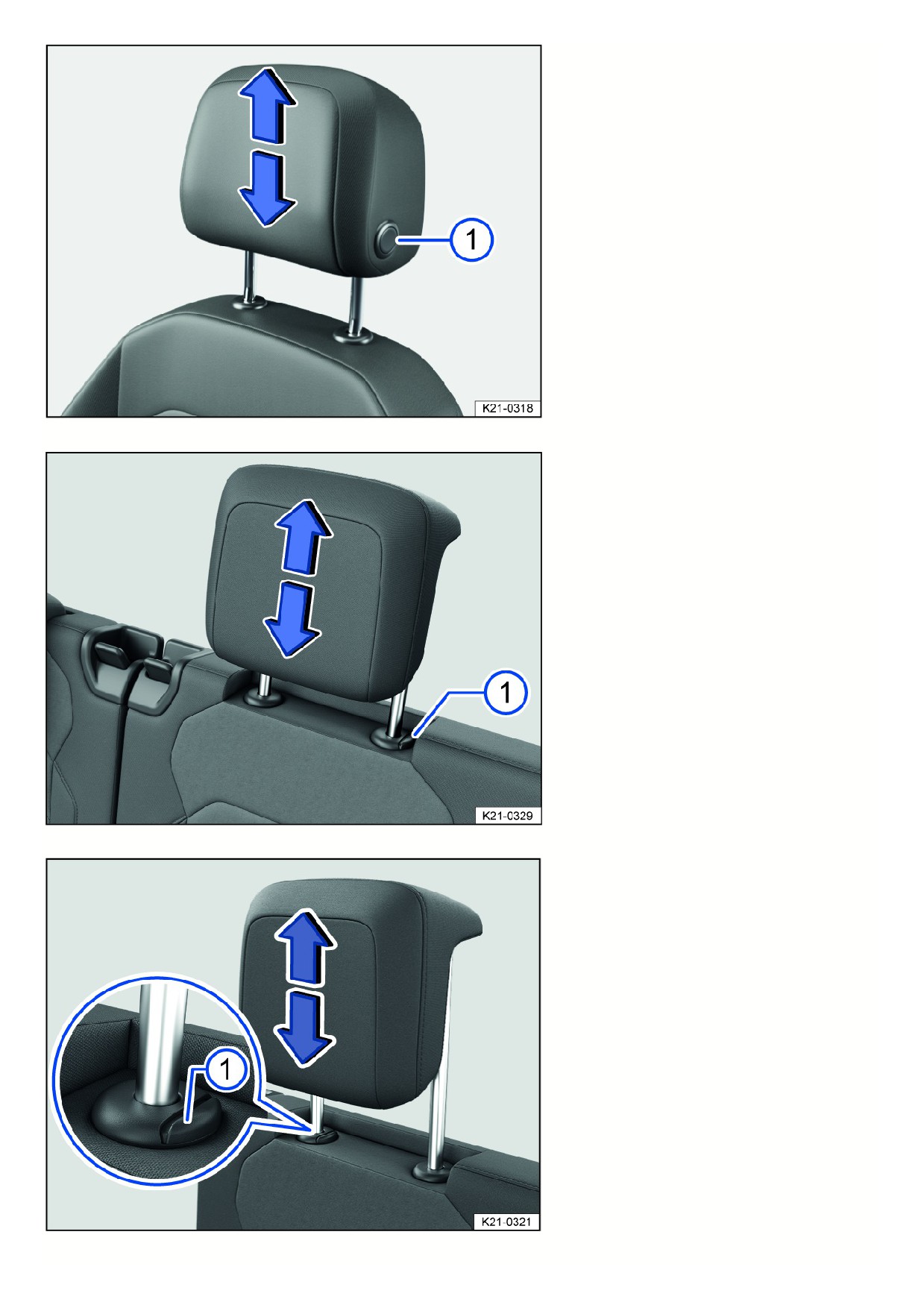

Fig. 88 Adjusting the front head restraint (general example).
Fig. 89 Adjusting the head restraint on the second-row seats (general example).
Fig. 90 Adjusting the head restraint on the third-row seats (general example).
116
1. Slide the head restraint up or down in the direction of the arrow; you may need to press the button fig. 88, fig. 89 or fig. 90 first to release the head restraint.
The head restraint must lock securely into place. There are two possible positions in the second row seats and one possible position in the third row seats.
Removing and installing the head restraints
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Removing the front head restraints

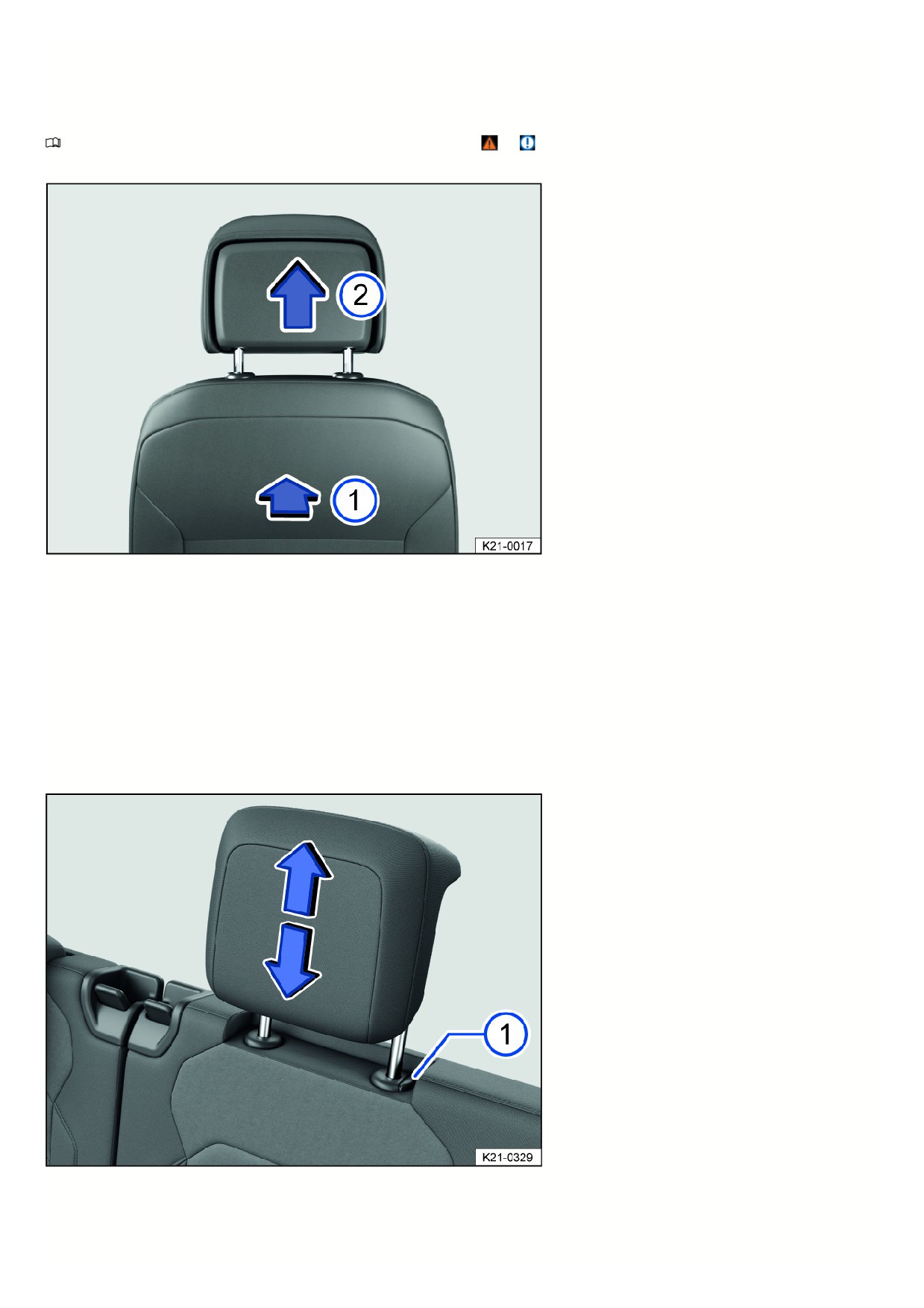

Fig. 91 Removing the front head restraint (general example).
1. Lower the head restraint if necessary.
2. To release, find the notch on the rear side in the marked area fig. 91, push inwards in the direction of the arrow and hold.
3. Remove the head restraints in the direction of the arrow fig. 91.
Installing the front head restraints
1. Position the head restraint correctly above the head restraint guides and insert into the guides on the seat backrest.
2. Slide the head restraint downward until it engages into the guide rods.
3. Adjust the head restraint to the correct position.
Removing the head restraint on the second-row seats
Fig. 92 Removing the head restraint on the second-row seats (general example).
1. If necessary, adjust the seat backrest so that the head restraint can be removed.
2. Slide the head restraint all the way upward.
117
3. Pull the head restraint all the way out while pressing the fig. 92 button.
Removing the head restraint on the third-row seats

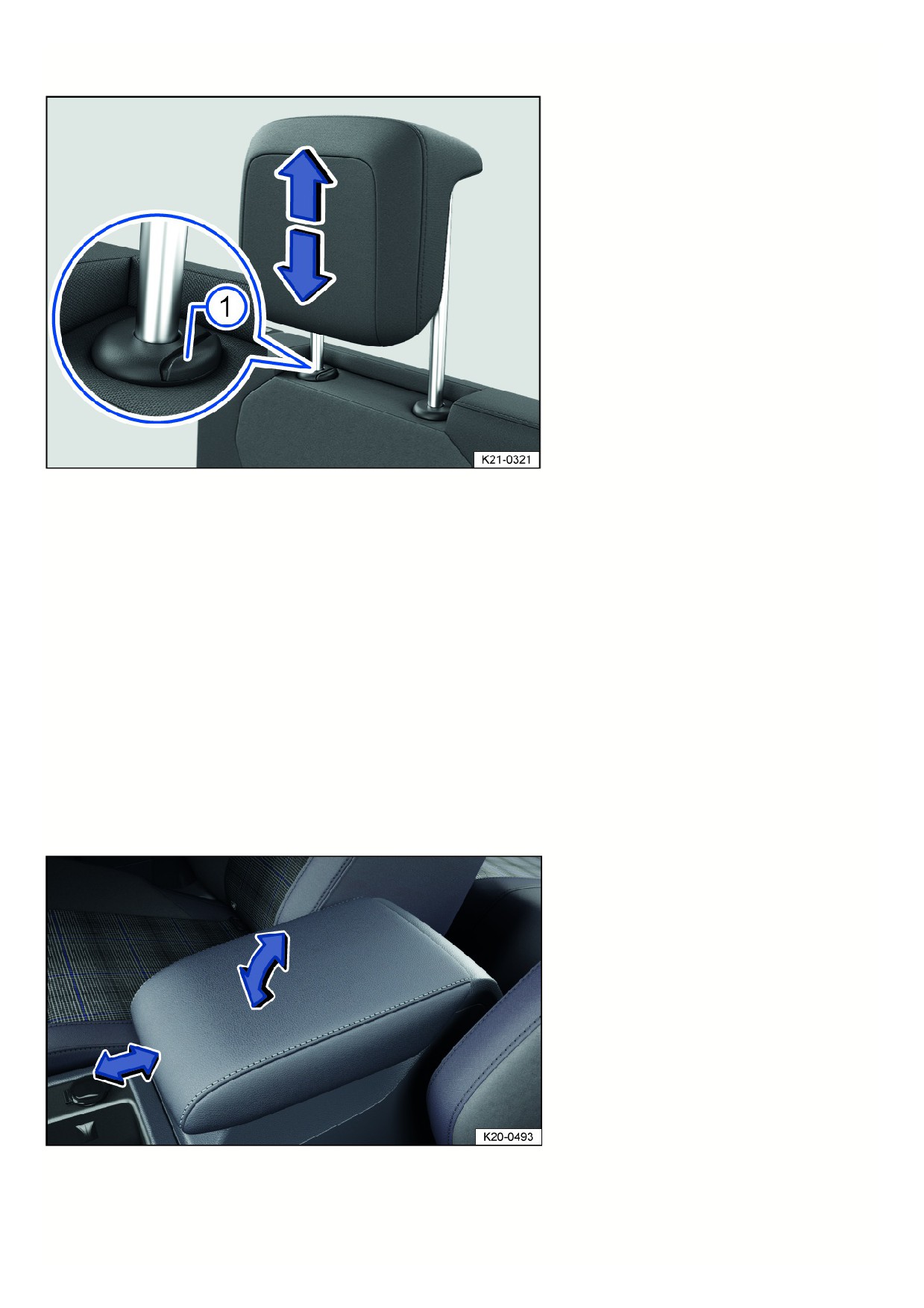

Fig. 93
Removing the head restraint on the third-row seats (general example).
1. Release the rear seat bench backrest and fold it slightly forwards
Folding the rear bench seat backrest forward or backward .
2. If necessary, adjust the seat backrest so that the head restraint can be removed.
3. Slide the head restraint all the way upward.
4. Pull the head restraint all the way out while pressing the fig. 93 button.
5. Fold the rear bench seat backrest toward the rear and lock it securely into place.
Installing head restraints on the second or third row seats
1. Release the rear seat bench backrest and fold it slightly forwards
Folding the rear bench seat backrest forward or backward .
2. Position the head restraint correctly above the head restraint guides and insert into the guides on the seat backrest.
3. Push the head restraint downward while pressing the fig. 92 or fig. 93 button.
4. Fold the rear bench seat backrest toward the rear and lock it securely into place.
Seat functions
Center armrest
Front center armrest
Fig. 94 Front center armrest (variant 1).
118
Fig. 95 Front center armrest (variant 2).
To lift: Pull the center armrest up to the detents in the direction of the arrow fig. 94 or fig. 95.
To lower: Pull the center armrest up fully. Then press the center armrest down.
Forwards and backwards adjustment: slide the center armrest in the direction of the arrow all the way forwards or all the way rearwards fig. 94.
Depending on vehicle equipment, there may be a storage compartment located under the center armrest.
WARNING
If the front center armrest is opened all the way or not completely closed, it can limit the driver’s ability to move his or her arms, which can cause accidents and
serious injuries.
Always keep the storage compartments closed while driving.
Never allow an adult or child to ride on the center armrest. This incorrect seating position can cause serious injuries.
Rear center armrest
Fig. 96 Rear center armrest
There may be a folding armrest in the backrest of the rear center seat.
To fold forward: pull the center armrest in the direction of the arrow using the loop fig. 96.
To fold back: fold the center armrest upward in the opposite direction of the arrow fig. 96 and press it all the way toward the seat backrest.
Passengers must not sit in the center rear seat when the center armrest is folded down.
WARNING
Incorrect use of the rear center armrest may cause serious injuries.
The rear center armrest must always be folded up during journeys.
119
If the center armrest is folded down, the center rear bench seat must never be used by either adults or children.
Never allow an adult or child to ride on the center armrest.
Third row seat entry assistance
To make it easier to enter and exit the third row seats in vehicles with seven seats, the seats in the second row can be folded forward.
Folding second row seats forward

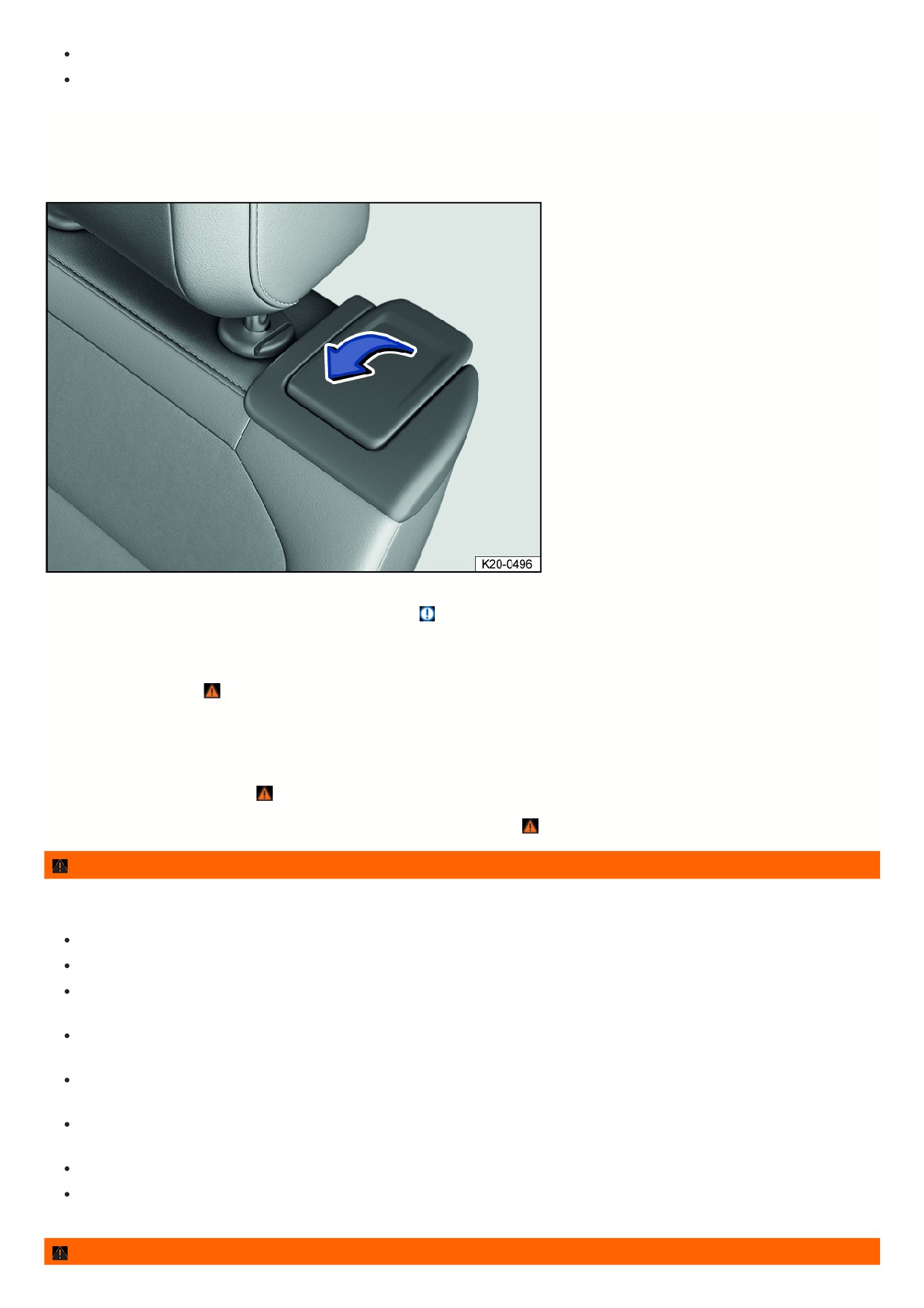

Fig. 97 Second row seats: entry assistance controls.
1. Remove any objects from the footwell in the second row of seats
2. Move the head restraints all the way down.
3. Pull the release lever fig. 97 forward in the direction of the arrow, fold the rear seat backrest forward and push the seat forward.
4. Enter and exit carefully
Folding the second row seats back
1. Move the rear seat all the way back.
2. Pull the release lever fig. 97 and fold the rear seat backrest back into the upright position.
The entire rear seat will fold back
The rear seat must be latched securely. The red mark on the seat rail must not be visible
WARNING
Careless or unintended use of the entry assistance can cause accidents and serious injuries. If a seat is used without the backrest being locked in place, the
passenger will move forward with the backrest in the event of sudden braking and driving maneuvers or a collision.
Never use entry assistance while driving.
Do not allow the safety belt to be damaged when folding the rear seat back, e.g. due to pinching.
Keep hands, fingers, feet, and other parts of the body out of the range of operation of the seat hinges and seat locking mechanism when folding the
backrest forward and back.
Floor mats or other objects can become caught in the hinges on the rear seat backrest or seat. This can prevent the rear seat backrest or rear seat from
latching when folded into the upright position.
Each rear seat backrest must always be locked in the upright position to ensure that the safety belts in the rear seats can provide the maximum
protection.
A red marking on the seat rail indicates that the rear seat backrest is not securely engaged. The red marking must not be visible when the backrest is
engaged.
Never allow people to sit in a rear seat if that rear seat backrest or the rear seat is folded forward or is not securely engaged.
Never support yourself on or hold onto a seat in the second row that is folded forward when entering and exiting.
WARNING
12
If child restraints are installed in all of the second row seats, it may not be possible for someone in the third row to fold the second row seats forward in the event
of an accident. Passengers sitting in the third row seats will not be able to exit the vehicle by themselves or help themselves in an emergency.
Never install child restraints on all seats in the second row if any passengers will be riding in the third row.
NOTICE
When seats are being folded forward or back, the head restraints or cushions on the rear seat backrests could cause damage to the front seat backrests.
Before folding the rear seat backrests forward or back, adjust the front seats so that the head restraints or cushions on the rear seat backrests do not
bump against the front seats.
NOTICE
Objects in the footwell in the second row can be damaged when the rear seat is folded forward.
Remove any objects before folding the seat forward.
Memory function
Memory buttons

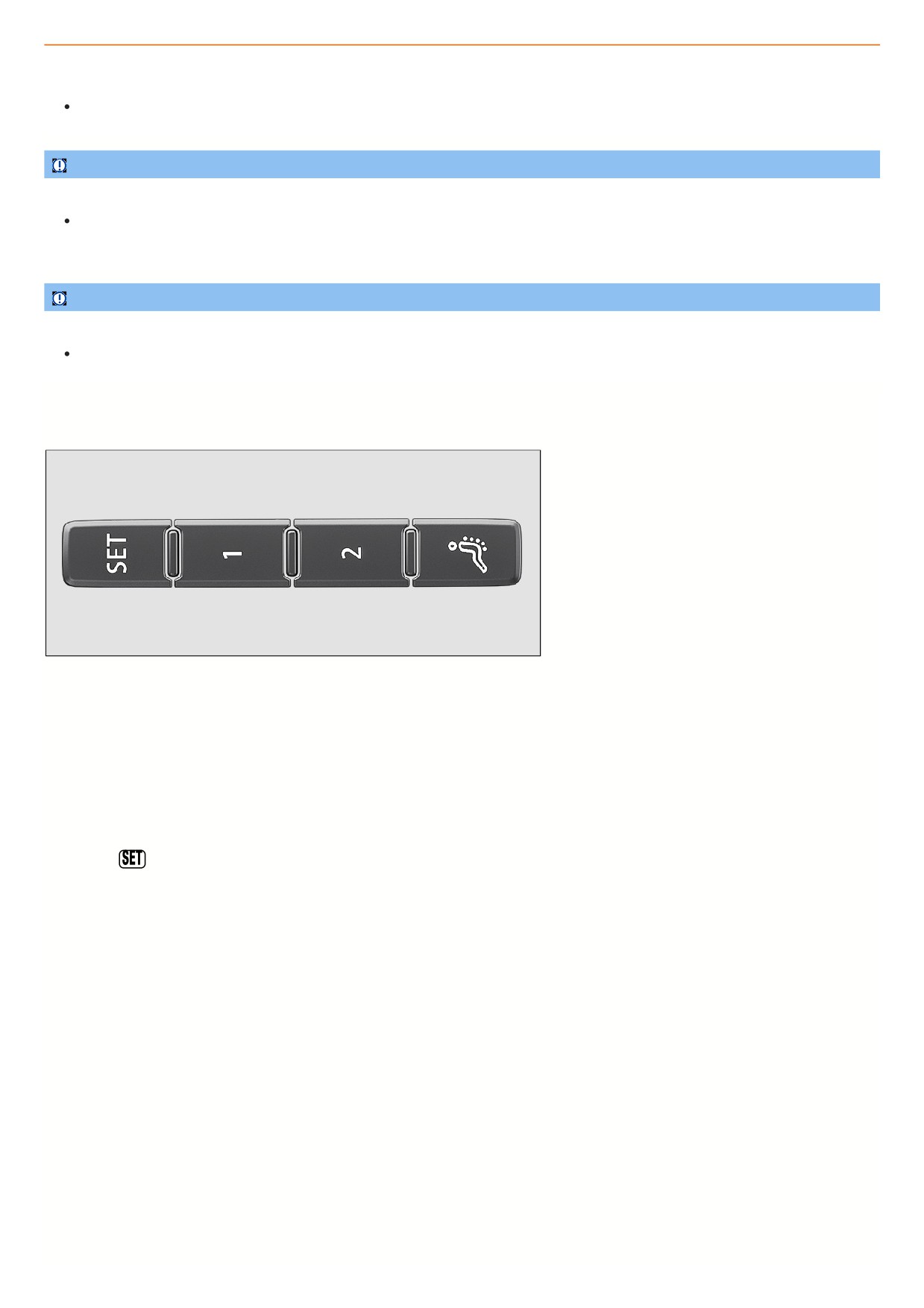

Fig. 98 On the outer side of the driver’s seat: memory buttons.
Driver seat and outside mirror settings can be saved and called up using the memory buttons.
Storing the driver's seat and outside mirror settings for driving forward
1. Set the electronic parking brake.
2. Shift the transmission to neutral.
3. Switch the ignition on.
4. Adjust the driver's seat and outside mirror.
5. Press the
fig. 98 button for longer than ten seconds.
6. Press the desired memory button within approximately ten seconds.
A chime will confirm that the settings were saved.
Storing the front passenger's outside mirror settings for driving in reverse
1. Set the electronic parking brake.
2. Shift the transmission to neutral.
3. Switch the ignition on.
4. Press the desired memory button fig. 98.
5. Select the reverse gear.
6. Adjust the front passenger's outside mirror so that the edge of the curb can be seen clearly, for example.
The selected mirror position will be stored automatically and assigned to the vehicle key that was used to unlock the vehicle.
Recalling driver's seat and outside mirror settings
1. When the vehicle is stationary, the ignition is switched off, and a door is open, press the respective memory button briefly.
After approximately ten minutes, the stored positions can no longer be adjusted automatically. The adjustment process will be canceled if one of the memory
buttons is pressed again.
Or: When the ignition is switched on or the door is closed, press and hold the respective memory button until the saved positions are reached.
121
The front passenger's outside mirror automatically leaves the position stored for driving in reverse once you begin driving forward at speeds of at least approx.
15 km/h (approx. 10 mph) or when you turn the knob for the outside mirrors from the R position to another position.
If you open the driver door more than approximately ten minutes after the vehicle is unlocked, the driver seat and the outside mirrors will not be adjusted
automatically.
Front seat convenience entry function
When you open the driver door, the driver seat automatically moves to a position that enables you to enter and exit the vehicle with ease.
The driver seat automatically returns to its original position once you have closed the driver door and switched on the ignition.
The front seat convenience entry function can be enabled and disabled in the Infotainment system.
WARNING
Improper use of seat functions can cause injuries.
Before beginning a journey always adjust to the correct seat position and maintain this throughout the journey. This also applies to all passengers.
Set the memory function only with the vehicle stationary.
Always keep your hands, fingers, feet and other parts of your body clear of the area in which the seats operate and move during adjustment.
1) Only if personalization has been activated.
Massage feature

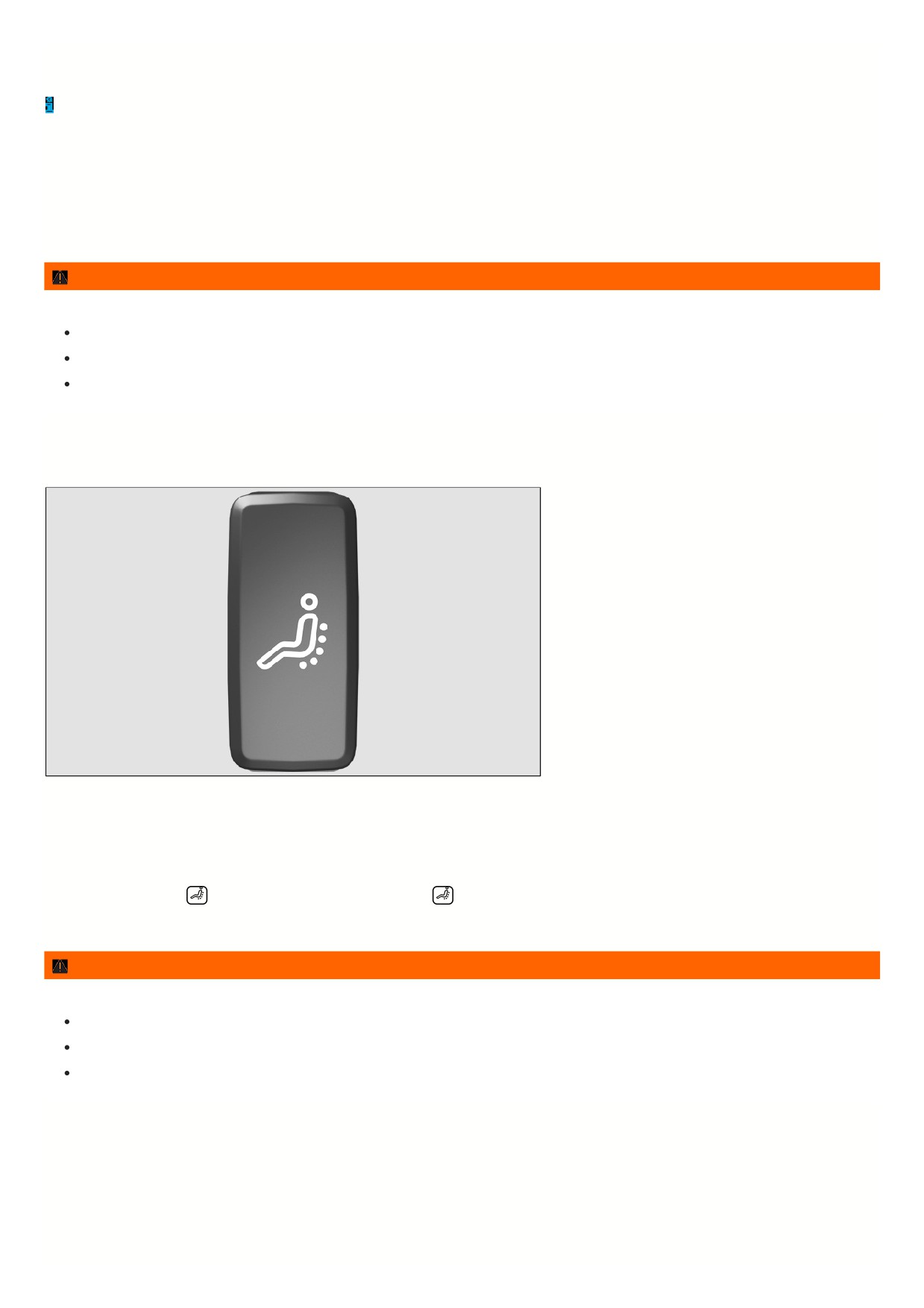

Fig. 99 Massage function button to the side of the driver seat.
For the massage function, the lumbar support moves and massages the lumbar area of your back.
The lumbar support cushioning can be individually adjusted during operation by pressing repeatedly on the corresponding switch
Adjusting power front seats.
Switching the massage function on or off
1. To switch on, push the
button in the seat control panel. Press the
button again to switch off.
After around ten minutes, the massage function switches off automatically.
WARNING
Improper use of seat functions can cause injuries.
Before beginning a journey always adjust to the correct seat position and maintain this throughout the journey. This also applies to all passengers.
Only switch the massage function on and off when the vehicle is stationary.
Always keep your hands, fingers, feet and other parts of your body clear of the area in which the seats operate and move during adjustment.
122

















Content      ..     1      2      3      4      ..
