Volkswagen Tiguan (2023 year). Manual in english - page 1





About this Owner's Manual
This Owner's Manual is valid for all models and versions of your Volkswagen model and model year. The Owner's Manual describes all equipment and models
without indicating special equipment or model versions. This may include descriptions of equipment that your vehicle may not have or that may only be available in
some countries.
You can find details of your actual vehicle equipment in your sales documentation or by contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
This Owner's Manual describes a passenger vehicle.
All information in this Owner's Manual was correct at the time of printing. Due to continuous vehicle development, there may be differences between your vehicle
and the information in this Owner's Manual. No legal commitment can be derived from the information, illustrations, or descriptions in this manual.
Due to legal and technical requirements, the vehicle may be provided with different Owner's Manual variants depending on the country.
Printed Owner's Manual
The printed Owner's Manual describes the range of functions of the vehicle at the time of release. Additions and amendments to the Owner's Manual may also be
added in the form of supplements.
An alphabetically ordered keyword index as well as a list of abbreviations that explains technical abbreviations and designations are included to assist with
orientation and understanding of the printed manual.
Make sure that the printed documents are in the vehicle if you wish to sell or lend the car. Volkswagen also recommends resetting the Infotainment system to its
factory settings in order to delete all personal data.
4
Explanations
Brief definitions are placed in front of some sections in a different color to summarize the topic in question. Detailed information about the systems and equipment
along with their properties, conditions, and system limitations is included in the associated sections.
The following section explains phrasings and terms found in the Owner's Manual to help understanding.
Directions
Directions (left, right, front, back) are in reference to the driving direction unless noted otherwise.
Units and speeds
The display in miles instead of kilometers or mph instead of km/h is determined by the versions of the instrument cluster and Infotainment system that are installed,
which varies depending on the country where the vehicle is sold.
Illustrations
Illustrations are only for orientation and are simply used to provide a visual display of descriptions and instructions. The illustrations may differ from your vehicle.
This Owner's Manual was created for left-hand drive vehicles. For vehicles with right-hand drive steering , controls are sometimes arranged differently from what is
shown in the illustrations or described in the text.
Form of address
To improve readability, plural pronouns are used here to refer to a singular subject of any gender. This applies to all genders equally. The use of abbreviations are
for editorial purposes and do not contain any evaluation.
Terms used and their meanings:
Sunroof
The term "power sunroof" is used as a synonym for all variants of the tilting and sliding panoramic sunroof depending on the vehicle equipment.
Authorized Volkswagen dealer or authorized Volkswagen Service Facility
Authorized Volkswagen dealer or authorized Volkswagen Service Facility refers to
workshops with instructed or trained personnel that specialize in servicing passenger vehicles. A qualified professional can be an authorized
Volkswagen dealer or authorized Volkswagen Service Facility or an independent workshop.
Authorized Volkswagen dealer or authorized Volkswagen Service Facility
Authorized Volkswagen dealer or authorized Volkswagen Service Facility refers to
workshops that have a contractual relationship with Volkswagen. This contractual relationship means that they have access to more information as well
as a direct line of communication to the manufacturer.
Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility
In some situations, it is necessary for you to drive your vehicle to an
authorized Volkswagen dealer or authorized Volkswagen Service Facility so that it can be checked.
Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance If it is no longer possible to continue driving your
vehicle, it is necessary to have it checked directly where it is by a professional. A decision regarding whether the vehicle can continue to be driven
following inspection or whether it needs to be towed must then be made depending on the circumstances.
5
Explanation of symbols
Indicates a reference to a section within a chapter containing important information and safety warnings
that should always be
heeded.
The arrow indicates the end of a section.
This symbol indicates situations where the vehicle must be stopped as quickly as possible.
The symbol means “Trademark” and indicates a recognized but not (yet) officially registered trademark. However, the absence of this
TM
symbol does not constitute a waiver of any rights associated with intellectual property.
This symbol indicates a registered trademark. However, the absence of this symbol does not constitute a waiver of any rights associated
with intellectual property.
Symbols of this type refer to warnings in the same section or on the specified page, pointing out possible risks that can cause accidents
and personal injuries and how to help prevent them.
Cross-reference to a warning of potential property damage, in the same section or on the specified page.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury, but related to damage to the vehicle.
Texts with this symbol contain information about the environment and how you can help to protect it.
Texts with this symbol contain supplementary information.
6
Vehicle overviews
View from the front

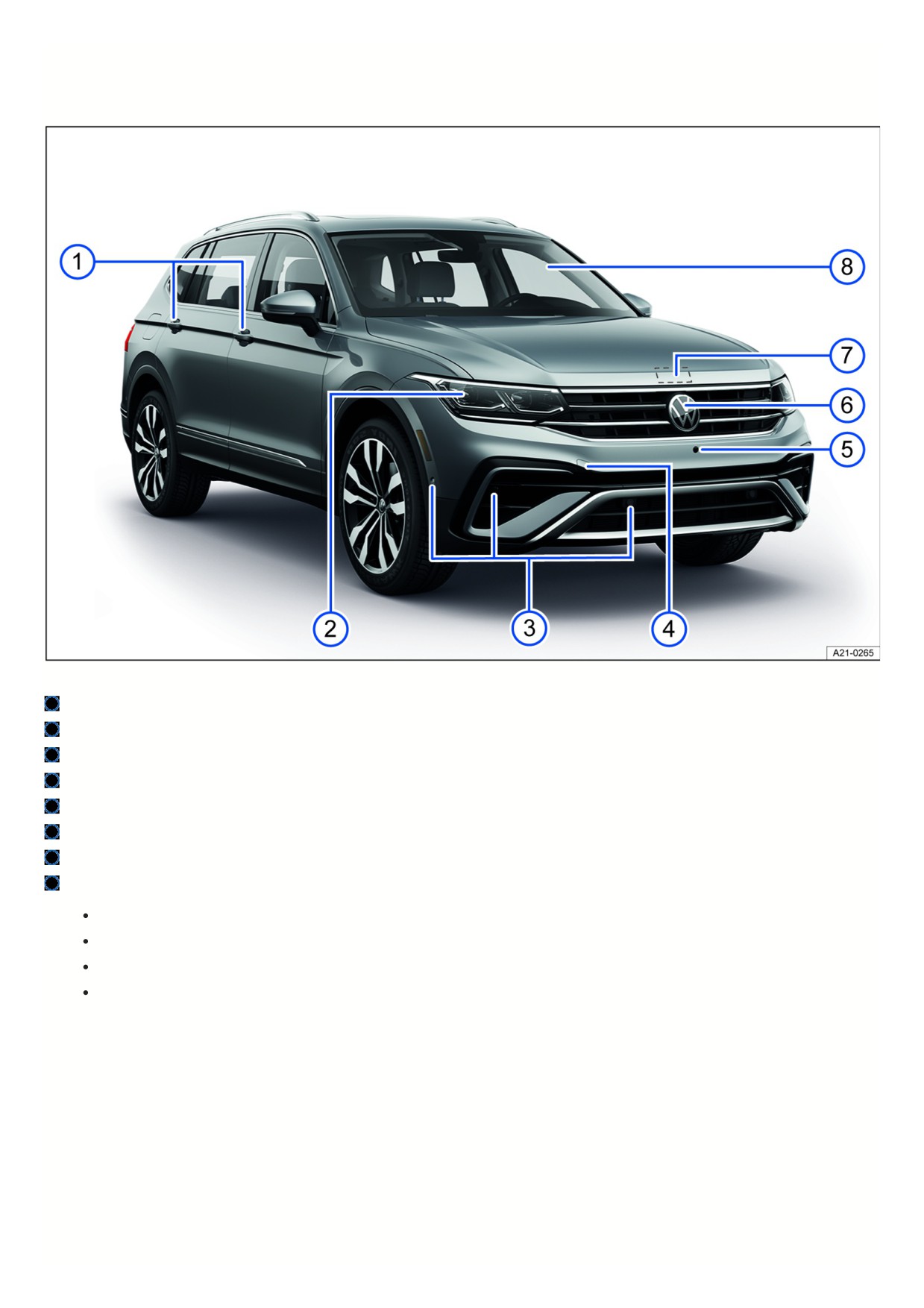

Fig. 2 Overview of vehicle from the front.
Door handles Doors and central locking button
Headlights Exterior lighting
Sensors for assistance systems Exterior care and cleaning
Behind a cover: mount for towing eye Towing
Camera for Area View Area View, Exterior care and cleaning
Behind the Volkswagen emblem: radar sensor for assistance systems Exterior care and cleaning
Opening lever for the hood Opening and closing the hood
Windshield
With VIN Technical data
With windshield wipers Operating the windshield wiper lever
With camera for assistance systems in the interior rearview mirror area
Exterior care and cleaning
With rain/light sensor in the interior rearview mirror area
Rain/light sensor, Exterior care and cleaning
Rear view
7

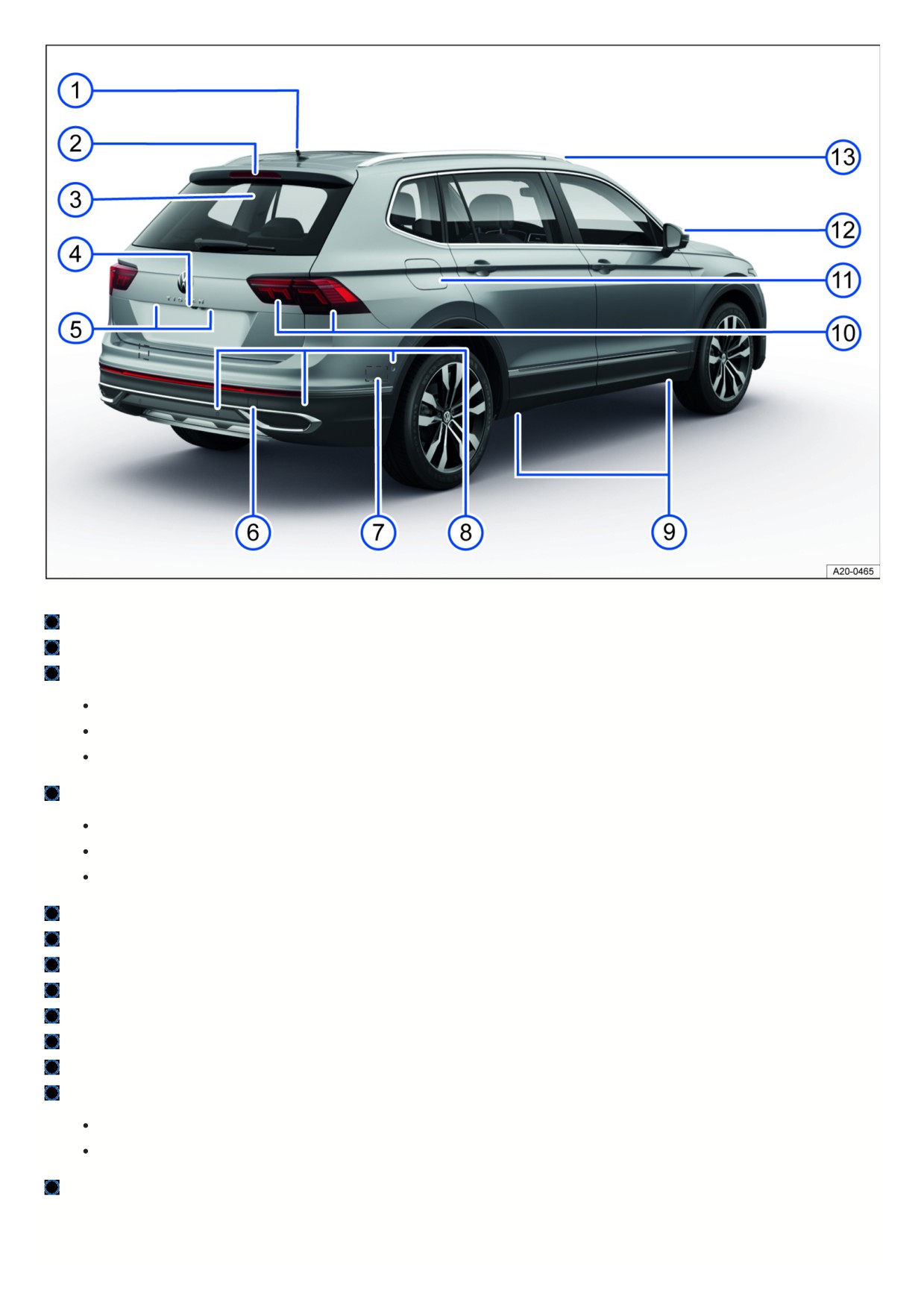

Fig. 3 Rear vehicle overview.
Roof antenna Infotainment system and aerials
High-mounted brake light
Rear window
With rear window defroster Rear window defroster
With rear window wiper Operating the windshield wiper lever
With window antenna Infotainment system and aerials
Area
Button to open the trunk lid Trunk lid
Camera for parking systems Rear View Camera, Exterior care and cleaning
With camera for Area View Area View, Exterior care and cleaning
Number plate light Exterior lighting
Behind a cover: mount for towing eye Towing
Behind the bumper: radar sensor for assistance systems Exterior care and cleaning
Sensors for assistance systems Exterior care and cleaning
Mounting points for the vehicle jack Wheel change
Taillights Exterior lighting
Fuel filler flap Fuel types and refueling
Outside mirrors Outside mirrors
with Lane Change System (Side Assist) display Lane Change System
With camera for Area View Area View, Exterior care and cleaning
Roof rails Roof rack
Driver door
8

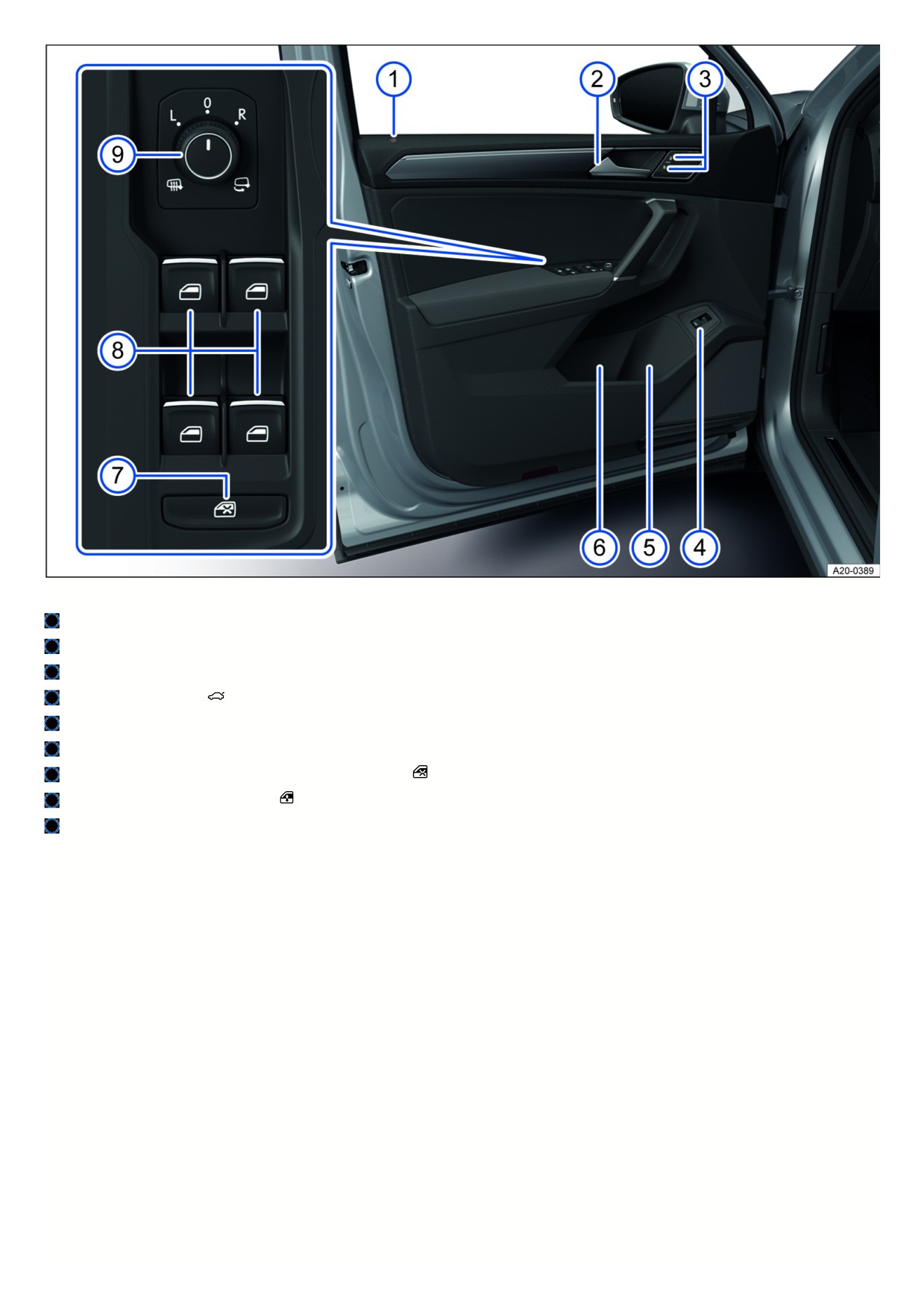

Fig. 4 Driver door (left-hand drive vehicle): controls (right-hand drive vehicles are a mirror image).
Central locking indicator light Indicator light in the driver's door
Door handle
Central locking button to lock and unlock the vehicle Central locking button
Button to open the trunk lid
Trunk lid
Storage compartment with cup holder
Storage compartment with storage option for a reflective vest Emergency equipment
Button for deactivating the power window buttons in the rear doors
Opening and closing the windows
Buttons for operating the power windows
Opening and closing the windows
Knob for outside mirror positions and functions Outside mirrors
Driver side
9

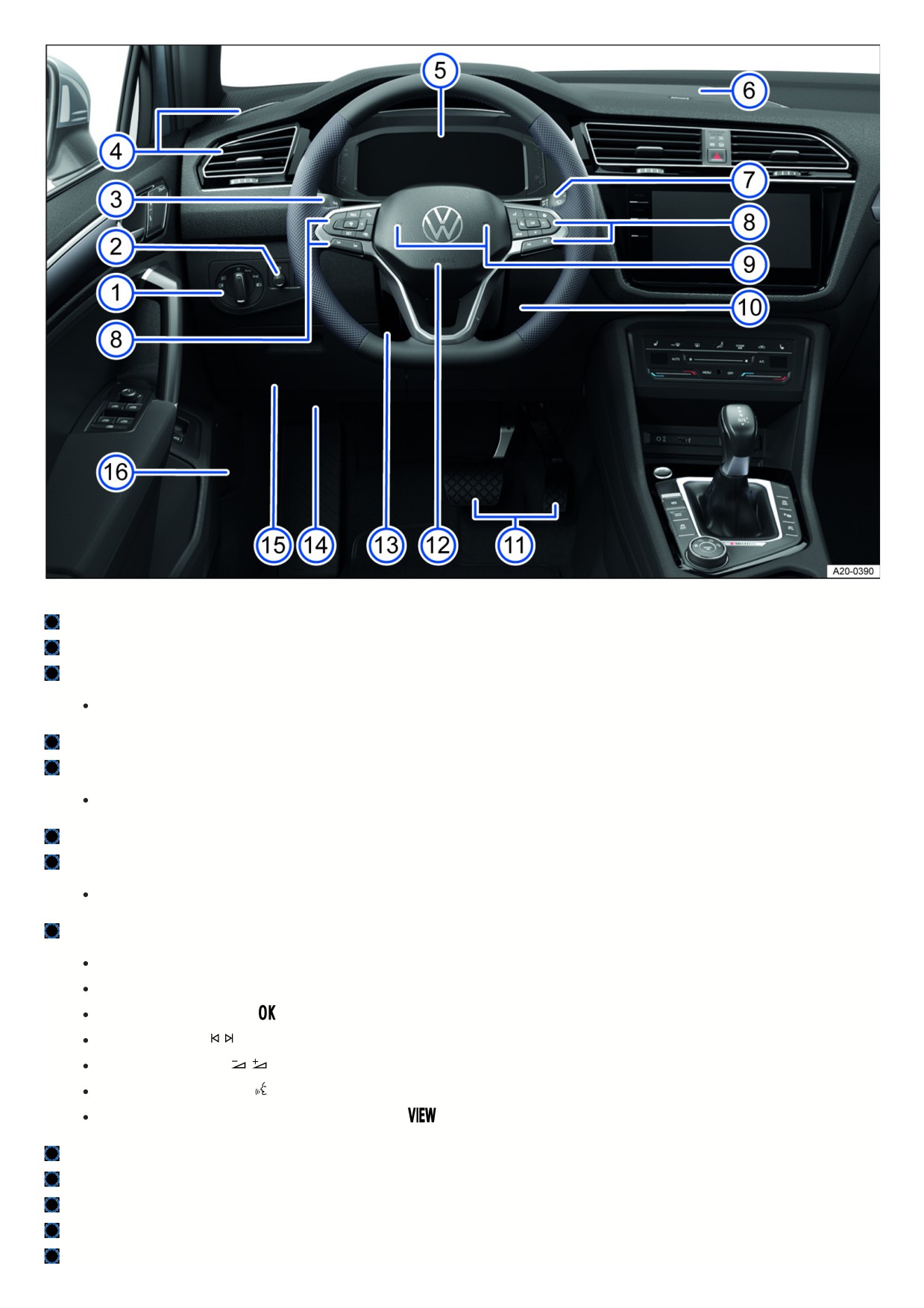

Fig. 5 Driver’s side overview.
Light switch Headlights
Control for the headlight range control Headlight range control
Turn signal and high beam lever Switching the turn signals on and off , Switching the high beam headlights on and off
With switch and buttons for driver assistance systems
Driver assistance systems
Vents Air distribution and blower speed

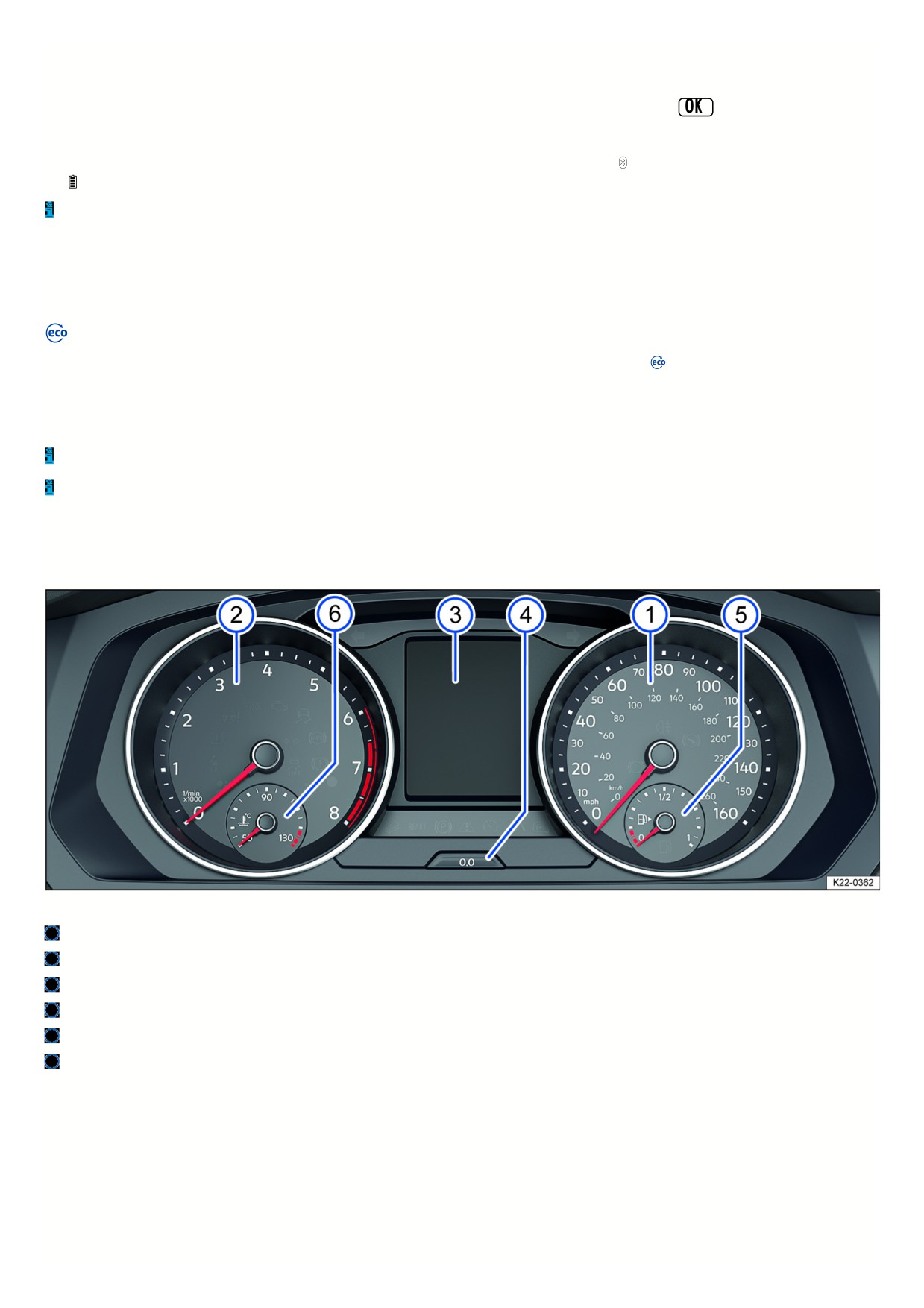

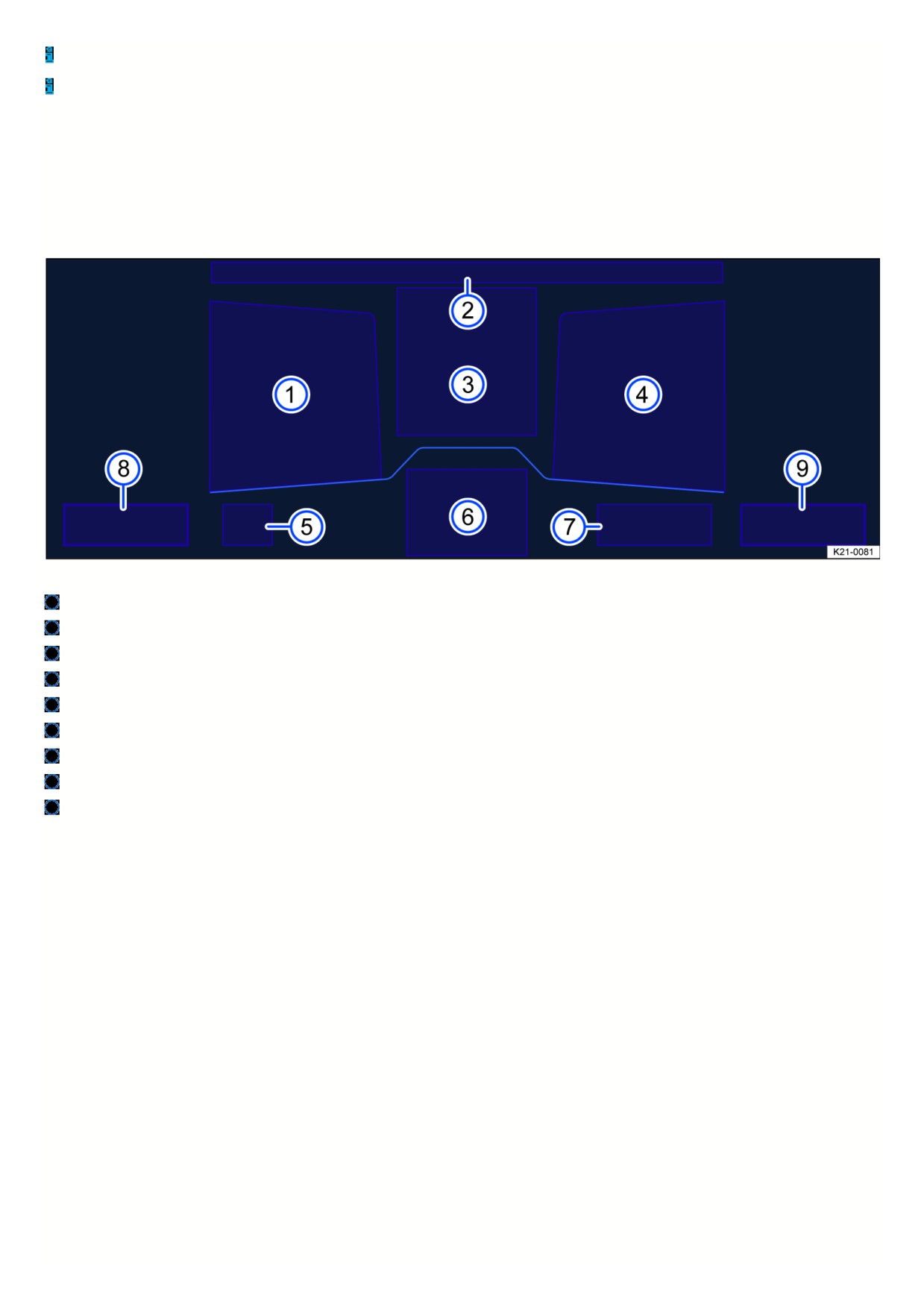

Instrument cluster Overview of the Volkswagen Digital Cockpit Pro
With warning and indicator lights Symbols in the instrument cluster
Storage compartment (cover depends on country)

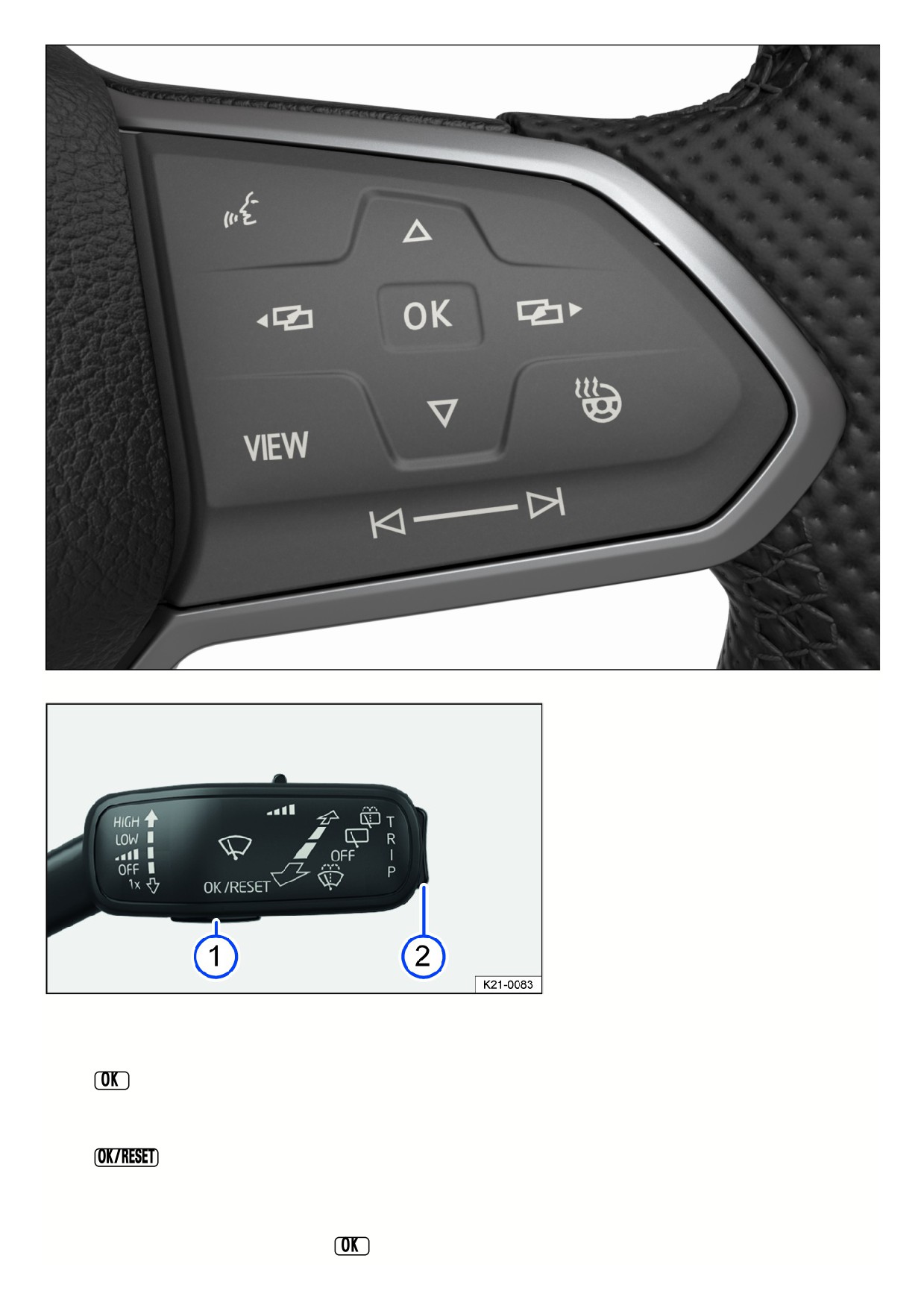

Windshield wiper/washer lever Window wipers
With buttons for menu operation Operating the Volkswagen Digital Cockpit Pro

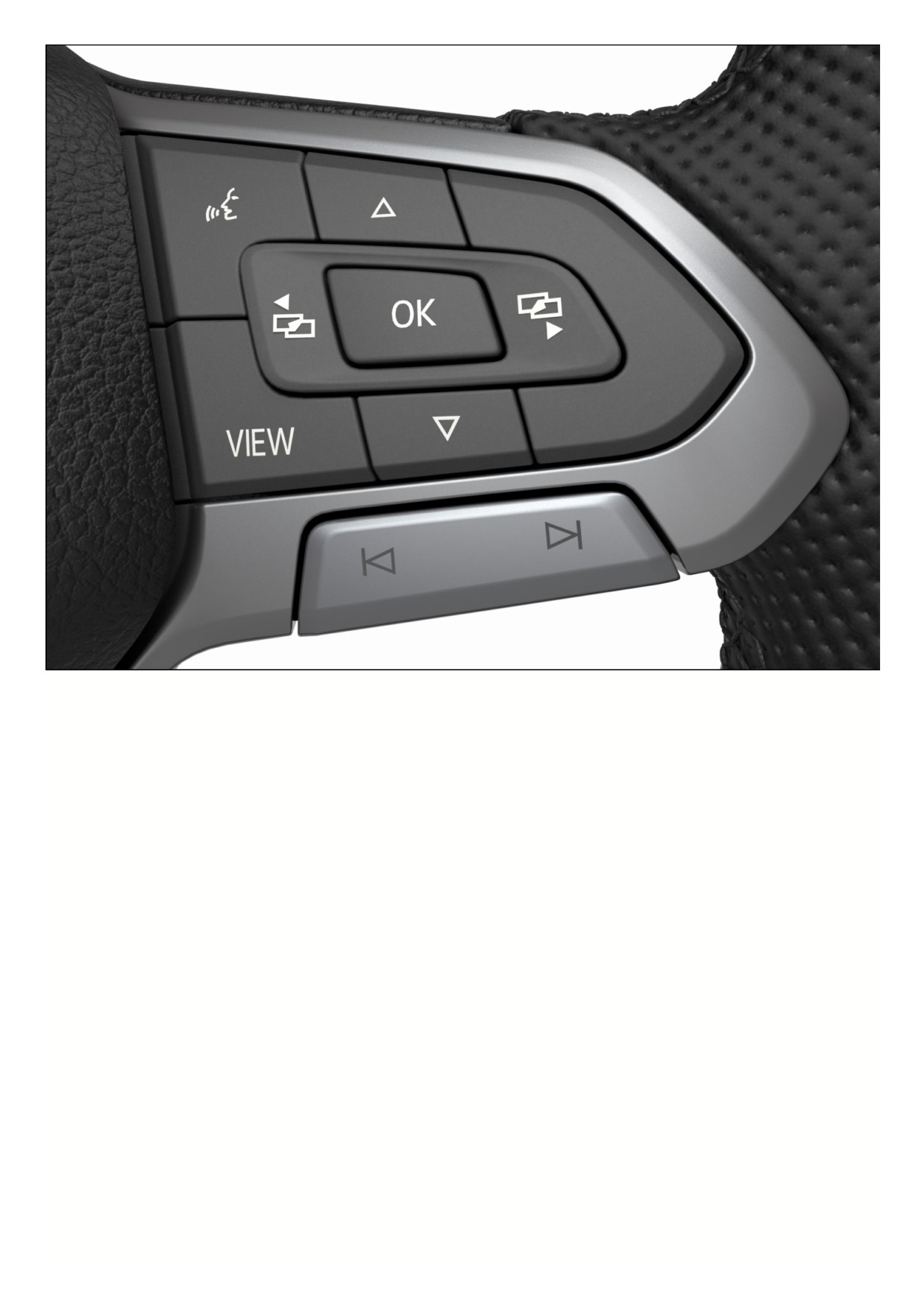

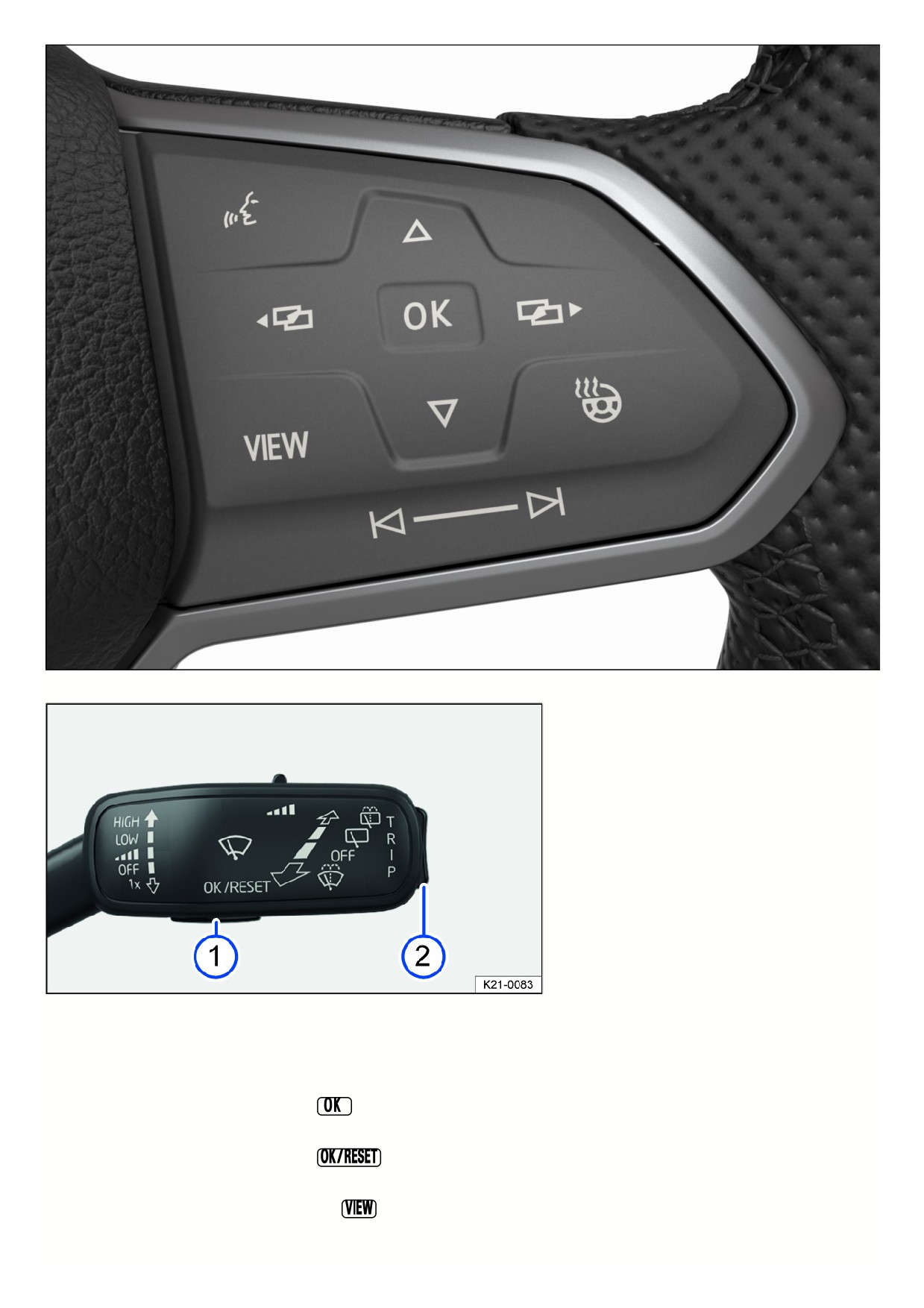

Multi-function steering wheel controls:
For driver assistance systems Driver assistance systems
For menu selection Operating the Volkswagen Digital Cockpit Pro
For accepting telephone calls
Mobile phone interface
For audio, navigation
,
Infotainment system, Navigation
For adjusting the volume
First steps
For voice operation activation
(may not function depending on the equipment) Voice control
In order to switch between the current and previous menus
Operating the Volkswagen Digital Cockpit Pro
Horn
Ignition switch Ignition switch
Pedals Information on the pedals
Installation location of driver’s front airbag Airbag system
Lever for adjusting the steering wheel position Steering wheel
1
Storage compartment
Storage compartment (depending on the vehicle equipment)
Hood release lever Opening and closing the hood
Center console

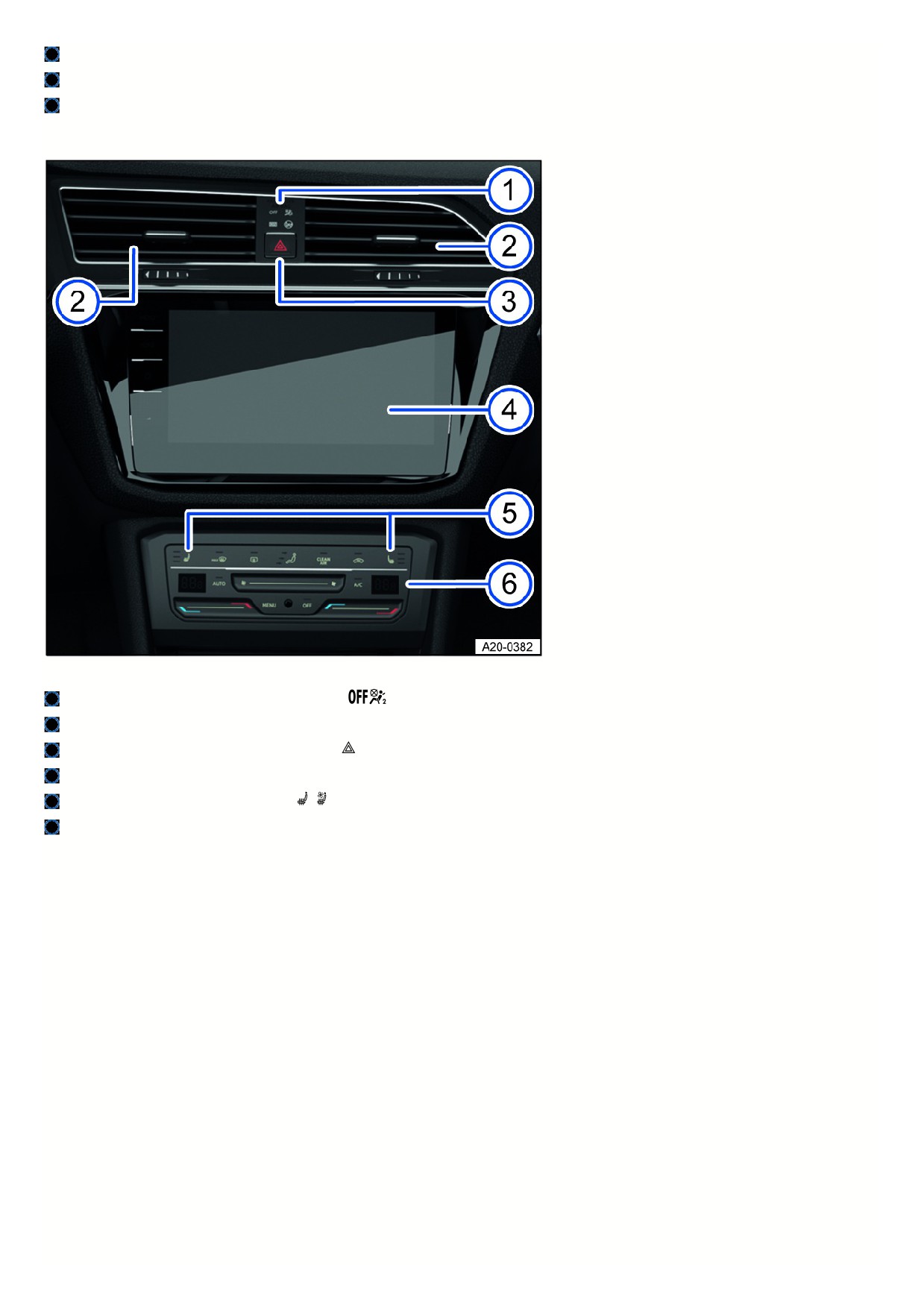

Fig. 6 Overview of the upper section of the center console.
Indicator light for front passenger’s airbag deactivation
Indicator light for front passenger’s front airbag
Vents Air distribution and blower speed
Button for switching the emergency flashers on or off
In case of an emergency
Infotainment system First steps
Buttons for seat heating and seat ventilation
,
Seat heating and seat ventilation
Controls for the air conditioner Heating and air conditioning system
11

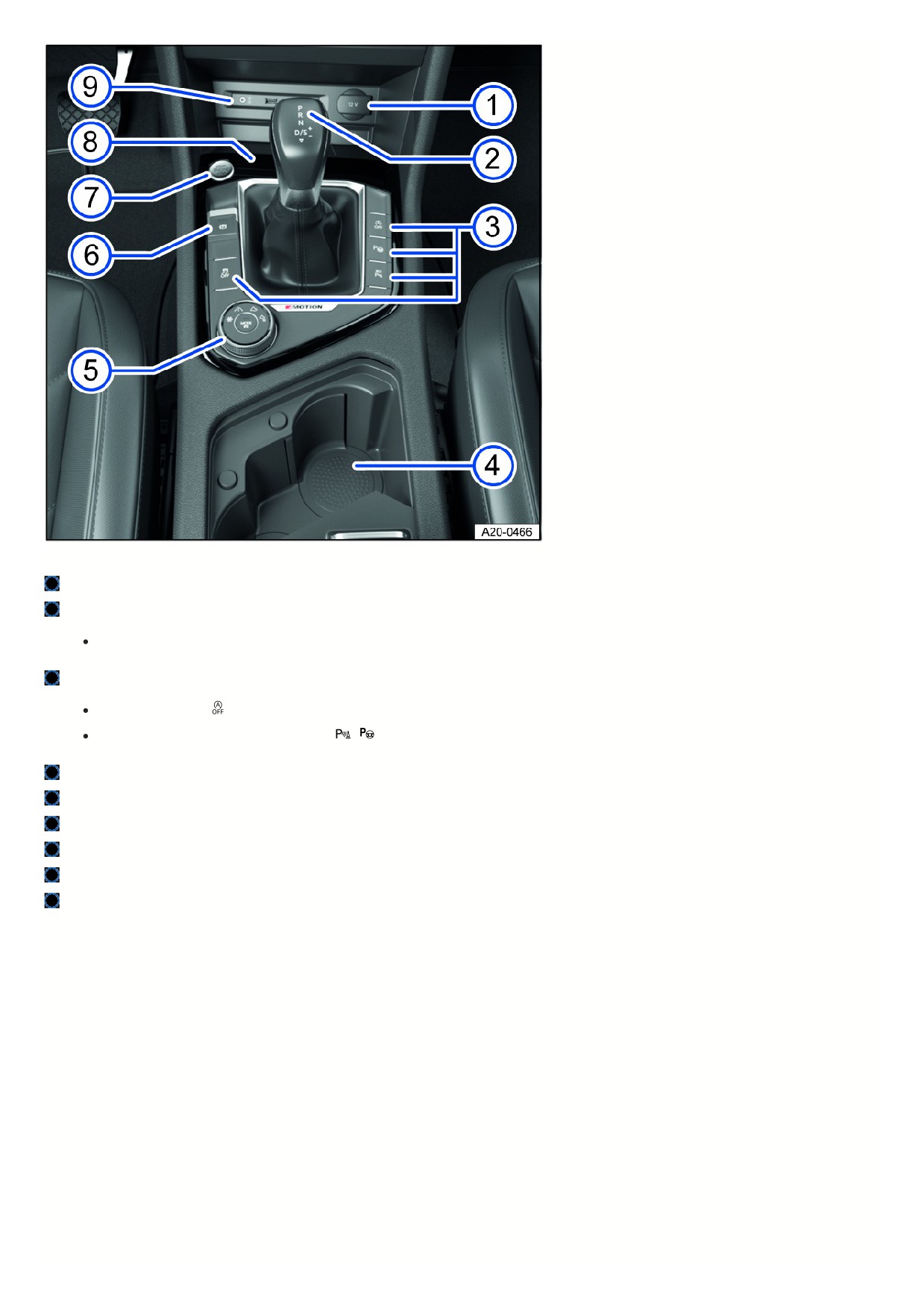

Fig. 7 Overview of the lower section of the center console.
12 V socket Sockets
Lever
For automatic gearbox Automatic transmission
Buttons
For start/stop system
Start/Stop system
For parking and maneuvering assist systems
,
Parking and maneuvering
Under a cover: Cup holder
Control for Driving Mode Selection Driving Mode Selection and 4MOTION Active Control
Electronic parking brake Electronic parking brake
Button to start and stop the engine (Keyless Access with push-button start)
Starter button
Storage compartment with function for wireless charging according to QI standard Charging Options for Mobile Devices
USB sockets with charge function for external device rechargeable batteries (depending on the vehicle equipment)
Wired and wireless connections,
Charging Options for Mobile Devices
Passenger’s side
12

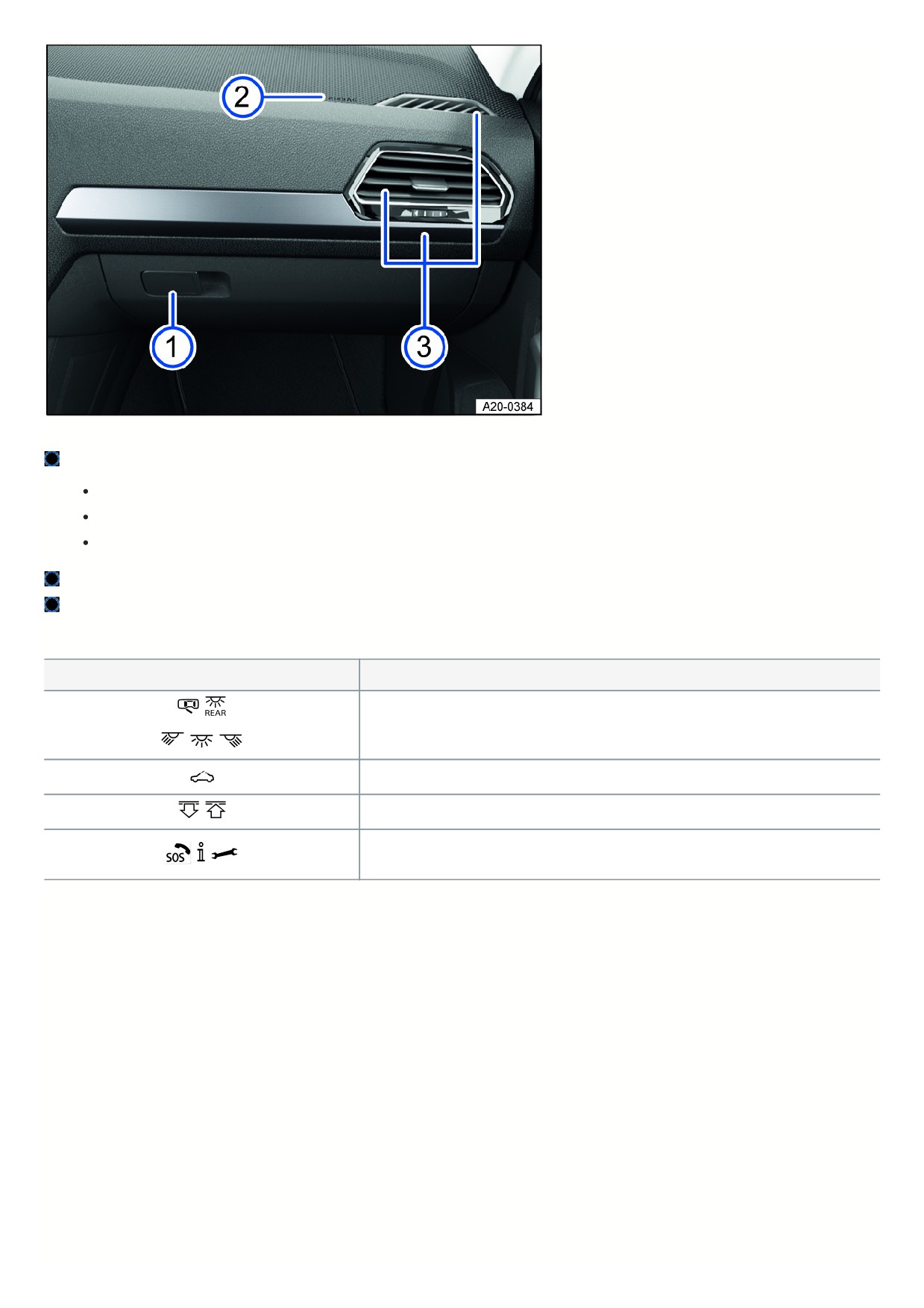

Fig. 8 Front passenger side (left-hand drive vehicle): Instrument panel overview (right-hand drive vehicle is the mirror image).
Glove compartment:
With handle
With vents for glove compartment cooling
With Manual
Installation location of the front passenger’s airbag in the instrument panel
Airbag system
Vents Air distribution and blower speed
Controls in the headliner
Symbol
Meaning
Buttons for interior/reading lights Interior/reading lights, ambient lighting.
Sunroof switch Sunroof.
Sunshade buttons Sunshade in the sunroof.
Buttons for Emergency Call, Information Call and Roadside Assistance Call
Information Call,
Roadside Assistance Call and Emergency Call Service.
13
Driver information

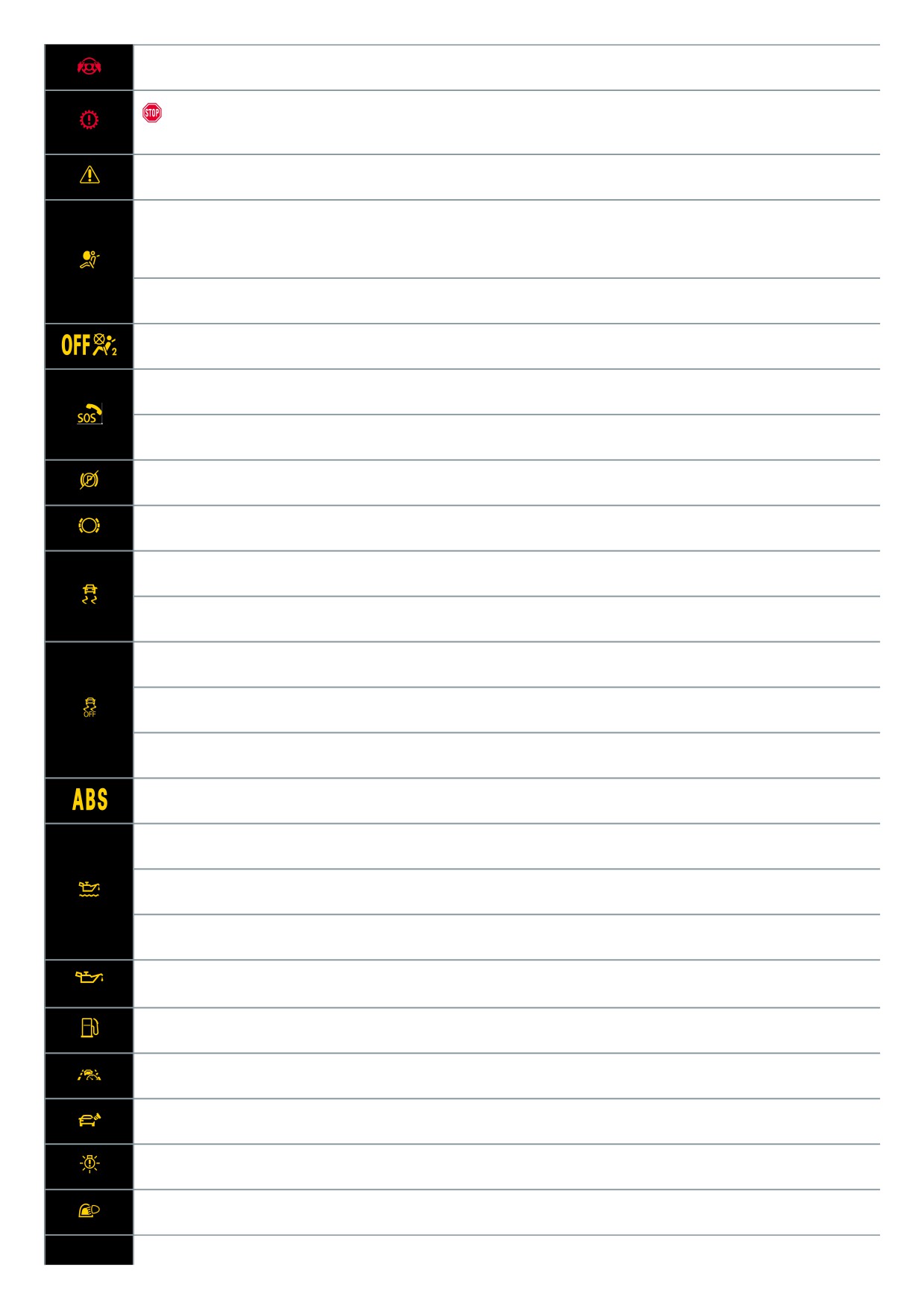

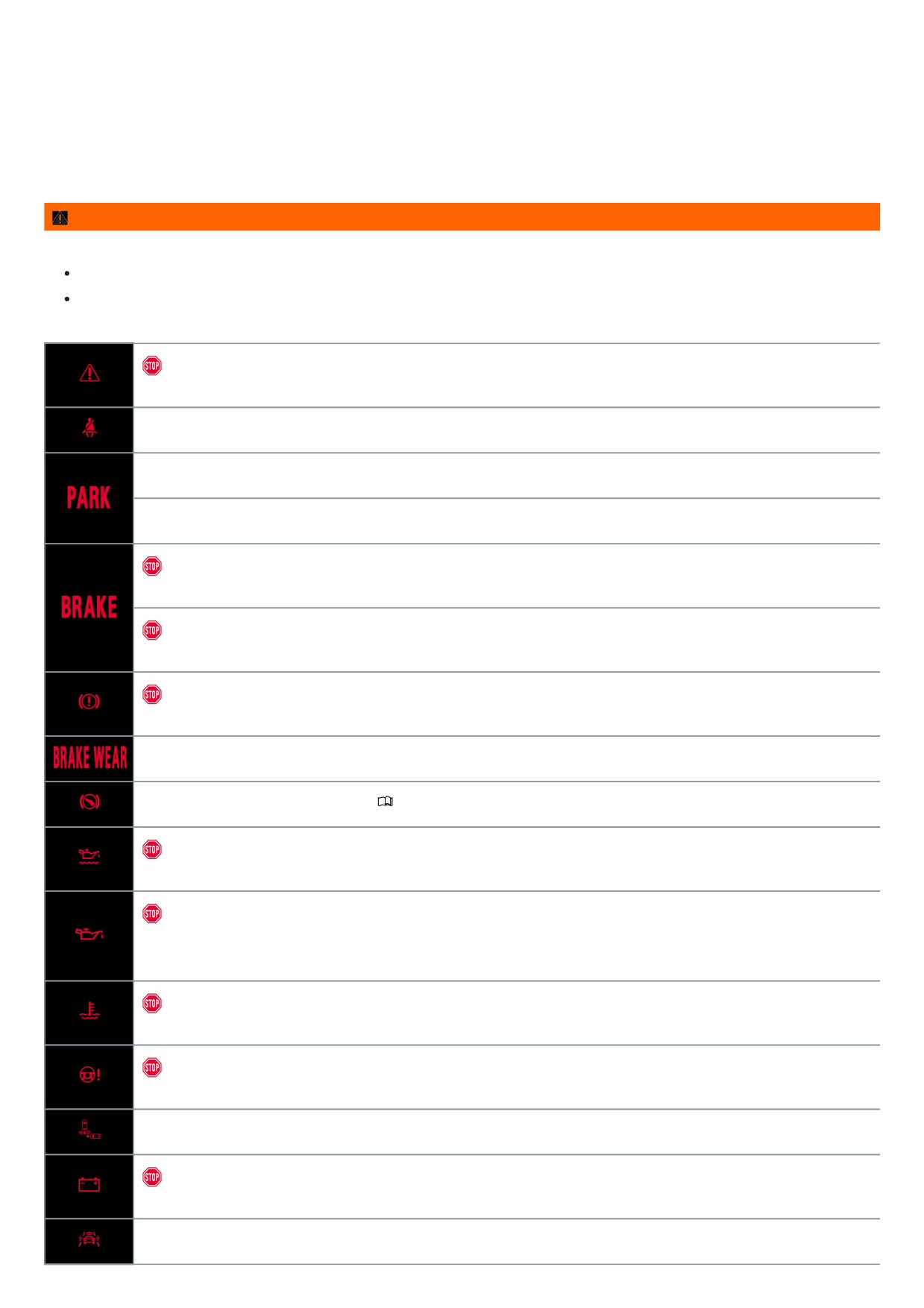

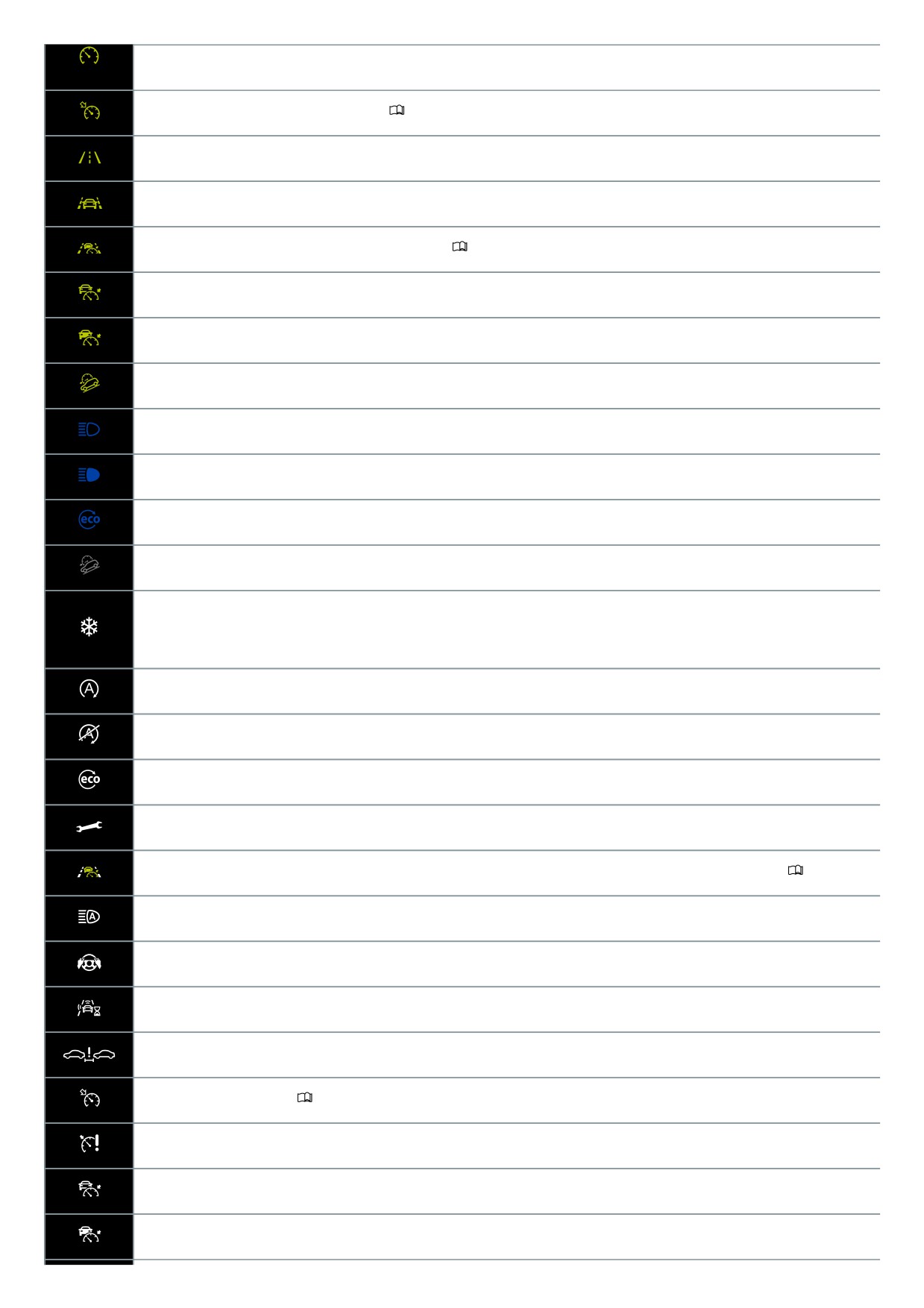

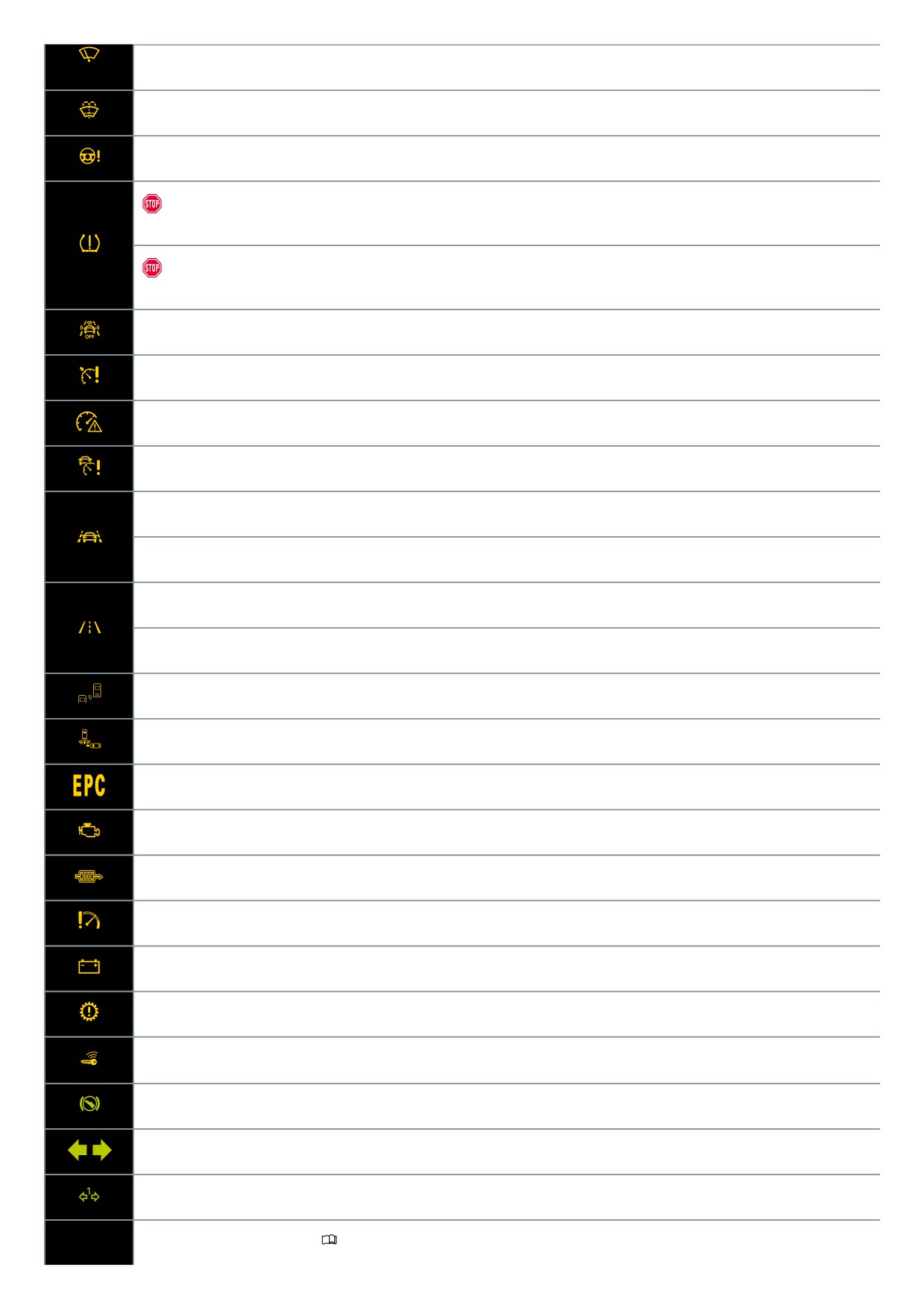

Symbols in the instrument cluster
The warning and indicator lights can turn on individually or in combination with each other and indicate warnings, malfunctions and certain functions. Some warning
and indicator lights come on when you switch the ignition on and must turn off after some time.
Indicator lights that turn on in the light switch are described in the “Lights” chapter Switching the lights on and off .
WARNING
Failure to respond to illuminated warning lights and messages may result in a vehicle breakdown, accidents and serious injuries or death.
Never ignore illuminated warning lights and messages.
Stop the vehicle as soon as it is safe to do so.
Do not continue driving!
Central warning light Priority 1 warning message
Fasten safety belt Fasten seat belts reminder and seat belt safety indicator
Electronic parking brake switched on Electronic parking brake
Holding force of the electronic parking brake too low The holding force is too low for the current situation
Do not continue driving!
Brake system malfunction Brake system malfunctioning
Do not continue driving!
Brake fluid level too low Brake fluid level
Do not continue driving!
Brake system malfunction Brake system malfunctioning
Check brake system Brake pad wear indicator
Take over steering and be ready to brake.
Introduction
Do not continue driving!
Engine oil level too low Engine oil level very low
Do not continue to drive!
Engine oil pressure too low Engine oil pressure too low
Do not continue to drive!

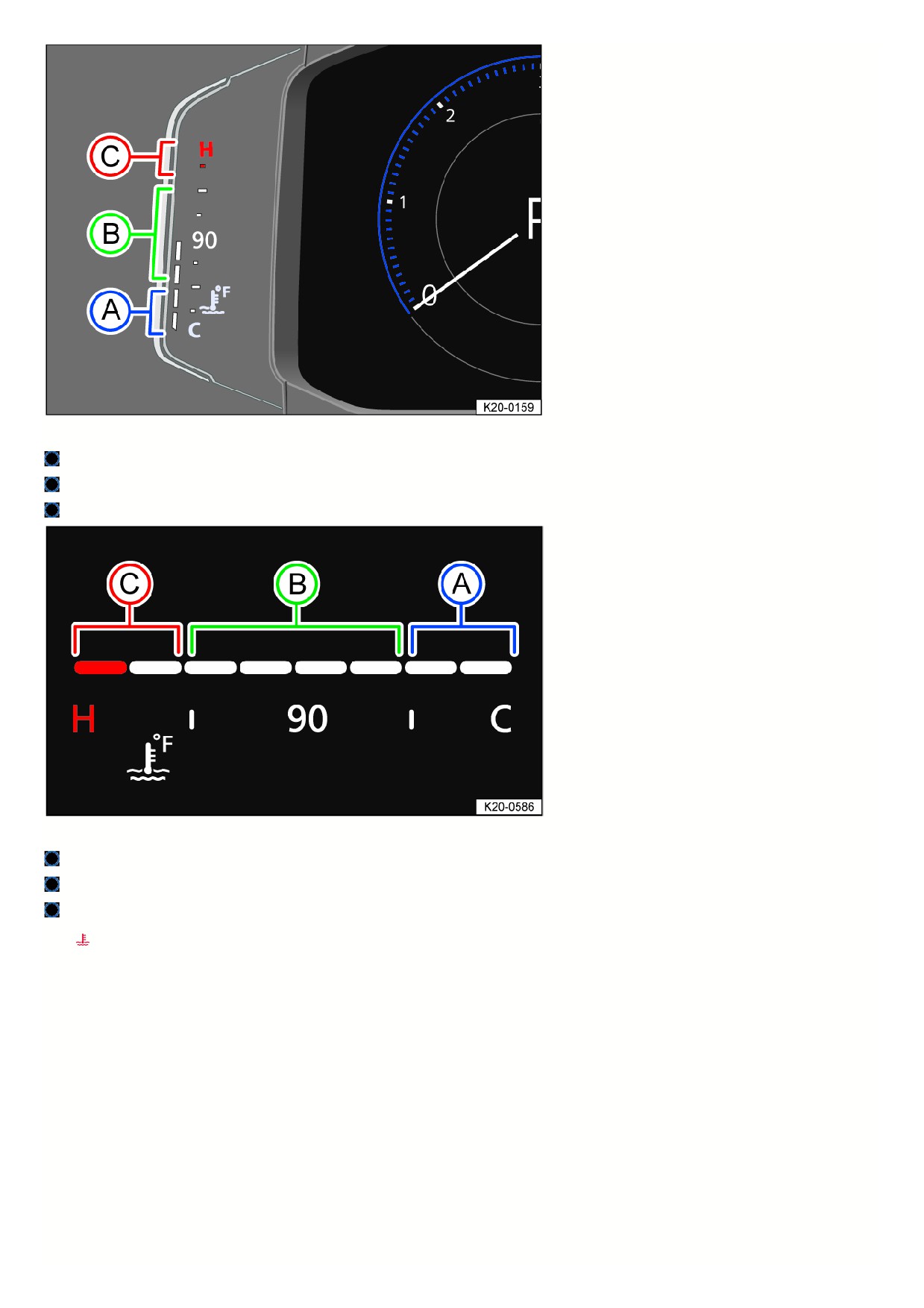

Engine coolant system malfunction Engine coolant
Do not continue driving!
Steering malfunction Steering malfunction
Rear Traffic Alert has detected an obstacle to the rear Rear Traffic Alert
Do not continue driving!
12 V energy supply malfunction 12-volt power supply
Collision warning Warning levels and braking support
14
Take over the steering immediately Take over the steering immediately
Do not continue to drive!
Transmission overheating Transmission overheating
Central warning light Priority 2 warning message
Airbag or safety belt pretensioner system deactivated with diagnostic equipment
Airbag or safety belt pretensioner system deactivated with
diagnostic equipment
Airbag system or safety belt pretensioner malfunction Airbag system or safety belt pretensioners malfunction
Front passenger's front airbag deactivated Front passenger's front airbag switched off
Emergency Call Service limited Emergency Call Service limited
Emergency Call Service malfunctioning Emergency Call Service malfunction
Electronic parking brake malfunction Electronic parking brake malfunction
Check brake system Brake pad wear indicator
Comes on: Electronic Stability Control (ESC) malfunction ESC malfunction
Flashes: Electronic Stability Control (ESC) or Anti-slip regulation (ASR) in operation
Electronic Stability Control (ESC)
ESC Sport switched on ESC Sport
Electronic Stabilization Control (ESC) switched off ESC Off
Anti-Slip Regulation (ASR) switched off ASR
Anti-Lock Braking System (ABS) malfunction ABS failure or malfunction
Engine oil system malfunction Engine oil system malfunction
Engine oil level too low Engine oil level too low
Engine oil level too high Engine oil level too high
Engine oil system malfunction Engine oil system malfunction

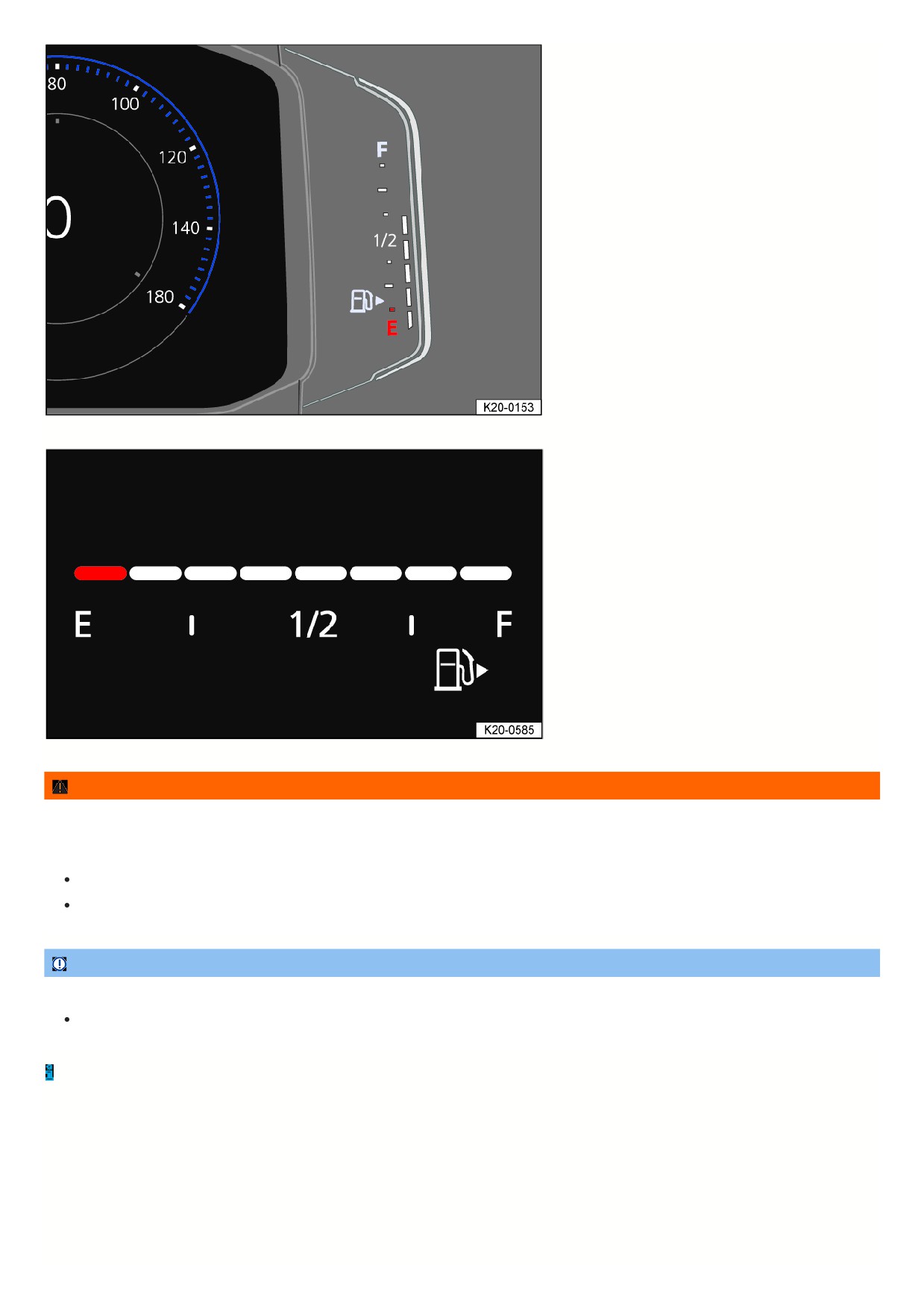

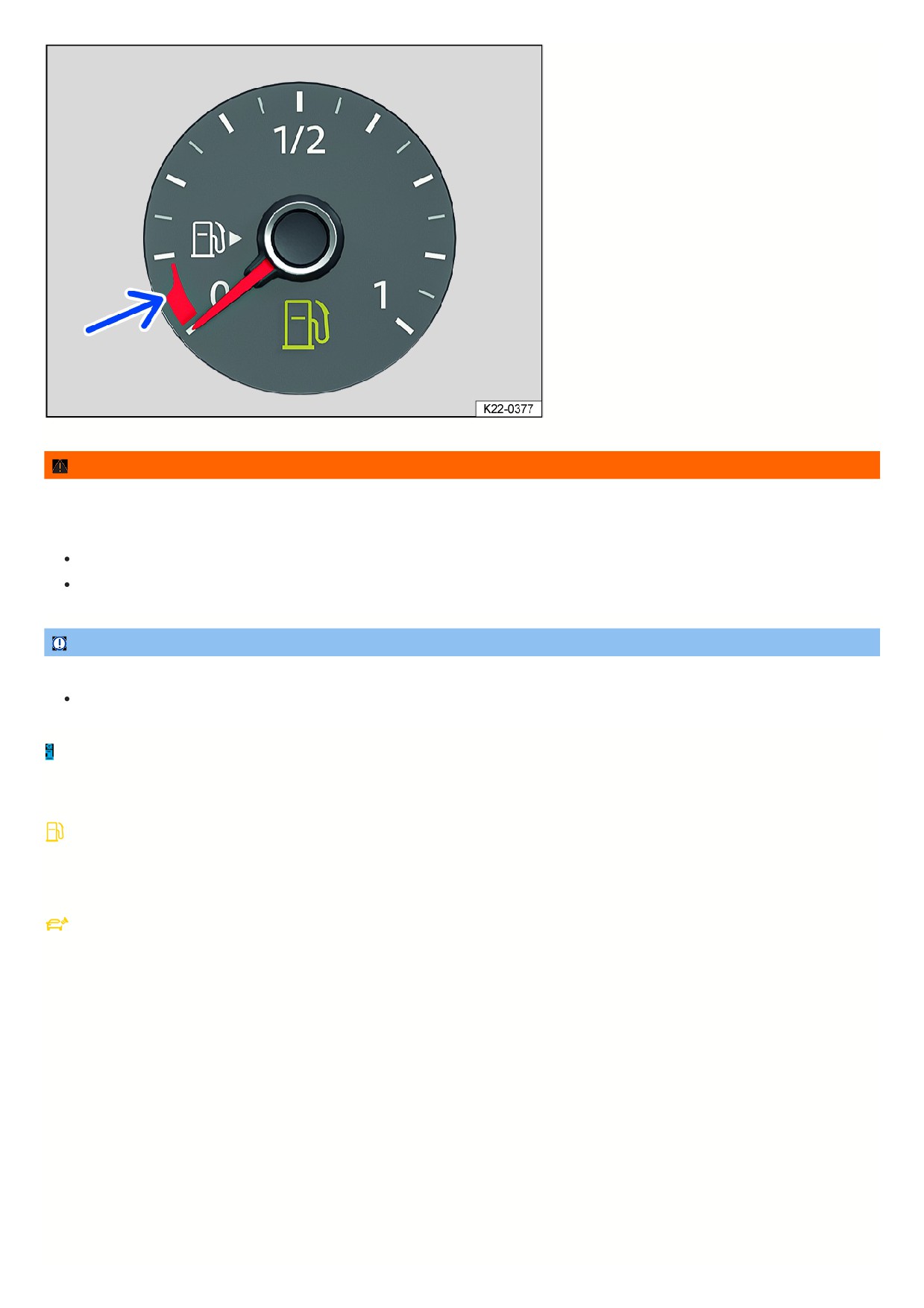

Tank almost empty Fuel tank almost empty
Semi-automated driving assistance (Travel Assist) not available Travel Assist is not available or is not functioning as expected
Tank cap not closed Fuel tank cap open
Driving light failure Exterior lighting malfunction
Rain/light sensor malfunction Rain/light sensor malfunction, Rain/light sensor malfunction
15
Windshield wiper malfunction Windshield wiper malfunction
Washer fluid level too low Washer fluid level too low
Steering malfunction Steering malfunction
Do not continue to drive!
Tire pressure low Tire pressure low
Do not continue to drive!
Tire pressure monitoring system malfunction Tire Pressure Monitoring System malfunction
Autonomous Emergency Braking (Front Assist) switched off Using Front Assist
Cruise control system malfunction Cruise control system malfunction
Speed warning Driving data menu
Adaptive cruise control (ACC) not available ACC is not available
Semi-automatic vehicle control in a medical emergency (Emergency Assist) is functioning Driving with Emergency Assist
Lane Assist in control Driving with Lane Assist
Lane Assist in control Driving with Lane Assist
Semi-automatic vehicle control in a medical emergency (Emergency Assist) is functioning Driving with Emergency Assist
Side Assist malfunction Side Assist malfunctioning
Rear Traffic Alert brakes Rear Traffic Alert
Engine control malfunction Engine control malfunction
Exhaust system malfunction Exhaust-related malfunction
Particulate filter clogged with soot Particulate filter clogged with soot
Engine RPM limited Engine speed limited
12-volt power supply malfunction 12-volt power supply
Transmission malfunction Transmission overheating
Vehicle key not in vehicle Valid vehicle key cannot be detected
Press the brake pedal. The engine is not starting, Driving is restricted by the selector lever lock
Turn signals Turn signal indicator light
Trailer turn signal Trailer turn signal indicator light
Speed stored, regulation active
Introduction, Switching ACC on and off
16
Cruise control switched on, regulation active
Introduction
Lane Assist active Driving with Lane Assist
Lane Assist active Driving with Lane Assist
Semi-automated driving assistance (Travel Assist) active
Introduction
Adaptive Cruise Control (ACC) regulates, no vehicle driving ahead is detected Switching ACC on and off
Adaptive Cruise Control (ACC) regulates, vehicle driving ahead is detected Switching ACC on and off
Hill Descent Control is active Hill Descent Control
High beams or headlight flasher Switching the high beam headlights on and off
High beam or headlight flasher Switching the high beam headlights on and off
Fuel-efficient driving Fuel-efficient driving
Hill Descent Control is not active Hill Descent Control
Outside temperature is below +39 °F (+4 °C) Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic
Information Displays, Analog Instrument Cluster Information Displays
Start/Stop system active Start-stop system
Start/Stop system not available Start-stop system
Economical driving condition Analog Instrument Cluster Information Displays
Service due Service interval display
Semi-automated driving assistance (Travel Assist) active, Adaptive Cruise Control active, adaptive lane guidance inactive
Introduction
High beam control active Switching on high beam control
Take over the steering Take over the steering
Autonomous Emergency Braking (Front Assist) starts Front Assist starts
Distance warning Warning levels and braking support
Cruise control switched on
Introduction
Cruise control system malfunction Cruise control system malfunction
Adaptive Cruise Control (ACC) regulates, no vehicle driving ahead is detected Switching ACC on and off
Adaptive Cruise Control (ACC) regulates, vehicle driving ahead is detected Switching ACC on and off
17

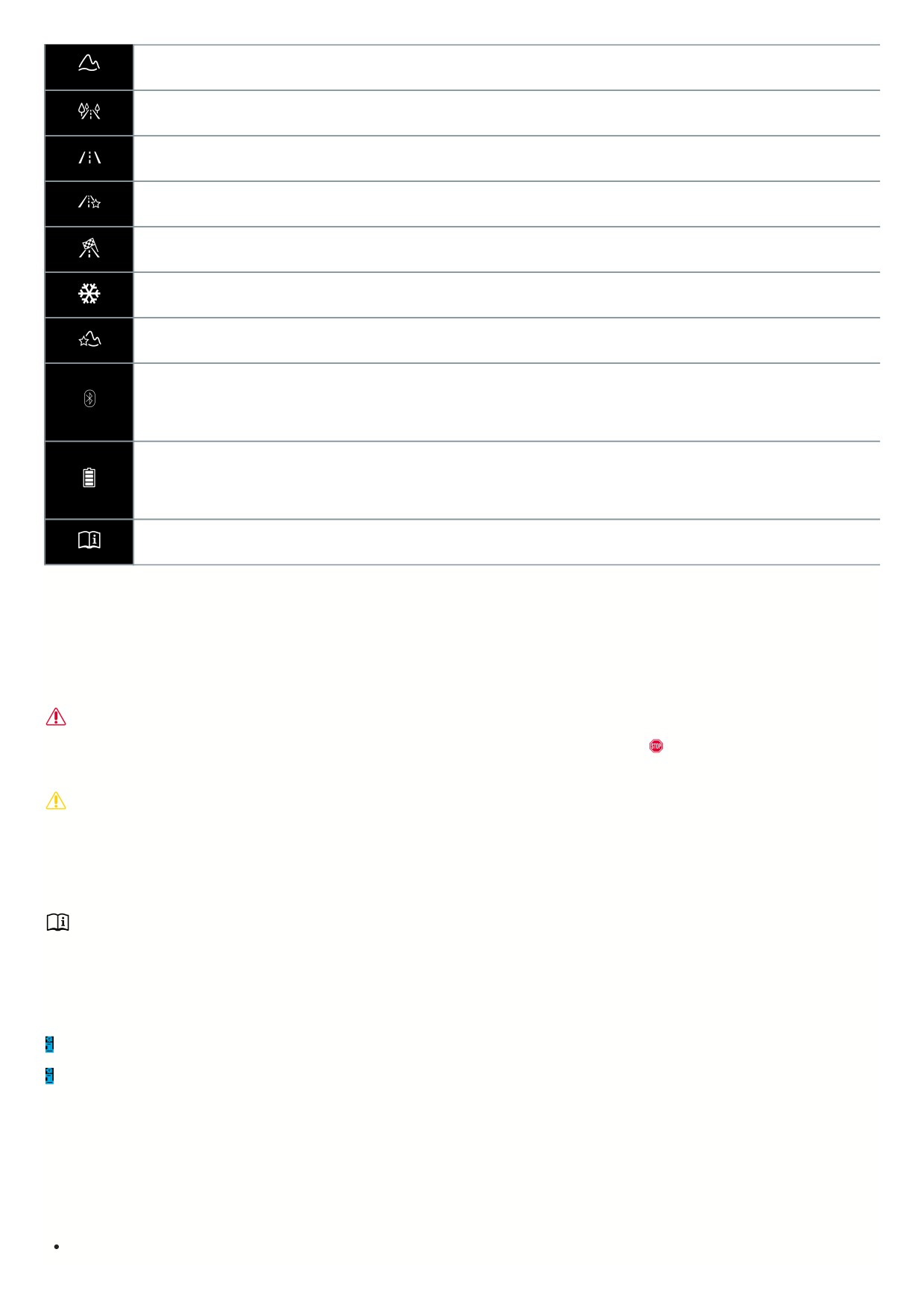

Offroad driving profile Driving mode properties
Eco driving mode Driving mode properties
Normal driving mode Driving mode properties
Individual driving mode Driving mode properties
Sport driving mode Driving mode properties
Snow driving mode Driving mode properties
Offroad Custom driving profile Driving mode properties
Mobile phone connected via Bluetooth® Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic
Information Displays, Analog Instrument Cluster Information Displays
Mobile phone battery charge level Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic Information
Displays, Analog Instrument Cluster Information Displays
Note about information in the Owner's Manual Note about information in the Owner's Manual
Warning and information texts
The status of some functions inside the vehicle and vehicle components are checked when the ignition is switched on or while driving. Malfunctions are indicated by
red and yellow warning symbols in the instrument cluster display and may also be signaled audibly in some cases. The appearance of texts and symbols may vary
depending on the instrument cluster version.
Any malfunctions currently occurring can also be manually called up. To do this, open the Vehicle status or Vehicle menu
Vehicle settings menu.
Priority 1 warning message
The red central warning light flashes or comes on, in some cases together with warning tones or additional symbols.
Do not continue driving! There is a haza
Check the malfunction. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility immediately for assistance.
Priority 2 warning message
The yellow central warning light flashes or comes on, in some cases together with warning tones or additional symbols. Malfunctions or insufficient operating fluids
can cause vehicle damage and vehicle malfunctions. Check the malfunction as soon as possible. Immediately contact an authorized Volkswagen dealer or
authorized Volkswagen Service Facility to have the system checked. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Note about information in the Owner's Manual
You can find more information about the existing warning message in the Owner's Manual.
Informational text
Information about various processes in the vehicle.
If there are multiple warning messages, the symbols will appear consecutively for several seconds. The symbols will appear until the malfunction is corrected.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
Introduction to the instrument cluster
The vehicle may be equipped either with an analog instrument cluster or a Volkswagen Digital Cockpit. The instrument cluster shows essential information, such as
speed.
In addition, the following functions, among others, are available depending on the equipment:
Various menus, such as for the driver assistance systems.
18
Status displays for the driver assistance systems.
Display messages.
Warning and indicator lights.
Information about economy and range.
Content can be individually adapted and settings can be changed in the menus.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
WARNING
If there is a serious fault in the instrument cluster, the display may be turned off. The warning light
may also come on here. No further warnings can be
displayed. This may result in vehicle breakdowns while driving, accidents and serious or fatal injuries.
Safely stop the vehicle.
See an authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
After starting the engine when the 12 V vehicle battery is severely drained or when it has been replaced or jump-started, the system settings, e.g. personal
convenience settings and programming, and user profiles may be changed or erased. Check and correct the settings after the 12 V vehicle battery is sufficiently
recharged.
Volkswagen Digital Cockpit Pro
Overview of the Volkswagen Digital Cockpit Pro
The Volkswagen Digital Cockpit Pro is a digital instrument cluster with a high-resolution TFT color display. By selecting different information profiles, other displays
can be shown in addition to the standard dials, such as the tachometer. The term Volkswagen Digital Cockpit Pro is used to refer to the “Pro digital instrument
cluster” in the following.

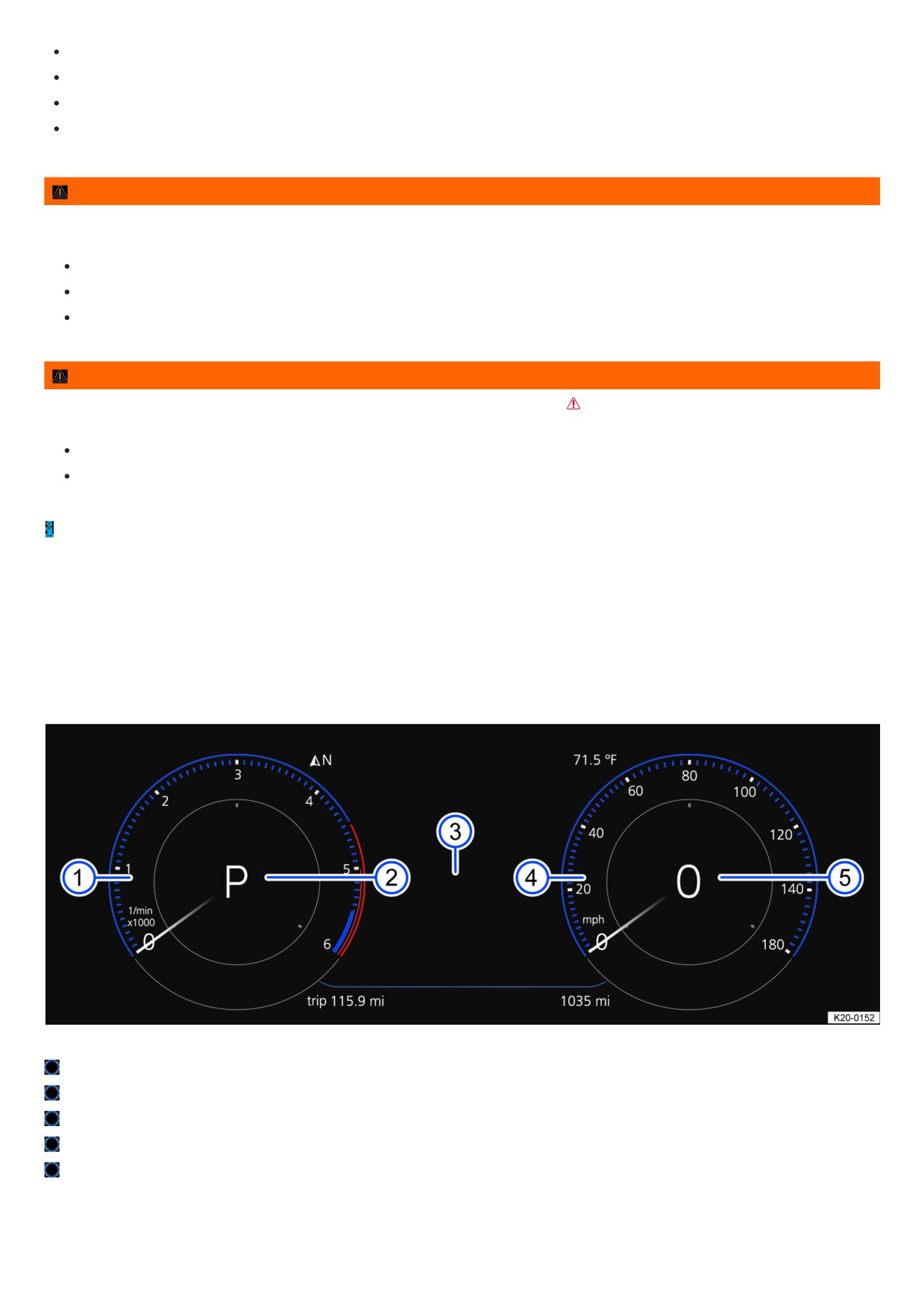

Fig. 9 Volkswagen Digital Cockpit Pro in the instrument panel (general example).
Tachometer (RPM of the running engine).
Currently engaged gear or selector lever level
Driving.
Displays Operating the Volkswagen Digital Cockpit Pro .
Speedometer.
Digital speed display.
Operating the Volkswagen Digital Cockpit Pro
19
Fig. 10 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Pro (variant 1).
2
Fig. 11 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Pro (variant 2).
Fig. 12 On the right side of the steering column: buttons on the windshield wiper lever.
Vehicles with a multi-function steering wheel do not have buttons on the windshield wiper lever. The Volkswagen Digital Cockpit Pro is then exclusively operated via
the buttons on the multi-function steering wheel. The functions of buttons on the multi-function steering wheel vary depending on the vehicle equipment.
Vehicles with multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts.
You can confirm and hide some messages using the
button on the multi-function steering wheel fig. 10, fig. 11.
Vehicles without multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information text
You can confirm and hide some messages using the
fig. 12 button.
Selecting a menu or information display
Vehicles with multi-function steering wheel:
1. Switch the ignition on.
2. If a message or vehicle icon is displayed, press the
button, repeatedly if necessary.
21
3. To display a menu and to scroll through the menu, press the
or
button.
4. To open the displayed menu or information display, press the
button or wait until the menu or the information display opens automatically after several
seconds.
Vehicles without multi-function steering wheel:
1. Switch the ignition on.
2. If a message or vehicle icon is displayed, press the
button fig. 12, repeatedly if necessary.
3. To go to the menu selection or to return to the menu selection from a menu or information display, press and hold the rocker switch fig. 12.
4. To scroll through the menus, press the rocker switch upward or downward.
5. To open the displayed menu or information display, press the
fig. 12 button or wait until the menu or the information display opens automatically
after several seconds.

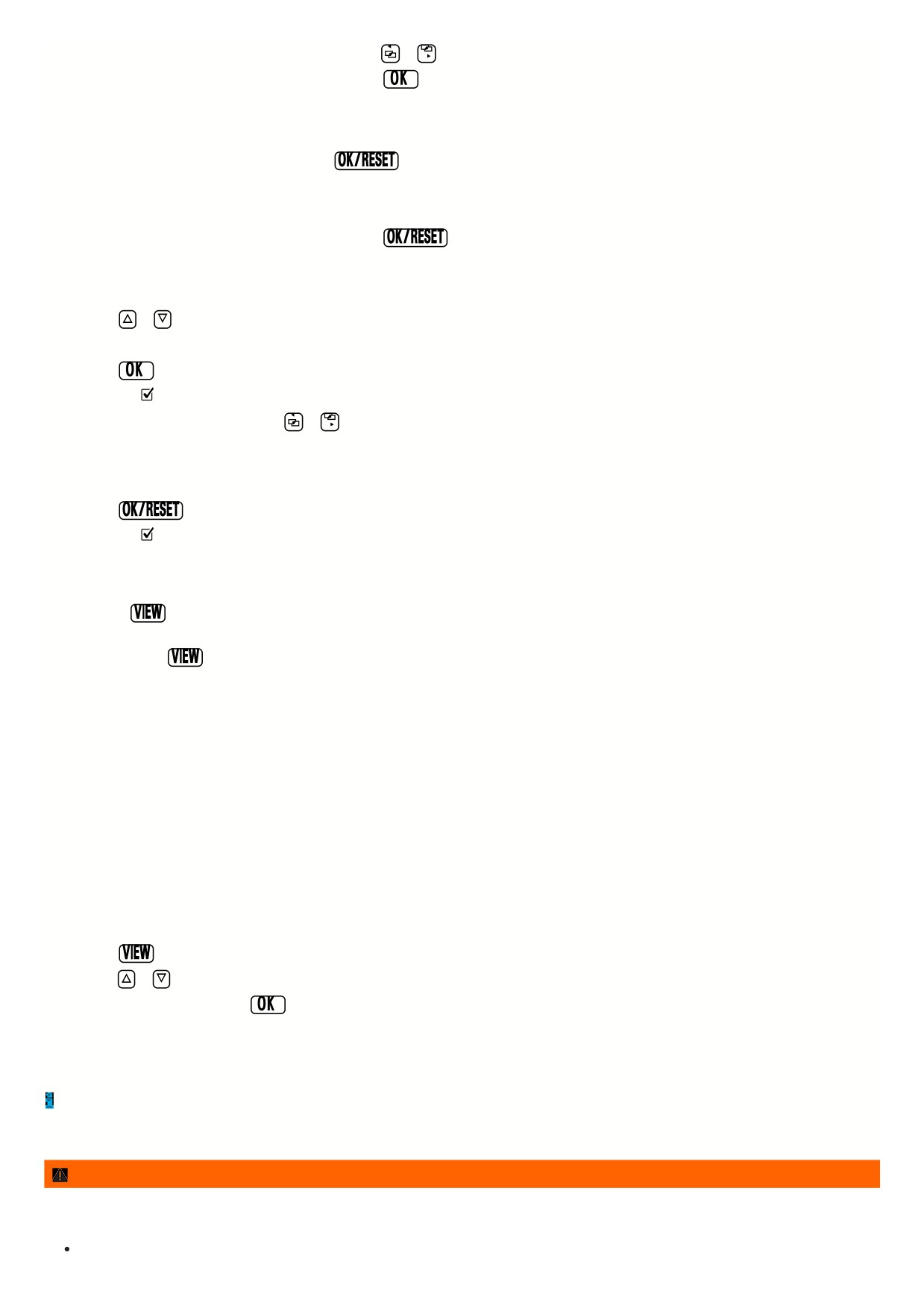

Applying settings in the menus
Vehicles with multi-function steering wheel:
1. Press the
or
arrow button in the displayed menu until the preferred menu item is highlighted.
The item is marked with a frame around it.
2. Press the
button to apply the desired changes.
A check mark
indicates that the respective function is switched on.
3. To return to the menu selection, press the
or
button.
Vehicles without multi-function steering wheel:
1. In the displayed menu, press the rocker switch fig. 12 upwards or downwards until the desired menu item is marked.
The item is marked with a frame around it.
2. Press the
button fig. 12 to apply the desired changes.
A check mark
indicates that the respective function is switched on.
3. Select the Back menu item or press and hold the fig. 12 rocker switch.
VIEW button on multi-function steering wheel
You can use the
button to switch between the classic display of dials, the large platform without information profiles, and the enhanced view with highlighted
information profiles. The classic display shows the large dials on the right and left side, and the selected information profile is displayed in the center.
1. Press and hold the
button to select from the preset information profiles in the list:
Classic
View without information profiles.
Automatic
The information profiles adjust to the selected driving mode. Only for vehicles with Driving Mode Selection.
Preset 1
Individual selection of information profiles
Preset 2
Individual selection of information profiles
Preset 3 Only on vehicles with standard factory-installed navigation system.
Navigation map in the Volkswagen Digital Cockpit Pro
Depending on the vehicle equipment, the Volkswagen Digital Cockpit Pro may display a detailed navigation map.
The navigation map can be displayed in three sizes. With the larger map view, the navigation map is shown across the entire display. To select the desired map
size, proceed as follows:
1. Select menu item Navigation.
2. Press the
button on the multi-function steering wheel to switch between the map sizes.
3. Press the
or
arrow buttons on the multi-function steering wheel to zoom in or out.
4. When zooming manually, press the
button on the multi-function steering wheel to switch to auto-zoom.
Depending on the equipment, navigation will be shown on two screens or only on one screen. The navigation map may appear in the Volkswagen Digital Cockpit
Pro and in the Infotainment system or just in the Infotainment system. If the navigation map is shown in the Infotainment system, only navigation arrows are shown
the Volkswagen Digital Cockpit.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
22
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Volkswagen Digital Cockpit Pro Information Displays
Information profiles
Using the Digital Cockpit menu item in the vehicle Infotainment system vehicle settings, you can select different, topic-specific information profiles
Vehicle
settings menu. Depending on the selected information profile, the Volkswagen Digital Cockpit Pro may show additional information in the center of the dials or the
dials may be hidden and the additional information shown across the entire display. The following information profiles can be selected:
Audio. Digital display of the current audio playback
Acceleration Graphic display of the longitudinal and lateral acceleration
Comfort drive Travel Assist. Visual display of various driver assistance systems
Driver assistance systems.
Distance Display of the distance driven.
Gear indicator Display of the current gear or the selected gear.
Speed Display of the speed.
Elevation Display of the current elevation above sea level.
Compass Digital compass display
Navigation Graphic display of arrow navigation
Range. Display of the range.
Consumption Graphic display of the current consumption and the digital display of the average consumption
Traffic sign recognition Display of detected traffic signs.
Destination arrival information. Display of remaining driving time, the distance to the destination, and the estimated arrival time.
Depending on the equipment, the number and scope of the information profiles that can be selected may vary.
Possible displays in the Volkswagen Digital Cockpit Pro
Depending on the vehicle equipment, different information may be shown in the Volkswagen Digital Cockpit Pro:
Outside temperature display.
Detected road sign from the traffic sign recognition.
Driver assistance systems.
Driving data menu and menus for various settings.
Gear recommendation Gear recommendation.
Speed warnings.
Speed warning for winter tires.
Open doors, hood and trunk lid.
Infotainment system and navigation information.
Odometer displays.
Compass display.
Radiator fan run-on.
Engine code ().
Service interval display.
Status display for the start-stop system Start/Stop system.
Phone information.
Time.
Selector lever position.
Warning and information texts.
Warning and indicator lights Symbols in the instrument cluster .
Outside temperature display
When outside temperatures are colder than approximately +4°C (+39°F), a snowflake symbol also appears on the outside temperature display
. This symbol
remains on until the outside temperature rises above +6 °C (+43 °F).
In the following situations, the temperature displayed may be higher than the actual outside temperature due to heat radiating from the engine:
23
When the vehicle is stationary
When the driving speed is very low
The measurement range is from -45 °C (-49 °F) to +76 °C (+169 °F)
WARNING
Roads may be icy when outside temperatures are low, even if they are above the freezing point. There is an increased risk of an accident on icy roads. This
could result in serious or fatal injuries.
If the
symbol is displayed in the instrument cluster display, drive with extra caution.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Never rely solely on the outside temperature display.
Gear recommendation
A recommendation to select a fuel-saving gear may be displayed in the Volkswagen Digital Cockpit while driving
Gear recommendation.
Open doors, hood and trunk lid
If, after unlocking the vehicle and while driving, any doors and/or the hood or trunk lid are open, this is displayed in the Volkswagen Digital Cockpit and an audible
signal may also sound.
Speed warning for winter tires
If the set maximum speed is exceeded, this will be shown in the digital instrument cluster.
Settings for the speed warning can be adjusted in the vehicle settings in the Infotainment system
Winter tires.
Compass display
When the ignition is switched on, the instrument cluster display shows an abbreviation to indicate the direction the vehicle is currently traveling, for example “NW”
for northwest.
If the Infotainment system is switched on and route guidance is not active, the graphic display of a compass is also available.
Odometer displays
The odometer registers the total distance that the vehicle has driven.
The trip trip odometer shows the miles that were driven since the trip odometer was last reset.
1. Reset the odometer via the Infotainment system or the service menu Service menu.
Radiator fan run-on
This indicator appears after the ignition has been switched off, if the radiator fan continues to run.
The radiator fan may continue running due to:
Exhaust gas post-treatment, through particulate filter regeneration, for example.
Active brake cooling after descent.
Dissipation of engine heat after high load, e.g. trailer mode.
Engine code (EC)
1. Open the service menu Service menu.
2. Select the Engine code menu item.
Phone information
If a cell phone is connected via Bluetooth, the Bluetooth symbol
will be displayed in the Volkswagen Digital Cockpit.
The symbol also indicates the charge level of the mobile device.
Selector lever position
The selector lever position that is engaged is shown on the left side of the selector lever and in the Volkswagen Digital Cockpit.
If necessary, the respective gear is displayed in the Volkswagen Digital Cockpit when in the D/S selector lever position and when in tiptronic mode
Automatic
transmission: selecting the selector lever position.
Suitably qualified professionals can program or modify additional functions depending on the vehicle equipment. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
There are different instrument clusters; therefore the versions and appearances of the displays may vary. Malfunctions will only be indicated by indicator lights
if the display does not have warning or information texts.
24
Some displays in the Volkswagen Digital Cockpit may be hidden due to events that occur suddenly, e.g. incoming phone calls.
Depending on the equipment, some settings and displays may also appear in the Infotainment system.
Volkswagen Digital Cockpit Basic
Overview of the Volkswagen Digital Cockpit Basic
The Digital Cockpit is a digital instrument cluster with a high-resolution TFT color display. By selecting different views, e.g. tachometer, and different displays in the
main display area and in the secondary display areas, further content can be shown. The term “Volkswagen Digital Cockpit” is used to refer to the digital instrument
cluster in the following.
Fig. 13 Volkswagen Digital Cockpit Basic in the instrument panel (general example).
Secondary display area.
Time, compass and temperature.
Main display area.
Secondary display area.
Currently engaged gear or selector lever level.
Active driver assistance.
Range.

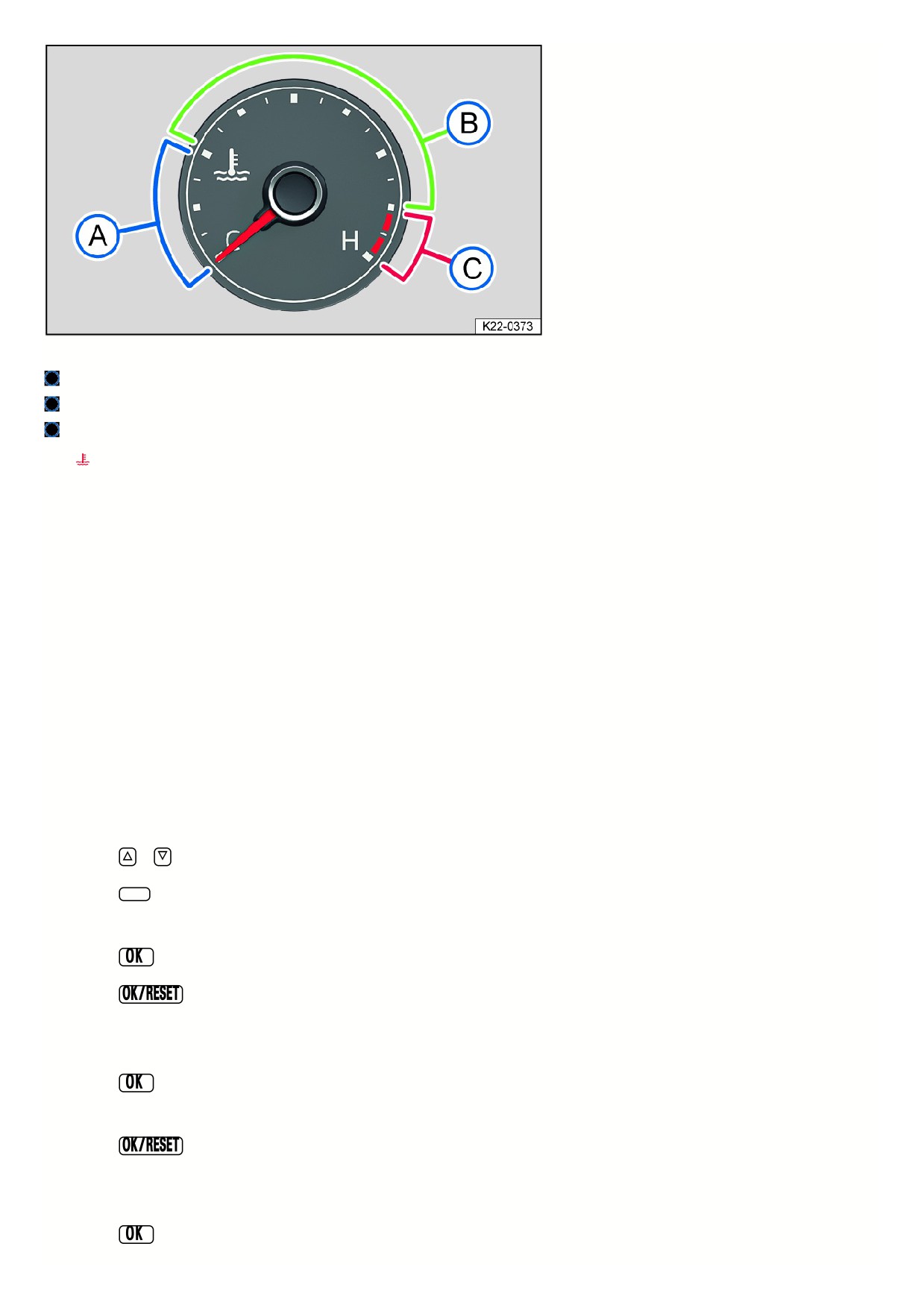

Coolant temperature gauge.
Fuel gauge.
Operating the Volkswagen Digital Cockpit Basic
25
Fig. 14 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Basic (variant 1).
26
Fig. 15 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Basic (variant 2).
Fig. 16 On the right side of the steering column: buttons on the windshield wiper lever.
Vehicles with a multi-function steering wheel do not have buttons on the windshield wiper lever. The Volkswagen Digital Cockpit Basic is then exclusively operated
via the buttons on the multi-function steering wheel. The functions of buttons on the multi-function steering wheel vary depending on the vehicle equipment.
Vehicles with multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts.
You can confirm and hide some messages using the
button on the multi-function steering wheel fig. 14, fig. 15.
Vehicles without multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information text
You can confirm and hide some messages using the
fig. 16 button.
Views in the main display area
1. Vehicles with multi-function steering wheel: Press the
button to switch the main display.
The following views can be shown in the display area:
27
Digital view Digital speedometer with secondary displays.
Speed Classic display of the speedometer as a dial.
Tachometer Classic display of the tachometer as a dial.
Depending on the vehicle equipment, the amount of information shown and the scope thereof may vary.
After switching off the ignition, a display is shown with information on the vehicle status, e.g. total mileage.
In the speed and tachometer views, an additional secondary display can be configured in the center of the dial.
Selecting secondary displays
Vehicles with multi-function steering wheel: The secondary displays can be configured or hidden independently of each other. Various driving data, navigation
information or information about audio playback or phone interfaces can be shown on the secondary displays. To select the secondary displays, proceed as follows
1. Select the right or left secondary display area using the
or
buttons.
2. Select the preferred secondary display using the
and
arrow buttons.
3. Confirm your selection with the
button.
Selecting secondary displays in the dial
Vehicles with multi-function steering wheel:
1. Select the preferred secondary display using the
and
arrow buttons.
2. Confirm your selection with the
button.
Vehicles without multi-function steering wheel:
1. To open the secondary displays, press the rocker switch fig. 16 upward or downward.
2. To scroll through the menus, press the rocker switch fig. 16 upward or downward.
3. Press the
button fig. 16 to confirm the selected secondary display.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Volkswagen Digital Cockpit Basic Information Displays
Possible displays
Depending on the vehicle equipment, different information may be shown in the main display and secondary display areas of the Volkswagen Digital Cockpit Basic:
Outside temperature display.
Time and date.
Digital speed.
Detected road sign from the traffic sign recognition.
Driver assistance systems.
Driving data menu, e.g. Travel time/distance driven.
Gear recommendation Gear recommendation.
Speed warning for winter tires.
Open doors, hood and trunk lid.
Odometer displays.
Compass display.
Radiator fan run-on.
Engine code ().
Navigation information.
28
Engine oil temperature.
Radio information.
Service interval display.
Status display for the start-stop system Start/Stop system.
Phone information.
Selector lever position.
Warning and information texts.
Warning and indicator lights.
Depending on the vehicle equipment: Fuel-efficient driving . Status display for Active Cylinder Management (ACT ) Eco tips.
Destination information.
You can adjust further settings in the submenu.
Outside temperature display
When outside temperatures are colder than approximately +4 °C (+39 °F), a snowflake symbol also appears on the outside temperature display . This symbol
remains on until the outside temperature rises above +6 °C (+43 °F).
In the following situations, the temperature displayed may be higher than the actual outside temperature due to heat radiating from the engine:
When the vehicle is stationary
When the driving speed is very low
The measurement range is from -45 °C (-49 °F) to +76 °C (+169 °F)
WARNING
Roads may be icy when outside temperatures are low, even if they are above the freezing point. There is an increased risk of an accident on icy roads. This
could result in serious or fatal injuries.
If the
symbol is displayed in the instrument cluster display, drive with extra caution.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Never rely solely on the outside temperature display.
Gear recommendation
A recommendation to select a fuel-saving gear may be displayed in the Volkswagen Digital Cockpit while driving
Gear recommendation.
Open doors, hood and trunk lid
If, after unlocking the vehicle and while driving, any doors and/or the hood or trunk lid are open, this is displayed in the Volkswagen Digital Cockpit and an audible
signal may also sound.
Speed warning for winter tires
If the set maximum speed is exceeded, this will be shown in the digital instrument cluster.
Settings for the speed warning can be adjusted in the vehicle settings in the Infotainment system
Winter tires.
Compass display
If the Compass secondary display is activated, the direction in which you are currently driving is shown as a blue arrow with a depiction of the vehicle and a
compass.
Radiator fan run-on
This indicator appears after the ignition has been switched off, if the radiator fan continues to run.
The radiator fan may continue running due to:
Exhaust gas post-treatment, through particulate filter regeneration, for example.
Active brake cooling after descent.
Dissipation of engine heat after high load, e.g. trailer mode.
Engine code
1. Open the service menu Service menu.
2. Select the Engine code menu item.
Navigation information
29
When route guidance is activated, the Navigation instruction auxiliary display shows the direction of travel as an arrow.
An arrow behind the entry in the configuration menu indicates a submenu.
The submenu lists your home address and a list of your most recent destinations. Route guidance can be started with the
button.
Phone information
If the Phone secondary display is activated and a cell phone is connected via Bluetooth, the Bluetooth symbol
will be displayed in the Volkswagen Digital Cockp
The symbol also indicates the charge level of the mobile device.
In the submenu, a list of the most recent phone calls is shown and you have the option to call the displayed contacts back.
Selector lever position for automatic transmission
The selector lever position and, depending on the driving mode, the gear that is engaged, are shown on the selector lever and in the Volkswagen Digital Cockpit.
The gear shift pattern is displayed when the brake or the selector lever in the instrument cluster are actuated.
Fuel-efficient driving
If the vehicle is driving in a fuel-efficient manner, this will be indicated in the Volkswagen Digital Cockpit while driving
Destination information
When route guidance is activated, the Destination information secondary display shows the predicted journey time and distance from the destination.
Some displays in the Volkswagen Digital Cockpit may be hidden due to events that occur suddenly, e.g. incoming phone calls.
Depending on the equipment, some settings and displays may also appear in the Infotainment system.
Analog instrument cluster
Overview of the analog instrument cluster
Fig. 17 Analog instrument cluster in the instrument panel (general example).
Speedometer.
Tachometer (RPM of the running engine).
Displays Analog instrument cluster, Analog Instrument Cluster Information Displays.
Reset, set, and display button.
Fuel gauge.
Coolant temperature gauge.
Operating the analog instrument cluster
3
Fig. 18 Right side of the multi-function steering wheel: Operating the analog instrument cluster (variant 1).
31
Fig. 19 Right side of the multi-function steering wheel: Operating the analog instrument cluster (variant 2).
Fig. 20 On the right side of the steering column: buttons on the windshield wiper lever.
Vehicles with multi-function steering wheel:
Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts. You can confirm and hide some messages
using the
fig. 18, fig. 19 button on the multi-function steering wheel.
Vehicles without multi-function steering wheel:
Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts. You can confirm and hide some messages
using the
fig. 20 button.
Selecting a menu or information display
Vehicles with multi-function steering wheel:
1. Switch the ignition on.
2. If a message or vehicle icon is displayed, press the
button, repeatedly if necessary.
32
3. To display a menu and to scroll through the menu, press the
or
button.
4. To open the displayed menu or information display, press the
button or wait until the menu or the information display opens automatically after several
seconds.
Vehicles without multi-function steering wheel:
1. Switch the ignition on.
2. If a message or vehicle icon is displayed, press the
fig. 20 button on the windshield wiper lever, repeatedly if necessary.
3. To display the menus Driving data menu or to return to the menu selection from a menu or information display, press and hold the rocker switch
fig. 20 on the windshield wiper lever.
4. To scroll through the menus, press the rocker switch
fig. 20 on the windshield wiper lever upward or downward.
5. To open the displayed menu or information display, press the
fig. 20 button on the windshield wiper lever or wait until the menu or the information
display opens automatically after several seconds.
Applying settings in the menus
Vehicles with multi-function steering wheel:
1. Press the
and
arrow buttons in the displayed menu until the preferred menu item is marked.
The item is marked with a frame around it.
2. Confirm your selection using the
button.
A check mark
indicates that the respective function is switched on.
Vehicles without multi-function steering wheel:
1. In the displayed menu, press the rocker switch
fig. 20 on the windshield wiper lever upwards or downwards until the preferred menu item is
highlighted.
The item is marked with a frame around it.
2. Press the
button on the windshield wiper lever fig. 20 to apply the preferred changes.
A check mark
indicates that the respective function is switched on.
Returning to menu selection
Vehicles with multi-function steering wheel:
1. Press the
or
button.
Vehicles without multi-function steering wheel:
1. Select the Back menu item.
VIEW button on multi-function steering wheel
Vehicles with multi-function steering wheel:
You can use the
button to switch between the different views in the display area.
Odometer displays
The odometer registers the total distance that the vehicle has driven.
The trip trip odometer shows the miles that were driven since the trip odometer was last reset.
1. To reset the trip odometer to zero, press the
button in the analog instrument cluster briefly.
Engine code
1. Switch the ignition on, but do not run the engine.
2. To display the engine code, press and hold the
button in the analog instrument cluster for about 15 seconds.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
WARNING
If the driver is distracted while driving, accidents and serious injuries can occur. Operating the instrument cluster can distract you from traffic.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Analog Instrument Cluster Information Displays
Depending on the vehicle equipment, different information may be shown in the analog instrument cluster:
Outside temperature display.
Detected road sign from the traffic sign recognition.
33
Driver assistance systems.
Driving data menu and menus for various settings.
Gear recommendation Gear recommendation.
Speed warnings.
Speed warning for winter tires.
Open doors, hood and trunk lid.
Infotainment system and navigation information.
Odometer displays.
Compass display.
Radiator fan run-on.
Engine code ().
Service interval display.
Status display for the start-stop system Start/Stop system.
Phone information.
Time.
Depending on the vehicle equipment: Fuel-efficient driving . Status display for Active Cylinder Management (ACT) Eco tips.
Selector lever position.
Warning and information texts.
Warning and indicator lights Symbols in the instrument cluster .
Suitably qualified professionals can program or modify additional functions depending on the vehicle equipment. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Outside temperature display
When outside temperatures are colder than approximately +4 °C (+39 °F), a snowflake symbol also appears on the outside temperature display . This symbol
remains on until the outside temperature rises above +6 °C (+43 °F).
In the following situations, the temperature displayed may be higher than the actual outside temperature due to heat radiating from the engine:
When the vehicle is stationary
When the driving speed is very low
The measurement range is from -45 °C (-49 °F) to +76 °C (+169 °F)
WARNING
Roads may be icy when outside temperatures are low, even if they are above the freezing point. There is an increased risk of an accident on icy roads. This
could result in serious or fatal injuries.
If the
symbol is displayed in the instrument cluster display, drive with extra caution.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Never rely solely on the outside temperature display.
Gear recommendation
A recommendation to select a fuel-saving gear may be displayed in the analog instrument cluster while driving
Gear recommendation.
Open doors, hood and trunk lid
If, after unlocking the vehicle and while driving, any doors and/or the hood or trunk lid are open, this is displayed in the analog instrument cluster and an audible
signal may also sound.
Speed warning for winter tires
If the set maximum speed is exceeded, this will be shown in the analog instrument cluster.
Settings for the speed warning can be adjusted in the vehicle settings in the Infotainment system
Winter tires.
Compass display
When the ignition is switched on, the instrument cluster display shows an abbreviation to indicate the direction the vehicle is currently traveling, for example “NW”
for northwest.
If the Infotainment system is switched on and route guidance is not active, the graphic display of a compass is also available.
34
Odometer displays
The odometer registers the total distance that the vehicle has driven.
The trip trip odometer shows the miles that were driven since the trip odometer was last reset.
1. Reset the odometer via the Infotainment system or the service menu Service menu.
Radiator fan run-on
This indicator appears after the ignition has been switched off, if the radiator fan continues to run.
The radiator fan may continue running due to:
Exhaust gas post-treatment, through particulate filter regeneration, for example.
Active brake cooling after descent.
Dissipation of engine heat after high load, e.g. trailer mode.
Engine code
1. Open the service menu Service menu.
2. Select the Engine code menu item.
Phone information
If a cell phone is connected via Bluetooth, the Bluetooth symbol
will be displayed in the analog instrument cluster.
The symbol also indicates the charge level of the mobile device.
Selector lever position
The selector lever position that is engaged is shown on the side of the selector lever and in the analog instrument cluster.
If necessary, the respective gear is displayed in the analog instrument cluster when in the D/S selector lever position and when in tiptronic mode
Automatic
transmission: selecting the selector lever position.
Fuel-efficient driving
If the vehicle is driving in a fuel-efficient manner, this will be indicated in the analog instrument cluster while driving
There are different instrument clusters; therefore the versions and appearances of the displays may vary. Malfunctions will only be indicated by indicator lights
if the display does not have warning or information texts.
Some displays in the analog instrument cluster may be hidden due to events that occur suddenly, e.g. incoming phone calls.
Depending on the equipment, some settings and displays may also appear in the Infotainment system.
Tachometer
The start of the red area on the tachometer indicates the maximum permissible engine speed for all gears when the engine is run in and at operating temperature.
Before reaching the red area, shift to the next highest gear, select the selector lever position D/S or take your foot off the accelerator pedal.
NOTICE
A heavy engine load, especially when the engine is cold, can lead to engine damage.
Avoid high engine speeds, full acceleration and heavy engine loads when the engine is cold.
To prevent engine damage, the tachometer indicator may only be in the red area of the scale briefly.
Shifting up early helps save fuel and reduce operating noises.
Fuel gauge
Digital fuel gauge
35
Fig. 21 Fuel gauge on the Volkswagen Digital Cockpit Pro (general example).
Fig. 22 Fuel gauge on the Volkswagen Digital Cockpit Basic (general example).
WARNING
If the fuel level is too low, this can result in an irregular fuel supply and “sputtering” or stalling of the engine, particularly when going uphill or downhill. This can
cause breakdowns in road traffic, accidents and serious or fatal injuries. The steering, all driver assistance systems and braking assistance systems will not
work if the engine cuts out due to fuel shortage or irregular fuel supply.
Make sure that the fuel tank is always sufficiently filled.
Always refill the fuel tank once it reaches a fill level of 1/4.
NOTICE
Irregular fuel supply can result in misfiring and unburnt fuel entering the exhaust system.
Never drive with a completely empty fuel tank.
The small arrow next to the fuel pump symbol on the fuel gauge indicates which side of the vehicle the fuel filler flap is on.
Analog fuel gauge
36
Fig. 23 Fuel gauge on analog instrument cluster (general example).
WARNING
If the fuel level is too low, this can result in irregular fuel supply and cause the engine to “sputter” or cut out, particularly when traveling uphill or downhill. This
may result in vehicle breakdowns while driving, accidents and serious or fatal injuries. The steering, all driver assistance systems and brake support systems
will not work if the engine cuts out due to fuel shortage or irregular fuel supply.
Check that the fuel tank is always sufficiently filled.
Always refill the fuel when the fuel tank is only 1/4 full.
NOTICE
Irregular fuel supply can result in misfiring and unburnt fuel entering the exhaust system.
Never drive with a completely empty fuel tank.
The small arrow next to the fuel pump symbol on the fuel gauge indicates which side of the vehicle the fuel filler flap is on.
Troubleshooting
Fuel tank almost empty
The yellow indicator light turns on. The reserve supply (red marking ) is being used.
1. Refuel at the next opportunity.
Fuel tank cap open
The yellow indicator light turns on.
1. Close the fuel tank cap.
Engine coolant temperature gauge
Digital coolant temperature gauge
37
Fig. 24 Coolant temperature gauge in the Volkswagen Digital Cockpit Pro (general example).
Cold range. The engine is not at operating temperature yet. Avoid high engine RPMs and heavy engine load when the engine is not at operating temperature.
Normal range.
Warning range. The needle may move into the warning range when engine load is heavy, especially when outside temperatures are high.
Fig. 25 Coolant temperature gauge in the Volkswagen Digital Cockpit Basic (general example).
Cold range. The engine is not at operating temperature yet. Avoid high engine RPMs and heavy engine load when the engine is not at operating temperature.
Normal range.
Warning range. The needle may move into the warning range when engine load is heavy, especially when outside temperatures are high.
If the
warning light flashes, the coolant temperature is too high or the coolant level is too low
Troubleshooting.
Analog coolant temperature gauge
38
Fig. 26 Engine coolant temperature gauge in the analog instrument cluster.
Cold range. The engine is not at operating temperature yet. Avoid high engine RPMs and heavy engine load when the engine is not at operating temperature.
Normal range.
Warning range. The needle may move into the warning range when engine load is heavy, especially when outside temperatures are high.
If the
warning light flashes, the coolant temperature is too high or the coolant level is too low
Troubleshooting.
Driving data menu
The driving data menu shows driving and consumption data. Depending on the vehicle equipment, various driving data can be displayed. The displayed driving
data is dependent on the current driving style, the vehicle status, e.g. particle filter regeneration, and the current driving situation, e.g. city traffic. The driving data is
determined as an average value over sections of different distances and the currently displayed value may therefore differ from the actual average value.
Since start memory
If the trip is interrupted for more than two hours, the memory is erased.
Since refuel memory
Display and memory of the collective driving and consumption data. The memory is erased when the vehicle is refueled.
Extended period memory
The memory collects the driving data up to 19 hours and 59 minutes or 99 hours and 59 minutes driving time or 1999.9 km (miles) or 9999.9 km (miles) distance
driven. If one of these maximum thresholds is met, the memory is erased. The maximum thresholds may vary depending on the version of the instrument cluster.
Volkswagen Digital Cockpit Pro and Analog Instrument Cluster Driving Data Menu
The driving data is available in the context menu of the Volkswagen Digital Cockpit Pro.
Switching Between the Displays in the Volkswagen Digital Cockpit Pro and the Analog Instrument Cluster
Vehicles with multi-function steering wheel:
1. Press the
or
button on the multi-function steering wheel.
Vehicles without multi-function steering wheel:
1. Press the TRIP rocker switch on the windshield wiper lever.
Switching Between the Memories in the Volkswagen Digital Cockpit Pro and the Analog Instrument Cluster
Vehicles with multi-function steering wheel:
1. Press the
button on the multi-function steering wheel.
Vehicles without multi-function steering wheel:
1. Press the
button on the windshield wiper lever.
Deleting the Driving Data Memories in the Volkswagen Digital Cockpit Pro and the Analog Instrument Cluster
Vehicles with multi-function steering wheel:
1. Select the memory to be erased.
2. Press the
button on the multi-function steering wheel.
Vehicles without multi-function steering wheel:
1. Select the memory to be erased.
2. Press the
button on the windshield wiper lever.
Setting the Speed Warning in the Volkswagen Digital Cockpit Pro and Analog Instrument Cluster
Vehicles with multi-function steering wheel:
1. Select the Warning at --- km/h or Warning at --- mph display.
2. Press the
button on the multi-function steering wheel to save the current speed and to activate the warning.
39
3. Set the speed on the multi-function steering wheel within approximately five seconds by pressing the
and
arrow buttons. Then press the
button
or wait several seconds.
The speed will then be saved and the warning will be activated.
4. Press the
button again to deactivate.
The stored speed is erased.
Vehicles without multi-function steering wheel:
1. Select the Warning at --- km/h or Warning at --- mph display.
2. Press the
button on the windshield wiper lever to save the current speed and to activate the warning.
3. Set the desired speed within five seconds with the TRIP rocker switch on the windshield wiper lever. Then press the
button or wait several
seconds.
The speed will then be saved and the warning will be activated.
4. Press the
button again to deactivate.
The stored speed is erased.
The warning can be set for speeds between 30 km/h (18 mph) and 250 km/h (155 mph).
Depending on the country, a single warning tone sounds at speeds of over approximately 80 km/h (approximately 50 mph), and from approximately 120 km/h
(approximately 75 mph), a continuous warning tone sounds. The
indicator light will also be displayed in the instrument cluster display. This warning is required
by law and cannot be altered.
Volkswagen Digital Cockpit Basic Driving Data Menu
The driving data is available in the secondary display area of the Volkswagen Digital Cockpit Basic.
Selecting the Driving Data Menu in the Volkswagen Digital Cockpit Basic
Vehicles with multi-function steering wheel:
1. Select the right or left secondary display area using the
or
buttons.
2. Select your preferred driving data menu using the
and
arrow buttons.
3. Confirm your selection with the
button.
Vehicles without multi-function steering wheel:
1. To open the secondary displays, press the rocker switch on the windshield wiper lever upward or downward.
2. To scroll through the menus, press the rocker switch upward or downward.
3. Press the
button to confirm the selected driving data menu.
Resetting the Driving Data Menu in the Volkswagen Digital Cockpit Basic
Vehicles with multi-function steering wheel:
1. Press the
or
button.
2. Select the corresponding driving data menu in the configuration menu using the
and
arrow buttons.
An arrow behind the entry in the configuration menu indicates a submenu.
3. In the submenu, select Reset data and confirm by pressing the
button.
Vehicles without multi-function steering wheel:
1. Press and hold the
button.
Driving Data in the Infotainment system
Driving Data can be displayed in the Infotainment system, in addition to being displayed in the instrument cluster.
Selecting Displays in the Infotainment System
You can select the driving data you would like to display using the vehicle settings in the Infotainment system
Vehicle settings menu.
Consumption
The average fuel consumption is displayed after approximately 300 m (approx. 984 ft).
Range
This indicates the approximate distance in km (miles) the vehicle can travel under the same driving conditions.
Speed
The average speed is displayed after approximately 100 m (approximately 328 ft).
WARNING
If the driver is distracted while driving, accidents and serious injuries can occur. Operating the Volkswagen Digital Cockpit and Infotainment system can distract
you from traffic.
4
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Service
Service menu
Depending on the equipment, settings can be applied in the service menu.
Opening the Service Menu in the Volkswagen Digital Cockpit Pro
1. Select the Range information profile.
2. Press and hold the
button on the multifunction steering wheel for approximately four seconds.
3. Navigate in the menu using the buttons on the multi-function steering wheel.
Opening the Service Menu in the Volkswagen Digital Cockpit Basic
1. Select the Travel time/distance driven secondary display.
2. Press and hold the
or
button on the multi-function steering wheel in the same direction for approximately six seconds.
3. Use the
and
arrow buttons to navigate the menu.
Resetting the service interval display
1. Select Service menu.
2. Follow the instructions in the instrument cluster display.
Resetting the oil change service
1. Select Reset oil change service menu.
2. Follow the instructions in the instrument cluster display.
Resetting the Trip Odometer on the Volkswagen Digital Cockpit Pro
1. Select Reset trip menu.
2. Follow the instructions in the instrument cluster display.
Displaying the engine code
1. Select Engine code menu.
The engine code is shown on the instrument cluster display.
Setting the time
1. Select Time menu.
2. Set the time with the
and
arrow buttons.
Displaying copyright information
1. Select the Copyright menu to access the copyright information.
Service interval display
Displays about service events appear in the instrument cluster display and in the Infotainment system. There are different versions of the instrument cluster and
Infotainment system; therefore, the appearances of the displays may vary.
Service appointments at Volkswagen are divided into oil change services and inspections. The service interval display informs the driver about the next service
appointment which includes an engine oil change and about the next inspection.
The service intervals are specified for vehicles with the fixed oil change service interval.
Intervals are determined individually on vehicles with the flexible oil change service interval. Oil change services only need to be performed if the vehicle requires it
The specific operating conditions and the personal driving style are also taken into consideration. The service early warning message is first displayed 30 days prio
to the calculated oil change service due date. The displayed remaining distance to be traveled is always rounded to 100 km (miles) and the remaining time is
rounded to whole days.
Service notification
If an oil change service or an inspection service is due in the near future, a service notification will be displayed when the ignition is switched on.
The specified mileage or time is the distance or time until the next service can be completed.
Service event
When an oil change service or an inspection service is due, a chime will sound when switching on the ignition and you can then see a wrench symbol
for a fe
seconds in the instrument cluster display together with one of the following displays:
41
Inspection now!
Oil change now!
Oil change service and inspection now!
Checking a service due date in the Infotainment system
When the ignition is on, the engine is off, and the vehicle is stationary, the current service due date can be viewed at any time:
Checking the service due date in the Infotainment system:
1. Depending on the vehicle equipment, press the
button or function key and select the Vehicle menu in the Infotainment system.
Or: depending on the vehicle equipment, press the
button or function key.
2. Depending on how your vehicle is equipped, select the Settings menu.
3. Select the Service menu item to display the service information.
Checking a Service Due Date in the Analog Instrument Cluster
1. Press and hold the
button in the instrument cluster until Service appears in the display.
2. Release the
button.
The current service due date is shown in the display.
Checking a Service Due Date in the Volkswagen Digital Cockpit Pro and Basic Versions
When the ignition is on, the engine is off, and the vehicle is stationary, the current service due date can be viewed at any time:
1. Open the service menu Service menu.
Resetting the service interval display
If the service interval display was not reset after the oil change service or inspection service, the display can be reset as follows:
Vehicles with analog instrument cluster:
1. Switch the ignition off.
2. Press and hold the
button in the instrument cluster.
3. Switch the ignition back on.
4. Release the
button when one of the following messages appears in the instrument cluster display: Reset oil change service? or Reset inspection service?.
5. Press the
button in the instrument cluster to confirm.
Vehicles with a digital instrument cluster: The service interval display can only be reset through the service menu
Service menu.
Do not reset the service interval display between service intervals or incorrect information will be displayed.
If the oil change service interval was manually reset, the service interval display then also switches to a fixed service interval, even on vehicles with the flexible oil
change service interval.
The service message automatically disappears after a few seconds when the engine is running or by pressing the
button on the windshield wiper
lever or the
button on the multi-function steering wheel.
If the 12 V vehicle battery in a vehicle with the flexible service interval has been disconnected for an extended period, the time for the next oil change service
cannot be calculated. Therefore, the service interval displays may show incorrect calculations. If this is the case, follow the maximum permissible maintenance
intervals.
Time
Setting the time in the Infotainment system
1. Depending on the design, press the
button or function key and open the Vehicle menu.
Or: depending on the vehicle equipment, press the
button or function key.
2. Depending on how your vehicle is equipped, open the Settings menu.
3. Select the Time and date menu item to set the time.
Setting the Time in the Volkswagen Digital Cockpit Pro
1. Select the Range information profile.
2. Press and hold the
button on the multi-function steering wheel until the service menu is available in the instrument cluster display
Service menu.
3. Select Time menu.
4. Set the correct time using the
or
arrow buttons.
Setting the Time in the Volkswagen Digital Cockpit Basic
1. Open the service menu Service menu.
2. Select the Time menu.
42

















Content      ..      1       2         ..



//////////////////////////////////////////
