Volkswagen Atlas Cross Sport (2023 year). Manual in english - page 7





System active and ready to control.
System active and ready to control.
System in operation (corrective steering intervention).
System in
operation (corrective steering intervention).
If the indicator light does not light up, the system is not ready for operation on both sides (inactive system status) or is switched off.
If Travel Assist is actively regulating, there will be no steering intervention and no Lane Keeping System (Lane Assist) display.
Driver intervention request
If there is no steering activity, the system prompts you to drive in the center of your lane with an indicator in the instrument cluster display and warning chimes.
If you do not respond accordingly, the system becomes inactive.
Depending on the vehicle equipment, semi-automatic vehicle control in a medical emergency (Emergency Assist) is activated.
Independently of steering activity, you are also prompted by an indicator on the instrument cluster display and by a warning chime to drive in the middle of the lane
the corrective steering intervention takes a long time.
Steering wheel vibration
The following situations may cause the steering wheel to vibrate:
A lane is no longer detected during a sharp corrective steering intervention by the system.
In addition, you can select the Vibration or Steering wheel vibration option in the Assistance systems menu in the Infotainment system. If you select this option, the
steering wheel will vibrate if Lane Assist is active and you drift onto a road lane marking that the system has detected.
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
Introduction.
Malfunction message, Lane Assist is not available
An indicator light comes on in the instrument cluster. In addition, a message is shown in the instrument cluster display.
The camera field of view is dirty. Clean the windshield Vehicle care.
The camera's view is limited due to weather conditions, such as snow, or from soap residue or coatings. Clean the windshield
Vehicle care.
The camera's view is limited by attachments or stickers. Keep the area around the camera field of view clear.
The camera is misaligned or damaged, for example as a result of damage to the windshield. Check if there is noticeable damage
Repairs and technical
modifications.
The camera was automatically deactivated due to a high ambient temperature or long exposure to direct sunlight. Lane Assist will be available once the
camera is available again. Stop the engine and restart.
Malfunction or fault. Stop the engine and restart.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
It can take a few seconds once the ignition has been switched on for a system fault to be recognized.
If Lane Assist is not available, Emergency Assist is not available either.
If Lane Assist is not available, Travel Assist is not available either.
The system is functioning differently than expected
1. Do not mount any objects on the steering wheel.
Comfort drive Travel Assist
Introduction
Thanks to the comfort drive Travel
Assist, within the system limitations, the
vehicle can maintain a distance, which
has been preselected by the driver, to
the vehicle in front and hold the
preferred position within the lane
(adaptive lane guidance).
Travel Assist uses the same sensor technology as the Adaptive Cruise Control (ACC) and Lane Keeping System (Lane Assist). Therefore, carefully read all the
information about the ACC and Lane Assist and take note of the system limitations and notes specified in those sections.
Does this vehicle have Travel Assist?
The vehicle has Travel Assist, if the
button on the multi-function steering wheel is available.
Speed range
Travel Assist operates in a speed range between around 30 km/h (approximately 20 mph) and around 210 km/h (approximately 130 mph). This range is expanded
to, from 0 km/h (0 mph) to around 250 km/h (approximately 155 mph), for the adaptive lane guidance. This speed range may vary depending on the country.
182
Driving with Travel Assist
Travel Assist automatically regulates the speed and steers the vehicle. Within the system limitations, Travel Assist can also bring the vehicle to a halt behind a
stopping vehicle and drive on again.
You can override the Travel Assist regulation function at any time.
Displays

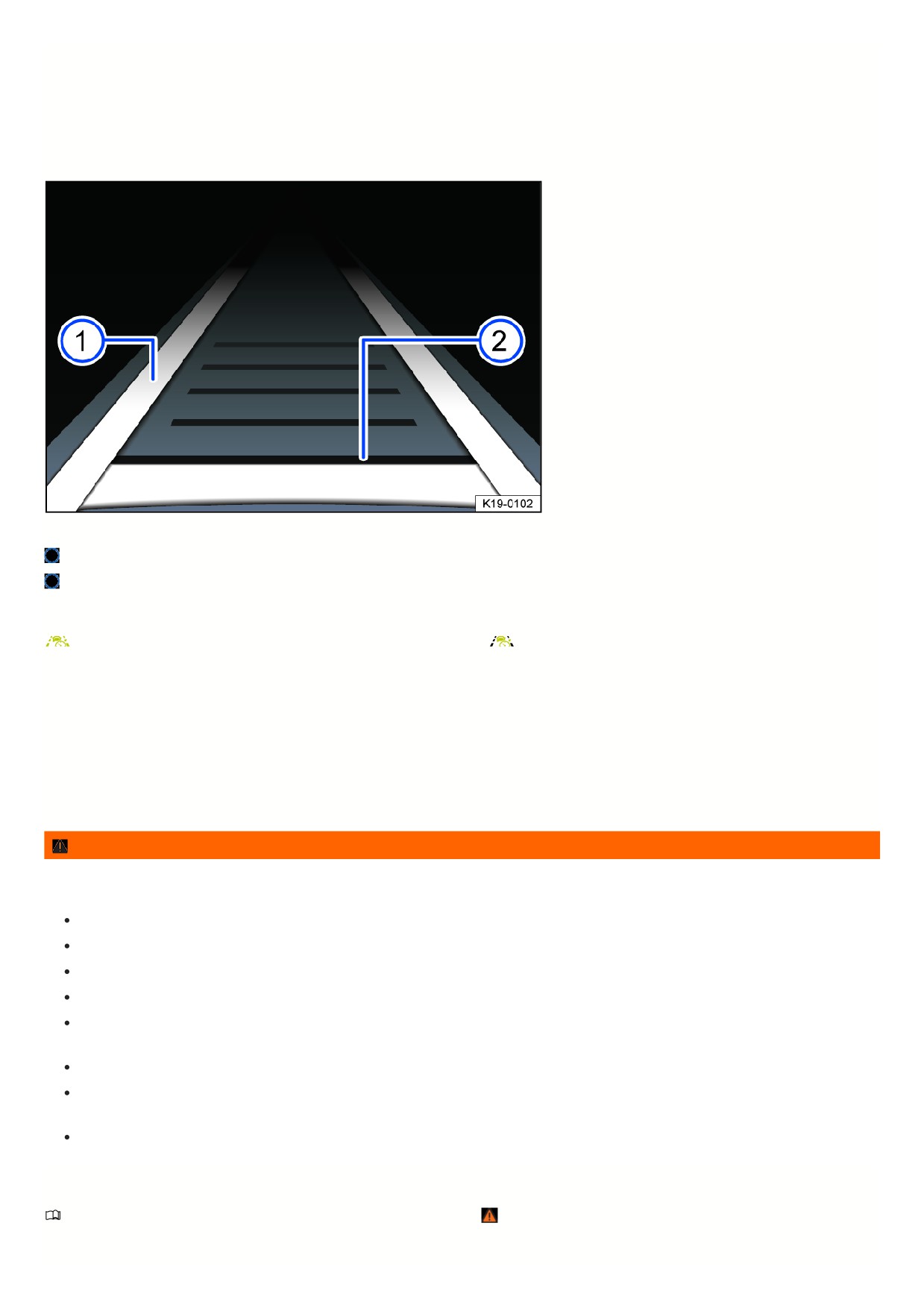

Fig. 123 In the instrument cluster display: Display during active control.
Adaptive lane guidance is active.
Set distance, no vehicle recognized in front.
Indicator lights on the instrument cluster display show the Travel Assist status, depending on the vehicle equipment:
Travel Assist active, Adaptive Cruise Control and adaptive lane guidance active.
Travel Assist active, Adaptive Cruise Control active and adaptive lane
guidance passive.
Driver intervention request
If you remove your hands from the steering wheel, the system will ask you to take over the steering wheel after a few seconds with a message in the instrument
cluster display and with audible warnings.
If you do not respond, the system warns you with a brief braking maneuver.
Travel Assist is then deactivated.
Alternatively, Emergency Assist is activated, depending on the vehicle equipment.
WARNING
The intelligent technology of the Travel Assist cannot overcome the natural laws of physics, and it can only operate within the limits of the system. Careless or
unintended use of the Travel Assist can cause accidents and serious injuries. The system cannot replace the driver's attention.
Always adapt your speed and distance to vehicles driving ahead based on the visual, weather, road, and traffic conditions.
Never use Travel Assist when visibility is poor or when roads are steep, winding, flooded, or slippery, for example from snow, ice, moisture, or gravel.
Never use Travel Assist when driving off-road or on unpaved roads. Travel Assist is only designed for use on paved roads.
Travel Assist does not react to persons, animals, vehicles crossing the lane or vehicles coming towards you in the same lane.
Take over steering immediately if a driver intervention prompt appears in the instrument cluster display or the deceleration by the Travel Assist is not
sufficient.
Apply the brakes if the vehicle continues to roll unintentionally, e.g. after a driver intervention prompt.
Always keep your hands on the steering wheel so that you are prepared to steer at any time. The driver is always responsible for keeping the vehicle
within the lane.
Always be ready to resume control of the vehicle speed.
Operating Travel Assist
Please read the introductory information and heed the Warnings and Notice
Introduction.
183

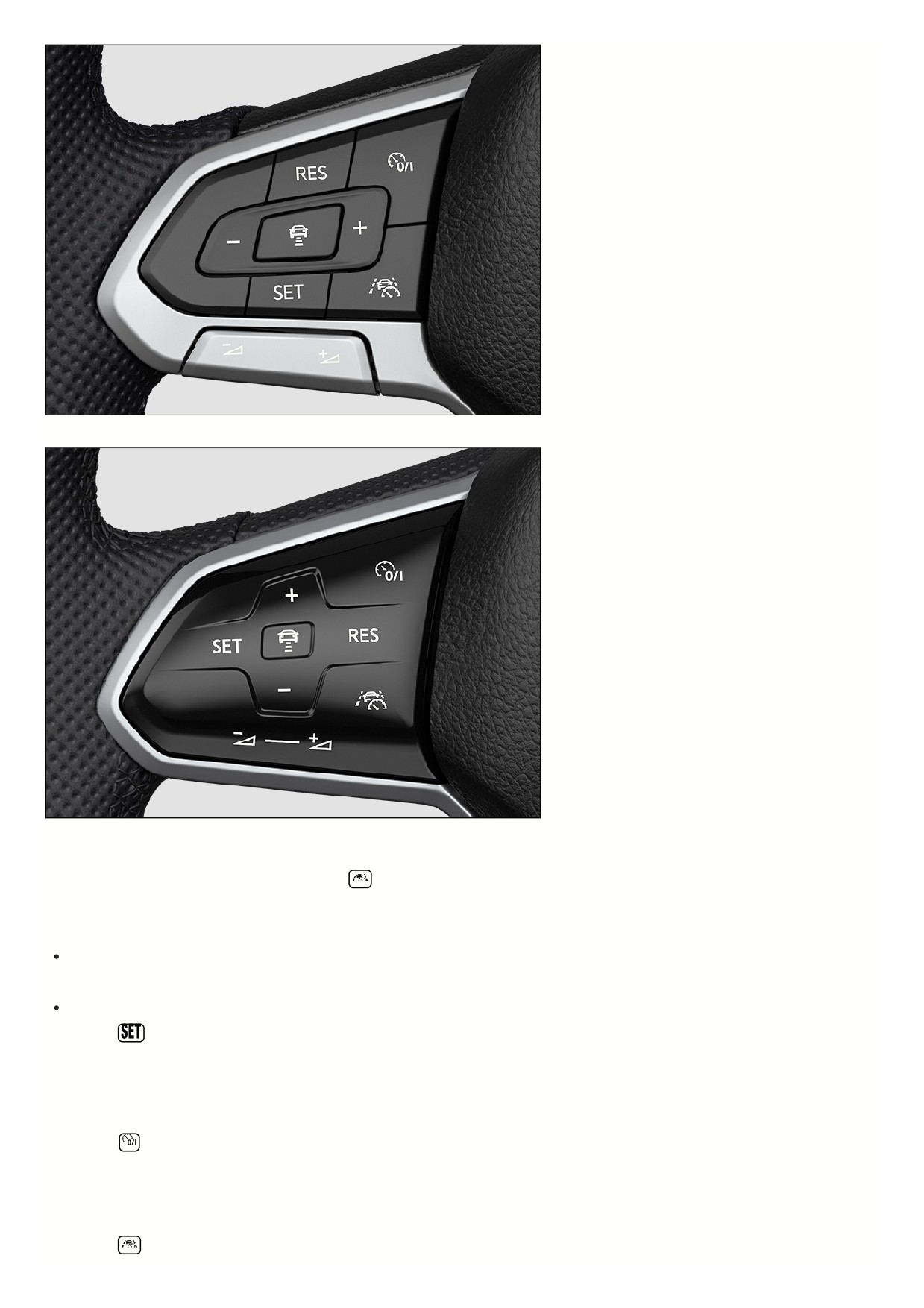

Fig. 124 Left side of the multi-function steering wheel (variant 1).
Fig. 125 Left side of the multi-function steering wheel (variant 2).
Switching on and starting the regulation function
1. During forward travel with ACC switched on, press the
button on the multi-function steering wheel.
The vehicle switches from ACC to Travel Assist.
Depending on the driving situation, the vehicle switches to the following system status in Travel Assist:
If ACC is regulating, Travel Assist maintains the current speed and the preset distance from the vehicle driving ahead (system status inactive).
At the same time, the vehicle is kept in its lane by steering movements when road markings are detected (system status active).
If ACC is not regulating, Travel Assist is switched on, but stays deactivated.
1. Press the
button.
Travel Assist switches the driving situation accordingly to an active or inactive system status.
The indicator/warning light corresponding to the driving situation comes on in the instrument cluster display. A notification is also displayed.
Canceling the regulation function
1. Press the
button briefly.
Or: Press the brake pedal.
The set distance remains saved.
Changing to ACC
1. Press the
button on the multi-function steering wheel.
184
The vehicle switches from Travel Assist to the system status of ACC corresponding to the driving situation.
Adjusting further settings
The further operation of Travel Assist corresponds to the operation of the ACC
Adjusting the ACC settings.
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
Introduction.
Comfort drive Travel Assist is not available or is not working as expected
The yellow indicator light turns on. In addition, a message is shown in the instrument cluster display.
There is a malfunction in the sensor system. Check the causes and troubleshooting measures described in the information on ACC and Lane Assist.
Malfunction or fault. Stop the engine and restart.
The system limitations are not adhered to.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Take over the steering
The white warning light will come on and a message will be shown in the instrument cluster display.
You have let go of the steering wheel for a few seconds.
1. Take hold of the steering wheel and take over steering the vehicle.
Take over the steering immediately
The red warning light will come on and a message will be shown in the instrument cluster display. An audible warning will sound or the steering wheel will vibrate,
depending on the driving situation.
You have let go of the steering wheel for a long period of time or the system limits have been reached.
1. Immediately take hold of the steering wheel and take over steering the vehicle.
Comfort drive Travel Assist switches off automatically
Vehicles without Emergency Assist:
You have let go of the steering wheel for a long period of time.
Malfunction or fault. Stop the motor and restart.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
The regulation function is canceled unexpectedly
You have operated the turn signal.
Semi-automatic vehicle control in a medical emergency (Emergency Assist)
Introduction
Emergency Assist can recognize driver
inactivity and can automatically keep
the vehicle in its lane and, if necessary,
slow it down to a stop. The system can
hereby actively help to avoid an
accident or reduce the consequences of
an accident.
Emergency Assist uses the same sensor technology as the Adaptive Cruise Control (ACC) and Lane Keeping System (Lane Assist). Therefore, carefully read all
the information about the ACC and Lane Assist and take note of the system limitations and notes specified in those sections.
WARNING
The intelligent technology of the Emergency Assist cannot overcome the laws of physics, and it can only operate within the limits of the system. The
responsibility for driving the vehicle always lies with the driver.
Always adapt your speed and remain a safe distance to vehicles driving ahead according to the visual, weather, road, and traffic conditions.
Emergency Assist alone cannot always avoid accidents and serious injury.
If the radar sensor or the front camera malfunctions, is covered or misaligned, Emergency Assist may carry out unwanted braking or steering
interventions.
Emergency Assist does not react to people, animals, vehicles crossing the lane or vehicles coming towards you in the same lane.
185
Driving with Emergency Assist
Please read the introductory information and heed the Warnings and Notice
Introduction.
Switching on and off
When the ignition is switched on, Emergency Assist is active under the following conditions:
The Lane Assist system and Adaptive Cruise Control (ACC) are switched on.
A gear is engaged for driving forward.
The system must detect lane markers on the left and right side of the vehicle.
If the Lane Keeping System (Lane Assist) is not available, Emergency Assist is not available either.
Driver intervention request
Using warning chimes and brief braking maneuver, Emergency Assist prompts an inactive driver to take over control of driving. In addition, a message is shown in
the instrument cluster display.
System intervention
If you do not respond, the system can brake the vehicle and keep it in its lane. In the instrument cluster display, one of the following indicator lights comes on:
System is regulating.
System is regulating.
You can override the regulation at any time by accelerating, braking or steering.
Whenever Emergency Assist is actively controlling the vehicle, the emergency flashers will switch on after a short delay to warn other road users.
If the remaining stopping distance is sufficient, the vehicle slows down, if necessary, to a stop. The electronic parking brake then switches on automatically.
WARNING
If Emergency Assist is triggered unintentionally, it could result in accidents or serious injury.
If the vehicle behaves unexpectedly, you can stop intervention by Emergency Assist by accelerating, braking or steering.
Switch off the Lane Keeping System (Lane Assist).
Do not use the comfort drive Travel Assist.
Seek assistance from suitably qualified professionals and have the system checked. Volkswagen recommends contacting an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.

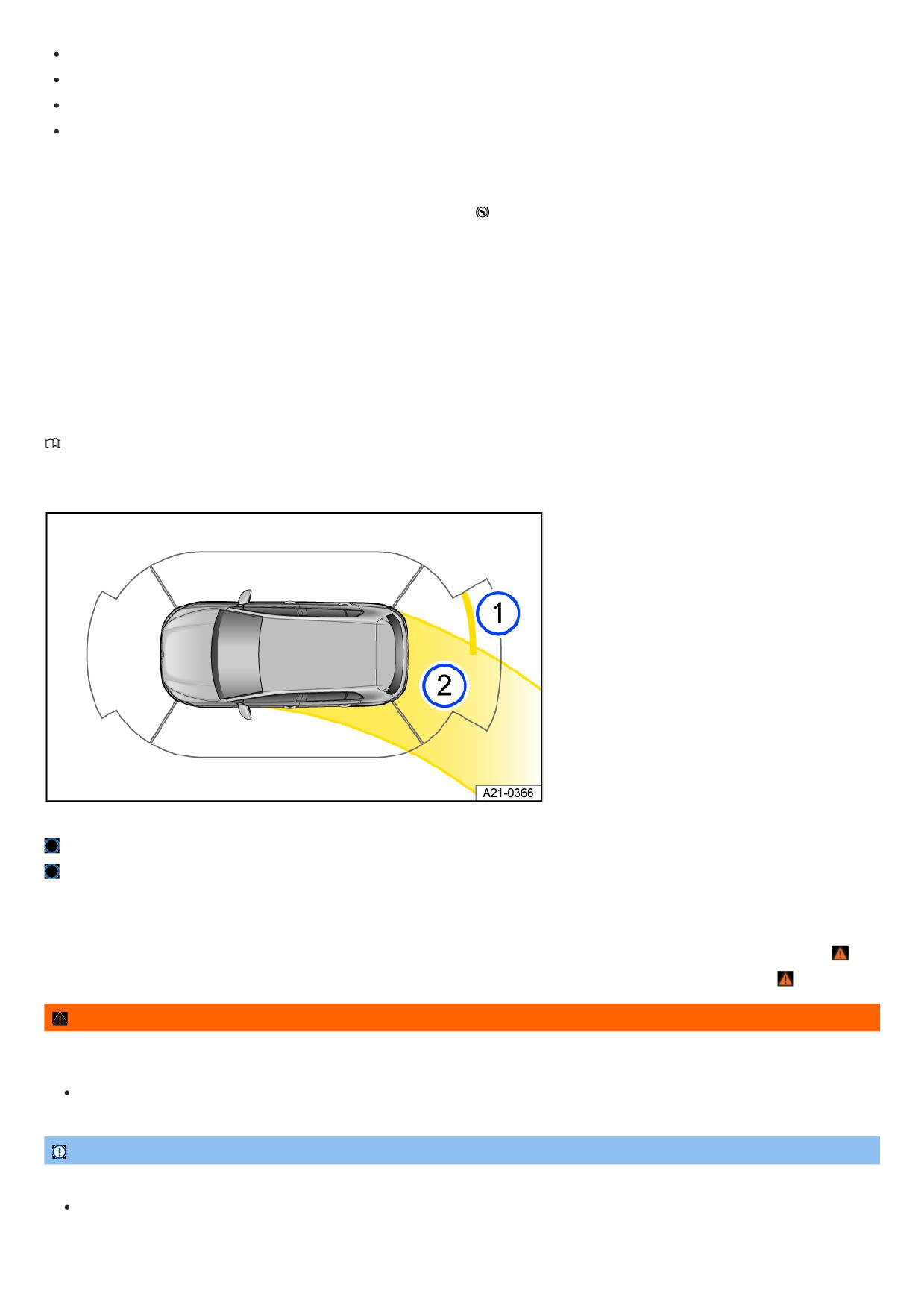

Lane Change System (Side Assist)
Introduction
The Lane Change System (Side Assist)
helps the driver to discern the traffic
situation behind the vehicle.
Radar sensors monitor the area behind the vehicle. The system measures the distance and difference in speed to other vehicles and informs the driver through
visual signals in the outside mirrors.
System limitations
Only use the Lane Change System on secure roads.
The Lane Change System may not interpret the traffic situation correctly in some situations, for example:
In tight curves.
When driving in the center of two lanes.
When lanes have different widths.
When driving at the top of a hill.
In poor weather conditions.
When certain types of equipment are on the side of the road, such as high or offset guard rails.
WARNING
The intelligent technology of the Lane Change System (Side Assist) cannot overcome the laws of physics and it can only operate within the limits of the system.
Do not allow the increased convenience of the Lane Change System (Side Assist) to tempt you into taking risks. Careless or unintended use of the Lane
Change System (Side Assist) can cause accidents and serious injuries. The system cannot replace the driver's attention.
Always adapt your speed and remain a safe distance to vehicles driving ahead according to the visual, weather, road, and traffic conditions.
Always keep your hands on the steering wheel so that you are prepared to steer at any time.
186
Pay attention to the displays in the outside mirror glass and in the instrument cluster display, and act accordingly.
Always pay attention to the area around your vehicle.
Never use the Lane Change System (Side Assist) if the radar sensors are dirty, covered up, or damaged. The function of the system may be impaired in
such cases.
Sunlight may reduce the visibility of the visual display in the outside mirror.
The radar sensors calibrate once, on the first kilometer of a journey after the vehicle is delivered, and then again if the sensor technology has been repaired. The
range of the sensors may be limited during the calibration phase.
Driving with the lane change system
Please read the introductory information and heed the Warnings and Notice
Introduction.
Switching on and off
You can view the switched on condition of Side Assist in the instrument cluster display and in the Infotainment system. You can also switch Side Assist on and off
there.
In the instrument cluster display:
1. Press the
button.
2. Switch the Lane Change System (Side Assist) on or off.
Depending on the vehicle equipment, the
button is located either on the multi-function steering wheel or the turn signal and high beam lever.
In the Infotainment system:
1. Open the Assistance systems menu.
2. Switch the Lane Change System (Side Assist) on or off in the corresponding submenu.

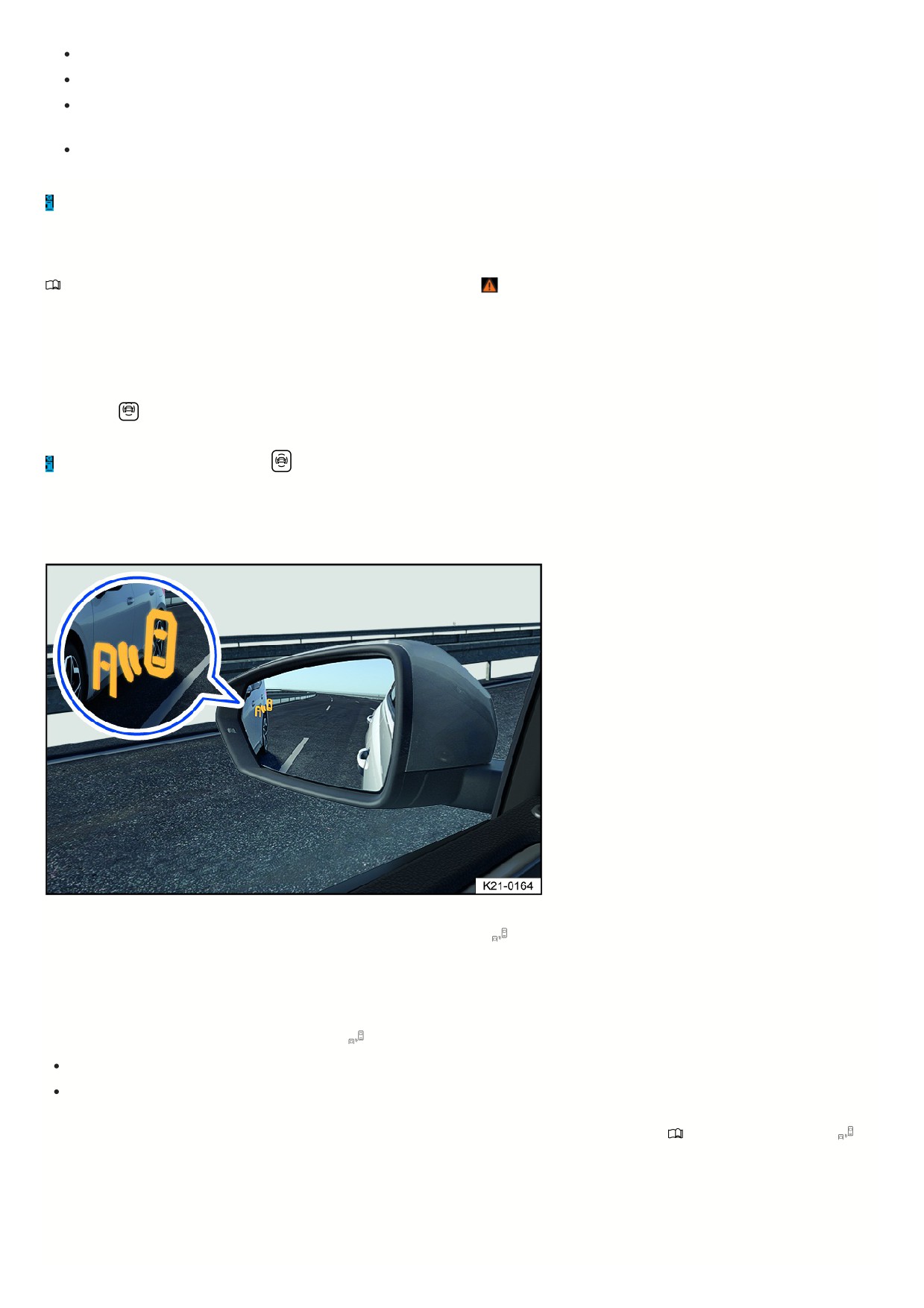

Fig. 126 In the outside mirror: Visual indicators for Side Assist.
When the Lane Change System (Side Assist) is switched on, the yellow indicator light
comes on once briefly in the outside mirror.
System function
The switched on lane change system is active from approximately 9 mph (approximately 15 km/h). The lane change system deactivates at a speed below
approximately 6 mph (approximately 10 km/h).
In the following driving situations, the yellow indicator light
in the outside mirror will come on:
When your vehicle is passed.
When passing another vehicle and the difference in speed between the two vehicles is up to approximately 9 mph (approximately 15 km/h). There is no
indicator if the passing speed is clearly faster.
If a vehicle was detected in the blind spot and the turn signal on the side where the vehicle was detected is activated
Introduction, then the yellow
indicator light flashes.
The faster another vehicle approaches, the sooner the display in the outside mirror will turn on.
Lane change system “Side Assist Plus”
In vehicle with a Lane Keeping System (Lane Assist), a corrective steering intervention warns you when a possibly critical situation is detected when changing lane
(information level, warning level), if the Lane Keeping System (Lane Assist) is switched on. The steering intervention also occurs if you activate the turn signal for
187
the respective side. If you oversteer the steering intervention, an additional warning is provided by a steering wheel vibration. Steering wheel vibration must also be
activated in the Assistance systems menu in the Infotainment system.
Automatic deactivation
The lane change system switches off automatically if the radar sensors are permanently covered. For example, this could be from ice or snow covering the radar
sensor.
A message will appear in the instrument cluster display.
If the Lane Change System (Side Assist) is automatically deactivated, the system can be activated only after switching the ignition off and back on.
If you use the trailer hitch installed at the factory and have made the required electrical connection, the Lane Change System (Side Assist) will switch off
automatically. Once you have disconnected the electrical connection, the Lane Change System (Side Assist) will be automatically switched on again. For trailer
hitches that were not installed at the factory, you must switch the Lane Change System (Side Assist) off and on again manually.
Brightness
The brightness of the visual display adapts it self automatically to the ambient brightness.
You can set the default brightness of the display in the Assistance systems menu of the Infotainment system. The lane change system is not active while making th
settings.
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
Introduction.
Lane change system malfunctioning
Malfunction or fault. The yellow indicator light turns on. In addition, the yellow central warning light
comes on.
1. Contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Malfunctioning sensor view, malfunction message, system switches off automatically
Clean the radar sensors and remove labels or accessories from the radar sensors Exterior care and cleaning.
Check if there is any noticeable damage.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
The system is functioning differently than expected
The radar sensors could be dirty Exterior care and cleaning. In addition to dirt and snow, the sensor range can also be impaired by soap residue or other
coatings.
The system conditions are not met
Introduction.
The radar sensors could be covered by water.
The vehicle could be damaged in the radar sensor area, for example from parking barriers.
The coverage areas of the radar sensors could be blocked by attachments, for example by bicycle carriers.
The paint may have been changed or other structural modifications may have bee made near the radar sensors, for example to the front of the vehicle or to the
suspension.
The side mirrors may be covered with after-market tinting films.
If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
188
Parking and maneuvering
Parking the vehicle
Parking
WARNING
Parking the vehicle incorrectly can result in the vehicle rolling, even on slight downhill slopes. This can cause accidents and serious injuries.
When parking, always follow the steps in the specified order.
Before exiting the vehicle, make sure the electronic parking brake is activated and the red warning light
comes on in the Volkswagen Digital
Cockpit display once the ignition has been switched off.
Ignition switch: Never remove the remote vehicle key from the ignition switch when the vehicle is in motion. Otherwise, the steering lock could engage
suddenly. Then you would not be able to steer the vehicle.
1. Press and hold the brake pedal.
2. In vehicles with an automatic transmission, move the selector lever into the P position.
3. Set the electronic parking brake.
4. On uphill and downhill slopes, turn the steering wheel so that the vehicle will roll into a curb if it begins moving.
5. Stop the engine and switch the ignition off.
The red
indicator light in the instrument cluster display will turn on.
6. Release the brake.
7. To engage the steering lock, you may need to turn the steering wheel slightly.
8. Exit the vehicle
. Pay attention to other road users.
9. Take all vehicle keys with you and lock the vehicle.
WARNING
If children, people requiring assistance or animals are left unattended in the vehicle, there is a risk of accidents and serious injuries.
Never leave children, people requiring assistance or animals unattended in the vehicle. They could move the selector lever, switching off the electronic
parking brake. The vehicle could move.
Never leave children, people requiring assistance or animals in the vehicle. Depending on the season, the temperature inside the vehicle could become
very high or low.
Always take all vehicle keys with you when leaving the vehicle.
To avoid damage and dangerous situations, always park the vehicle in a suitable parking area
NOTICE
Any unevenness in the ground, as well as sand and mud may mean that the vehicle cannot be parked safely and may be damaged.
Always park the vehicle on solid and level ground.
NOTICE
Vehicle components that are low to the ground such as the bumpers, spoilers, and parts of the suspension could be damaged when driving over objects
protruding up from the ground.
Drive carefully over driveways, ramps, curbs and fixed barriers, as well as when driving through dips.
Electronic parking brake
189

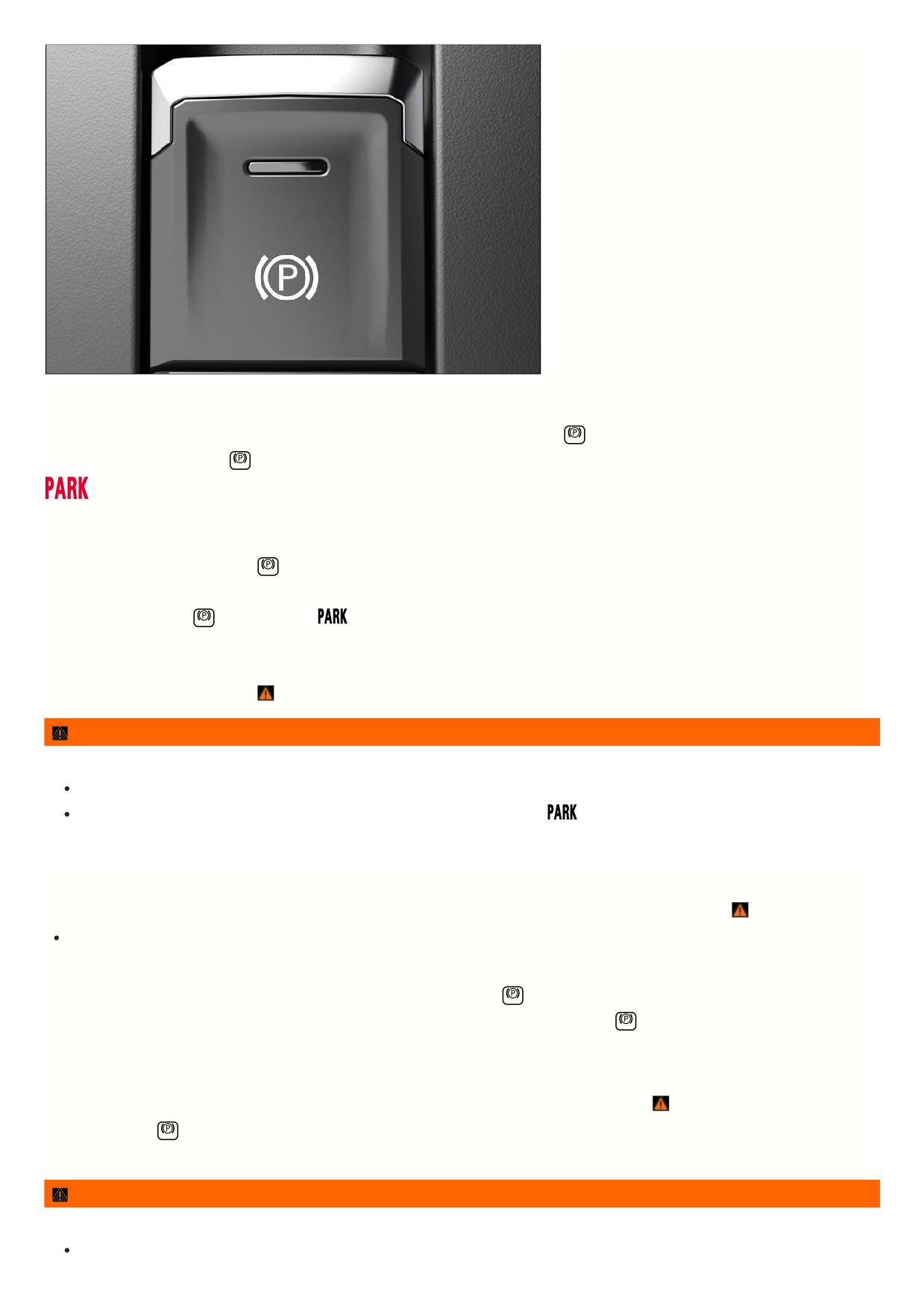

Fig. 127 In the center console: button for the electronic parking brake.
Switching on
1. When the vehicle is stationary, pull and hold the button for the electronic parking brake fig. 127
The yellow indicator light in the
button comes on.
If the electronic parking brake is switched on, the red indicator light comes on in the instrument cluster.
Switching off
1. Switch the ignition on.
2. Press the brake pedal and press the
button.
Or: when the engine is running, press the accelerator pedal lightly without pressing the brake pedal.
The indicator light in the
button and the red
warning light in the Volkswagen Digital Cockpit will turn off.
Automatic switch-on if you leave the vehicle incorrectly
In vehicles with an automatic transmission or DSG® automated transmission, if the system detects that the vehicle was exited incorrectly, it can switch on the
electronic parking brake automatically
WARNING
Exiting the vehicle incorrectly can result in the vehicle rolling. This can cause accidents, serious injuries, and property damage.
Always follow the specified steps in the correct order when parking the vehicle.
Before exiting the vehicle, make sure the electronic parking brake is activated and the red
warning light in the Volkswagen Digital Cockpit display
comes on after switching off the ignition.
Automatic switch-off when starting to drive
The parking brake releases automatically as you drive off if one of the following situations occurs when the driver's door is closed
:
Automatic transmission: A gear is engaged or changed.
Starting to drive on steep inclines or with increased vehicle weight
You can prevent the electronic parking brake from releasing automatically if you pull the
switch upward and hold it up while starting to drive.
If more engine power is required when starting to drive, the electronic parking brake will release only after the
switch is released.
This can make it easier to start driving when towing a heavy load.
Emergency braking function
Only use the emergency braking function in an emergency, if the vehicle cannot be stopped using the brake pedal
1. Pull and hold the
switch.
The vehicle will brake abruptly. A warning chime will also sound at the same time.
WARNING
Using the electronic parking brake incorrectly can cause accidents and serious injuries.
Always use the brake pedal to brake the vehicle and never the electronic parking brake unless it is an emergency. The braking distance will be
19
significantly longer because only the rear wheels will be braked under certain circumstances.
Do not press the accelerator pedal when the engine is running and a gear is engaged if the vehicle is to be brought to a standstill. The parking break may
release and the vehicle could start to move.
Noises can be heard when the electronic parking brake is operated or checked after a longer period.
Troubleshooting
Holding force in the current situation is too low
The red warning light
is blinking.
It is not possible to park the vehicle safely.
1. Park the vehicle in another location or on a flat surface.
/
Electronic parking brake malfunction
The yellow central warning light comes on. The
symbol with a message is additionally shown in the instrument cluster display.
1. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
The electronic parking brake does not switch off
The requirements for switching off the electronic parking brake are not met
Electronic parking brake .
The 12 V vehicle battery is drained Preparing and Performing a Jump-start.
Information about the parking systems
Safety instructions
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Do not allow the increased convenience provided by the parking systems to tempt you into taking risks. The parking systems cannot replace the driver's
attention.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Always keep an eye on the parking direction and the vehicle surroundings. Pay particular attention to small children, animals and objects.
Bear in mind that the parking system may not be able to react if the vehicle approaches too quickly and no warning is issued.
Do not allow the parking system's display to distract you from the traffic around you.
WARNING
Camera lenses enlarge and distort the field of vision. Using the camera image to estimate the distance to people or obstacles may not be precise and can cause
accidents and serious injuries.
Do not rely on the camera system image.
NOTICE
In parking spaces without a curb, park at least 20 inches (50 cm) away from walls and buildings to reduce the risk of vehicle damage.
Sensor and camera boundaries
Various sensors and cameras that detect the vehicle surroundings ultrasonically, by radar waves, and visually are located on and in the vehicle. The various parking
systems use different combinations of sensors. All sensors have technical and physical limits
:
In some situations, some objects may not be detected, e.g. trailer draw bars, narrow poles, fences, posts, and trees, extremely low or high obstacles, or trunk
lids that are opening or already open
The parking system coverage areas have “blind” spots in their range where they cannot detect people and objects.
Dirt, ice, or water on the sensors and cameras may be detected as obstacles or prevent the detection of objects in some cases. In addition to dirt and snow,
soap residue or other coatings can also impair the sensor range page , Exterior care and cleaning.
External noises and certain surfaces on objects and clothing can affect the sensor signals. In some situations, people and objects may not be detected or may
be detected incorrectly.
191
Certain objects, such as small posts or grating, cannot be shown or cannot be adequately shown due to the resolution of the screen and if there is insufficient
lighting.
The cameras only show two-dimensional images on the screen. Due to the lack of depth of field, it may be difficult or impossible to identify protruding objects o
recesses in the road.
Volkswagen recommends practicing with the parking systems in a location or parking space with no traffic in order to become acquainted with the functions.
Requirements
The use of parking systems, e.g. with camera assistance, may not be allowed in some regions according to legal provisions.
Use the parking systems only where permitted by legal provisions.
General information
So that the sensors and cameras can detect the area surrounding the vehicle as well as possible and display this image on the Infotainment system screen, the
following requirements must be met.
The doors and trunk lid are closed.
The outside mirrors must not be folded in.
The sensors or cameras are not covered by attachments or decorative license plate frames. The decorative number plate frame and the number plate itself
must not protrude at the sides or bottom.
The vehicle must be on level ground.
The vehicle must not be loaded primarily in the rear or on one side.
Engine is running.
Braking assistance systems such as ESC or ASR are switched on.
If you use any other functions in the Infotainment system while you are parking, the parking function and its warning chimes will be deactivated.
Finding a suitable parking space
The length and width of the parking space must be larger than the vehicle measurements and provide enough space to maneuver.
The distance when driving past the parking space is approx. 1 m (approx. 3 feet).
Vehicles with Park Assist: The speed when passing the parking space is, for parking spaces parallel to the road, maximum approx. 40 km/h (approx.
25 mph), and for parking spaces across the road maximum approx. 20 km/h (approx. 12 mph).
Automatic braking intervention
A parking system's automatic braking
support helps to avoid collisions, if an
obstacle is detected.
Parking systems with braking support
Depending on the vehicle equipment, the vehicle has parking systems with a maneuvering and/or emergency braking function
WARNING
The increased comfort offered by the parking system automatic braking intervention should not cause you to take safety risks. In some situations, function of the
automatic braking intervention may be limited or it may not function at all. Collisions with obstacles can lead to injuries and vehicle damage. The system cannot
replace the driver's attention.
Stay attentive and do not rely only on the parking systems.
Always be ready to take over braking and steering.
Do not take any risks when it comes to safety.
React to the warnings and recommendations from the parking systems.
Requirements
When maneuvering, the vehicle is not driving faster than approx. 10 km/h (approx. 6 mph).
A parking system has been switched on.
What happens during an automatic braking intervention?
If there is an obstacle, the vehicle brakes to a stop and is kept stationary for around two seconds.
1. After braking, press the brake pedal to keep the vehicle stationary.
192
2. Check your surroundings.
Park Assist: If the speed is too high, the vehicle will brake to a stop. The parking process can then be resumed.
Depending on the vehicle equipment, there may be a message on the instrument cluster display.
Switching on and off
Automatic braking is activated or deactivated when a parking system is switched on or off by the driver.
1. Or: tap the
function key in the parking system's screen display.
Maneuver braking for Park Distance Control
Automatic braking support is only possible when there are obstacles in the rear area.
1. Brake if there is an obstacle nearby in front of the vehicle.
Driving with a trailer
If a trailer is connected electrically, the automatic braking support in the rear area is deactivated.
If the trailer hitch was not installed at the factory, the parking system must be manually deactivated when towing a trailer.
General information
Switch the parking system off if automatic braking support happens too frequently, like when driving off-road.
If the maneuver braking function for Park Distance Control intervenes to stop the vehicle, the function will be inactive for a distance of approx. 5 m (approx.
16 ft) when driving in the same direction. It will become active again if the gear or selector lever position changes.
The parking process is canceled following Park Assist emergency braking due to an obstacle.
Following a Rear Traffic Alert emergency braking intervention, it will take approx. 10 seconds before automatic braking support can occur again.
Troubleshooting
The parking system is functioning differently than expected
The system conditions are not met Requirements.
The sensors or camera may be dirty or covered with ice
Exterior care and cleaning.
The camera lens is dirty and the camera image is not clear Exterior care and cleaning.
Sources of noise, such as a jackhammer or driving over cobblestones, can interfere with the ultrasonic signal.
The vehicle is damaged in the area of the sensors or camera, for example from parking barriers, or the paint may have been changed or other structural
modifications may have been made near the sensors or camera, for example to the vehicle front end or to the suspension.
The areas detected by the sensors or camera may be blocked by accessories such as bicycle racks.
Fault displays
1. Note any messages on the instrument cluster display and in the Infotainment system.
NOTICE
Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility in the event of a parking system malfunction. Volkswagen recommends
contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
No sensor or camera view or the parking system has been switched off
If a sensor malfunctions, the sensor area is deactivated. The sensor area affected can be displayed in the Infotainment system by the
symbol. The parking syste
may be completely switched off.
If Park Distance Control is malfunctioning, a continuous tone will sound for several seconds when you switch it on. Where applicable, a message will appear in the
instrument cluster display.
1. Check if one of the causes listed is responsible.
2. Once the source of the issue has been resolved, switch the system on again.
3. If the problem persists, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
The Park Assist is canceled automatically
Park Assist will end the parking process if one of the following situations occurs:
The
function key is pressed.
The driver takes over steering.
193
The driver’s door is opened.
The time limit or number of movements for the parking process is exceeded.
ASR is switched off or it engages.
There is a system malfunction.
1. Restart the parking process.
Park Assist is active and supports steering movements when the vehicle is stationary
If Park Assist attempts to turn the steering while the vehicle is stationary, the white
symbol appears in the instrument cluster display.
1. Press the brake pedal.
After a wheel change, Park Assist parks inaccurately
If, after a wheel change, Park Assist parks inaccurately, e.g. with an increased or reduced distance from the curb, the system may have to acquire the wheel sizes
again.
1. Drive the vehicle over a longer distance, including around bends.
The Park Assist system automatically learns the new wheel sizes.
Park Distance Control (PDC)
Introduction
Park Distance Control assists the driver
when parking and warns if there are
obstacles.

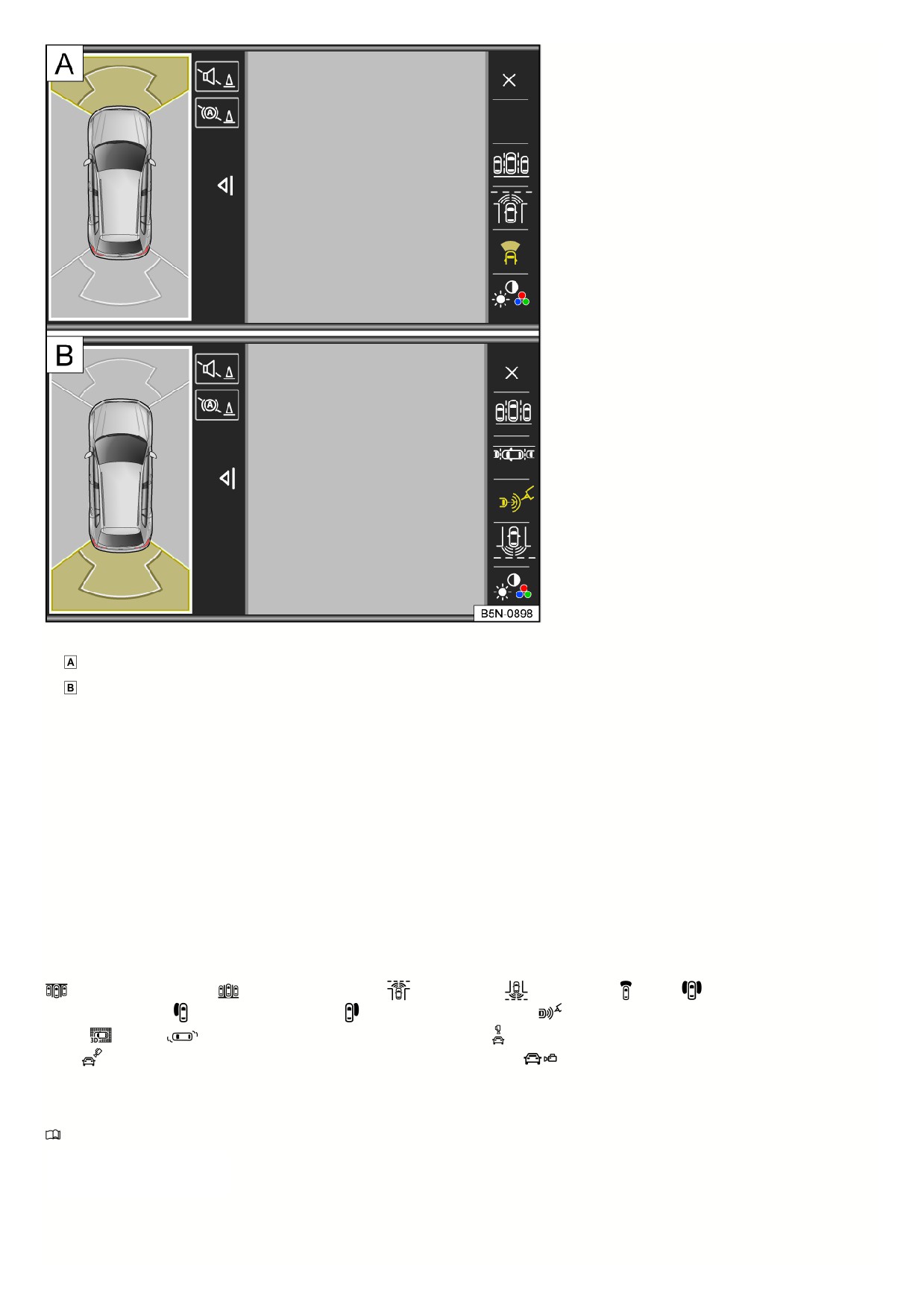

Fig. 128 Infotainment system: Display of Park Distance Control (general example).
Obstacle detection.
Steering lock.
System function
Using ultrasound sensors, the Park Distance Control detects the distance of the vehicle from an obstacle.
The Park Distance Control warns you of a collision via colored segments on the screen of the Infotainment system and via warning chimes fig. 128,
If the driver does not respond to an approaching obstacle, automatic braking support may intervene (depending on the vehicle equipment)
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Not paying attention can result in accidents, serious injuries and vehicle damage.
The PDC cannot replace the driver's attention.
NOTICE
The collision area has been reached, at the latest, when the penultimate segment is displayed or a continuous warning tone sounds.
Brake the vehicle in good time before reaching an obstacle.
194
NOTICE
Depending on the vehicle equipment, distances to obstacles in the side areas are also displayed. In order to fully scan and display the side areas, you must
move the vehicle a few yards forward or back. Any obstacles that enter these areas from the outside are not displayed.
Screen display
Red section of the image: Nearby obstacle. The vehicle is at risk. Apply the brakes.
Yellow section of the image: Obstacle in the path of the vehicle.
The vehicle is at risk. Steer around the obstacle.
White or gray section of the image: Obstacle outside of the vehicle's path.
Switch maneuver braking
on and off (depending on the vehicle equipment).
Mute the warning chimes. There is a system malfunction in the area that is detected (depending on vehicle
equipment). The colors may vary.
NOTICE
The system will only provide visual and audible warnings for obstacles within the vehicle's path.
Park Distance Control settings
Depending on the vehicle equipment, settings for the Park Distance Control can be adjusted in the vehicle settings in the Infotainment system
Vehicle settings
menu.
Special considerations when towing a trailer
If a trailer electrical system is connected, the rear sensors of the Park Distance Control are not switched on:
You are not warned about obstacles.
The maneuver braking is also deactivated automatically.
Switching Park Distance Control (PDC) on and off
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.

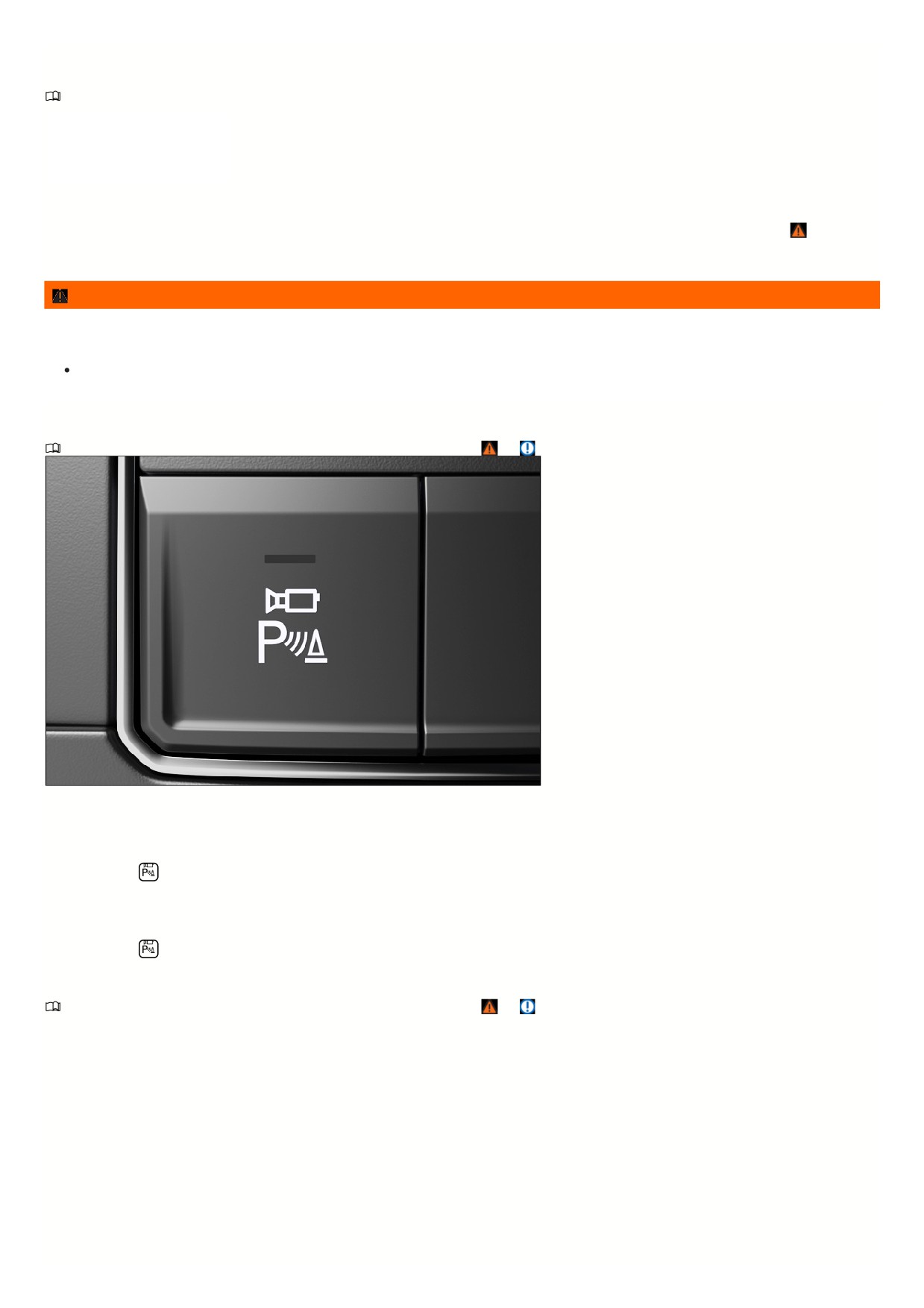

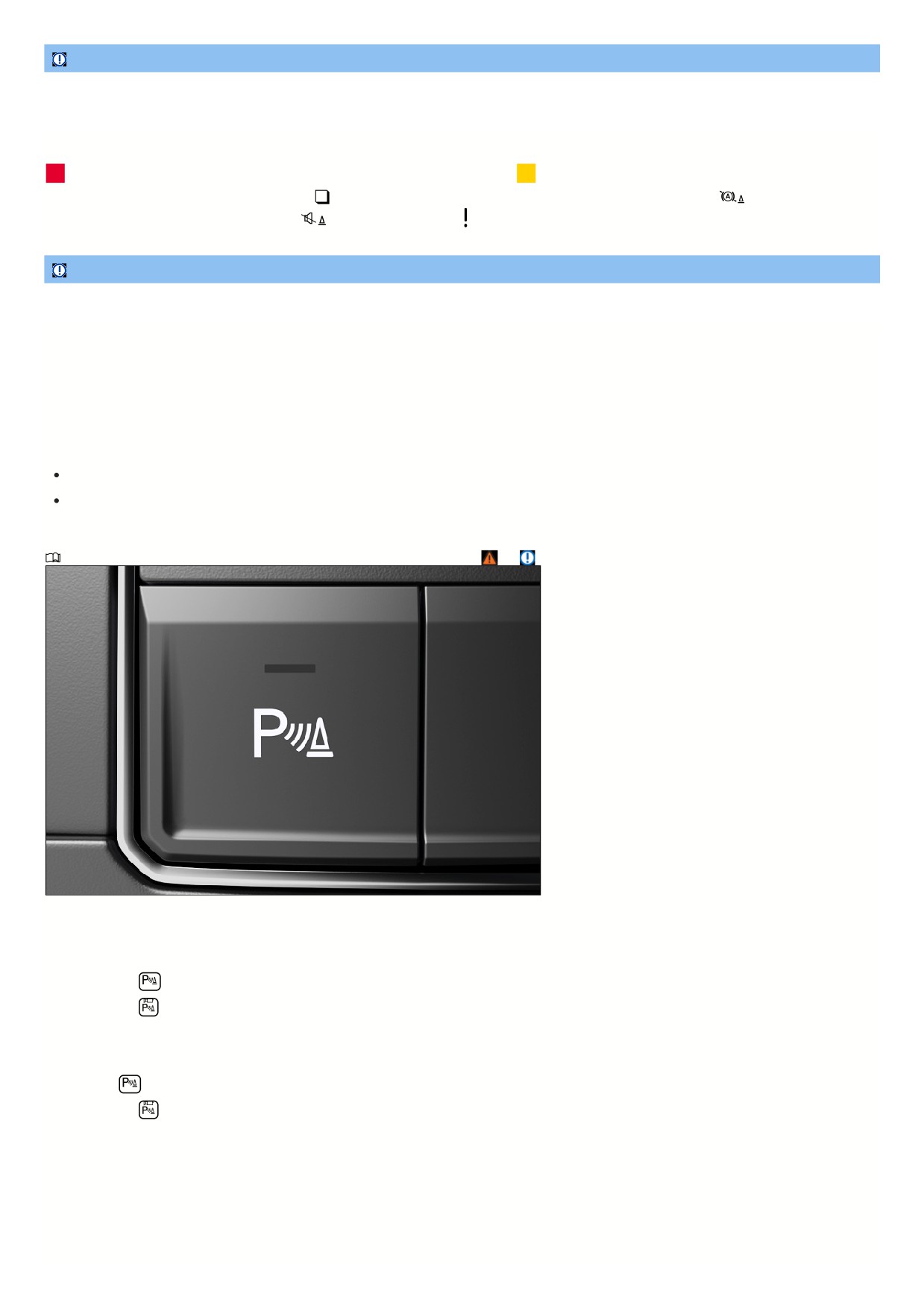

Fig. 129 In the center console: Park Distance Control button.
Switching on
1. Select the reverse gear.
Or: Press the
button fig. 129.
Or: Press the
button.
Or: The vehicle will roll backward.
Switching off
1. Press the
button fig. 129.
Or: Press the
button.
Or: engage the P selector lever position.
Or: the vehicle is driving forward at more than approx. 10 km/h (approx. 6 mph) up to approx. 15 km/h (approx. 9 mph).
Automatic activation when driving forward
If the vehicle slowly approaches an obstacle, Park Distance Control is automatically activated.
1. Switch the function on or off in the Infotainment system vehicle settings
Vehicle settings menu.
195
If the driver switches off Park Distance Control, no further automatic activation occurs.
Automatic activation is available again under following conditions:
The vehicle has been accelerated to more than approx. 15 km/h (approx. 9 mph) and then the speed has fallen below this again.
Or: the ignition has been switched off and on again.
Or: parking lock P has been changed to a gear.
If an obstacle is detected in front of the vehicle, the display in the Infotainment system is activated. If the vehicle approaches further, warning chimes also
sound.
Rear View Camera (Rear View)
Introduction
The Rear View Camera system in the
rear of the vehicle makes it easier for
the driver to see behind the vehicle and
assists when parking.
System function
The Rear View Camera system shows the area behind the vehicle on the Infotainment system screen. Depending on the mode and vehicle equipment, orientation
lines may assist in the view toward the rear
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Not paying attention can result in accidents, serious injuries and vehicle damage.
The PDC cannot replace the driver's attention.
Brake the vehicle in good time before reaching an obstacle.
The orientation lines superimposed on the camera image are shown by the system regardless of the vehicle's surroundings. There is no automatic obstacle
detection by the camera while it is active. The driver must evaluate whether the vehicle will fit in the parking space.
If a trailer is connected to the factory-installed trailer hitch, all orientation lines for the rear area are hidden in the camera image.
If a camera is installed in the trunk lid, the orientation lines are also hidden if the trunk lid is open.
USA and Canada: If the camera image on a parking system has been switched on by engaging the reverse gear, no function keys are displayed for safety reasons.
These function keys can be displayed again by tapping the function key
Switching the Rear View Camera system on and off
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
Switching on
Rear View Camera system without parking mode selection:
1. Select the reverse gear.
Rear View Camera system with parking mode selection:
1. Select the reverse gear.
Or: Press the
button.
Switching off
Rear View Camera system without parking mode selection:
1. Disengage reverse gear.
Rear View Camera system with parking mode selection:
1. The vehicle drives at more than approx. 9 mph (approx. 15 km/h).
Or: Press the
button.
Parking (Rear View Camera system without parking mode selection)
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
196

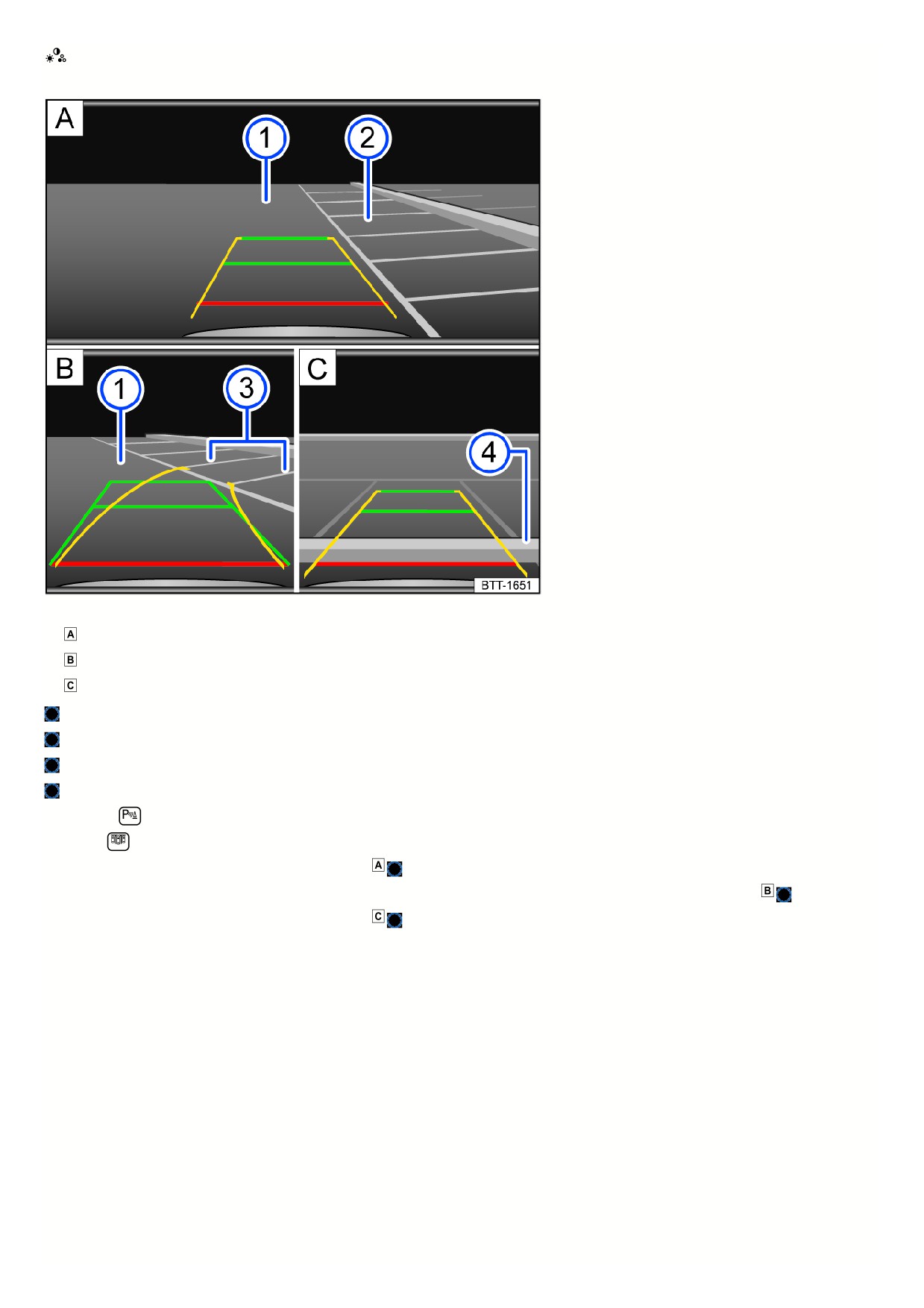

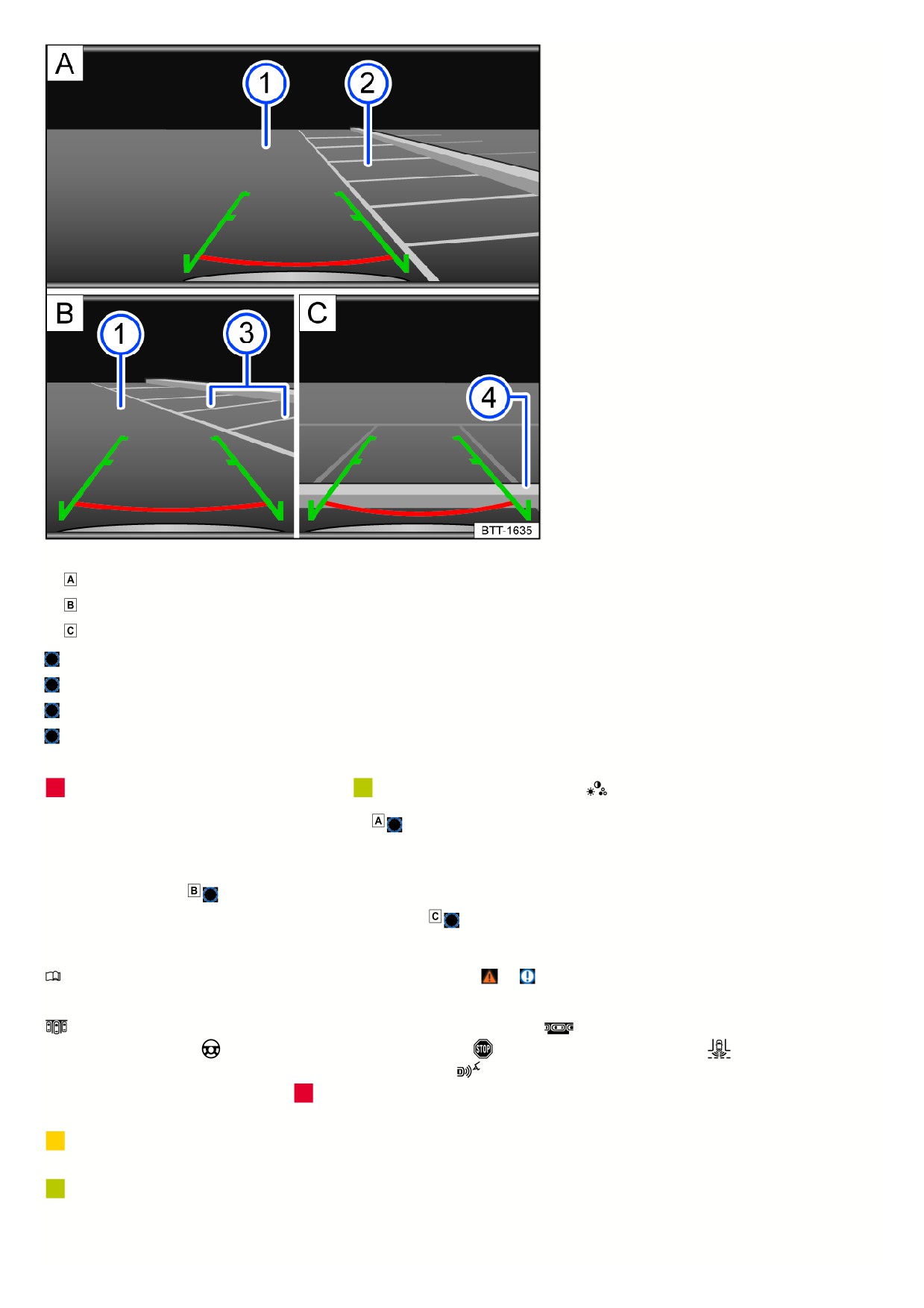

Fig. 130 Infotainment system: Parking with the Rear View Camera system.
Searching for a parking space.
Steering toward the selected parking space.
Aligning the vehicle within the parking space.
Road surface.
Selected parking space.
Side boundaries of the selected parking space.
Rear boundary of the parking space.
Screen display
Red line: Boundary or safety distance from the vehicle.
Green side line: Extension of the vehicle.
Adjust the brightness, contrast, and color.
1. Position your vehicle in front of the parking space fig. 130
2. Select the reverse gear.
3. Slowly reverse while steering so that the green side lines line up with the selected parking space. The green lines must line up with the side boundaries of your
parking space fig. 130
4. Stop when the red horizontal line reaches the rear boundary fig. 130
Parking (Rear View Camera system with parking mode selection)
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
Screen display
Perpendicular parking: Guide lines help when parking in reverse perpendicular to the road.
Parallel parking: Guide lines and boxes help when parking
in reverse parallel to the road.
Turn the steering wheel (parallel parking mode).
Stop the vehicle (parallel parking mode).
Cross traffic: Depiction of the
area behind the vehicle and the areas to the side of the vehicle at a wide angle.
Trailer or terrain assistance: Depiction of the area immediately behind the
vehicle with a high zoom factor and guide lines.
Red line: Boundary or safety distance from the vehicle.
Red frame: Outline of the vehicle (parallel parking).
Yellow lines: the vehicle's path based on the steering angle.
Yellow assisting box: front or rear edge of the parking space (parallel parking)
Green horizontal lines: Boundaries.
Green line on the side: turning point when parking (parallel parking).
Green frame: outline of the vehicle (parallel parking).
197
Adjust the brightness, contrast, and color.
Parking mode: Parking perpendicular to the road
Fig. 131 Infotainment system: Parking perpendicular to the road.
Searching for a parking space.
Steering toward the selected parking space.
Aligning the vehicle within the parking space.
Road surface.
Parking space.
Side boundary of the parking space.
Rear boundary of the parking space.
1. Press the
button or function key before driving past the parking space.
2. Tap the
function key in the Infotainment system to select the parking mode.
3. Position your vehicle in front of the parking space fig. 131
4. Steer so that the yellow lines lead into the parking space. The green and yellow lines must align with the side boundary lines fig. 131
5. Stop when the red line reaches the rear boundary fig. 131
Parking mode: Parallel parking
198
Fig. 132 Infotainment system: Parking parallel to the road.
Searching for a parking space.
Steering toward the selected parking space.
Aligning the vehicle within the parking space.
Road surface.
Obstacle or assisting box.
Side boundary of the parking space.
Obstacle or assisting box.
1. Press the
button or function key before driving past the parking space.
2. Tap the
function key in the Infotainment system to select the parking mode.
3. Turn on the turn signal for the corresponding side of the road.
4. Position the vehicle at a distance of approximately 1 m (3 ft) parallel to the parking row. The yellow assisting boxes must cover the obstacles fig. 132
o
. The area in between must be free of obstacles.
5. Select the reverse gear. A red frame represents the target position of your vehicle fig. 132
6. Turn the steering wheel until the red frame moves between the assisting boxes and becomes green fig. 132 . Hold the steering wheel in this position while
driving in reverse.
If the steering wheel angle needs to change, one of the yellow side lines will become red. The
steering wheel symbol indicates to the driver when the
steering wheel must be turned.
7. Drive slowly in reverse until the
stop symbol appears or the green line aligns with the side boundary of the parking space fig. 132 . An fig. 132
arro
indicates the remaining distance to be driven based on the number of displayed segments.
8. Stop the vehicle. Steer in the opposite direction until the steering angle is reached and a direction arrow is no longer displayed.
9. Keep driving in reverse until the
stop symbol appears or until the red line reaches the rear boundary.
Parking mode: Trailer support
On vehicles with a trailer hitch installed at the factory, trailer support can be used for assistance when attaching the trailer to a draw bar.
1. Tap the
function key to select the parking mode.
Colored guide lines help you with the maneuvering process.
Red lines: position of the trailer hitch.
Green lines: distance to the trailer hitch.
Orange line: predicted direction of the trailer hitch based on the steering
wheel angle.
199
Area View
Introduction
The Area View shows the entire vehicle
environment in real time. This function
helps you recognize obstacles in good
time in situations where there might be
blind spots.
System function
The system uses multiple cameras to create images of the vehicle environment, which are then displayed on the Infotainment system screen
The functions and displays of the Area View may vary depending on the vehicle equipment, e.g. if Park Distance Control is available and is also displayed.
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Not paying attention can result in accidents, serious injuries and vehicle damage.
The PDC cannot replace the driver's attention.
Switching on and off
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
Fig. 133 In the center console: Button for switching the Area View on and off.
Switching on
1. Select the reverse gear.
Or: Press the
button fig. 133.
Switching off
1. Drive faster than approx. 9 mph (approx. 15 km/h).
Or: Press the
button fig. 133.
Changing the camera perspective
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
2
Fig. 134 Infotainment system: screen display of Area View.
Front camera.
Rear camera.
Switching between camera images
1. Tap the function keys on the image border to select a display fig. 134.
Sections of the screen
Two sections of the screen will be shown in the Infotainment system fig. 134:
Left screenThe vehicle is displayed from a bird’s-eye view. By tapping on one section, the display changes to the right section of the screen.
Right screen Depending on the section selected on the left screen, separate camera images will be displayed.
3D view of the Area View
A 3D view may be available, depending on the vehicle equipment.
1. Swipe in the direction of the arrows on the screen to change the angle of the 3D view.
Screen display
Front perpendicular parking.
Rear perpendicular parking.
Front cross traffic.
Rear cross traffic. Off-road.
Display both areas next to the
vehicle at the same time. Display the driver’s side only.
Display the passenger's side only.
Switch to trailer or off-road support (depending on the
country).
3D views.
Switch to top view of the vehicle and surrounding area.
Top view of the vehicle and surrounding area (3D view) from directly
above.
Top view of the vehicle and surrounding area (3D view) from diagonally above.
Vehicle and surrounding area from the side (3D view).
Park Assist
Introduction
Park Assist displays a suitable parking
space and assists the driver when
parking and leaving the parking space.
System function
Park Assist is an extension of the parking system.
2
1
Park Assist steers the vehicle into a parking space while you operate the accelerator pedal, the gears and the brake
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Not paying attention can result in accidents, serious injuries and vehicle damage.
Pay close attention to the parking process and the traffic. Keep an eye on the parking direction at the same time.
In a hazardous situation, apply the brakes using the brake pedal.
Available functions
Display suitable parking spaces.
Select parking mode.
Driving into a suitable parallel parking space or parking bay.
Driving out of a suitable parallel parking space.
NOTICE
Park Assist orients itself to parked vehicles, curbs, or other objects. Make sure that subjacent vehicle parts such as tires and rims are not damaged when
parking.
If necessary, press the brake pedal and end the parking process.
Aftermarket accessories mounted on the vehicle, such as bicycle racks, can interfere with Park Assist and can cause damage.
Automatic braking support may occur during parking processes if the driver accelerates too much.
Driving with a trailer
Park Assist cannot be activated if a trailer is connected to the electrical system.
If the trailer hitch was not installed at the factory, Park Assist must be manually deactivated in trailer mode.
Searching for parking spaces
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.

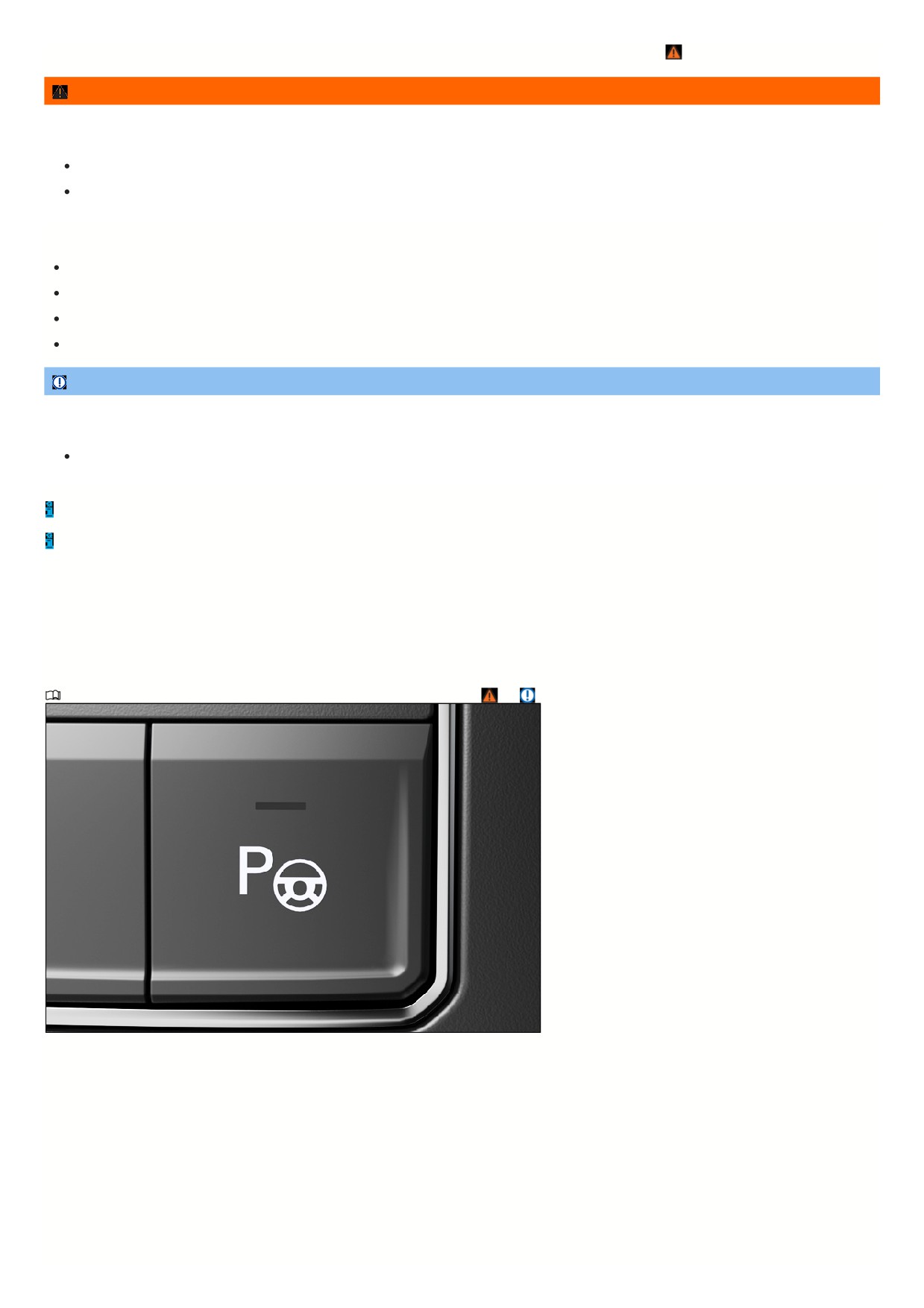

Fig. 135 In the center console: Park Assist button.
2 2

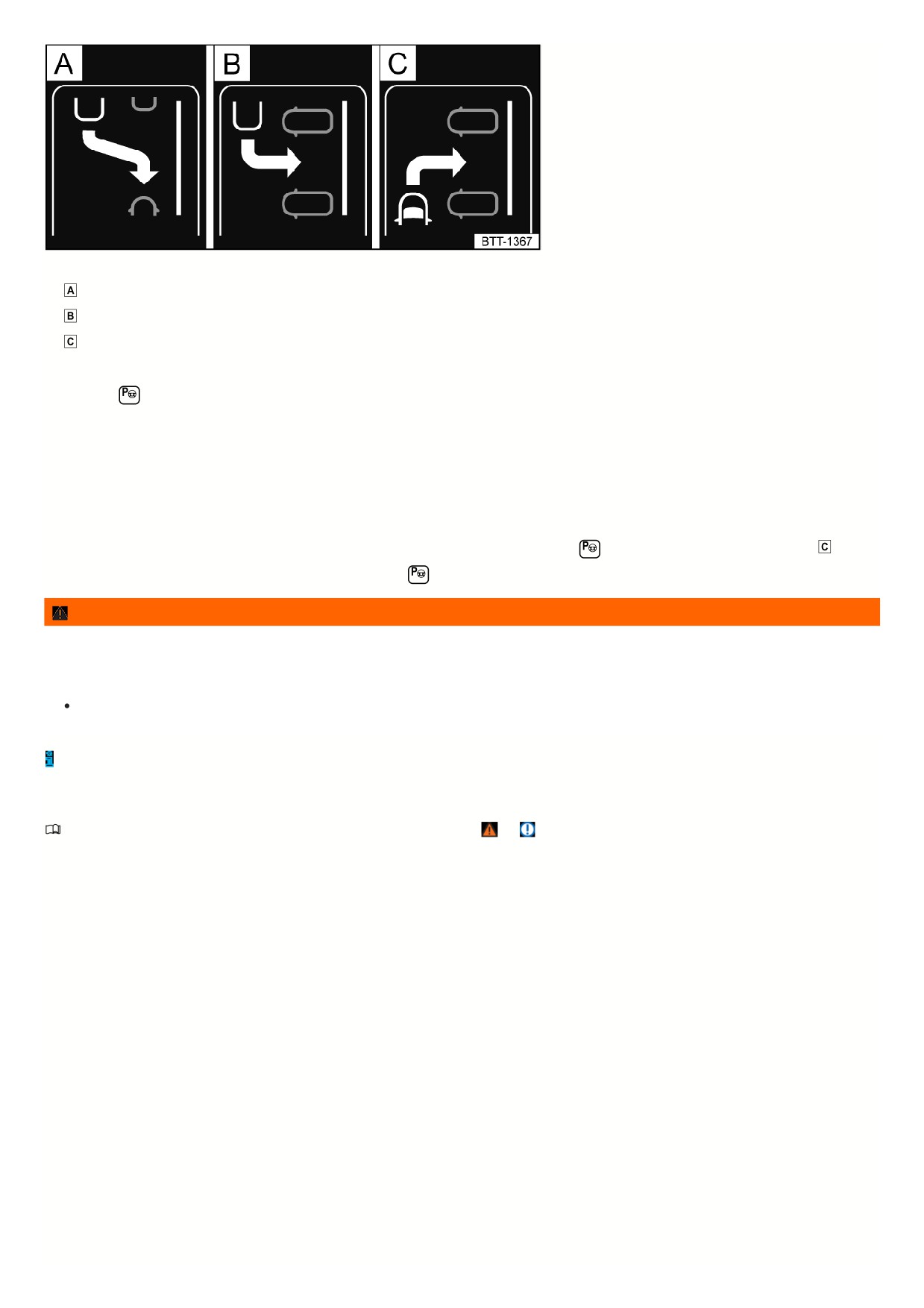

Fig. 136 In the instrument cluster display: park modes for driving into parking spaces.
Parallel parking in reverse.
Cross parking in reverse.
Cross parking driving forward.
Searching for parking spaces
1. Press the
button fig. 135.
The yellow indicator light turns on and the parking function is active.
2. While paying attention to traffic around your vehicle, drive slowly past a row of parked vehicles.
Park Assist will automatically search for a suitable parking space.
Or: press the turn signal to look for a parking space on the opposite side of the road.
If a parking space is found, a parking mode will be displayed fig. 136.
3. If, for example, you would like to drive forward to park in a space at an angle to the road, press the
button and select parking mode fig. 136
Or: to select multiple parking spaces displayed in a row, press the
button multiple times.
WARNING
There is the risk of an accident, if you open and use another function besides the parking function on the Infotainment system while maneuvering with the Park
Distance Control or the Park Assist. If this happens, all active parking functions, including the audible warnings, are shut down. You will therefore no longer be
warned about a possible collision or receive intervention.
Do not use any other Infotainment system functions while maneuvering, other than the active parking function.
Park Assist can be activated afterwards. If you drive past a suitable parking space, this will be indicated.
Driving into parking spaces
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.
2 3

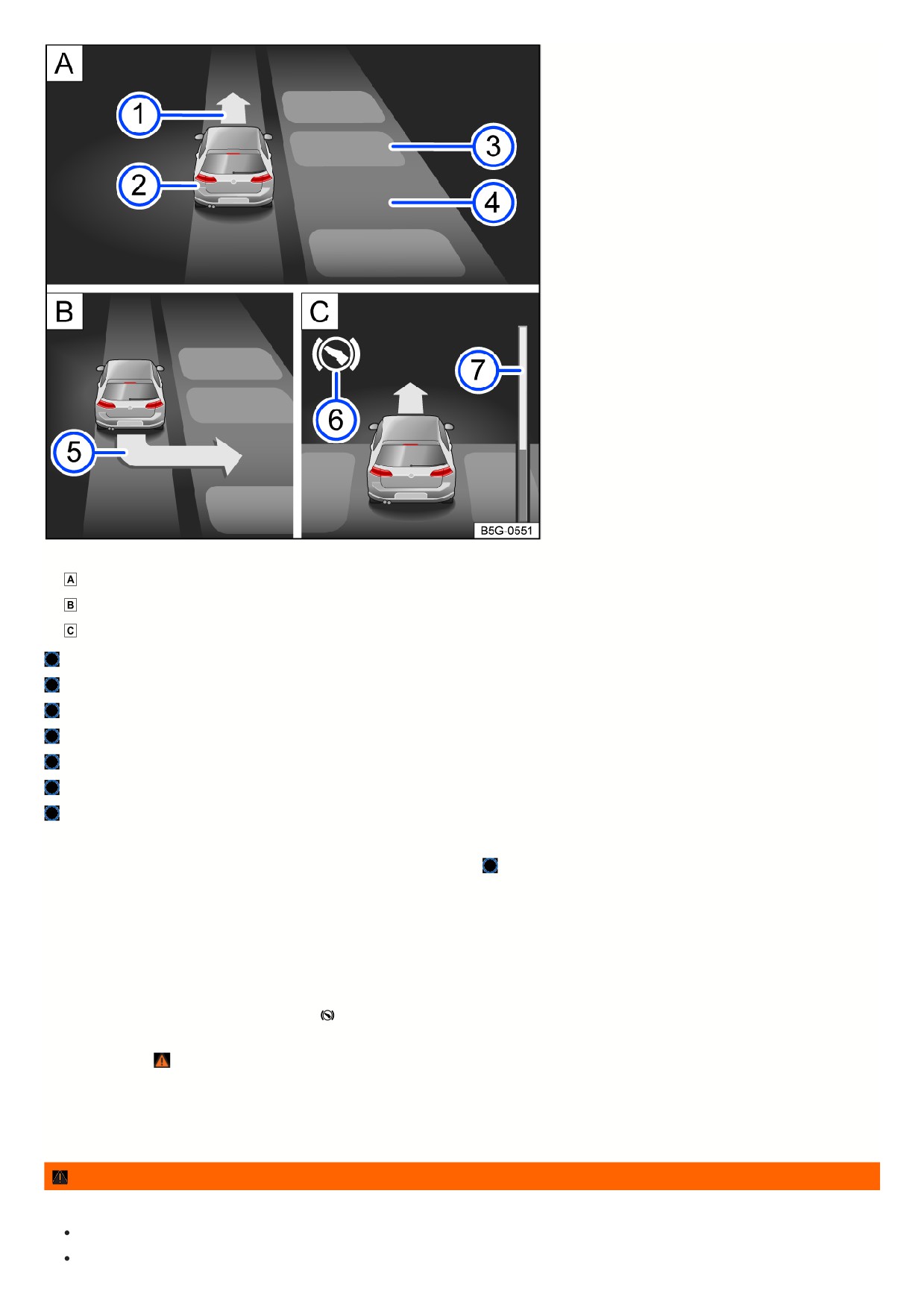

Fig. 137 In the instrument cluster display: parking perpendicular to the road.
Searching for a parking space.
Driving into a parking space.
Maneuvering into a parking space.
Prompt to drive forward.
Your vehicle.
Parking vehicle or obstacle.
Detected parking space.
Request to drive backwards.
Request to brake.
Progress bar (relative distance remaining).
1. Stop the vehicle in front of or behind the parking space.
2. Pay attention to the prompt for parking in the instrument cluster display fig. 137
3. Engage reverse gear if a backwards arrow appears in the instrument cluster display.
4. Release the steering wheel.
5. Release the brake.
6. Pay attention to the messages and indicators in the instrument cluster display.
7. Accelerate carefully.
8. Apply the brakes if a warning chime sounds, the
indicator lights up, or a message appears on the instrument cluster display.
9. At the end of a parking maneuver, always wait until Park Assist has completed all rotational movements of the steering wheel in order to achieve an optimum
parking result
10. Carry out several parking maneuvers if necessary.
When the process of driving into a parking space is finished, a text message appears in the instrument cluster display.
11. Park the vehicle Parking.
WARNING
Turning the steering wheel too quickly can cause serious injuries.
Do not grab the steering wheel during the maneuver until the system prompts you to do so.
If the vehicle is approaching a dangerous situation, take over the steering.
2 4
Exiting a parking space
Please read the introductory information and heed the Warnings and Notice
and Safety instructions.

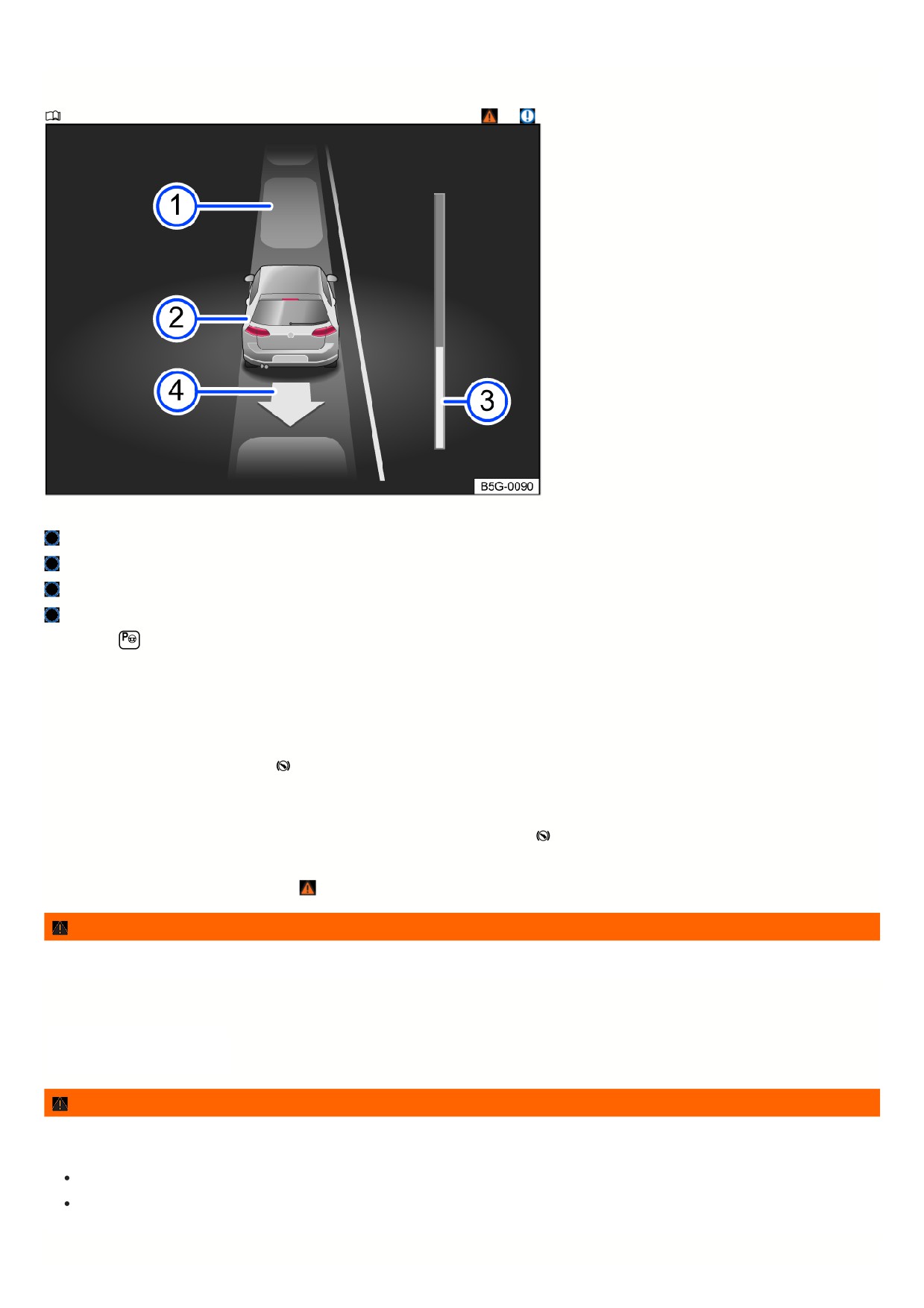

Fig. 138 In the instrument cluster display: reversing out of a parking space parallel to the road.
Vehicle parking.
Your vehicle.
Progress bar (relative distance remaining).
Direction of travel when driving out of a parking space.
1. Press the
button.
2. Activate the turn signal for the side of the road where the vehicle should drive out of the parking space.
3. Select the reverse gear.
4. Let go of the steering wheel when the message Steering intervention active! Check surrounding area. is displayed.
5. Accelerate carefully.
6. Apply the brakes if a chime sounds, the
indicator turns on, or once the prompt to drive forward appears in the instrument cluster display.
7. Perform the procedure for exiting the parking space until a message appears in the instrument cluster display and possibly a tone signaling the end of the
parking space exit procedure.
8. Press the brake pedal until the steering movements from Park Assist have stopped or the
indicator in the instrument cluster display turns off.
9. Take over steering with the steering wheel at the angle already set.
10. Drive the vehicle out of the parking space
WARNING
Only drive the vehicle out of the parking space when the traffic situation allows it.
Rear Traffic Alert
Rear Traffic Alert monitors the cross
traffic when reversing out of a space or
maneuvering.
WARNING
The intelligent technology of the Park Distance Control (PDC) cannot overcome the natural laws of physics and it can only operate within the limits of the
system. Not paying attention can result in accidents, serious injuries, and vehicle damage.
Pay attention to the traffic situation and the vehicle environment.
The Rear Traffic Alert may potentially not detect all approaching objects, e.g. pedestrians or objects approaching quickly.
Switching on and off
2
5
1. Press the
button.
Or: Depending on the vehicle equipment, press the button for driver assistance systems.
Or: Depending on the vehicle equipment, open the vehicle settings in the Infotainment system Vehicle settings menu.
2. Switch Rear Traffic Alert on or off.
System function

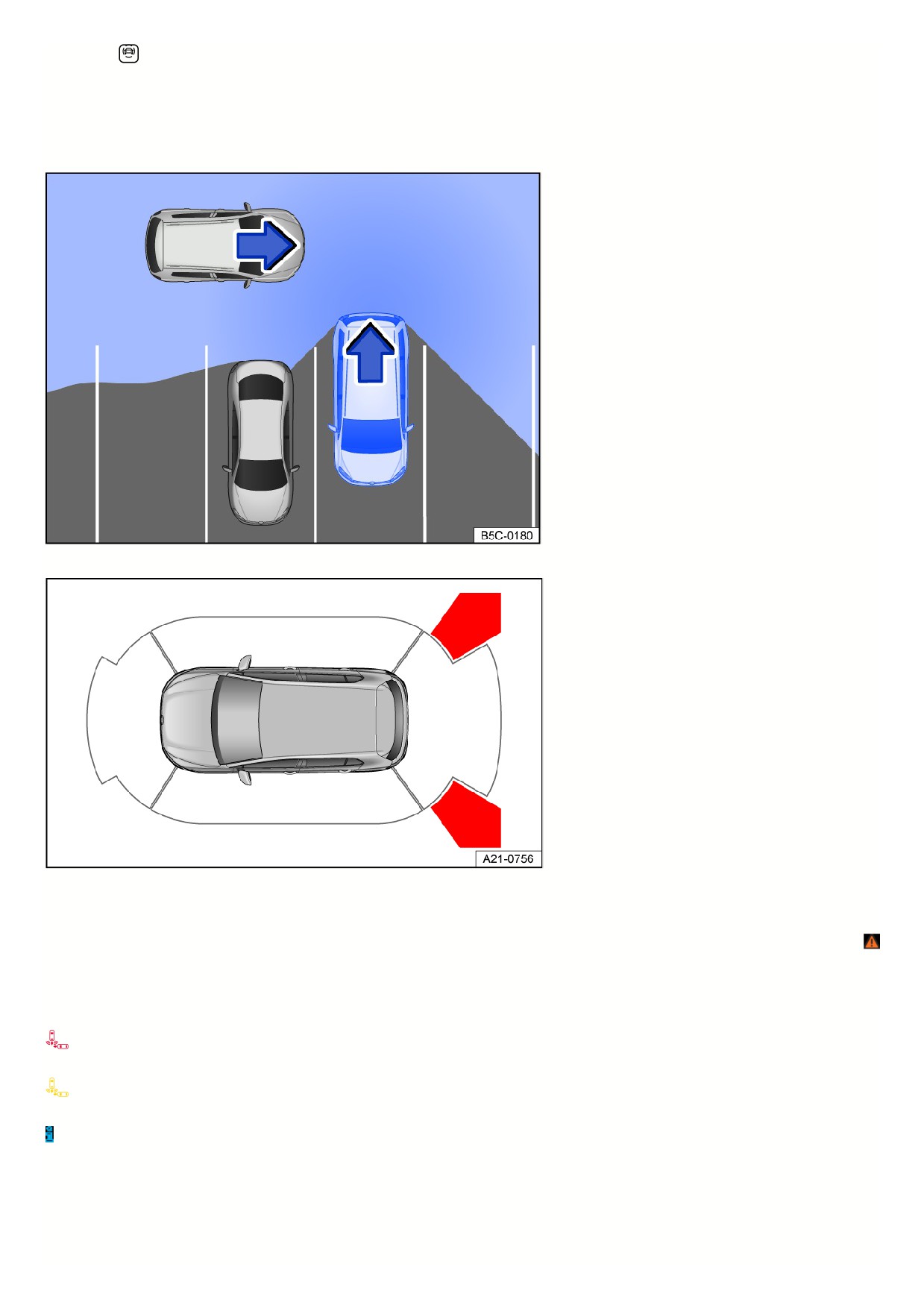

Fig. 139 Rear Traffic Alert, general example: monitored area around the vehicle that is exiting a parking space.
Fig. 140 Infotainment system: Rear Traffic Alert display (general example).
The Rear Traffic Alert functions with radar sensors in the rear bumper.
The system detects approaching or moving objects in the surrounding area to the rear and to the side and warns the driver if there is an obstacle fig. 139,
If there is an obstacle, a warning signal will sound. Depending on the vehicle equipment, a color indication of the obstacle zone appears in the Infotainment
system fig. 140 and/or a warning or indicator light appears in the instrument cluster along with a message.
If the driver does not respond, automatic braking support may kick in.
Obstacle detected.
1. Beware of traffic behind the vehicle.
Automatic braking intervention by Rear Traffic Alert.
1. Press the brake pedal to bring the vehicle to a standstill.
If Park Distance Control is deactivated, the driver cannot be sent any feedback. Rear Traffic Alert is also temporarily deactivated.
Driving with a trailer
Rear Traffic Alert cannot be activated if a trailer is connected to the electrical system.
If the trailer hitch was not installed at the factory, Rear Traffic Alert must be manually deactivated when towing a trailer.
2 6
Braking assistance systems
Information about braking assistance systems
Braking assistance systems can assist the driver in critical driving and braking situations. The driver is always responsible for safe driving
1. If a braking assistance system is regulating, continue braking with the necessary force. If necessary, steer the vehicle.
WARNING
The intelligent technology in the braking assistance systems cannot overcome the natural laws of physics and it can only operate within the limits of the system.
Driving fast on icy, slippery, or wet roads can lead to loss of vehicle control and serious injuries to the driver and passengers.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions. Do not take any risks.
Braking assistance systems cannot prevent a collision, for example if you are driving too close to other vehicles.
Always use suitable tires. Driving stability depends on the tires' ability to grip the road.
Always keep the footwell beneath the pedals clear so that the brake pedal is unobstructed and can move freely.
ESC, ABS and ASR only function correctly when all four wheels have the intended tires
If the ABS malfunctions, the ESC, ASR and EDS also fail.
When the ignition is switched on, the condition of the braking functions is automatically checked. The indicator lights will come on briefly and then turn off. If an
indicator light remains on permanently, there is a malfunction. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility immediately.
Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
WARNING
The effectiveness of the ESC can be reduced considerably if other components and systems that affect driving dynamics are not maintained correctly or are
malfunctioning. This applies in particular to changes made to the suspension and any non-approved wheel and tire combinations.
Ensure that conversion and modifications to the vehicle are only performed by an authorized Volkswagen dealer or authorized Volkswagen Service
Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Always use suitable tires. Driving stability depends on the tires' ability to grip the road.
Electronic Stability Control (ESC)
ESC is regulating the vehicle to reduce the risk of skidding and improve driving stability . The indicator light flashes yellow.
Anti-Slip Regulation (ASR)
ASR is regulating the vehicle to reduce the risk of the wheels spinning. The indicator light flashes yellow.
ASR reduces drive power at wheels that are spinning and adapts the drive power to the road conditions. ASR makes it easier to start, accelerate, and drive up hills
Anti-Lock Braking System (ABS)
ABS prevents the wheels from locking during braking so that the vehicle can be steered
Brake Assist System (BAS)
BAS can help to reduce the vehicle braking distance. BAS increases braking power when the driver presses the brake pedal quickly in emergency situations
Electronic Differential Lock (EDL and XDL)
EDS automatically applies the brakes to a wheel that starts spinning and transfers the drive power to the other driving wheels.
XDS is an extension of the electronic differential lock, and improves traction with braking support to help keep the vehicle in its lane.
Multi Collision Brake
The Automatic Post-Collision Braking System automatically brakes the vehicle if the airbag control module has detected a collision in an accident situation.
Requirements for automatic braking:
The driver does not press the accelerator pedal.
Brake booster
The braking support only functions when the engine is running and it enhances the pressure applied to the brake pedal by the driver.
If the braking support is not working or the vehicle is being towed, you will need to press the brake pedal harder because the lack of braking assistance will increase
the braking distance
2 7
WARNING
Driving without the brake booster or when the brake booster’s functionality is limited can increase the braking distance significantly, increasing the risk of
accidents and serious injury.
Never stop the engine or switch the ignition off while the vehicle is moving.
If the braking support is not working or the vehicle is being towed, you will need to press the brake pedal harder because the lack of braking assistance
will increase the braking distance.
Always keep the footwell beneath the pedals clear so that the brake pedal is unobstructed and can move freely.
Switching the braking support system on and off
Driving situations
In order to avoid risks, the brake systems should not be switched off under normal conditions
WARNING
When ESC is switched off, the risk of the vehicle swerving is significantly higher. The vehicle can be difficult for inexperienced drivers to handle at high speeds.
Accidents and serious injuries could result.
Only switch off ESC if you are driving on a closed track and are experienced in sporty driving.
Only switch on ESC Sport if you are driving on a closed track and are experienced in sporty driving.
Never take risks, and note the physical limits of the vehicle.
Switching on and off
1. Open the vehicle settings of the Infotainment system Vehicle settings menu.
2. Open the settings for parking systems.
3. Select the function.
If the driving situation no longer exists, the brake system should be switched on again completely
ASR
It can be helpful to switch off ASR when the vehicle is driven on loose ground or when “rocking” the vehicle out of place because it is stuck
ASR manually switched off. The yellow indicator light turns on.
ESC Sport
The function assists with sporty driving. The ESC intervenes later to stabilize the vehicle, e.g. during fast cornering
ESC Sport is switched on. The yellow indicator light turns on.
ESC Off
The function assists experienced drivers with sporty driving. The ESC is switched off and stabilizing interventions are not performed. Always read the safety
instructions
ESC manually switched off. The yellow indicator light turns on.
Troubleshooting
ABS failure or malfunction
The yellow indicator light turns on.
1. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
The vehicle can be braked without ABS.
ESC malfunction
The yellow indicator light turns on. ESC has been switched off.
There is a fault or malfunction.
1. Switch the ignition off and on.
2. Drive a short distance at a speed of approximately 15 km/h (approx. 9 mph) to 20 km/h (approx. 12 mph).
3. If the
indicator light stays on, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
2 8
Volkswagen Service Facility.
Noises in the braking assistance systems
When the braking assistance systems are actively regulating, the brake pedal may move or noises may occur.
1. Continue braking with the necessary force and, if necessary, steer the vehicle.
WARNING
If the brake warning light
turns on together with the indicator light
, the regulating function of the ABS could be malfunctioning. This could cause the
rear wheels to lock relatively quickly when braking. Locked rear wheels can lead to loss of vehicle control.
If possible, reduce your speed and drive slowly and carefully to the nearest authorized Volkswagen dealer or authorized Volkswagen Service Facility to
have the brake system checked. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Avoid sudden braking or driving maneuvers.
If the ABS indicator light does not turn off, or turns on during the journey, the ABS is not working correctly. The vehicle can only be stopped with the
normal brakes (without ABS). The security provided by the ABS is not available. Visit an authorized Volkswagen dealer or authorized Volkswagen
Service Facility as soon as possible. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
2 9
Practical equipment
Storage compartments
Introduction
WARNING
Loose objects can be thrown around the inside of the vehicleduring sudden driving or braking maneuvers. This can cause serious injuries and loss of vehicle
control.
Store objects in only closed storage compartments.
Always keep the storage compartments closed while driving.
Only hang lightweight clothing, up to a maximum of 5.5 lbs (approximately 2.5 kg), from the coat hooks in the vehicle. Never leave heavy, hard or sharp
objects in the pockets.
WARNING
An open glove compartment can increase the risk of serious injuries in the event of a collision or during sudden braking or driving maneuvers.
Always keep the glove compartment closed while driving.
WARNING
Lighters in the vehicle can become damaged or ignite unintentionally. This can cause severe burns and vehicle damage.
Before closing compartments or storage areas, always make sure that there are no cigarette lighters near the sections that will be closing.
Never place lighters in compartments, in storage areas, or on other surfaces in the vehicle. Lighters may ignite as a result of high surface temperatures,
especially in summer.
WARNING
Incorrect usage of the cup holders can cause injuries.
Do not place hot beverages in the cup holders. Hot beverages in the cup holders could spill and cause burns while driving, during sudden braking
maneuvers, or in collisions.
Take care that only suitably sized drinks are stored in the cup holder. Drinks must always be steady and secure in the cup holder.
WARNING
Closed beverage bottles can explode from heat and burst from frost.
Never leave closed beverage bottles in an extremely hot or extremely cold vehicle.
NOTICE
Never leave any objects, groceries, or medications that are sensitive to temperature in the vehicle interior. Hot and cold conditions could damage these
objects and make them unusable.
Objects made out of transparent materials in the vehicle, for example transparent suction cups on the window glass, can concentrate sunlight and cause
damage to the vehicle.
Sockets
Introduction
Electrical devices can be connected to the sockets in the vehicle.
The 12 V socket only works when the ignition is switched on.
WARNING
Using sockets and electrical devices incorrectly can cause fires and serious injuries.
21
Never leave children unattended in the vehicle. Sockets and the devices connected to them can be used when the ignition is switched on.
If the electrical devices become too warm, turn off the devices immediately and disconnect them.
NOTICE
To reduce the risk of damage to the electrical system, never attempt to charge the 12 V vehicle battery by connecting electrical devices that provide
power to the 12 V sockets, such as solar panels or battery chargers.
Only use electrical devices that have been tested for compliance with the applicable directives for electromagnetic compatibility.
Do not use any malfunctioning devices.
To reduce the risk of damage from voltage fluctuations, turn electrical devices off before switching the ignition on or off and before starting the engine.
Never connect electrical devices that draw more than the specified load of a 12 V socket. The vehicle electrical system can be damaged when the
maximum load is exceeded.
Refer to the operating instructions for the electrical devices.
The 12 V vehicle battery will drain if the ignition and electrical devices are switched on while the engine is switched off.
Unshielded devices can cause malfunctions in the radio, the Infotainment system and in the vehicle electronics, depending on the vehicle equipment.
Sockets in the vehicle
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Do not exceed the maximum power of the sockets. The power draw of the external devices is indicated on their identification labels.
12 V socket
Fig. 141 In the lower part of the center console, at the rear of the center console or on the left-hand side of the luggage compartment: Hinged 12-volt socket
(general example).
The total continuous output of all 12 V sockets in the vehicle is 120 watts
Introduction.
The maximum power of a 12 V socket in the vehicle with the engine running totals 180 watts.
NOTICE
Using 12 V sockets for too long at maximum power can cause the fuse to blow.
Never use 12 V sockets at their maximum power for longer than 10 minutes.
211















Content      ..     5      6      7      8     ..
