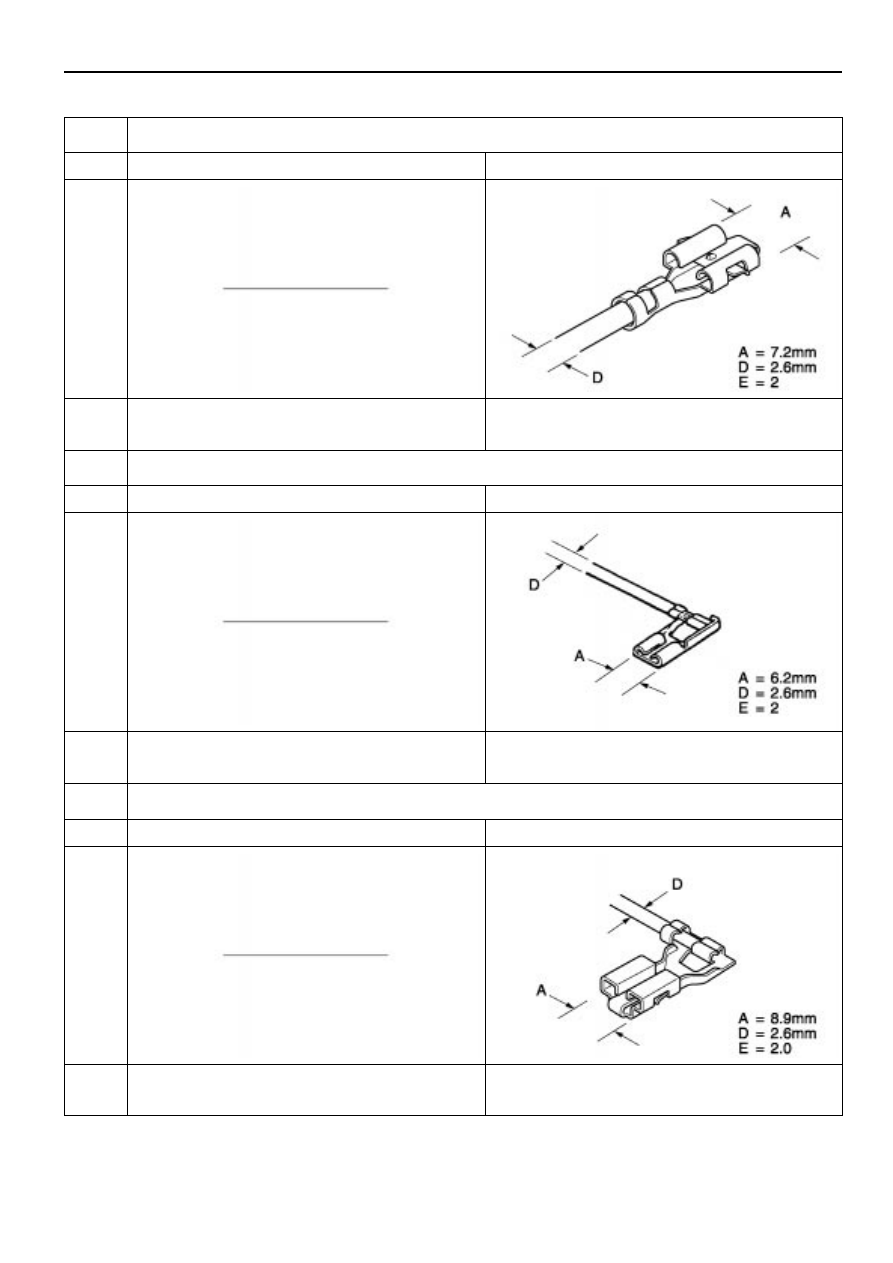

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–14

392

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

FOG–LP

Male

Female

Sleeve : Medium (Blue) or

Large (Yellow)

P/N

82998–24210

Type

FTC

Male

Female

Sleeve : Medium (Blue) or

Large (Yellow)

P/N

82998–12510

Type

HEAD LAMP

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–24140

(160mm)

   82998–24200

(500mm)

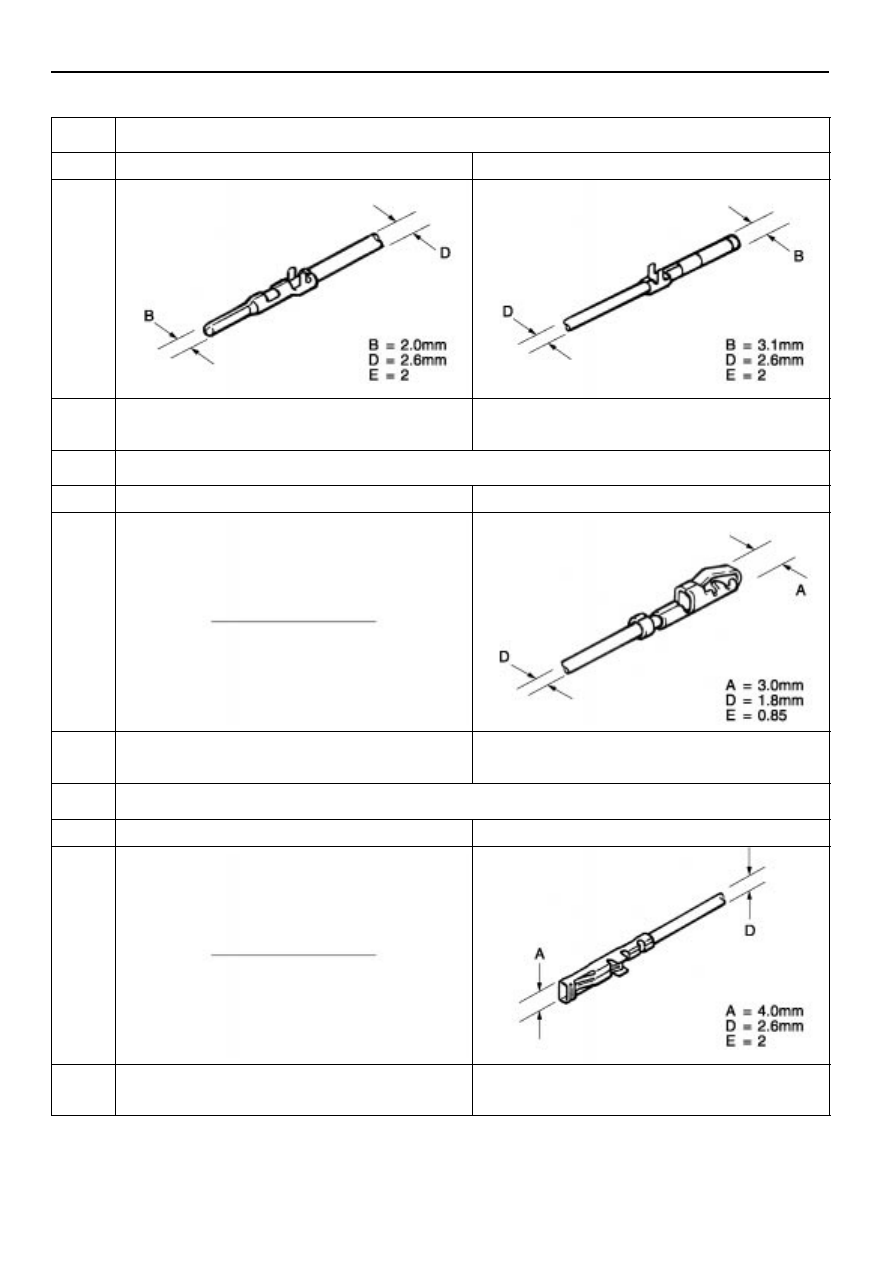

F–15

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

393

Repair Wire (Non–waterproof Type)

Type

LAC

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12100

82998–12110

Type

MFPC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12150

Type

MIC

Male

Female

Sleeve : Medium (Blue) or

Large (Yellow)

P/N

82998–12120

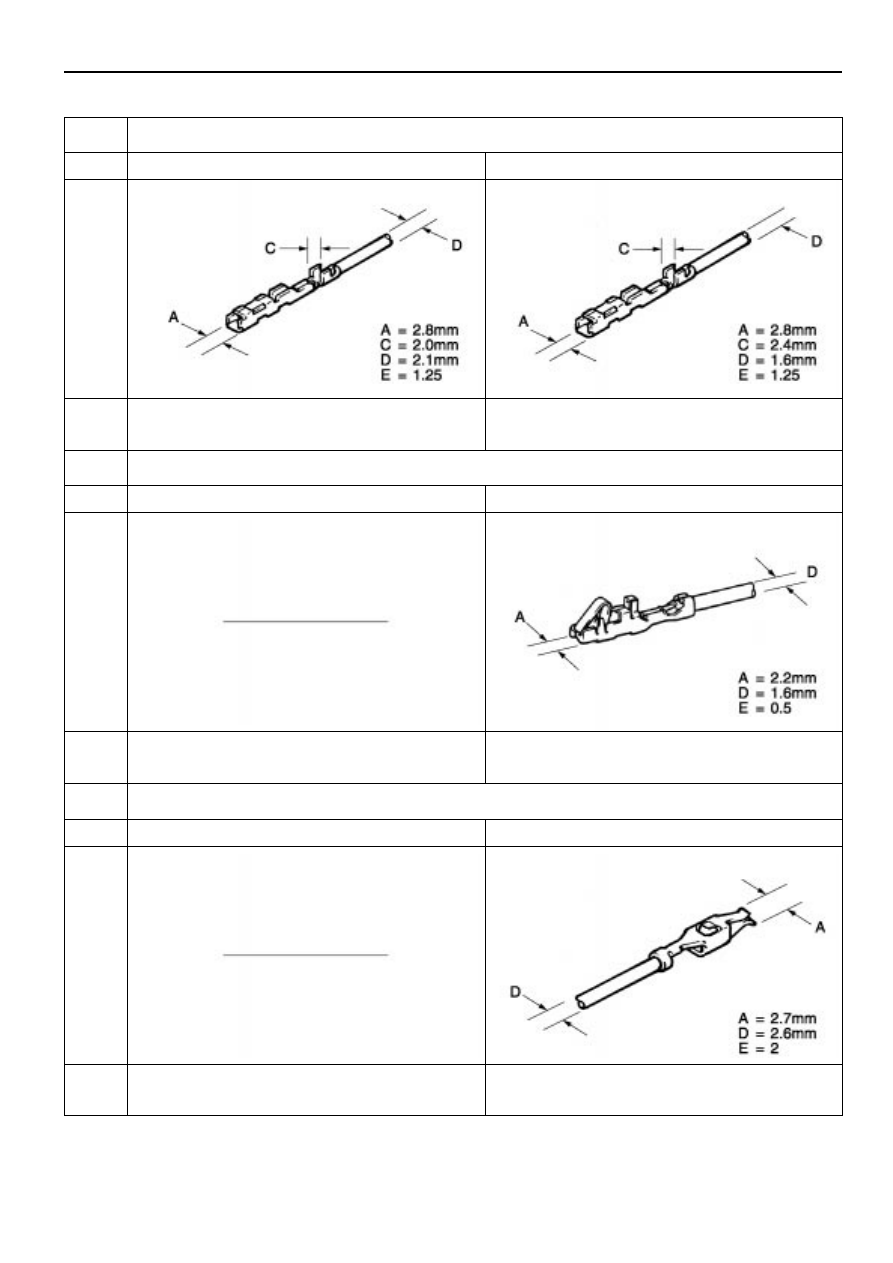

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–16

394

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

PULSE LOCK

Female (Power)

Female (Signal)

P/N

82998–12200

82998–12210

Type

SFPC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24180

Type

SL

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12130

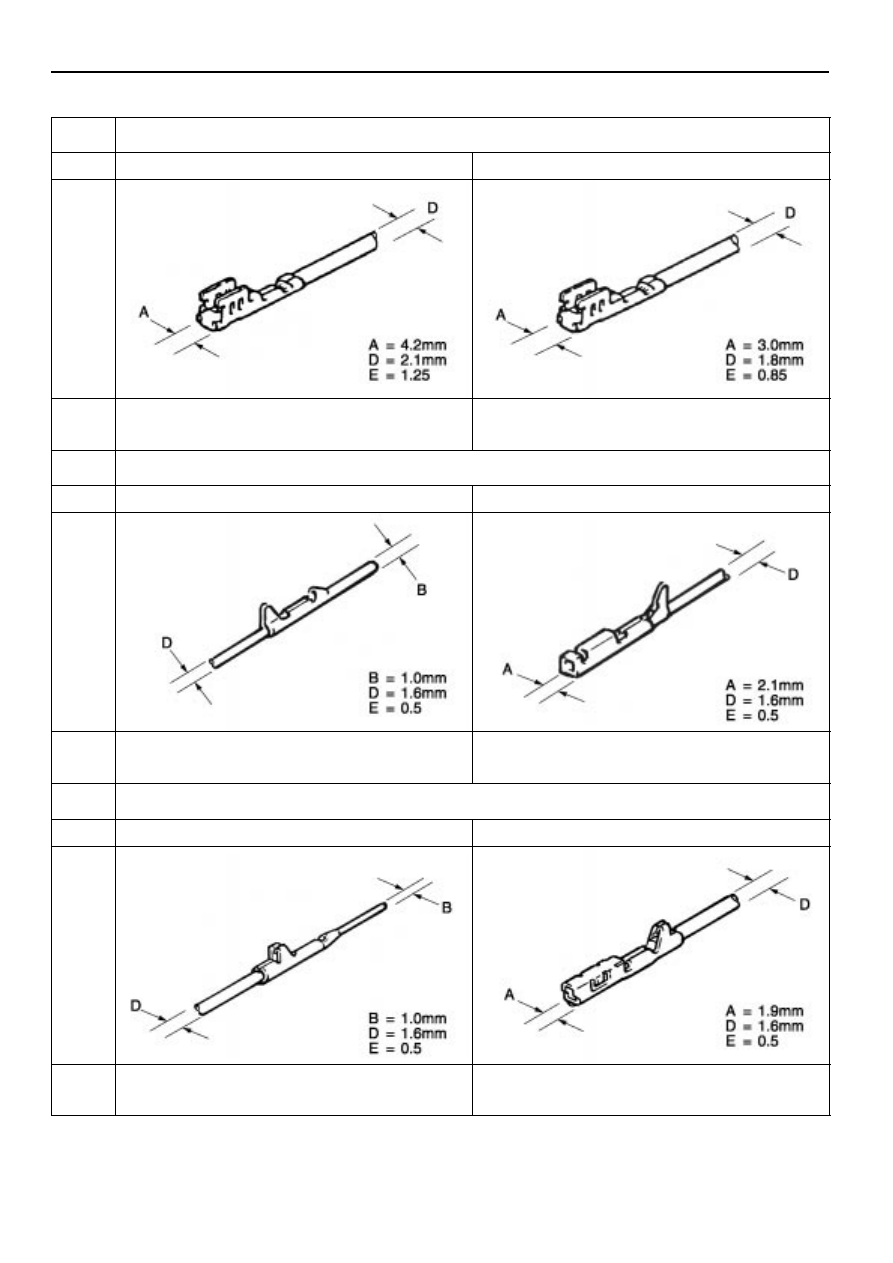

F–17

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

395

Repair Wire (Non–waterproof Type)

Type

SP

Female (Power)

Female (Signal)

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12520

82998–12530

Type

TLC

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12220

82998–12230

Type

TNS

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12240

82998–12250

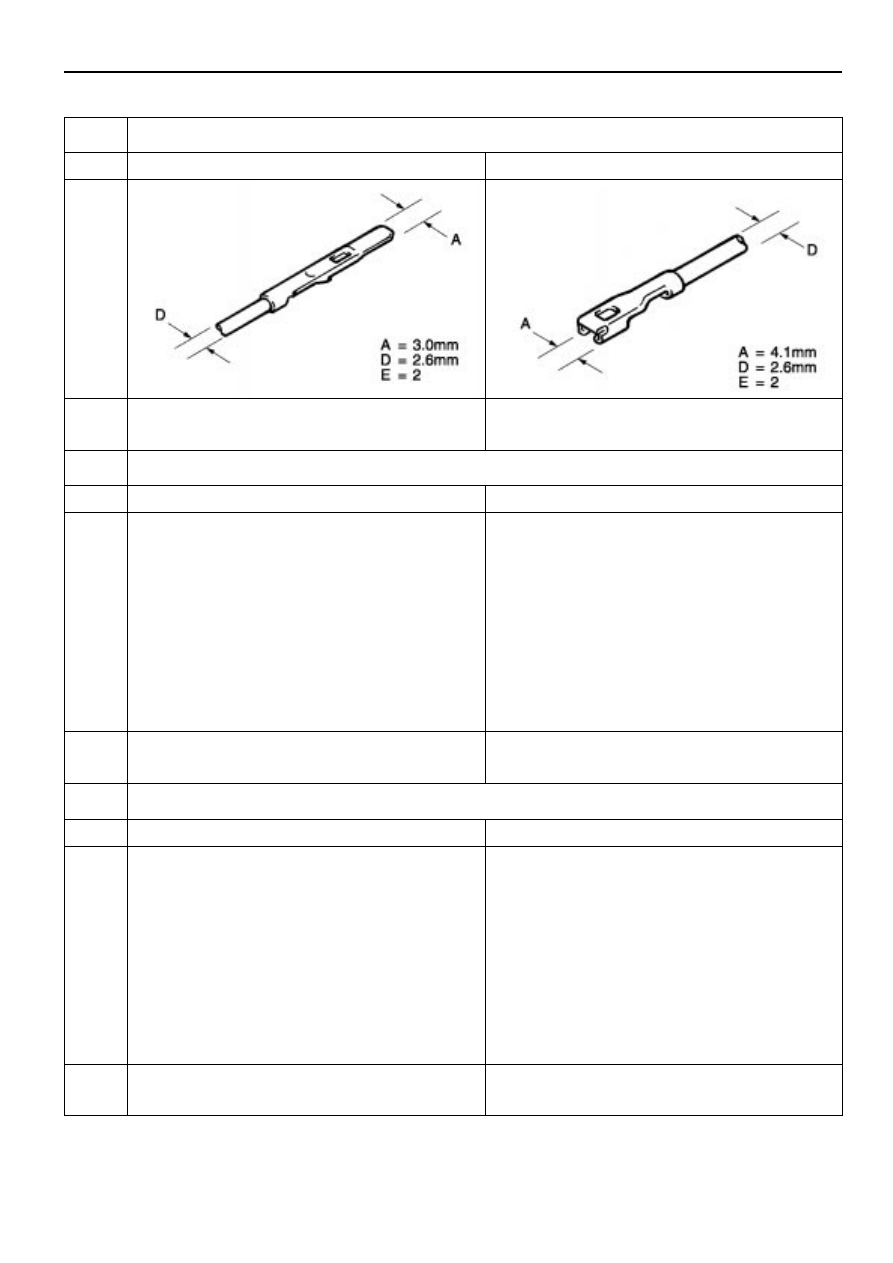

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–18

396

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

TODC

Male

Female

Sleeve : Medium (Blue) or

Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12080

82998–12090

G–1

APPENDIX–WIRE HARNESS REPAIR KIT WITH CASE

Wire Harness Repair Manual (RM1022E)

397

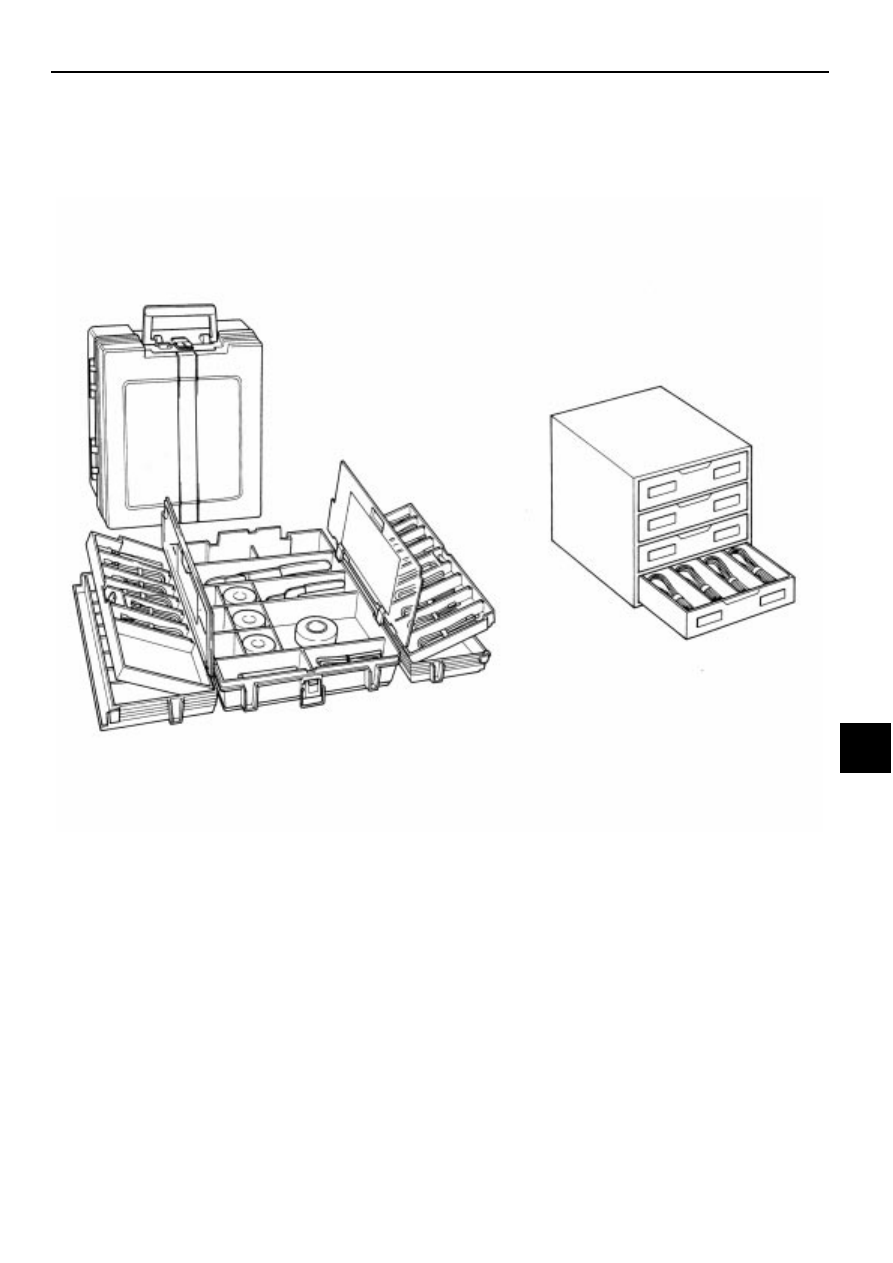

WIRE HARNESS REPAIR KIT WITH CASE (REFERENCE ONLY)

We would like to recommend to you use of the ”Wire Harness Repair Kit with the Case”
according to your after service market demand.

Example:

or

[portable type]

[stationary type]

Remark:

This kind of kit is not available from Toyota Motor Corporation.

G

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

G–2

398

Wire Harness Repair Manual (RM1022E)

REPORTING OF WIRE HARNESS PROBLEM

It is more difficult to understand the cause of wire harness problems and to make
production improvements, due to the number of wire harness routings and connectors and
their wide scope of use.
The position of the problem occurrence and the problem cause will be very clear if you
proceed with wire harness/connector repairs.

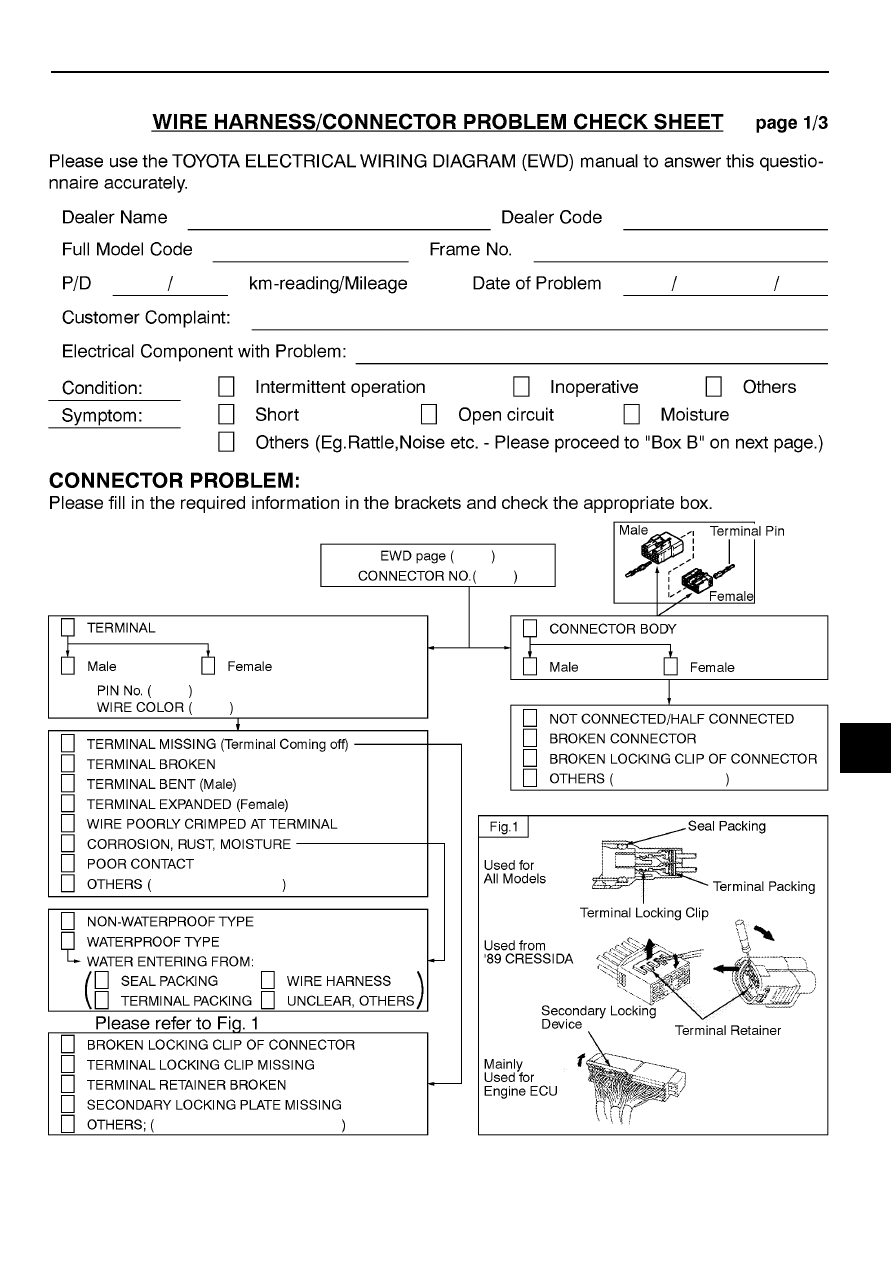

We request that when you perform repairs, you fill in the attached ”WIRE
HARNESS/CONNECTOR PROBLEM CHECK SHEET” and send it to your distributor.
Toyota Motor Corporation will be able to make production improvements more quickly and
surely based on the results of the above mentioned reports (Check Sheets).

G

G–3

APPENDIX–REPORTING OF WIRE HARNESS PROBLEM

Wire Harness Repair Manual (RM1022E)

399

G
