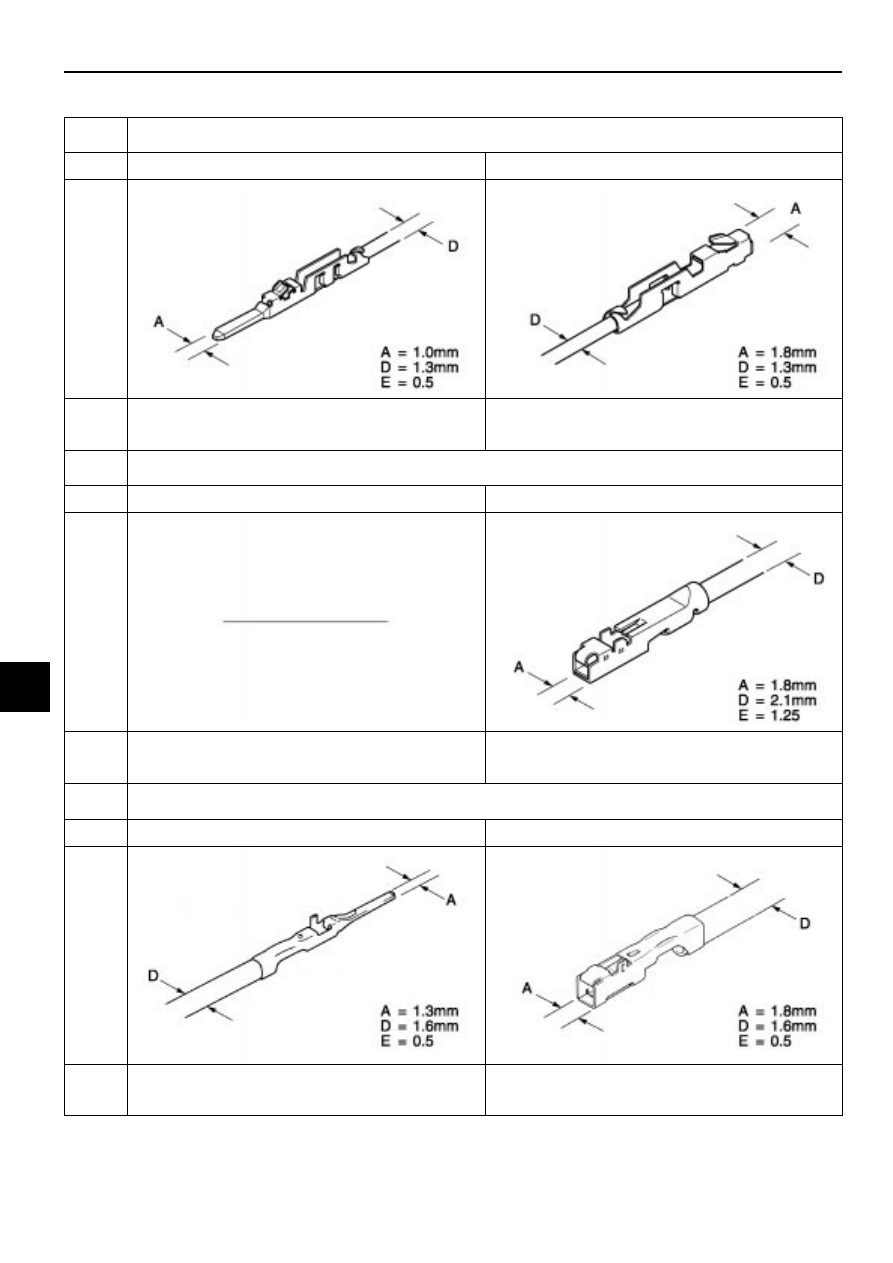

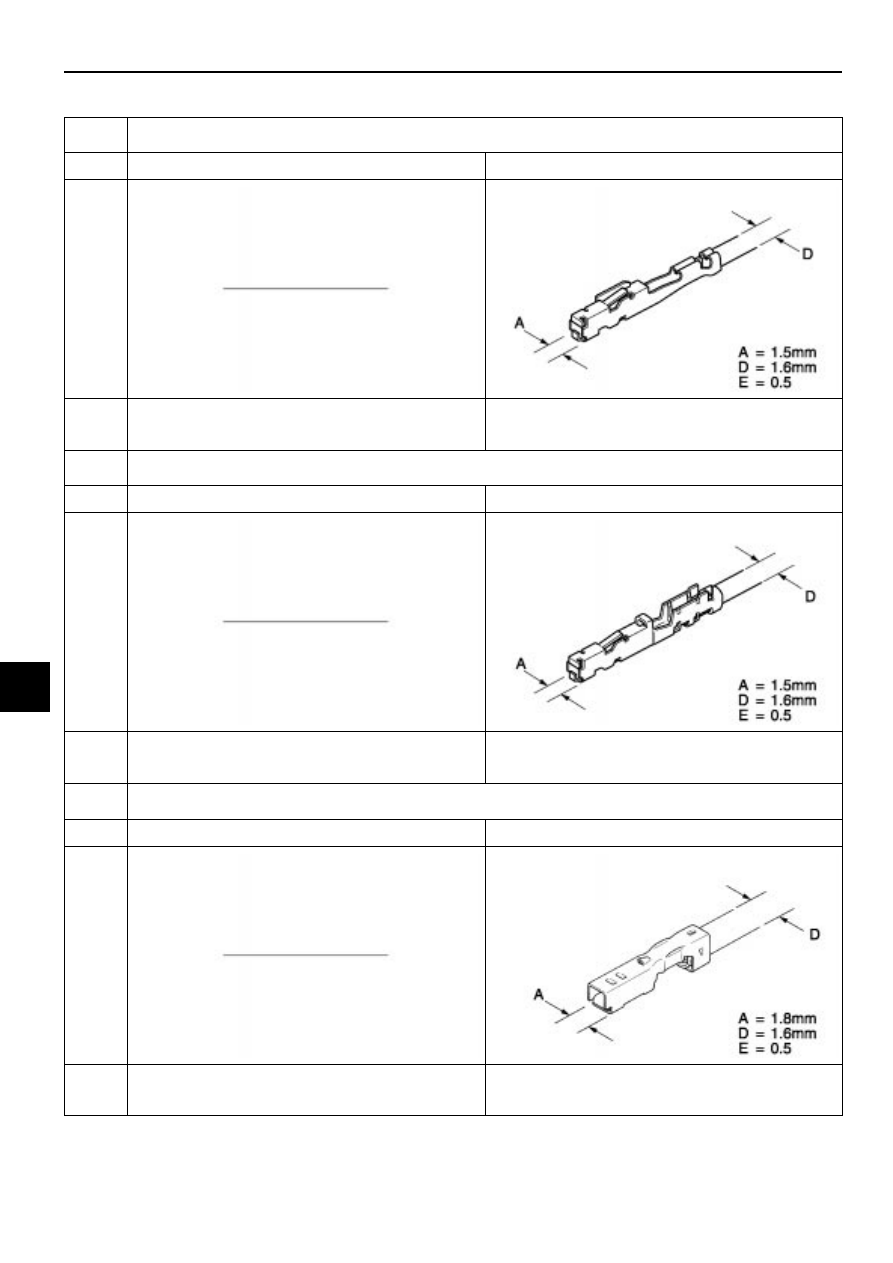

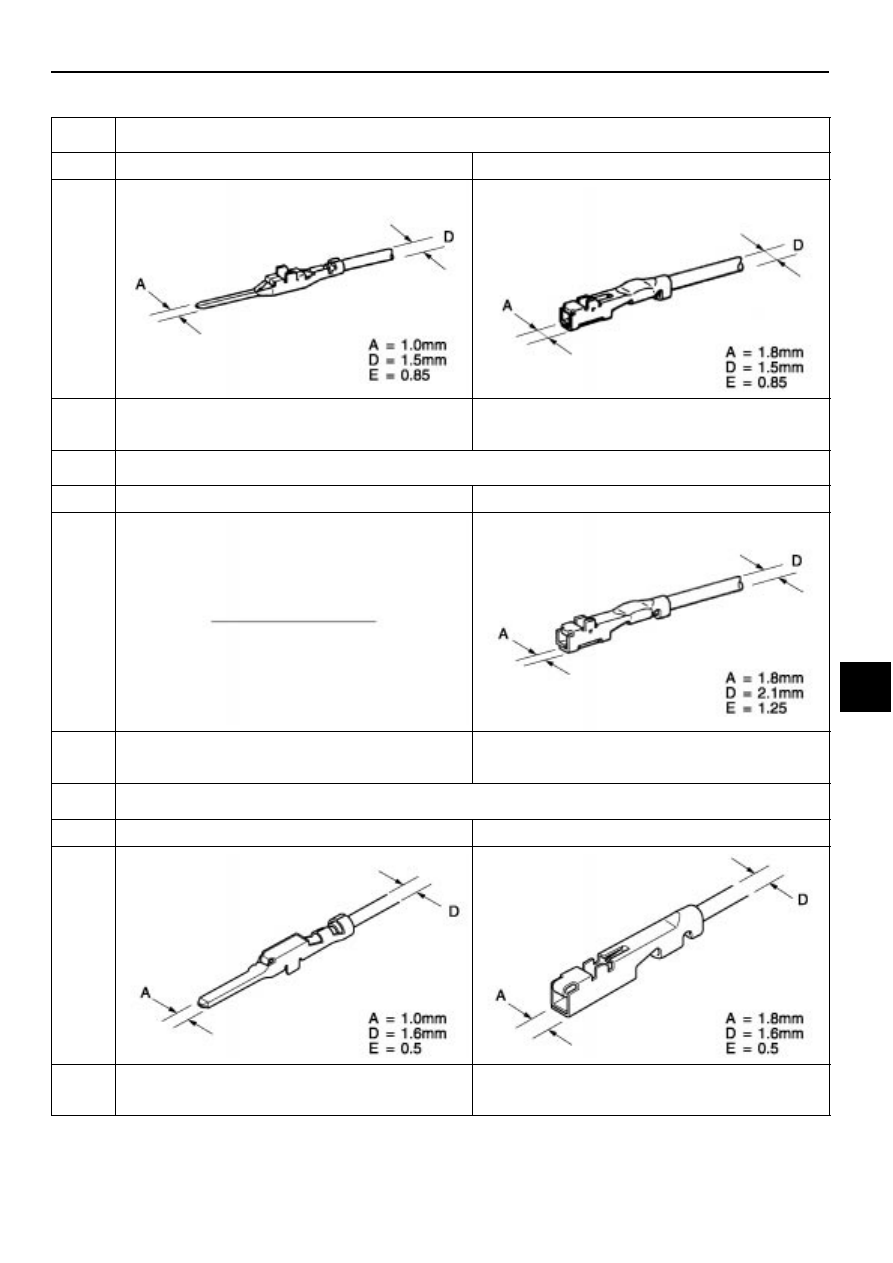

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–6

384

Wire Harness Repair Manual (RM1022E)

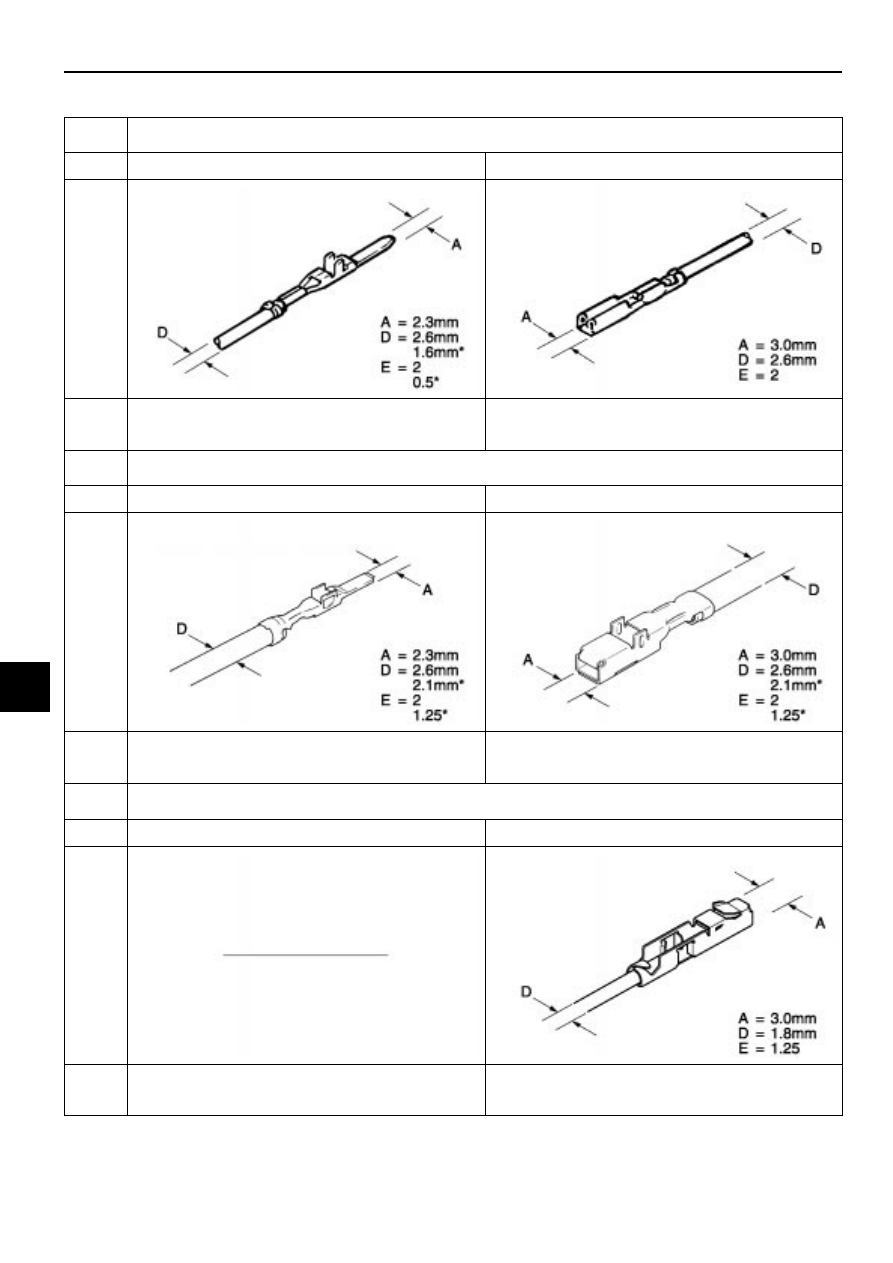

Repair Wire (Non–waterproof Type)

Type

0.64

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12750
82998–12760*

Type

0.64 IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12770

Type

1.0

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12310
82998–12320*

F

F–7

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

385

Repair Wire (Non–waterproof Type)

Type

1.0II

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)
Size : S

P/N

82998–24010

82998–24020
82998–24110*

Type

1.0II

Male

Female

Sleeve : Medium (Blue)
Size : M

P/N

82998–24120*

Type

1.0III

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12670
82998–12680*

82998–12690
82998–12700*

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–8

386

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

Type

1.0III IDC

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12660

82998–12640

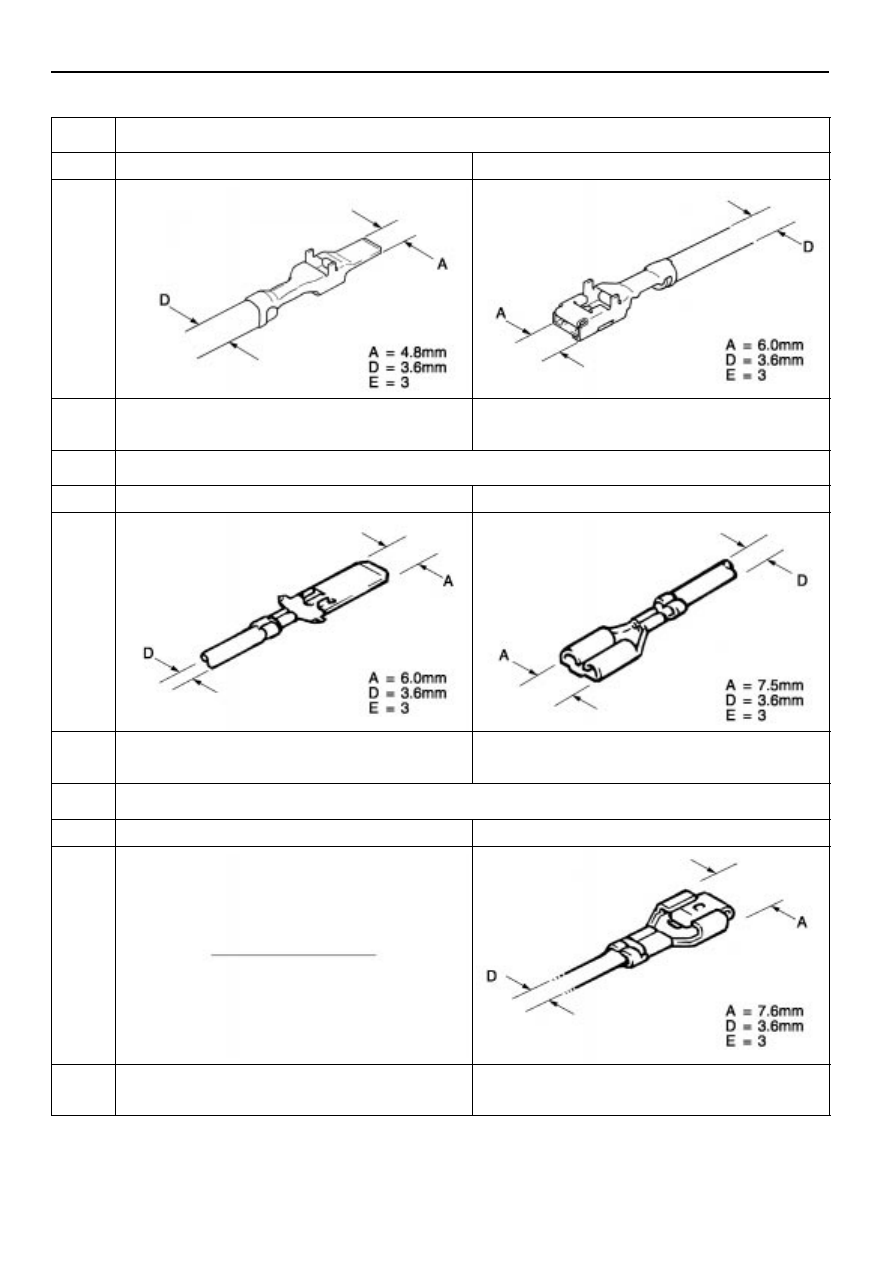

Type

1.0IV

Male

Female

Sleeve : Medium (Blue)

P/N

82998–12740

Type

1.3

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12410

82998–12420

F

F–9

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

387

Repair Wire (Non–waterproof Type)

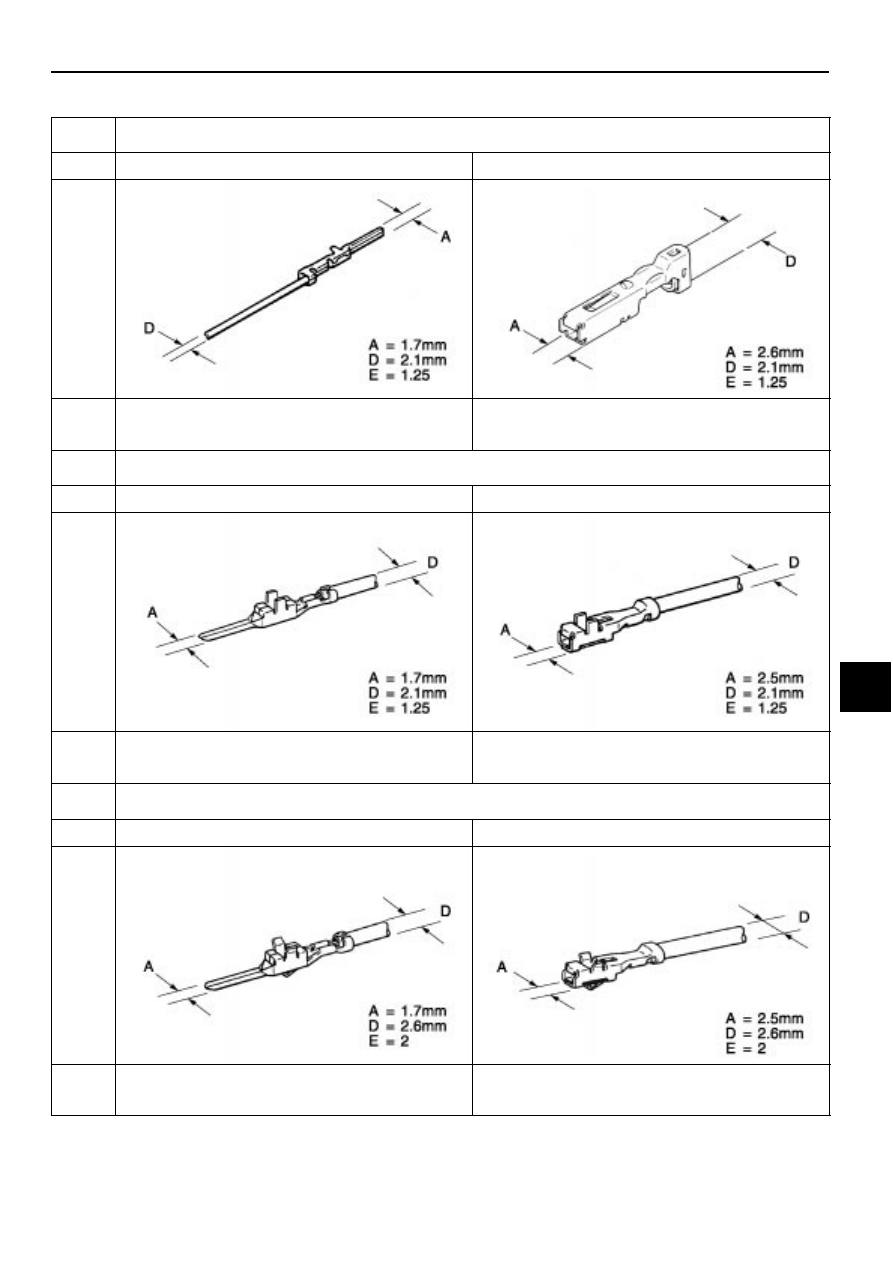

Type

1.8

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12180

82998–12190
82998–12300*

Type

1.8II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)
Size : S, M

Sleeve : Medium (Blue) or Large (Yellow)
Size : S, M

P/N

82998–24090
82998–24130*

82998–24100

Type

1.8II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)
Size : L

Sleeve : Medium (Blue) or Large (Yellow)
Size : L

P/N

82998–24030

82998–24040

F

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–10

388

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

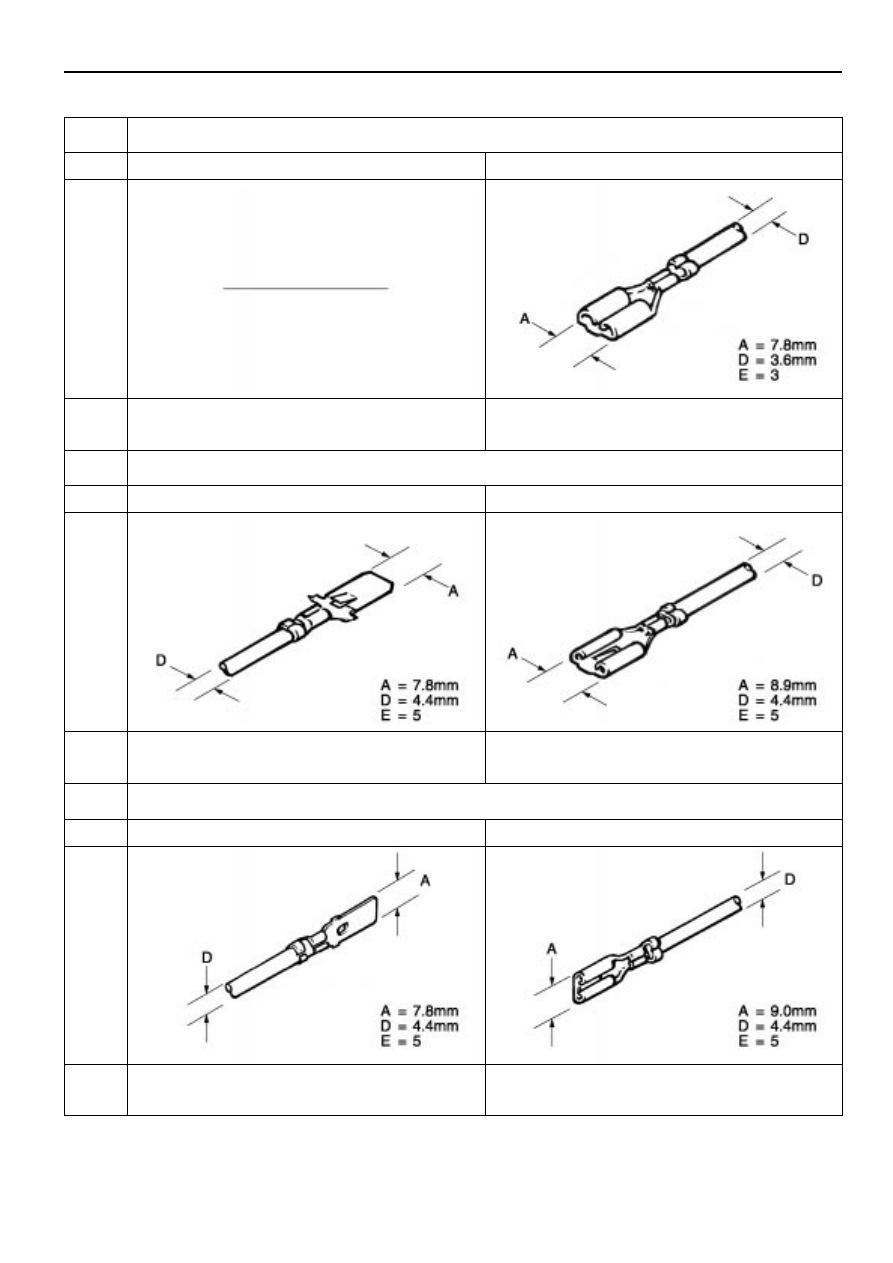

Type

2.3

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12160
82998–24050*

82998–12170

Type

2.3II

Male

Female

Sleeve : Medium (Blue) or Large (Yellow)

Sleeve : Medium (Blue) or Large (Yellow)

P/N

82998–12330
82998–12350*

82998–12340
82998–12360*

Type

2.3II IDC

Male

Female

Sleeve : Medium (Blue)

P/N

82998–24220

F

F–11

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

389

Repair Wire (Non–waterproof Type)

Type

4.8

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12370

82998–12380

Type

6.3

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12050

82998–12060

(160mm)

   82998–12580

(500mm)

Type

6.3

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12070

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

F–12

390

Wire Harness Repair Manual (RM1022E)

Repair Wire (Non–waterproof Type)

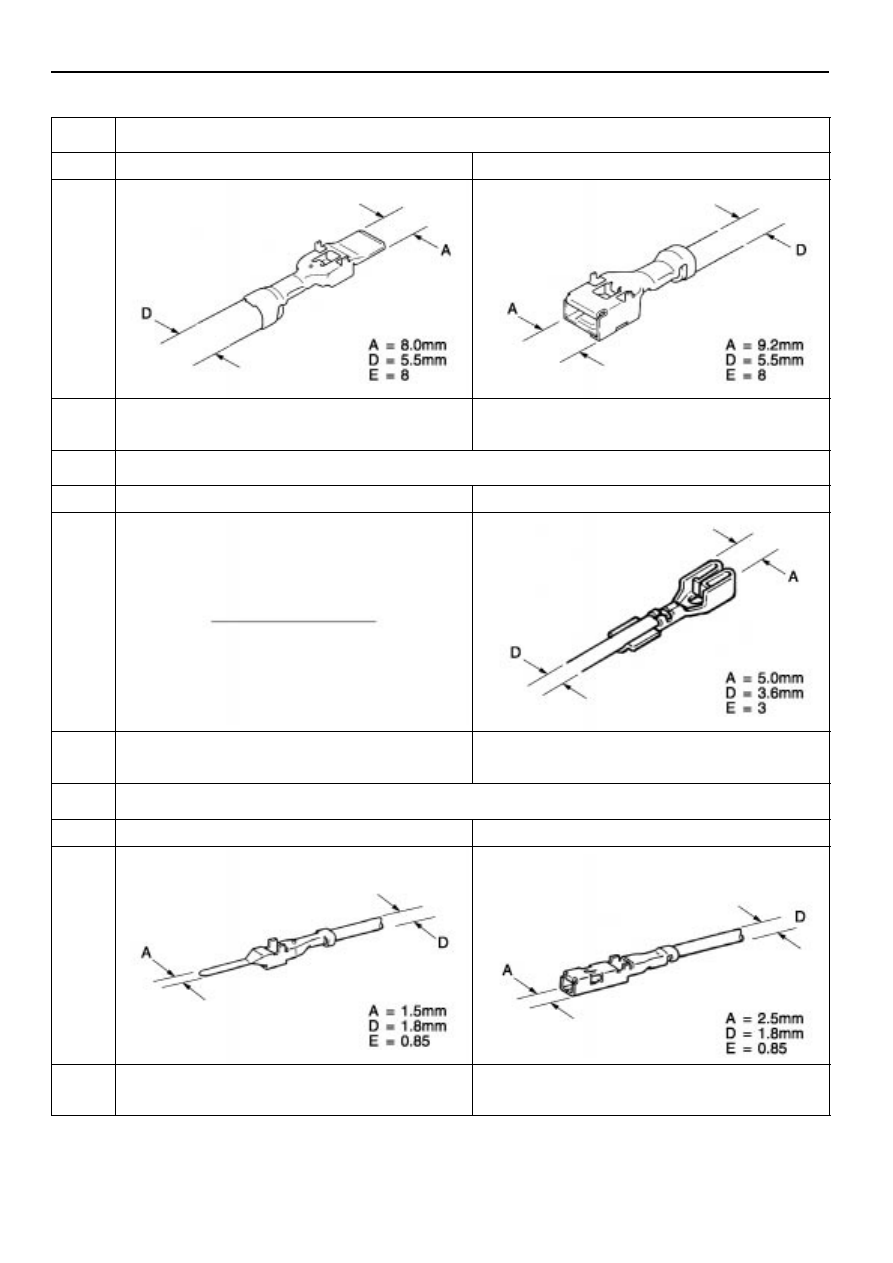

Type

6.3II

Male

Female

Sleeve : Large (Yellow)

P/N

82998–24170

Type

7.7 Terminal Lance

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12010

82998–12020

Type

7.7 Housing Lance

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12030

82998–12040

F–13

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Wire Harness Repair Manual (RM1022E)

391

Repair Wire (Non–waterproof Type)

Type

8.0

Male

Female

Sleeve : Large (Yellow)

Sleeve : Large (Yellow)

P/N

82998–12390

82998–12400

Type

BLADE FUSE

Male

Female

Sleeve : Large (Yellow)

P/N

82998–12140

Type

C–Type

Male

Female

Sleeve : Medium (Blue)

Sleeve : Medium (Blue)

P/N

82998–12560

82998–12570
