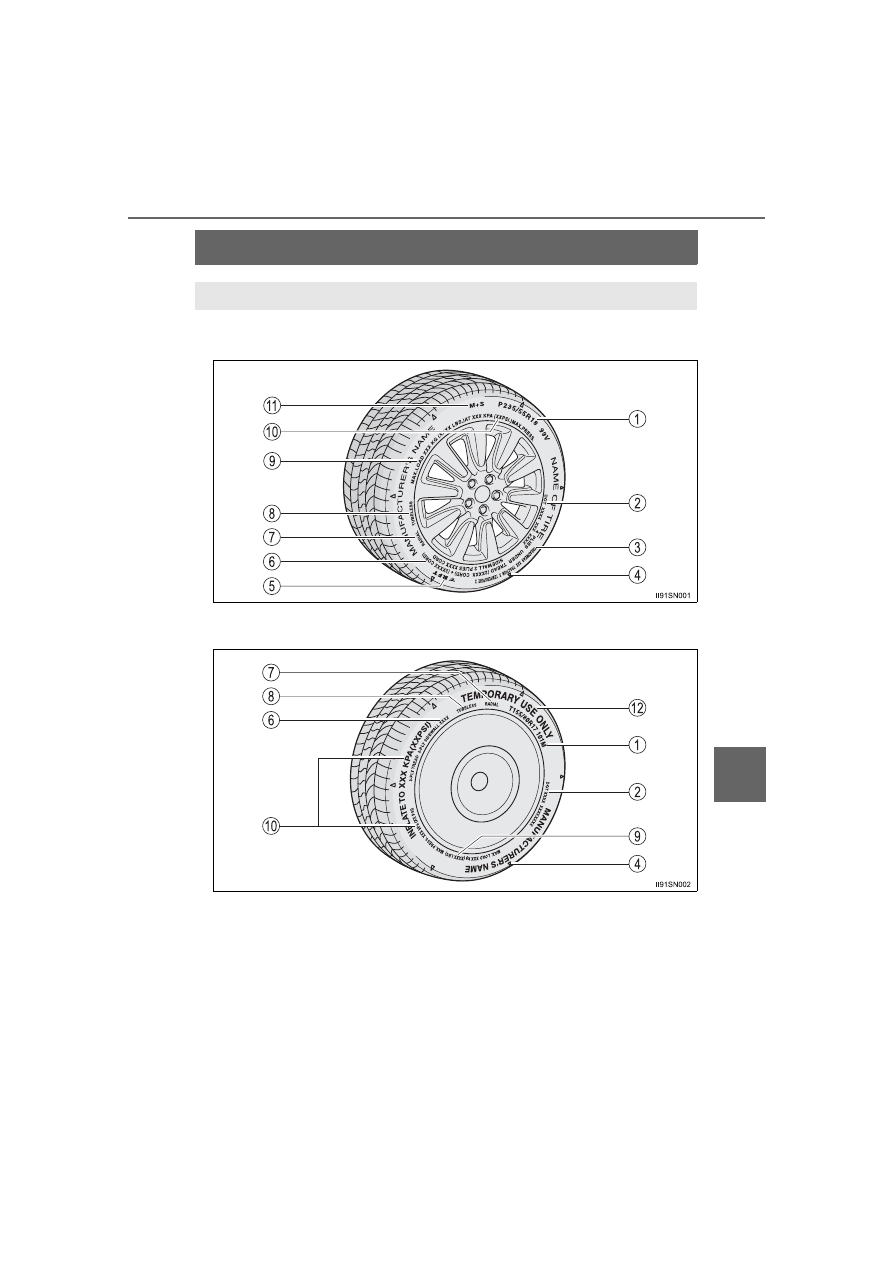

Tire size

(

P. 532)

DOT and Tire Identification Number (TIN)

(

P. 531)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators

(

P. 420)

Run-flat tire (RFT) or standard tire

(

P. 499)

This vehicle can be equipped with either run-flat tires (RFT) or stan-

dard tires. A “RFT” or “DSST” mark is molded on the sidewall of the

run-flat tire.

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Load limit at maximum cold tire inflation pressure

(

P. 423)

Maximum cold tire inflation pressure

(

P. 522)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires

(

P. 424)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

“TEMPORARY USE ONLY”

(

P. 496)

A compact spare tire is identified by the phrase “TEMPORARY USE

ONLY” molded on its sidewall. This tire is designed for temporary

emergency use only.

1
2
3

4
5

SIENNA_OM_OM08025U_(U)

531

Vehi

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

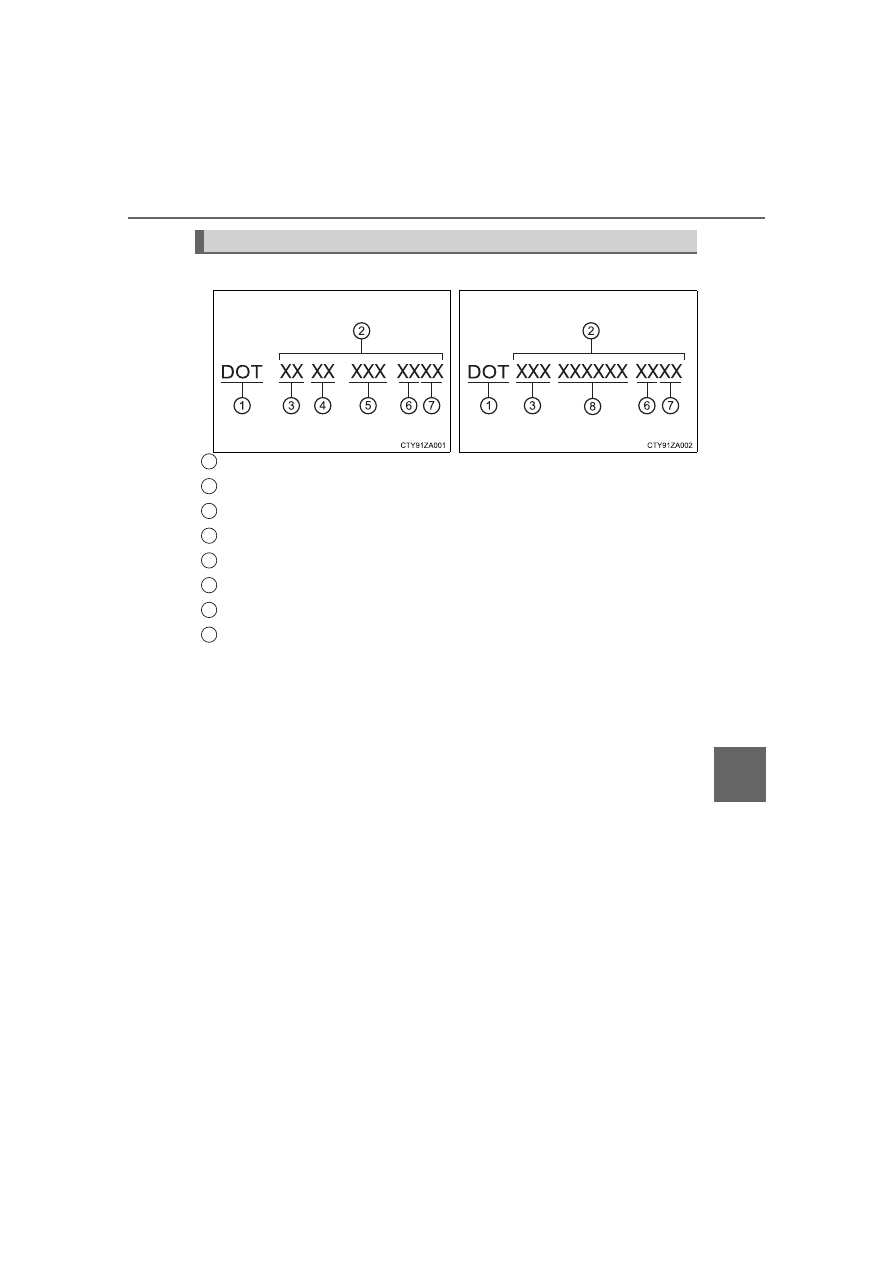

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

1
2
3
4
5
6
7
8

532

SIENNA_OM_OM08025U_(U)

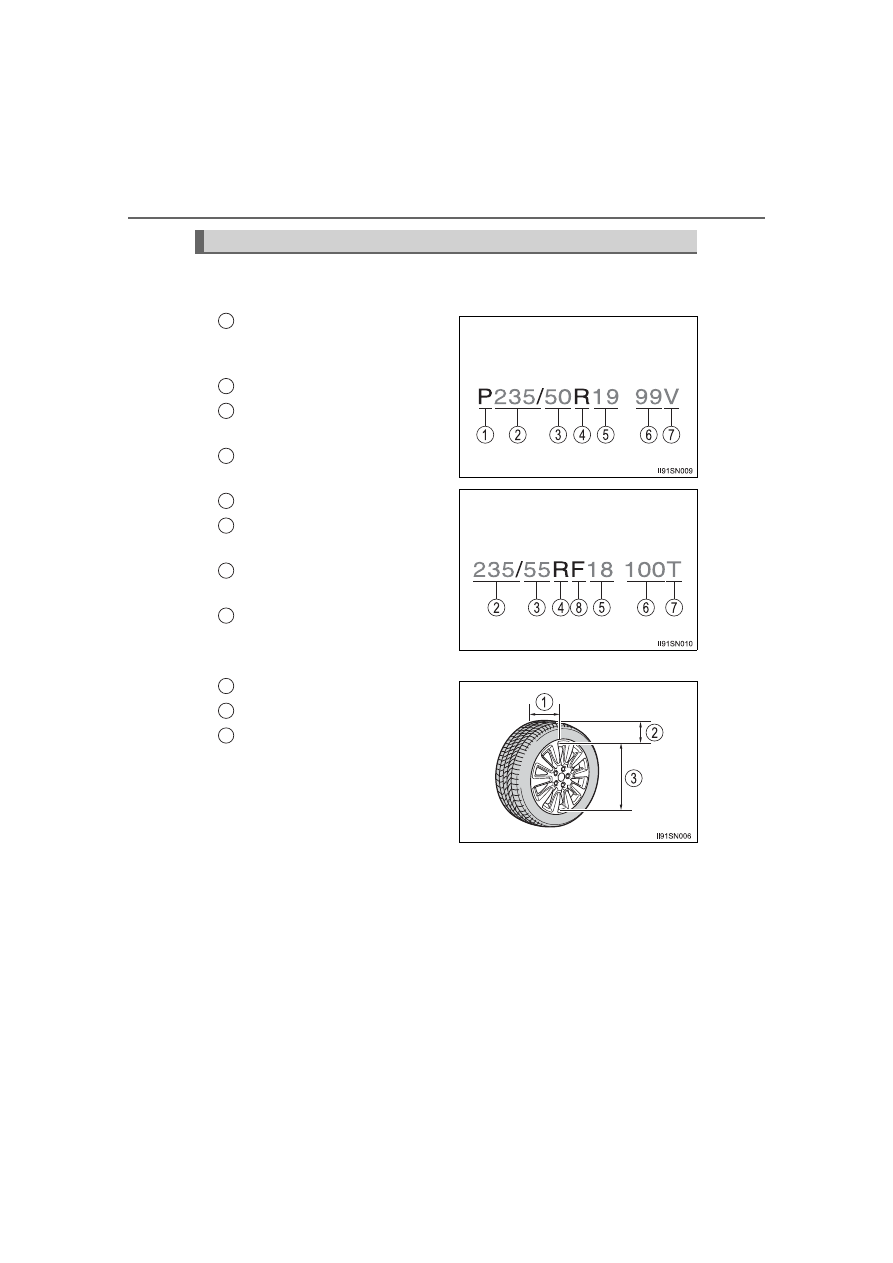

Typical tire size information
The illustration indicates typical tire size.

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)
Speed symbol
(alphabet with one letter)
Run-flat tire code

2
3

5
6

1
2
3

SIENNA_OM_OM08025U_(U)

533

Vehi

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

This  information  has  been  prepared  in  accordance  with  regulations
issued  by  the  National  Highway  Traffic  Safety Administration  of  the
U.S. Department of Transportation.
It  provides  the  purchasers  and/or  prospective  purchasers  of  Toyota
vehicles with information on uniform tire quality grading.

Your Toyota dealer will help answer any questions you may have as

you read this information.

DOT quality grades
All passenger vehicle tires must conform to Federal Safety
Requirements in addition to these grades. Quality grades can be
found where applicable on the tire sidewall between tread shoulder
and maximum section width.

For example: Treadwear 200 Traction AA Temperature A

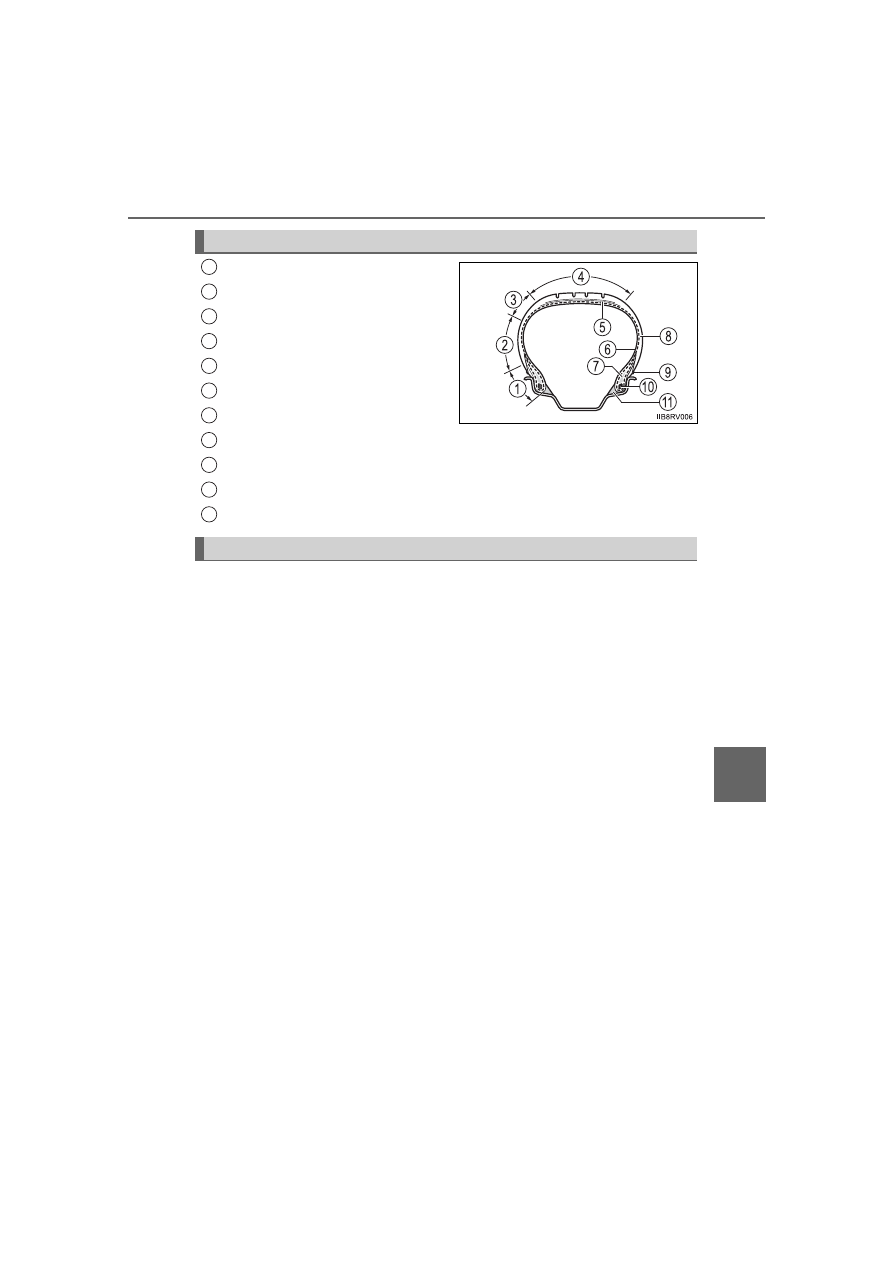

Tire section names

1
2
3
4
5
6
7
8
9

10
11

Uniform Tire Quality Grading

534

SIENNA_OM_OM08025U_(U)

Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1-1/2)

times as well on the government course as a tire graded 100.

The relative performance of tires depends upon the actual condi-

tions of their use. Performance may differ significantly from the norm

due to variations in driving habits, service practices and differences

in road characteristics and climate.

Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking

(straight ahead) traction tests and does not include cornering (turn-

ing) traction.

Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to

degenerate and reduce tire life, and excessive temperature can lead

to sudden tire failure.
Grade C corresponds to a level of performance which all passenger

car tires must meet under the Federal Motor Vehicle Safety

Standard No. 109.
Grades B and A represent higher levels of performance on the labo-

ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly

inflated and not overloaded.

Excessive speed, underinflation, or excessive loading, either sepa-

rately or in combination, can cause heat buildup and possible tire

failure.

SIENNA_OM_OM08025U_(U)

535

Vehi

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation

pressure

Tire pressure when the vehicle has been

parked for three hours or more, or has not

been driven more than 1 mile or 1.5 km under

that condition

Maximum inflation

pressure

The maximum cold inflated pressure to which

a tire may be inflated, shown on the sidewall

of the tire

Recommended

inflation pressure

Cold tire inflation pressure recommended by a

manufacturer

Accessory weight

The combined weight (in excess of those stan-

dard items which may be replaced) of auto-

matic transmission, power steering, power

brakes, power windows, power seats, radio

and heater, to the extent that these items are

available as factory-installed equipment

(whether installed or not)

Curb weight

The weight of a motor vehicle with standard

equipment, including the maximum capacity of

fuel, oil and coolant, and if so equipped, air

conditioning and additional weight optional

engine

Maximum loaded

vehicle weight

The sum of:

(a) Curb weight

(b) Accessory weight

(d) Production options weight

Normal occupant

weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

that follows

Occupant distribution

Distribution of occupants in a vehicle as speci-

fied in the third column of Table 1

below

Production options

weight

The combined weight of installed regular pro-

duction options weighing over 5 lb. (2.3 kg) in

excess of the standard items which they

replace, not previously considered in curb

weight or accessory weight, including heavy

duty brakes, ride levelers, roof rack, heavy

duty battery, and special trim

536

SIENNA_OM_OM08025U_(U)

Rim

A metal support for a tire or a tire and tube

assembly upon which the tire beads are

seated

Rim diameter

(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a

rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity

weight (Total load

capacity)

The rated cargo and luggage load plus 150 lb.

(68 kg) times the vehicle’s designated seating

capacity

Vehicle maximum load

on the tire

The load on an individual tire that is deter-

mined by distributing to each axle its share of

the maximum loaded vehicle weight, and

dividing by two

Vehicle normal load

on the tire

The load on an individual tire that is deter-

mined by distributing to each axle its share of

curb weight, accessory weight, and normal

occupant weight (distributed in accordance

with Table 1

below), and dividing by two

Weather side

The surface area of the rim not covered by the

inflated tire

Bead

The part of the tire that is made of steel wires,

wrapped or reinforced by ply cords and that is

shaped to fit the rim

Bead separation

A breakdown of the bond between compo-

nents in the bead

Bias ply tire

A pneumatic tire in which the ply cords that

extend to the beads are laid at alternate

angles substantially less than 90 degrees to

the centerline of the tread

Carcass

The tire structure, except tread and sidewall

rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or

sidewall

Cord

The strands forming the plies in the tire

Tire related term

Meaning

SIENNA_OM_OM08025U_(U)

537

Vehi

Cord separation

The parting of cords from adjacent rubber

compounds

Cracking

Any parting within the tread, sidewall, or inner-

liner of the tire extending to cord material

A pneumatic tire with an inverted flange tire

and rim system in which the rim is designed

with rim flanges pointed radially inward and

the tire is designed to fit on the underside of

the rim in a manner that encloses the rim

flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and

at higher inflation pressures than the corre-

sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a

tubeless tire that contains the inflating medium

within the tire

Innerliner separation

The parting of the innerliner from cord material

in the carcass

Intended outboard

sidewall

(a) The sidewall that contains a whitewall,

bears white lettering, or bears manufac-

turer, brand, and/or model name molding

that is higher or deeper than the same

molding on the other sidewall of the tire, or

(b) The outward facing sidewall of an asym-

metrical tire that has a particular side that

must always face outward when mounted

on a vehicle

Light truck (LT) tire

A tire designated by its manufacturer as pri-

marily intended for use on lightweight trucks

or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry

for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-

missible inflation pressure for that tire

Maximum permissible

inflation pressure

The maximum cold inflation pressure to which

a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical

dimension requirements

Tire related term

Meaning

538

SIENNA_OM_OM08025U_(U)

Open splice

Any parting at any junction of tread, sidewall,

or innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of

the sidewalls of an inflated tire, including ele-

vations due to labeling, decorations, or protec-

tive bands or ribs

Passenger car tire

A tire intended for use on passenger cars,

multipurpose passenger vehicles, and trucks,

that have a gross vehicle weight rating

(GVWR) of 10,000 lb. or less

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adja-

cent plies

Pneumatic tire

A mechanical device made of rubber, chemi-

cals, fabric and steel or other materials, that,

when mounted on an automotive wheel, pro-

vides the traction and contains the gas or fluid

that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that

extend to the beads are laid at substantially 90

degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and

at higher inflation pressures than the corre-

sponding standard tire

Section width

The linear distance between the exteriors of

the sidewalls of an inflated tire, excluding ele-

vations due to labeling, decoration, or protec-

tive bands

Sidewall

That portion of a tire between the tread and

bead

Sidewall separation

The parting of the rubber compound from the

cord material in the sidewall

Tire related term

Meaning

SIENNA_OM_OM08025U_(U)

539

Vehi

: Table 1

 Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Snow tire

A tire that attains a traction index equal to or

greater than 110, compared to the ASTM E-

1136 Standard Reference Test Tire, when

using the snow traction test as described in

ASTM F-1805-00, Standard Test Method for

Single Wheel Driving Traction in a Straight

Line on Snow-and Ice-Covered Surfaces, and

which is marked with an Alpine Symbol (

)

on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and

may be any rim listed as appropriate for use

with that tire

Tread

That portion of a tire that comes into contact

with the road

Tread rib

A tread section running circumferentially

around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear indicators

(TWI)

The projections within the principal grooves

designed to give a visual indication of the

degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire

assembly securely during testing

Tire related term

Meaning

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution

in a normally loaded

vehicle

2 through 4

2 in front

5 through 10

2 in front, 1 in second

seat

11 through 15

2 in front, 1 in second

seat, 1 in third seat,

1 in fourth seat

16 through 20

2 in front, 2 in second

seat, 2 in third seat,

1 in fourth seat

540

SIENNA_OM_OM08025U_(U)

Customizable features

Changing using the audio/visual system screen

Press the “MENU” button.
Select “Setup” on the “MENU” screen and select “Vehicle”.

Various setting can be changed. Refer to the list of settings that can
be changed for details.

Changing using the multi-information display

Use the meter control switches to select

while the vehicle

is stopped, and then press the center button to display the cus-
tomize mode screen.
Select the desired item, and then press the center button.
Select the desired setting, and then press the center button.

To go back to the previous screen or exit the customize mode,
press

Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, the audio/
visual system screen or at your Toyota dealer.

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.

Customizing vehicle features

SIENNA_OM_OM08025U_(U)

541

Vehi

Settings that can be changed using the audio/visual system screen
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, – = Not available

Gauges, meters and multi-information display (

P. 92)

Customizable features

1
2
3

Function

Default setting

Customized

setting

Language

English

French

–

Spanish

Units

miles

(MPG US)

miles (MPG

Imperial)

–

km (km/L)

km (L/100 km)

F (Fahrenheit)

C (Celsius)

–

Drive information 1

Distance to

empty

–

Average fuel

economy

–

Drive information 2

Current fuel

economy

–

Average speed

–

Drive information 3

Trip distance

–

Trip elapsed

time

–

Eco Driving Indicator Light

(Self-lighting)

Off

–

switch settings

Drive

information 1

Desired status

screen

–

Pop-up display

Off

–

542

SIENNA_OM_OM08025U_(U)

: For details about each function:

P. 96

: The default setting varies according to country.

: Customized items are the following items except for default setting items:

average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, distance, trip
elapsed time, elapsed time, trip average speed, average speed, blank.

: Some status screens cannot be registered (indicated on multi-information

display).

: Speed limit display may not be available for some regions.

: If equipped

Speed limit display

5, 6

On with the

speed limit

caution indica-

tor (yellow)

enabled

On with the

speed limit

caution indica-

tor (yellow) not

enabled

–

Off

Function

Default setting

Customized

setting

SIENNA_OM_OM08025U_(U)

543

Vehi

Door lock (

P. 110, 503)

Smart key system

and wireless remote control (

P. 105, 143)

: If equipped

Function

Default setting

Customized

setting

Unlocking using a key

Driver’s door

unlocked in

one step, all

doors unlocked

in two steps

All doors

unlocked in

one step

–

Automatic door lock

Shifting the

shift lever to

position other

than P

Off

—

Vehicle speed

is approxi-

mately 12 mph

(20 km/h) or

higher

Automatic door unlock

Shifting the

shift lever to P

Off

—

Driver’s door is

opened

Function

Default setting

Customized

setting

Operation signal (buzzer
volume)

Level 7

Off

–

Level 1 to 6

Operation signal
(Emergency flashers)

Off

–

Time  elapsed  before  the
automatic  door  lock  func-
tion  is  activated  if  door  is
not  opened  after  being
unlocked

60 seconds

Off

–

30 seconds

120 seconds

Open door warning buzzer

Off

–

544

SIENNA_OM_OM08025U_(U)
