WARNING

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.

NOTICE

To avoid damaging the transaxle and other components

Avoid spinning the wheels and pressing the accelerator pedal more than
necessary.

If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

516

SIENNA_OM_OM08025U_(U)

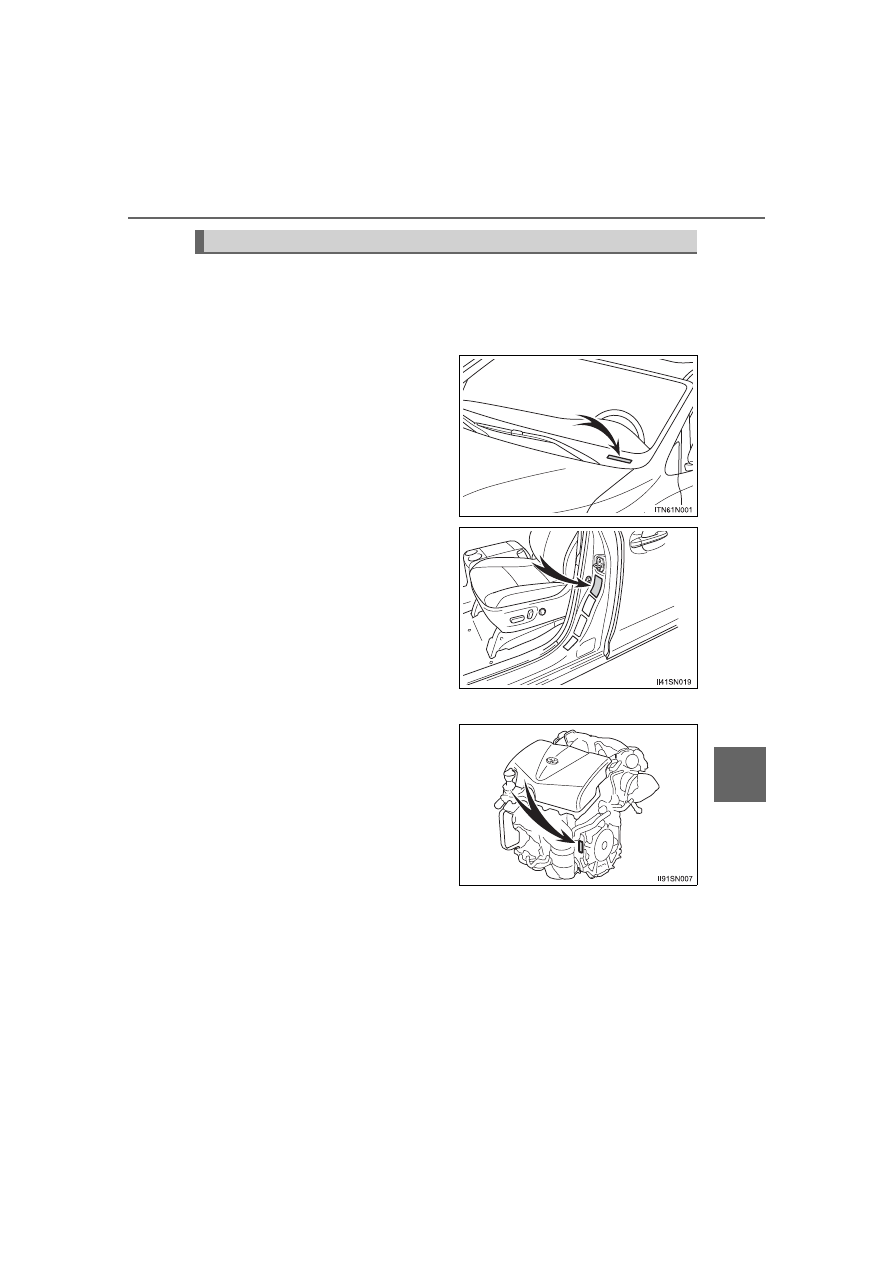

8-1. Specifications

Maintenance data (fuel, oil level, etc.)

: Unladen vehicle

: The model code is indicated on the Certification Label. For details, see

“Vehicle identification” below.

: The towing package is required.

Toyota does not recommend towing with this vehicle without the towing
package.

Dimensions and weights

Overall length

GSL30L-PRZSHA

200.4 in. (5090 mm)

Others

200.6 in. (5095 mm)

Overall width

78.1 in. (1985 mm)

Overall height

GSL30L-PRZSHA

68.7 in. (1745 mm)

Others

69.5 in. (1765 mm)

Wheelbase

119.3 in. (3030 mm)

Front and rear tread

67.7 in. (1720 mm)

Vehicle capacity weight
(Occupants + luggage)

GSL30L-PFZDHA

1380 lb. (625 kg)

GSL30L-PFZEHA

1235 lb. (560 kg)

GSL30L-PFZQHA

1145 lb. (520 kg)

GSL30L-PRZEHA

1355 lb. (615 kg)

GSL30L-PRZSHA

1265 lb. (575 kg)

GSL30L-PRZQHA

1290 lb. (585 kg)

GSL35L-PFZEHA

1210 lb. (545 kg)

GSL35L-PFZSHA

1125 lb. (510 kg)

GSL35L-PFZQHA

1125 lb. (510 kg)

Trailer Weight Rating
(TWR)
(Trailer weight +
cargo weight)
(with towing package

)

Without brake

1000 lb. (450 kg)

With brake

3500 lb. (1585 kg)

518

SIENNA_OM_OM08025U_(U)

8-1. Specifications

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

Engine

Model

3.5L 6-cylinder (2GR-FKS)

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

210.9 cu.in. (3456 cm

)

Drive belt tension

Automatic adjustment

Valve clearance

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

20.9 gal. (79 L, 17.4 Imp.gal.)

Lubrication system

Oil capacity
(Drain and refill

 reference

)

Without filter

With filter

5.6 qt. (5.3 L, 4.7 Imp.qt.)



Vehicles with towing package

5.8 qt. (5.5 L, 4.8 Imp.qt.)



Vehicles without towing package

5.7 qt. (5.4 L, 4.8 Imp.qt.)

SIENNA_OM_OM08025U_(U)

519

8-1. Specifications

Vehi

e specificatio

Engine oil selection
“Toyota  Genuine  Motor  Oil”  is  used  in  your  Toyota  vehicle.  Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE  0W-20  is  the  best  choice
for  good  fuel  economy  and
good starting in cold weather.
If  SAE  0W-20  is  not  available,
SAE  5W-20  oil  may  be  used.
However,  it  must  be  replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

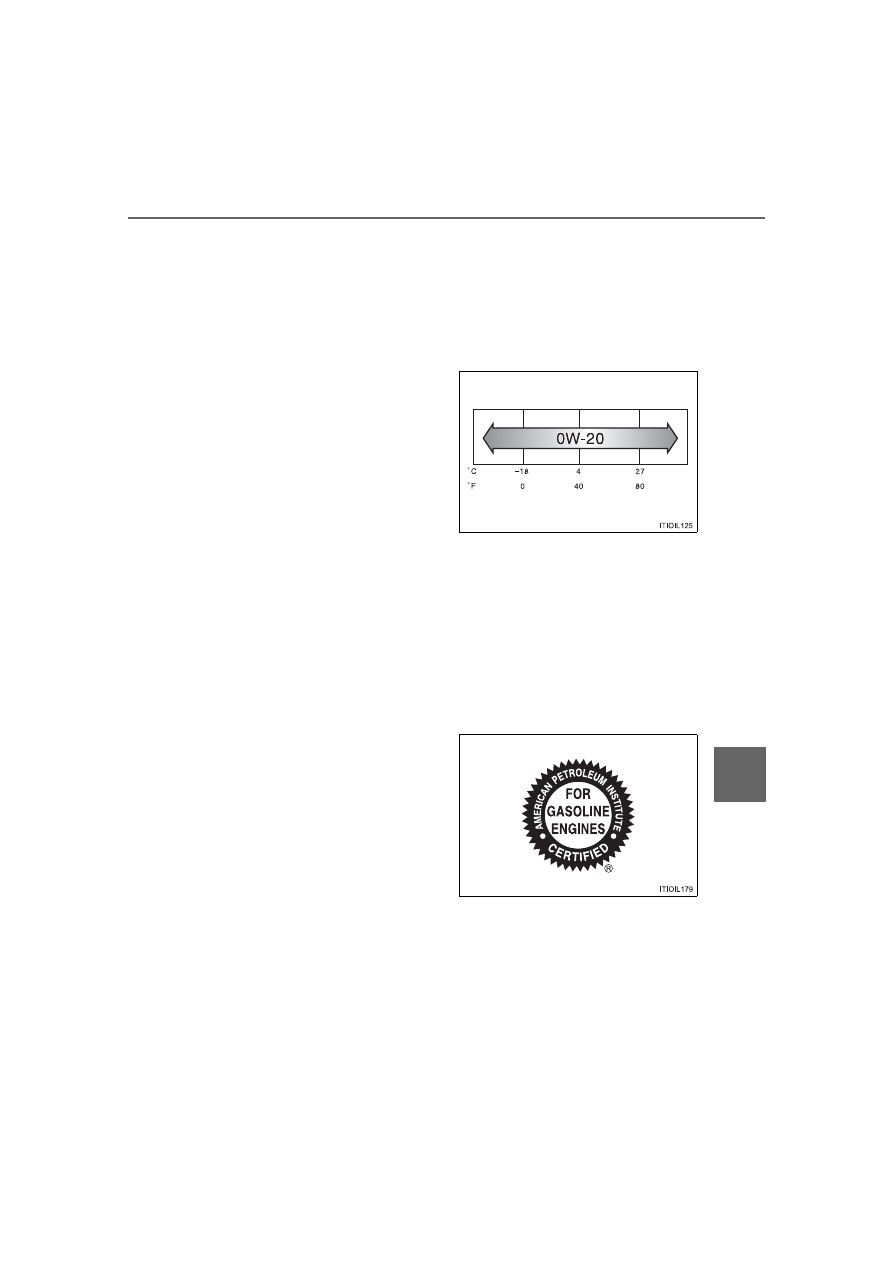

How to read oil container label:
The  International  Lubricant
Specification Advisory  Commit-
tee  (ILSAC)  Certification  Mark
is added to some oil containers
to  help  you  select  the  oil  you
should use.

Outside temperature

520

SIENNA_OM_OM08025U_(U)

8-1. Specifications

Cooling system

Capacity



Without towing package

12.2 qt. (11.5 L, 10.1 Imp.qt.)



With towing package

12.5 qt. (11.8 L, 10.4 Imp.qt.)

Coolant type

Use either of the following.

• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make
Gap

DENSO FK20HBR8
0.03 in. (0.8 mm)

NOTICE

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

Electrical system

Battery

Open voltage at
68

F (20C):

12.3 V or more
If  the  voltage  is  lower  than  the  standard  value,
charge the battery.
(After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch in
the  “LOCK”  position  [vehicles  without  smart  key
system]  or  off  [vehicles  with  smart  key  system],
and turn the headlights off.)

Charging rates

5 A max.

SIENNA_OM_OM08025U_(U)

521

8-1. Specifications

Vehi

e specificatio

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.

Automatic transaxle

Fluid capacity

7.9 qt. (7.48 L, 6.6 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration and, ultimately, damage to the vehicle’s transmission.

Transfer (AWD models)

Oil capacity

0.8 qt. (0.8 L, 0.7 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

Rear differential (AWD models)

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

522

SIENNA_OM_OM08025U_(U)

8-1. Specifications

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the engine is running

: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,

30.6 kgf)



17-inch tires

Brakes

Pedal clearance

2.99 in. (76 mm)

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake pedal travel

 6 clicks

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

P235/60R17 100T

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

17 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

SIENNA_OM_OM08025U_(U)

523

8-1. Specifications

Vehi

e specificatio



18-inch tires



19-inch tires

Tire size

235/55R18 100V, 235/55RF18 100T

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 1 psi (10 kPa, 0.1 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

18 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

P235/50R19 99V

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm

bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.

Wheel size

19 x 7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

SIENNA_OM_OM08025U_(U)

525

8-1. Specifications

Vehi

e specificatio

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Headlights (low beam)

Discharge bulbs
Halogen bulbs



35
55

A
B

Headlights (high beam)

9005

Fog lights



Front side marker lights

W5W

Front turn signal lights

7444NA

28/8

Front turn signal/parking and
front side marker lights

3457NAK

28/8

Rear turn signal lights

WY21W

Tail lights

W5W

Stop/tail lights

7443

21/5

Back-up lights

921

License plate lights

W5W

Outer foot lights

W6W

Interior

Front personal/interior lights

W5W

Rear personal/interior lights

W5W/168

Luggage compartment light



Vanity lights

7065T2

2.8

Front door courtesy lights

194

A: D4S discharge bulbs

B: H11 halogen bulbs

C: HB3 halogen bulbs

D: Wedge base bulbs (clear)

E: Wedge base bulbs (amber)

F: Double end bulbs

: If equipped

: Vehicles with LED type daytime running lights

: Vehicles without daytime running lights or with bulb type daytime running

lights

: Vehicles with bulb type stop/tail lights

526

SIENNA_OM_OM08025U_(U)

8-1. Specifications

Fuel information

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

Recommendation of the use of gasoline containing detergent additives

Toyota recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, EPA’s lowest additives concentra-
tion program.

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

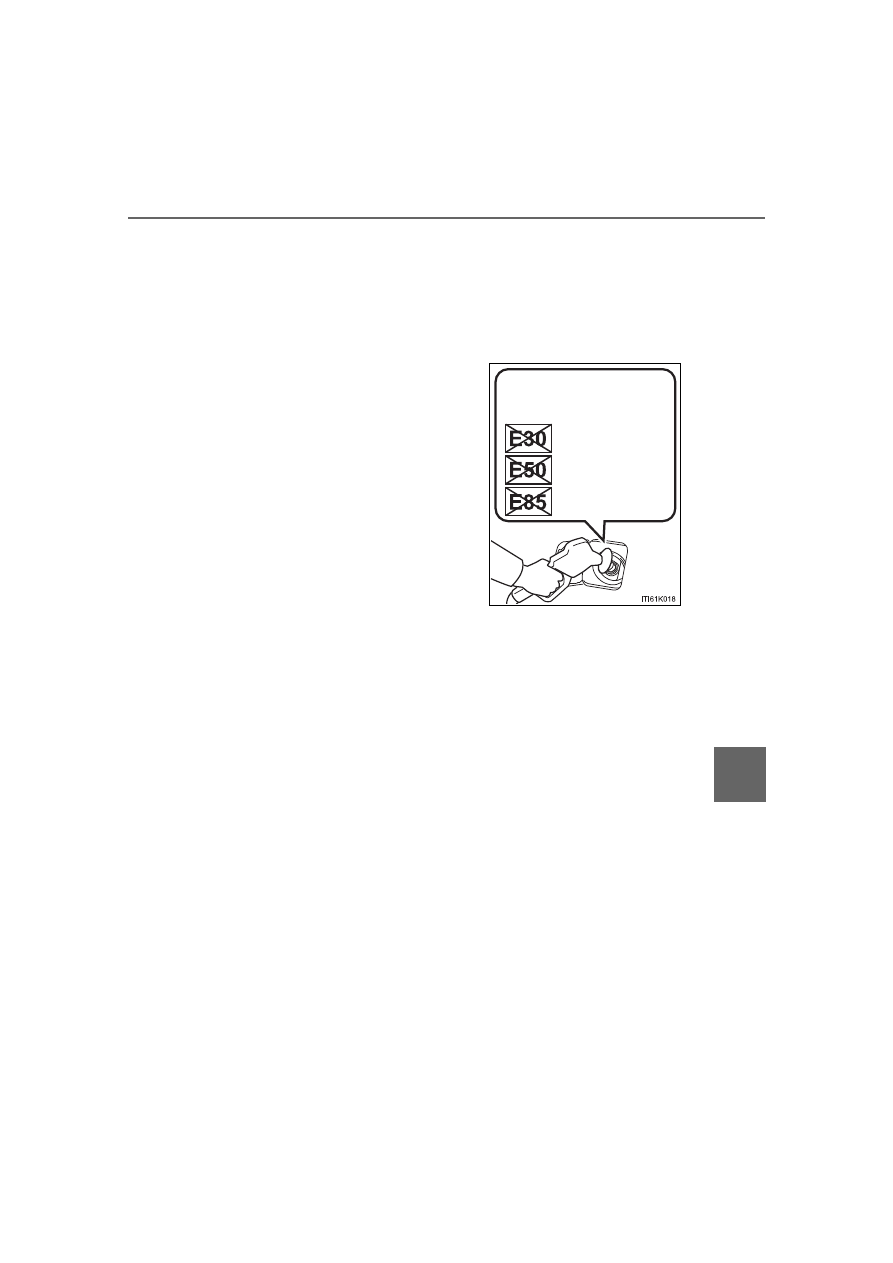

You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

SIENNA_OM_OM08025U_(U)

527

8-1. Specifications

Vehi

e specificatio

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

Non-recommendation of the use of blended gasoline

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

Toyota does not recommend the use of gasoline containing methanol.

Non-recommendation of the use of gasoline containing MMT
Some  gasoline  contains  an  octane  enhancing  additive  called  MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Toyota  does  not  recommend  the  use  of  gasoline  that  contains  MMT.  If  fuel
containing  MMT  is  used,  your  emission  control  system  may  be  adversely
affected.
The malfunction indicator lamp on the instrument panel may come on. If this
happens, contact your Toyota dealer for service.

If your engine knocks

Consult your Toyota dealer.

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gaso-
line containing more
than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

528

SIENNA_OM_OM08025U_(U)

8-1. Specifications

NOTICE

Notice on fuel quality

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s catalytic converters
causing the emission control system to malfunction.

Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

Toyota Sienna (2019 year). Manual - part 33
