Toyota C-HR (2019 year). Manual - part 24

Mainten

■

Maximum load of tire
Check that the maximum load of the replacement tire is greater than 1/2

of the Gross Axle Weight Ratings (GAWR) of either the front axle or the

rear axle, whichever is greater.

■

Tire types

●

Summer tires
Summer tires are high-speed performance tires best suited to highway

driving under dry conditions. Since summer tires do not have the same

traction performance as snow tires, summer tires are inadequate for

driving on snow-covered or icy roads. For driving on snow-covered

roads or icy roads, the use of snow tires is recommended. When install-

ing snow tires, be sure to replace all four tires.

●

All season tires
All season tires are designed to provide better traction in snow and to

be adequate for driving in most winter conditions as well as for use

year-round. All season tires, however, do not have adequate traction

performance compared with snow tires in heavy or loose snow. Also, all

season tires fall short in acceleration and handling performance com-

pared with summer tires in highway driving.

●

Snow tires
For driving on snow-covered roads or icy roads, we recommend using

snow tires. If you need snow tires, select tires of the same size, con-

struction and load capacity as the originally installed tires. Since your

vehicle has radial tires as original equipment, make sure your snow

tires also have radial construction. Do not install studded tires without

first checking local regulations for possible restrictions. Snow tires

should be installed on all wheels. (

P. 286)

■

If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.

For the GAWR, see the Certification

Label. For the maximum load of the tire,

see the load limit at maximum cold tire

inflation pressure mentioned on the

sidewall of the tire. (

P. 473)

370

■

Situations in which the tire pressure warning system may not oper-

ate properly

●

In the following cases, the tire pressure warning system may not operate

properly.
• If non-genuine Toyota wheels are used.

• A tire has been replaced with a tire that is not an OE (Original Equip-

ment) tire.

• A tire has been replaced with a tire that is not of the specified size.

• Tire chains, etc., are equipped.

• An auxiliary-supported run-flat tire is equipped.

• If a window tint that affects the radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is extremely higher than the specified

level.

• If wheels without the tire pressure warning valves and transmitters

are used.

• If the ID code on the tire pressure warning valves and transmitters is

not registered in the tire pressure warning computer.

●

Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large

display, airport or other facility that generates strong radio waves or

electrical noise.

• When carrying a portable radio, cellular phone, cordless phone or

other wireless communication device.

●

When the vehicle is parked, the time taken for the warning to start or go

off could be extended.

●

When tire inflation pressure declines rapidly for example when a tire has

burst, the warning may not function.

371

Mainten

■

The initialization operation

●

Make sure to carry out initialization after adjusting the tire inflation pres-

sure.

Also, make sure the tires are cold before carrying out initialization or tire

inflation pressure adjustment.

●

If you have accidentally turned the engine switch off during initialization,

it is not necessary to press the reset switch again as initialization will

restart automatically when the engine switch to the “ON” position (vehi-

cles without a smart key system) or IGNITION ON mode (vehicles with a

smart key system) for the next time.

●

If you accidentally press the reset switch when initialization is not neces-

sary, adjust the tire inflation pressure to the specified level when the

tires are cold, and conduct initialization again.

■

Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accor-

dance with driving conditions. For this reason, the system may give a

warning even if the tire pressure does not reach a low enough level, or if

the pressure is higher than the pressure that was adjusted to when the

system was initialized.

■

When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not oper-

ate properly. If repeated attempts to record tire inflation pressure settings

are unsuccessful, have the vehicle inspected by your Toyota dealer.

●

When operating the initialization of the system, the tire pressure warning

light does not blink 3 times and the setting message does not appear on

the multi-information display.

●

After driving for a certain period of time since the initialization has been

completed, the warning light comes on after blinking for 1 minute.

372

■

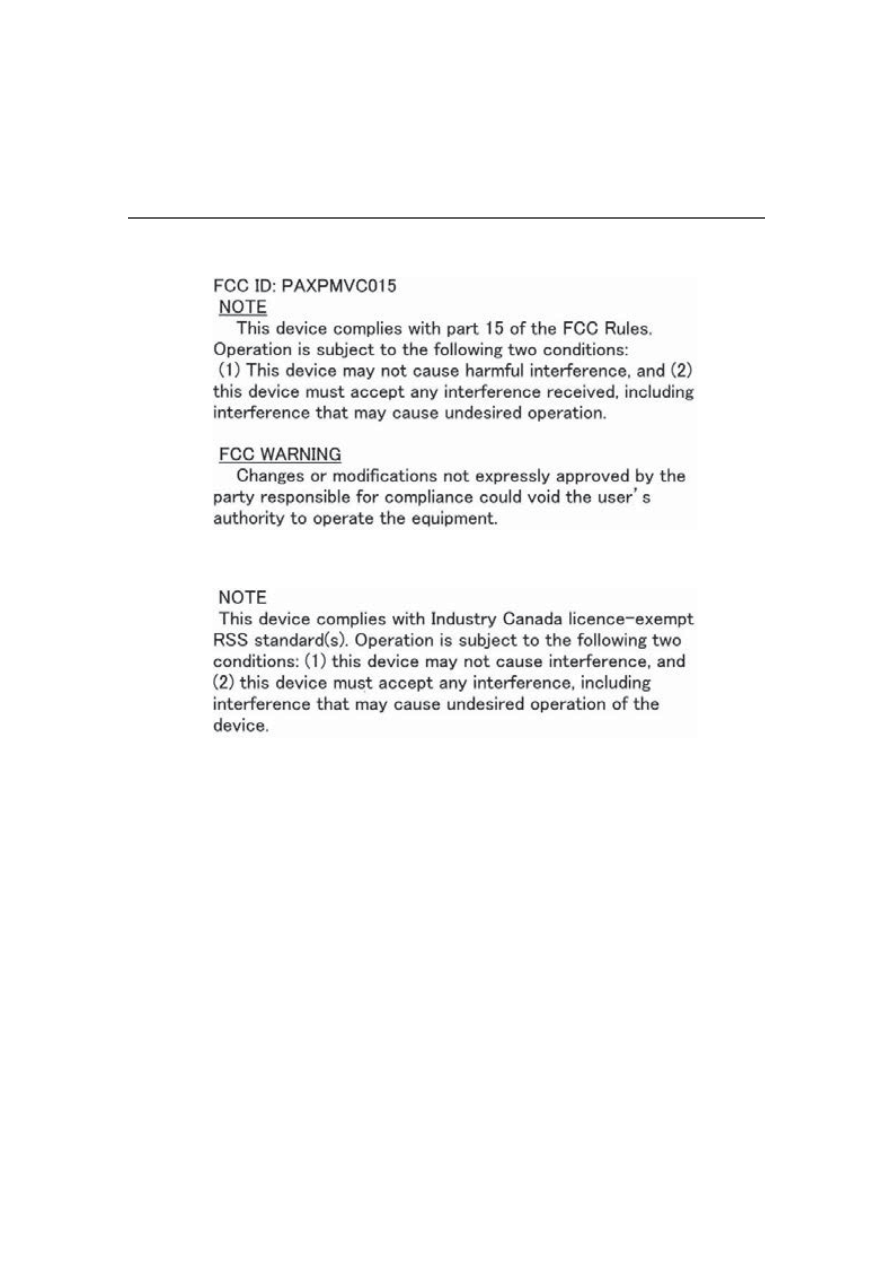

Tire pressure warning system certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada
Model: PMV-C015

373

Mainten

WARNING

■

When inspecting or replacing tires
Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drive train as well as

dangerous handling characteristics, which may lead to an accident

resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

●

Do not tow if your vehicle has a compact spare tire installed.

■

When initializing the tire pressure warning system
Do not initialize tire pressure warning system without first adjusting the

tire inflation pressure to the specified level. Otherwise, the tire pressure

warning light may not come on even if the tire inflation pressure is low,

or it may come on when the tire inflation pressure is actually normal.

374

NOTICE

■

Repairing or replacing tires, wheels, tire pressure warning valves,

transmitters and tire valve caps

●

When removing or fitting the wheels, tires or the tire pressure warning

valves and transmitters, contact your Toyota dealer as the tire pres-

sure warning valves and transmitters may be damaged if not handled

correctly.

●

Make sure to install the tire valve caps. If the tire valve caps are not

installed, water could enter the tire pressure warning valves and the

tire pressure warning valves could be bound.

●

When replacing tire valve caps, do not use tire valve caps other than

those specified. The cap may become stuck.

■

To avoid damage to the tire pressure warning valves and transmit-

ters
When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 366)

■

Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-

holes.

These conditions may cause losses in tire inflation pressure, reducing

the cushioning ability of the tires. In addition, driving on rough roads

may cause damage to the tires themselves, as well as the vehicle’s

wheels and body.

■

If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

375

Mainten

Tire inflation pressure

The recommended cold tire infla-
tion pressure and tire size are dis-
played on the tire and loading
information label. (

P. 468)

Tire inflation pressure

376

Tire valve
Tire pressure gauge

Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.

Inspection and adjustment procedure

1
2
3
4

377

Mainten

■

Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once

a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating, have it checked by your Toyota dealer.

■

Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:

●

Check only when the tires are cold.

If your vehicle has been parked for at least 3 hours or has not been

driven for more than 1 mile or 1.5 km, you will get an accurate cold tire

inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

●

It is normal for the tire inflation pressure to be higher after driving as

heat is generated in the tire. Do not reduce tire inflation pressure after

driving.

●

Never exceed the vehicle capacity weight.

Passengers and luggage weight should be placed so that the vehicle is

balanced.

378

WARNING

■

Proper inflation is critical to save tire performance
Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur

which could lead to an accident resulting in death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from overheated tires

●

Air leaking from between tire and wheel

●

Wheel deformation and/or tire damage

●

Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and

cause an air leak, resulting in decreased tire inflation pressure.

379

Mainten

Wheels

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

Replacement wheels are available at your Toyota dealer.

: Conventionally referred to as “offset”.

Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened

● Use only Toyota wheel nuts and wrenches designed for use with

your aluminum wheels.

● When rotating, repairing or changing your tires, check that the

wheel nuts are still tight after driving 1000 miles (1600 km).

● Use only Toyota genuine balance weights or equivalent and a plas-

tic or rubber hammer when balancing your wheels.

■

When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning

valves and transmitters that allow the tire pressure warning system to

provide advance warning in the event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pressure warning valves and trans-

mitters must be installed. (

P. 366)

If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions (if equipped)

380

WARNING

■

When replacing wheels

●

Do not use wheels that are a different size from those recommended in

the Owner’s Manual, as this may result in a loss of handling control.

●

Never use an inner tube in a leaking wheel which is designed for a

tubeless tire. Doing so may result in an accident, causing death or seri-

ous injury.

■

When installing the wheel nuts

●

Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened,

leading to bolt or disc wheel damage. In addition, the oil or grease can

cause the wheel nuts to loosen and the wheel may fall off, causing an

accident and resulting in death or serious injury. Remove any oil or

grease from the wheel bolts or wheel nuts.

■

Use of defective wheels prohibited
Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air during driving, possibly causing

an accident.

●

Be sure to install the wheel nuts with

the tapered ends facing inward.

Installing the nuts with the tapered

ends facing outward can cause the

wheel to break and eventually cause

the wheel to come off while driving,

which could lead to an accident

resulting in death or serious injury.

Tapered
portion

381

Mainten

NOTICE

■

Replacing tire pressure warning valves and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

382

Air conditioning filter

Turn the engine switch off.
Open the glove box. Slide off
the damper.

Push  in  each  side  of  the  glove
box  to  disconnect  the  claws,
and  then  slowly  and  fully  open
the  glove  box  while  supporting
it.

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1
2

383

Mainten

With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.

Do  not  use  excessive  force  if  the
glove  box  does  not  detach  when
lightly  pulled.  Instead,  pull  toward
the seat while slightly adjusting the
height of the glove box.



Type A

Remove the filter cover.

Remove the air conditioning fil-
ter and replace it with a new
one.

The “

UP” marks shown on the fil-

ter should be pointing up.

When installing, reverse the steps listed.

384
