SRS front airbags

SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passen-
ger from impact with interior components
SRS driver’s knee airbag
Can help provide driver protection

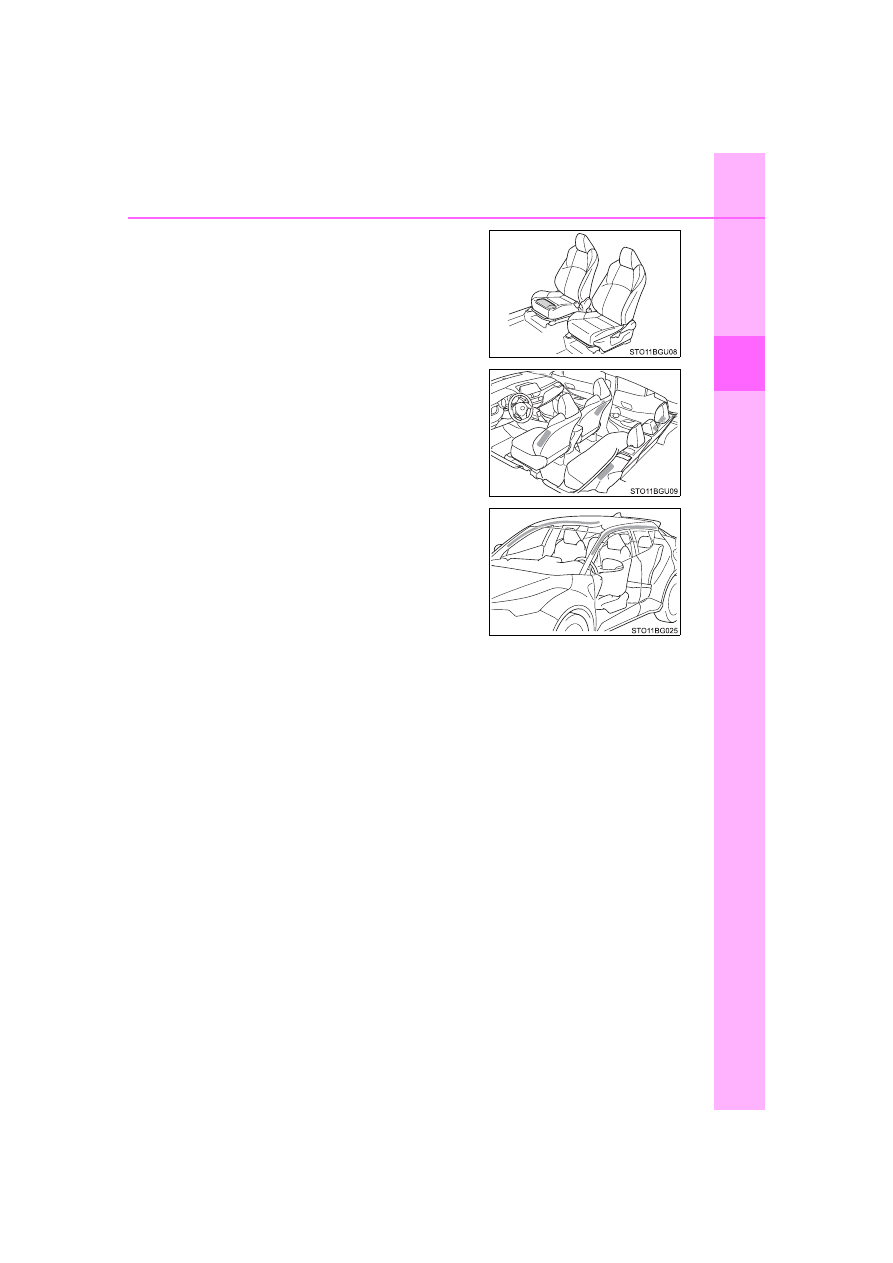

SRS front passenger’s seat cushion airbag
Can help restrain the front passenger

◆

SRS side and curtain shield airbags

SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
● Can help protect primarily the head of occupants in the outer

seats

● Can help prevent the occupants from being thrown from the vehi-

cle in the event of vehicle rollover

1-1. For safe use

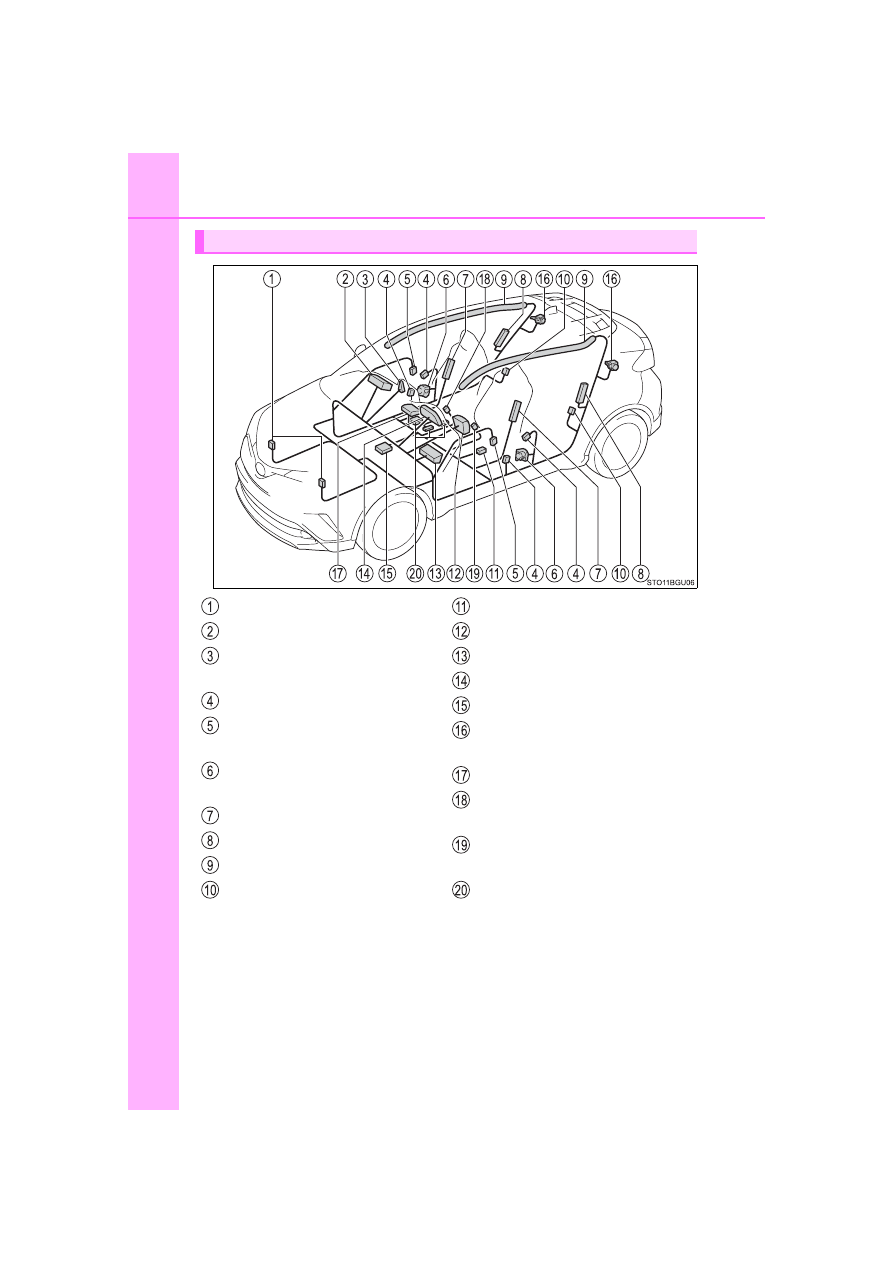

SRS airbag system components

Front impact sensors
Front passenger airbag

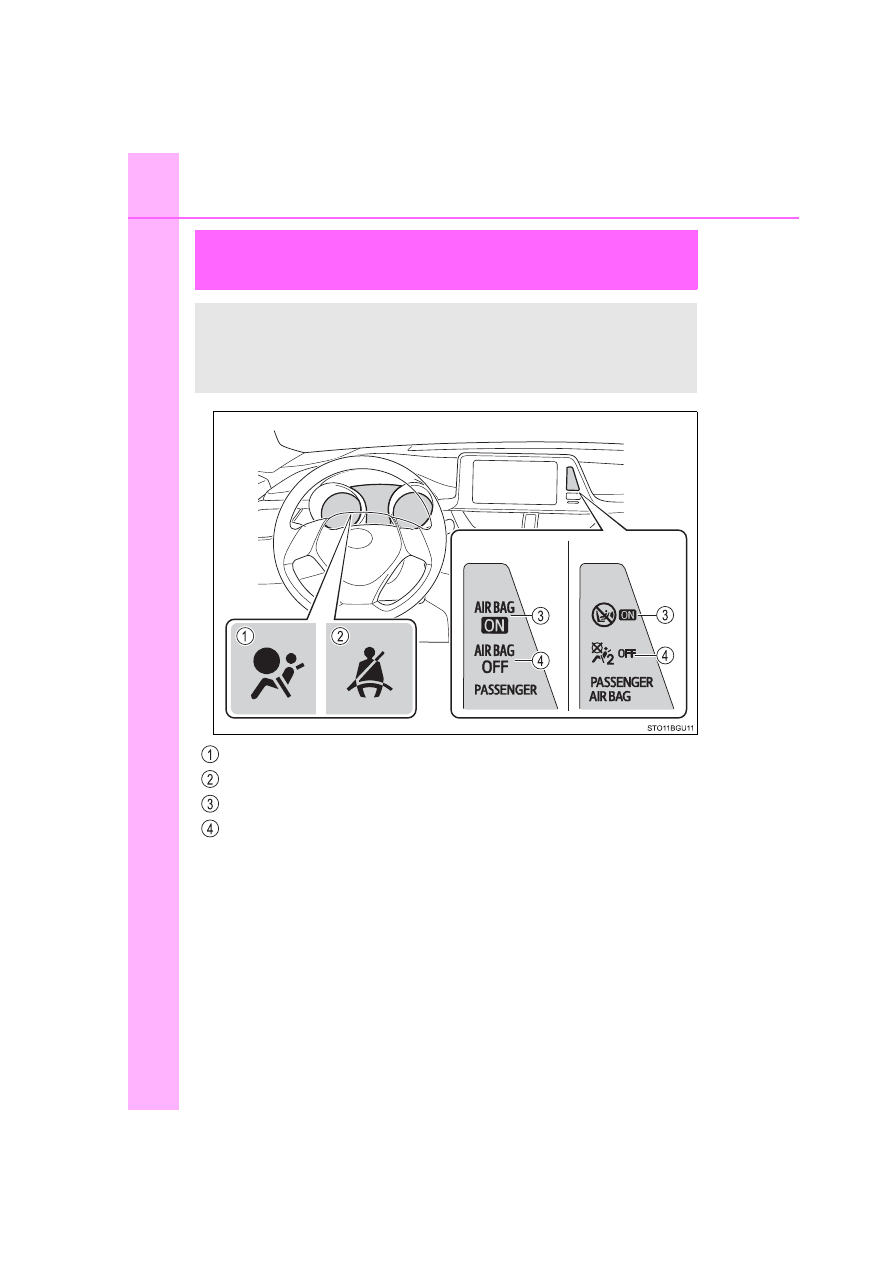

“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Side impact sensors (front)
Side impact sensors (front
doors)
Seat belt pretensioners and
force limiters (front)
Side airbags (front)
Side airbags (rear)
Curtain shield airbags
Side impact sensors (rear)

Driver’s seat position sensor
Driver airbag
Driver’s knee airbag
SRS warning light
Airbag sensor assembly
Seat  belt  pretensioners  and
force limiters (rear)
Seat cushion airbag
Front  passenger’s  seat  belt
buckle switch
Driver’s  seat  belt  buckle
switch
Front  passenger  occupant
classification  system  (ECU
and sensors)

1-1. For safe use

Fo
r safety and securi

Your vehicle is equipped with ADVANCED AIRBAGS designed based
on  the  US  motor  vehicle  safety  standards  (FMVSS208). The  airbag
sensor  assembly  (ECU)  controls  airbag  deployment  based  on  infor-
mation obtained from the sensors  etc. shown in the system compo-
nents  diagram  above.  This  information  includes  crash  severity  and
occupant  information. As  the  airbags  deploy,  a  chemical  reaction  in
the inflators quickly fills the airbags with nontoxic gas to help restrain
the motion of the occupants.

WARNING

■

SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.

●

The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.

●

The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
10 in. (250 mm) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-

als comfortably.

• Slightly recline the back of the seat.

Although vehicle designs vary, many drivers can achieve the 10 in.
(250 mm) distance, even with the driver seat all the way forward, simply
by reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the air-

bag toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.

1-1. For safe use

WARNING

■

SRS airbag precautions

●

The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.

●

Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (

P. 55)

●

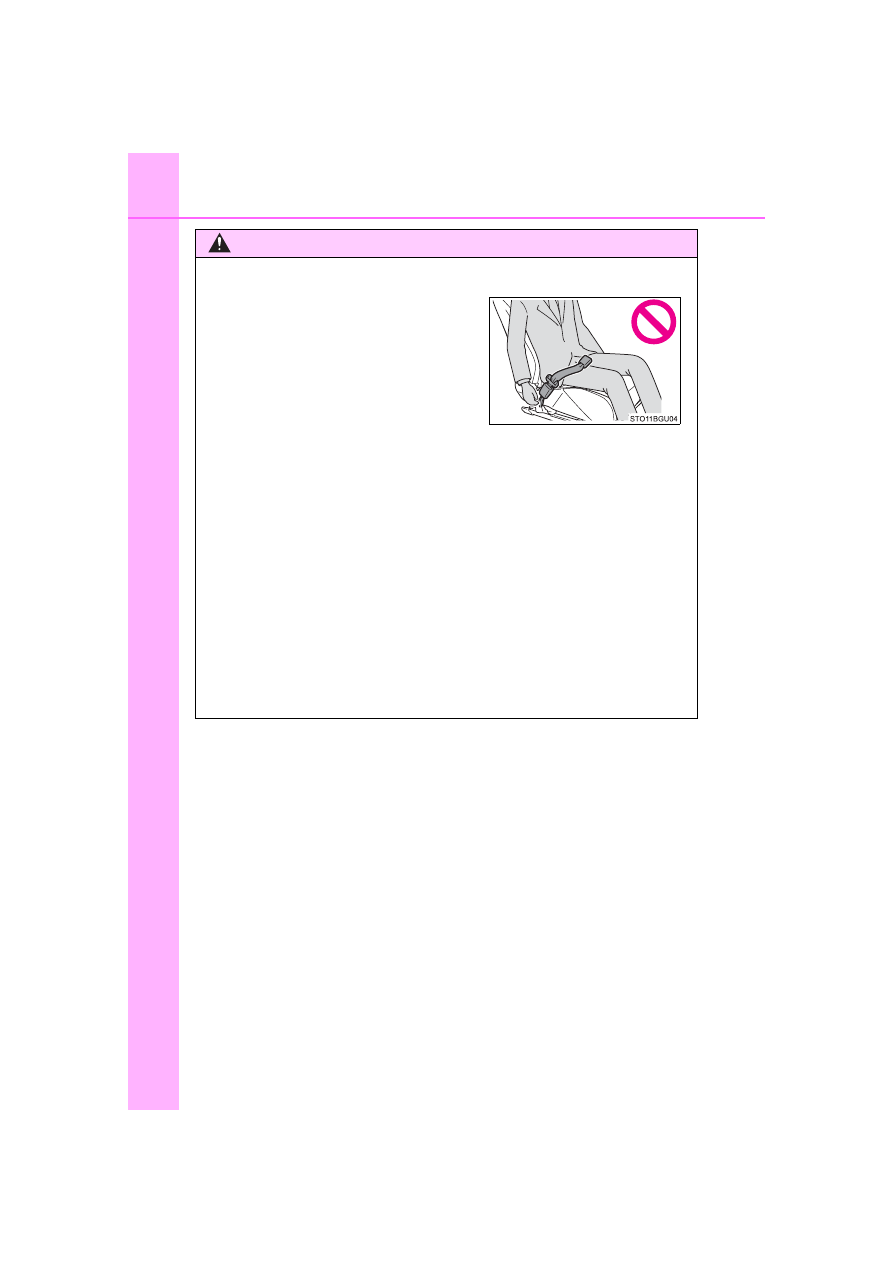

If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened  to  the  latch  plate  of  the  seat
belt,  the  SRS  front  airbags  will  judge
that the driver and front passenger are
wearing  the  seat  belt  even  though  the
seat  belt  has  not  been  connected.  In
this  case,  the  SRS  front  airbags  may
not  activate  correctly  in  a  collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.

1-1. For safe use

Fo
r safety and securi

WARNING

■

SRS airbag precautions

●

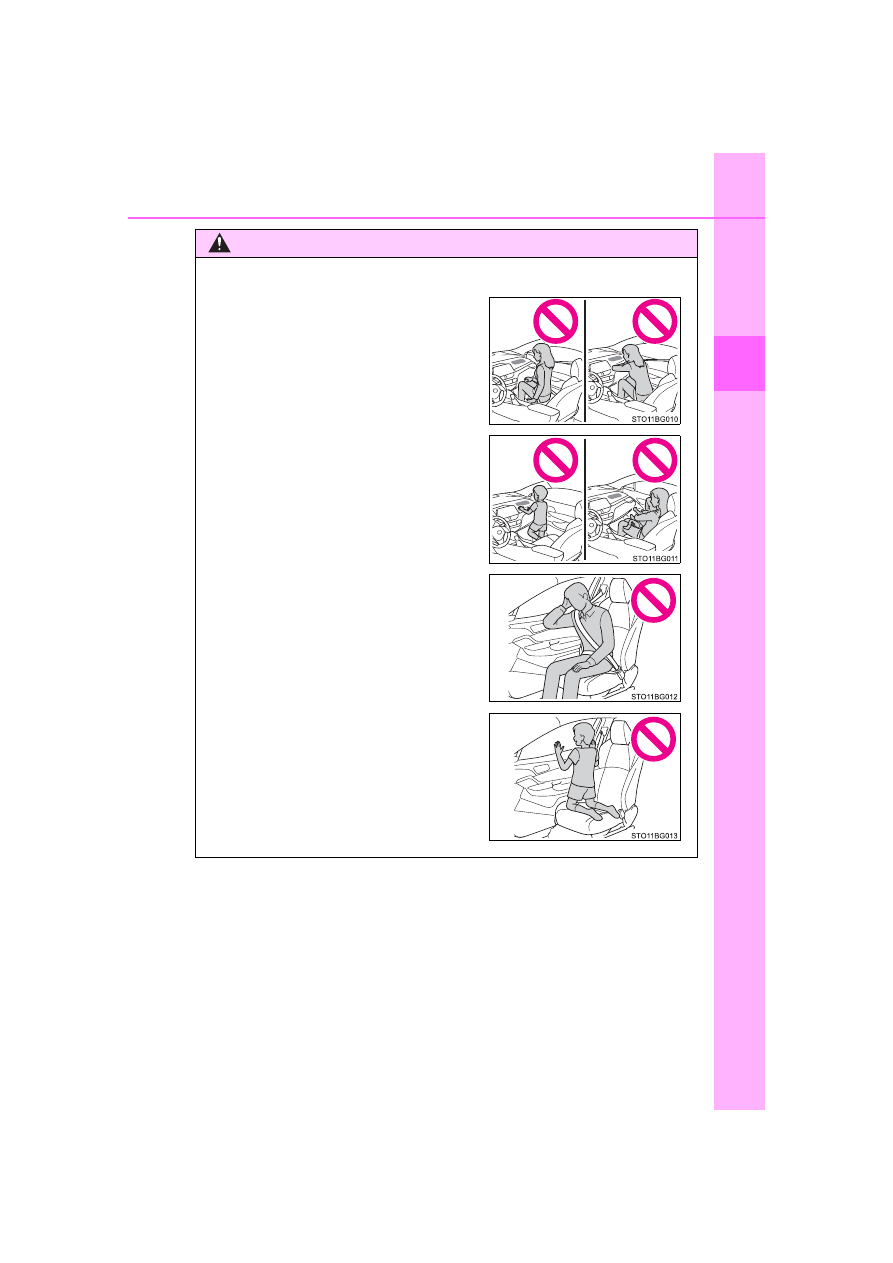

Do not sit on the edge of the seat or
lean against the dashboard.

●

Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.

●

Do not allow the front seat occupants to
hold items on their knees.

●

Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.

●

Do not allow anyone to kneel on the
passenger seats toward the door or put
their head or hands outside the vehicle.

1-1. For safe use

WARNING

■

SRS airbag precautions

●

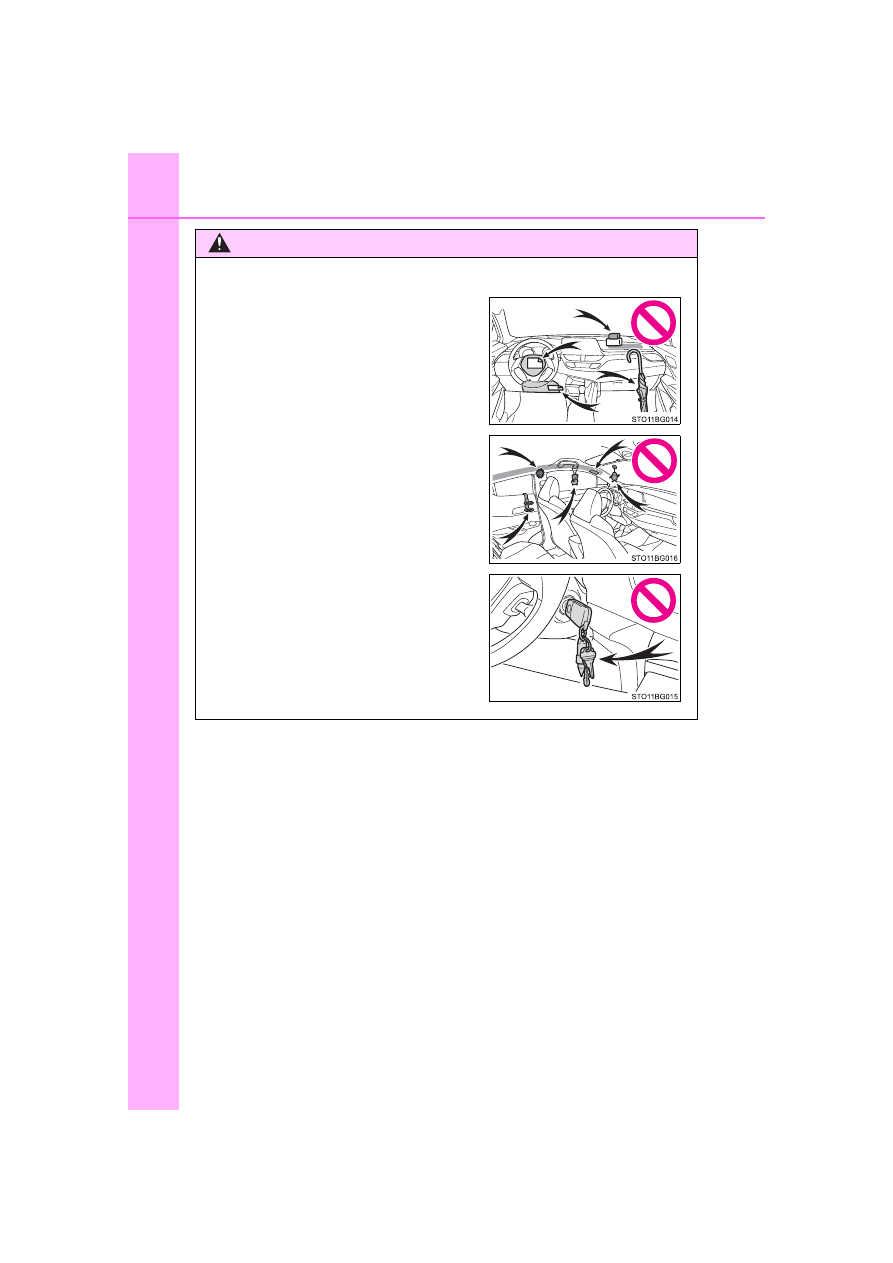

Do  not  attach  anything  to  or  lean  any-
thing  against  areas  such  as  the  dash-
board,  steering  wheel  pad  and  lower
portion of the instrument panel.
These  items  can  become  projectiles
when  the  SRS  driver,  front  passenger
and driver’s knee airbag deploy.

●

Do not attach anything to areas such as
the door, windshield, side window, front
or rear pillar, roof side rail and assist
grip.

●

Vehicles without a smart key system:
Do not attach any heavy, sharp or hard
objects such as keys and accessories
to the key. The objects may restrict the
SRS driver’s knee airbag inflation or be
thrust into the driver's seat area by the
force of the deploying airbag, thus caus-
ing a danger.

1-1. For safe use

Fo
r safety and securi

WARNING

■

SRS airbag precautions

●

If a vinyl cover is put on the area where the SRS driver’s knee airbag will
deploy, be sure to remove it.

●

Do not use seat accessories which cover the parts where the SRS side
airbags and SRS seat cushion airbag inflate as they may interfere with
inflation of the SRS airbags. Such accessories may prevent the side air-
bags and seat cushion airbag from activating correctly, disable the system
or cause the side airbags and seat cushion airbag to inflate accidentally,
resulting in death or serious injury.

●

Do not strike or apply significant levels of force to the area of the SRS air-
bag components or the front doors.
Doing so can cause the SRS airbags to malfunction.

●

Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.

●

If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.

●

If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillars garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.

●

Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.

1-1. For safe use

WARNING

■

Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.

●

Installation, removal, disassembly and repair of the SRS airbags

●

Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails or front door panels, trims and speakers

●

Modifications to the front door panel (such as making a hole in it)

●

Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment

●

Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches or roof luggage carrier

●

Modifications to the vehicle’s suspension system

●

Installation of electronic devices such as mobile two-way radios and CD
players

●

Modifications to your vehicle for a person with a physical disability

1-1. For safe use

Fo
r safety and securi

■

If the SRS airbags deploy (inflate)

●

Slight abrasions, burns, bruising, etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.

●

A loud noise and white powder will be emitted.

●

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.

●

The windshield may crack.

●

For Safety Connect subscribers, if the SRS airbags deploy or in the event of
a severe rear-end collision, the system is designed to send an emergency
call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and an agent will attempt to speak with
the occupants to ascertain the level of emergency and assistance required.
If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to dispatch the necessary emergency
services. (

 P. 319)

■

SRS airbag deployment conditions (SRS front airbags)

●

The SRS front airbags will deploy in the event of an impact that exceeds the
set  threshold  level  (the  level  of  force  corresponding  to  an  approximately
12 - 18  mph  [20  -  30  km/h]  frontal  collision  with  a  fixed  wall  that  does  not
move or deform).

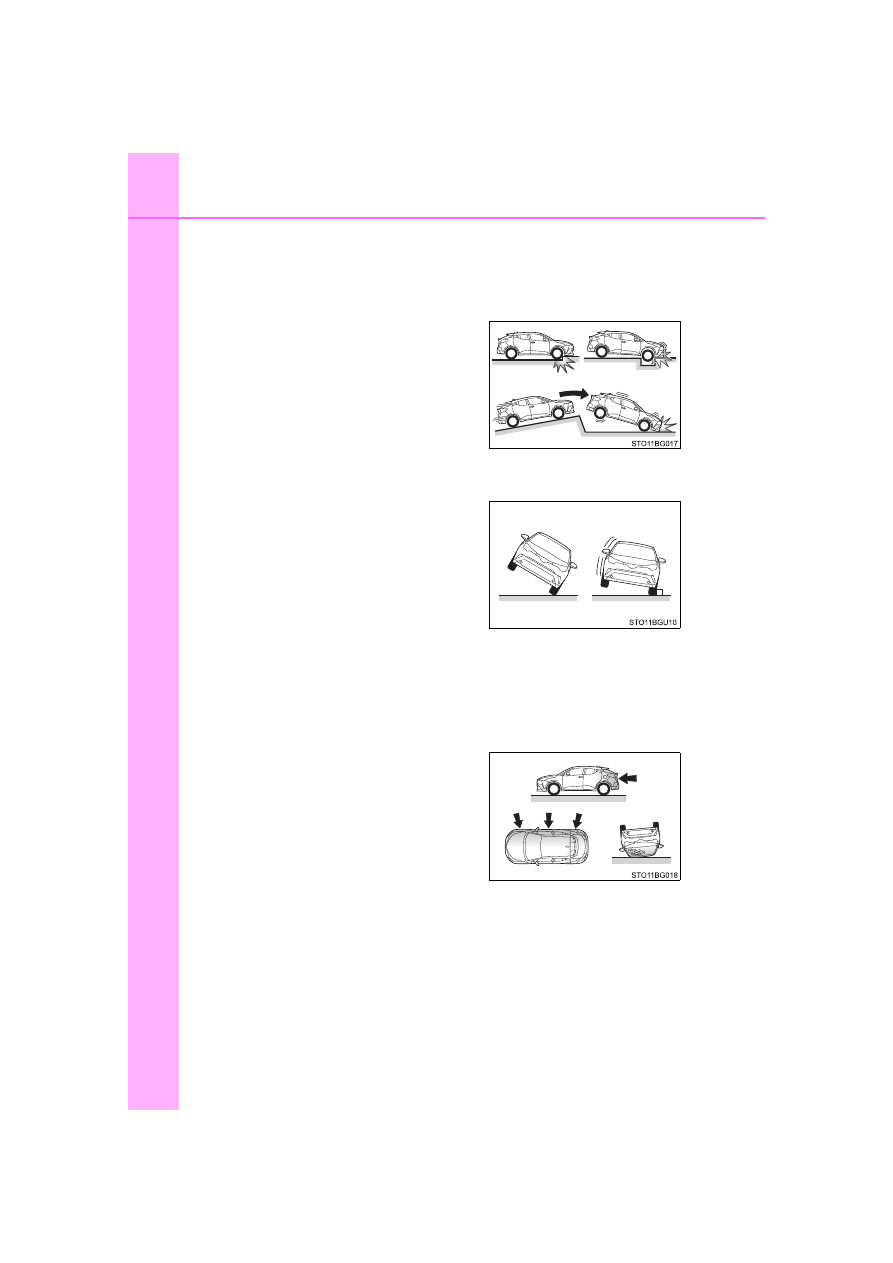

However, this threshold velocity will be considerably higher in the following
situations:
• If  the  vehicle  strikes  an  object,  such  as  a  parked  vehicle  or  sign  pole,

which can move or deform on impact

• If the vehicle is involved in an underride collision, such as a collision in

which the front of the vehicle “underrides”, or goes under, the bed of a
truck

●

Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.

●

The SRS seat cushion airbag on the front seats will not operate if the occu-
pant is not wearing a seat belt.

■

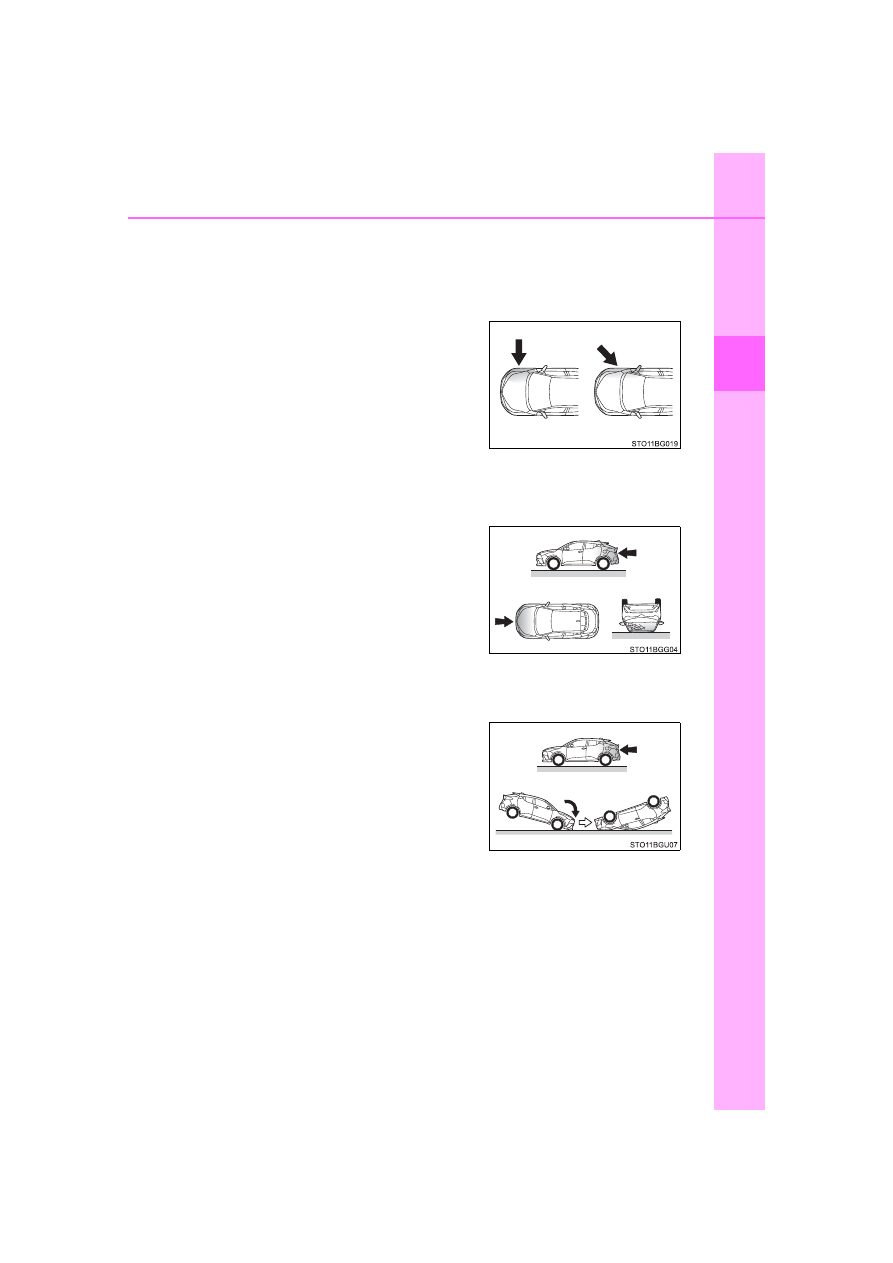

SRS airbag deployment conditions (SRS side and curtain shield airbags)

●

The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

●

The SRS curtain shield airbags will deploy in the event of vehicle rollover.

●

The SRS side and curtain shield airbags may also deploy in the event of a
severe frontal collision.

1-1. For safe use

■

Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS curtain shield airbags may also deploy if a
serious impact occurs to the underside of your vehicle. Some examples are
shown in the illustration.

The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.

■

Types of collisions that may not deploy the SRS airbags (SRS front air-
bags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.

●

Hitting a curb, edge of pavement or hard
surface

●

Falling into or jumping over a deep hole

●

Landing hard or falling

●

The angle of vehicle tip-up is marginal

●

The vehicle skids and hits a curb stone

●

Collision from the side

●

Collision from the rear

●

Vehicle rollover

1-1. For safe use

Fo
r safety and securi

■

Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.

The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involved in a low-speed side
collision.

The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.

●

Collision from the side to the vehicle
body other than the passenger compart-
ment

●

Collision from the side at an angle

●

Collision from the front

●

Collision from the rear

●

Vehicle rollover

●

Collision from the rear

●

Pitching end over end

1-1. For safe use

■

When to contact your Toyota dealer

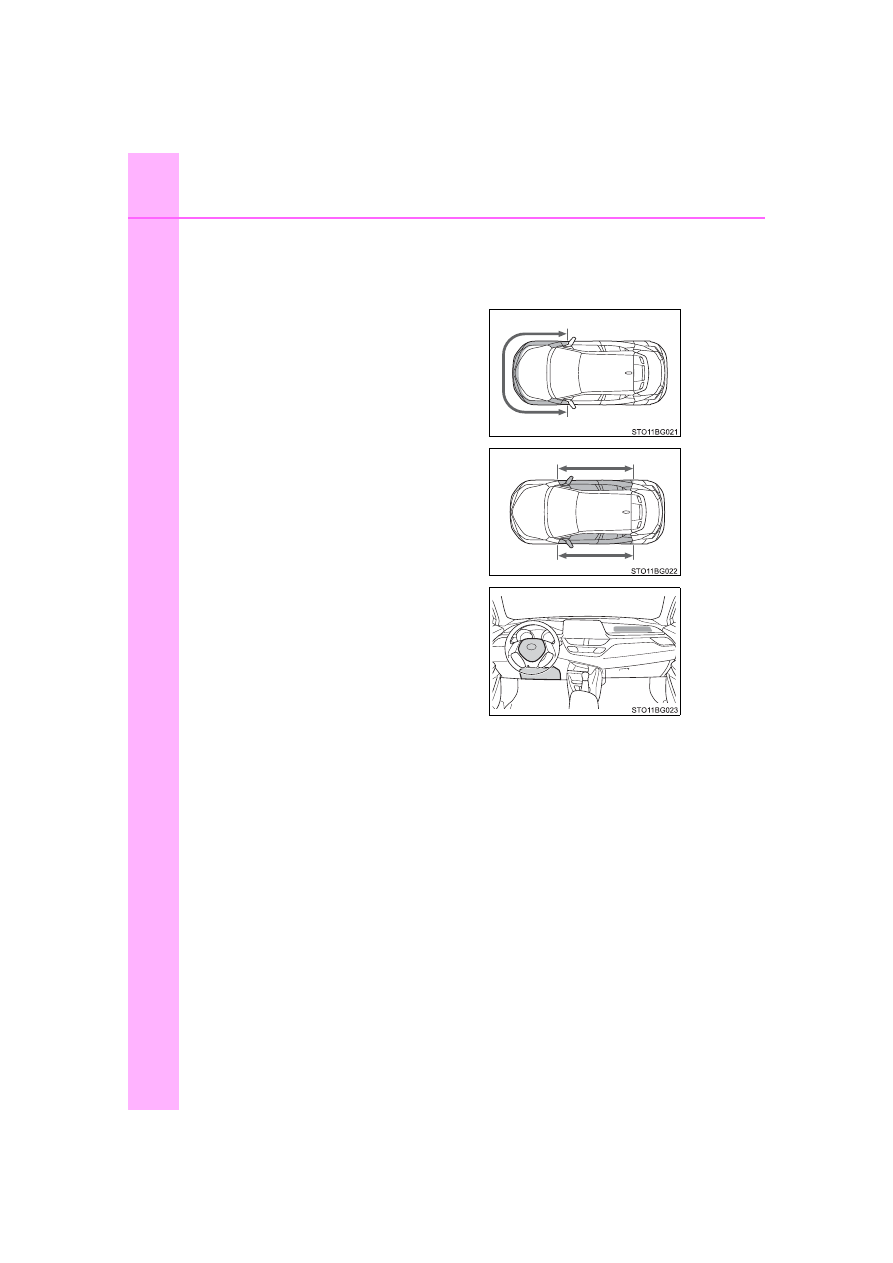

In the following cases, the vehicle will require inspection and/or repair. Con-
tact your Toyota dealer as soon as possible.

●

Any of the SRS airbags have been inflated.

●

The  front  of  the  vehicle  is  damaged  or
deformed,  or  was  involved  in  an  acci-
dent  that  was  not  severe  enough  to
cause the SRS front airbags to inflate.

●

A  portion  of  a  door  or  its  surrounding
area is damaged, deformed or has had a
hole  made  in  it,  or  the  vehicle  was
involved  in  an  accident  that  was  not
severe  enough  to  cause  the  SRS  side
and curtain shield airbags to inflate.

●

The  pad  section  of  the  steering  wheel,
dashboard near the front passenger air-
bag  or  lower  portion  of  the  instrument
panel  is  scratched,  cracked,  or  other-
wise damaged.

1-1. For safe use

Fo
r safety and securi

●

The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
damaged.

●

The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.

●

The  portion  of  the  front  pillars,  rear  pil-
lars or roof side rail garnishes (padding)
containing  the  curtain  shield  airbags
inside  is  scratched,  cracked,  or  other-
wise damaged.

1-1. For safe use

Front passenger occupant classification

system

SRS warning light
Seat belt reminder light
“AIR BAG ON” indicator light
“AIR BAG OFF” indicator light

Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the devices for the
front passenger.

Canada

U.S.A.

1-1. For safe use

Fo
r safety and securi

■

Adult

Condition and operation in the front passenger occupant classi-
fication system

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG ON”

SRS warning light

Off

Seat belt reminder light

Off

flashing

Devices

Front passenger airbag

Activated

Side airbag

on the front passenger seat

Curtain shield airbag

in the front passenger side

Seat cushion airbag in the front passenger

side

Activated

deactivated

Front passenger’s seat belt pretensioner

and force limiter

Activated

1-1. For safe use

■

Child

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG OFF”

or “AIR BAG

ON”

SRS warning light

Off

Seat belt reminder light

Off

flashing

Devices

Front passenger airbag

Deactivated or

activated

Side airbag

on the front passenger seat

Activated

Curtain shield airbag

in the front passenger side

Seat cushion airbag

in the front passenger side

Deactivated or

activated

2, 4

Front passenger’s seat belt pretensioner

and force limiter

Activated

Content .. 1 2 3 4 ..
