3B-34 Differential: Rear

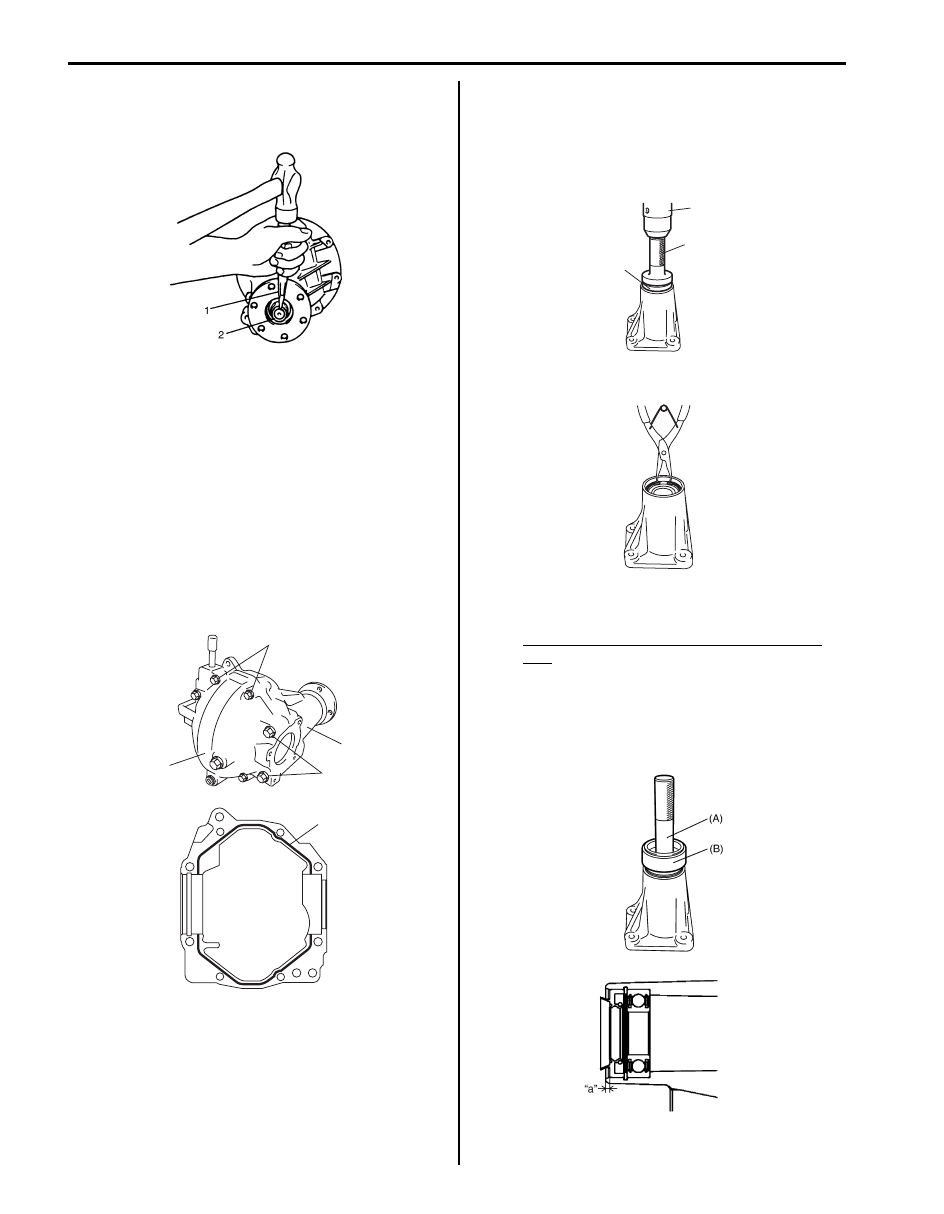

23) Upon completion of gear tooth contact check in Step

22), caulk flange nut (2) with caulking tool (1) and
hammer.

24) Clean mating surface of differential carrier (2) and

rear cover (1), apply sealant to carrier as shown in
figure by such amount that its section is 1.5 mm
(0.059 in.) in diameter, mate rear cover with
differential carrier, and then tighten bolts to specified
torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear cover bolt No.1 (a):  50 N·m (5.0 kgf-m, 17.0
lb-ft)
Rear cover bolt No.2 (b):  60 N·m (6.0 kgf-m, 43.5
lb-ft)

25) Assembly rear drive right retainer as follows.

a) Install rear drive shaft bearing (1) using special

tool and press (2).

Special tool
(A):  09913–75520

b) Install snap ring.

c) Install oil seal using special tools as shown in

figure.

Distance between retainer surface and oil
seal
“a”: 2.5 – 3.0 mm (0.10 – 0.12 in.)

Special tool
(A):  09924–74510
(B):  09951–16090

I1JA01322021-01

(a)

1

2

(b)

2, “A”

I6JB01321001-03

2

(A)

1

I5JB0A322012-01

I5JB0A322010-01

I5JB0A322013-02

Differential: Rear 3B-35

26) Assembly rear drive left retainer in the same manner

at Step 25) in this assembly procedure.

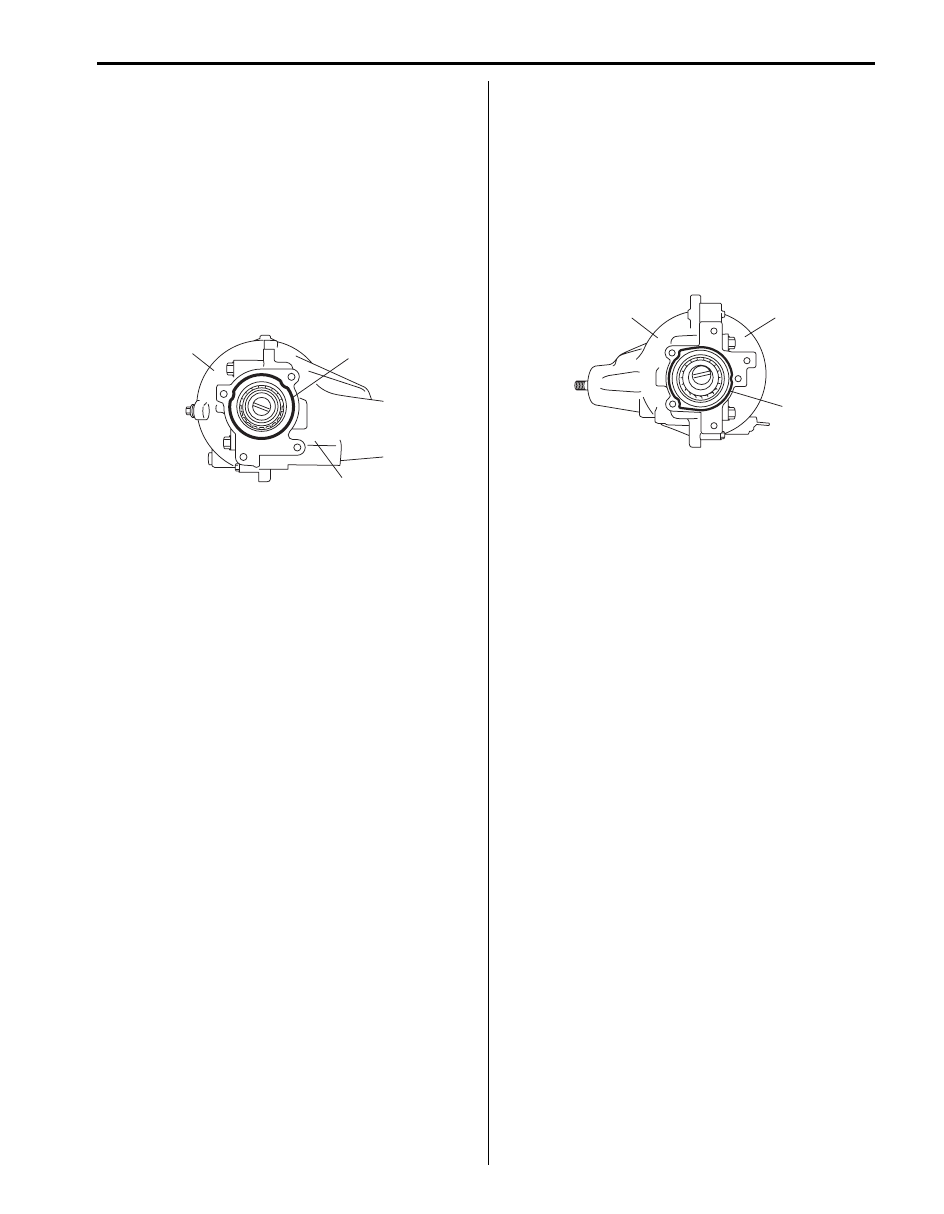

27) Clean mating surface of right retainer, carrier (1) and

rear cover (2), apply sealant to carrier and rear cover
as shown in figure by such amount that its section is
1.5 mm (0.059 in.) in diameter, mate right retainer
with carrier and rear cover, and then tighten bolts to
specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Retainer bolt:  50 N·m (5.0 kgf-m, 36.5 lb-ft)

28) Clean mating surface of left retainer, carrier (1) and

rear cover (2), apply sealant to carrier and rear cover
as shown in figure by such amount that its section is
1.5 mm (0.059 in.) in diameter, mate left retainer with
carrier and rear cover, and then tighten bolts to
specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Retainer bolt:  50 N·m (5.0 kgf-m, 36.5 lb-ft)

29) Install rear drive right and left shaft using plastic

hammer.

Rear Differential Inspection

S6JB0B3226006

Refer to “Front Differential Inspection: Front”.

1

“A”

2

I5JB0A321048-01

“A”

2

1

I5JB0A322014-01

3B-36 Differential: Rear

Specifications

Tightening Torque Specifications

S6JB0B3227001

NOTE
The specified tightening torque is also described in the following.
“Rear Differential Unit Components: Rear”
“Rear Differential Components: Rear”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0B3228001

NOTE
Required service material is also described in the following.
“Rear Differential Components: Rear”



Special Tool

S6JB0B3228002

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Rear differential front mounting bolt

120

12.0

87.0

)

Rear differential rear mounting bolt

120

12.0

87.0

)

Bevel gear bolt

Tighten 40 N

⋅m (4.0 kgf-m, 29.5 lb-ft) + 50°  )

Rear cover bolt No.1

50

5.0

17.0

)

Rear cover bolt No.2

60

6.0

43.5

)

Retainer bolt

50

5.0

36.5

)

 / )

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

Sealant

SUZUKI Bond No.1217G

P/No.: 99000–31260

)

 / ) / )

Thread lock cement

Thread Lock Cement Super 1322

P/No.: 99000–32110

)

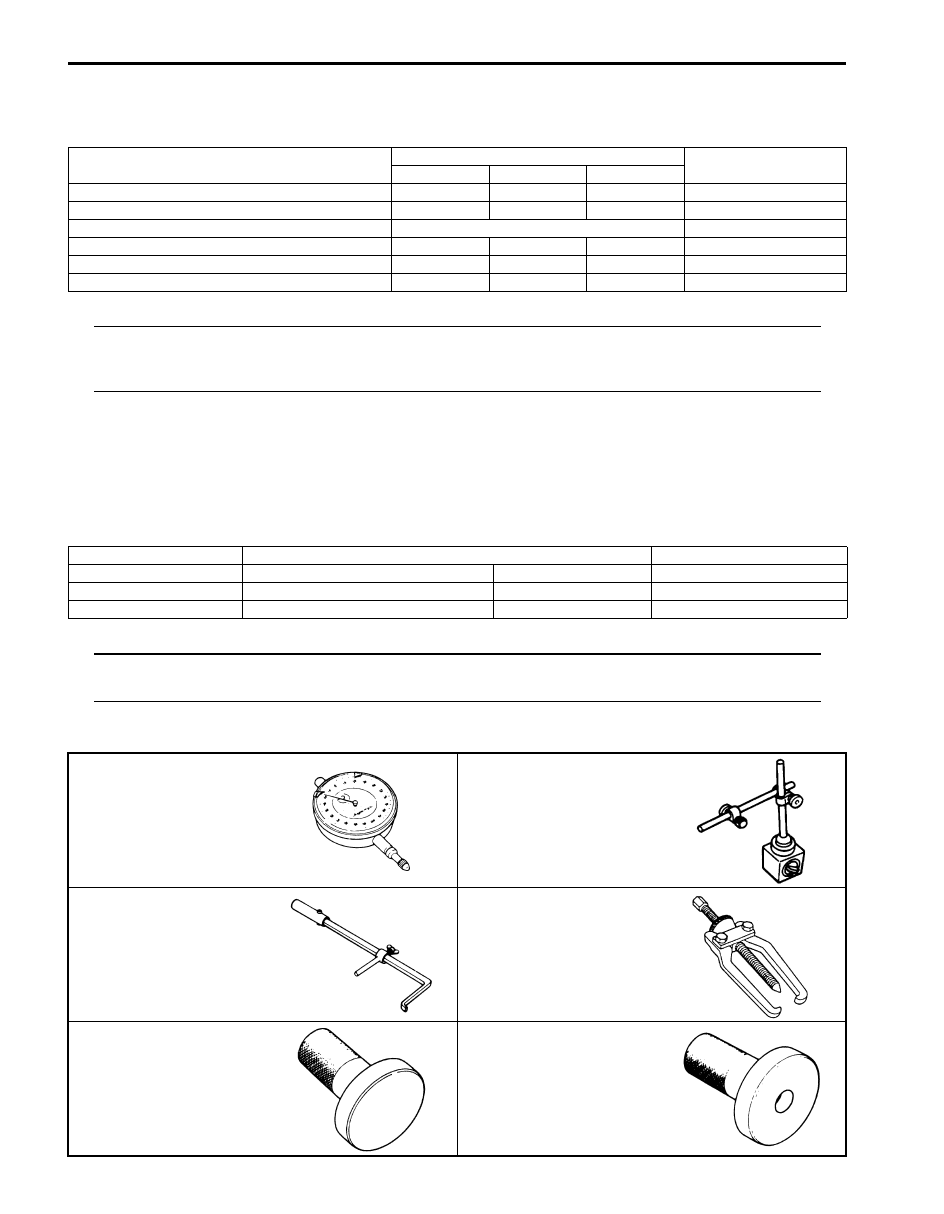

09900–20607

09900–20701

Dial gauge

Magnetic stand

)

 / ) / ) / )

)

09913–50121

09913–65135

Oil seal remover

Bearing puller

)

 / )

)

 / )

09913–75510

09913–75520

Bearing installer

Bearing installer

)

)

Differential: Rear 3B-37

09913–75821

09913–85210

Bearing installer attachment

Bearing installer

)

 / )

)

09922–66021

09922–75222

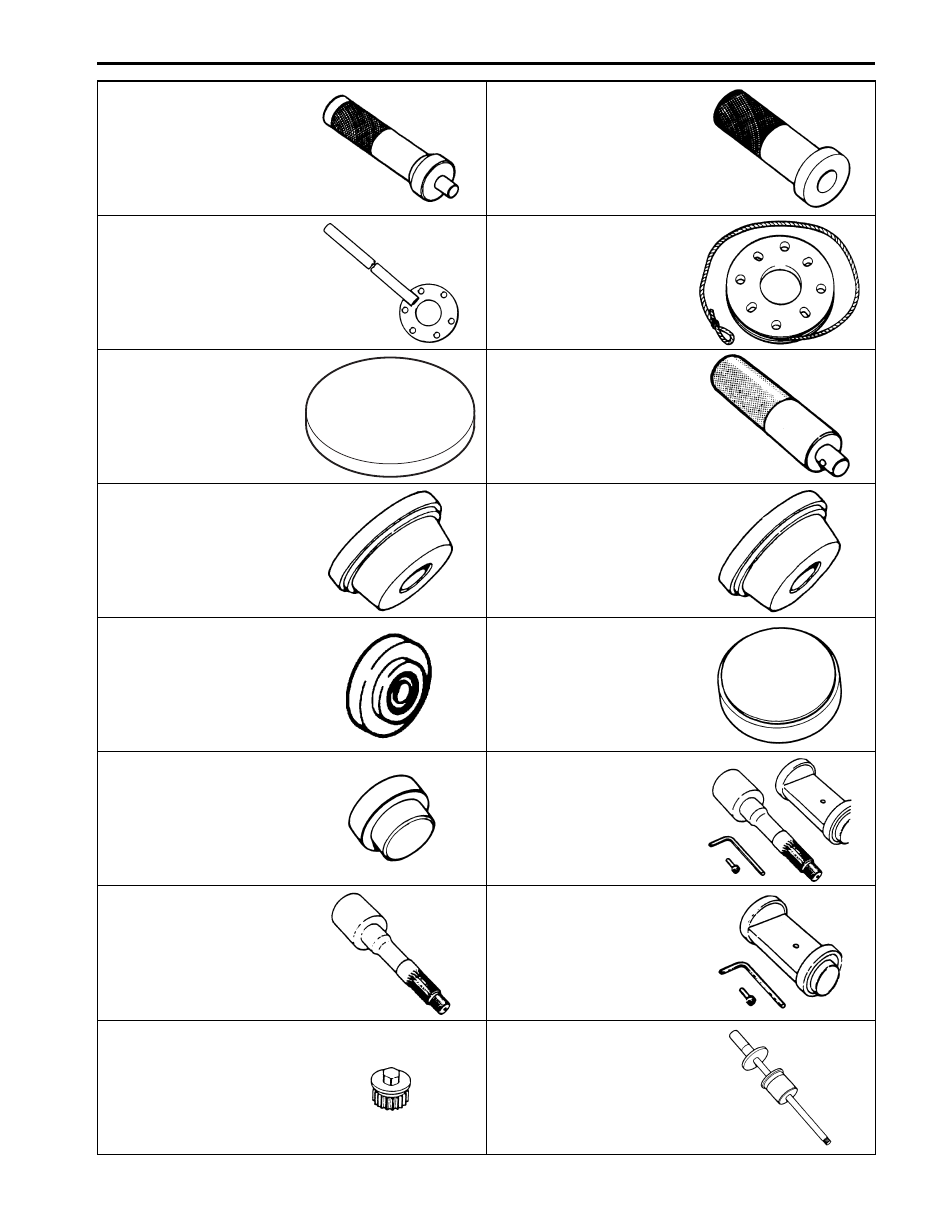

Flange holder

Differential gear preload
adjuster

)

 / )

)

 / ) / )

09922–76520

09924–74510

Bevel pinion gauge block

Bearing and oil seal handle

)

 / )

)

 / )

09924–84510–004

09924–84510–005

Bearing installer attachment

Bearing installer attachment
(D)

)

 / )

)

09925–14520

09925–86010

Bearing and oil seal installer
(80 x 50 mm)

Bearing puller attachment

)

)

09925–88210

09926–78311

Bearing puller attachment

Differential bevel pinion
dummy

)

)

09926–78311–002

09926–78320

Pinion mounting dummy

Mounting dummy

)

 / ) / ) / )

)

 / )

09928–06510

09930–30104

Differential torque checking
tool

Sliding shaft

)

)
