Subaru Legacy IV (2008 year). Service manual - part 1056

LI-41

Door Switch

LIGHTING SYSTEM

37.Door Switch

A: REMOVAL

1) Disconnect the ground cable from the battery.

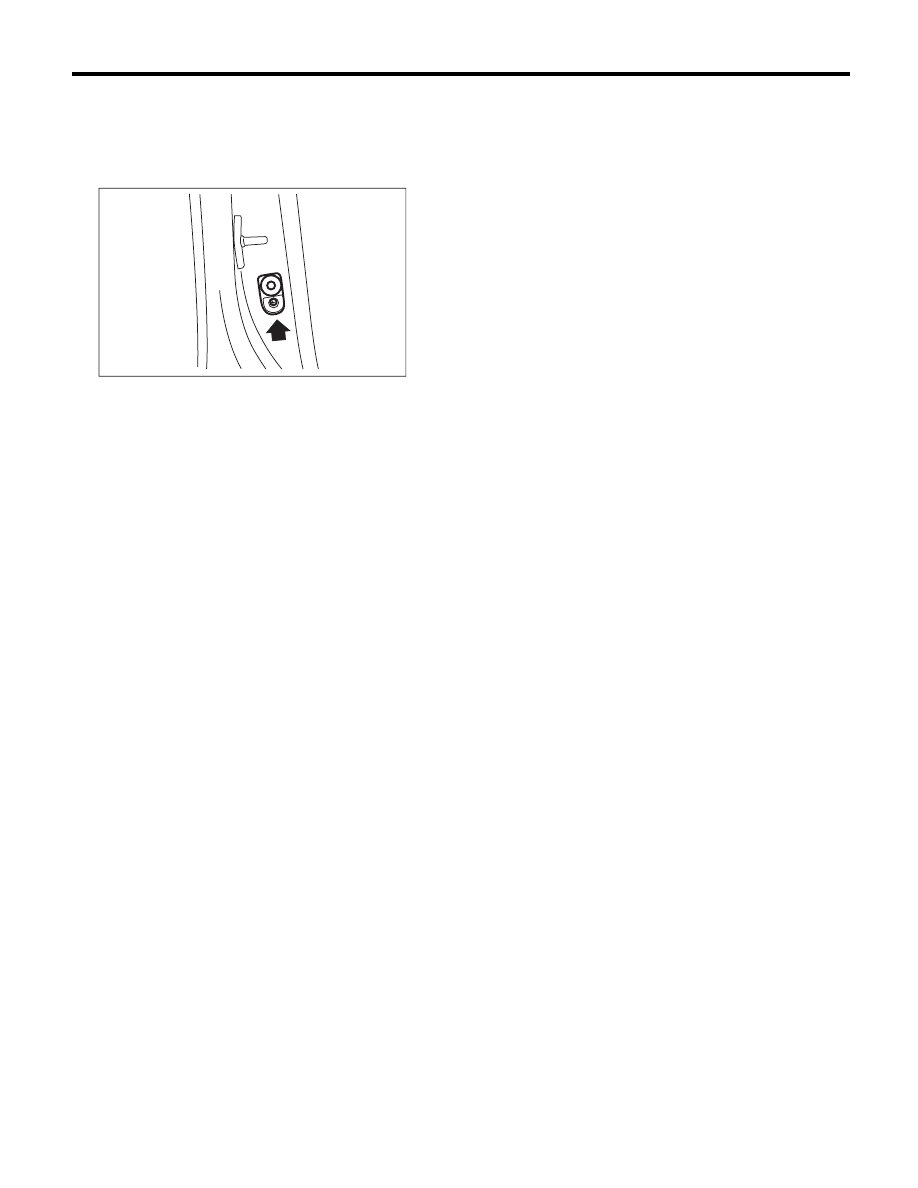

2) Remove the screw, and pull out the door switch.

3) Disconnect the harness connector.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Refer to the door switch check under the room light
system. <Ref. to LI-10, DOOR SWITCH, INSPEC-
TION, Room Light System.>

LI-00827

LI-42

Door Switch

LIGHTING SYSTEM

WW-2

General Description

WIPER AND WASHER SYSTEMS

1. General Description

A: SPECIFICATION

B: COMPONENT

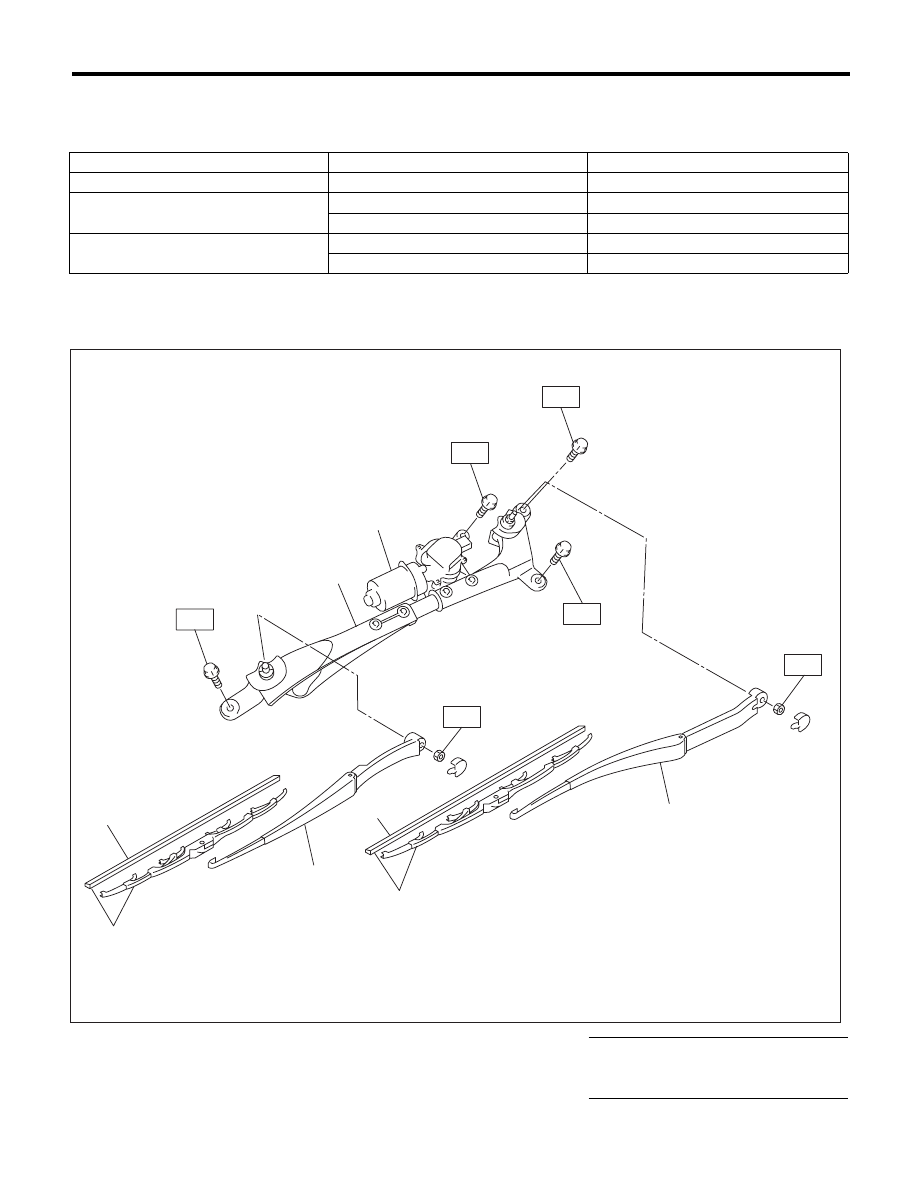

1. FRONT WIPER

Front wiper motor

Input

12 V — 72 W or less

Rear wiper motor

Input

12 V — 42 W or less

Front washer motor

Pump type

Centrifugal

Input

12 V — 36 W or less

Rear washer motor

Pump type

Centrifugal

Input

12 V — 36 W or less

(1)

Wiper rubber

(4)

Wiper link ASSY

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Wiper blade ASSY

(5)

Wiper motor ASSY

T1: 6.0 (0.61, 4.4)

(3)

Wiper arm





T2: 20 (2.0, 14.8)

T2

T2

(5)

(4)

(1)

(2)

(3)

(1)

(2)

(3)

T1

T1

T1

T1

WW-00439

WW-3

General Description

WIPER AND WASHER SYSTEMS

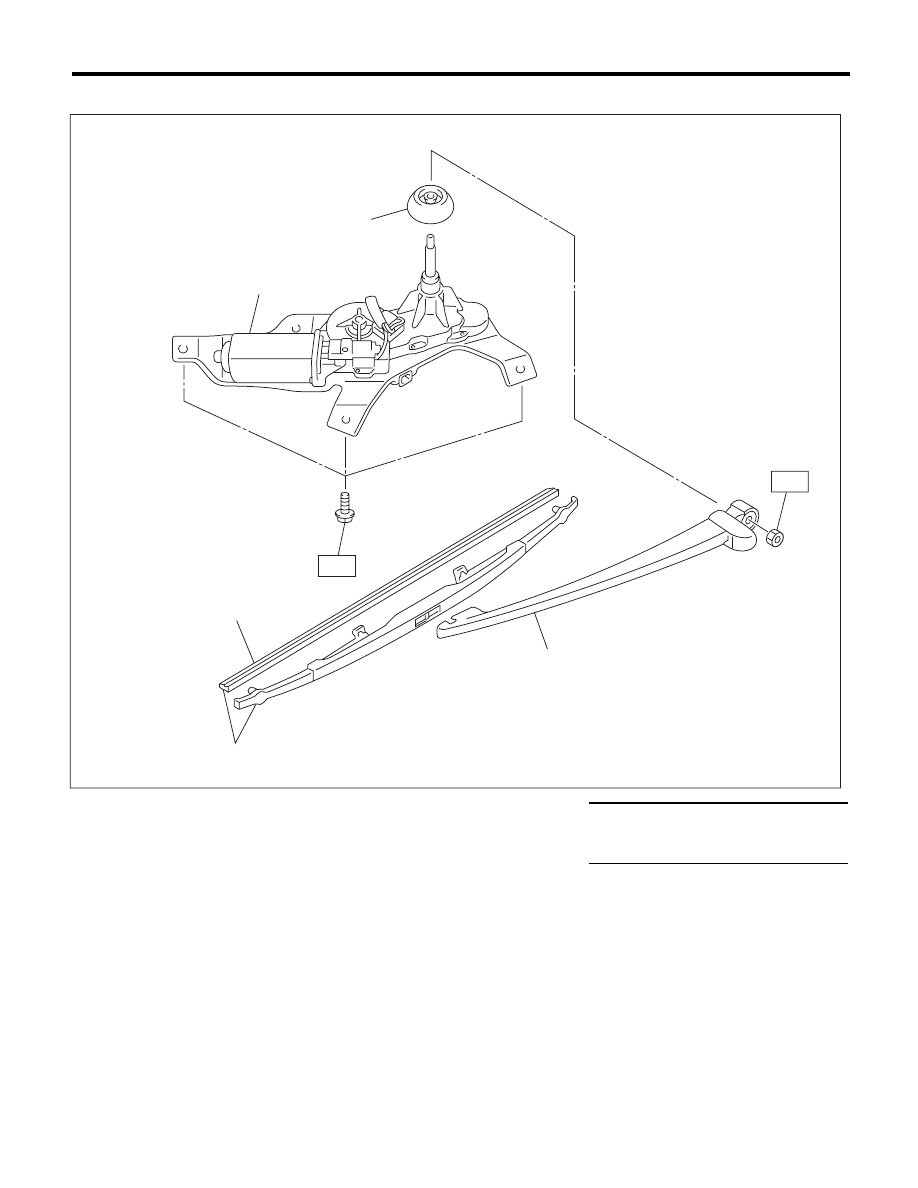

2. REAR WIPER (WAGON MODEL)

(1)

Wiper rubber

(4)

Cap

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Wiper blade ASSY

(5)

Wiper motor ASSY

T1: 7.5 (0.76, 5.5)

(3)

Wiper arm





T2: 8.0 (0.82, 5.9)

T1

(4)

(1)

(2)

(5)

T2

(3)

WW-00475
