LI-33

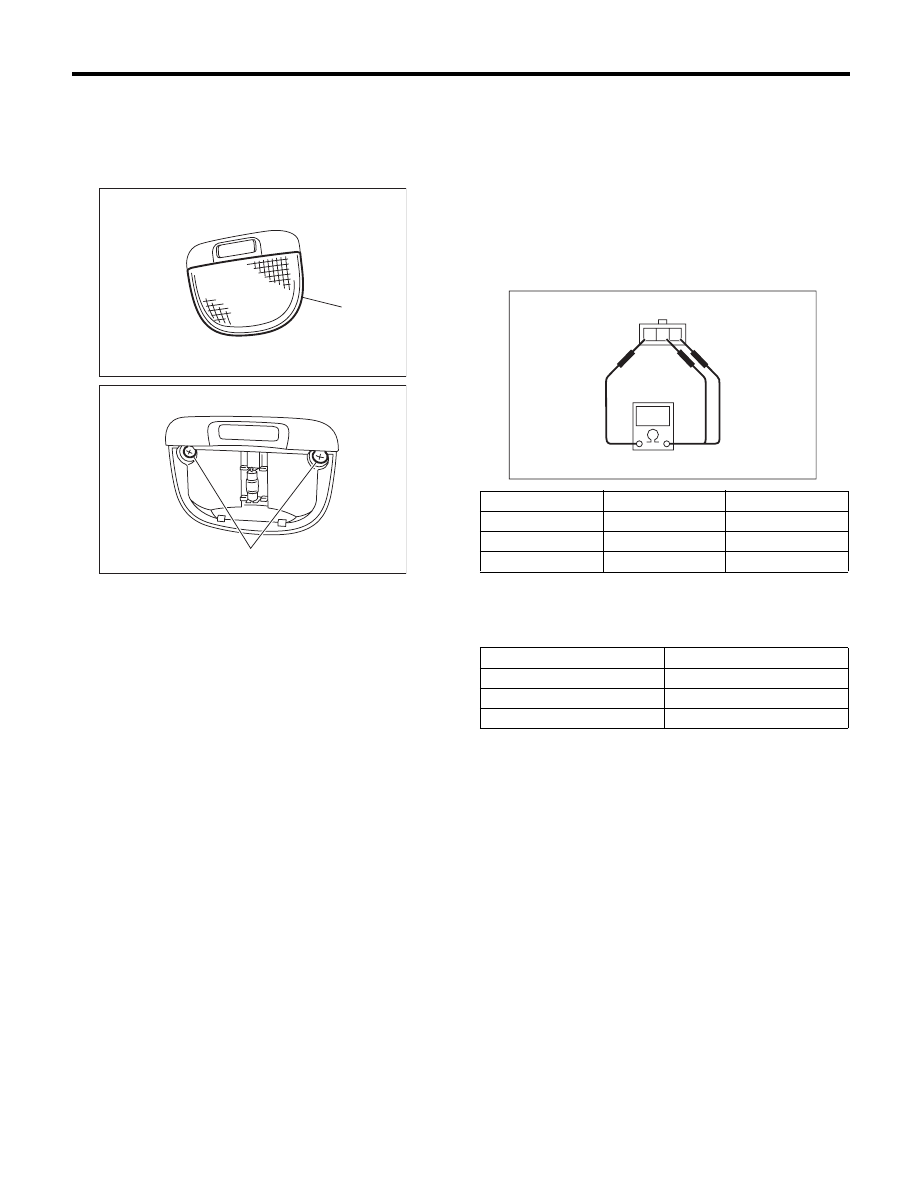

Room Light

LIGHTING SYSTEM

29.Room Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the lens (A) and mounting screws (B).

3) Disconnect the harness connector and remove
the room light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. ROOM LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

2. ROOM LIGHT SWITCH

Measure the resistance between room light switch
terminals.

Connect terminal No. 3 to the battery positive termi-
nal and terminal No. 1 and No. 2 to the battery
ground terminal, and check room light operation.

LI-00315

(A)

LI-00316

(B)

Switch position

Terminal No.

Standard

OFF

 —

1 M

: or more

ON

1 and 3

1.5

r0.5 :

DOOR

2 and 3

1.5

r0.5 :

Switch position

Light status

OFF

Light OFF

ON

Light ON

DOOR

Light ON

LI-00257

3 2 1

LI-34

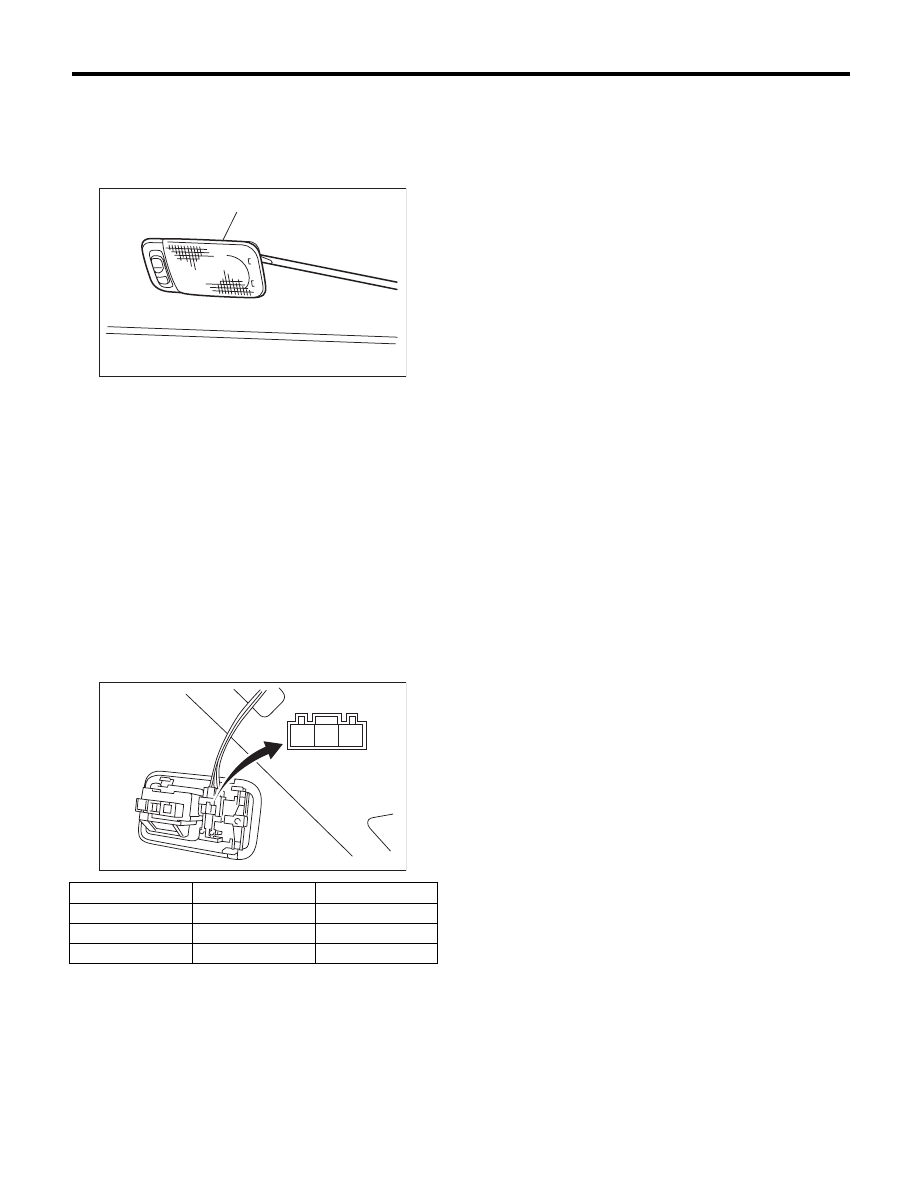

Luggage Room Light

LIGHTING SYSTEM

30.Luggage Room Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the luggage room light body (A).

3) Disconnect the harness connector and remove
the lens.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. LUGGAGE ROOM LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

2. LUGGAGE ROOM LIGHT SWITCH

Measure the resistance between luggage room
light switch terminals.

Switch position

Terminal No.

Standard

OFF

 —

1 M

: or more

ON

1 and 2

1.5

r0.5 :

DOOR

2 and 3

1.5

r0.5 :

LI-00258

(A)

LI-00259

3

2

1

LI-35

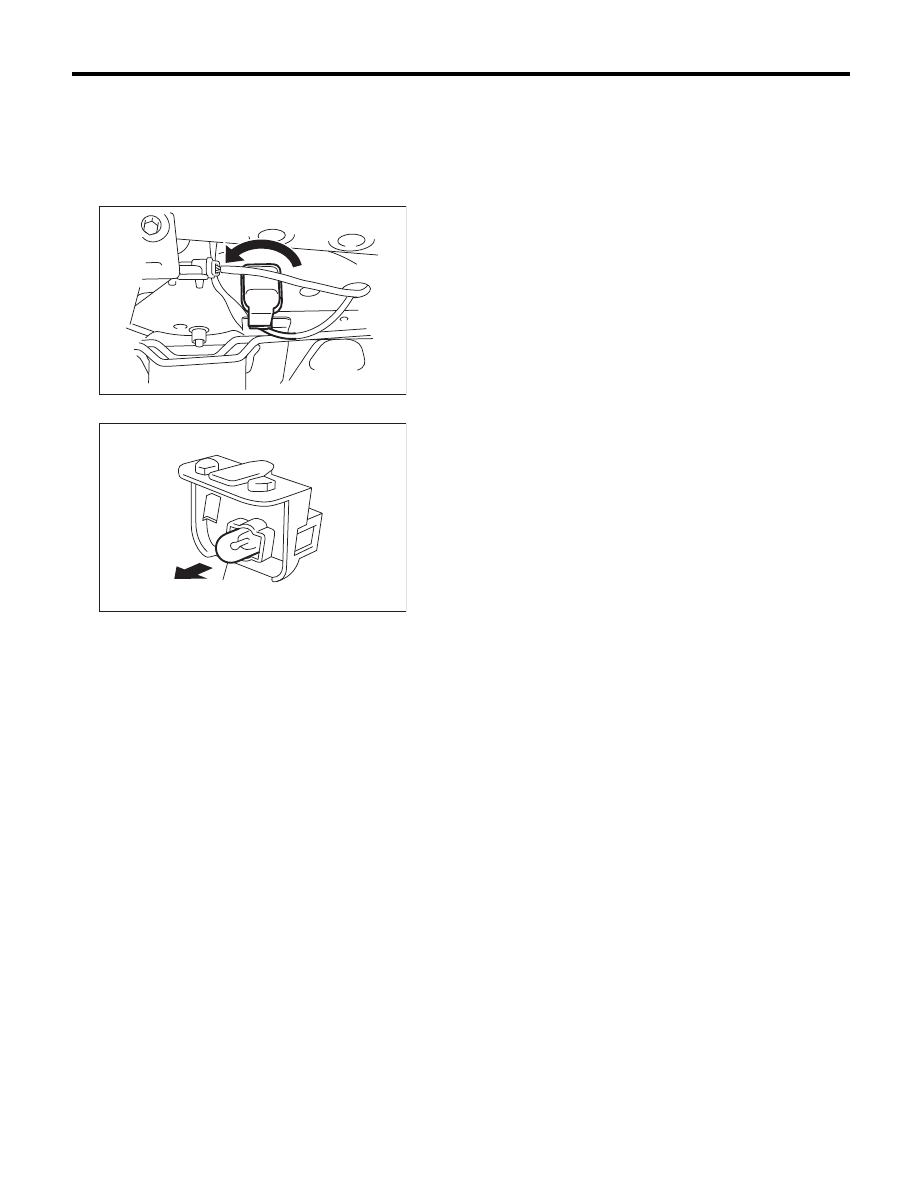

Trunk Room Light

LIGHTING SYSTEM

31.Trunk Room Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Turn the trunk room light counterclockwise 60°
to remove it and disconnect the harness connector.

3) Remove bulb (A).

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

LI-00321

LI-00286

(A)

LI-36

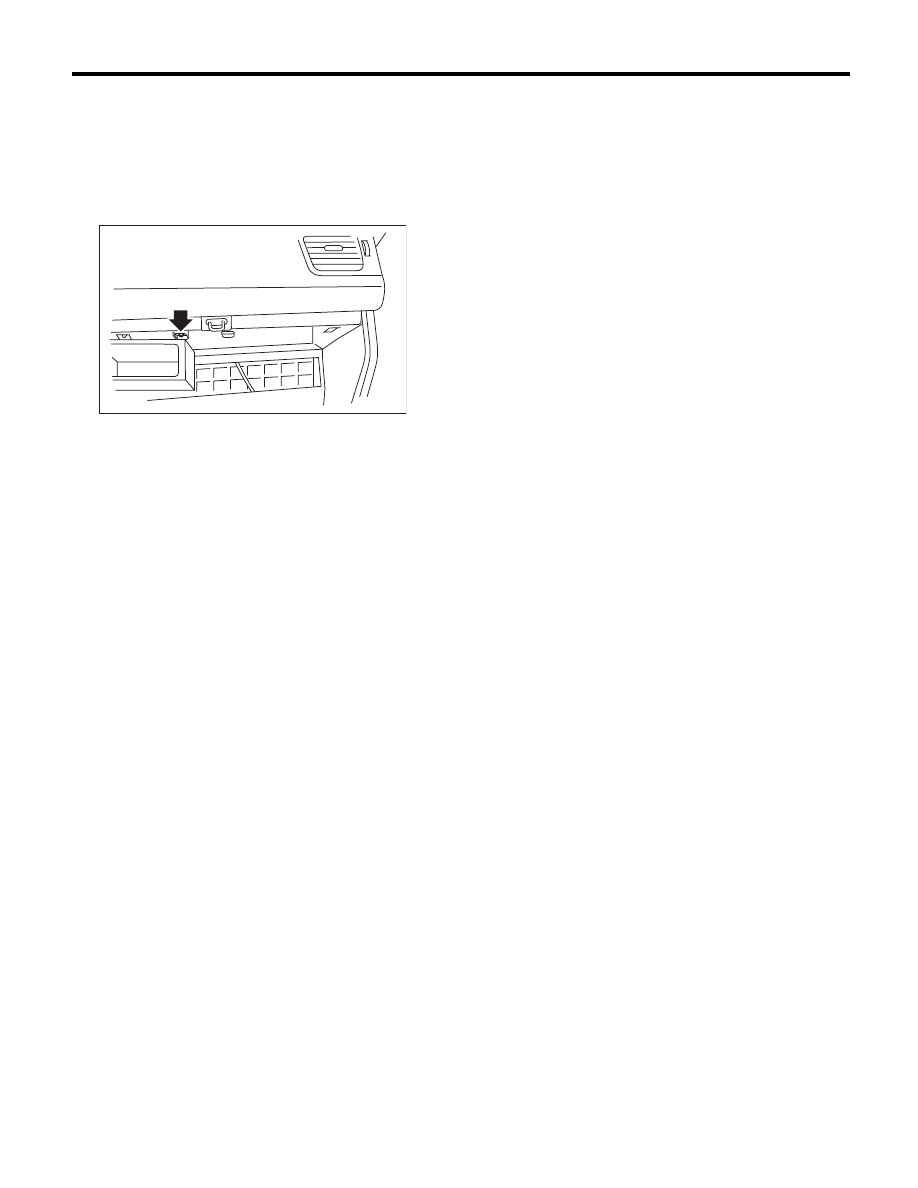

Glove Box Light

LIGHTING SYSTEM

32.Glove Box Light

A: REMOVAL

1) Remove the glove box. <Ref. to EI-52, REMOV-
AL, Glove Box.>
2) Disconnect the harness connector.
3) Remove the glove box light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification.
<Ref. to LI-2, SPECIFICATION, General Descrip-
tion.>
3) If NG, replace the bulb with a new part.

LI-00323
