SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 446

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

18

5B

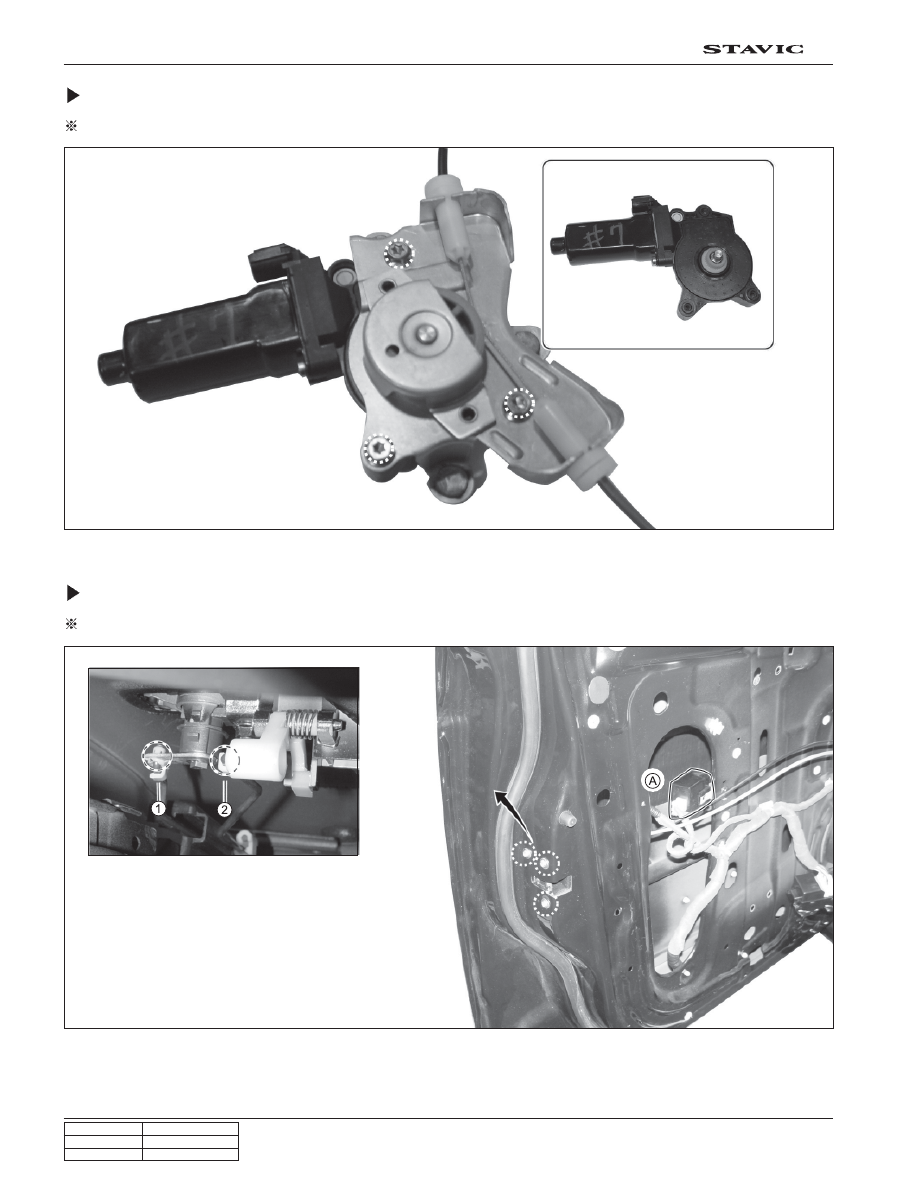

Window Motor (Front / Rear)

Preceding Work: Disassemble of window regulator & motor assembly

- Disassemble power window motor mounting bolts (10 mm ~ 3 EA) from the requlator.

1. Disconnect key cylinder rod (1), outside handle rod (2) and rear view mirror folding unit connector.

2. Disconnect latch and crank assembly with mounting nuts (Hex - 3 EA).

Door Latch & Crank Assembly

Preceding Work: Removal of door trim

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

19

5B

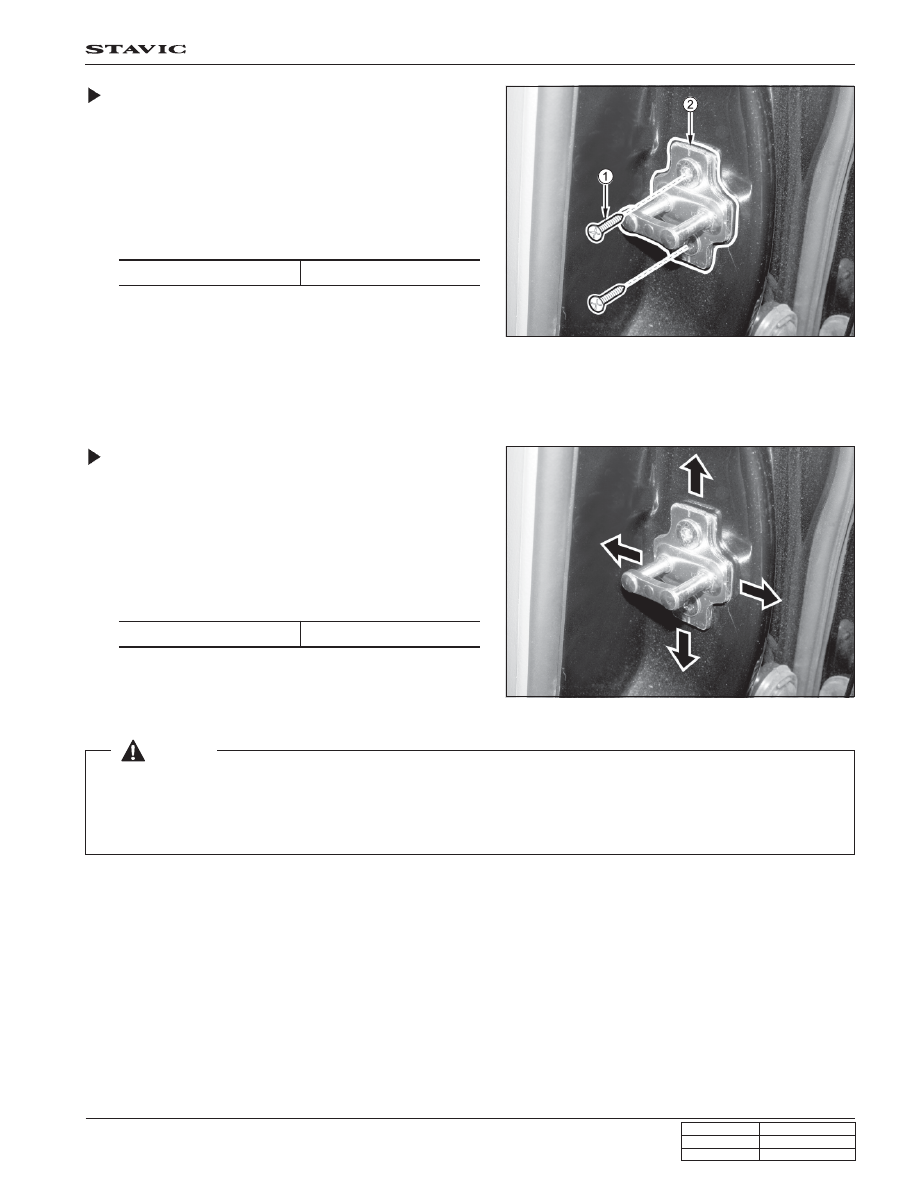

Door Lock Striker Adjustment

1. Removal :

1) Disassemble door lock striker with two bolts

2. Installation :

1) Temporarily install door lock striker.

2) Adjust the location of door lock striker and fully

tighten the bolts.

Rear Lock Striker (Front / Rear)

1. Removal :

1) Disassemble door lock striker with two bolts

2. Installation :

1) Temporarily install door lock striker.

2) Adjust the location of door lock striker and fully

tighten the bolts.

Tightening torque

20 ~ 28 Nm

Tightening torque

20 ~ 28 Nm

The door lock striker consists of a striker with two screws that are threaded into a tapped, floating cage plate located in
the appropriate body pillar. This floating cage plate allows the striker to be easily adjusted in or out and up or down. The
door is secured in the closed position when the door lock fork snaps over and engages the striker.

 [Notice]

The door lock striker is an important attaching part that can affect the performance of vital components and systems and
can cause major repair expenses. If replacement becomes necessary, the door lock striker must be replaced by one with the
same part number or with an equivalent part. Do not use a replacement part of lesser quality or of a substitute design. The
specified torque values must be used during reassembly in order to ensure the proper retention of the part.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

20

5B

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

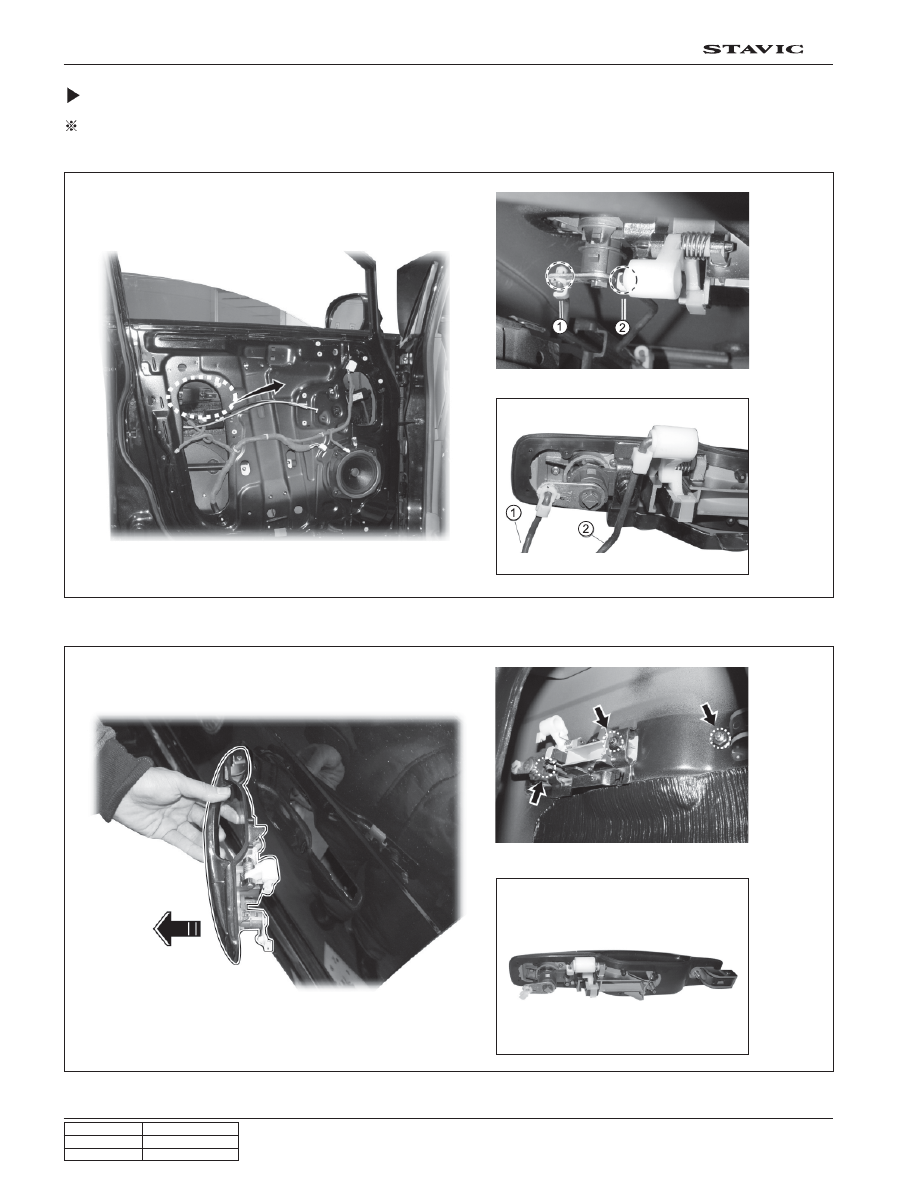

Inside Door Handle

Preceding Work: Removal of door trim

1. Disconnect connecting rod-key cylinder (1) and connecting rod - outside rod handle.

2. Disassemble outside handle assembly (6 mm - 3 EA).

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

21

5B

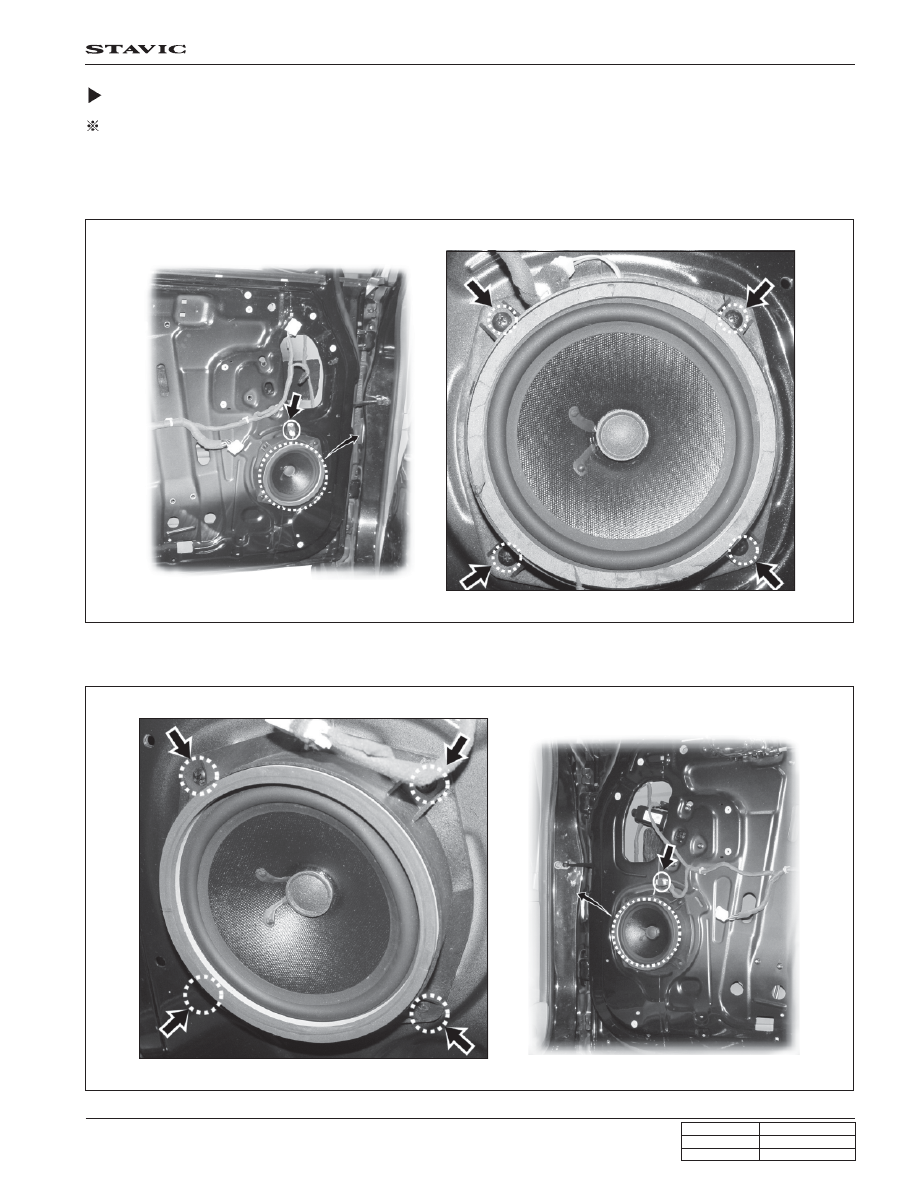

Front Door Speaker

Preceding Work: Removal of door trim

- Disconnect the door speaker connector (4 bolts)

Driver’s side

Passenger’s side
