BODY EXTERIOR

STAVIC - 2004.09

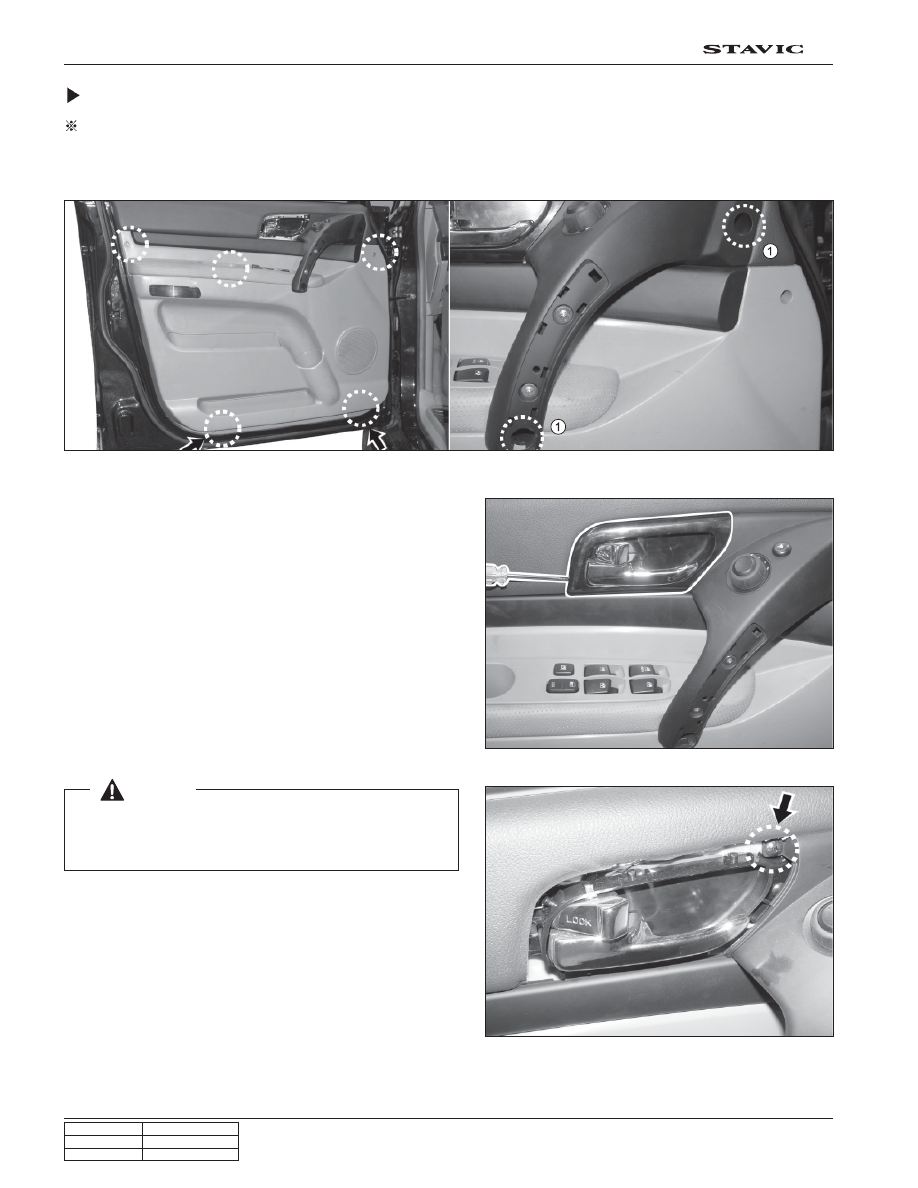

Front Door Trim

Preceding Work: Disassembly of battery terminal (-)

1. Remove five screw rivets at the lower door trim.

2. Remove armrest grip cover and two screws.

3. Remove door handle cover.

4. Remove one screw (Refer to arrow mark).

[Notice]

Disconnect door handle cover with slim tool(driver) from

down side first otherwise, the grip holder can be damaged.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

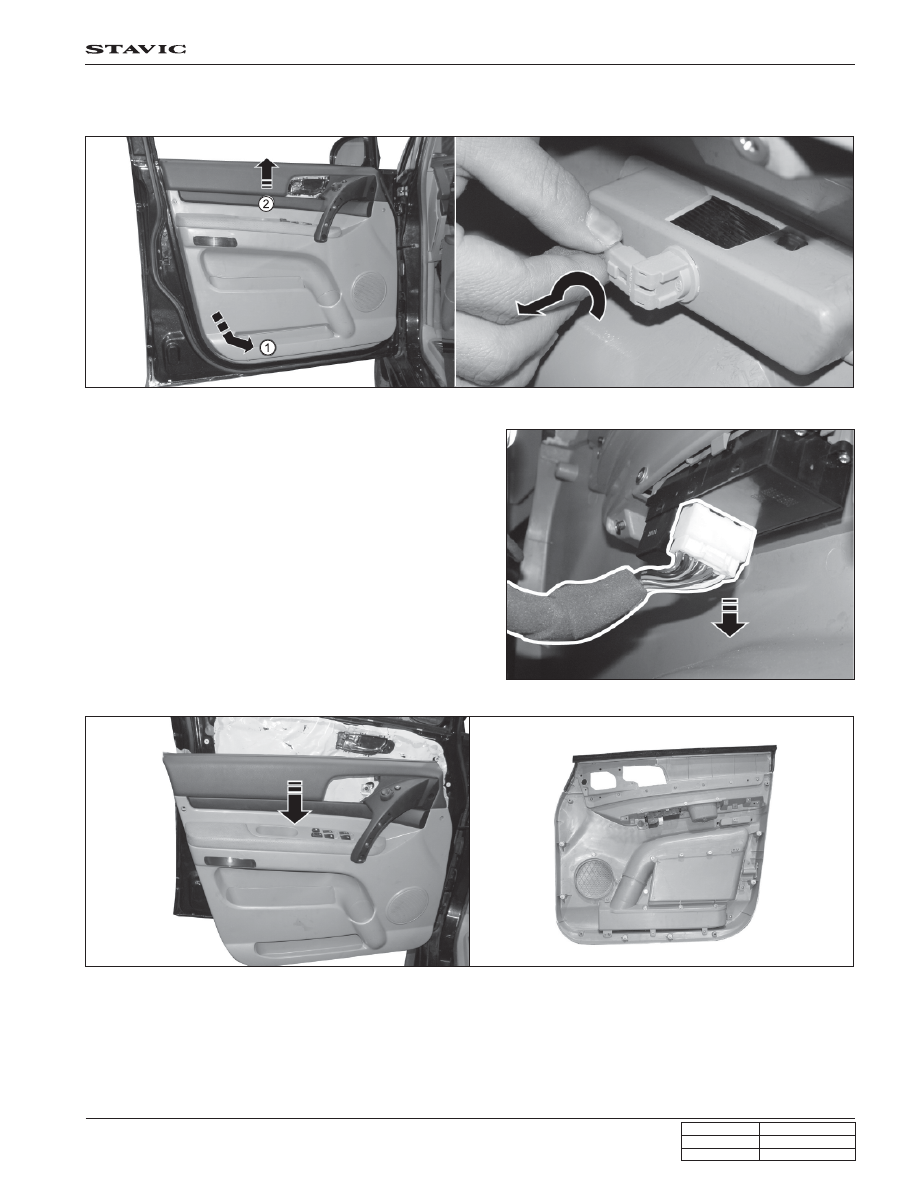

8. Disassemble the front door trim.

5. After getting some space (1), disassemble door trim from the door panel as pushing up (2).

6. Remove door courtesy lamp connector & outside mirror connector at the inside of door trim.

7. Disconnect the power window switch.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

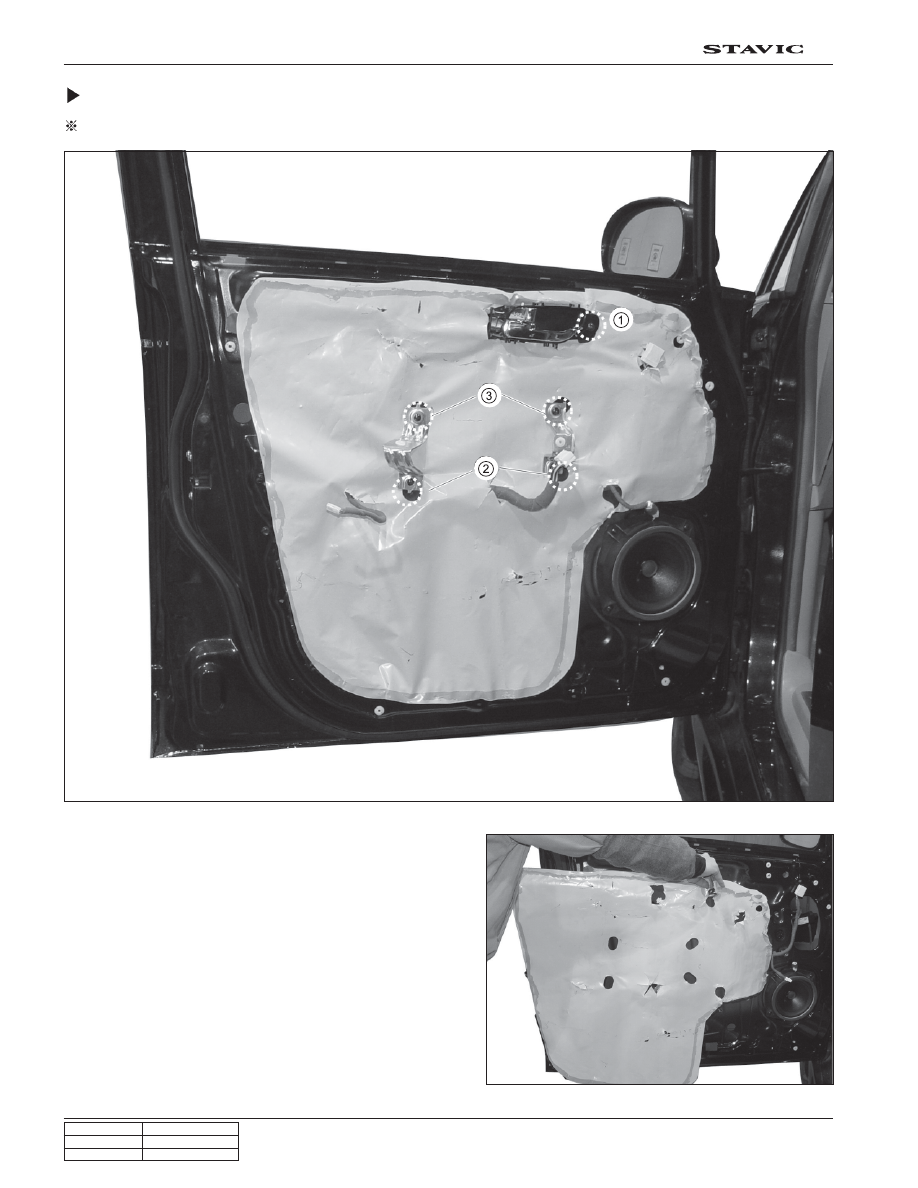

Front Door Trim Seal

Preceding Work: Removal of door trim

1. Remove door handle screw (1) and disconnect door handle

cable.

2. Unscrew 4-screws of two brackets.

3. Be careful not to damage the seal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

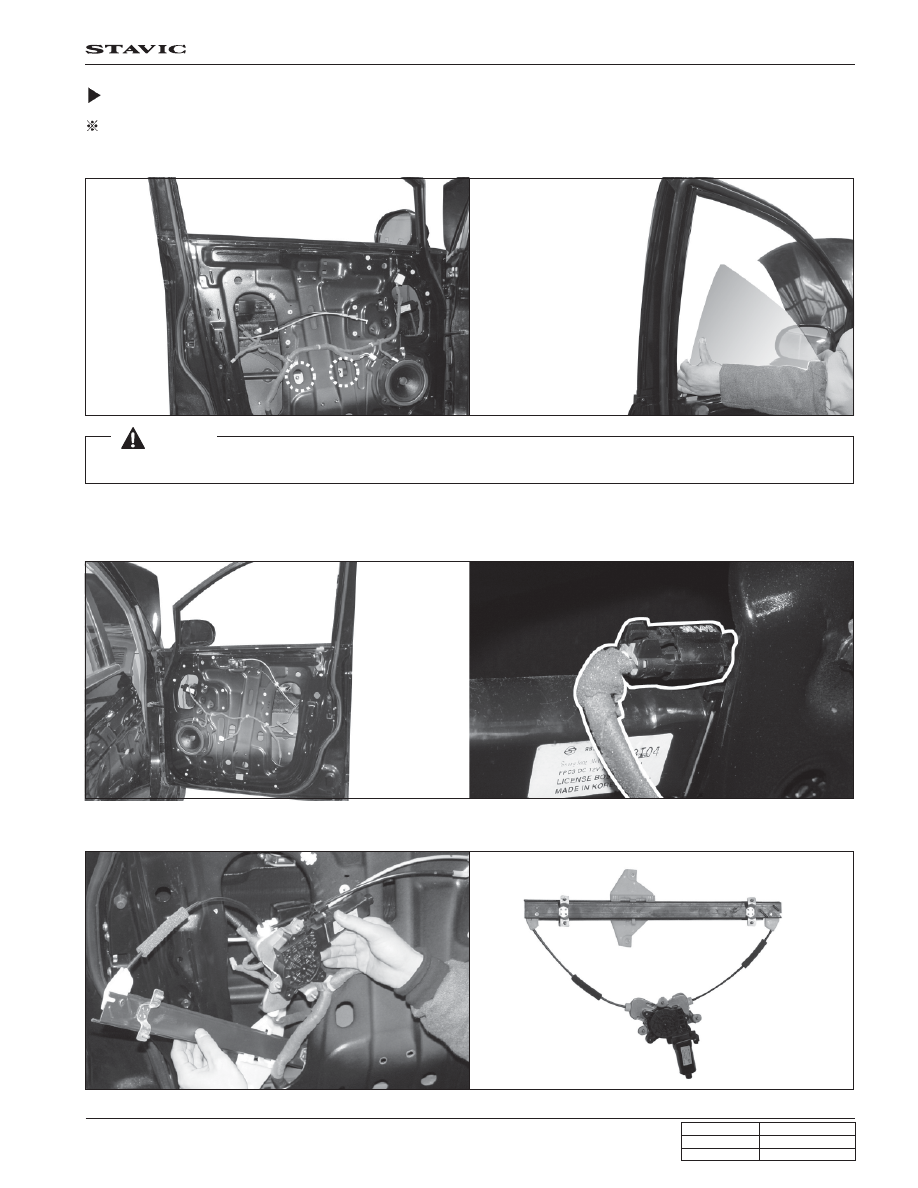

Window Regulator Assembly

Preceding Work: Removal of door trim

1. Unscrew two mounting bolts and disassemble door window

[Notice]

Be careful not to damage the body coating by window glass.

2. Be careful not to damage the body coating by window glass.

3. Disconnect door window regulator and motor mounting nuts (6 mm - 7 EA).

4. Disassemble window regulator assembly.
