DI06-27

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

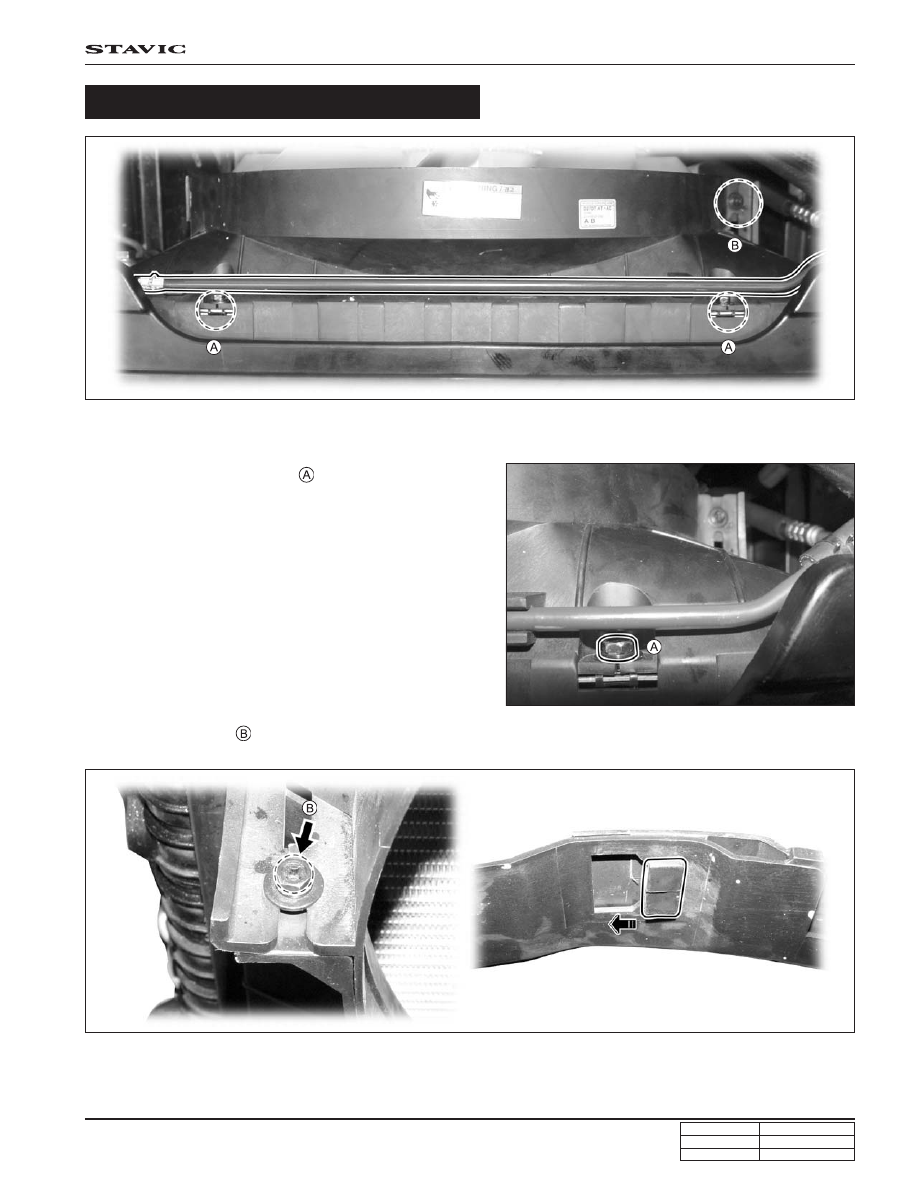

Fan Shroud

1. Remove the coolant return pipe.

2. Remove the mounting bolt (

) from the front side of the

engine.

3. Remove the bolt (

) at bottom of the fan shroud and remove the fan shroud by pulling up the clip at the opposite

side.

DI06-28

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

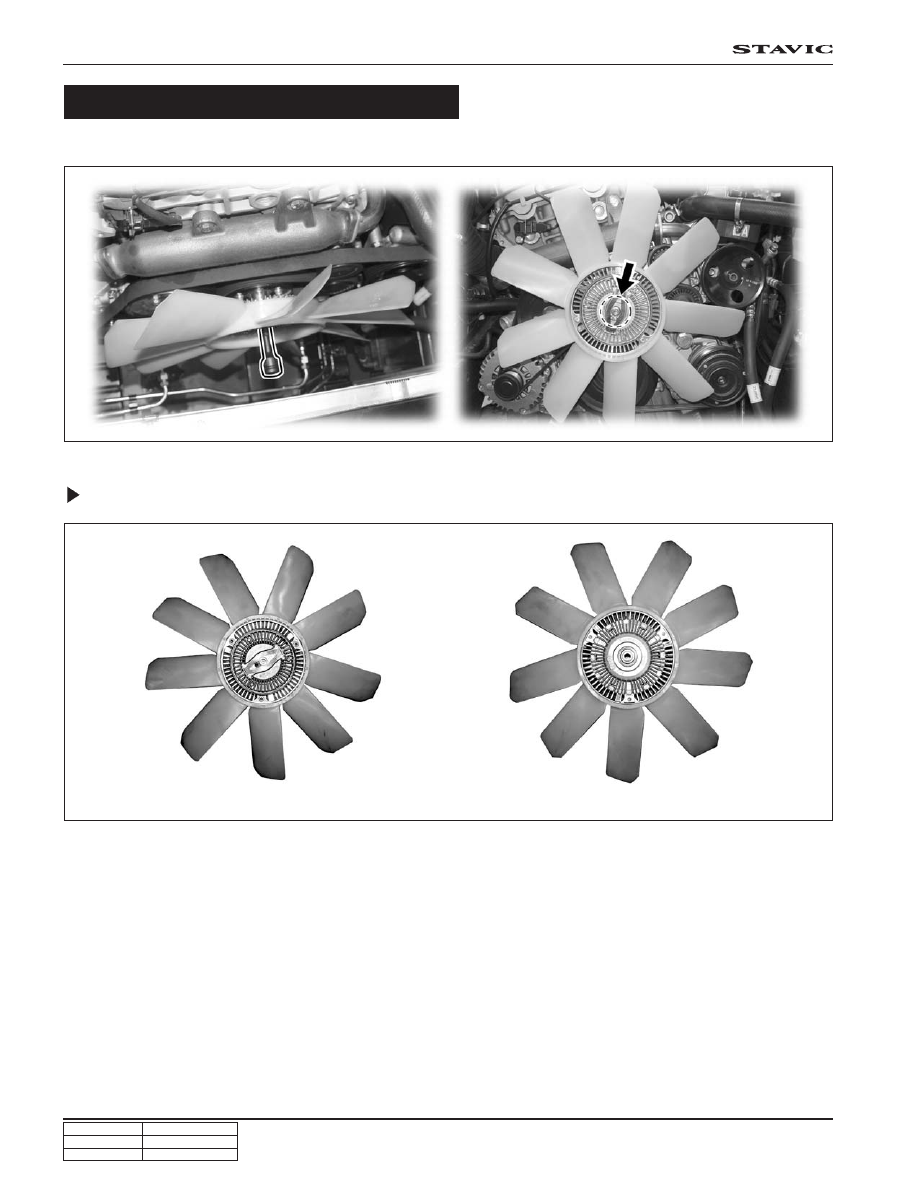

Fan Clutch

• Unscrew the bolts with the fan clutch pulley locked by a special tool and remove the fan clutch.

Appearance

Front view

Rear view

DI06-29

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

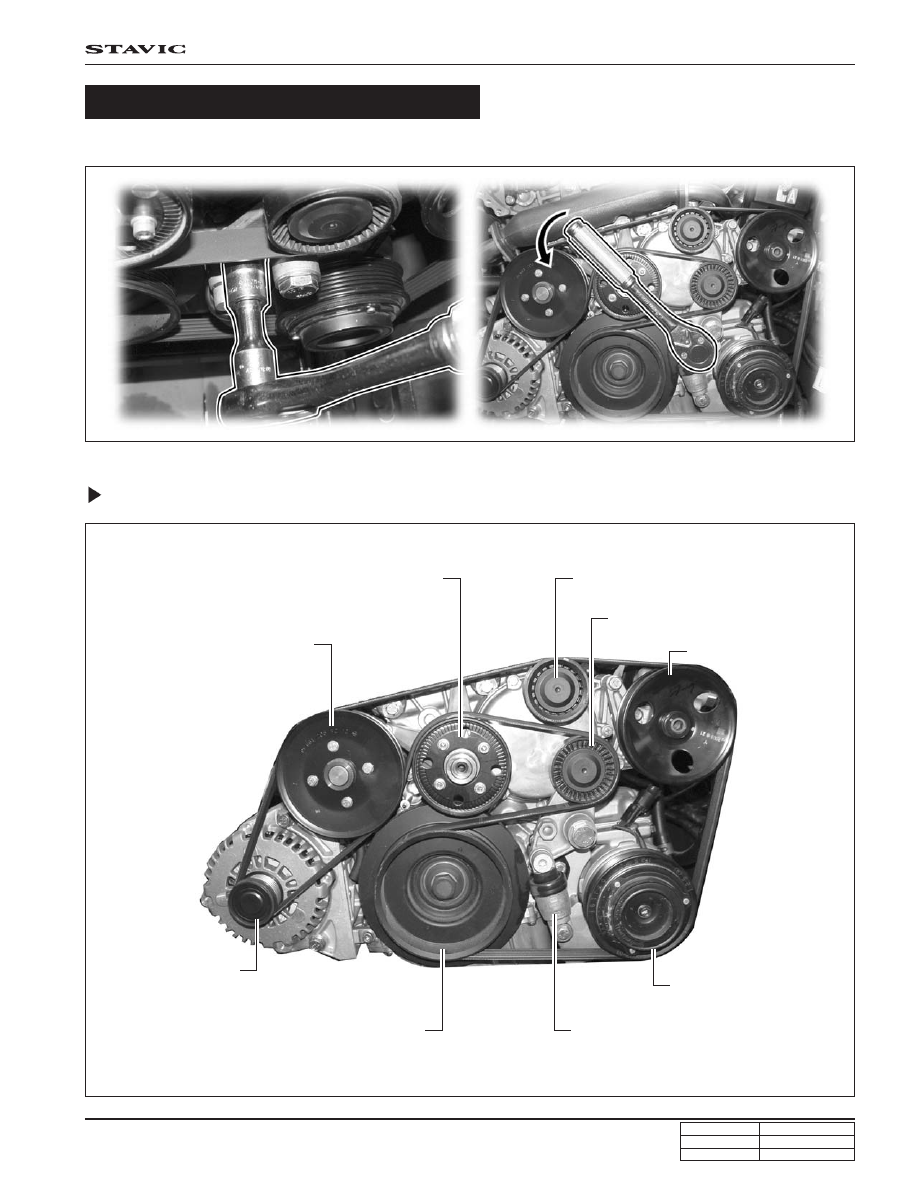

Fan Belt

• Remove the fan belt with the tensioning shock absorber depressed (counter-clockwise direction).

Fan Belt Arrangement

Water pump pulley

Cooling fan pulley

Idle pulley

Auto temsioner pulley

Power steering pump pulley

Air conditioner
comperessor pulley

Auto tensioner

TVD (Torsional

Vibration Damper)

Alternator pulley

DI06-30

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

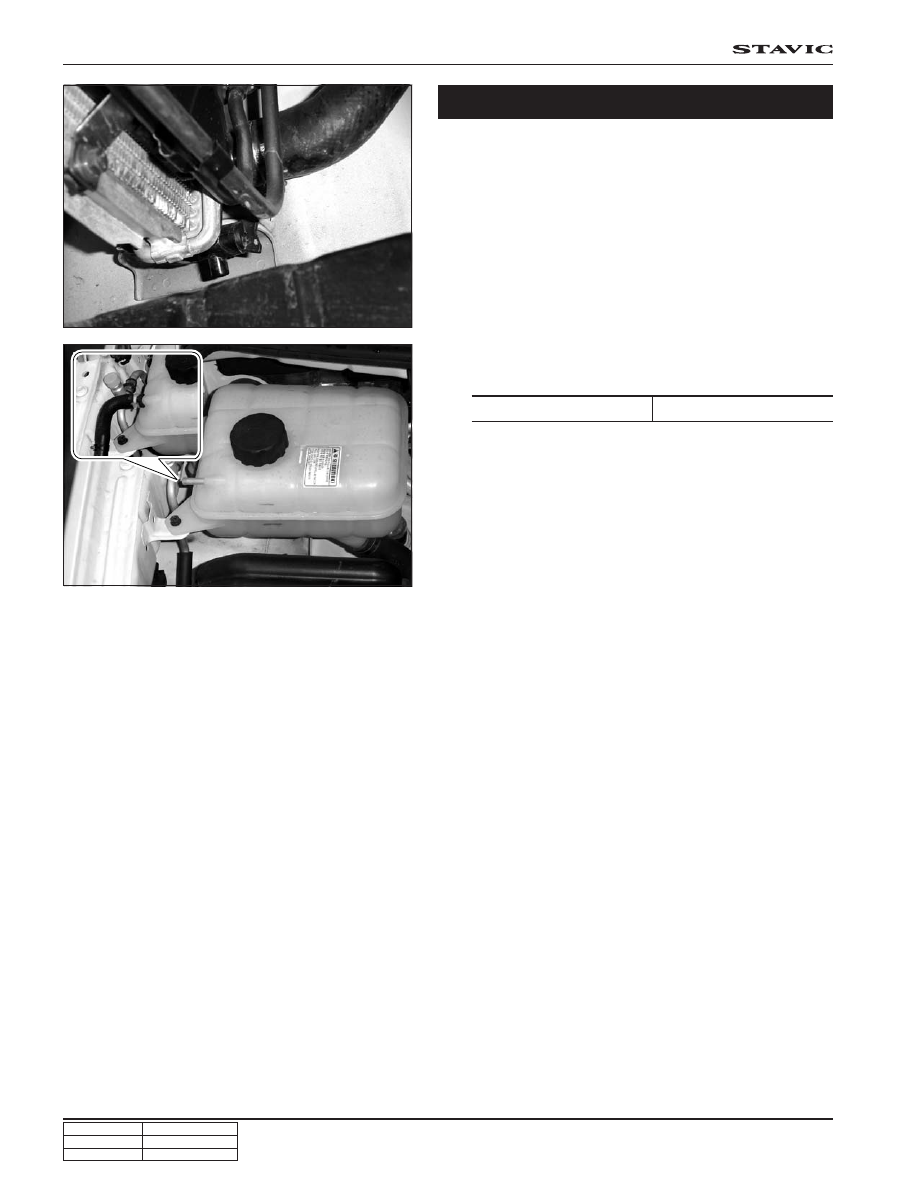

1. Drain the coolant.

2. Remove the hoses.

4. Install in the reverse order of removal.

3. Unscrew the bolts and remove the coolant reservoir.

Installation Notice

Coolant Reservoir

Tightening torque

7 Nm
