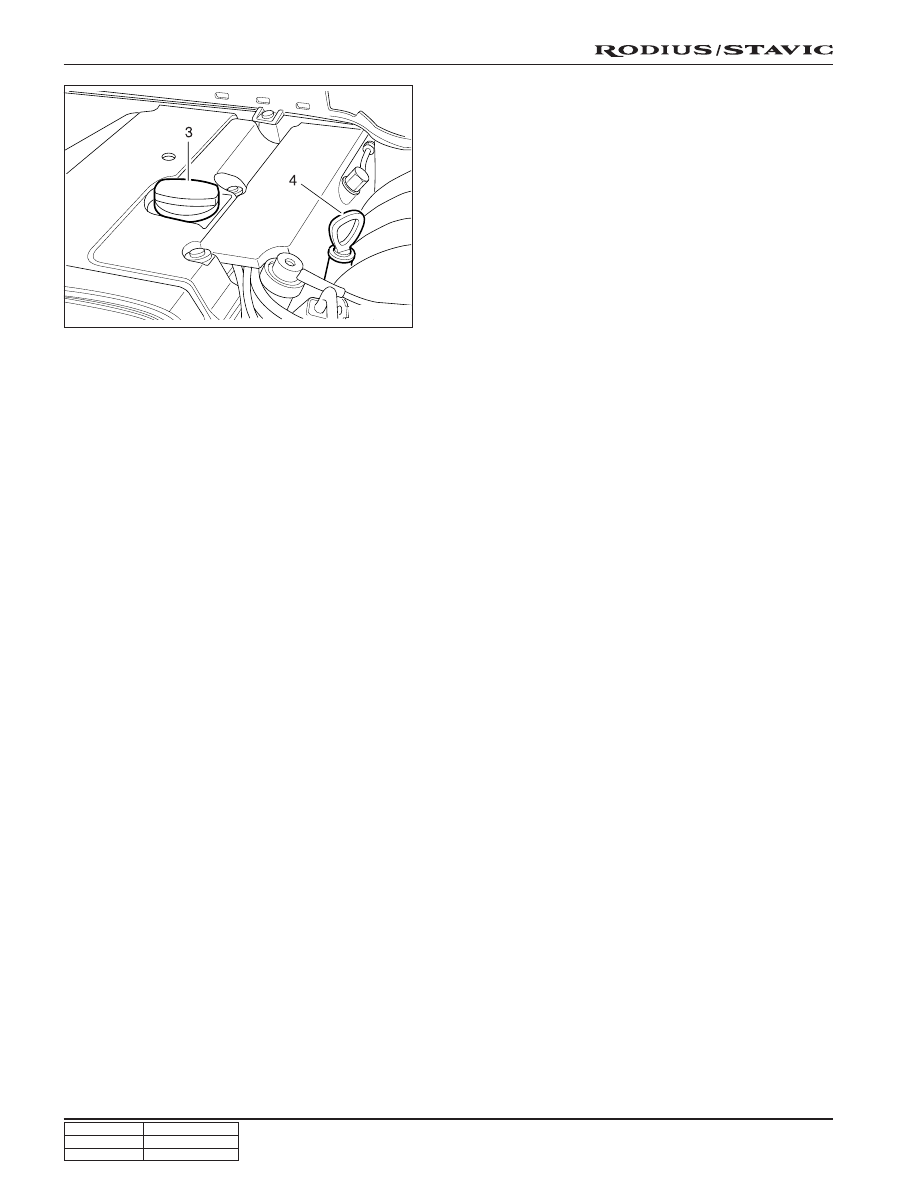

9. Fill up engine oil through the engine oil filler opening (3).

10. Check for oil leaks at normal engine temperature after

starting the engine.

11. Stop the engine and wait 5 minutes.

Check the oil level and fill up as specified if necessary.

1B-97

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

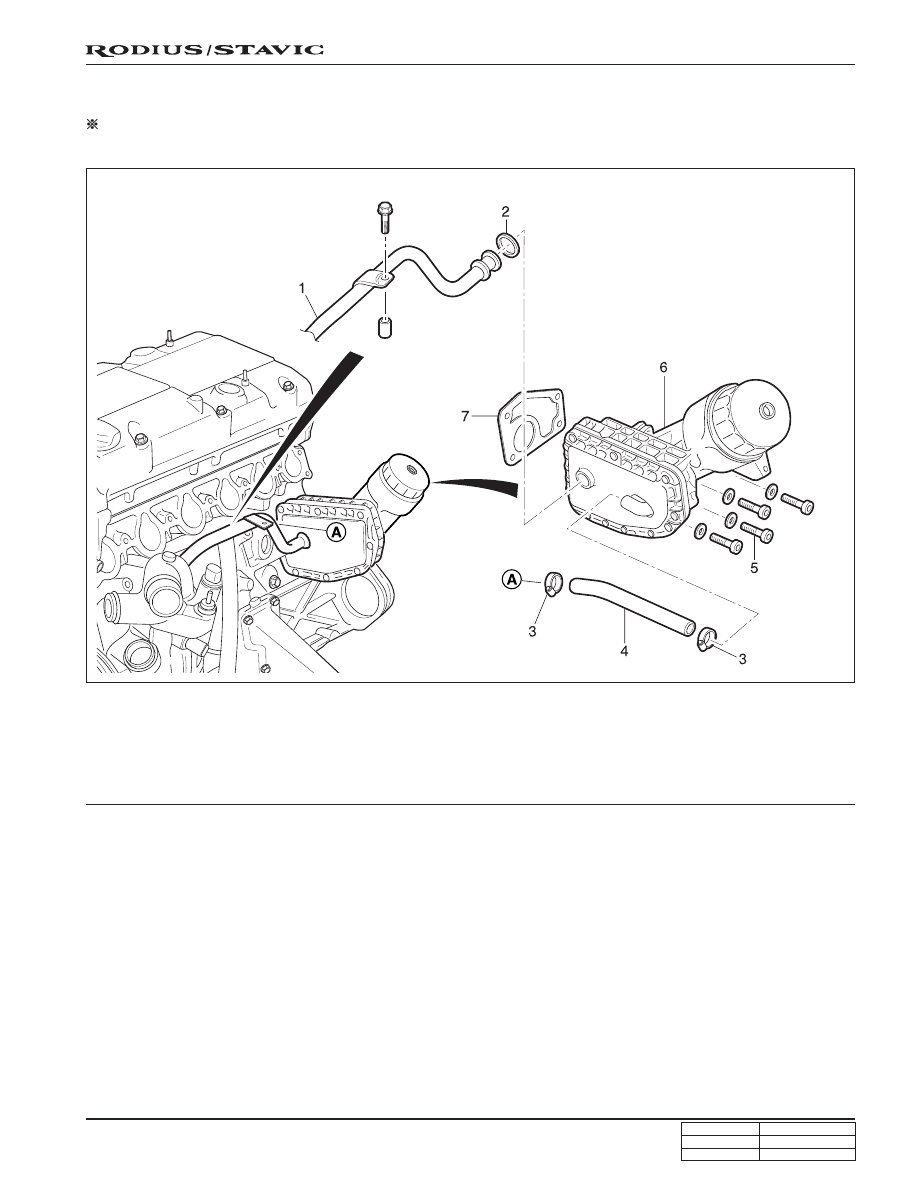

OIL FILTER

Preceding Work: Removal of starter motor

Removal of upper intake manifold

1. Coolant line

2. O-ring ........................................................ Replace

3. Clip

4. Hose

5. Bolt ................ 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

6. Oil filter

7. Gasket ...................................................... Replace

1B-98

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

Replace the oil filter gasket.

4. Installation should follow the removal procedure in the

reverse order.

5. Check engine oil level.

6. Run the engine at idle and check the engine for leaks.

3. Remove the oil filter bolt and then remove the oil filter.

Installation Notice

Removal & Installation Procedure

1. Drain the coolant from the crankcase.

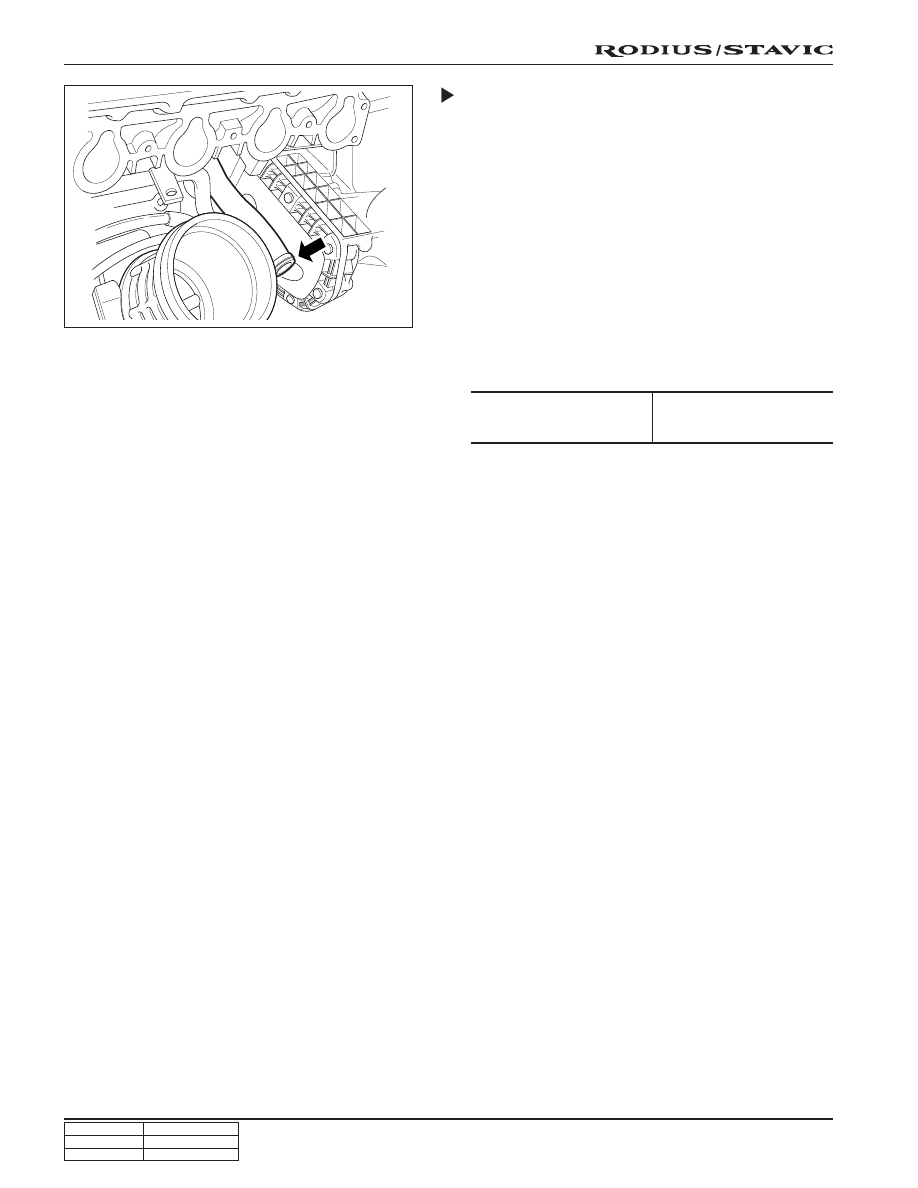

2. Remove the each coolant line and hose.

Tightening torque

22.5 ~ 27.5 Nm

(16.6 ~ 20.3 lb-ft)

1B-99

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

1. Bolt (M8 x 20, 1 piece)

.................................... 29 ~ 35 Nm (21 ~ 26 lb-ft)

2. Sprocket (Oil pump drive)

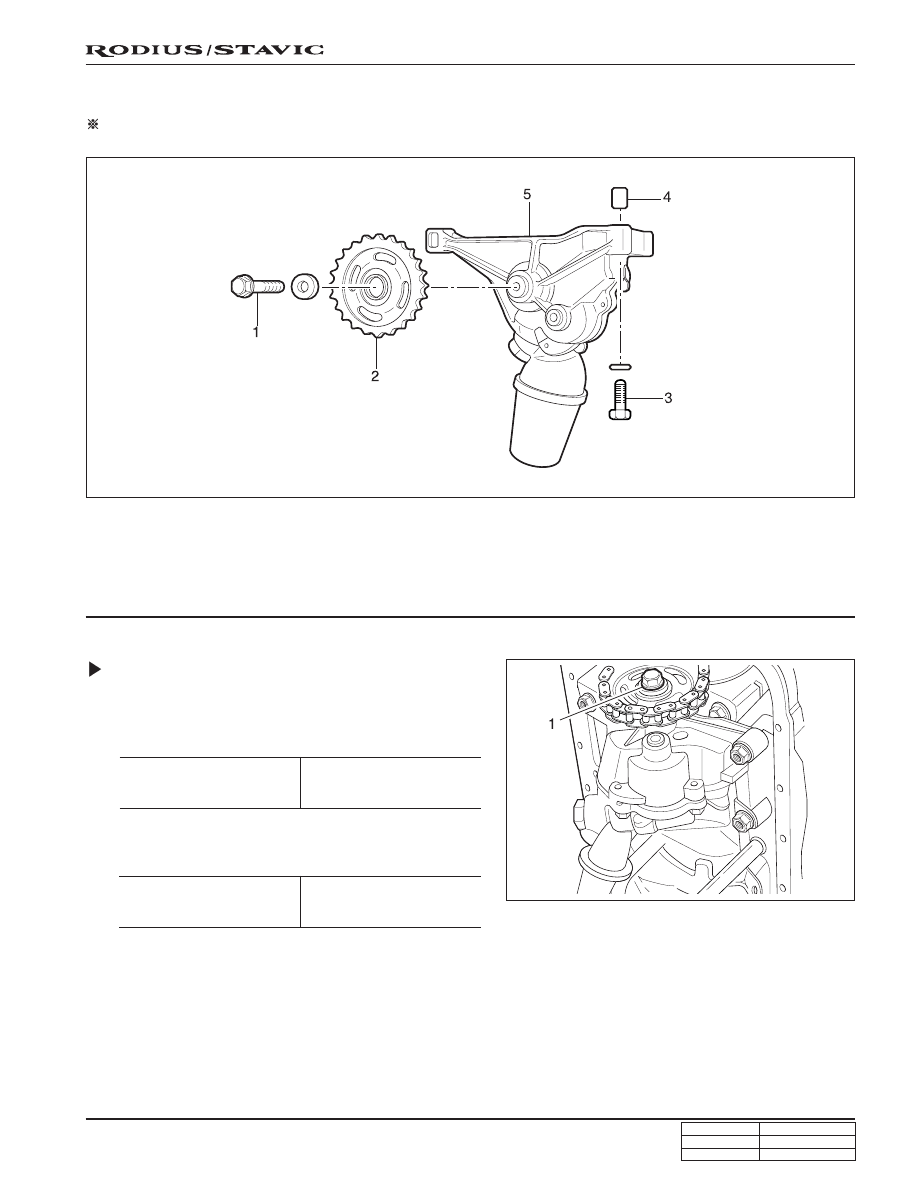

OIL PUMP

Preceding Work: Removal of oil pan

3. Bolt (M8 x 35, 3 pieces)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

4. Spring pin

5. Oil pump

Removal & Installation Procedure

1. Remove the bolt (1) from the oil pump drive sprocket (2)

and separate the gear and the oil pump drive chain.

Installation Notice

Tighten the baffle plate and the oil pump with the two
bolts in right side first, and then tighten the other bolt.

3. Remove the oil pump and oil strainer assembly.

4. Replace the strainer in oil pump if necessary.

5. Installation should follow the removal procedure in the

reverse order.

2. Unscrew the oil pump mounting bolts (3).

Installation Notice

Tightening torque

29 ~ 35 Nm

(21 ~ 26 lb-ft)

Tightening torque

22.5 ~ 27.5 Nm

(16.6 ~ 20.3 lb-ft)
