1B-92

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

Capacity

Quality

Viscosity

Replacemant

Application

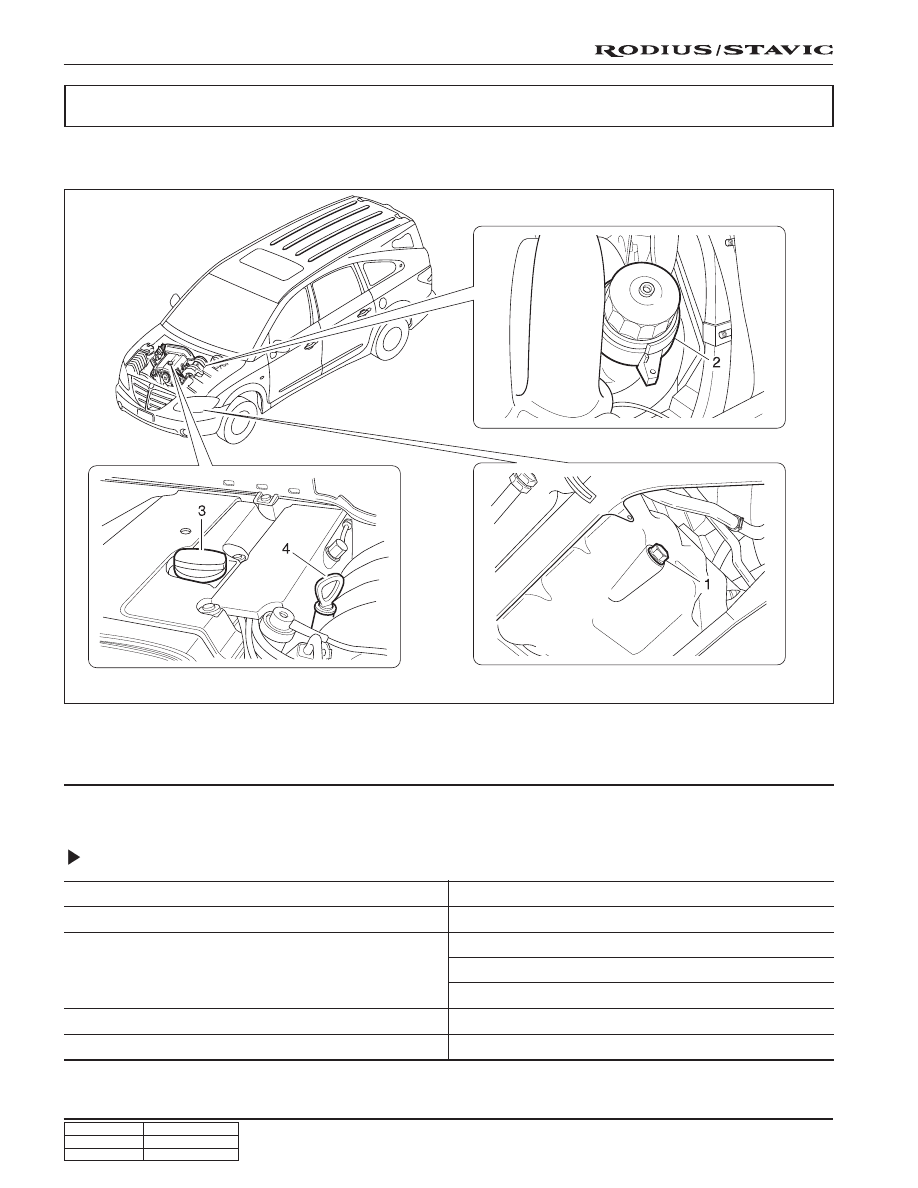

ENGINE OIL SPECIFICATION

1. Drain plug .................................... 25 Nm (18 lb-ft)

2. Oil filter

3. Engine oil filler cap

4. Dipstick gauge

Specifications

LUBRICATION SYSTEM

Min: 7.0L, Max: 9.0L

• API SH or above grade

• ACEA: A2 or A3

• Approved oil by MB Sheet 229.1

• Approved oil by MB Sheet 224.1

• Initial at 1000 ~ 1500 km, Replace every 15000 km

Descrition

1B-93

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

REPLACEMENT

1. Install the socket wrench A9910 0050A (103 589 02 09

00) on the oil filter cover (2).

Notice

Tighten the bolts on the socket wrench to remove
the screw cover.

2. Set a wrench on the bolt on the top of socket wrench

and turn it to remove the oil filter cover.

3. Remove the oil filter element.

Notice

Wrap the used filter element with a shop cloth so
that the oil cannot drop on the floor.

4. Remove the drain plug (1) and drain the engine oil

completely.

Notice

To drain the oil easily, remove the oil filler cap (3).

5. Clean the drain plug and reinstall it.

Installation

Tightening torque

25 Nm

9. Pour the engine oil through the engine oil filler hole.

10. Run the engine and check for oil leakage at normal

operating temperature.

11. Stop the engine and wait for 5 minutes. Check the oil

level and add if necessary.

Tightening torque

25 Nm

Notice

Replace the seal washer with new one.

6. Replace the O-ring (5) on the oil filter cover with new

one.

Notice

When replacing, apply the engine oil on the O-ring.

7. Insert new oil filter element into the oil filter housing.

8. Temporarily tighten the oil filter cover (2) by hands and

then tighten it with the socket wrench A9910 0050A
(103 589 02 09 00).

Installation

1B-94

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

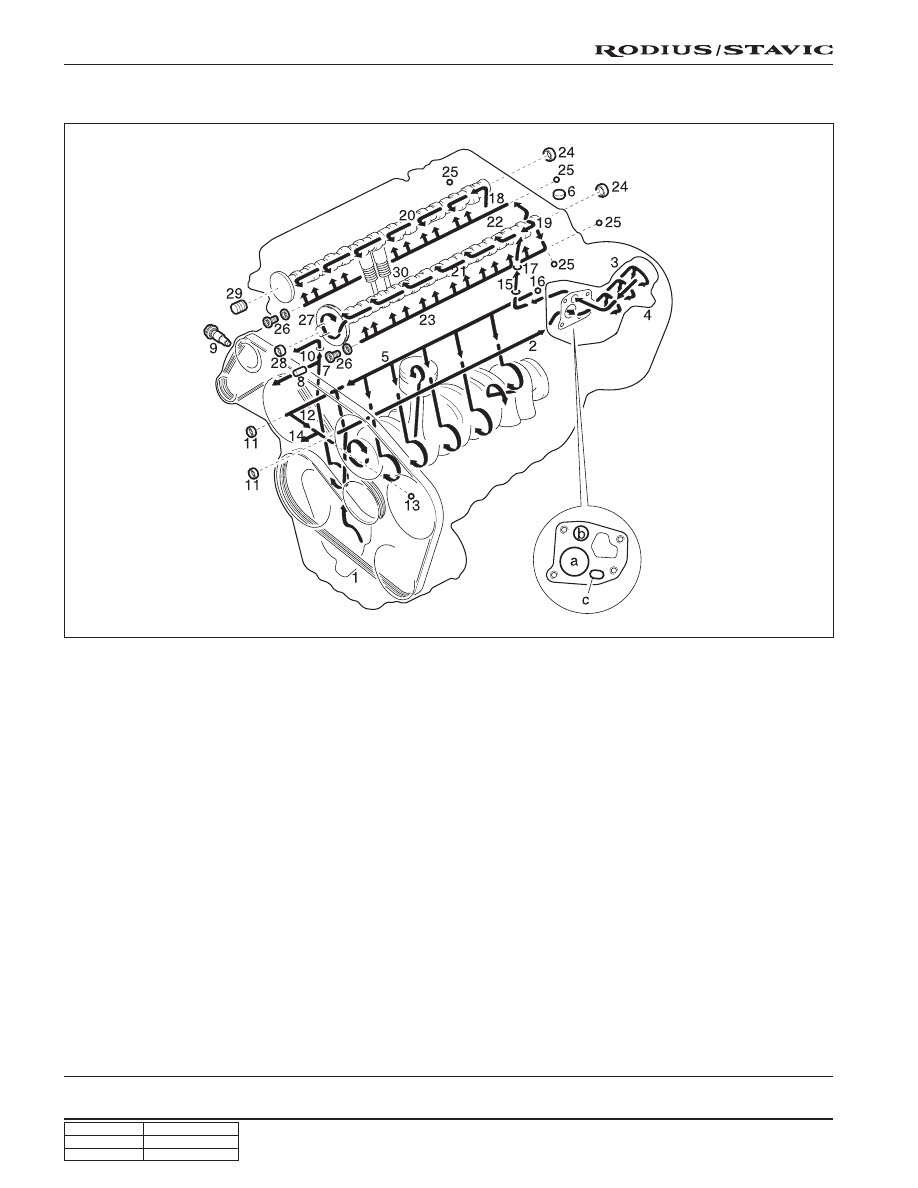

1. Oil pump

2. Oil gallery (to oil filter)

3. Oil filter

4. Oil pressure switch

5. Main oil gallery

6. Cylinder head closing cover

7. Oil gallery (at chain tensioner)

8. Oil non-return valve

9. Chain tensioner

10. Vent (chain tensioner)

11. Front closing cover (

φ 17 mm)

12. Oil gallery (perpendicular to the shaft)

13. Ball (

φ 6 mm)

14. Oil spray nozzle (timing chain)

15. Oil gallery (at cylinder head)

16. Ball (

φ 15mm)

17. Oil restriction inner (

φ 4mm)

18. Oil supply (to exhaust camshaft)

OIL CIRCULATION

19. Oil supply (to intake camshaft)

20. Oil supply (to exhaust camshaft bearing)

21. Oil supply (to intake camshaft bearing)

22. Oil gallery (oil supply to exhaust valve tappet)

23. Oil gallery (oil supply to intake valve tappet)

24. Camshaft closing cover

25. Ball (

φ 8 mm)

26. Screw plug

27. Camshaft adjuster

28. Front closing cover (intake camshaft)

29. Front treaded bushing (exhaust camshaft)

30. Valve tappet

a. Oil gallery (from oil pump to oil filter)

b. Main oil gallery

c . Oil return line (oil returns to the oil pan when

replacing the filter element)

1B-95

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

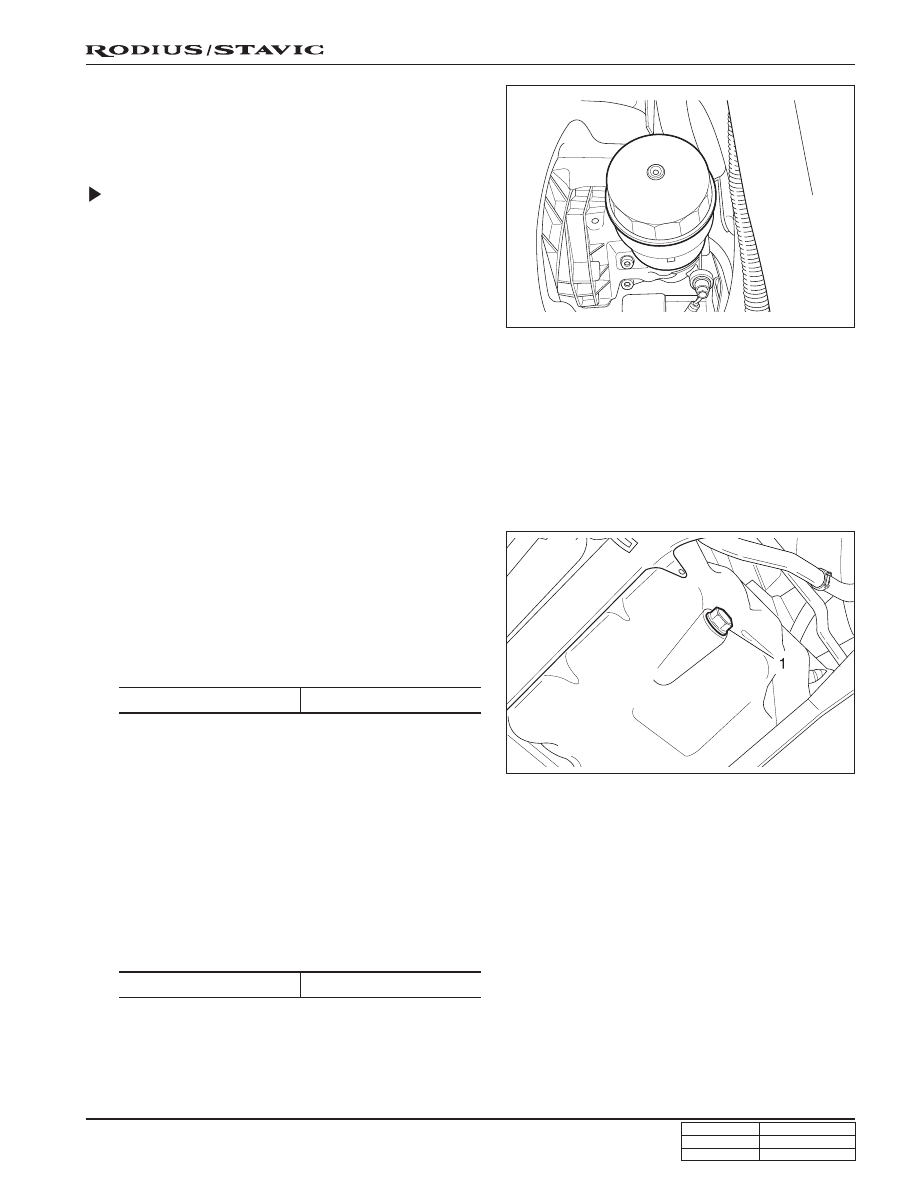

4. Remove the drain plug (1) and drain the engine oil.

Notice

Leave the oil filler cap open to ease the engine oil
discharge.

5. Tighten the engine oil drain plug after cleaning it.

Installation Notice

ENGINE OIL AND OIL FILTER ELEMENT

Tools Required

A9910 0050A (103 589 02 09 00)

Oil Filter Remover

Replacement Procedure

1. Install the oil filter remover A9910 0050A (103 589 02 09

00) on the oil filter cover.

Notice

Make the screw cover removable by tightening the
bolt at the side of the oil filter remover A9910 0050A
(103 589 02 09 00).

2. Install the wrench to the upper bolt in the oil filter remover

A9910 0050A (103 589 02 09 00) and remove the oil cover
by turning it.

3. Remove the oil filter element.

Notice

Work with a cloth under the vehicle when removing
the oil filter element to not drain the oil.

Replace the seal washer with new one.

6. Replace the O-ring in the oil filter cover with new one.

Notice

Apply the engine oil to the O-ring.

7. Insert new oil filter element into the oil filter housing.

8. Temporarily tighten the oil filter cover. Install the oil filter

remover A9910 0050A (103 589 02 09 00), and then
completely tighten it.

Installation Notice

Tightening torque

25 Nm (18 lb-ft)

Tightening torque

25 Nm (18 lb-ft)
