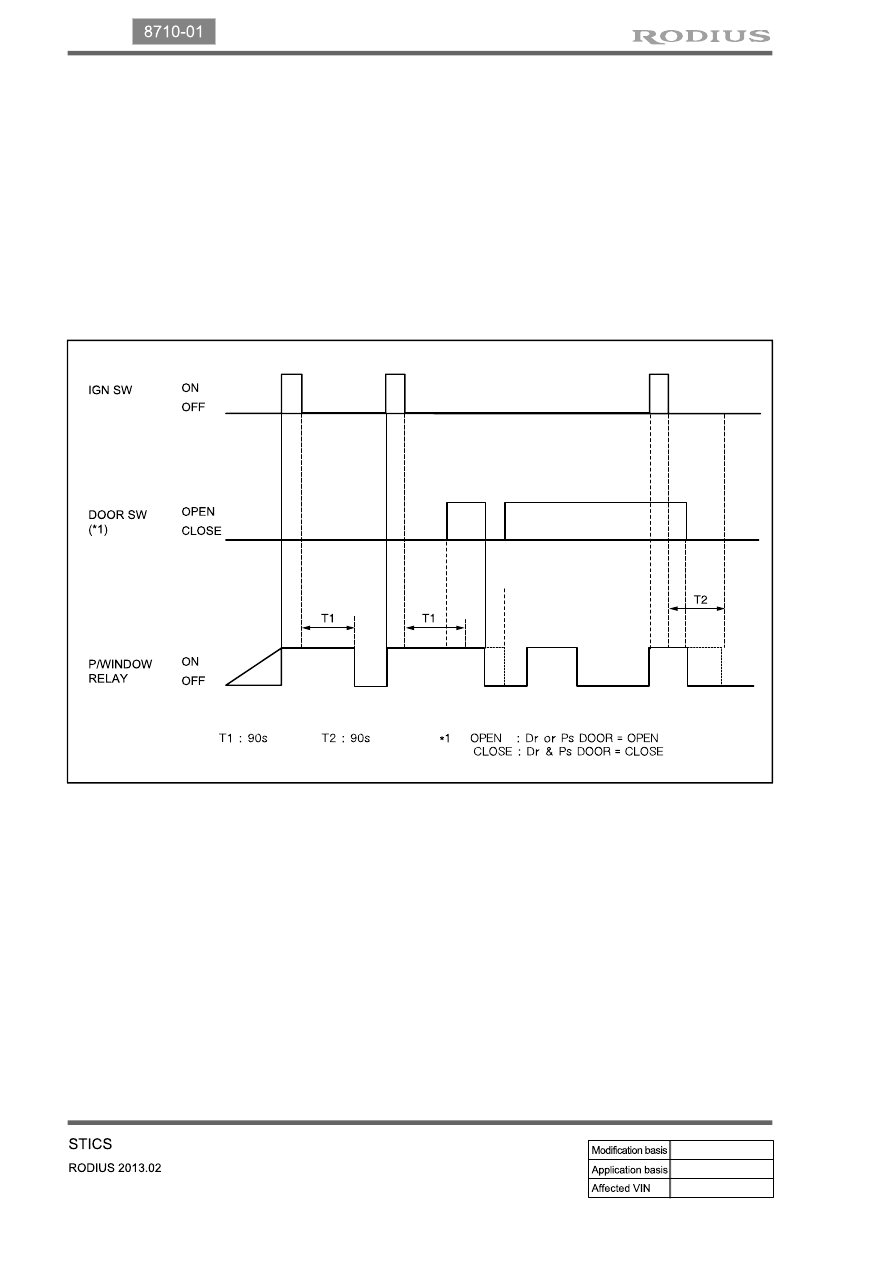

12) Time Lag Power Window Control

The power window is turned off when turning the ignition key to “ON” position.
The power window relay is turned “ON” for 90 seconds (T1) when turning the ignition key to
“OFF” position.

However, the power window relay stays on for 90 seconds (T2) when the ignition key is turned to
“OFF” position while the door is opened.
The power window relay is turned “ON” again for 90 seconds (T2) just for once when

opening the door during its extended operation period of 90 seconds (T1).
The power window relay is turned “OFF” when closing the door during its extended

operation period of 90 seconds (T2).

1.

2.

3.

4.

02-37

8710-01

13) Theft Deterrent

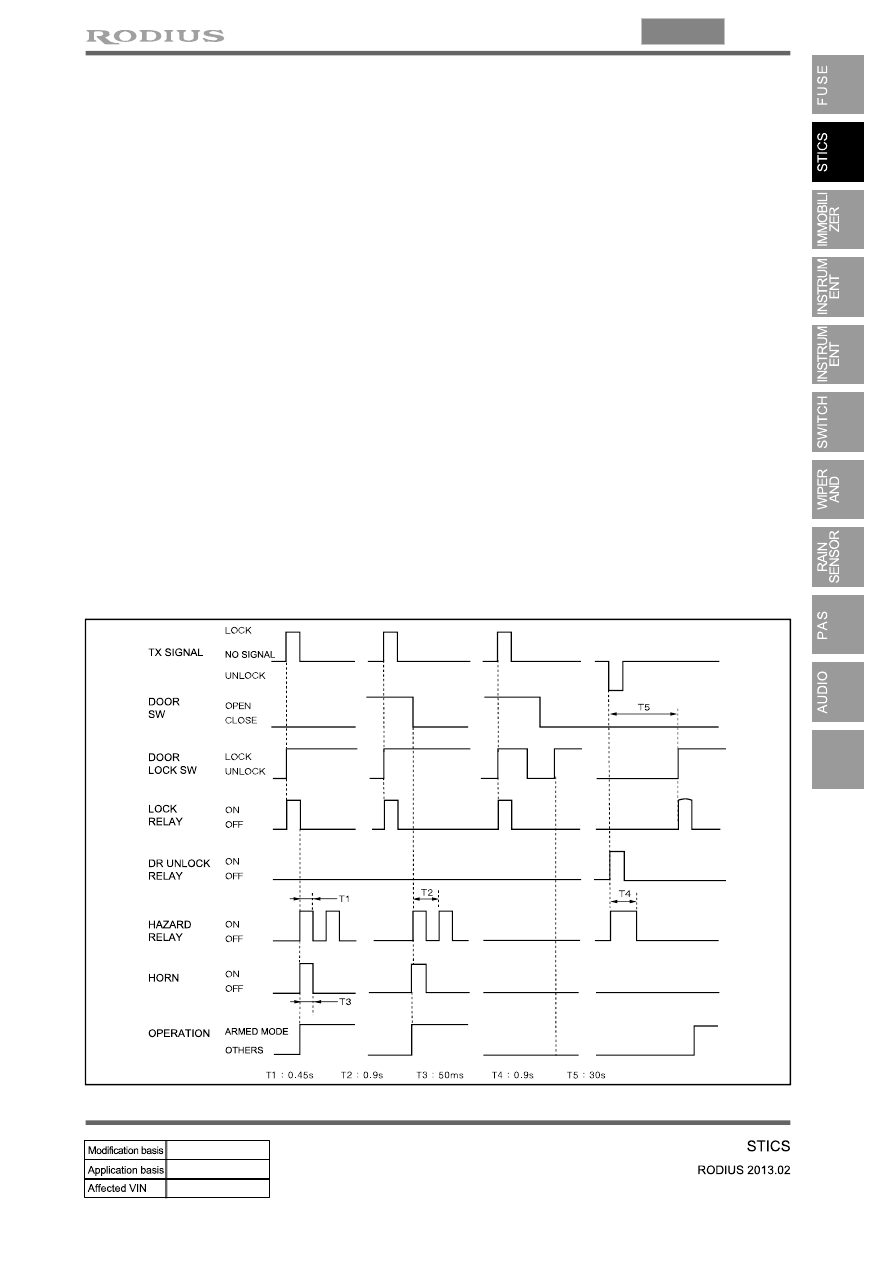

(1) Description of Burglar Alarm Function

The “LOCK” output is “ON” when receiving the “LOCK” signal from transmitter while the

ignition key is removed and all doors are closed. The armed mode is activated when the door lock

switch is locked (theft deterrent horn output: once, hazard relay output: twice).
The theft deterrent horn and hazard relay outputs are “ON” when receiving the “LOCK” signal

from the remote control key again in armed mode (theft deterrent horn output: once, hazard relay

output: twice).
When receiving “LOCK” signal from the remote control key while any of doors is not closed,
only the “LOCK” output can be done and then activates the armed ready mode (without theft

deterrent horn and hazard warning flasher). At this moment, if the ignition key is in the ignition switch,
the door unlock switch is turned “ON” or the door lock switch is unlocked (after 0.6 seconds),

cancels the armed mode and activates the normal mode. However, in these cases, if closing the

door and locking the door lock switch, the theft deterrent horn outputs once and the hazard warning

flasher outputs twice and then activates armed mode.

 When the door is not opened or the ignition key is not inserted into ignition switch for 30 seconds
after receiving “UNLOCK” signal, outputs “LOCK” and then activates armed mode (RELOCK

operation). Also, at this moment, the system outputs the theft deterrent horn and hazard warning

flasher.

The armed mode will not be activated except above conditions.

Ex) The armed mode will not be activated when the door is locked by the ignition key.

1.

2.

3.

4.

5.

▶Theft deterrent mode ON conditions

02-38

▶Armed mode cancellation requirements

Unlocking by remote control key or engine starting.

1.

▶Warning operation requirements

When opening the door in armed mode

When unlocking the door lock switch in armed mode

When closing and then opening the door after completion of warning (27 seconds)

1.

2.

3.

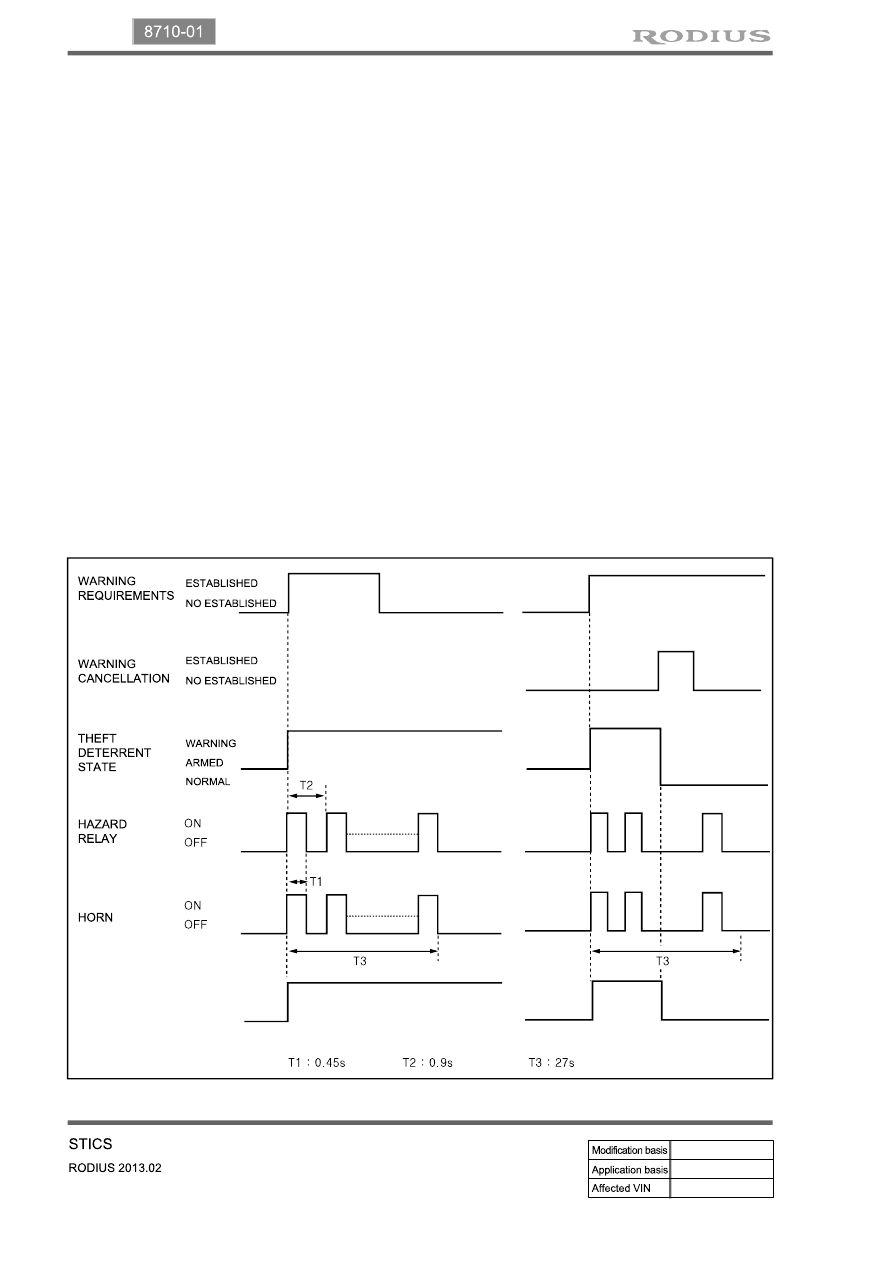

▶Warning operation

The theft deterrent horn and hazard warning flasher output is “ON” for T3 (27 seconds)

with the interval of T2 (1second).

1.

▶Warning cancellation requirements

Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, START,

STOP, PANIC, CHECK) during warning operation.

Cancels warning after 27 seconds (remaining period) while the ignition key is turned to
“ON” position.

1.

2.

▶Operation when warning is cancelled

The theft deterrent horn and hazard warning flasher outputs are “OFF”.

1.

02-39

8710-01

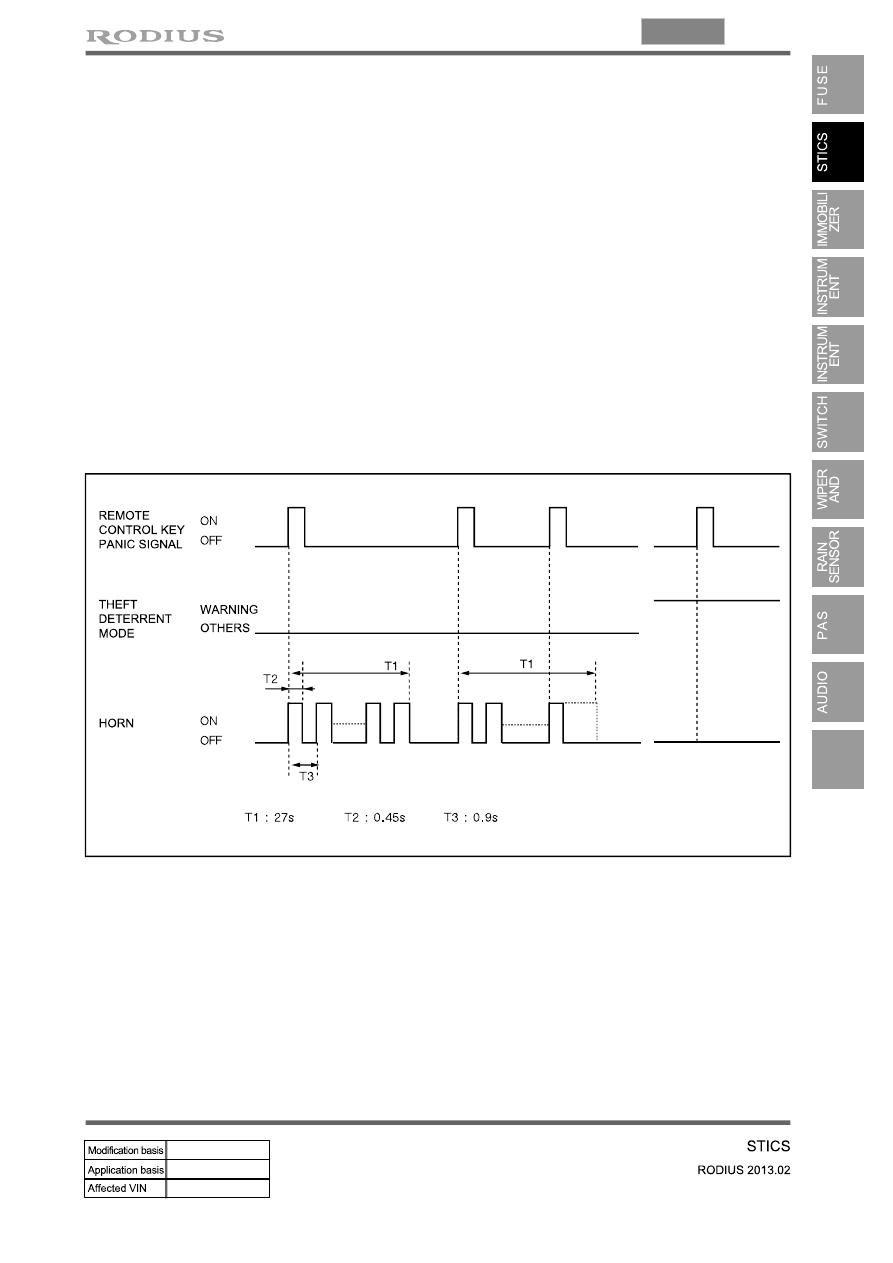

The PANIC warning output is “ON” (theft deterrent horn) when receiving the PANIC signal

from the remote control key (pressing PANIC button for less than 0.5 ~ 1.0 second).
The PANIC warning output is “OFF” when receiving any signal from the remote control key

during PANIC warning.

Followings are theft deterrent warnings:

This function operates only in armed mode.

The system sends the current vehicle conditions (LOCK, engine running) when the PANIC warning

is turned off by the remote control key.

1.

2.

3.

4.

5.

The theft deterrent warning is canceled when receiving PANIC signal from the remote control key

during theft deterrent.
The theft deterrent warning output is “ON” when the theft deterrent conditions are
established during PANIC warning (PANIC output is “OFF”).
The PANIC warning output is “ON” when receiving the PANIC signal from the remote

control key in Armed Ready / Armed / Warning Completion / Relock Ready mode (maintaining

the theft deterrent mode).

1)

2)

3)

(2) PANIC Warning
