02-32

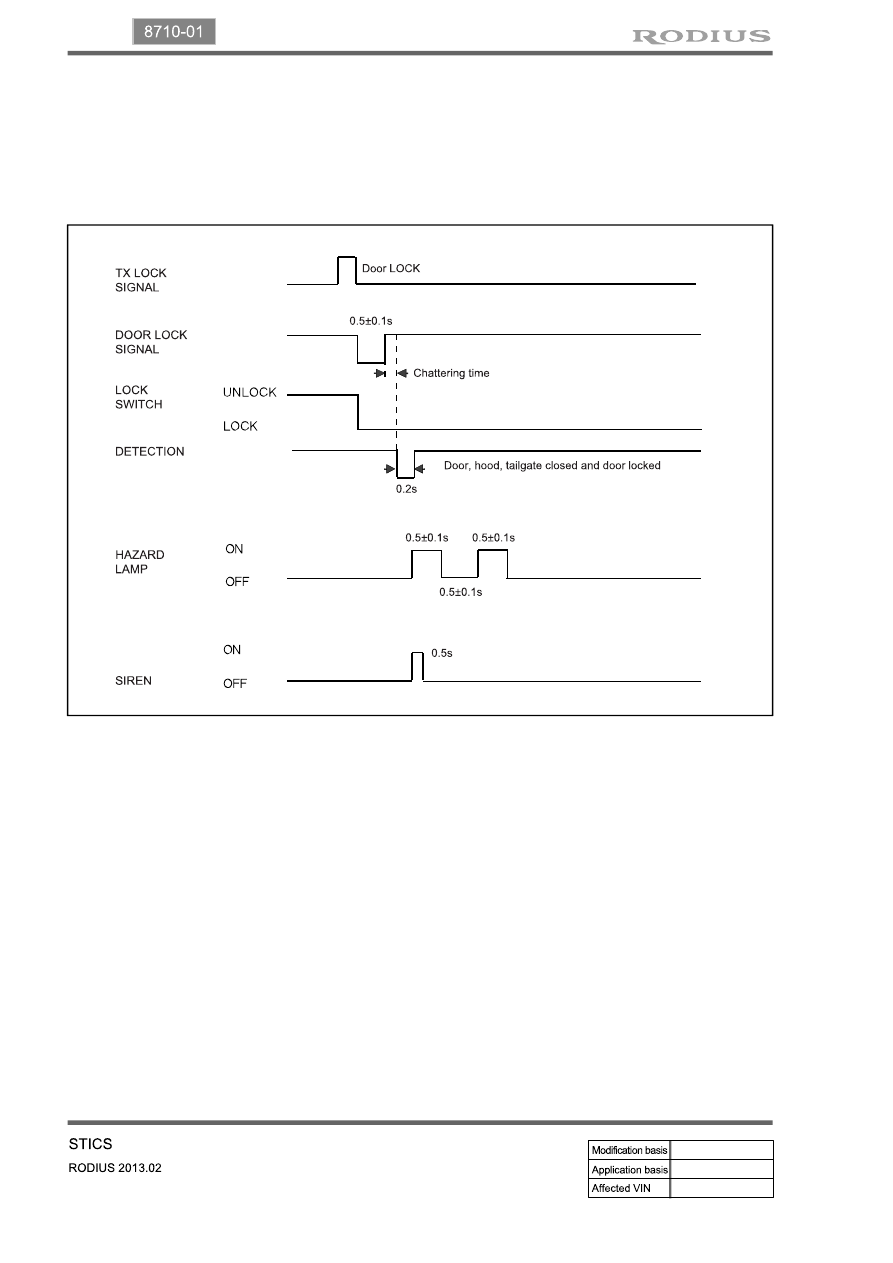

▶Door LOCK/UNLOCK by Remote Control Key

The door lock system outputs “LOCK” for 0.5 seconds (T2) when receiving “LOCK” signal

from the remote control key.

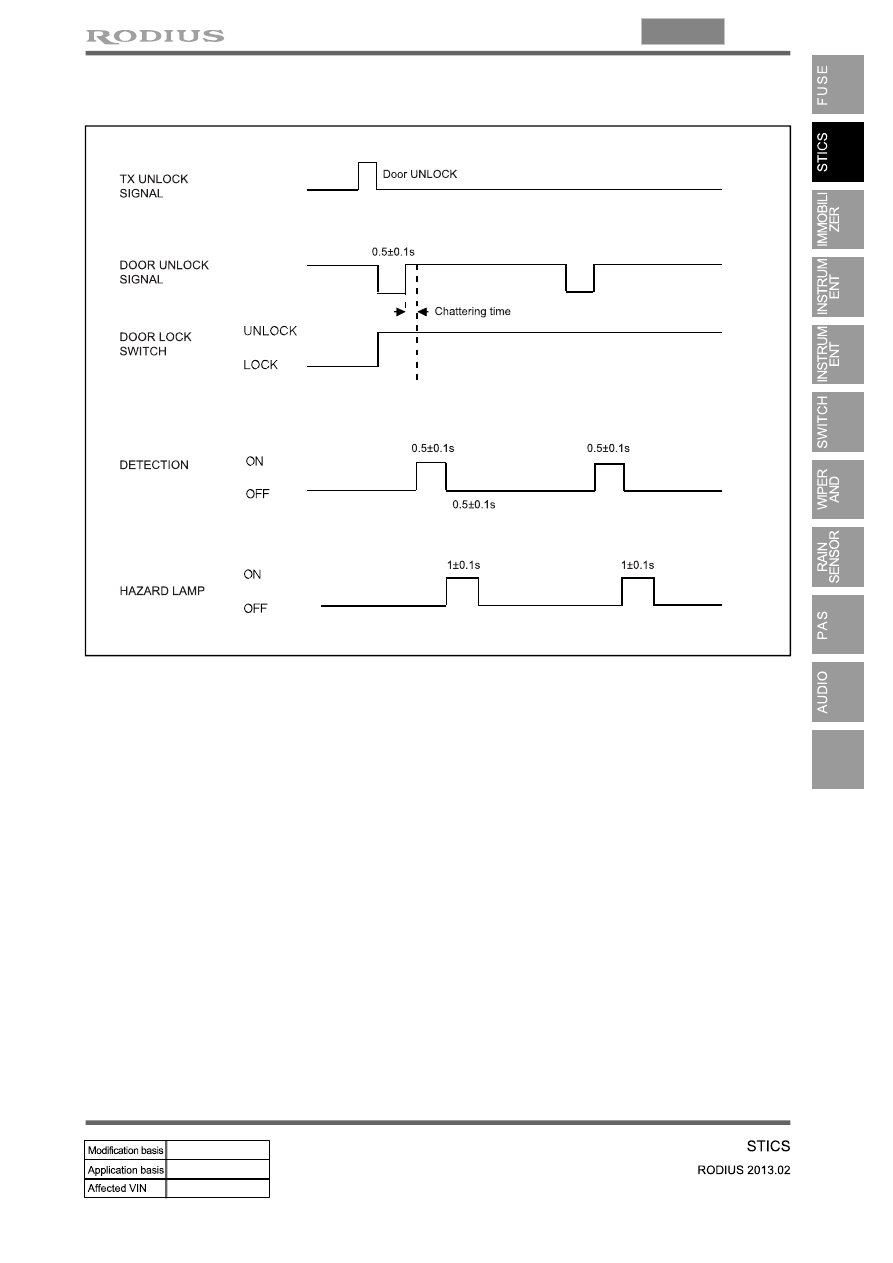

The door lock system outputs “UNLOCK” signal for 0.5 seconds (T3) when receiving
“UNLOCK” signal from the remote control key.

1.

2.

02-33

8710-01

02-34

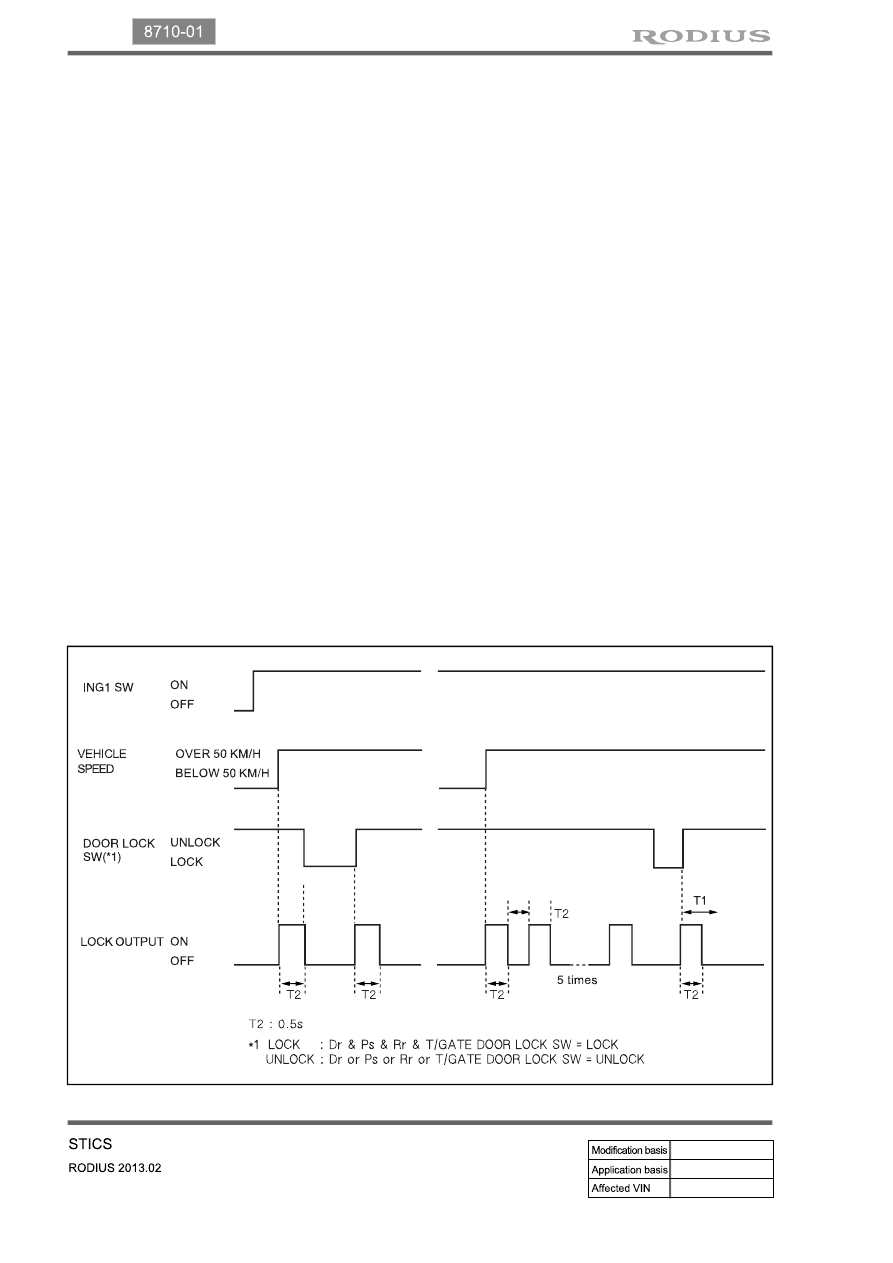

▶Auto Door Lock

The door lock system outputs "LOCK" when the vehicle speed maintains over 50 km/h. However, it

doesn't output "LOCK" when all doors are locked or failed.

If any of doors is unlocked after outputting "LOCK" in step 1, outputs "LOCK" up to 5 times (except

step (1)) at the interval of one second.

If any of doors is unlocked after 5 times of "LOCK" outputs, the door(driver's/passenger's/

rear) is regarded as "FAIL".

If the door that was regarded as fail is changed(UNLOCK to LOCK), it will be recognized as a

normal one.

If any door is regarded as FAIL, the auto door lock function does not work. (if it is occurred when the

vehicle speed is over 50 km/h, the auto door lock output does not occur even if the vehicle speed

falls below 50 km/h and accelerates again to over 50 km/h.) Nonetheless, the central door lock

function works properly.

When the system receives "UNLOCK" signal from a door switch, it outputs "LOCK" signals 5 times.

If additional "LOCK" signal from another door switch is detected during the period, the system

outputs five "LOCK" signals 5 times for the switch.

The door lock system outputs "UNLOCK" automatically if the "LOCK" output conditions are

established by this function or the key is cycled(IGN=OFF) (even when there is no "LOCK" output

while the vehicle speed maintains over 50 km/h under lock condition). (If the LOCK condition is

established with the ignition switch ON, the system outputs UNLOCK signal unconditionally when

turning the ignition switch to OFF position.) However, when the ignition key is turned to "OFF"

position, the lock output conditions will be cancelled.

The "FAIL" condition of the door will be erased when the ignition key is turned to "OFF" position.

1.

2.

3.

4.

5.

6.

7.

8.

02-35

8710-01

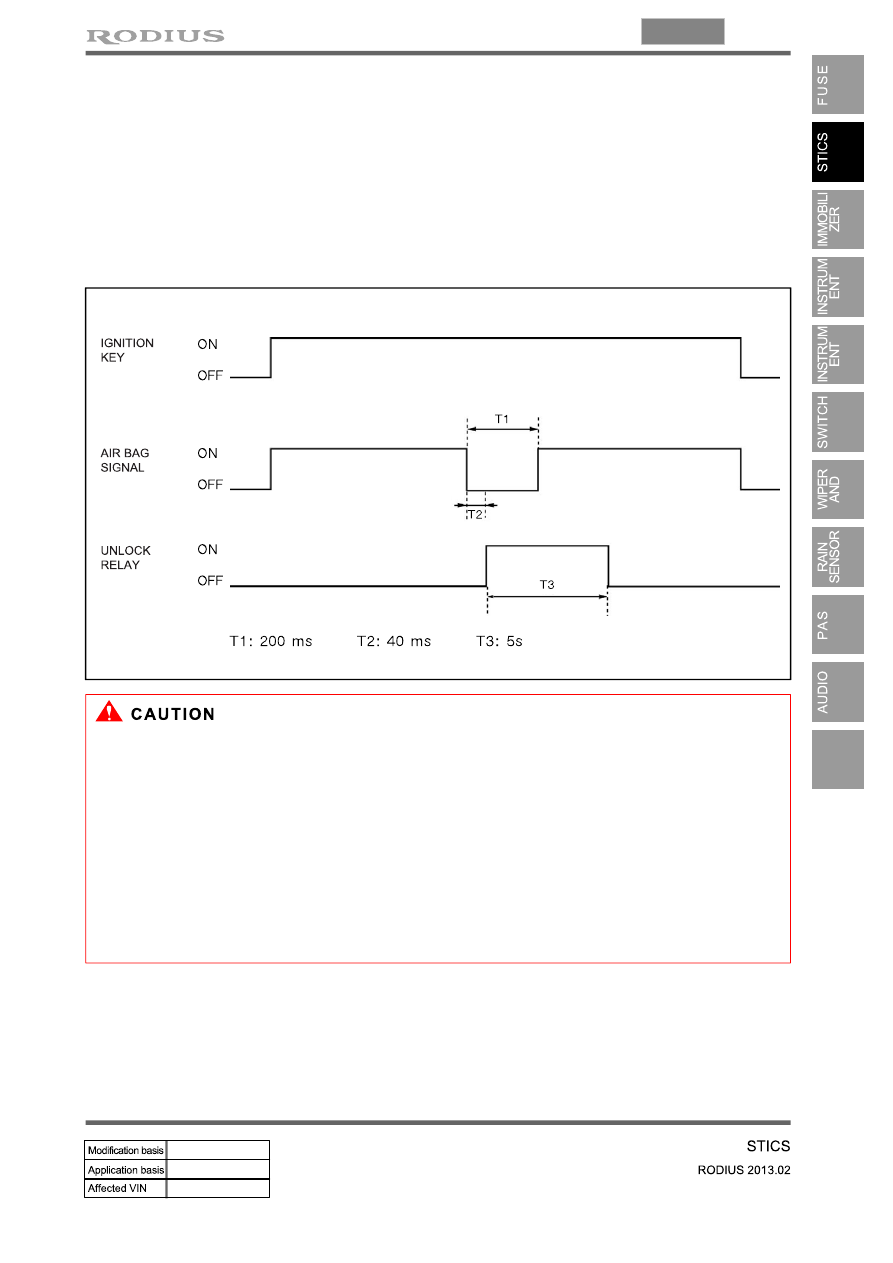

▶Auto Door Unlock (Crash Unlock)

The air bag collision signal input cannot be accepted within 7 seconds after turning the ignition key

to "ON" position.

After this period, the door lock system outputs "UNLOCK" for all doors for 5 seconds from 40 ms

after receiving the air bag collision signal.

Even though the key is turned to "OFF" position during the output of "UNLOCK", the output

continues on for remaining period.

The function is erased when turning "OFF" the ignition switch.

1.

2.

3.

4.

 The "Unlock" control by air bag signal prevails over any "LOCK" or "UNLOCK" control by other

functions.

The "LOCK/UNLOCK" request by other functions will be ignored after/during the output of

"UNLOCK" by the air bag. However, the door lock is controlled by other functions when the

ignition switch is "OFF".

"LOCK" (or "UNLOCK") output is ignored if "LOCK" (or "UNLOCK") output is required while

performing the output of "LOCK" (or "UNLOCK").  (However, UNLOCK by air bag signal and

operation by the remote control key are valid.)

If the door lock system outputs "LOCK" and "UNLOCK" simultaneously, only the "LOCK" output

can be activated.

1.

2.

3.

4.
