SsangYong Korando II (1996-2006 year). Service manual - part 451

EXTERIOR TRIM  9M-7

SSANGYONG  MY2002

Side Step Mounting Bolts

Application

N•m

15

11

-

Lb-Ft

Lb-In

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

SECTION 9N

FRAME AND UNDERBODY

TABLE OF CONTENTS

Specifications ....................................................... 9N-2

Fastener Tightening Specifications ....................... 9N-2

Underbody Dimensions ....................................... 9N-3

Maintenance and Repair ..................................... 9N-7

On-Vehicle Service ................................................. 9N-7

Alignment Checking ............................................ 9N-7

Floor Pan Insulators ............................................. 9N-7

Engine Under Covers ........................................... 9N-8

General Description and System Operation ........ 9N-9

General Body Construction .................................. 9N-9

Engine Under Covers ........................................... 9N-9

SSANGYONG  MY2002

9N-2  FRAME AND UNDERBODY

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Center Member-to-Crossmember Bolt

Center Member-to-Radiator Bolt

Engine Under Cover Bolts

Forward Engine Mount Through-Bolt

Rear Engine Mount Through-Bolt

Application

N•m

Lb-Ft

Lb-In

90

90

10

80

80

66

66

-

59

59

-

-

89

-

-

FRAME AND UNDERBODY  9N-3

SSANGYONG  MY2002

UNDERBODY DIMENSIONS

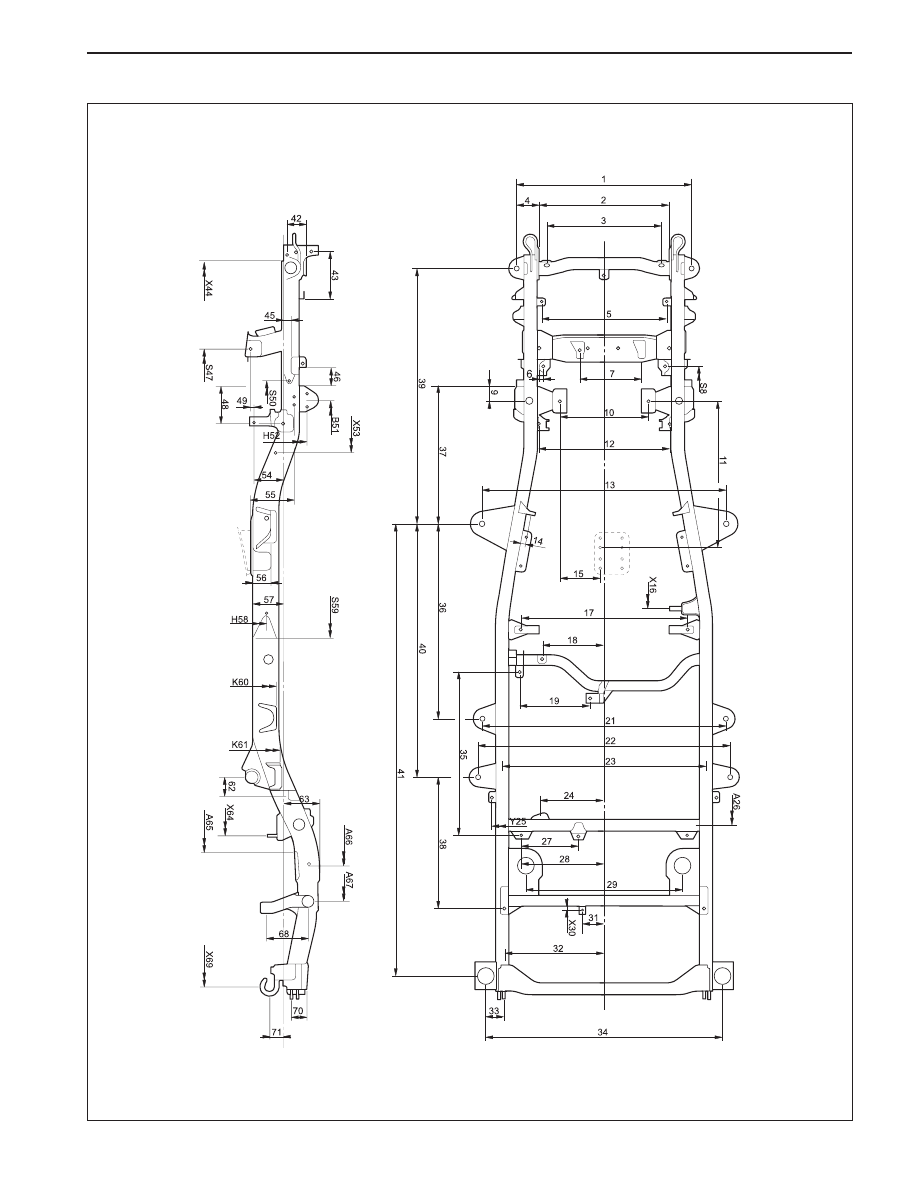

KAA9N010
