SSANGYONG  MY2002

9L-12  GLASS AND MIRRORS

SCHEMATIC AND ROUTING DIAGRAMS

DEFROSTER

KAA9L210

GLASS AND MIRRORS  9L-13

SSANGYONG  MY2002

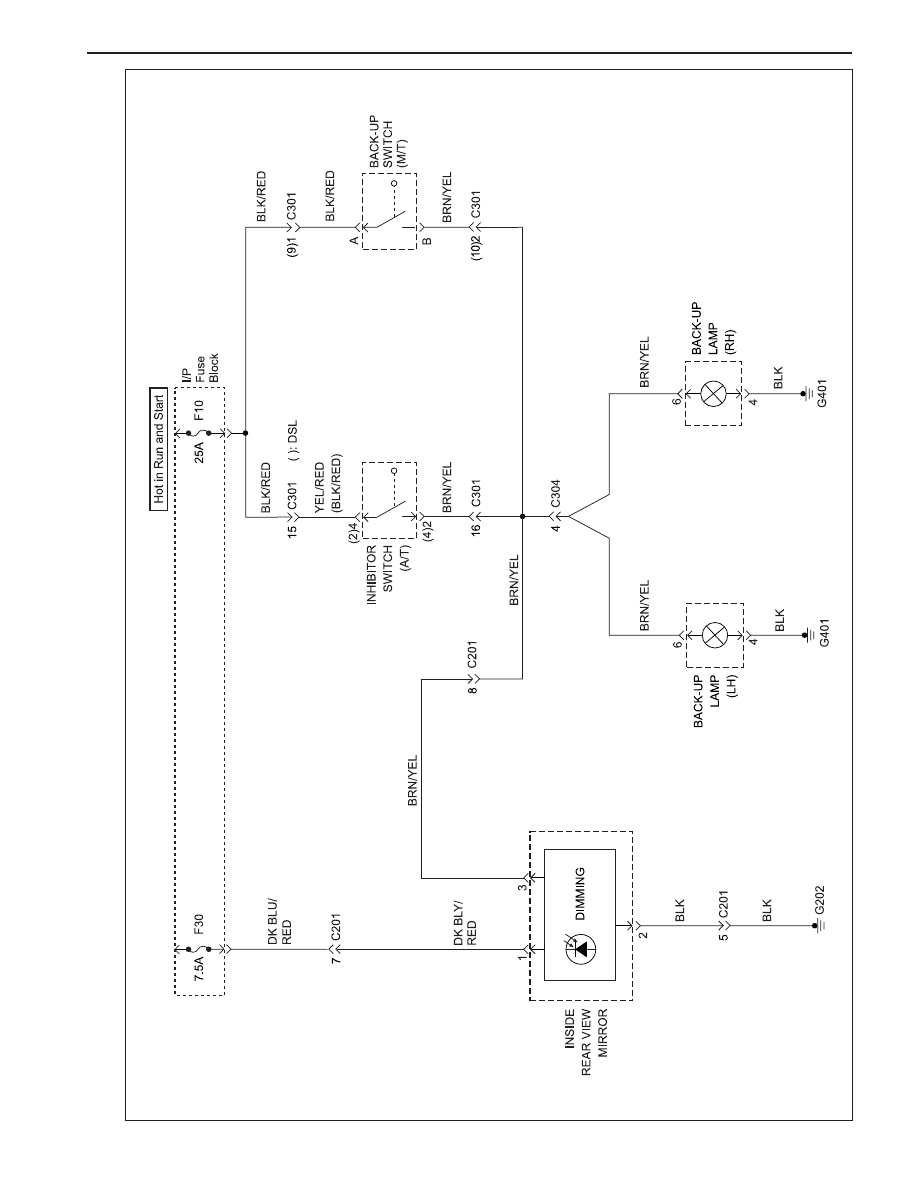

INSIDE REAR VIEW MIRROR (DIMMING) & BACKUP LAMP

KAA9L220

Description and Operation .................................. 9M-2

Emblems and Lettering ....................................... 9M-2

Mud Guards ....................................................... 9M-2

Components Locator ........................................... 9M-3

Exterior Trim ....................................................... 9M-3

Repair Instructions ............................................... 9M-4

On-Vehicle Service Unit Repair ............................... 9M-4

B-Pillar Molding .................................................. 9M-4

B-Pillar Cover ...................................................... 9M-4

SECTION 9M

EXTERIOR TRIM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Air Extractor Grille ............................................... 9M-4

Door Molding ...................................................... 9M-5

Front Wheel Molding ........................................... 9M-5

Rear Wheel Molding ........................................... 9M-5

Side Step ........................................................... 9M-6

C-Pillar Cover ...................................................... 9M-6

Roof Molding ...................................................... 9M-6

Specifications ...................................................... 9M-7

Fastener Tightening Specifications ...................... 9M-7

SSANGYONG  MY2002

9M-2  EXTERIOR TRIM

DESCRIPTION AND OPERATION

EMBLEMS AND LETTERING

The emblems and lettering on the vehicle are attached
by adhesive. The company emblem appears on the
hood. The lettering, which appears in several places
on the body of the vehicle, Features the model, the
grade, and the company name.

MUD GUARDS

Front and rear mud guards are optional equipment on
all models. Mud guards will help prevent an excessive
build up of mud on the body.
