SsangYong Korando II (1996-2006 year). Service manual - part 249

ABS AND TCS 4F-11

SSANGYONG MY2002

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor
6 Accumulator
7 Inlet Valve for Each Wheel

ABS/TCS 5.3

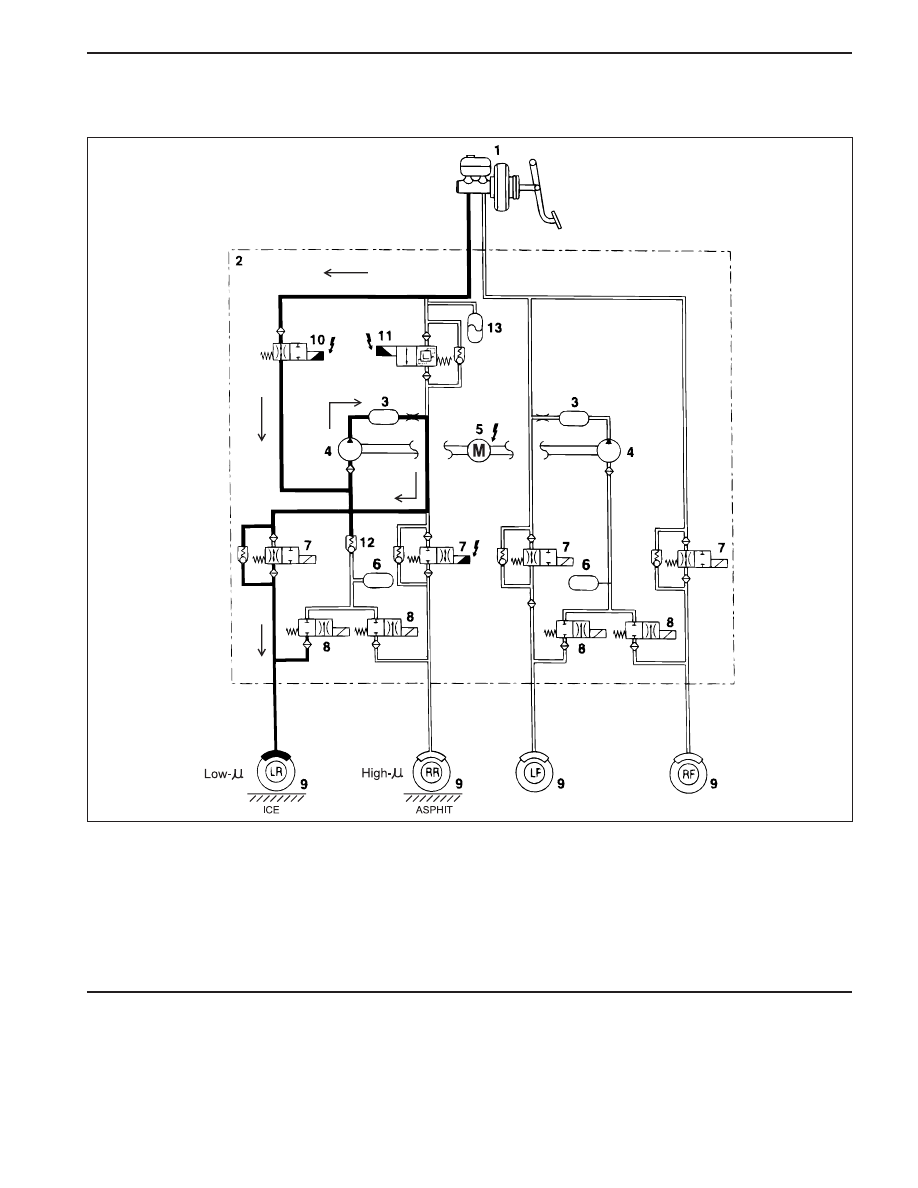

Pressure Increased

KAA4F070

8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve
11 Pilot Valve
12 Check Valve
13 ISD (Integrated Suction Damper)

SSANGYONG MY2002

4F-12 ABS AND TCS

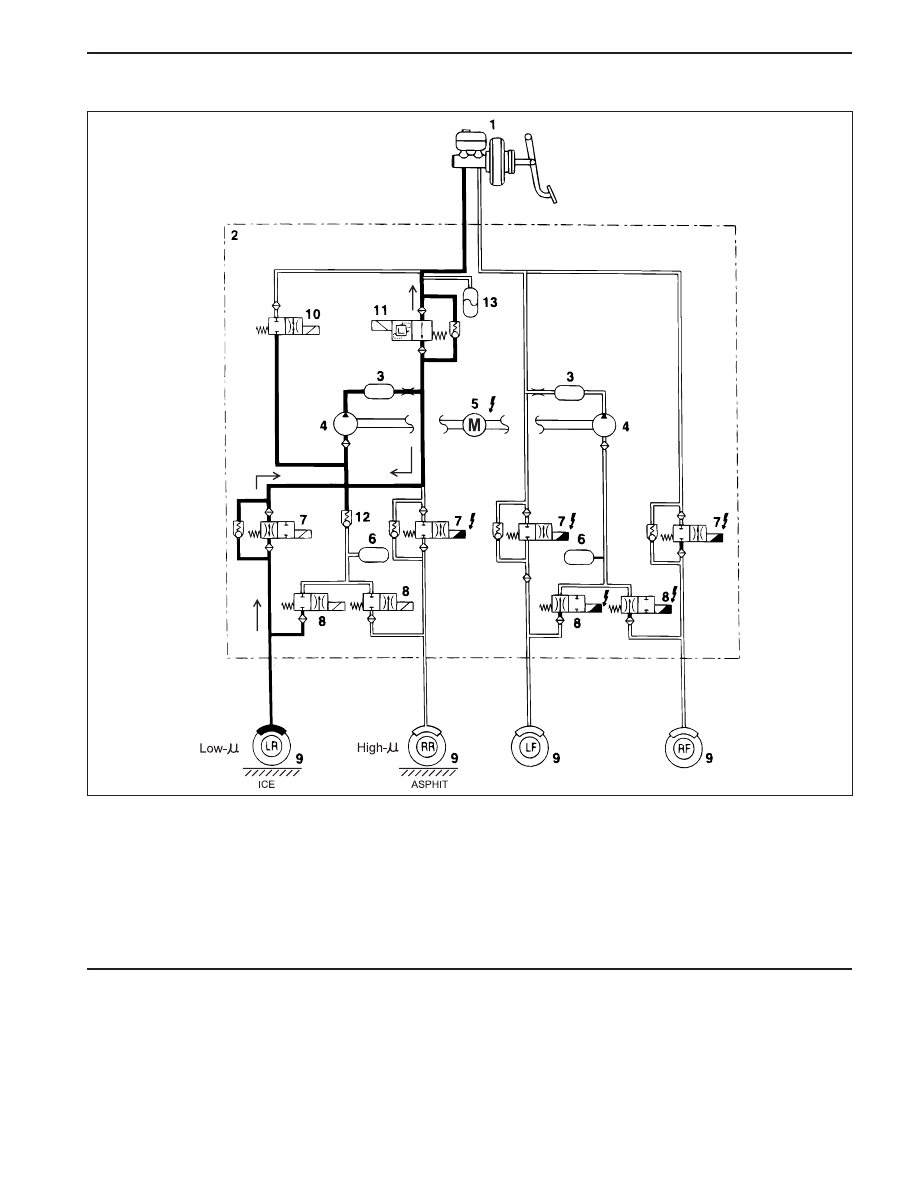

Pressure Maintained

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor
6 Accumulator
7 Inlet Valve for Each Wheel

KAA4F080

8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve
11 Pilot Valve
12 Check Valve
13 ISD (Integrated Suction Damper)

ABS AND TCS 4F-13

SSANGYONG MY2002

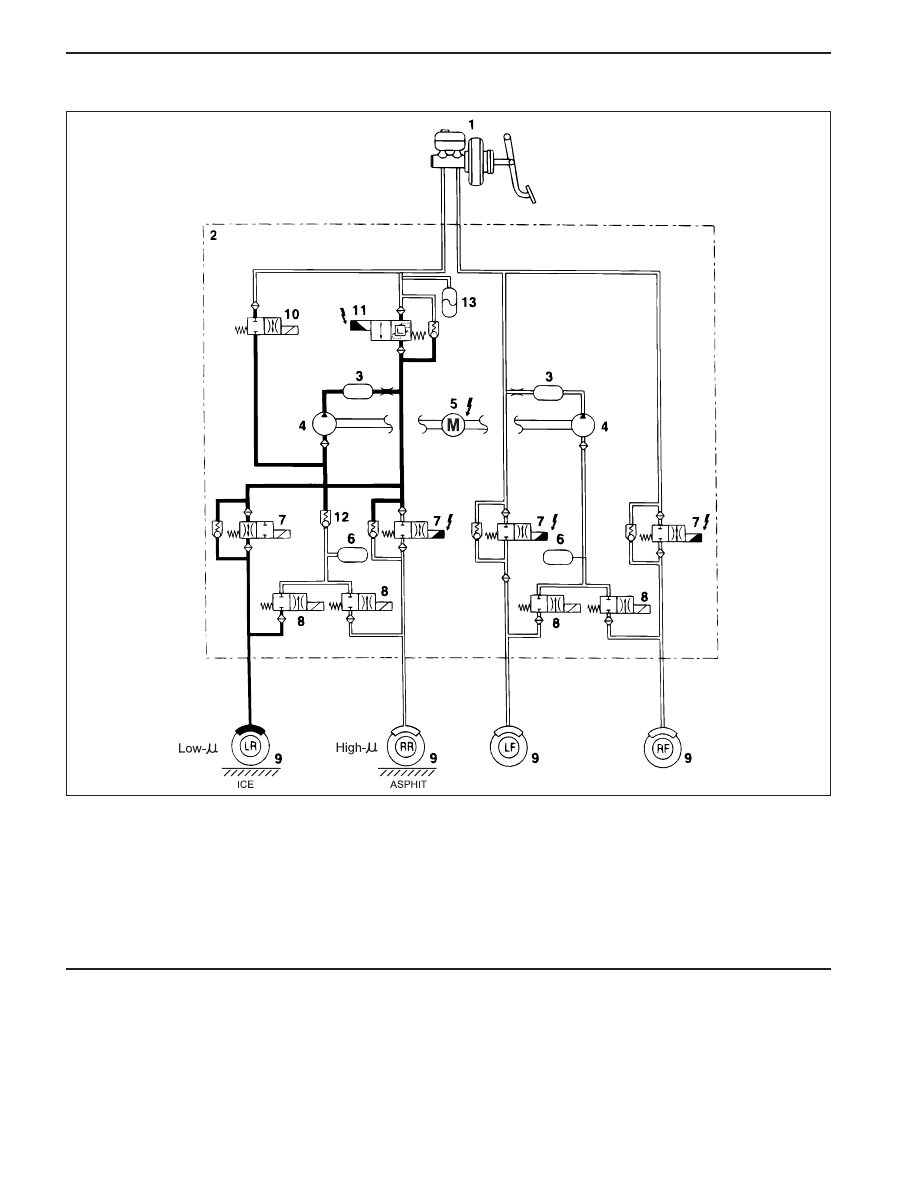

Pressure Decreased

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor
6 Accumulator
7 Inlet Valve for Each Wheel

KAA4F090

8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve
11 Pilot Valve
12 Check Valve
13 ISD (Integrated Suction Damper)

SSANGYONG MY2002

4F-14 ABS AND TCS

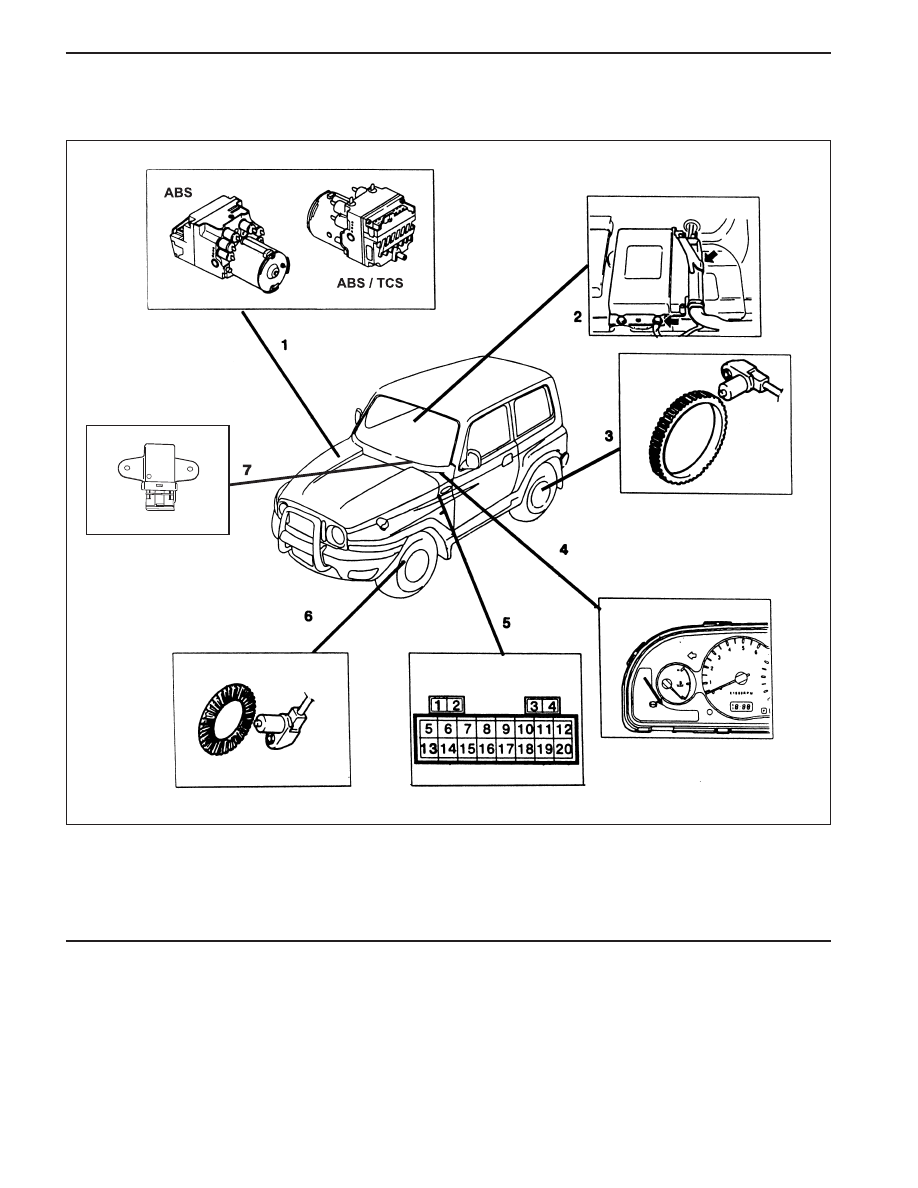

COMPONENT LOCATOR

ABS, ABS/TCS 5.3

1 ABS/TCS Hydraulic Unit

(with EBCM in case of ABS only)

2 ABS/TCS EBCM Unit (in case of TCS)
3 Rear Wheel Speed Sensor

KAA4F100

4 ABS Warning Indicator Light
5 Diagnosis Connector
6 Front Wheel Speed Sensor
7 Acceleration Sensor
