SsangYong Korando II (1996-2006 year). Service manual - part 248

SSANGYONG MY2002

4F-6 ABS AND TCS

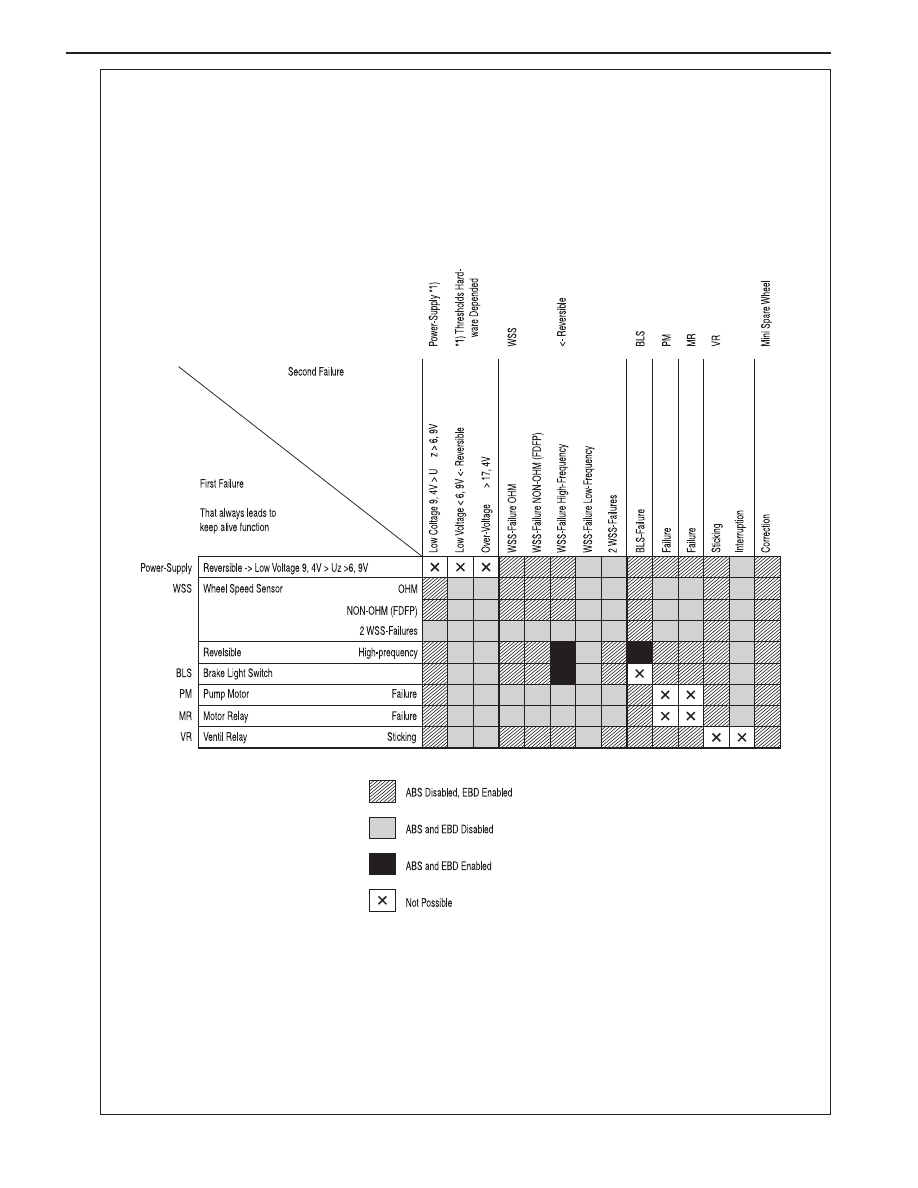

EBD (Electronic Brake-Force Distribution) FAILURE MATRIX

KAA4F030

SSANGYONG MY2002

4F-8 ABS AND TCS

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor

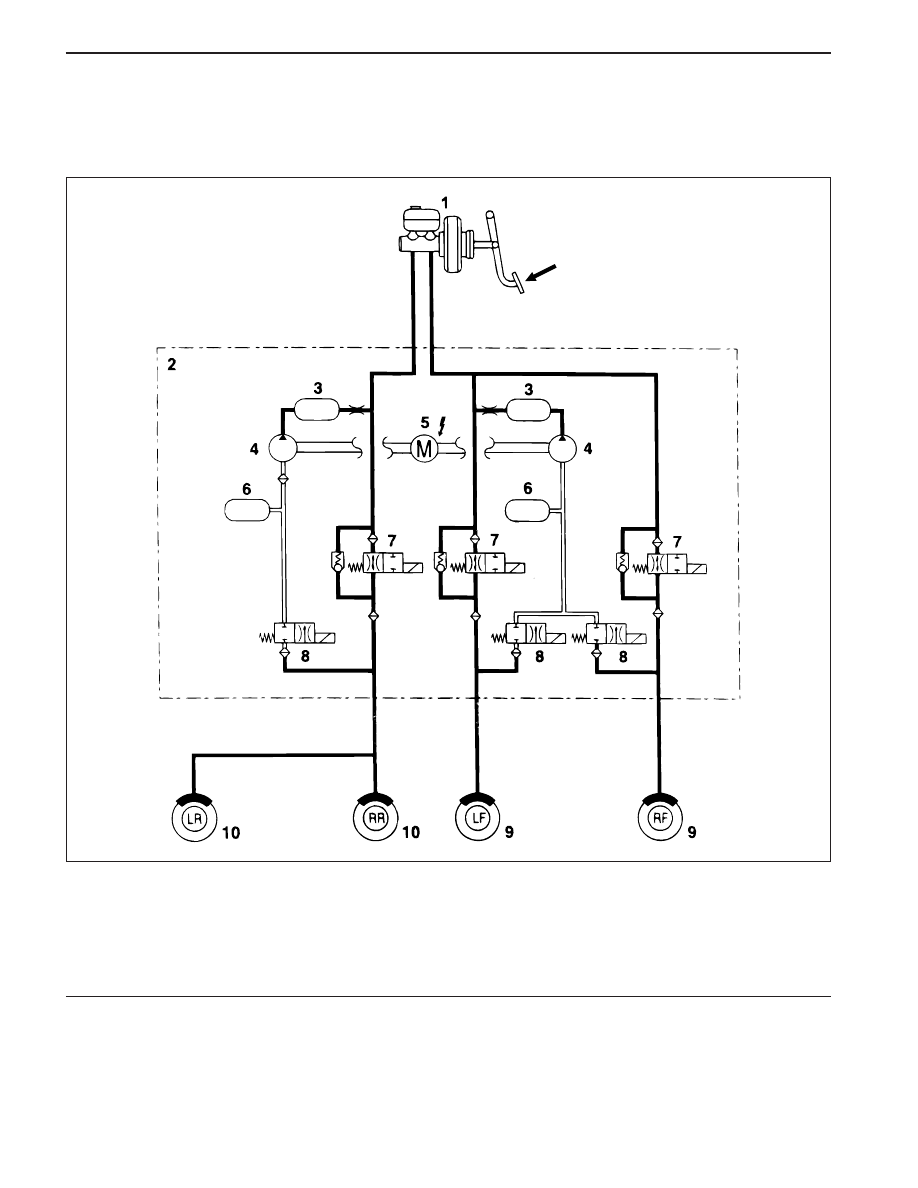

HYDRAULIC CIRCUIT

ABS 5.3

Pressure Increased

KAA4F040

6 Accumulator
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

ABS AND TCS 4F-9

SSANGYONG MY2002

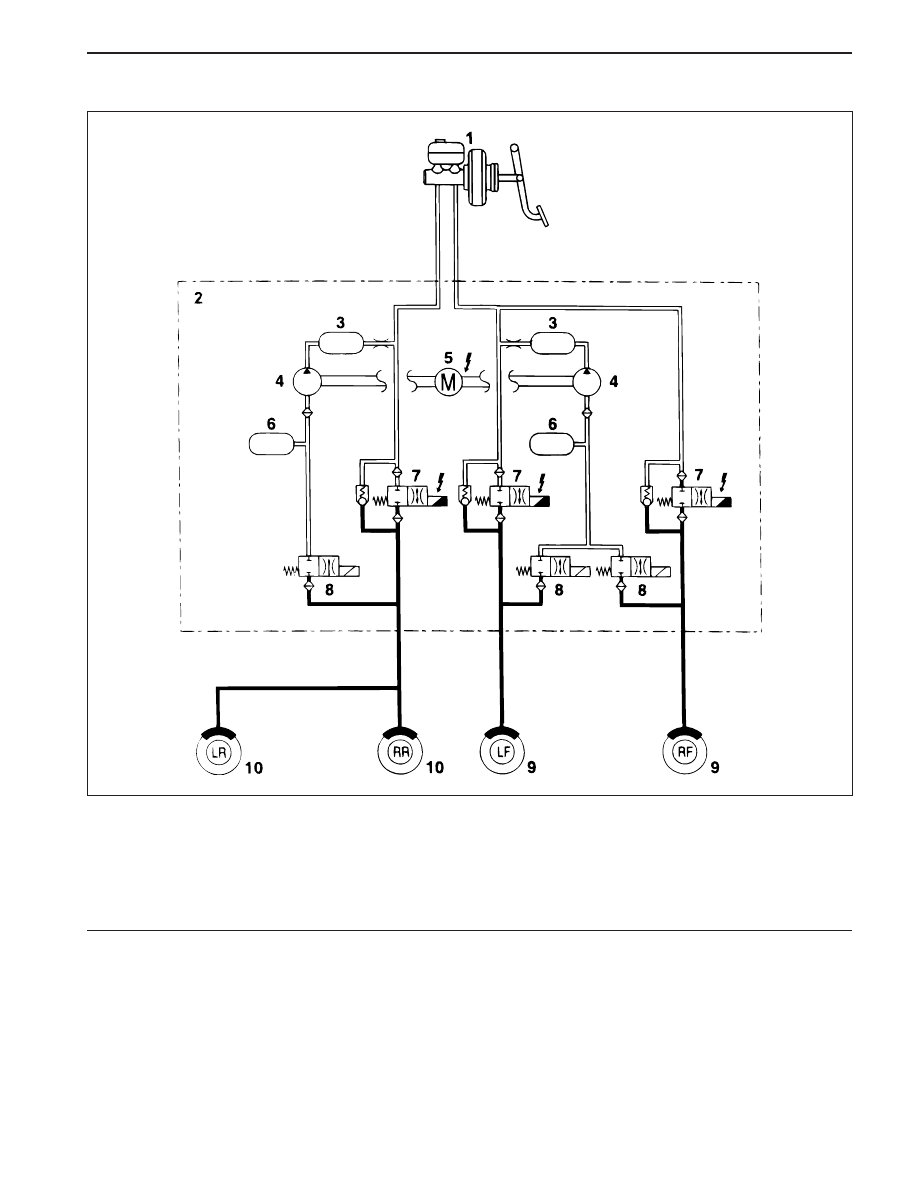

Pressure Maintained

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor

KAA4F050

6 Accumulator
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

SSANGYONG MY2002

4F-10 ABS AND TCS

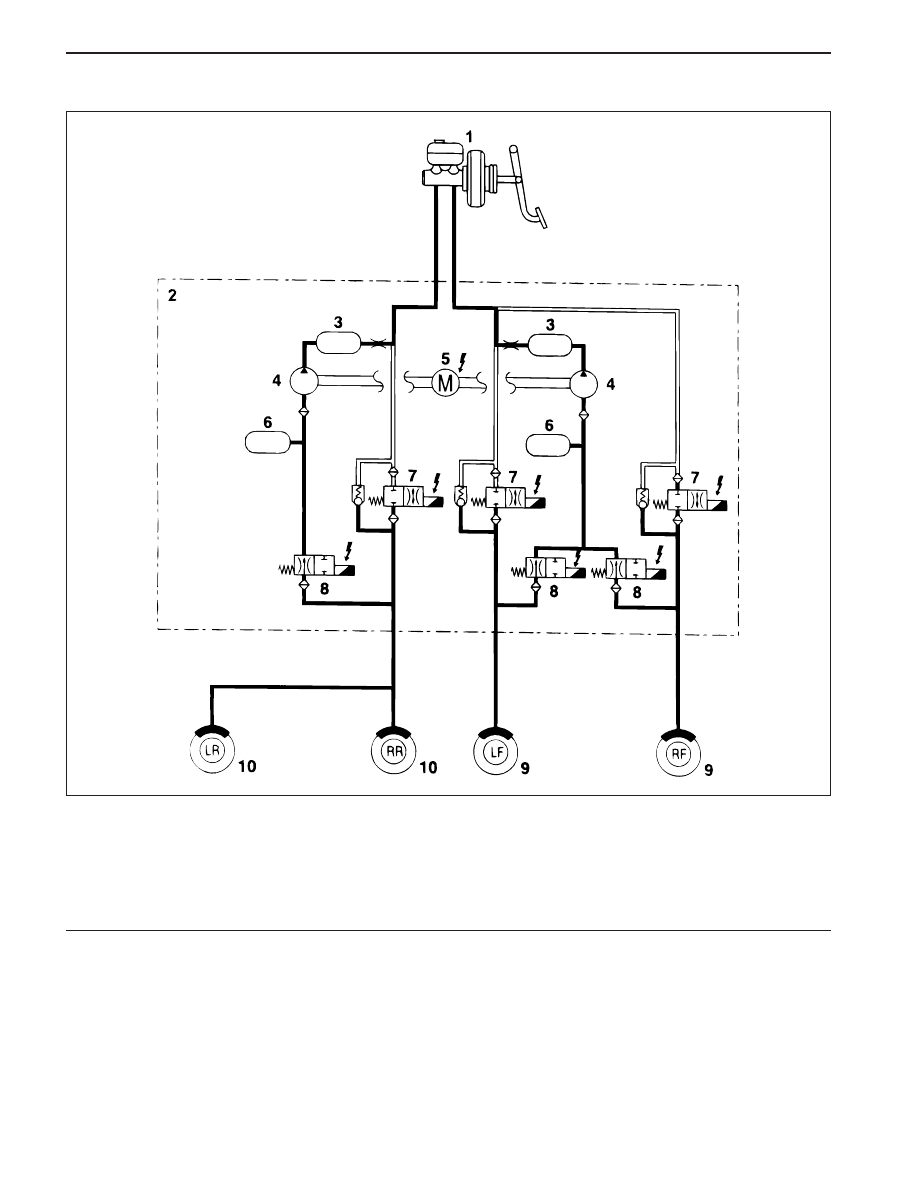

Pressure Maintained

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor

KAA4F060

6 Accumulator
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel
