14-20

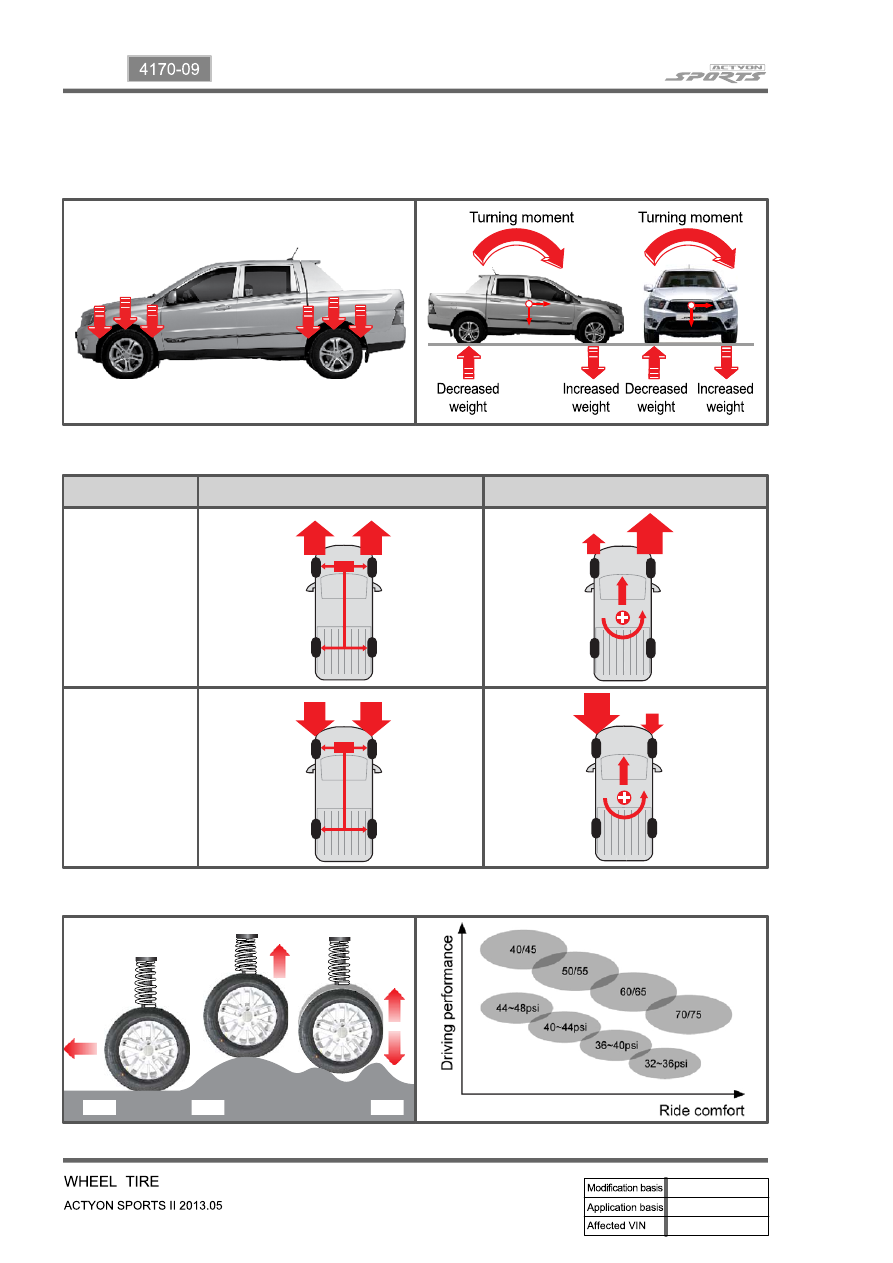

Even friction coefficient road

Uneven friction coefficient road

Driving Force

Braking Force

Supporting the Vehicle Weight

▶

Transferring the Driving Force & Braking Force to Road

▶

5. FUNCTIONS OF TIRE

Supporting the Vehicle Weight

▶

01-3

6810-01

1. SPECIFICATIONS

Description

Specification

Heater

Core size (mm²)

200 x 165.5 x 25

Capacity (kcal/h)

4,700

Evaporator

Core size (mm²)

254.8 x 196.7 x 60

Capacity (kcal/h)

4,700

Blower

Supplied power (W)

240 + 10% Max (at12V)

Fan speed (rpm)

2900 ± 200

Supply voltage (V)

12.0

PTC

Supply power (W)

900~1,050

Compressor

Capacity (cc/rev)

170

Diameter of pulley (mm)

120

Max. speed (rpm)

8,000

Supply voltage (V)

12.0

Power consumption (A)

2.2

Discharge pressure (kgf/cm²G)

8~10

Power transistor

Supply voltage (V)

12.0

Operating temperature (℃)

-30℃~60℃

Resistance

Hi-Low (Ω)

2.0 Ω ± 10%

Hi-ML (Ω)

0.9 Ω ± 10%

Hi-MH (Ω)

0.4 Ω ± 10%

01-4

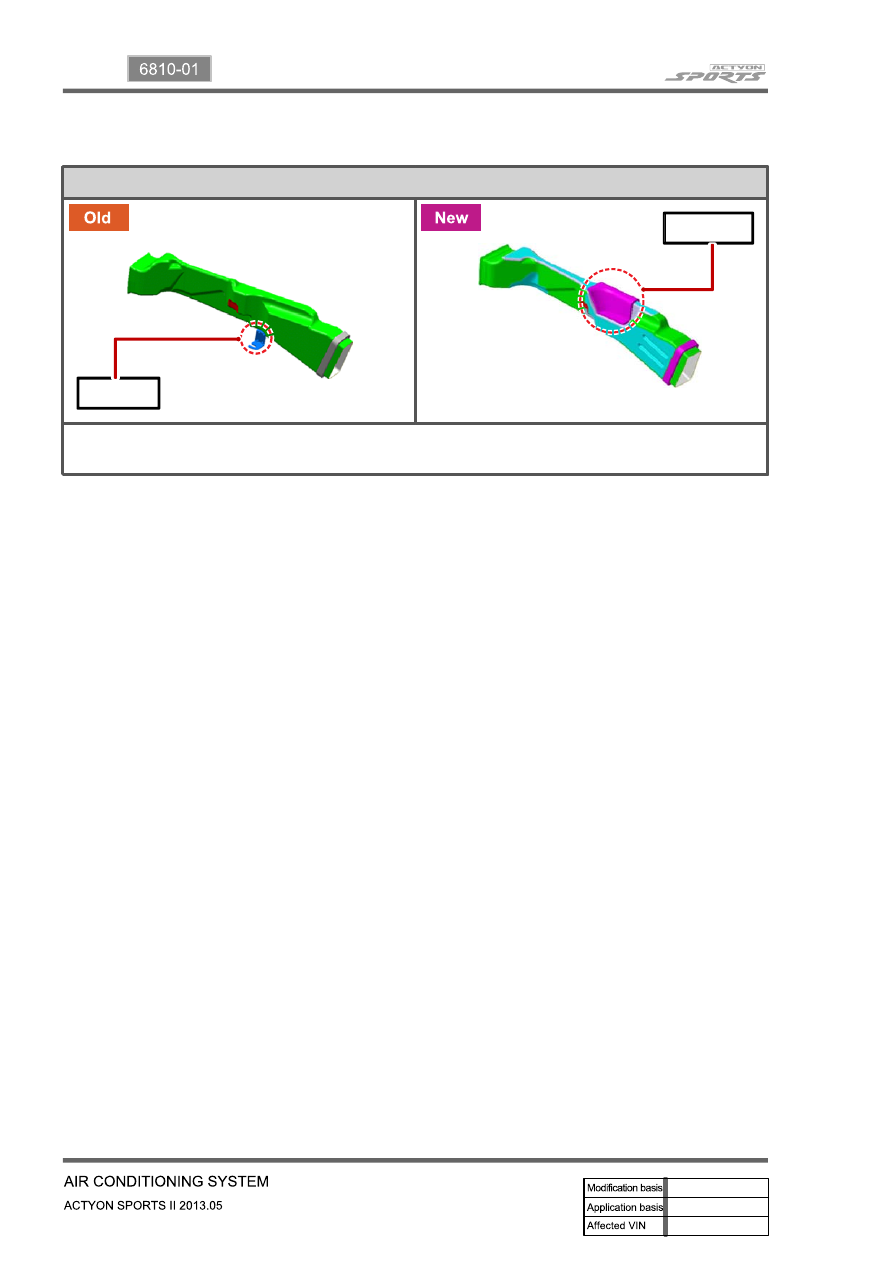

2. MAJOR CHANGES

Console rear duct

Console rear duct bracket removed and upper part's appearance changed due to changed cup
holder/poam pad used

Poam pad

Bracket

01-5

6810-01

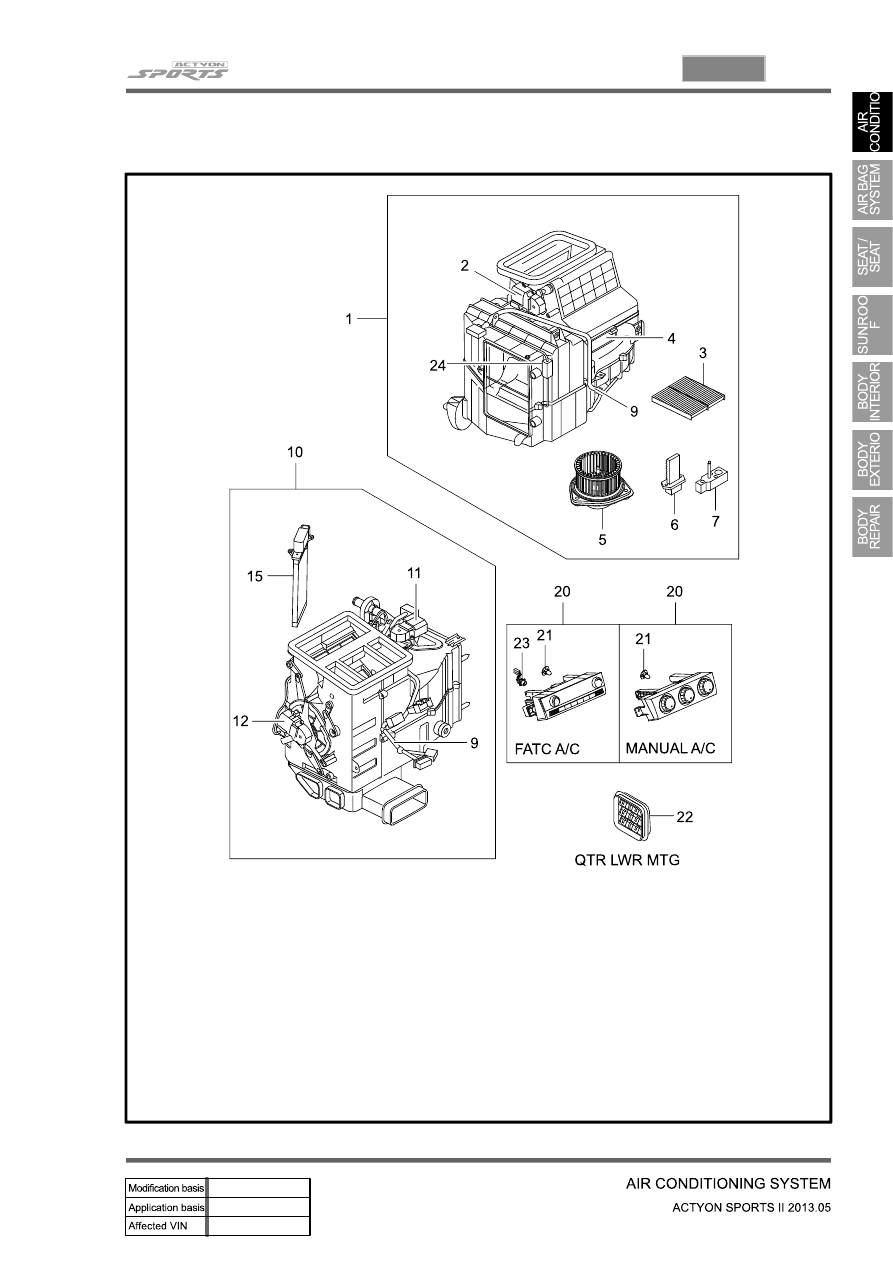

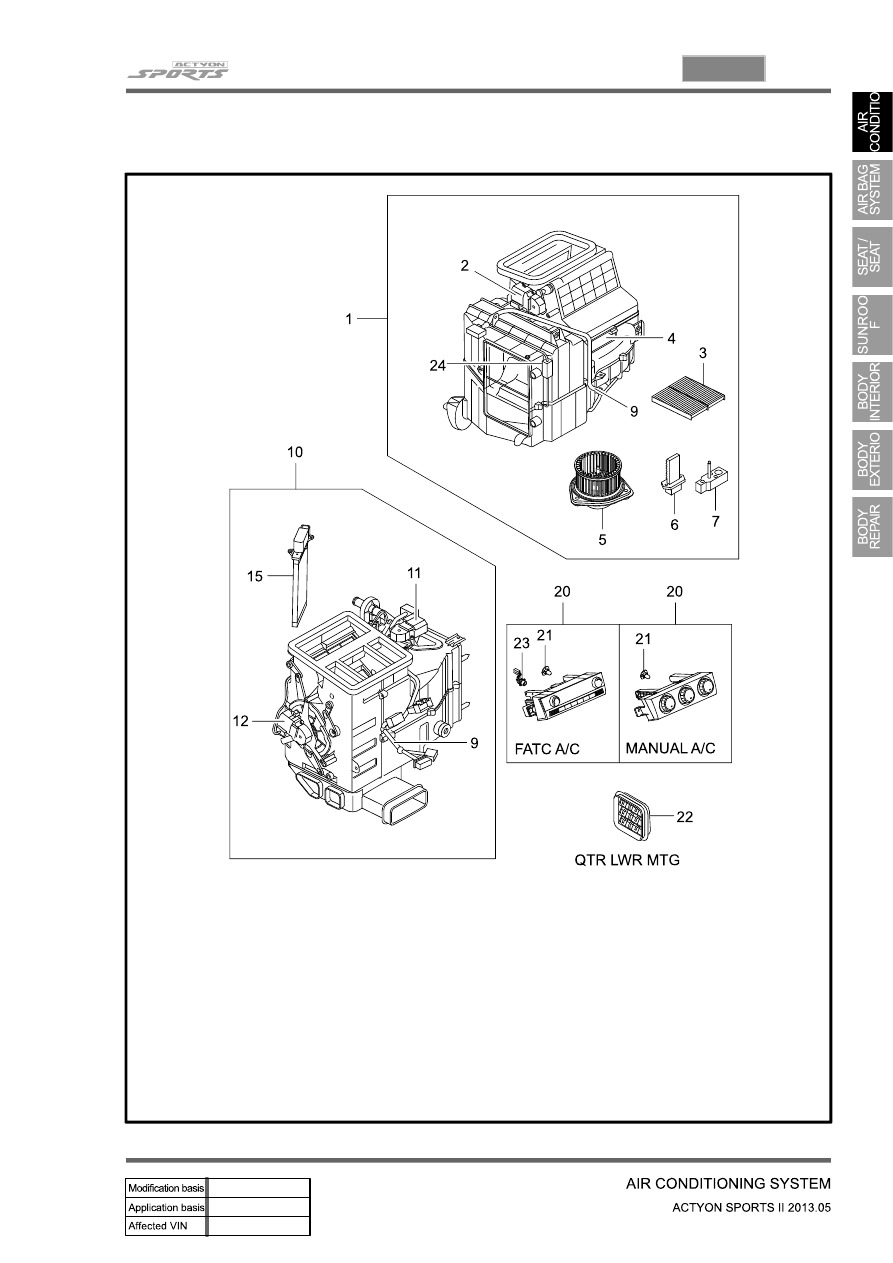

3. COMPONENTS

Blower and evaporator assembly

Actuator assembly - Intake

Air filter assembly

Cover - Air filter

Blower motor assembly

Resistor

Expansion valve assembly

Wiring assembly - Heater & evaporator

Heater assembly

1.

2.

3.

4.

5.

6.

7.

9.

10.

Actuator assembly - Temperature

Actuator assembly - Mode

Heater assembly - PTC

Control assembly - Heater and A/C control

Bulb

Insert assembly - Ventilation

Sensor assembly - Humid and Incar

Sensor assembly - Intake

11.

12.

15.

20.

21.

22.

23.

24.
