02-19

3170-01

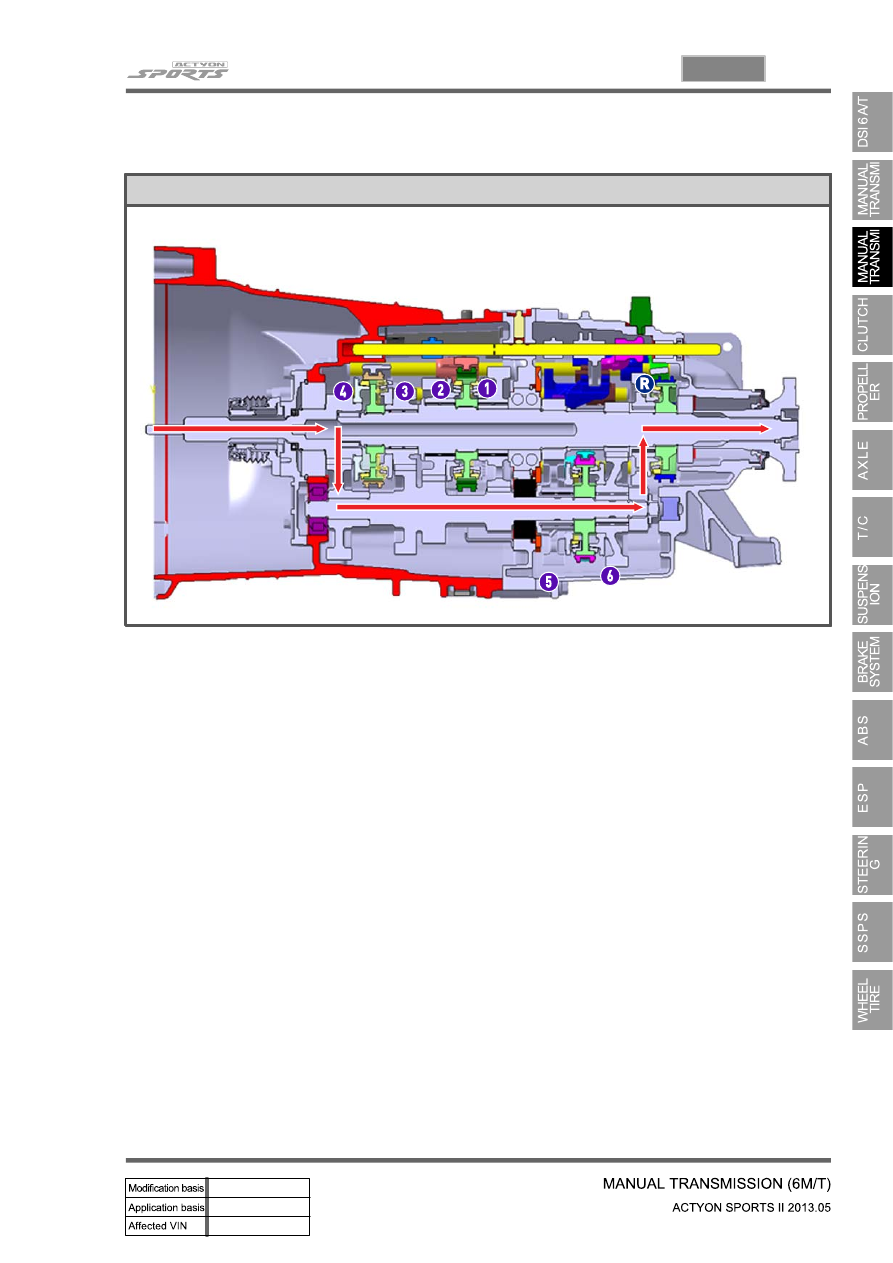

Reverse gear

02-20

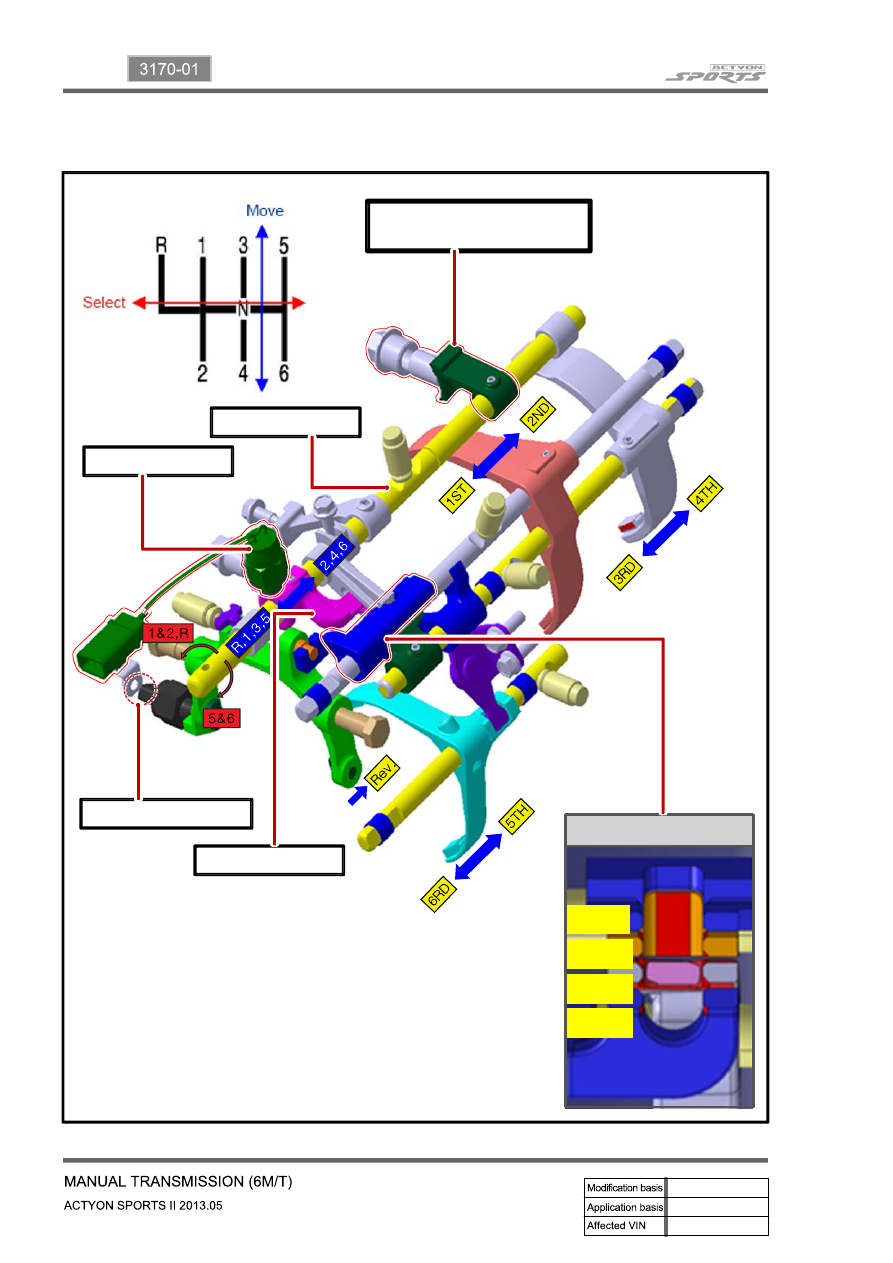

3. SHIFTING MECHANISM

High-Force mechanism for

reverse gear shift

3rd/4th

1st/2nd

R

5th/6th

Neutral switch

Backup lamp switch

Control shaft

Control finger

Lug arrangement

04-3

3010-01

1. SPECIFICATION

Description

Specification

Operating type

Hydraulic type

Clutch pedal

Type

Suspended type

Max. operating travel

145 mm

Pedal free play (Longitudinal)

159 ± 5 mm

Pedal free play (Transverse)

5 ~ 15 mm

Clutch disc

Type

Dry type single diaphragm

Diameter of facing

Outer: Ø250 mm

Inner: Ø160 mm

Numbers of disc

2

Thickness of disc

Free: 8.7 ± 0.3 mm

When loaded: 8.0 ± 0.2 mm

Setting load of clutch cover assembly

At least 7,800 N

Clutch master
cylinder

Inner diameter

Ø17.46 mm

Concentric slave
cylinder

Maximum operating travel

Max. 20 mm

Operating pressure

Max. 2,200 N

Clutch fluid

Type

DOT 4

Capacity

As required

Stroke

5MT

30mm

6MT

27mm

04-4

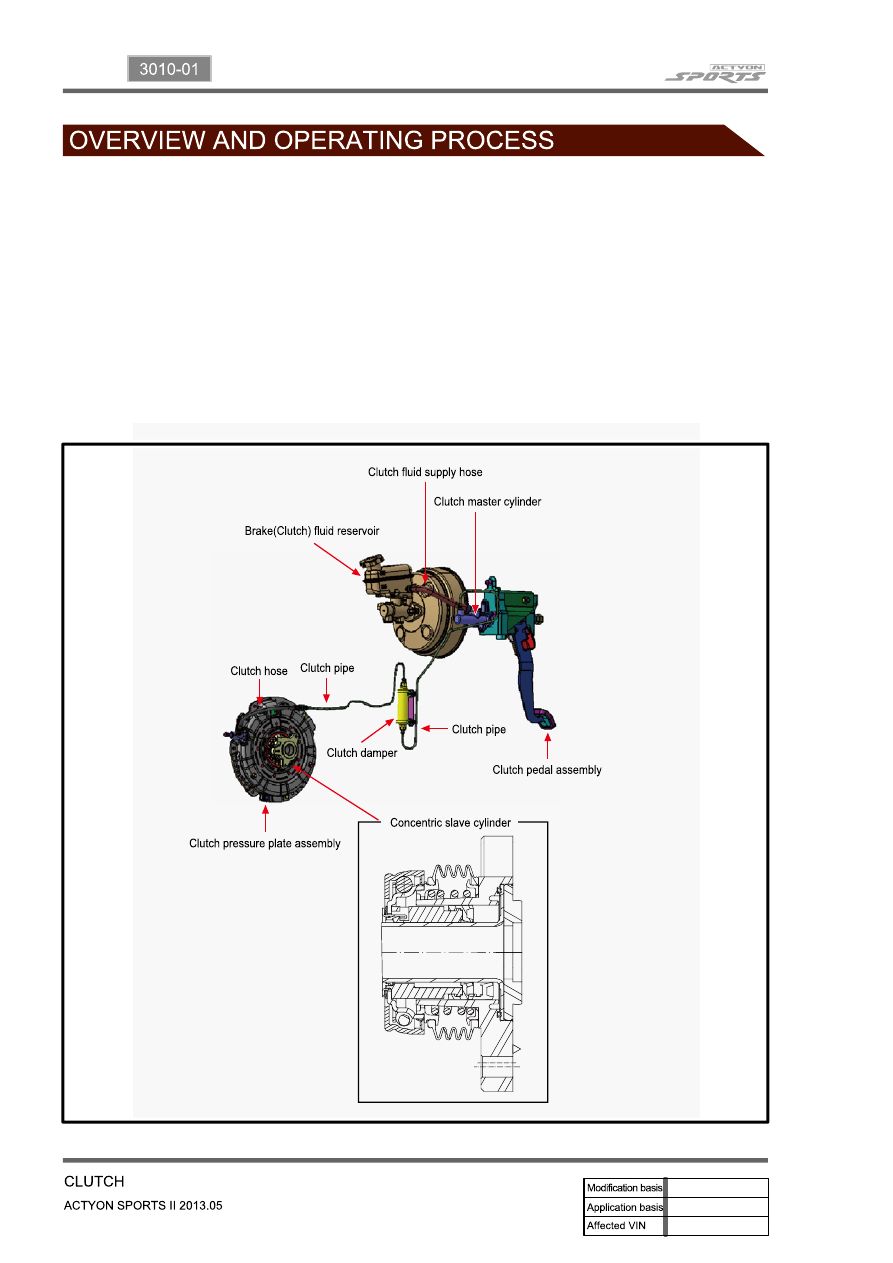

1. OVERVIEW

The hydraulic clutch transmits the force required to operate the clutch pedal to the concentric slave

cylinder fitted to the clutch housing as a hydraulic pressure.

(The hydraulic pressure is transmitted in the following order: Clutch pedal - Clutch master cylinder -

Clutch pipe - Clutch damper - Clutch pipe and hose - Concentric slave cylinder - Pressure plate -

Flywheel.)

If a driver depress the clutch pedal, the hydraulic pressure is generated in the master cylinder. It is

transmitted to the concentric slave cylinder through the pipe, resulting in the cylinder being forced out. At

this time, the clutch disc is forced against the cylinder by pushing the cover. This, in turn, remove the

flywheel from the pressure plate. As a consequence, the power from the engine will be cut off and the

gear change can be carried out.
