01-47

3680-01

12) Neutral (N)

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

N/A  ON ON ON

0-1

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

N/A

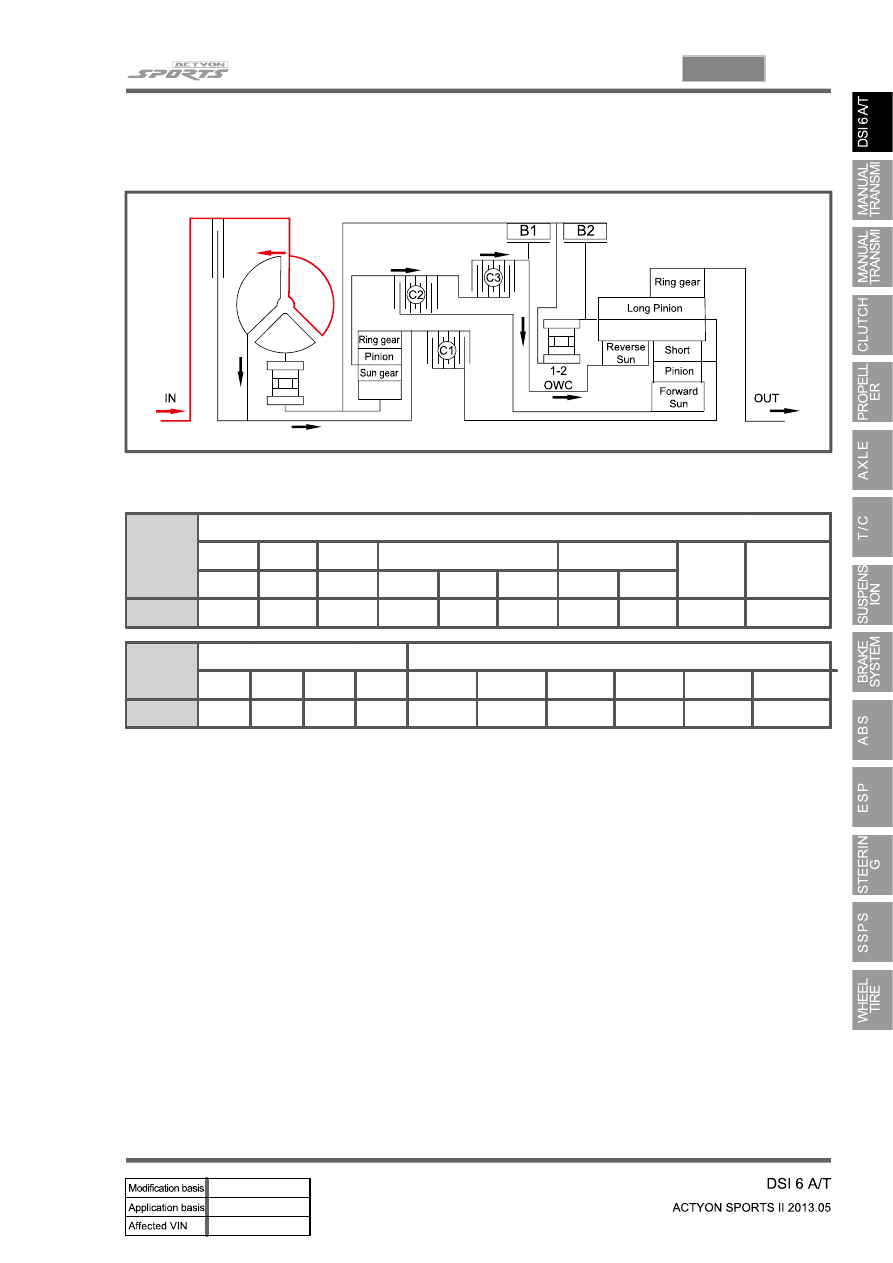

Power Flow Diagram

▶

01-48

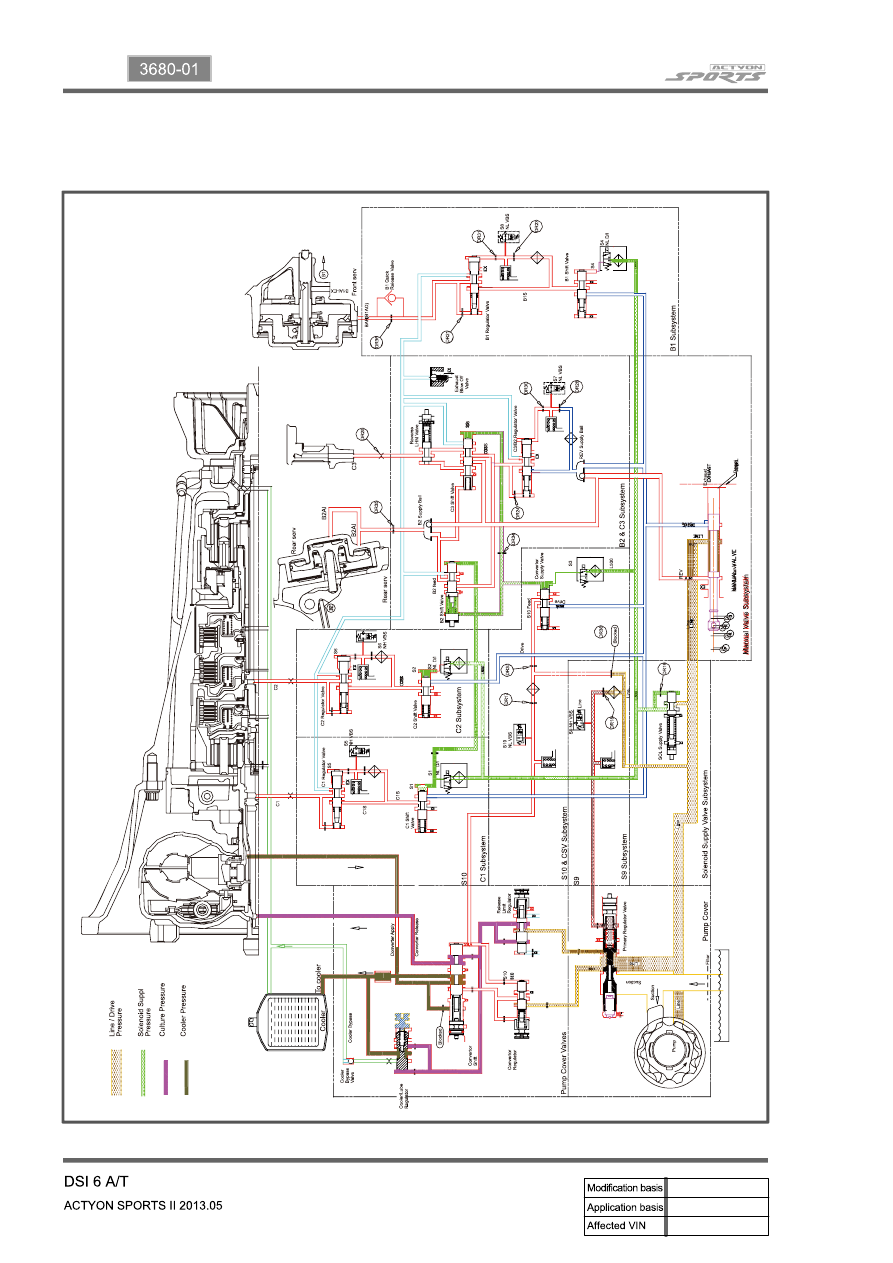

Neutral

▶

03-3

3170-01

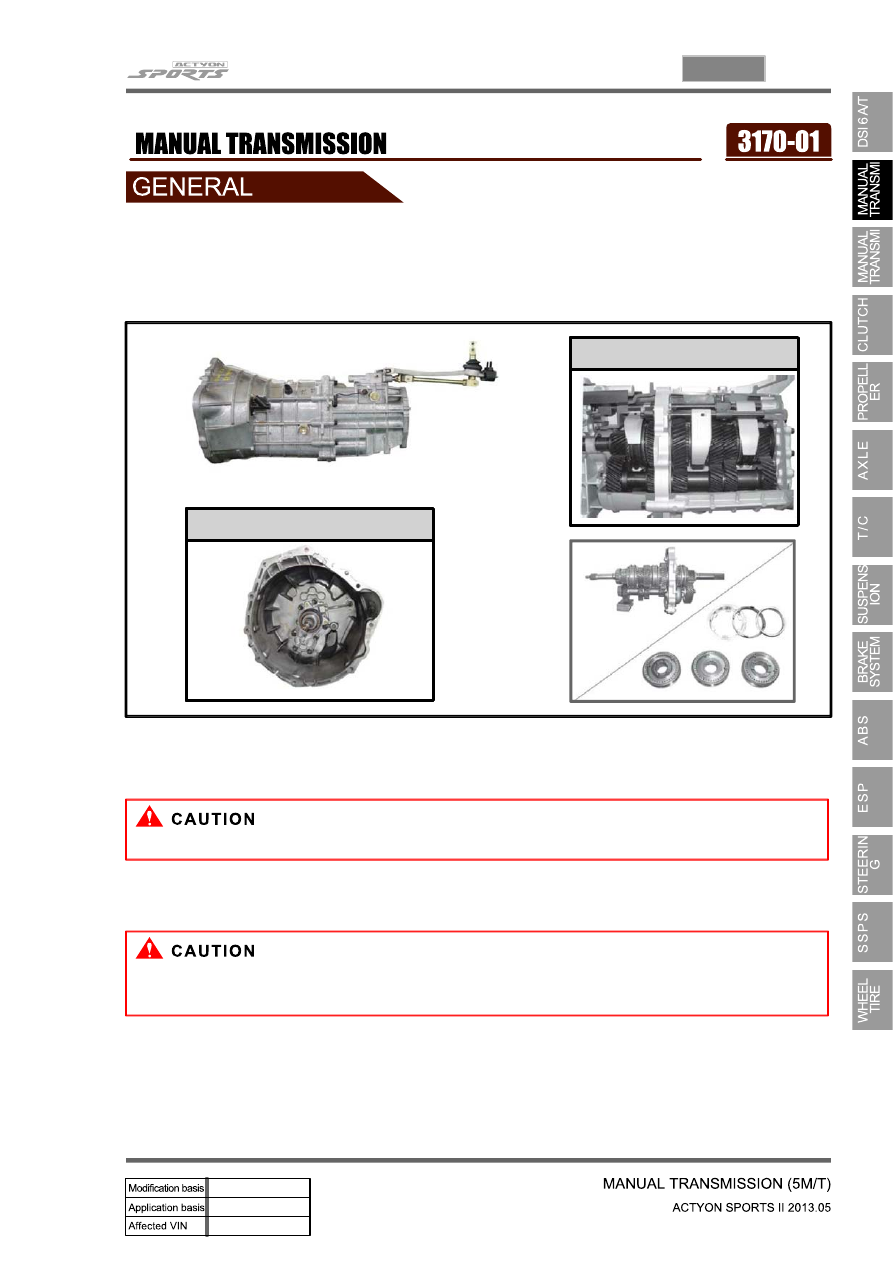

1. OVERVIEW AND CHARACTERISTICS OF MANUAL
    TRANSMISSION

1) System Components

Inside

Front View

(1) Features

All gears use the helical type and high strength materials.

1.

The helical type gear prevents the axial gear missing and provides less noise.

-

The semi-remote control type gear shift mechanism is used to prevent incorrect shifting.

To improve the shifting performance, 3-piece triple cone is used for 1/2 shift.

2.

3.

The synchronizing devices are installed in 1/2, 3/4, 5/R gears. To prevent the double engagement,

the independent interlock devices are installed.

4.

TSM54/52 transmission uses the inertia lock type key to make smooth gear engagement and to

provide silent gear engagement.

-

The clutch release system is available to use CSC (Concentric Slave Cylinder) or Fork type according

to the vehicle model.

5.

03-4

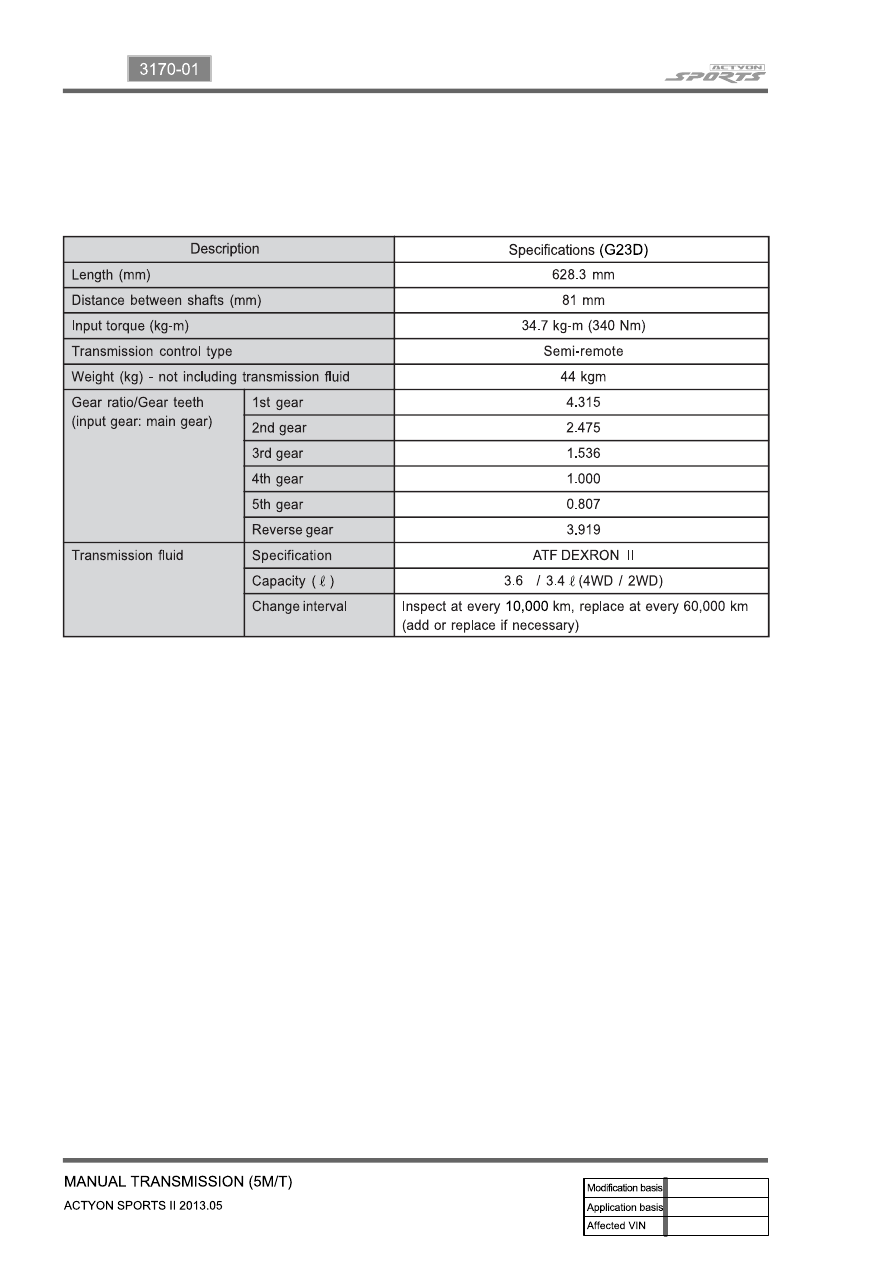

2. SPECIFICATIONS AND TIGHTENING TORQUE OF
    MANUAL TRANSMISSION

1) Specifications
