10) Power Flow - Reverse (R) Limp Home Mode

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1  S2  S3  S4 S5(A) S6(A) S7(A) S8(A) S9(A)

S10(A)

3.09

0 0 0 0 0  0

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

3.09 ON

ON

ON

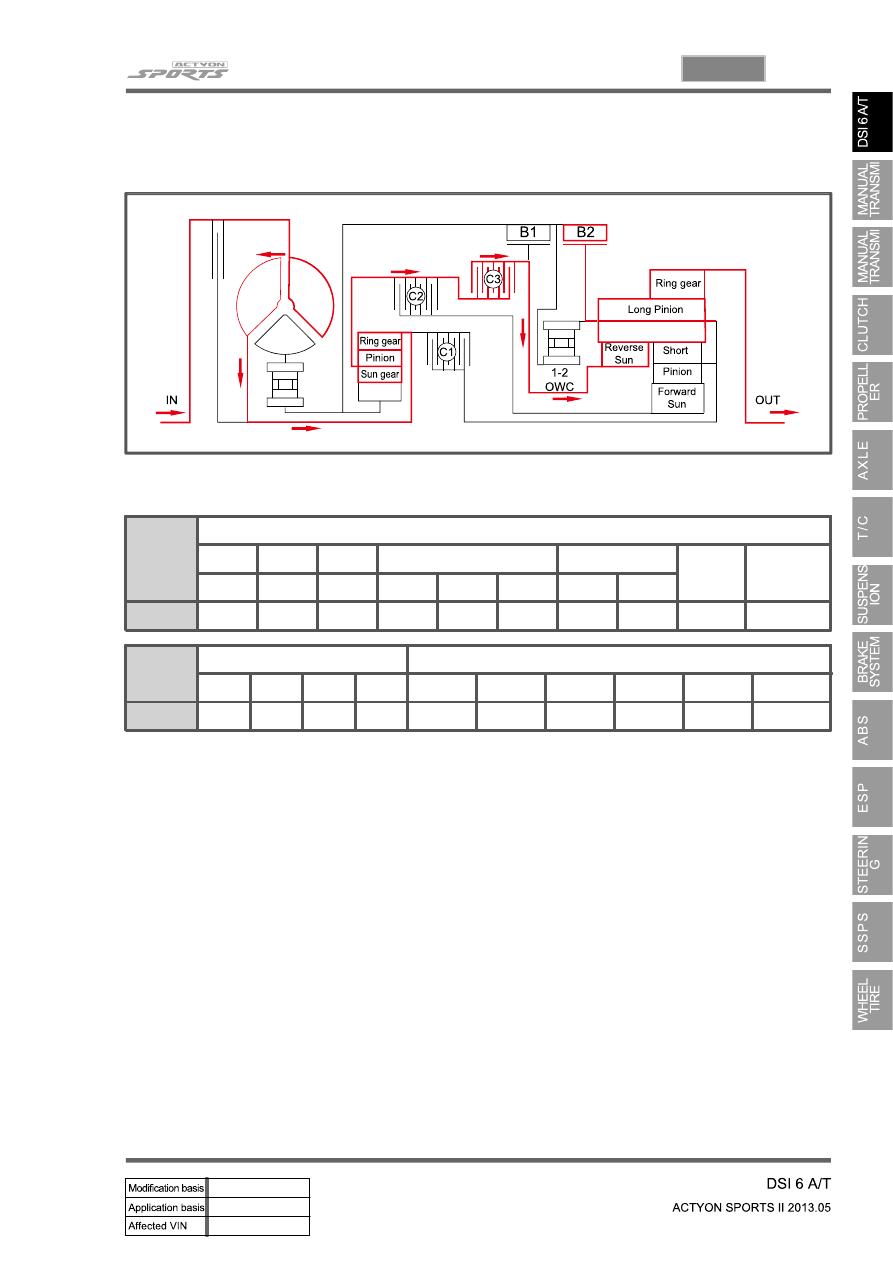

Power Flow Diagram

▶

01-44

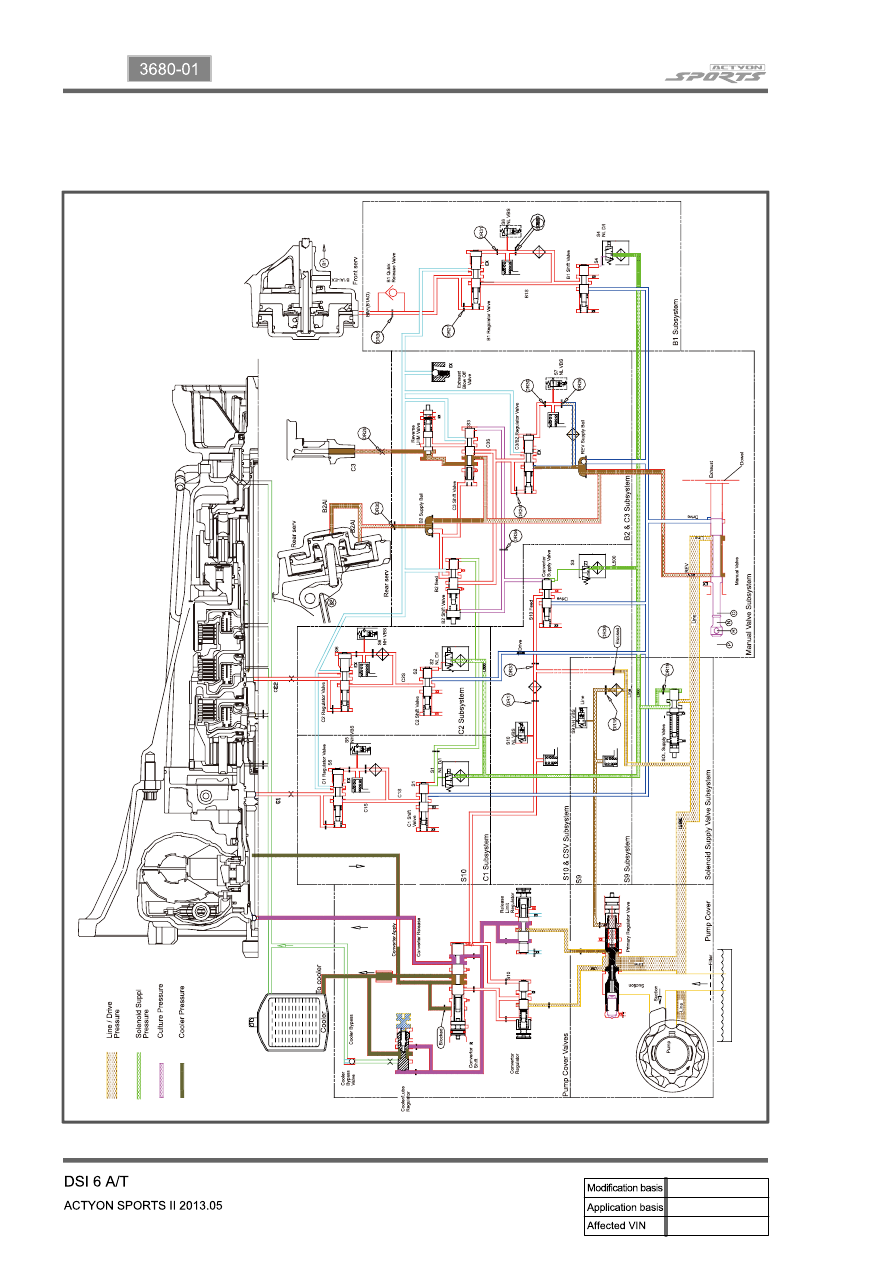

Reverse (R) Limp Home Mode

▶

01-45

3680-01

11) Power flow - Park (P)

Connecting Components

▶

Gear

ratio

ON / OFF solenoids

Variable pressure sol. valve-VBS

S1  S2  S3  S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)

N/A ON

ON

ON

Gear

ratio

Engaged element

C1 C2 C3

B1

B2  OWC

Lock-up
clutch

AO AI  R AO AI

N/A

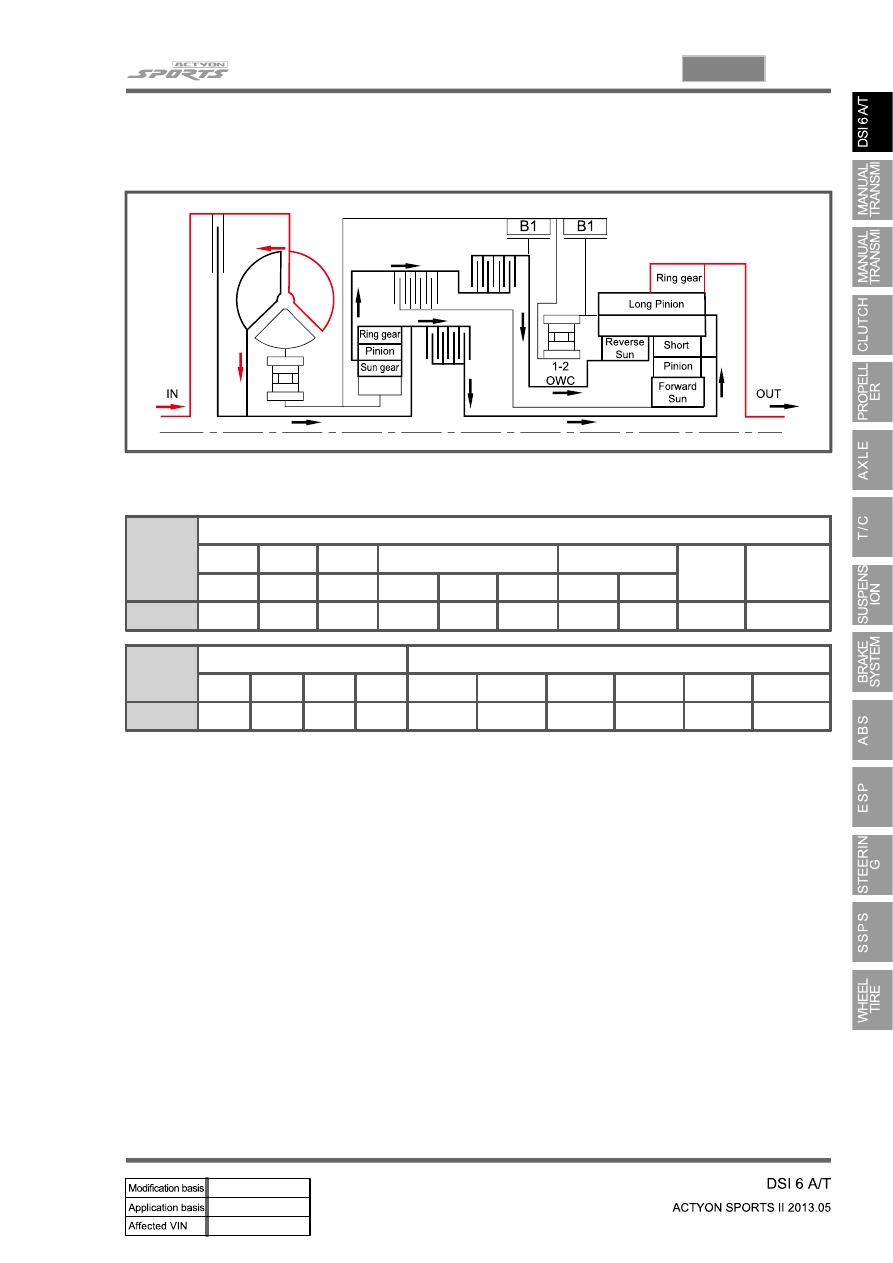

Power Flow Diagram

▶

01-46

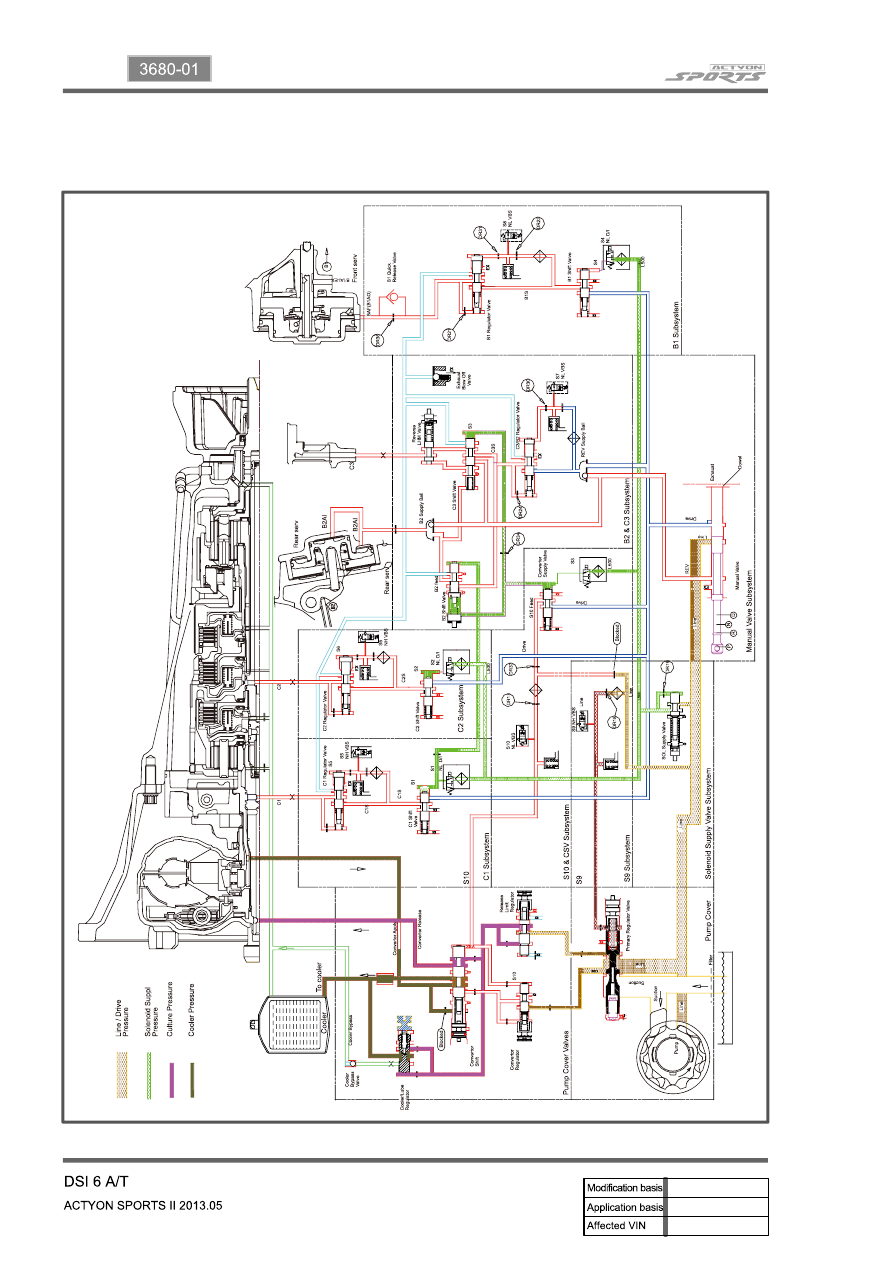

Park

▶
