Transporting children safely

Child seat

Introduction

To reduce the risk of injury in the event of an accident, children must be trans-

ported in child seats!

The information in this Owner´s Instruction as well as the instructions of the child

seat manufacturer must be observed when installing and using the child seat.
For safety reasons, we recommend that you always transport child seats on

the rear seats. Children should be transported on the front passenger seat only

in exceptional circumstances.
Child seats complying with the ECE-R 44 Economic Commission for Europe

standard must be used.
Child seats that comply with the ECE-R 44 standard are identified with a test

mark that cannot be removed: large E within a circle with the test number be-

low.

WARNING

One should never carry children, and also not babies! - on one's lap.

When leaving the vehicle, do not leave children unattended in the vehicle.

Children might not be capable of leaving the vehicle or helping themselves

independently in the event of an emergency. Very high or low temperatures

can be fatal!

The child must be secured in the vehicle during the entire journey! Other-

wise, the child would be thrown through the vehicle in the event of an acci-

dent, causing fatal injuries to both the child and other occupants.

Children are exposed to an increased risk of injury in the event of an acci-

dent if they lean forward or adopt an incorrect seated position when the

vehicle is moving. This particularly applies to children who are transported

on the front passenger seat as they can suffer severe, or even fatal injuries

if the airbag system is deployed!

Pay particular attention to the information provided by the manufacturer

of the child safety seat regarding the correct routing of the belt. Seat belts

which are not correctly adjusted can themselves cause injuries even in mi-

nor accidents.

WARNING (Continued)

Safety belts must be checked to ensure that they are running properly.

One should also ensure that the belt is not damaged by sharp-edged fit-

tings.

When installing the child seat on the back seat, the corresponding front

seat must be adjusted so that there is no contact between the front seat

and the child seat or the child being transported in a child seat.

Before installing a forward-facing child seat with backrest, remove the

headrest

» page 89

. After removing the child seat, refit the head re-

straints.

Note

We recommend that you use child seats from ŠKODA Original Accessories.

These child seats were developed and also tested for use in ŠKODA vehicles.

They meet the ECE-R 44 standard.

Use of a child seat on the front passenger seat (variant 1)

Does not apply to Taiwan

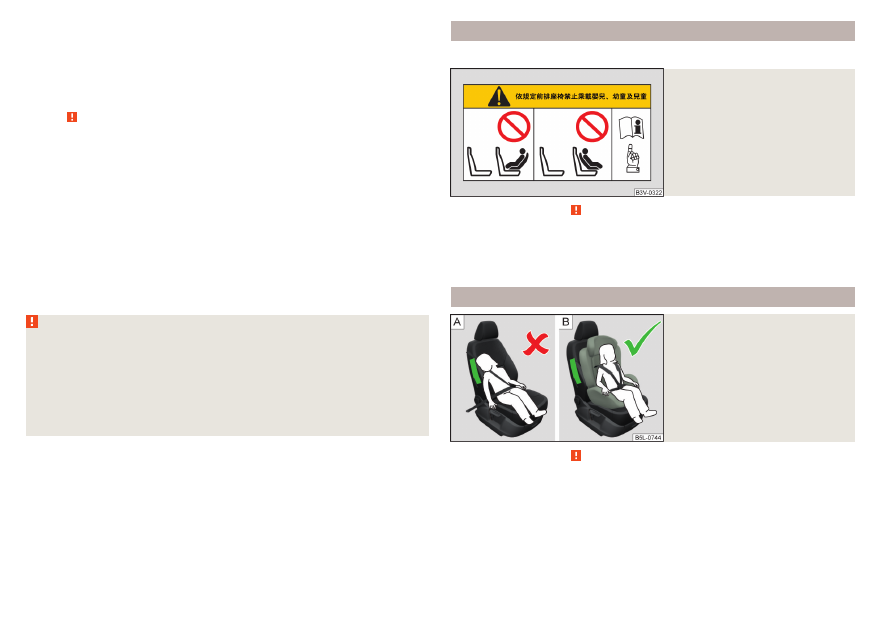

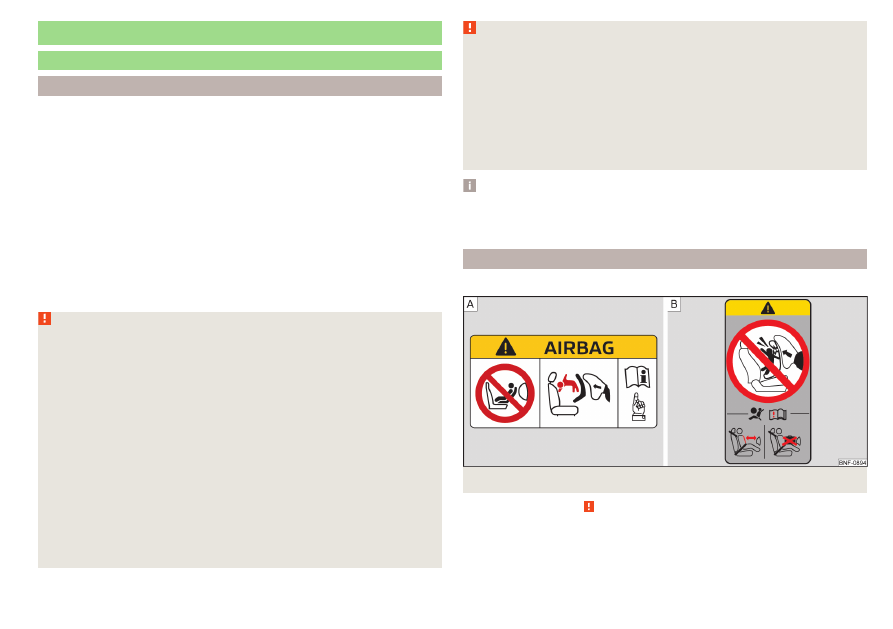

Fig. 24  Warning labels

Read and observe   on page 29 first.

Never use a rear-facing child restraint system on a seat which is protected

by an active airbag positioned in front of it. This could cause serious injury

to the child, even death.

29

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This is indicated also on stickers that are located at the following positions.

On the front passenger's sun visor

» Fig. 24

 - .

On the B-pillar on the front passenger side

» Fig. 24

 – .

The following instructions must be followed when using a child seat on the

front passenger seat.

The front passenger airbag must be deactivated if using a rear-facing child

seat

»

.

If possible, adjust the front passenger seat backrest so that it is as vertical, so

as to ensure secure contact between the passenger seat backrest and the

back of the child seat.

If possible, move the front passenger seat backwards so that there is no con-

tact between the front passenger seat and the child seat behind it.

Set the height-adjustable front passenger seat as high up as possible.

Set the front passenger seat belt as high up as possible.

With child safety seats in groups 2 and 3, make sure that the loop-around fit-

tings attached to the child seat headrest is positioned in front of or at the

same height as the loop-around fittings on the B pillar on the passenger side.

Adjust the height of the front passenger seat belt so that the belt does not

“jam” in the return pulley. In the event of an accident, there is the risk of in-

jury to the neck of the child carried due to the seat belt!

WARNING

Never use a rear-facing child seat on the front passenger seat if the pas-

senger airbag is activated. This child safety seat is positioned in the deploy-

ment area of the front passenger airbag. The airbag may cause the child se-

vere, or even fatal injuries, in the event of it being deployed.

As soon as the child seat, in which the child is transported with their back

in the direction of travel, is no longer used in the front passenger seat, the

front passenger airbag should be switched on again.

Use of a child seat on the front passenger seat (variant 2)

Applies to Taiwan

Fig. 25

Warning stickers

Read and observe   on page 29 first.

No babies, infants or children to be carried on the passenger seat.
A sticker to this effect can also be found on the front passenger's sun visor

» Fig. 25

.

Child safety and the side airbag

Fig. 26

Incorrect seated position of a

child who is not properly se-

cured – risk from the side air-

bag/Child properly protected by

safety seat

Read and observe   on page 29 first.

The child must not be positioned in the deployment area of the side airbag

» Fig. 26

 - .

There must be sufficient room between the child and the area into which the

side airbag will deploy to allow the airbag to provide as much protection as

possible

» Fig. 26

 - .

30

Safety

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Classification of child seats

Read and observe   on page 29 first.

Classification of child seats according to the ECE-R 44 standard.

Group

Weight of the child

0

up to 10 kg

0+

up to 13 kg

Group

Weight of the child

1

9 - 18 kg

2

15 - 25 kg

3

22-36 kg

Use of child safety seats which are secured using a seat belt

Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated. This child safety seat is positioned in the deployment area of

the front passenger airbag. The airbag may cause the child severe, or even fatal injuries, in the event of it being deployed.

Read and observe   on page 29 first.

Overview of the usability of child seats secured with a seat belt on seats in accordance with the ECE-R 16 standard.

Group

Passenger seat with activated

front airbag

Passenger seat with deactivated

front airbag

Rear seats

Outside

Rear seat

Centre

0

up to 10 kg

X

U

a)

U

U

0+

up to 13 kg

X

U

a)

U

U

1

9 - 18 kg

UF

U

U

U

2

15 - 25 kg

UF

U

U

U

3

22 - 18 kg

UF

U

U

U

a)

Set the height-adjustable front passenger seat as high up as possible.

U

The seat is suitable for the use of approved child seats in this weight group category “Universal”.

UF

The seat is suitable for the use of approved forward-facing child seats in the “Universal” weight group category.

X

The seat is not suitable for children in this weight group.

31

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

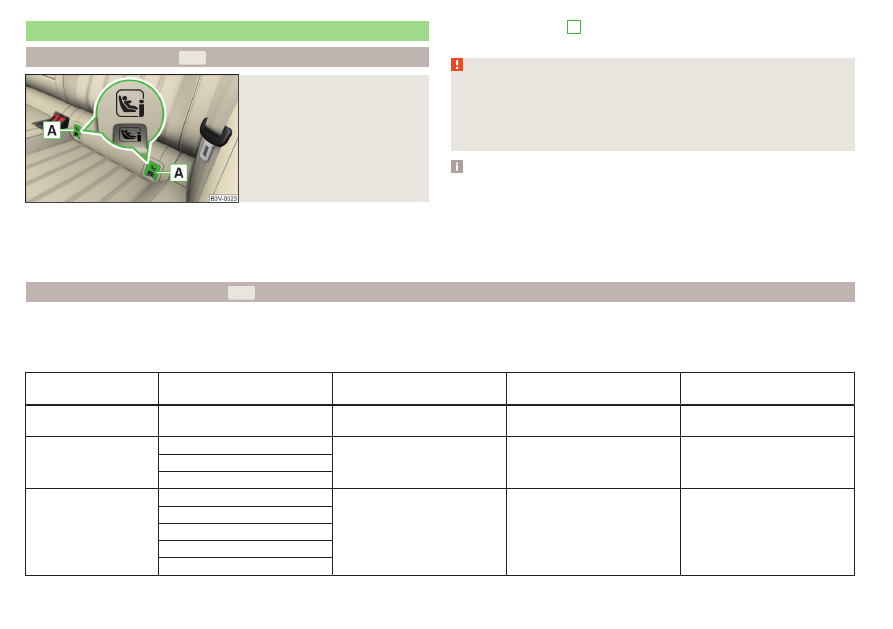

Fastening systems

attachment points of the  system

Fig. 27

Labels of the system 



 is a system for securing child seats quickly and safely.

Two locking eyes are located between the seat backrest and the seat cushion

of the outer rear seats and front passenger seat for fixing the  system

child seat in place.

First, remove the caps

A

 in order to access the locking eyes

» Fig. 27

. After

removing the child seat, replace he caps.

WARNING

Always refer to the instructions of the manufacturer of the child seat

when installing and removing a child seat with the  system.

Never attach other child seats, belts or objects to the attachment points

intended for the installation of a child seat with the  system – risk of

death!

Note

A child seat fitted with the  system can only be mounted in a vehicle fit-

ted with a  system if the child seat has been approved for this type of ve-

hicle. Further information is available from a ŠKODA Partner.

Child seats with the  system can be purchased from ŠKODA Original Ac-

cessories.

Use of child safety seats with the System

Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated. This child safety seat is positioned in the deployment area of

the front passenger airbag. The airbag may cause the child severe, or even fatal injuries, in the event of it being deployed.

Overview of the usability of child seats fastened with the  system on each of the seats in accordance with the ECE-R 16 standard.

Group

Size class of

the child seat

a)

Front passenger seat

b)

Rear seats outside

Rear seat middle

0

up to 10 kg

E

X

IL

X

0+

up to 13 kg

E

X

IL

X

D
C

1

9 - 18 kg

D

X

IL

IUF

X

C
B

B1

A

32

Safety

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Group

Size class of

the child seat

a)

Front passenger seat

b)

Rear seats outside

Rear seat middle

2

15 - 25 kg

-

X

IL

X

3

22 - 18 kg

-

X

IL

X

a)

The size category is shown on the label attached to the child seat.

b)

If the front passenger seat is fitted with system attachment points, it is suitable for the installation of an  child seat with “Semi-Universal” approval.

IL

The seat is suitable for installation of a  child seat with the “Semi-Universal” approval. The “Semi-Universal” category means that the child seat with

the  system is approved for your vehicle. Observe the list of vehicles that comes with the child seat.

IUF

The seat is suitable for the use of approved forward-facing child seats in the “Universal” weight group category.

X

The seat is not fitted with  system attachment points.

Using child seats with the system

Front passenger seat

Rear seats outside

Rear seat middle

X

i-U

X

The seat is suitable for forward and backward facing  child seats of

the category “Universal”.
The seat is not suitable for the child seat of the category “Universal”.

Attachment points of the   system

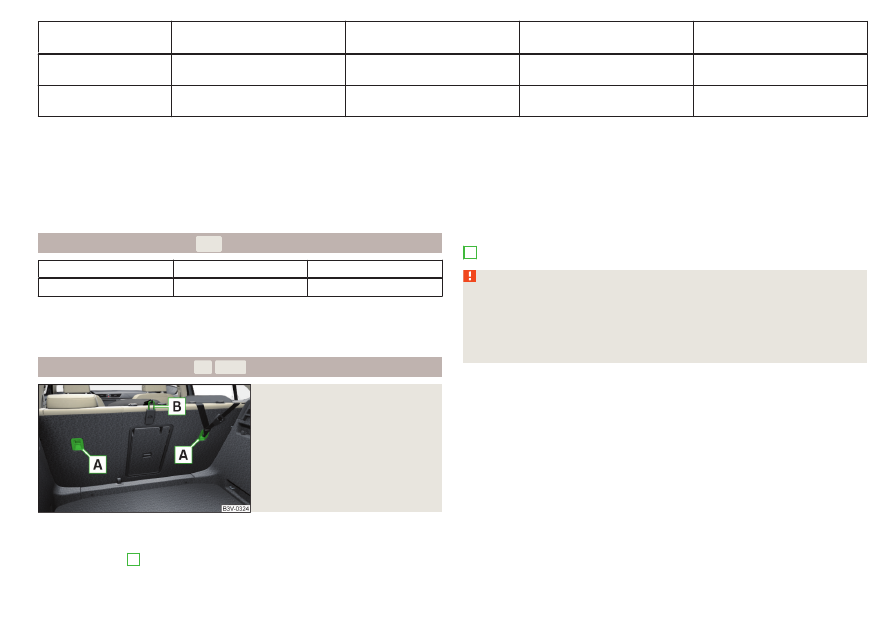

Fig. 28

Attachment points of the 


-system



  is a fastening system, which restricts the movement of the upper part

of the child seat.
The locking eyes

A

 for attaching the belt of a child seat with the  

system are located on the rear side of the rear seat backrests

» Fig. 28

.

i-U

X

Some country-specific models can also be fitted with an attachment point

B

» Fig. 28

.

WARNING

Always refer to the instructions from the manufacturer of the child seat

when installing and removing a child seat with the   system.

Only use child seats with the   system on the seats equipped with

attachment points with the logo  .

Only ever attach one belt from the child seat to a locking eye.

33

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

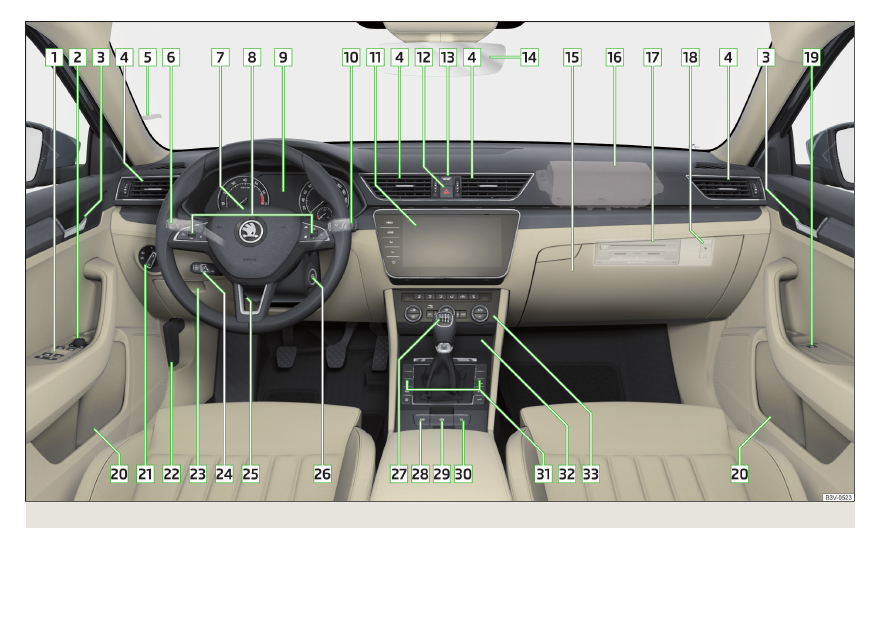

Fig. 29  Cockpit example for LHD

34

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the system

Cockpit

Overview

Electric power windows

66

Electric exterior mirror adjustment

82

Door opening lever

61

Air outlet vents

121

Ticket holder

92

Operating lever (depending on equipment):

Indicator light and high-beam headlight

71

Speed regulating system

234

Speed limiter

235

Headlamp assistant

74

Steering wheel with horn/with driver's front airbag

25

Buttons for operating the information system

48

Instrument cluster

36

Operating lever:

Windscreen wipers and washers

79

Information system

48

Infotainment

125

Button for hazard warning light system

73

Warning light for the front seat passenger airbag

28

Interior rear-view mirror

81

Storage compartment on the front passenger side

97

Front passenger airbag

25

External Infotainment module (in the passenger storage com-

partment)

127

Key switch for switching off the front passenger airbag (in front

passenger storage compartment)

28

Power window in the front passenger door

66

Storage compartment

93

Light switch

70

Bonnet release lever

270

1

2
3
4
5
6

7
8
9

10

11

12
13
14
15
16
17

18

19

20

21

22

Storage compartment

92

Operating lever for adaptive cruise control

239

Steering wheel locking lever

21

Depending on equipment fitted:

Ignition lock

205

Starter button

205

Depending on equipment fitted:

Gearshift lever (instruction gearbox)

211

Selector lever (automatic gearbox)

212

Auto-hold button

209

Button for the electric parking brake

208

Central locking button

59

Bars with buttons (depending on the equipment fitted):

 START STOP

206

 Stabilisation control ESC / Traction control TCS

217, 218

 Selection of travel mode

244

 Park Assist

229

 Parking aid

219

Storage compartment

93

Depending on equipment fitted:

Phonebox

93

12-Volt power socket

100

Cigarette lighter

103

Ashtrays

102

USB input

94

Controls for heating/air conditioning

117

Note

The layout of the controls on right-hand drive vehicles differs partially from

that shown in

» Fig. 29

.

23
24
25
26

27

28
29
30

31

32

33

35

Cockpit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and warning lights

Instrument cluster

Introduction

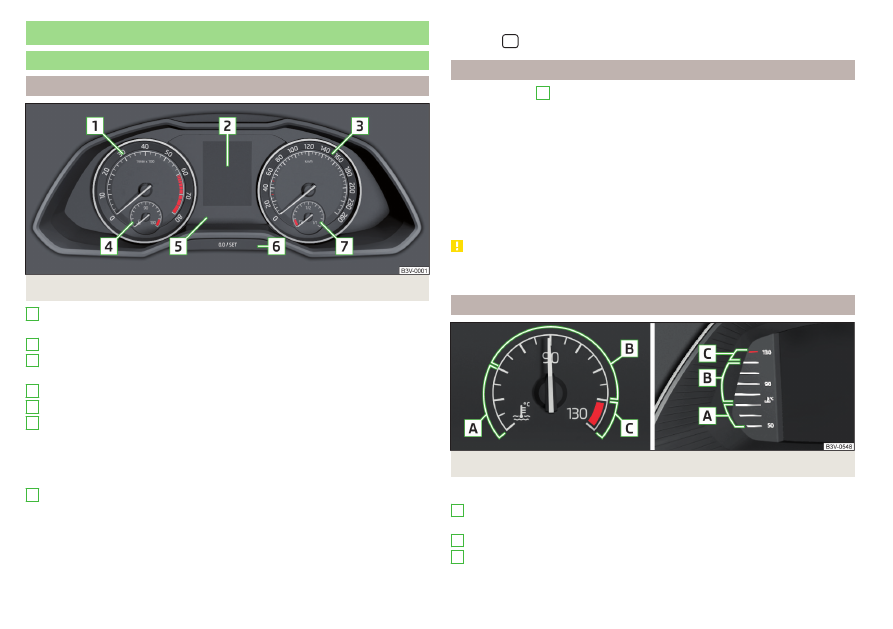

Fig. 30  Instrument cluster

Engine revolutions counter

» page 36

with warning lights

» page 39

Display

» page 48

Speedometer

with warning lights

» page 39

Coolant temperature gauge

» page 36

Bar with warning lights

» page 39

Operation button

Set the time

» page 49

Reset counter for distance travelled (trip)

» page 48

Displaying the distance and days until the next service interval

» page 55

Fuel gauge

» page 37

The brightness of the instrument illumination is set automatically depending

on the ambient lighting throughout. If the visibility is poor and the lights are

not on, the brightness of the instrument lighting reduces to alert the driver to

switch on the lights in due time.

1

2
3

4
5
6

7

The brightness of the instrument lighting can be adjusted in Infotainment in

the menu



/  →  → → Light.

Engine revolutions counter

The tachometer

1



» Fig. 30

 on page 36 shows the actual engine speed per

minute.
The beginning of the tachometer red scale range indicates the maximum per-

mitted speed for an engine that has been driven-in and has reached operating

temperature.
You should shift into the next highest gear before the red scale of the revolu-

tion counter is reached, or select mode D/S on the automatic gearbox.
The gear recommendation is important to note in order to maintain the opti-

mum engine speed

» page 49

.

CAUTION

The pointer of the engine revolutions counter must reach the red area for only

a short time - there is a risk of engine damage!

Coolant temperature gauge

Fig. 31  Coolant temperature gauge

The display only works if the ignition is switched on.

Cold area, The engine has not yet reached its operating temperature.

Avoid high speeds and high engine loads.
The operating range
High temperature range
, the warning light  illuminates in the instrument

cluster

» page 45

.

A

B
C

36

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuel gauge

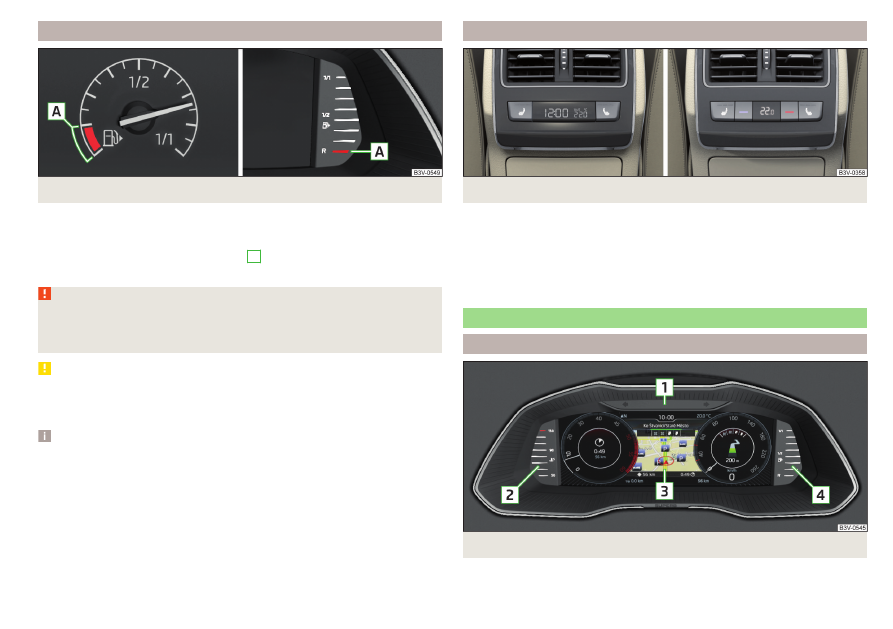

Fig. 32  Fuel gauge

The display only works if the ignition is switched on.
The fuel tank has a capacity of about 66 litres.
If the fuel level reaches the reserve level

A

 , the

» Fig. 32

 indicator light in the

instrument cluster

 illuminates

» page 43

.

WARNING

For the vehicle systems to function correctly, and thus for safe driving,

there must be sufficient fuel in the tank. Never drain the fuel tank com-

pletely – risk of accident!

CAUTION

Never drive until the fuel tank is completely empty! The irregular supply of fuel

can cause misfiring, which can result in damage to parts of the engine and the

exhaust system.

Note

The arrow  next to the symbol  within the fuel gauge displays the installa-

tion location of the fuel filler on the right side of the vehicle.

Display in the rear centre console

Fig. 33  Display in rear centre console

The following information is shown in the display depending on the equipment

installed on the vehicle.

Time

Exterior temperature information

Information on the Climatronic set temperature for occupants in the rear

seats

Digital instrument cluster

Introduction

Fig. 34  Digital instrument panel

37

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Bar with warning lights

» page 39

Coolant temperature gauge

» page 36

Display

» page 38

Fuel gauge

» page 37

The brightness of the instrument illumination is set automatically depending

on the ambient lighting throughout.
The brightness of the instrument lighting can be adjusted in Infotainment in

the menu



/  →  → → Light.

Display in the digital instrument cluster

Fig. 35  Display versions / example of the classic display

Display versions (from the left)

Classic display

Advanced display

Modern display

1

2
3
4

A

Basic display

Sporty display

Central display area
Additional information

Operating the instrument cluster

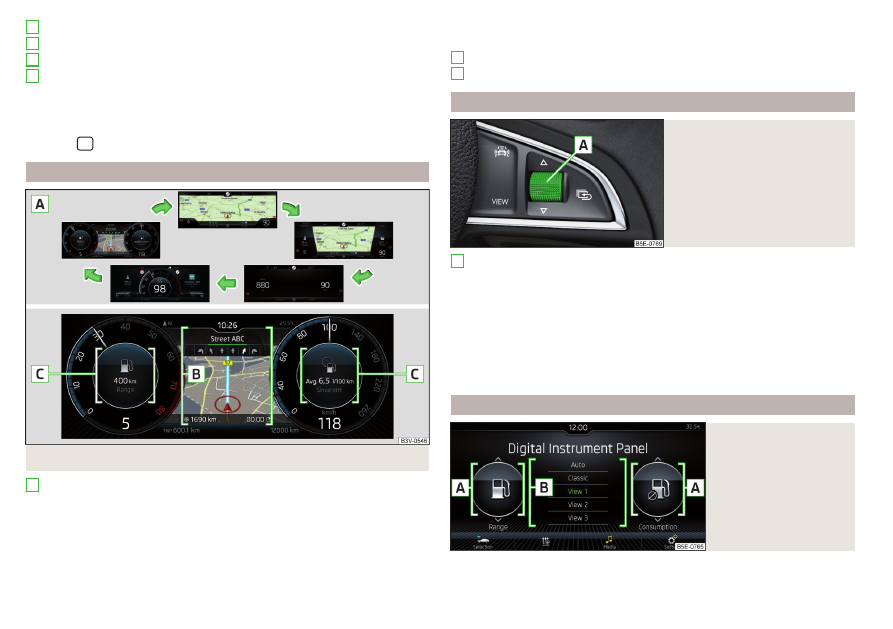

Fig. 36

Buttons/dial on the multifunc-

tion steering wheel

Rotate - Movement in the selected menu / setting values / Manually

change map scale (applies to Infotainment Columbus, Amundsen)

Press - confirm selected menu item

Turn and press - switch on automatic change of the map scale (applies to

Infotainment Columbus, Amundsen)

Press - Change the display version

» Fig. 35

 on page 38

Hold - Display the prefix options menu with additional information
Press - display main menu / return to a previous level in the menu

» page 53

pre-selection options for additional information

Fig. 37

Set the pre-selection

option in Infotainment

Select the pre-selection option

Hold the button on the  multi-function steering wheel.

B
C

A



38

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Select and confirm one of the following pre-selection options.

Auto - additional information is displayed depending on the driving mode se-

lected

Classic - Information on the engaged gear and the current speed

View 1 - adjustable pre-selection option

View 2 - adjustable pre-selection option

View 3 - adjustable pre-selection option

Set the preselection option

The area code options View 1View 2 and View 3 can be found in infotainment in

the menu



/  in the  → Dig. Instrument cluster menu item.

The desired additional information can be selected by moving your finger

vertically across the display in the

A



» Fig. 37

 areas.

Hold the desired function surface for the preselection option in area

B

 to

save the selection.

Warning lights

Introduction

Parking brake

» page 40

Brake system

» page 40

Front seat belt warning light

» page 40

Adaptive Cruise Control (ACC)

» page 40







Power steering

Steering lock (KESSY system)

» page 41

Stabilisation control (ESC)

Traction control (TCS)

» page 41

Traction control (ASR) deactivated

» page 42

Antilock brake system (ABS)

» page 42

Rear fog light

» page 42

Exhaust control system

» page 42

Glow plug system (diesel engine)

» page 42



EPC fault light (petrol engine)

» page 42

Safety systems

» page 42

Tyre pressure

» page 43

Brake pads

» page 43

Fuel reserve

» page 43



Lane Assist

» page 44



Turning signal system

» page 44

Trailer turn signal lights

» page 44

Fog lights

» page 44

Speed regulating system

Speed limiter

» page 44

Brake pedal (automatic gearbox)

» page 44

Auto Hold function

» page 44

High beam

» page 44

Automatic gearbox

» page 44

 

Rear seat belt warning light

» page 45

Alternator

» page 45

Coolant

» page 45

Engine oil pressure

» page 45

Engine oil level

» page 45

AdBlue

®

 level too low (diesel engine)

» page 46

AdBlue

®

 error (diesel engine)

» page 46

Bulb failure

» page 46

Display when the light is switched off

» page 46

Particle filter

» page 46

Windscreen washer fluid level

» page 47

Headlamp assistant

» page 47

 

START-STOP system

» page 47

Display of a low temperature

» page 47

Water in fuel filter (diesel engine)

» page 47

   Adaptive Cruise Control (ACC)

» page 47

Distance warning (Front Assist)

» page 47

Front Assist

» page 47

Emergency call

» page 47

Economy mode

» page 48

39

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adaptive chassis (DCC)

» page 48

Service

» page 48

The warning lights in the instrument cluster indicate certain functions or faults.
Some warning lights can be accompanied by acoustic signals and messages in

the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-

tion test. If the tested systems are OK, the corresponding warning lights go

out a few seconds after switching on the ignition or after starting the engine.

Warning lights in the display

Depending on the significance, the warning light

 (danger) or

 (warning) il-

luminates along with some other warning lights in the display.
Depending on vehicle equipment fitted, some indicator lights can be shown in

the display. For example. the coolant warning light can be shown as follows.

 - monochrome (“black and white”) display

 - coloured display

WARNING

Ignoring illuminated warning lights and related messages or instructions

in the display of the instrument cluster may lead to serious personal injury

or damage to the vehicle.

If you have to stop for technical reasons, then park the vehicle at a safe

distance from the traffic, switch off the engine and switch on the hazard

warning lights

» page 73

. Place the warning triangle at the prescribed dis-

tance.

The engine compartment of your car is a hazardous area. While working

in the engine compartment, be sure to observe the following warnings

» page 269

.

 Parking brake

Read and observe   on page 40 first.

 illuminates - the parking brake is switched on.

Parking brake error

 illuminates

Message: Fault: electronic parking brake

Seek help from a specialist garage.

Parking on a slope that is too steep

 illuminates

Message: Parking brake: Gradient too steep. Log book!

Find a parking space on a flat surface or on a slope that is not so steep.

 Brake system

Read and observe   on page 40 first.

 lights up – the brake fluid level in the brake system is too low.

Stop the vehicle, switch off the engine, and check the level of the brake fluid

» page 273

.

WARNING

If warning light

 illuminates simultaneously with warning light

» page 42

 Anti-lock braking system (ABS) ,

 stop driving! Seek help

from a specialist garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

 Front seat belt warning light

Read and observe   on page 40 first.

 illuminates - the driver or front passenger has not fastened their seat belt.

At a speed of more than approximately 30 km/h, the warning light

 flashes

and an audible warning sounds at the same time.
If the seat belt is not fastened by the driver or front passenger during the next

approx. 2 minutes, the warning signal is deactivated and the warning light

illuminates permanently.

 Adaptive cruise control (ACC)

Read and observe   on page 40 first.

 illuminates – the ACC delay is not sufficient.

Apply the brake.

40

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For more information about the ACC system

» page 236

.



 Power steering/steering lock (KESSY system)

Read and observe   on page 40 first.

Fault in the power steering

 lights up – this indicates a complete failure of the power steering and the

steering assist is no longer working (significantly higher steering forces).

 illuminates - this indicates a partial failure of the power steering and the

steering forces may be greater.

Switch off the ignition, start the engine again and travel a short distance.

If the warning light

 does not go off, stop the vehicle,

 do not continue

your journey. Seek help from a specialist garage.

If the warning light

 does not go off, you can drive on, exercising appropri-

ate caution. Seek assistance from a specialist garage immediately.

Steering lock defect (KESSY system)

 flashes

Message: Steering lock faulty. Stop!

Park the vehicle, and

 stop driving. After switching off the ignition, it is no

longer possible to lock the steering, to activate the electrical components

(e.g. Infotainment ), to switch on the ignition again and to start the engine.

Seek help from a specialist garage.

 flashes

Message: Steering lock: workshop!

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

Steering column lock not unlocked (System KESSY)

 flashes

Message: Steering lock: workshop!

Move the steering wheel slightly back and forth, thereby facilitating unlock-

ing the steering lock.

If the steering does also not unlock then, the help of a specialist garage is re-

quired.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the indicator

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after the motor is restarted and a short drive, the indicator light does not go

out, there is a system error.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

 Stability Control (ESC)/Traction control (TCS)

Read and observe   on page 40 first.

 flashes – the ESC or TCS is currently being activated.

 illuminates – there is an ESC or TCS fault.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

If the warning light

 comes on after starting the engine, the TCS may be

switched off for technical reasons.

Switch the ignition off and on again.

If the warning light

 does not illuminate after you switch the engine back on,

the TCS is fully functional again.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the indicator

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

For more information on the ESC system

» page 217

 or TCS system

» page 218

.

41

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Traction control (TCS) deactivated

Read and observe   on page 40 first.

 illuminates – the TCS system is disabled.

 Anti-lock braking system (ABS)

Read and observe   on page 40 first.

 lights up – there is an ABS fault.

The vehicle will only be braked by the normal brake system without the ABS.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

WARNING

If warning light

 illuminates simultaneously with warning light

» page 40

 Brake system ,

 stop driving! Seek help from a specialist

garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

Rear fog light

Read and observe   on page 40 first.

 illuminates - the rear fog light is switched on.

 Emission control system

Read and observe   on page 40 first.

 illuminates – there is a fault in the emission control system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

Preheating unit (diesel)

Read and observe   on page 40 first.

 flashes – there is a fault in the engine management system. The system

makes possible operation emergency mode - there may be a noticeable reduc-

tion in engine performance.
There is a fault in the glow plug system if the warning light

 does not come

on or illuminates continuously.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.



 EPC warning light (petrol)

Read and observe   on page 40 first.



 lights up – there is a fault in the engine management system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

 Safety systems

Read and observe   on page 40 first.

System fault

 illuminates

Message: Error: airbag

Seek help from a specialist garage.

The front passenger airbag has been disabled with the key switch

 illuminates for 4 seconds after the ignition has been switched on.

One of the airbags or a belt tensioner has been disabled by the diagnostic

tool

 lights up for around 4 seconds after the ignition is switched on and then

flashes for approximately 12 seconds
Message: Airbag/ belt tensioner deactivated.

42

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ProActive passenger protection

 illuminates and the following message is shown in the information cluster

display

Message:

Proactive passenger protection unavailable.

or

ProActive passenger protection: funct. restricted.

The seat belt for the driver and front passenger needs to be replaced.

Seek help from a specialist garage.

WARNING

When a fault in the airbag system occurs, there is a risk of the system not

being triggered in the event of an accident. Therefore, this must be

checked immediately by a specialized garage.

Tyre pressure

Read and observe   on page 40 first.

Change of tyre pressure values

 illuminates - there was a pressure change in one of the tyres.

Immediately reduce speed and avoid sudden steering and braking manoeu-

vres.

Stop the vehicle, turn the ignition off and check the tyres and their inflation

pressures

» page 277

.

Correct the tyre pressure if necessary or replace the affected wheel

» page 283

 or use the repair kit

» page 286

.

Save the tyre pressure values in the system

» page 253

.

System fault

 flashes for approximately 1 minute and remains lit – there may be a fault in

the tyre pressure monitoring system.

Stop the vehicle, turn the ignition off and start the engine again.

If the warning light

 flashes after starting the engine again, there is a system

error.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the indicator

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

Other incidents

The illumination of the warning light

 can have the following reasons.

The vehicle is loaded on one side. Distribute the load evenly.

The wheels of one axle are loaded more heavily (e.g. when towing a trailer or

when driving uphill or downhill).

Snow chains are mounted.

A wheel has been changed.

CAUTION

Under certain circumstances (e.g. sporty style of driving, wintry or unpaved

roads) the warning light

 can be delayed or does not light up at all.

 Brake linings

Read and observe   on page 40 first.

 illuminates - the brake pads are worn.

It is possible to continue driving with due caution. Seek assistance from a

specialist garage immediately.

 Fuel reserve

Read and observe   on page 40 first.

 illuminates – the fuel level in the fuel tank is at the reserve level (approxi-

mately 6 litres).

Fill up with fuel

» page 265

.

Note

The text in the display goes out after refuelling and driving a short distance.

43

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 Lane Departure Warning (Lane Assist)

Read and observe   on page 40 first.

The warning lights



 indicates the state of the Lane Assist system.

More information about the Lane Assist System

» page 247

.



 Turn signal system

Read and observe   on page 40 first.

 flashes - the left turn signal is switched on.

 flashes – the right turn signal is turned on.

If there is a fault in the turn signal system, the warning light flashes at twice its

normal rate (does not apply when towing).
When the hazard warning light system is switched on, this will cause all of the

turn signal lights as well as both warning lights to flash.

 Trailer turn signal lights

Read and observe   on page 40 first.

 flashes - the trailer turn signals are switched on.

If a trailer is hitched and the warning light

 is not flashing, one of the trailer

turn signal lights has failed.

Check the trailer bulbs.

 Fog lights

Read and observe   on page 40 first.

 illuminates - the fog lights are switched on.

 Speed regulating system/speed limiter

Read and observe   on page 40 first.

 illuminates - the vehicle speed is limited by the speed regulating system

and/or the adaptive cruise control or by the speed limiter.

 flashes - the speed set with the speed limiter has been exceeded.

 Brake pedal (automatic gearbox)

Read and observe   on page 40 first.

 lights up – apply the brake.

 Auto Hold function

Read and observe   on page 40 first.

 illuminates - the Auto Hold function is activated.

For more information about the Auto-Hold Function

» page 209

.

 Main beam

Read and observe   on page 40 first.

 illuminates - the main beam or headlight flasher is switched on.

 Automatic gearbox

Read and observe   on page 40 first.

Gearbox overheated



 illuminates

Message: Gearbox overheated. You can drive on.

Transmission overheated. You can drive on, exercising appropriate caution.



 illuminates

Message: Gearbox overheated. Stop! Log book!

 Do not drive the vehicle! Stop the vehicle and turn off the engine.

You can continue your journey as soon as the warning light disappears.

If the warning light does not go off,

 stop driving! Seek help from a special-

ist garage.

Transmission problem



 illuminates

Message: Gearbox faulty. Stop the vehicle safely!

44

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
