Electric windows

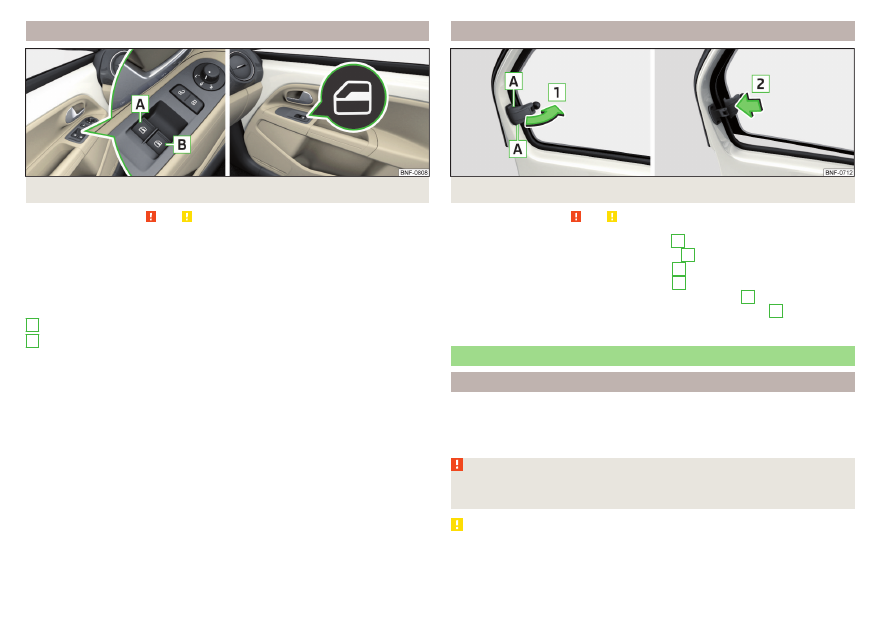

Fig. 36  Buttons for window levers



Read and observe   and   on page 41 first.

The electrical power windows can only be operated when the ignition is

switched on.
The windows in the front doors can be operated from the driving position. The

front passenger window is operated using the button in the passenger door.
Power window buttons

» Fig. 36

Front door left
Front door right

›

To open, press down the appropriate button until the window has moved in-

to the desired position.

›

To close it, pull gently on the top edge of the button until the window has

moved into the desired position.

A
B

Instructionly opening/closing rear windows

Fig. 37  Opening/closing rear windows



Read and observe   and   on page 41 first.

›

To open, grasp the safety catch in recess

A

» Fig. 37

.

›

Open the window in the direction of arrow

1

 and lock it by pressing down

the safety catch in the direction of arrow

2

 to the stop.

›

To close, grasp the safety catch in recess

A

.

›

Pull the safety catch in the opposite direction to arrow

2

 and pull the win-

dow back to its starting position in the opposite direction to

1

 until the

safety catch clicks into place.

Panoramic tilt / slide sunroof



Introduction

The panoramic tilt / slide sunroof (hereinafter referred to as tilt / slide sunroof)

can only be operated when the ignition is turned on and when the outdoor

temperature is above -20 °C.

WARNING

When operating the tilt/slide sunroof and the sunshade, proceed with cau-

tion to avoid causing crushing injuries – risk of injury!

CAUTION

■

During the winter, remove any ice and snow in the vicinity of the sliding/tilt-

ing roof before opening it to prevent any damage to the opening mechanism.

■

Always close the sliding/tilting roof before disconnecting the battery.

42

Using the system

Operation

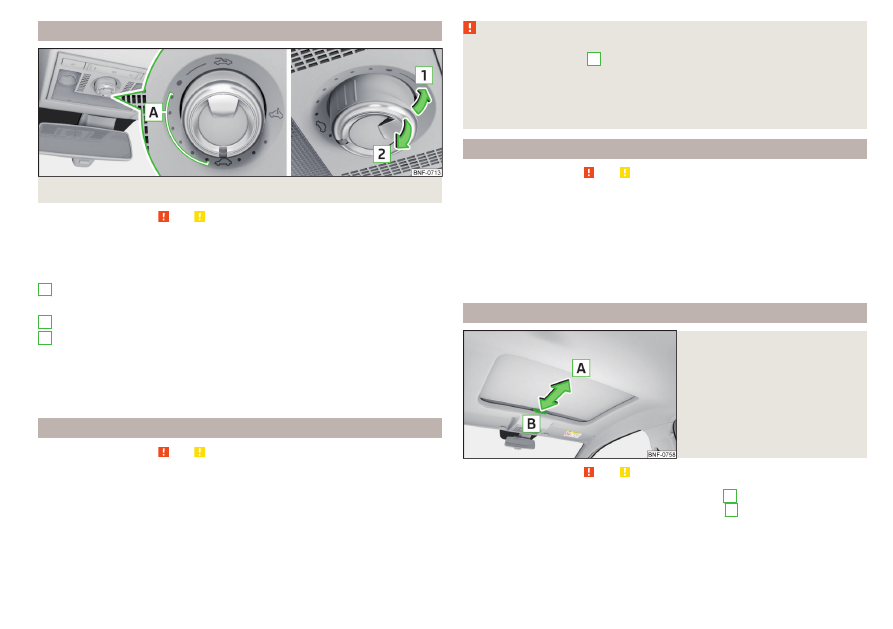

Fig. 38  Operation of the sliding/tilting roof



Read and observe   and   on page 42 first.

Operation of the sliding/tilting roof

» Fig. 38

Open fully
Open to the low-noise position
Open partially
Close completely
Opening (switch in position )
Resetting (switch in position  )

After turning the switch one stop to position  (spring-tensioned position),

the tilt / slide sunroof stops in the position in which the intensity of the wind

noise is low. After turning the switch further to position , the tilt / slide sun-

roof opens up to the stop.

Force limiter



Read and observe   and   on page 42 first.

The sliding/tilting roof is fitted with a force limiter.
If there is an obstacle, the closing process is stopped and the glass pane re-

tracts by several centimetres.





A



1

2

WARNING

If the tilt / slide sunroof is closed, by pulling on the recess of the switch in

the direction of arrow

2

,

» Fig. 38

 on page 43 and the closing process is

hindered by an obstacle, then at the third attempt at closing, the force limi-

tation will cease to function (if less than 5 s passes between the individual

attempts to close). The tilt / slide sunroof closes with full force - this can

cause injury.

Activate operation of the tilt / slide sunroof



Read and observe   and   on page 42 first.

If the tilt / slide sunroof stops working (e.g. after disconnecting and connect-

ing the battery), then the operation must be reactivated.

›

Turn on the ignition and set the switch to position 

» Fig. 38

 on page 43.

›

Press the switch on the recess E down and pull forwards.

The sliding/tilting roof opens/closes again after around 10 seconds.

›

Release the lever.

Instructionly operated sunblind

Fig. 39

Operation of the sunblind



Read and observe   and   on page 42 first.

›

To open, pull the handle in the direction of arrow

A



» Fig. 39

.

›

To close, pull the handle in the direction of arrow

B

.

43

Unlocking and opening

Lights and visibility

Light



Introduction

Unless otherwise stated, the lights only work when the ignition is on.
For the basic position of the light switch, use position .

Note

The headlights may mist up temporarily. When the light is on, the light-emit-

ting surface demists after a short time.

Operating the lights

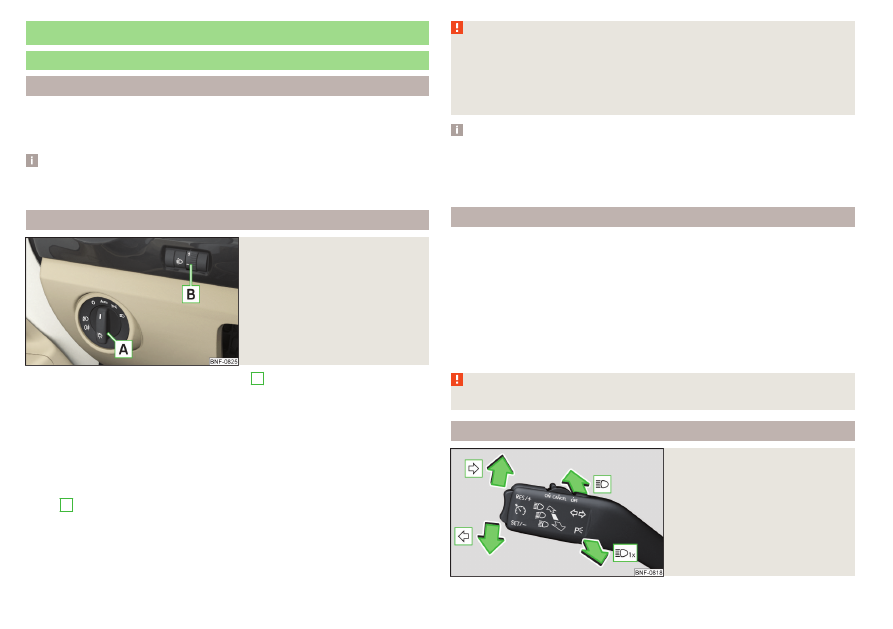

Fig. 40

Light switch and control dial for

the headlight range control

To switch the light function on / off, switch

A



» Fig. 40

 should be turned to

one of the following positions.

Switching off lights (except daytime running lights)

Switching the light on/off automatically

» page 45

Switch on daytime running lights and side lights or parking lights

» page 46

Turn on the low beam

Depending on the vehicle load, adjust the headlight range by turning the con-

troller

B



» Fig. 40

 to the following positions.

Front seats occupied, boot empty
All seats occupied, boot empty
All seats occupied, boot loaded
Driver seat occupied, boot loaded

















WARNING

Always adjust the headlight beam to meet the following conditions - other-

wise risk of accident.

■

The vehicle does not dazzle other road users, especially oncoming vehi-

cles.

■

The beam range is sufficient for safe driving.

Note

If the light switch is in the position , the ignition key is removed and the driv-

er's door is open, an audible warning signal will sound. After a few seconds or

after closing the driver's door, the audible alarm switches off, but the parking

lights will remain switched on.

Daytime running lights

The daytime running lights illuminate the area in front of and to the rear of the

vehicle (only applicable for some countries).
The daytime running lights are switched on automatically if the following

conditions are met.

The ignition is switched on.
The lights switch is in position ,  or .

The light switch is in position  and the fog lights are turned on, the daytime

running lights will turn off.

WARNING

Always switch on the low beam when visibility is poor.

Turn signal and main beam

Fig. 41

Operating lever: Turn signal and

main beam operation







44

Using the system

Control stalk positions

» Fig. 41

Switch on right turn signal
Switch on left turn signal
Switch on main beam (spring-tensioned position)

Switching off main beam / switching on headlamp flasher (spring-loaded

position)

The main beam can only be switched on when the low beam lights are on.
The headlight flasher can be used even if the ignition is switched off.
The turn signal switches off automatically, depending on the steering angle af-

ter completing the turn.

Comfort flashing

When the operating lever is pressed lightly up or down, the indicator in ques-

tion flashes three times.

WARNING

Only turn on the main beam or the headlight flasher if other road users will

not be dazzled.

Note

An acoustic warning signal will sound when the driver's door is opened if the

lever is not in the middle position after removing the ignition key from the igni-

tion lock. The acoustic warning signal will stop just as soon as the driver's door

is closed.

Automatic driving light control

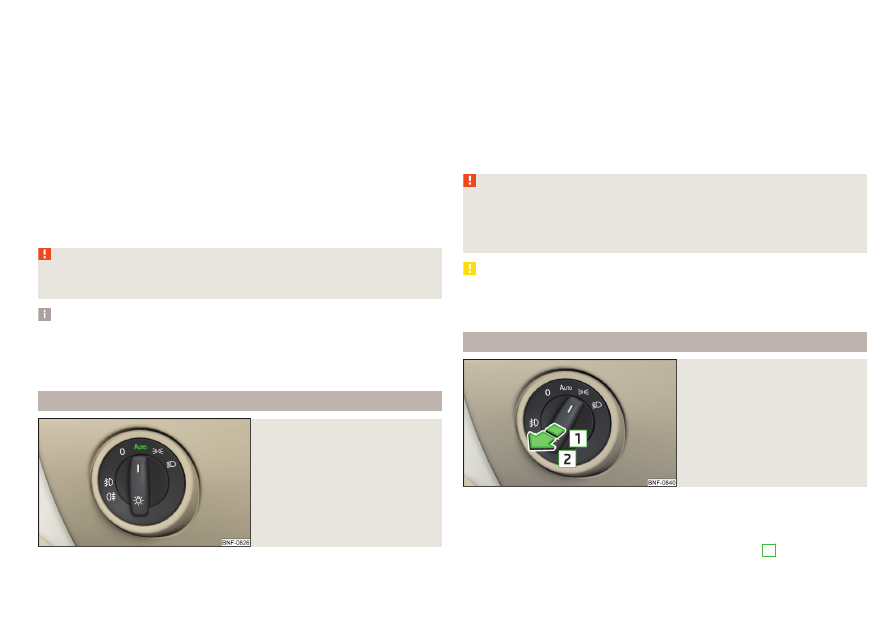

Fig. 42

Light switch: Position 









The light switch is in position 

» Fig. 42

 then depending on the equipment

the automatic switch on / off the lights corresponding to the light or weather

conditions (rain) takes place.

Automatic driving light control during rain

The daytime running lights are switched on automatically if the following con-

ditions are met.

The light switch is in the position .
The windscreen wipers are on for more than 15 s.

The light turns off automatically about 4 minutes after turning off the wipers.

WARNING

The automatic driving lamp control (position ) only acts as a support

and does not release the driver from his responsibility to check the light

and, if necessary, to switch on the lights depending on the prevailing light

conditions.

CAUTION

Poorer visibility is evaluated by a sensor mounted below the windscreen in the

holder of the rear-view mirror. Do not cover the sensor - the system function

can be disrupted.

Fog lights/rear fog light

Fig. 43

Light switch - switch on front

and rear fog light

Switching on the fog lights / rear fog lights is possible if the following con-

ditions apply.

The light switch is in position ,  or 

» Fig. 43

.

›

To turn on the fog lights pull the light switch to position

1

, the indicator

light



 will light up in the light switch.









45

Lights and visibility

›

To switch on the rear fog lights, pull the light switch to position

2

; the

warning light



 illuminates in the instrument cluster.

If the vehicle is not fitted with fog lights, the rear fog light is switched on by

pulling out the light switch to the only possible setting.
The fog lights/rear fog light are switched off in the reverse order.

Fog lights with CORNER function

The CORNER function automatically switches on the fog lights on the respec-

tive side of the vehicle (e.g. when cornering or steering), if the following condi-

tions are fulfilled.

The turn signal is switched on or the front wheels are severely locked (in

the event of conflict between the two versions, the turn signal has the

higher priority).
The vehicle speed is below 40 km/h.
The dipped beam is switched on.
The fog lights are not switched on.

The two fog lights are switched on when you shift into the reverse gear.

COMING HOME / LEAVING HOME

The function COMING HOME ensures that the vehicle's environment is illumi-

nated after switching off the ignition and opening the driver's door.
The function LEAVING HOME ensures that the vehicle's environment is illumi-

nated after unlocking the vehicle with the radio remote control unit.
The function switches the light on only if there is poorer visibility and the light

switch is in the position .

Switching on the COMING HOME function

›

Switch off the ignition and press the control lever briefly to position 

» page 44

.

After closing the door or the boot lid, the light remains on for another 15 s.

CAUTION

■

Poorer visibility is evaluated by a sensor mounted below the windscreen in

the holder of the rear-view mirror. Do not cover the sensor - the system func-

tion can be disrupted.

■

If this option is always enabled, then the battery is heavily loaded.









Hazard warning light system

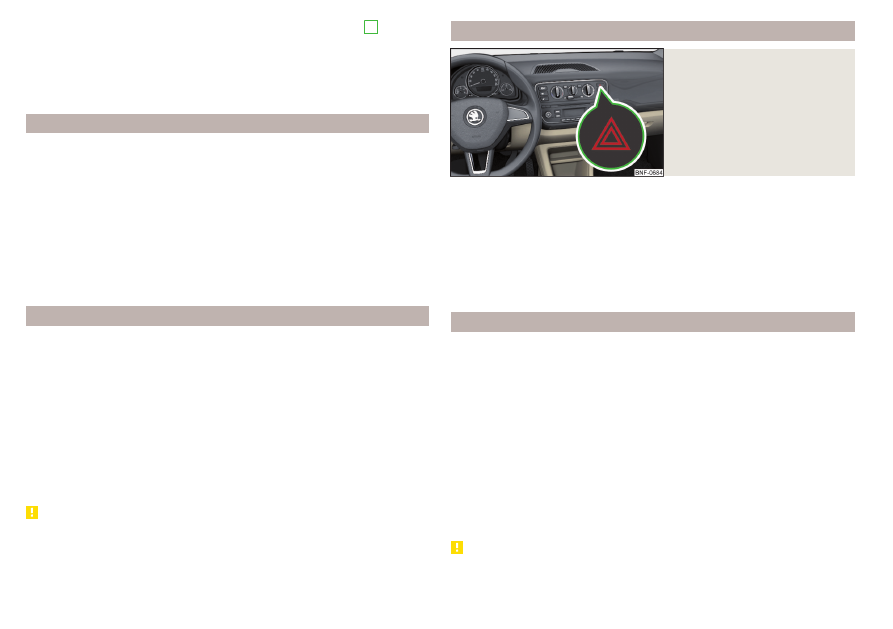

Fig. 44

Button for hazard warning light

system

›

To switch on/off, press the



 button

» Fig. 44

.

When first switched on, the turn signal lights and the warning light



 buttons

all flash at the same time as the warning lights







 in the instrument cluster.

The hazard warning light system can also be operated if the ignition is switch-

ed off.
If one of the airbags is deployed, the hazard warning light system will switch

on automatically.

Parking light

The side light is provided for lighting of the parked vehicle.

Switching on the parking light  on one side

›

Switch off the ignition.

›

Press the control lever all the way into position  or  until it stops

» Fig. 41

on page 44.

The parking light is turned on on the relevant side of the vehicle.

Switching on the side light on both sides 

›

Turn the light switch to position 

» page 44

 and lock the vehicle. The side

lights are switched on.

After pulling out the ignition key and opening the driver's door, an audible

warning sounds. After a few seconds or after closing the driver's door, the au-

dible warning is turned off.

CAUTION

Turning on the parking light means the battery is heavily loaded.

46

Using the system

Driving abroad

When driving in countries with opposing traffic system (traffic on the

left/right), your headlights may dazzle oncoming traffic. Therefore, it is neces-

sary to have the headlights adapted by a specialist garage.

Interior lighting



Introduction

The inner lighting also works if the ignition is switched off. With the ignition

switched off, the lights will automatically switch off after approximately after

10 minutes.

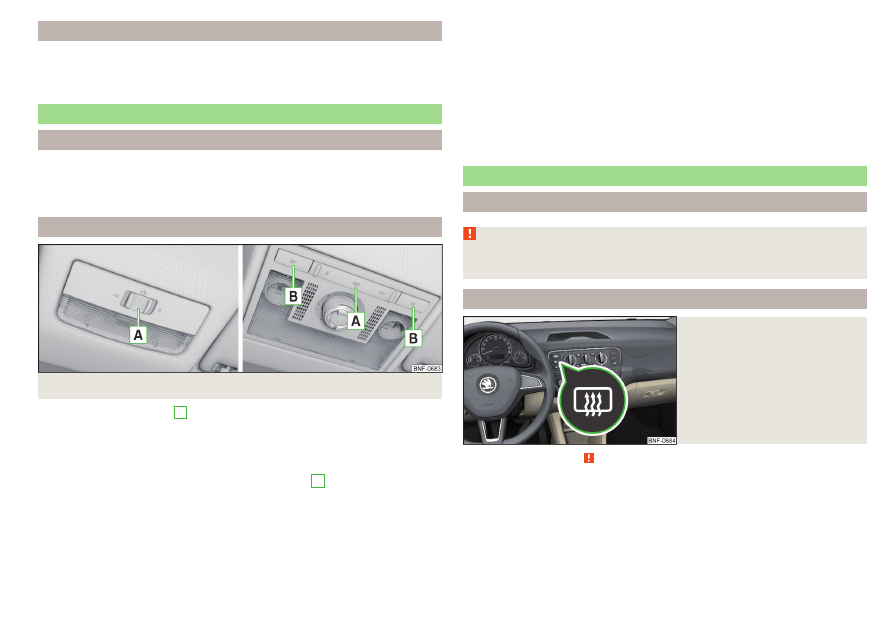

Interior light

Fig. 45  Interior lighting: Version 1/version 2

Positions for light switch

A



» Fig. 45

Switching on
Automatic operation (centre position)
Switching off

Switching on / off (by pressing the relevant switch

B

)

» Fig. 45

Reading lamp left
Reading lamp right











Automatic operation - position 

The system is turned on when any of the following is present.

▶

The vehicle is unlocked.

▶

One of the doors is opened.

▶

The ignition key is removed.

The system is turned off when any of the following is present.

▶

The vehicle is locked.

▶

The ignition is switched on.

▶

About 30 seconds after all the doors have been closed.

Visibility



Introduction

WARNING

No objects should be attached to the sun visor that could restrict the view

or endanger the vehicle occupants during sudden braking or in a collision.

Rear window heater

Fig. 46

Button for rear window heater



Read and observe   on page 47 first.

The heater allows rapid defrosting and ventilation of the rear window.
The heating only works when the engine is running.

›

To switch the heating on / off, press button 

» Fig. 46

.

When the heater is switched on, a lamp illuminates inside the button.

The heating switches off automatically after approximately 10 minutes.



47

Lights and visibility

Note

If the on-board voltage decreases, the heating switches off automatically

» page 117

, Automatic consumer shutdown - Car battery discharge protection.

Front sun visors

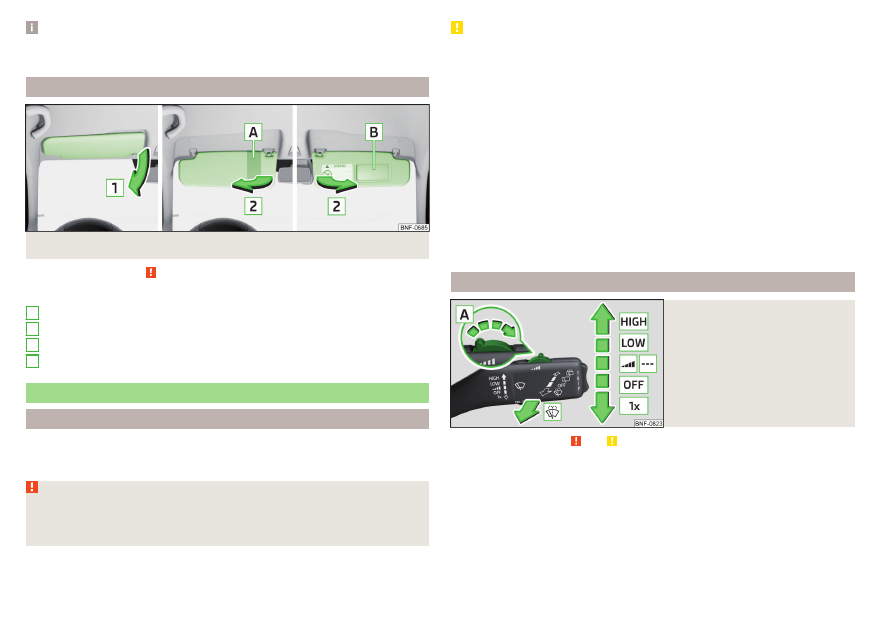

Fig. 47  Fold down visor / Pivot driver/passenger visor sideways



Read and observe   on page 47 first.

Operation and description of the sun visor

» Fig. 47

Swivel cover towards the windscreen
Swivel cover towards the door
Parking ticket band (if part of the specification)
Vanity mirror

Windscreen wipers and washers



Introduction

The windscreen wipers and the windscreen washer system only operate if the

ignition is switched on.

WARNING

Do not use the windscreen washer system at low temperatures, without

heating the windscreen beforehand. The window washer fluid could other-

wise freeze on the windscreen and restrict the view to the front.

1

2

A
B

CAUTION

■

If the windscreen wipers are in the switched-off position, they cannot be

raised off the windscreen. Before collapsing the wipers, the wipers must be

set to the service position

» page 132

.

■

In cold temperatures and during the winter, check before switching on the

ignition that the wiper blades are not frozen to the windscreen. If the wind-

screen wipers are switched on when the blades are frozen to the windscreen,

this may damage the blades and windscreen wiper motor!

■

Carefully separate frozen windscreen wiper blades from the windscreen and

free from snow and ice.

■

Handle the windscreen wipers with care - there is a risk of damage to the

windscreen by the windscreen wiper arms.

■

Do not switch on the ignition when the wiper arm is raised from the wind-

screen - there is a risk of damage to the bonnet by the wiper arms.

■

If there is an obstacle on the windscreen, the wipers will try to push away the

obstacle. The wipers then stop to prevent themselves from being damaged.

Only switch the wipers on again after the obstacle has been removed.

Front wipers and washers

Fig. 48

Operating the front windscreen

wipers and washer system



Read and observe   and   on page 48 first.

High-speed wiping

Slow-speed wiping

Depending on equipment fitted:

▶

Automatic windscreen wiping in the rain

▶

Intermittent wiping

Wipers and washers off
Single wipe of the windscreen (spring-loaded position)









    





48

Using the system

Setting windscreen wiper interval for position  (by setting the switch in

the direction of the arrow, the windscreen wipers will wipe more often)
Spraying and wiping the disc (spring-loaded position) - after releasing the

operating lever the wipers continue for another 1 to 3 strokes

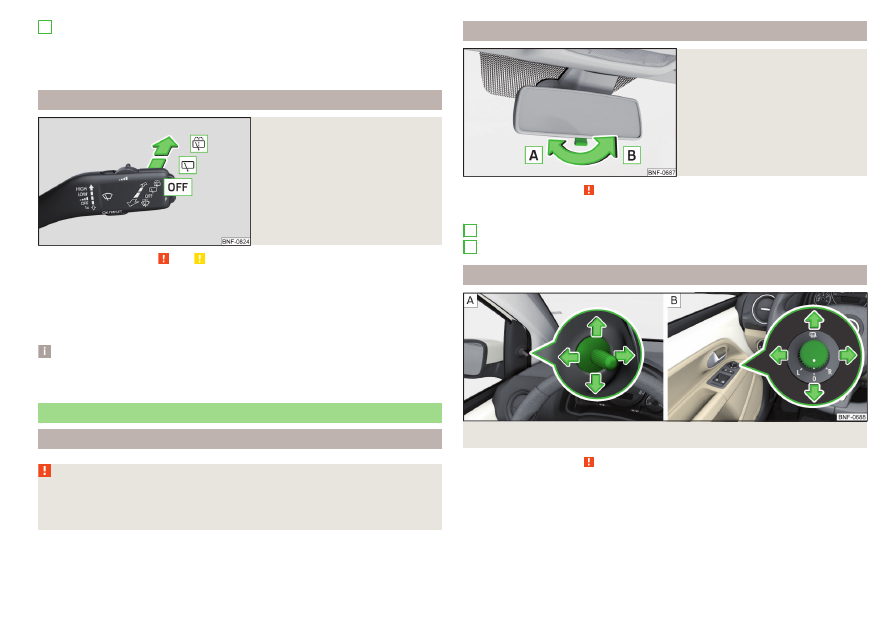

Rear wipers and washer

Fig. 49

Operation of the rear wiper and

washer system



Read and observe   and   on page 48 first.

Spraying and wiping the disc (spring-loaded position) - after releasing the

operating lever the wipers continue for another 1 to 3 strokes.
Rear screen wiping
Wipers and washers off

Note

The rear window is wiped once automatically if the windscreen wipers are on

when reverse gear is selected.

Rear view mirror



Introduction

WARNING

Exterior mirrors increase the field of view, however, they make objects ap-

pear smaller and further away. Therefore use the interior mirror whenever

possible, for assessing the distances to the vehicles following behind.

A









Interior mirror dimming

Fig. 50

Mirror positions



Read and observe   on page 49 first.

Mirror positions

» Fig. 50

Basic mirror position (not darkened)
Mirror blackout

Exterior mirrors

Fig. 51  Exterior mirror operation: mechanical / electrical



Read and observe   on page 49 first.

The outer mirror surfaces are (depending on the vehicle specification) me-

chanically or electrically adjustable.

›

To set the mirror surface, move the knob in the direction of arrows

» Fig. 51

.

If the electrical mirror setting fails at any time, the mirrors can be adjusted by

hand by carefully pressing on the edge of the mirror surface.



A
B

49

Lights and visibility

The knob for the electrically adjustable mirrors can be moved to the following

positions

» Fig. 51

 - .

Adjust the left-hand exterior mirror
Switch off mirror control
Adjust the right-hand exterior mirror
Exterior mirror heater (only operates when the engine is running)

Folding in the exterior mirrors

The mirror can be instructionly folded in towards the side window. To put it back

into its original position, it should be folded back from the side window until it

audibly clicks into place.

WARNING

Do not touch the exterior mirror surfaces, if the exterior mirror heating is

switched on - hazard of burning.









Seats and head restraints

Front seats



Introduction

WARNING

■

Only adjust the driver's seat when the vehicle is stationary – otherwise

risk of accident!

■

Caution when adjusting the seat! You may suffer injuries or bruises as a

result of adjusting the seat without paying proper attention.

Adjusting the front seats

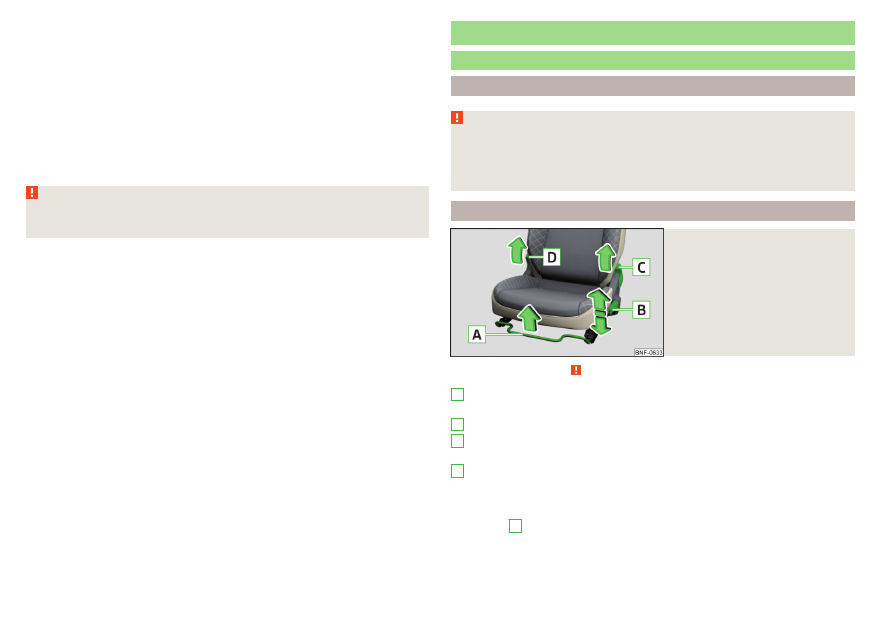

Fig. 52

Controls on the left front seat



Read and observe   on page 50 first.

Adjusting the seat in the longitudinal direction (after releasing the control

lever, locking must be audible)
Adjusting the seat height
Adjusting the tilt of the backrest (do not lean on the backrest when adjust-

ing)
Adjust the tilt of the seat back (seats with Easy Entry System)

Some controls are arranged in mirror image formation on the passenger seat.

Fold forward and slide seat using the Easy Entry System

›

Pull lever

D



» Fig. 52

 and fold the seat backrest forwards.

›

At the same time, move the seat forwards.

Restore position of the seat with Easy Entry System

›

Push the seat backwards again to its original position.



A

B
C

D

50

Using the system

›

Fold the seat backrest back. The locking mechanism must audibly snap into

place.

›

Check this by pulling on the seat backrest.

Note

After a certain time, play can develop within the adjustment mechanism of the

backrest angle.

Folding front passenger seat

Fig. 53

Folding the front passenger seat

forward



Read and observe   on page 50 first.

The front passenger seat can (depending on vehicle equipment fitted) be fol-

ded forward into a horizontal position.

›

To fold the seat down, pull the lever in the direction of arrow

1

 and fold

down the seat back in the direction of arrow

2



» Fig. 53

. The locking mecha-

nism must audibly snap into place.

›

Slide the seat forwards up to the stop.

›

To fold back, pull the lever in the direction of arrow

1

 pull and fold back the

seat back in the direction of arrow

2

. The locking mechanism must audibly

snap into place.

›

Move the seat all the way back to the stop (depending on the specification,

the seat may resume the forward position it previously had).

WARNING

■

If the seat backrest is folded down, only the seat behind the driver's seat

can be used to transport passengers.

■

When transporting objects on the folded seat backrest, the front passen-

ger airbag should be deactivated

» page 16

.

■

Do not adjust the seat back while driving - danger of injury and accidents!

WARNING (Continued)

■

When moving the seat backrest, keep limbs out of the area between the

seat and seat backrest – risk of injury!

■

Never transport the following items on the seat backrest when folded

forwards.

■

Objects that could restrict the driver's view.

■

Objects which make it impossible for the driver to control the vehicle

(e.g. if they roll under the pedals, or protrude into the driver's zone).

■

Objects which could lead to injury to passengers (e.g. if accelerating

sharply, braking or changing direction).

Rear seat backrests

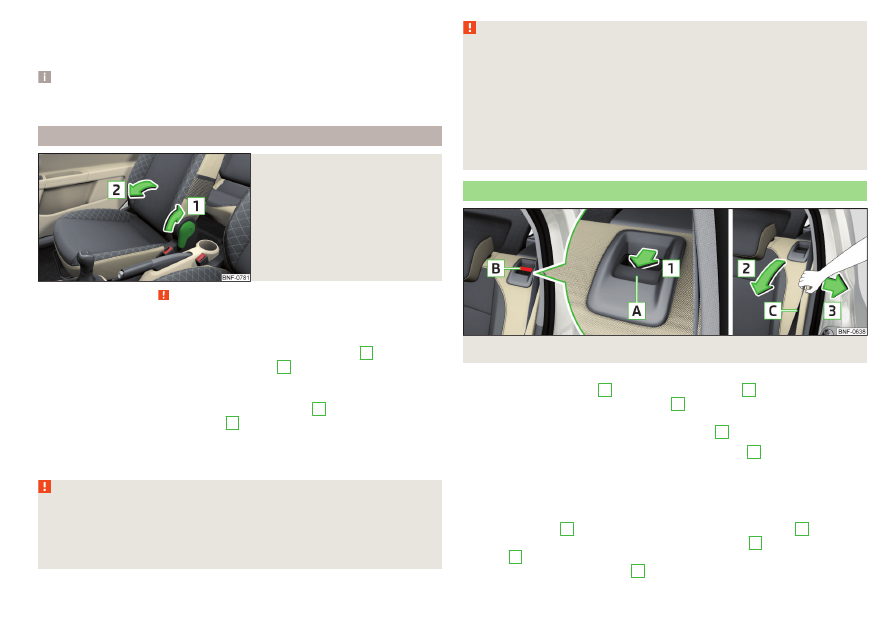

Fig. 54  Fold down seat backrest / pull on belt for side trim panel

Folding forward

›

Press the release handle

A

 in the direction of arrow

1

 and tilt

» Fig. 54

 the

seat backrest in the direction of arrow

2

.

›

Remove or push the head restraints all the way down

» page 52

 and fold the

seat backrest forward in the direction of arrow

2

.

For all-in-one seat backrests, press the release handles

A

 on both sides of the

seat backrest at the same time.

Folding backwards

›

If the head restraints had been removed, they should be reinserted with the

backrest slightly raised

» page 52

.

›

Pull the seat belt

C

 for the side panel in the direction of arrow

3



» Fig. 54

.

›

Raise the seat backrest against the direction of arrow

2

 until the release

handle

A

 audibly locks. Check this by pulling on the seat backrest.

›

Make sure that the red marker

B

 is not visible.



51

Seats and head restraints

For all-in-one seat backs, pull the two seat belts towards the side panel. After

folding back the seat back, the release handles

A

 should audibly click into

place on both sides of the seat back and the red mark

B

 should not be visible

on either side of the seat back.

WARNING

■

The seat backs in occupied rear seats must be properly engaged.

■

When transporting objects in the luggage compartment that has been en-

larged by folding the backrest forward, ensure the safety of the passenger

being transported on the other rear seat.

■

The seat backrests must be securely locked in position so that no objects

in the luggage compartment can slide into the passenger compartment on

sudden braking – risk of injury.

CAUTION

When moving the seat backrest the seat belts should not be trapped - there is

a risk of damage to the seat belts.

Headrests

Setting the height

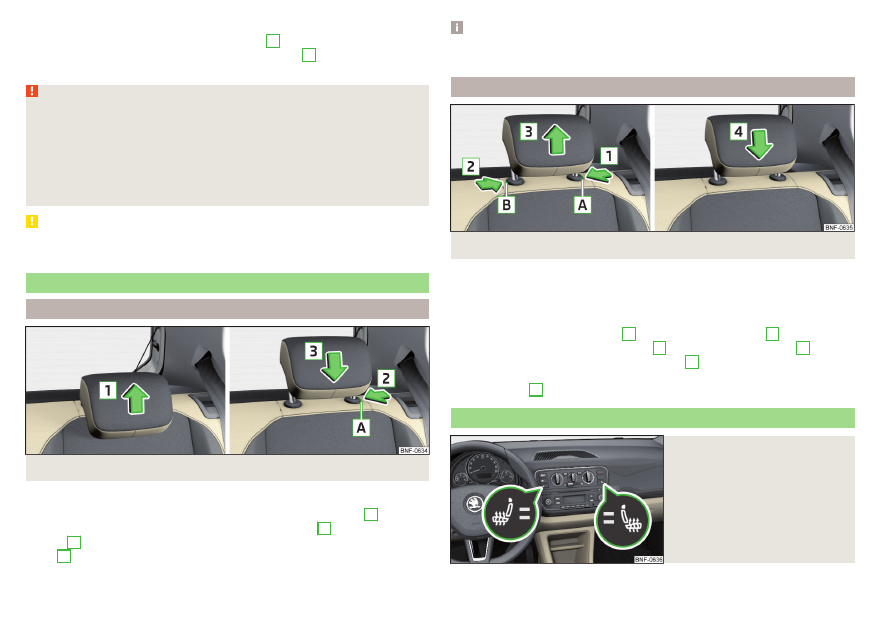

Fig. 55  Setting the height of the back headrest

Only the front headrests are height-adjustable.

›

Grasp the headrest and move upwards in the direction of arrow

1



» Fig. 55

.

›

To move the headrest down, press the securing button

A

 in the direction of

arrow

2

 and hold it down while pressing the headrest in the direction of ar-

row

3

.

Note

The front headrests are integrated into the seat backrests and cannot be ad-

justed in height.

Removing/inserting

Fig. 56  Removing/inserting the rear headrests

Only the rear headrests can be removed or installed.

›

Before removing/fitting the headrests, fold the corresponding seat backrest

slightly forward

» page 51

.

›

To remove the headrest, pull it out of the seat backrest as far as the stop.

›

Hold down the securing button

A

 in the direction of arrow

1

, at the same

time insert the vehicle key in opening

B

 in the direction of arrow

2

 and re-

move the headrest in the direction of arrow

3



» Fig. 56

.

›

To insert the headrest, push the headrest into the seat backrest in the direc-

tion of arrow

4

 until the locking button clicks into place.

Front seat heating

Fig. 57

Buttons for heating the front

seats

The seat backrests and seats can be heated electrically.



52

Using the system

Buttons for the seat heating

» Fig. 57

Left seat heating
Right seat heating

›

To turn on the heater at maximum heat (level 2), press button  or .

By repeatedly pressing the button, the heat is turned down until it is complete-

ly switched off. The seat heating level is indicated by the number of illumina-

ted warning lights in the switch.
The seat heating only operates when the engine is running.

WARNING

If you are sensitive to pain and/or temperature, e.g. through medication, pa-

ralysis or because of chronic illness (e.g. diabetes), we recommend not to

use the seat heating. If the seat heating is used, we recommend to make

regular breaks in your journey when driving long distances, so that the body

can recuperate from the stress of the journey. Please consult your doctor,

who can evaluate your specific condition.

CAUTION

The following instructions should be observed to avoid damage to the seats.

■

Do not kneel on the seats or otherwise apply concentrated pressure to them.

■

Do not switch on the heating for unoccupied seats.

■

Do not switch on the heating for seats which have objects on them (e.g. a

child seat, bag or similar).

■

Do not switch on the heating for seats which have seat covers or protective

covers on them.

Note

■

If the heaters for the rear seats are set to their highest intensity - level 2,

they are automatically switched down to level 1 after approx. 15 minutes.

■

If the on-board voltage decreases, the seat heating switches off automatical-

ly

» page 117

, Automatic consumer shutdown - Car battery discharge protec-

tion.





Useful features

Passenger compartment features



Introduction

WARNING

■

Do not place anything on the dash panel. These objects might slide or fall

down when driving and may distract you from concentrating on the traffic

– risk of accident!

■

Make sure that while driving no objects can enter the driver's footwell -

they could cause an accident!

■

Do not carry any objects on the front passenger seat except objects de-

signed for this purpose (e.g. child seat) – risk of accident!

■

No objects should be placed in the storage compartments nor in the

drinks holders; the vehicle occupants could be endangered if there is sud-

den braking or the vehicle collides with something.

■

For safety reasons, lockable storage compartments should be closed

while driving - there is a risk of injury from the opened lid or through the

loose objects in the compartment.

■

Make sure no objects protrude from the storage compartments - danger

of injury!

■

Do not exceed the permissible loads for the storage compartments and

pockets - risk of injury and risk of damage to the compartments and pock-

ets!

■

Ash, cigarettes, cigars and the like should only be stored in the ashtray -

danger of fire/burns!

■

The storage compartments, multimedia holder and waste container are

not a substitute for the ashtray and must not be used for such purposes –

risk of fire!

CAUTION

Do not place any large or sharp objects in the storage compartments and

pockets - there is a risk of damage to the compartments and pockets.

53

Useful features

Ticket holder

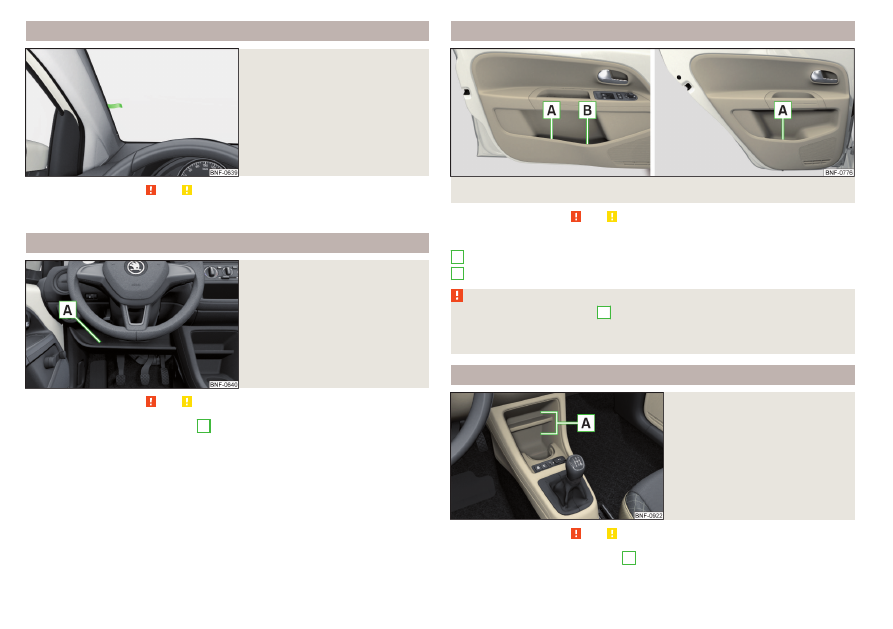

Fig. 58

Ticket holder



Read and observe   and   on page 53 first.

The ticket holder is provided for the attachment of e.g. parking tickets.

Storage compartment on the driver's side

Fig. 59

Storage compartment on the

driver's side



Read and observe   and   on page 53 first.

The open stowage compartment

A

 can be found underneath the dash panel

on the driver's side

» Fig. 59

.

Storage compartments in the doors

Fig. 60  Storage compartments: in the front door/in the rear door



Read and observe   and   on page 53 first.

Storage compartments

» Fig. 60

Storage compartment
Bottle holder with a capacity of max. 1.5 l

WARNING

The storage compartment

A



» Fig. 60

 is to be used exclusively for storing

objects which do not stick out - danger of restricting the effectiveness of

the side airbags.

Storage compartments in the front centre console

Fig. 61

Storage compartments



Read and observe   and   on page 53 first.

The open storage compartments

A

 can be found in the front centre console

» Fig. 61

.

A
B

54

Using the system

Cup holders

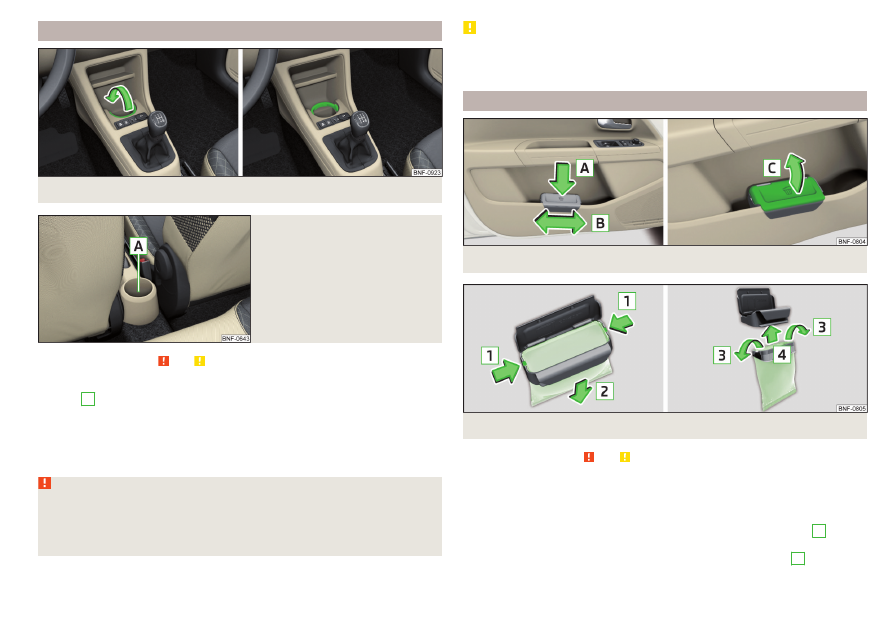

Fig. 62  Cup holder in the front

Fig. 63

Rear cup holder



Read and observe   and   on page 53 first.

The cup holders are located in the centre console at the front

» Fig. 62

 and at

the rear

A



» Fig. 63

.

›

to Fixing a beverage container in the holder forward open the holder in di-

rection of arrow

» Fig. 62

.

›

Place the cup into the cup holder so that the cup holder clip surrounds the

cup securely.

WARNING

■

Do not use any cups or beakers which are made of brittle material (e.g.

glass, porcelain). This could lead to injuries in the event of an accident.

■

Never put hot cups in the cup holders. If the vehicle moves, they may spill

– risk of scalding!

CAUTION

Do not leave open beverage containers in the cup holders during the journey.

There is a risk of spilling e.g. when braking which may cause damage to the

electrical components or seat upholstery.

Waste container

Fig. 64  Waste container: inserting and moving/opening

Fig. 65  Replace bags



Read and observe   and   on page 53 first.

The waste container can be inserted into the slots in the doors.

Insert waste container

›

Position the waste container at the front edge of the slot.

›

Push the waste container to the back in the direction of the arrow

A

» Fig. 64

.

›

Push the waste container as required in the direction of arrow

B

.



55

Useful features

Remove the waste container

›

Remove the waste container in the opposite direction to the arrow

A

» Fig. 64

.

Open/close waste container

›

Lift the lid in the direction of arrow

C



» Fig. 64

.

Closing takes place in reverse order.

Replace bags

›

Remove the waste container from the slot.

›

Press the two locking lugs on the frame in the direction of arrow

1

» Fig. 65

.

›

Pull the bag together with the frame down in the direction of arrow

2

.

›

Remove the bag from the frame.

›

Pull the new bag through the frame and pull it over the frame in the direction

of arrow

3

.

›

Place the bag with the frame in the direction of arrow

4

 into the container

body, so that the two lugs engage audibly on the frame.

Note

We recommend that you use 20x30 cm bags.

Cigarette lighter

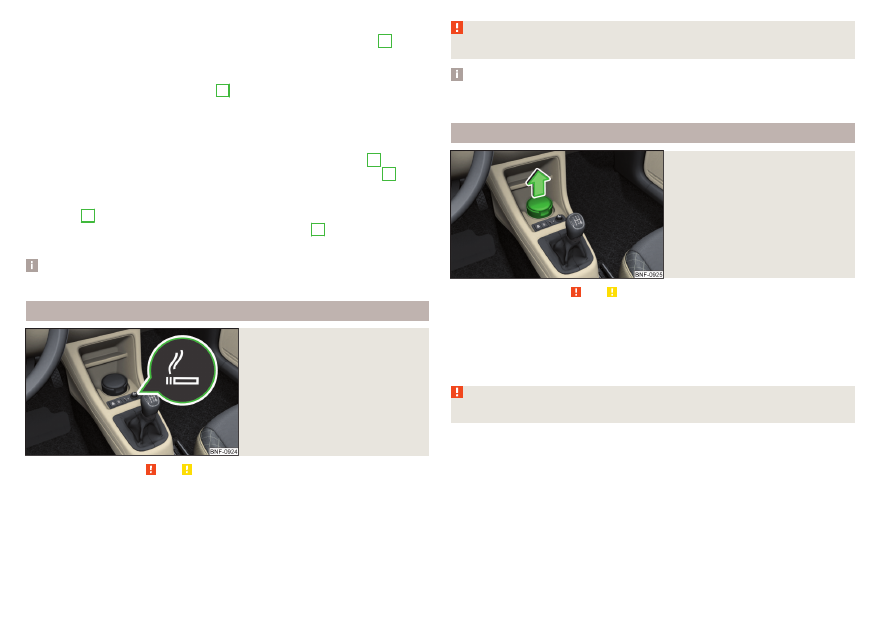

Fig. 66

Cigarette lighter



Read and observe   and   on page 53 first.

›

To use the lighter, push it in as far as the stop and wait until the glowing

lighter clicks out again

» Fig. 66

.

›

Take out the glowing lighter instantly, use it and insert it back into the sock-

et.

WARNING

Be careful when using the cigarette lighter - can cause burns.

Note

■

The cigarette lighter operates only if the ignition is switched on.

■

The cigarette lighter socket can also be used as a 12 volt socket.

Ashtray

Fig. 67

Removing the ashtray



Read and observe   and   on page 53 first.

The ashtray can be used for disposing of ash, cigarettes, cigars and the like.

›

Grasp the ashtray (not by the lid) and remove

» Fig. 67

 it in the direction of

the arrow.

Insertion takes place in reverse order.

WARNING

Never place hot or flammable objects in the ashtray – risk of fire!

56

Using the system

12-volt socket

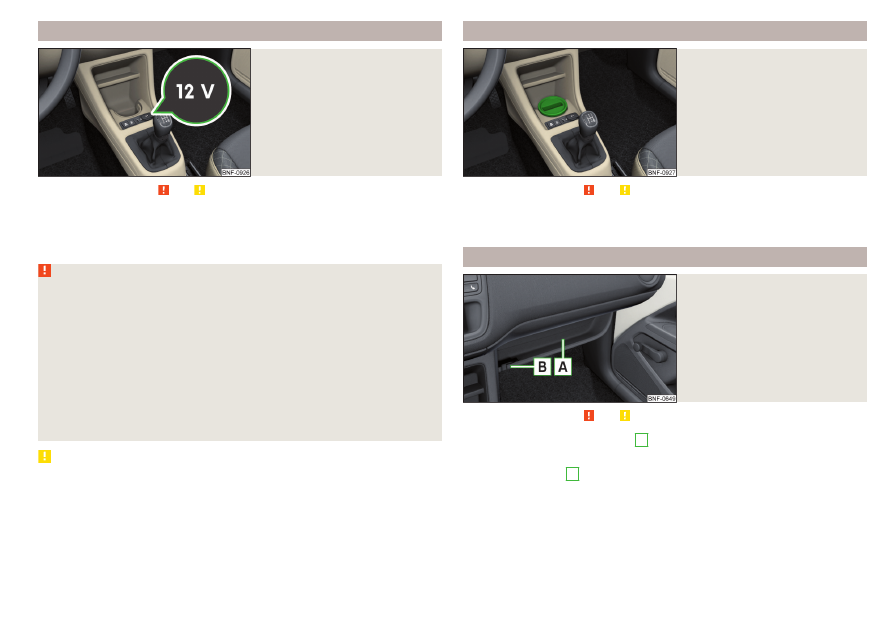

Fig. 68

12-volt socket



Read and observe   and   on page 53 first.

›

To use, open the cover of the socket and insert the lead of the electrical ap-

pliance in the socket

» Fig. 68

.

The 12-volt socket will only work when the ignition is switched on.

WARNING

■

Do not place anything on the dash panel. These objects might slide or fall

down when driving and may distract you from concentrating on the traffic

– risk of accident!

■

Make sure that while driving no objects can enter the driver's footwell -

they could cause an accident!

■

Stow all devices safely during the journey to prevent them from being

thrown around the interior in the event of a sudden braking manoeuvre or

an accident – risk of death!

■

The devices may warm up during operation – risk of injury or fire!

■

Improper use of the power sockets and the electrical accessories can

cause fires, burns and other serious injuries.

CAUTION

■

The sockets can only be used for the connection of approved electrical ac-

cessories with a total power consumption of up to 120 watts - otherwise the

electrical system of the vehicle may be damaged.

■

Connecting appliances when the engine is not running will drain the vehicle's

battery!

■

Switch off the device connected to the power socket before you switch the

ignition on or off and before starting the engine - danger of damage caused by

voltage fluctuations.

Multimedia holder

Fig. 69

Multimedia holder



Read and observe   and   on page 53 first.

The multimedia holder

» Fig. 69

 is provided for storing mobile phones, MP3

players and the like.

Storage compartment on the front passenger side - variant 1

Fig. 70

Storage compartment on the

front passenger side



Read and observe   and   on page 53 first.

The open stowage compartment

A

 can be found underneath the dash panel

on the front passenger's side

» Fig. 70

.

There is a bag hook

B

 in the stowage compartment which is used to hang

smaller items of luggage (e.g. bags, or similar).
The maximum permissible load on the hook is 1.5 kg.

57

Useful features
